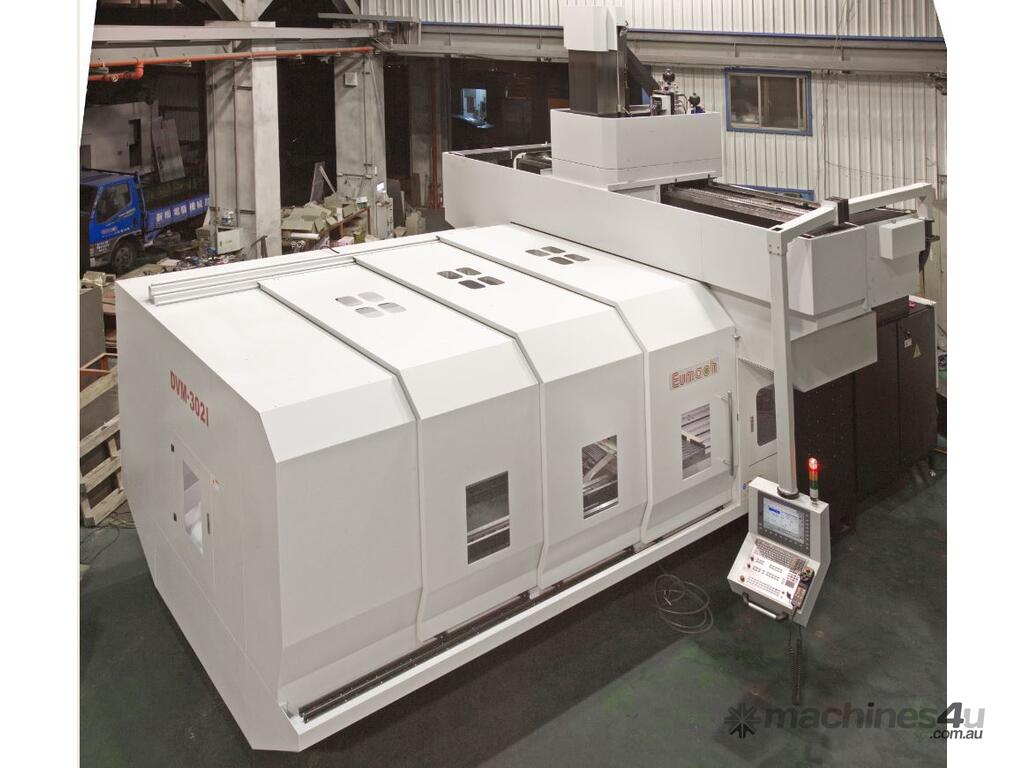

The EUMACH DVM series ram type double column machining centers are designed for heavy duty applications where rigidity and accuracy are essential.
Available capacities of:
X/Y/Z Travels from 2150mm x 1200mm x 700mm up to 5200mm x 2300mm x 900mm
Between column distances from 1400mm up to 2500mm.
Other capacities available on request.
The DVM machining center range features a single piece casting for the beam and columns and a massive head casting containing a 380mm x 380mm ram as standard or an extra heavy duty 420mm x 420mm.

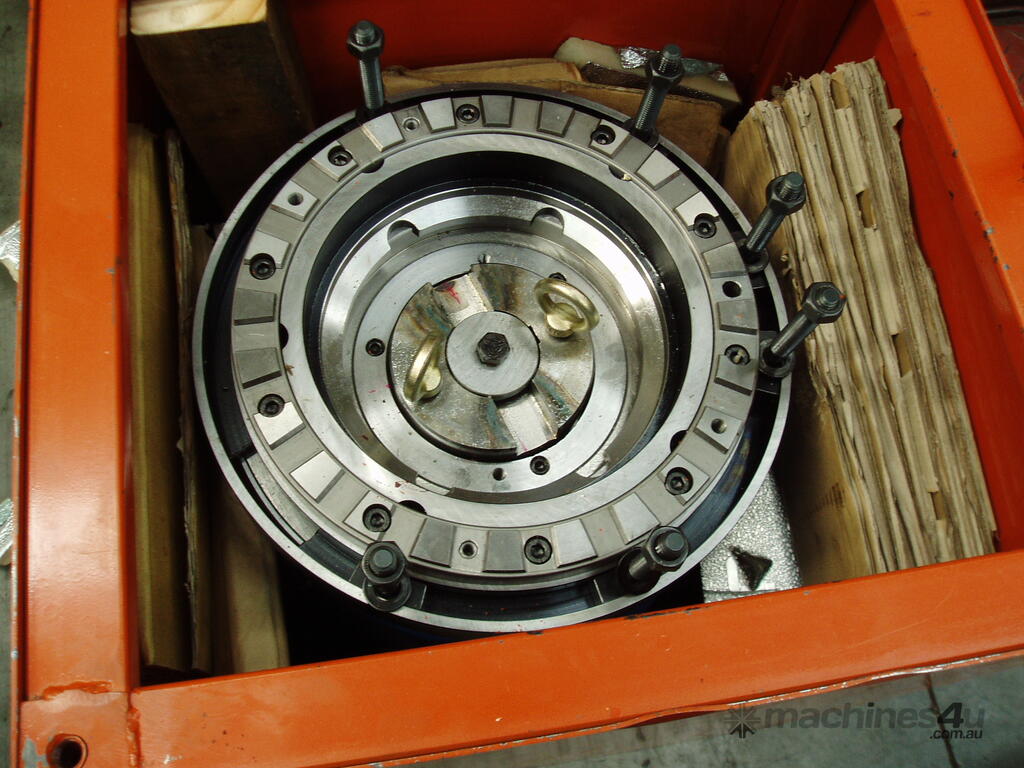

Available with various options of manual or programmable angled and universal heads, tool changers with up to 120 tool capacity, 4th axis tables and more the DVM may be configured to suit a wide variety of applications.

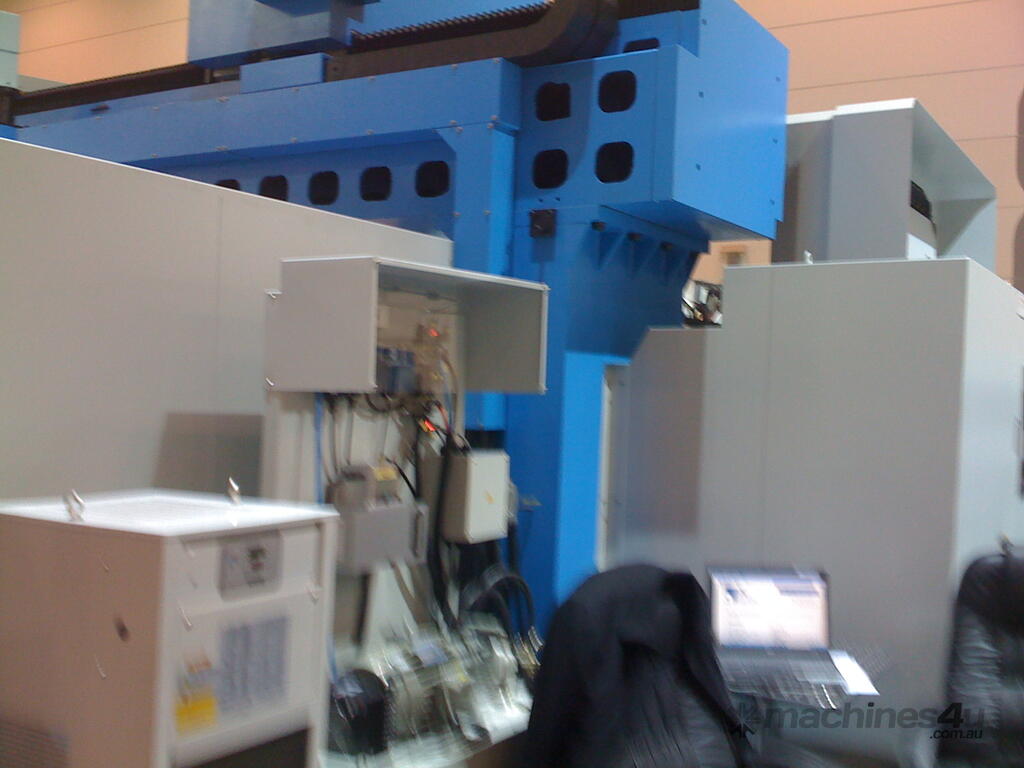

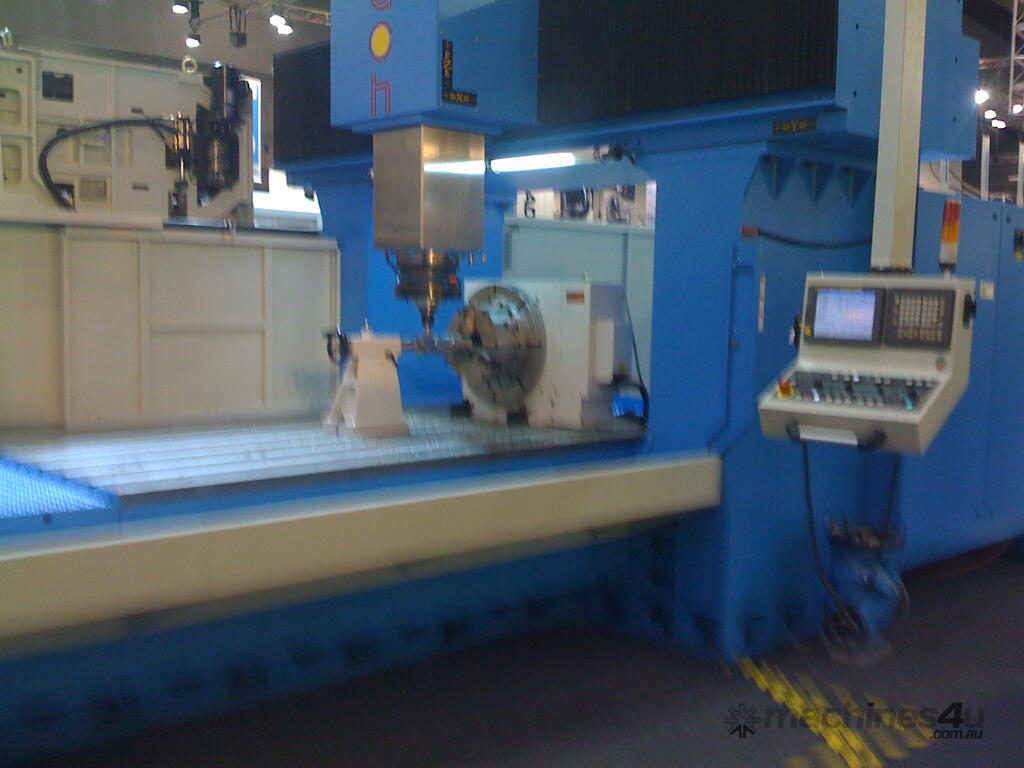

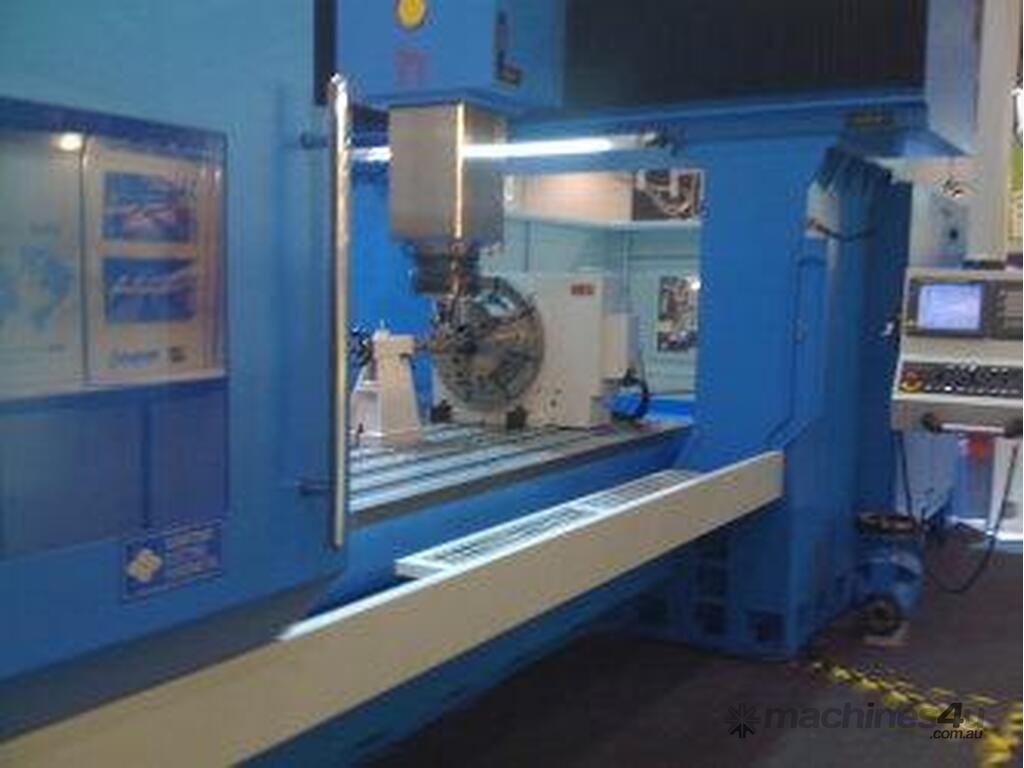

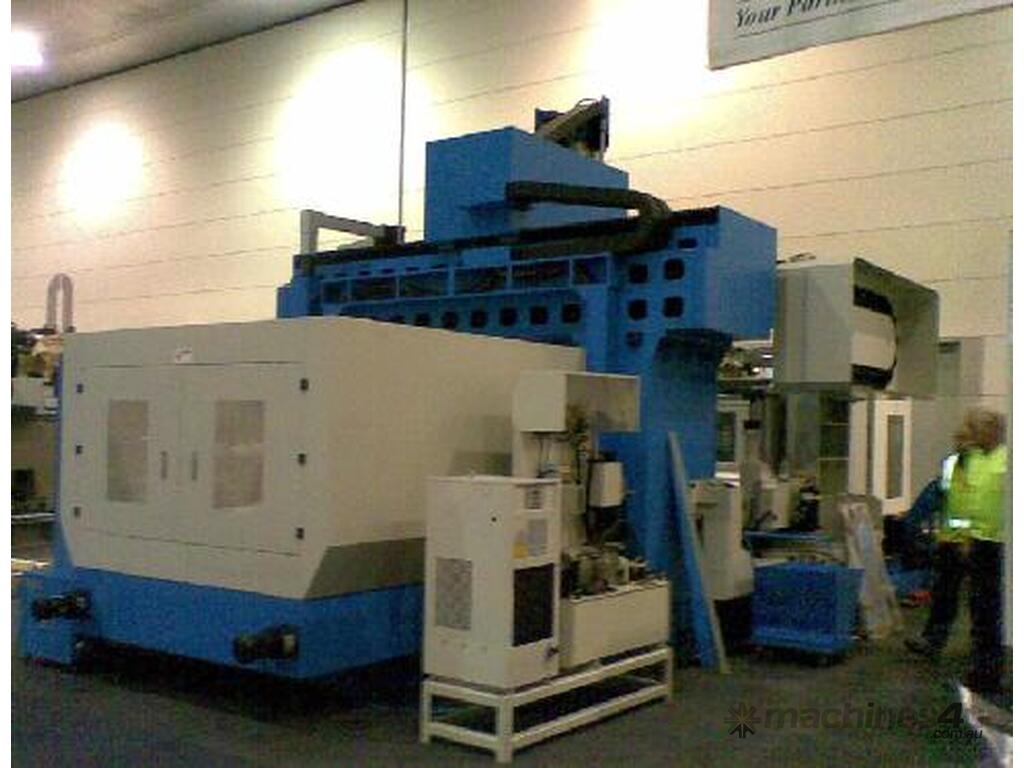

Pictured DVM-4025 with
- X/Y/Z TRAVEL:4200X2600X700MM
- TABLE SIZE : 4000X2100MM
- TABLE LOAD CAPACITY: 16000KG
- TWIN COLUMN DISTANCE: 2530MM

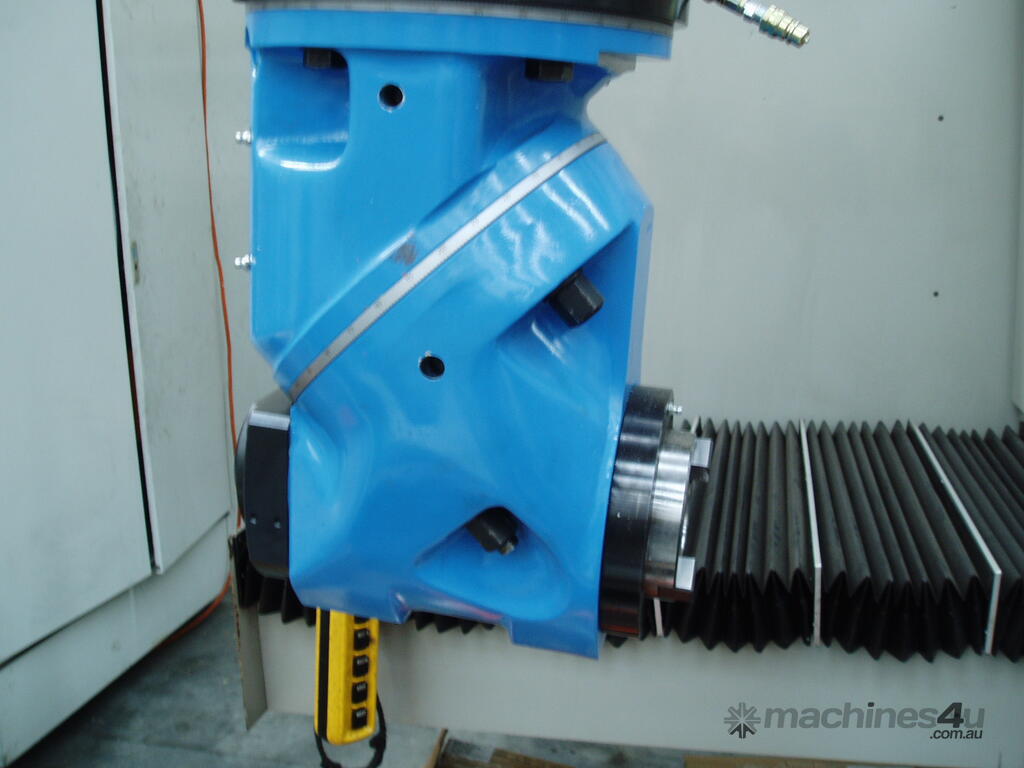

With Fanuc 18-iMB & AICC, Spanish Emena 3500rpm universal head, 10 bar high pressure through spindle coolant, 32 tool ATC, BT50/6000rpm motor spindle and 4th axis ready with wiring loom and drive for CNC-631RV.
Many other capacities, Fagor or Heidenhain controls and other options available.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for additional information.
