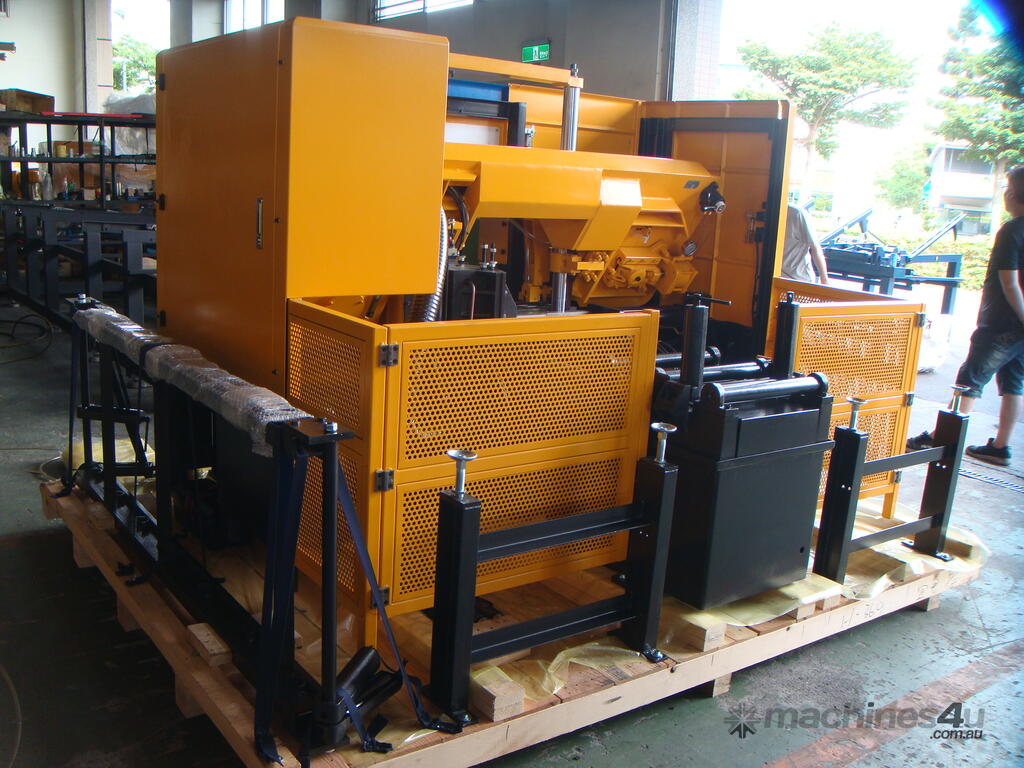

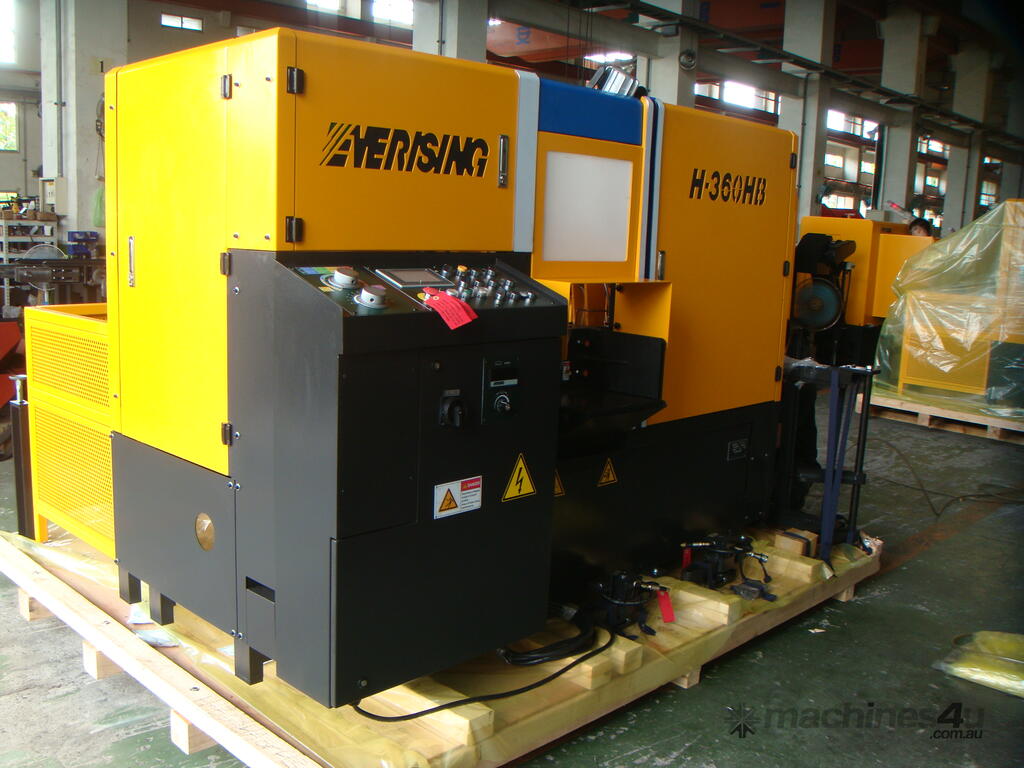

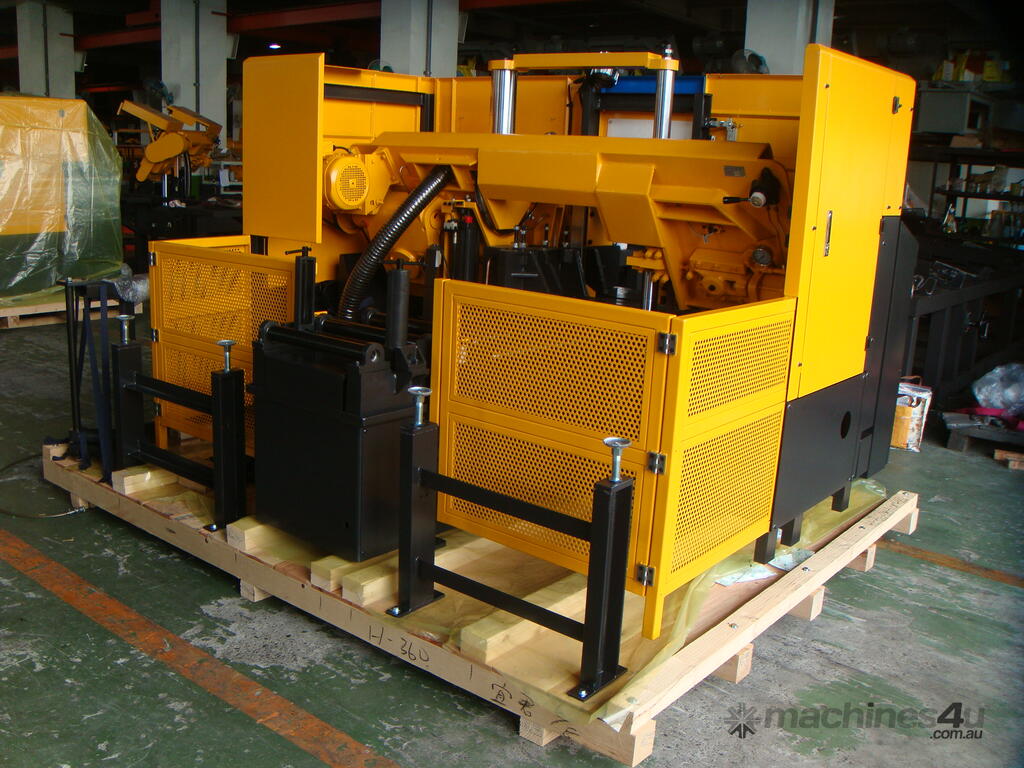

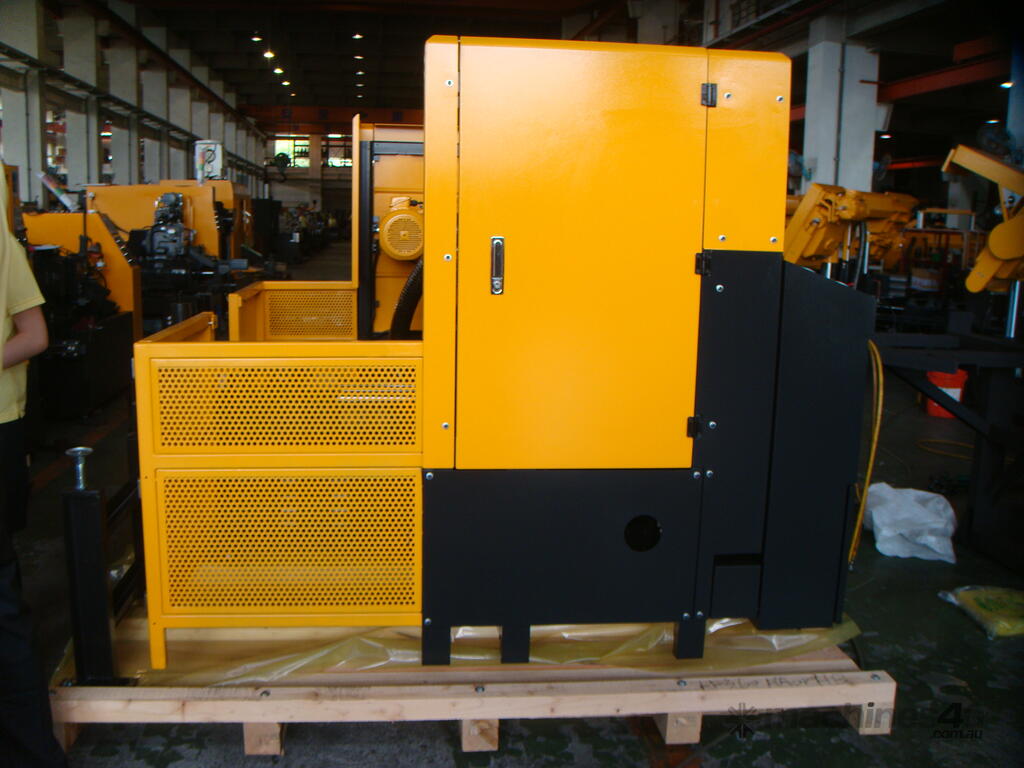

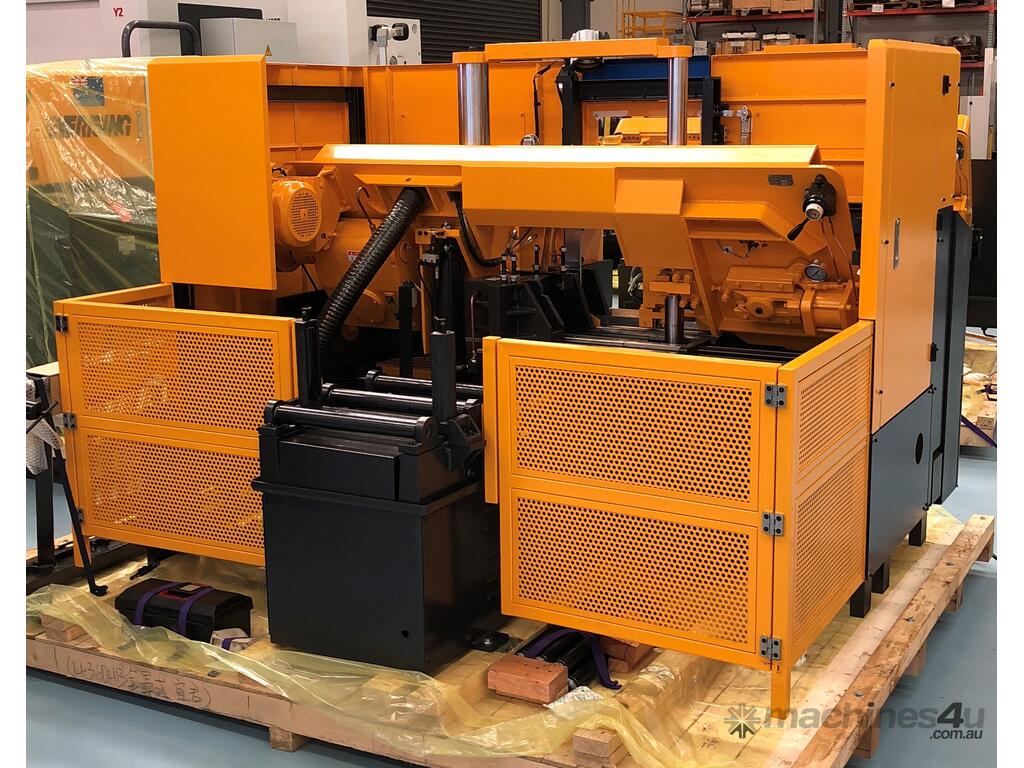

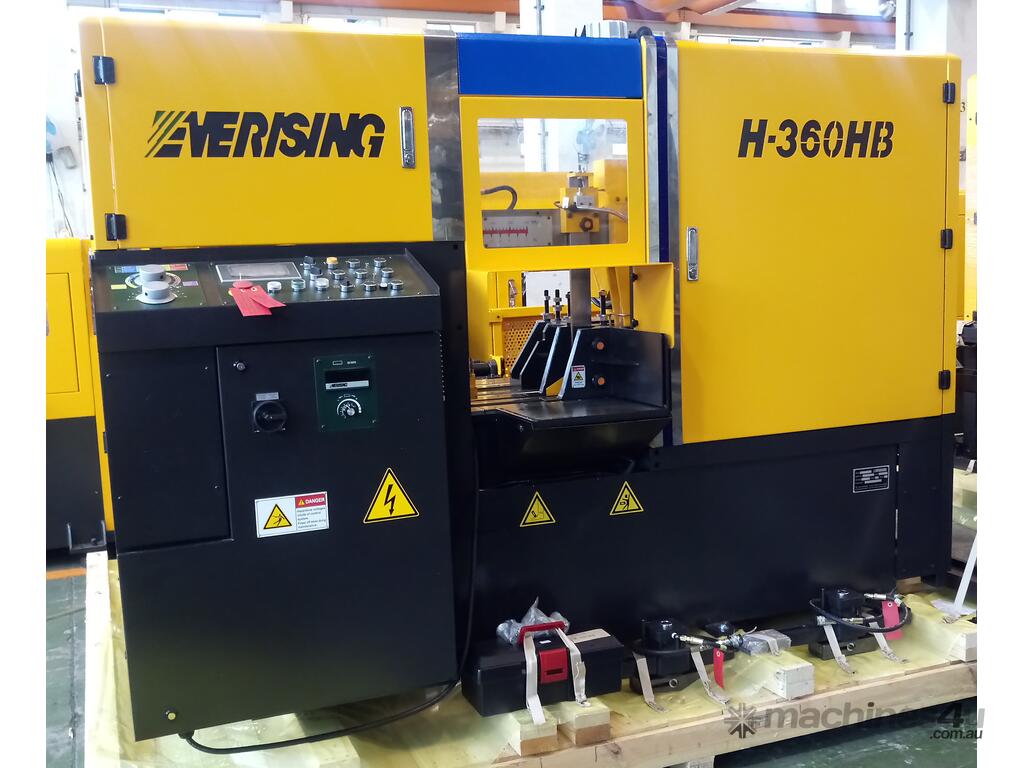

EVERISING H-360HBNC AUTOMATIC BAND SAW
FEATURES:

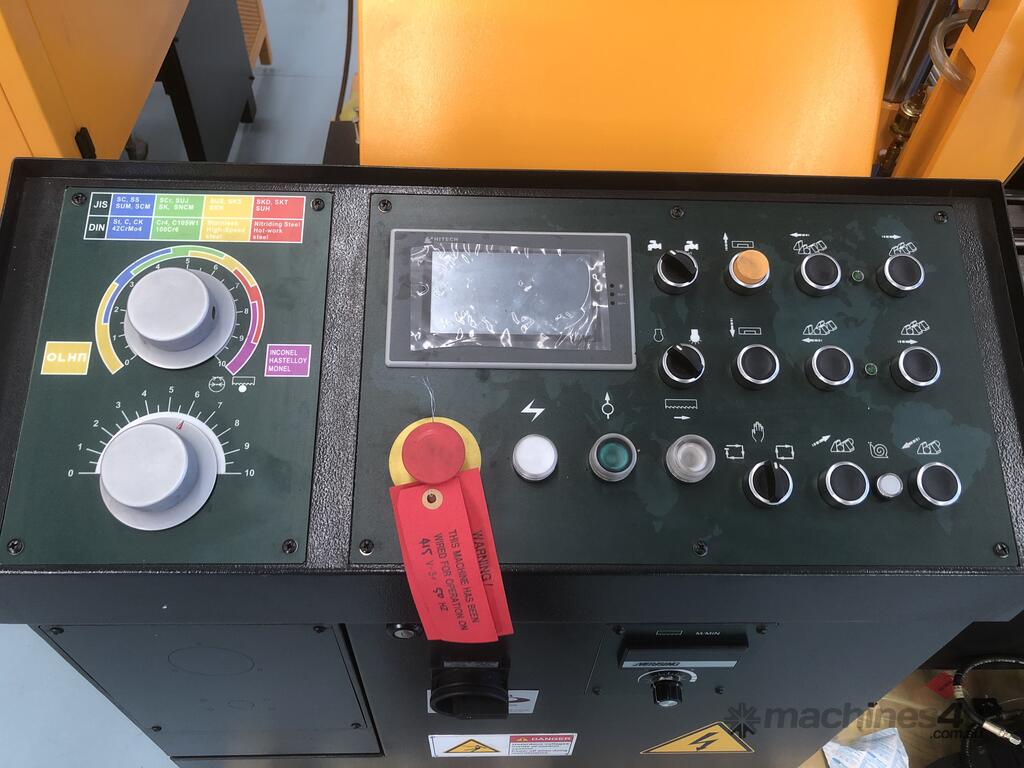

1. NC Touch screen control
2. Modified cover with 3 x status LED lights
3. Automatic chip conveyor
4. Full stroke vice clamping system

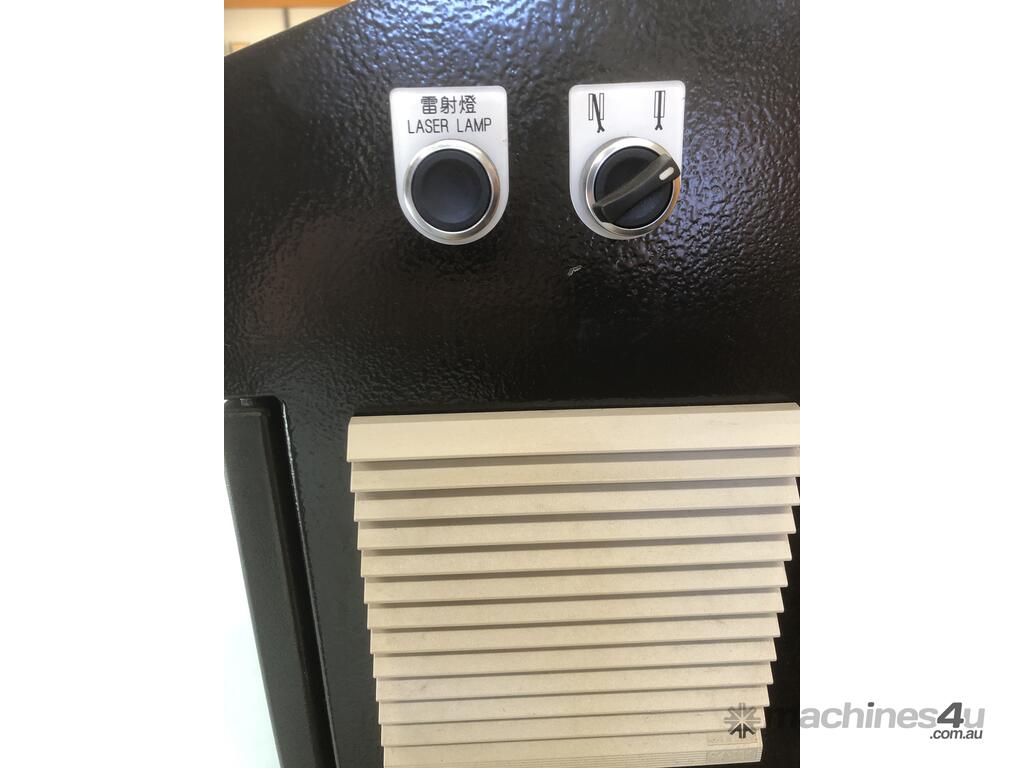

5. Laser light

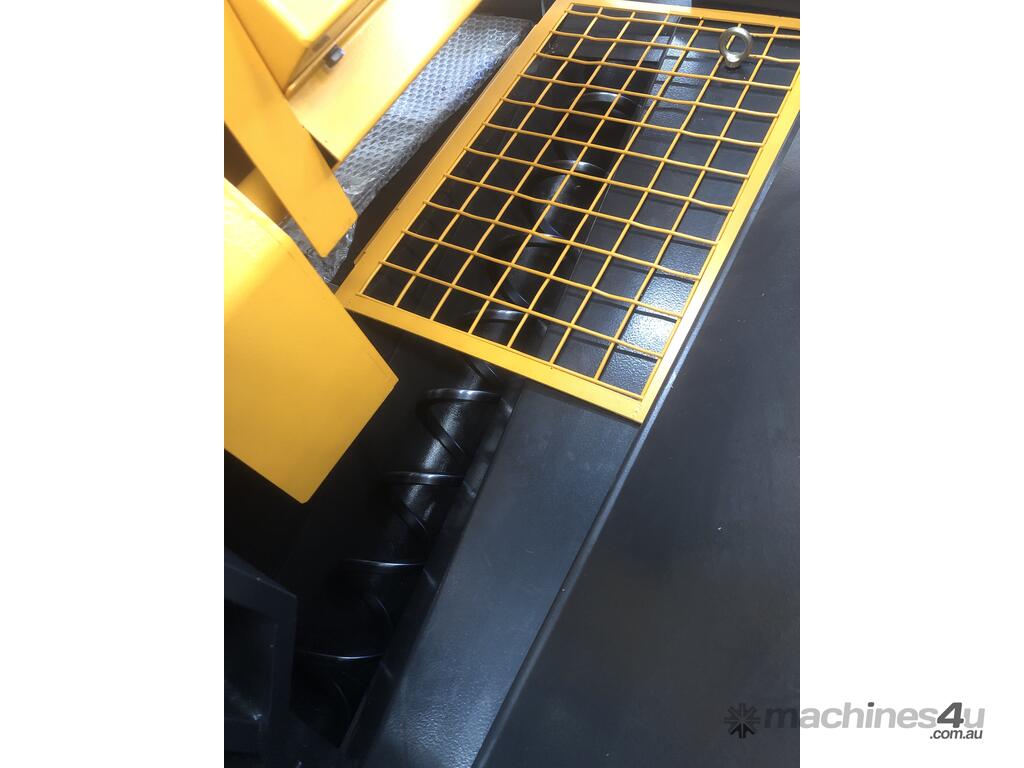

6. Wire mesh cover over chip conveyor

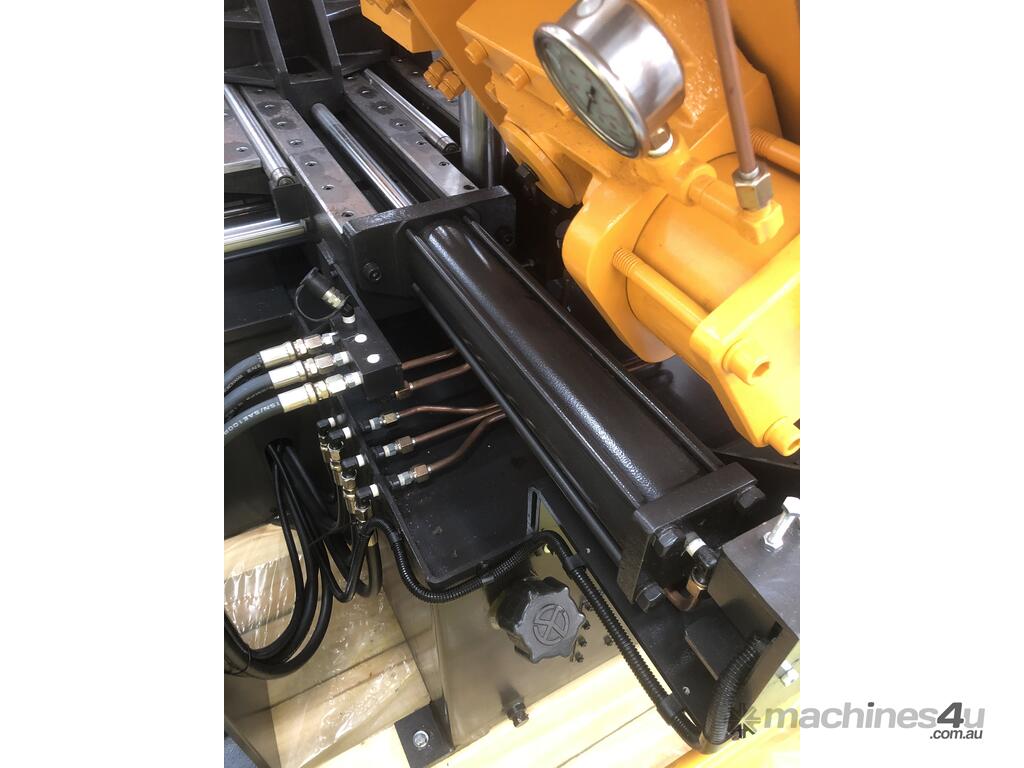

7. Shuttle type automatic feed
8. P.L.C. control for all electric and hydraulic function
9. Hydraulically controlled dual vice clamping system
10. Floating shuttle vice system

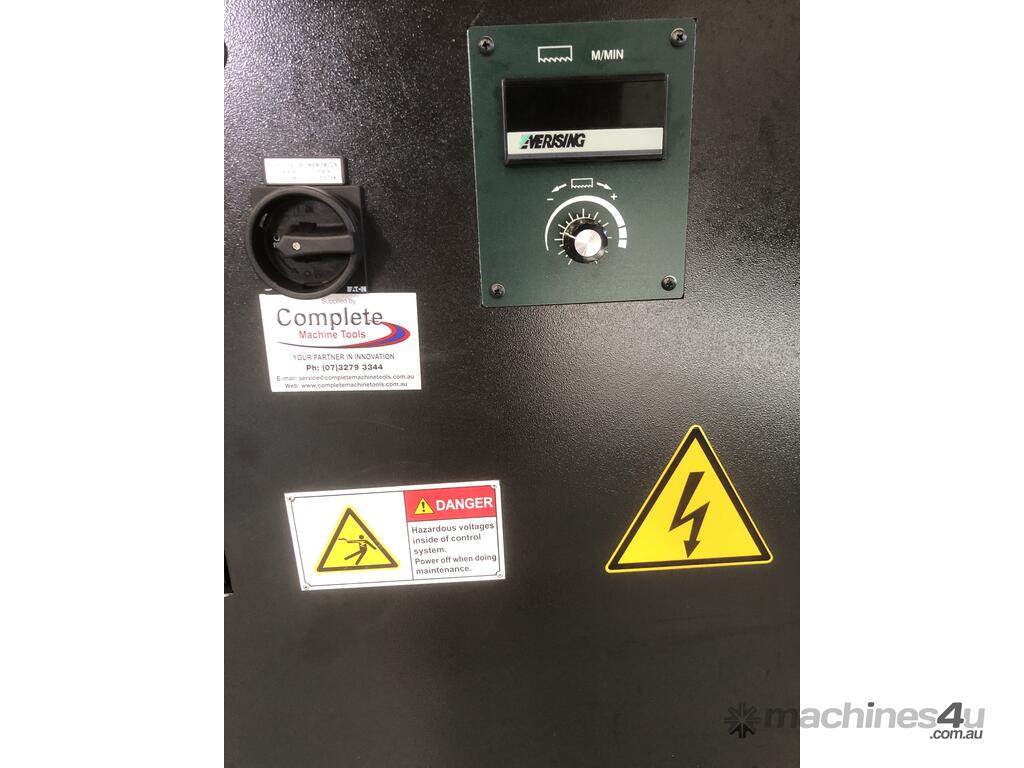

11. Split front vice

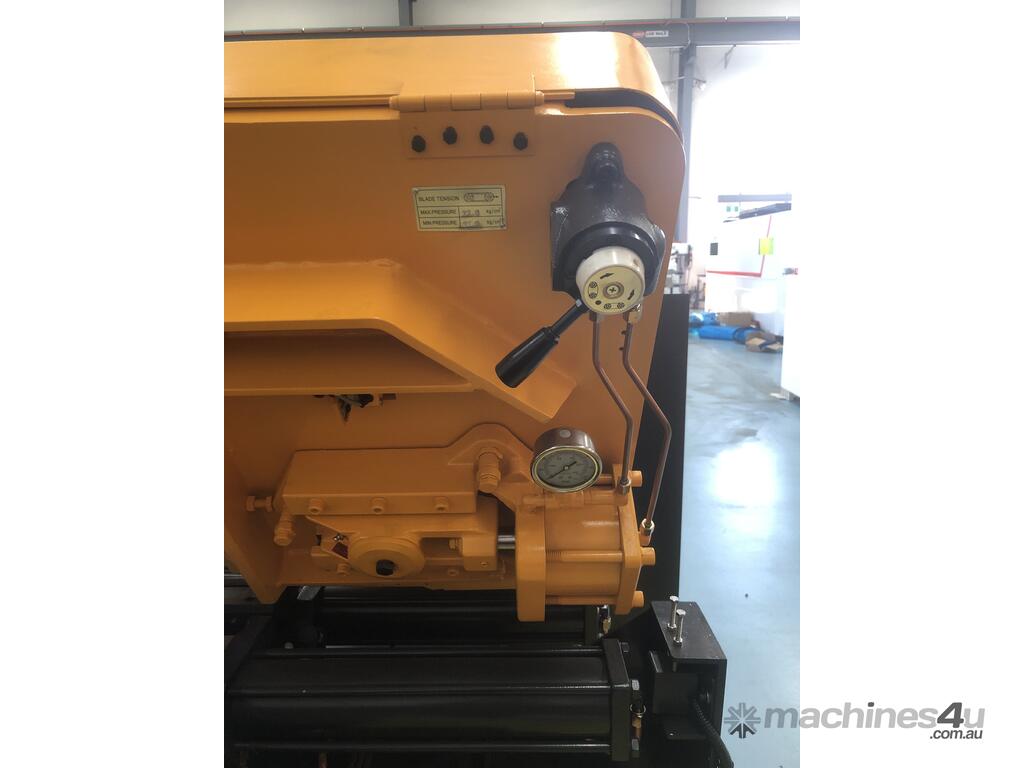

12. Infinitely variable speed control by inverter
13. Blade speed tachometer
14. Hydraulic blade tensioning
15. Automatic work height control by fast approach bar sensor
16. Preset cut counter with shut off
17. Out-of-stock shut off
18. Multiple indexing (9 times maximum)
19. Nesting fixture for bundle cutting

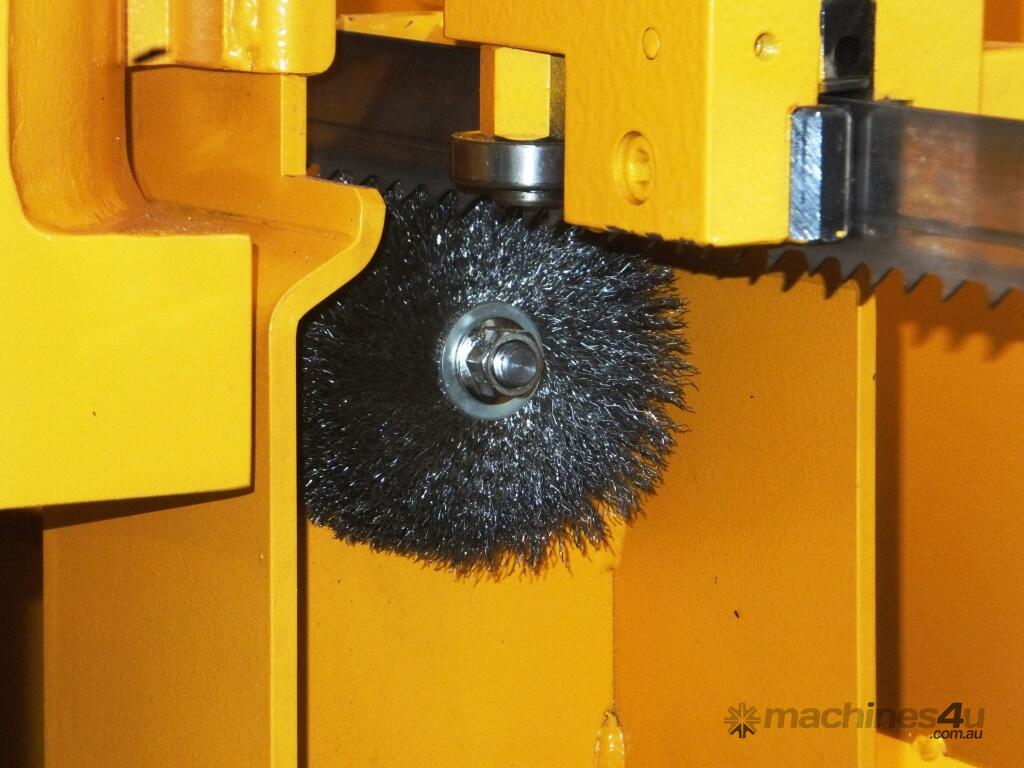

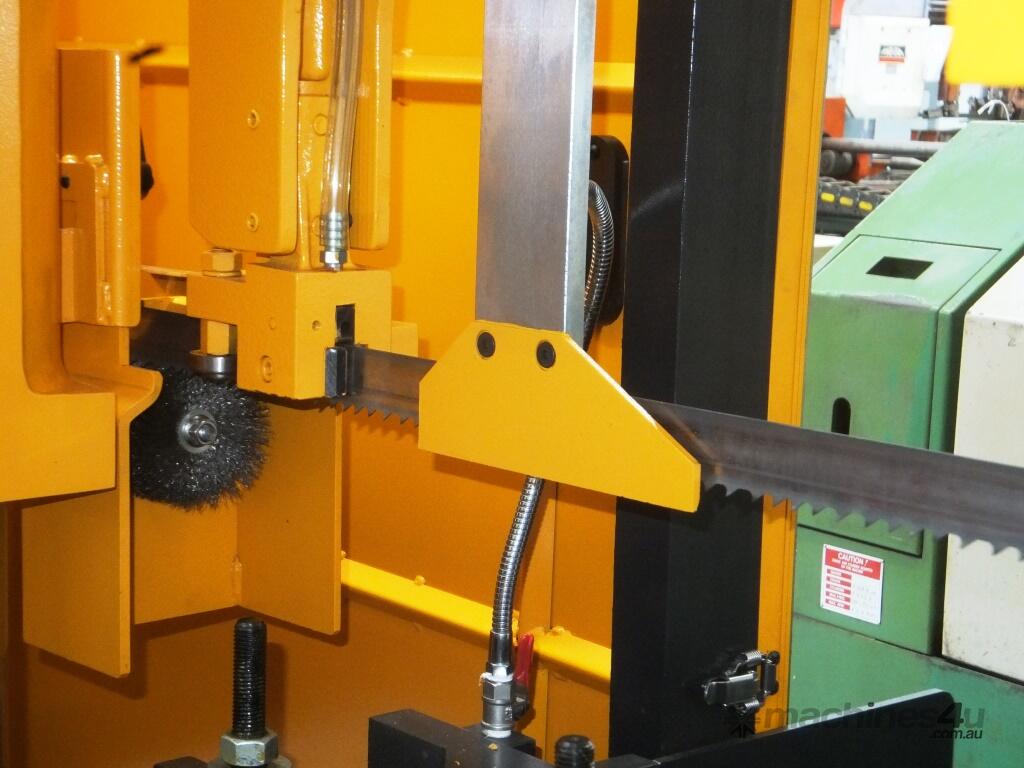

20. Power driven blade cleaning brush
21. Idler wheel motion detector with blade stalling and breakage shut off
22. Flushing hose for machine cleaning
23. Work light
24. Roller stock table 2M long
25. One M42 bi-metal saw blade
26. One set of tools and tool box

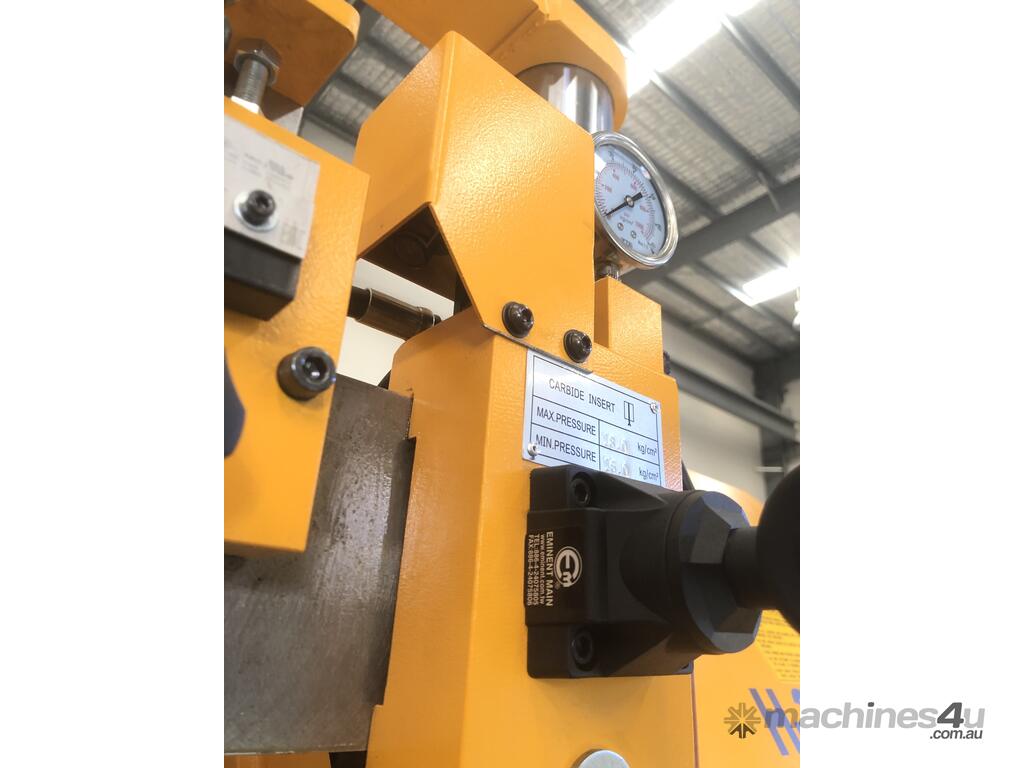

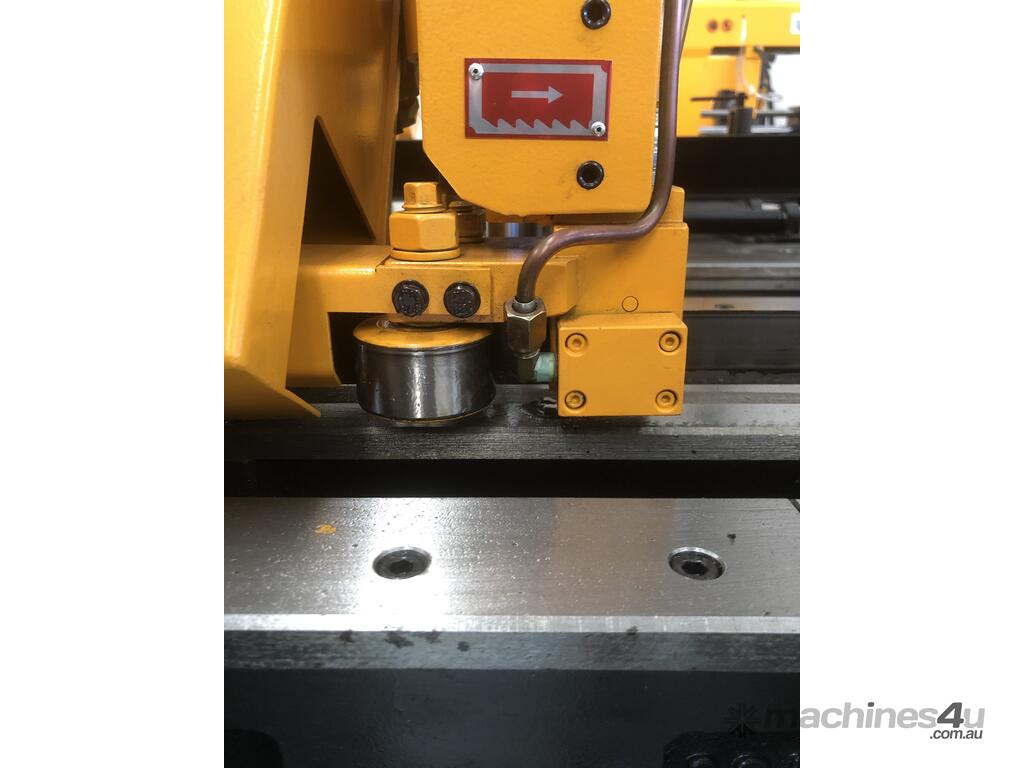

27. Hydraulically controlled roller bearing carbide blade guide system
28. Automatic trim cut detection of the material
29. Automatic Retracting of rear vice after cutting to protect the saw blade teeth
30. LED STATUS LIGHTS | 3 colour - RED|BLUE|GREEN
31. Rigid dual column design
SPECIFICATIONS:
Square capacity 360H x 360W
Round capacity 360mm
Bundle cutting height 50mm – 160mm
Bundle cutting width 180mm - 280mm
Blade size 4420L X 34W X 01.1T
Machine weight 2000kg
Coolant pump motor 1/8HP
Hydraulic pump motor 2HP
Blade drive motor 5HP
Shuttle bar feed 500mm
Blade speed 20 -100m/min
Floor Space 2500 x 2200mm
