EVERISING QUALITY AND PERFORMANCE

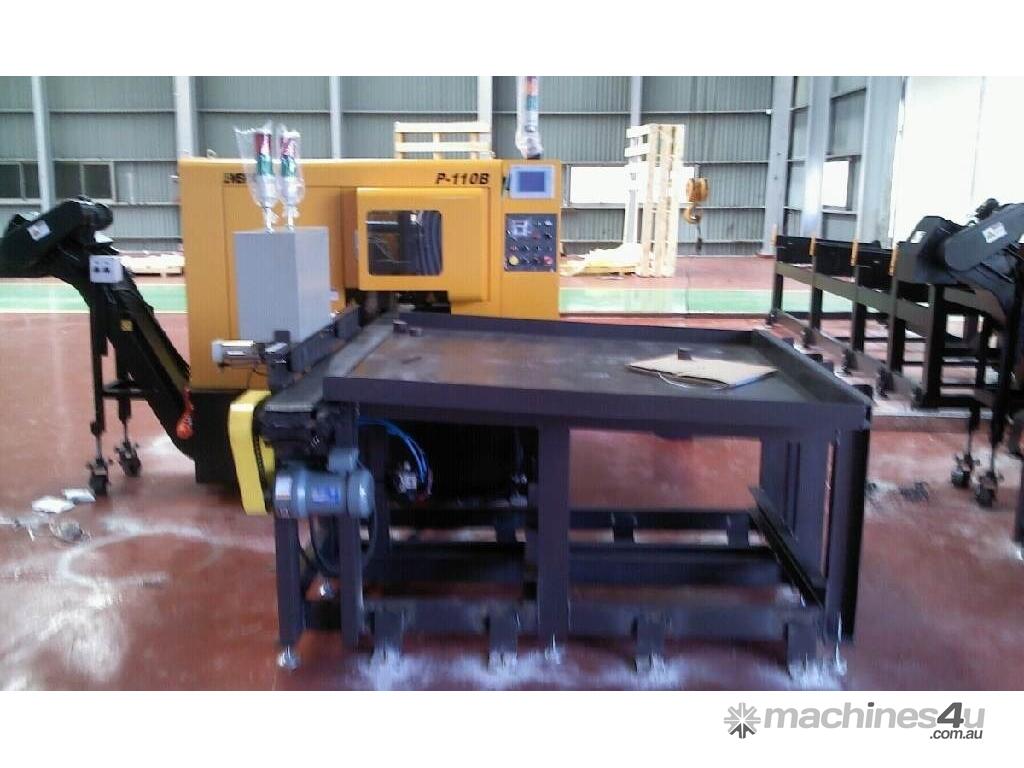

P SERIES FULLY AUTOMATIC CNC CIRCULAR SAWING MACHINES

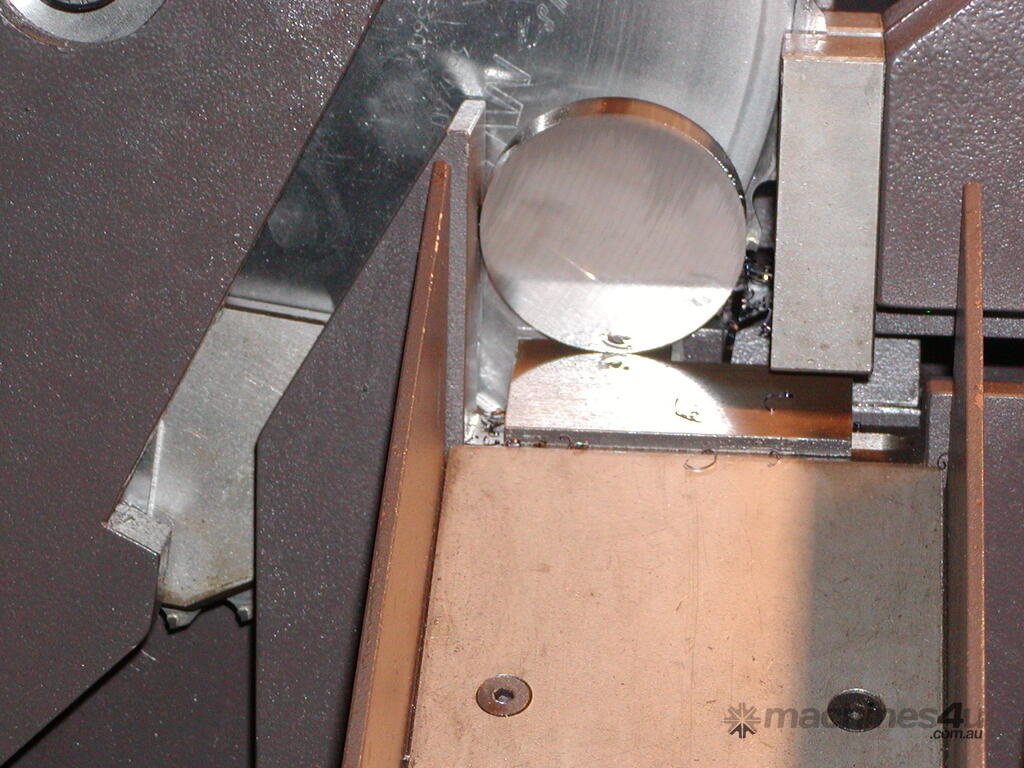

These saws are made to cut solid steel billets extremely quickly and efficiently

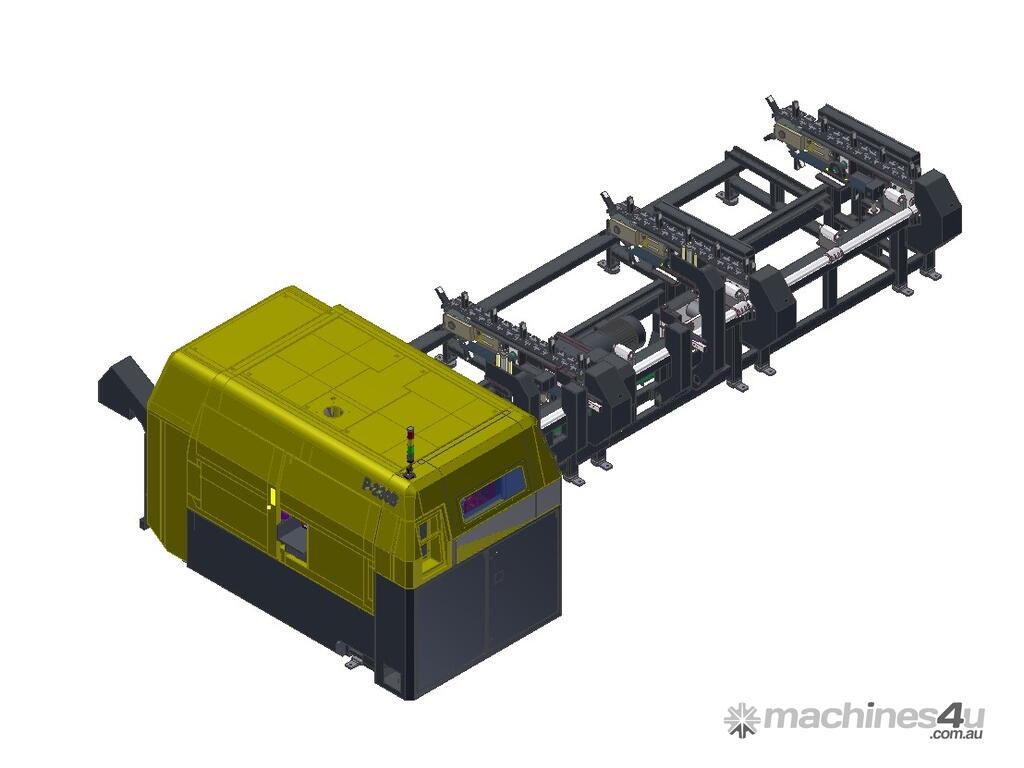

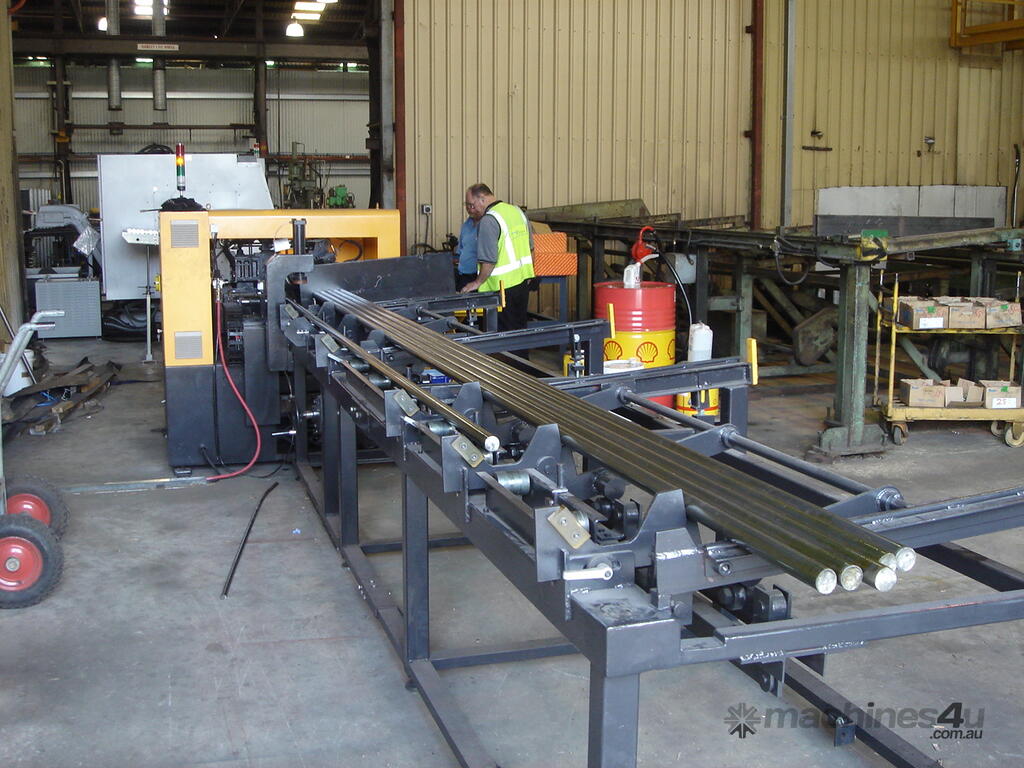

which is why a 5m rear automatic loading table is standard on this machine.
This saw is ideal to feed cnc lathes where a large volume of machining is done.
Numerous different sizes available.
P-70B
10-70 round, 10-54 square, 10-54 rectangular

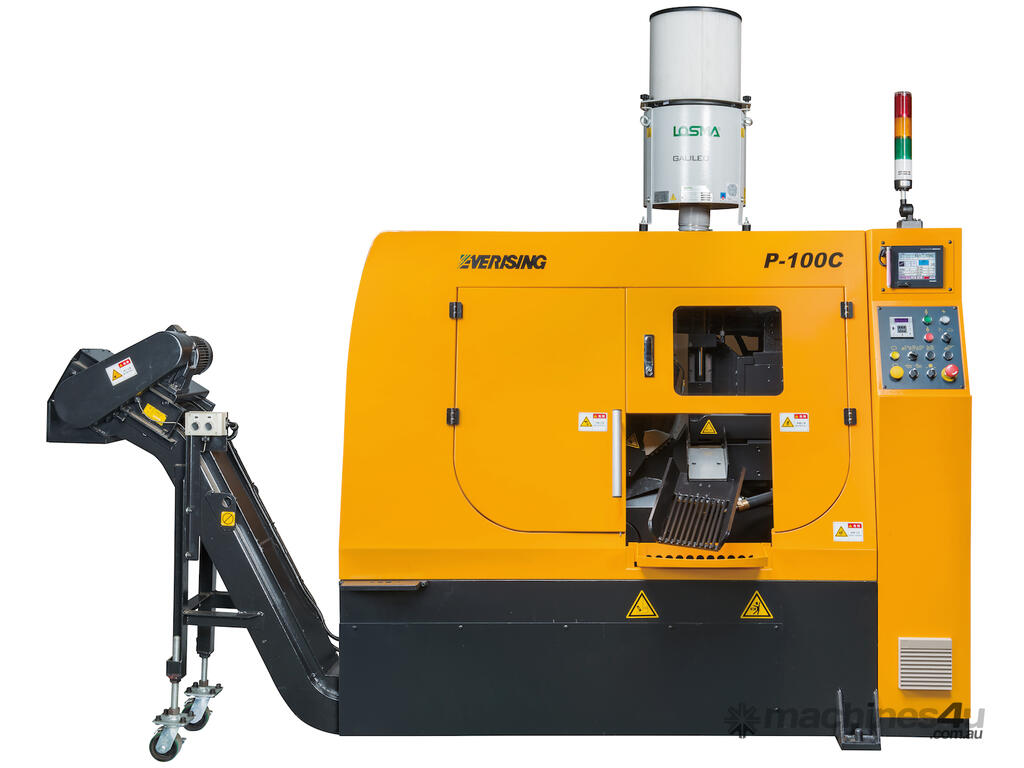

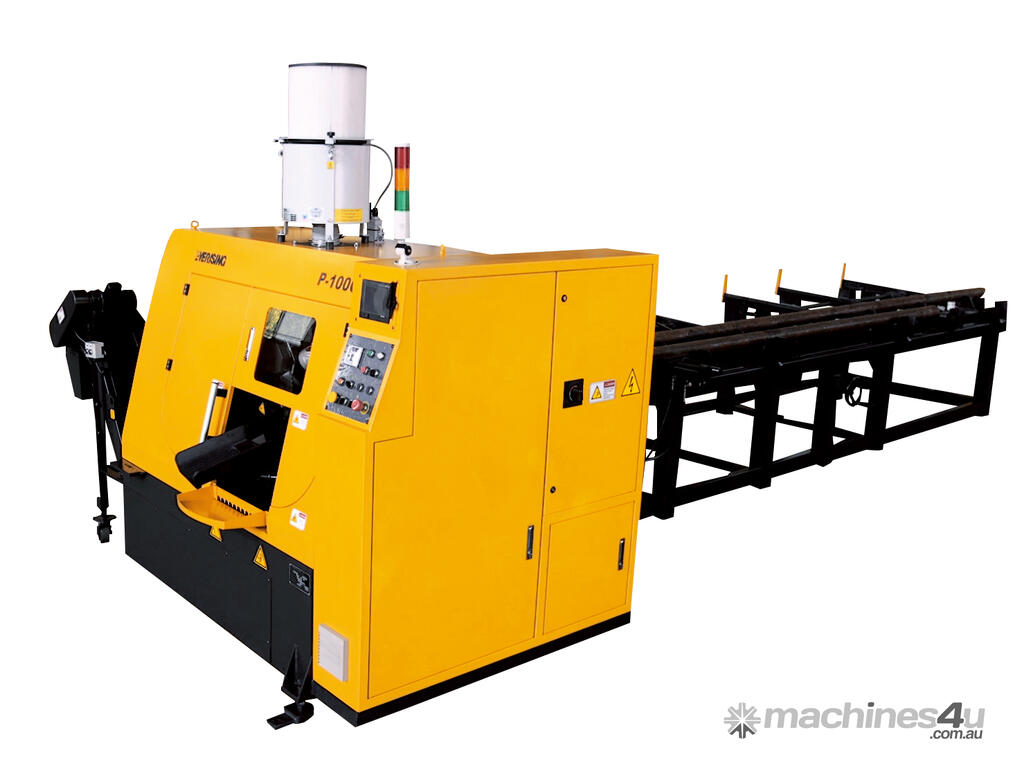

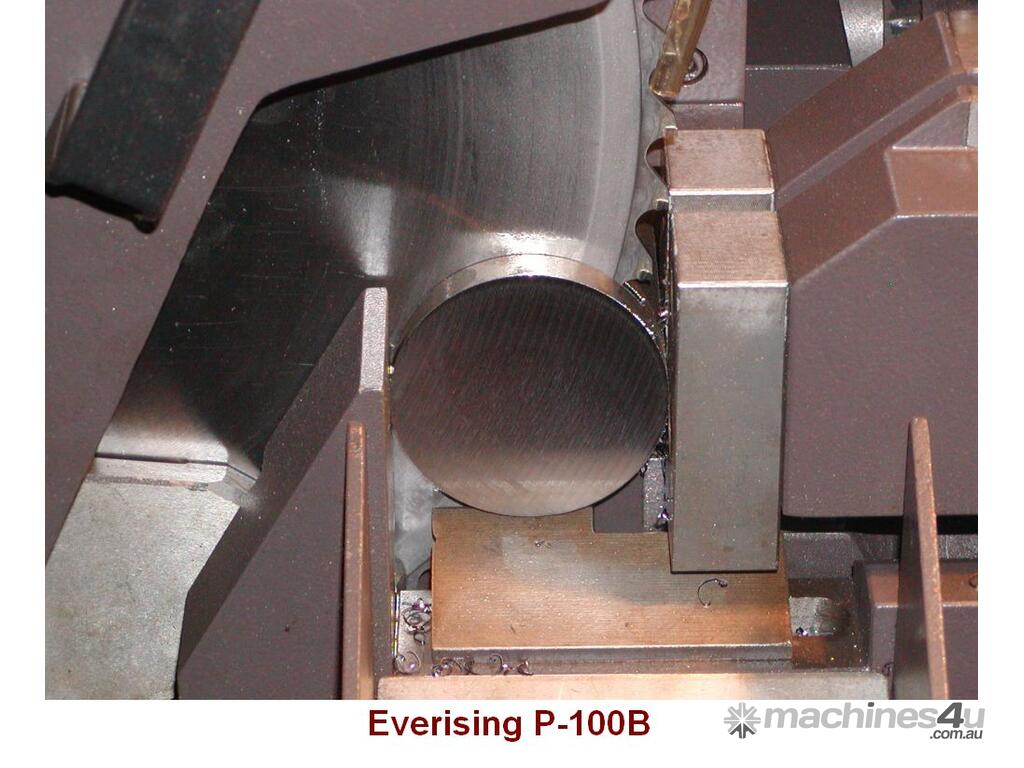

P-100B
15-100 round, 15-80 square, 15-80 rectangular

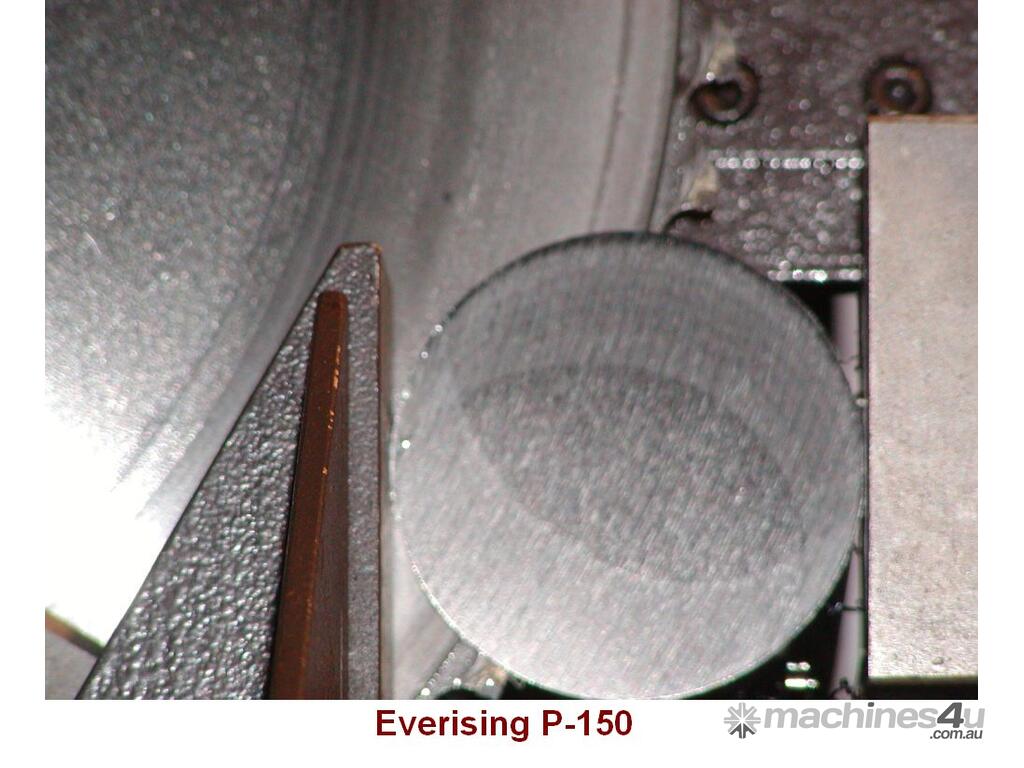

P-150B
70-150 round, 70-105 square, 70-120 rectangular
P-230B
70-230 round, 70-160 square
THE EVERISING 'P' SERIES IS A CIRCULAR SAWING MACHINE BUILT TO THE HIGHEST PERFORMANCE STANDARDS.
The saw head is ball screw actuated with premium grade linear guides for maximum rigidity and minimal friction.
The saw head is powered by the servo infeed system.
High power blade motor.
Electro magnetic brake(except P-230B) ensures optimum sawing quality.

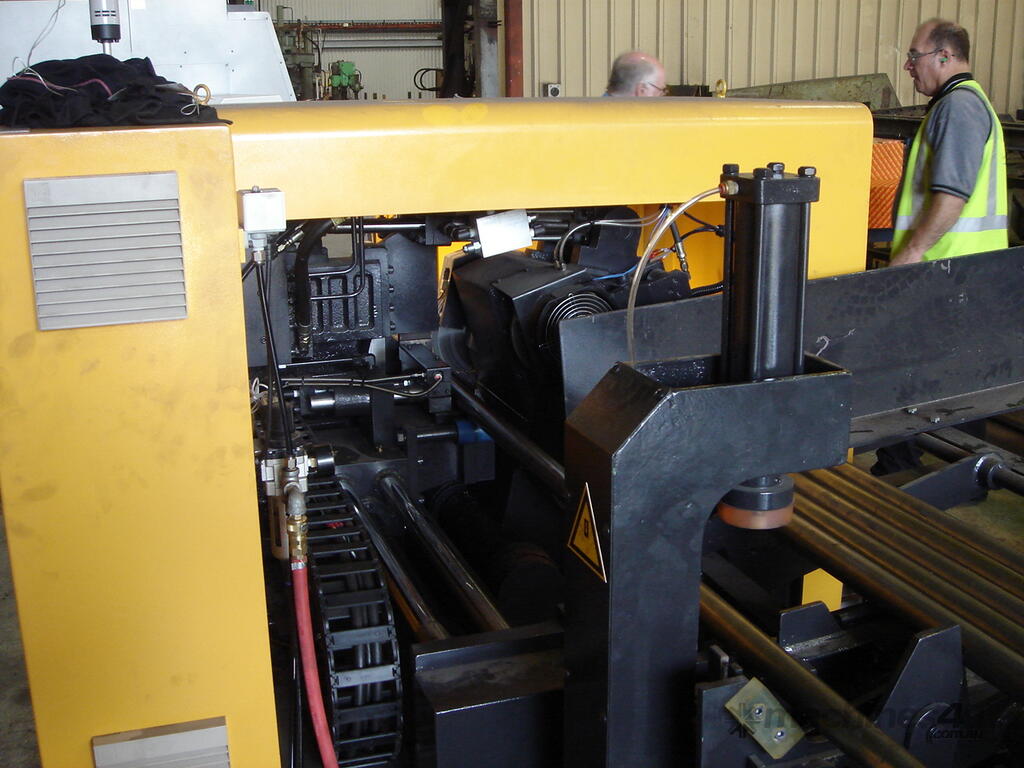

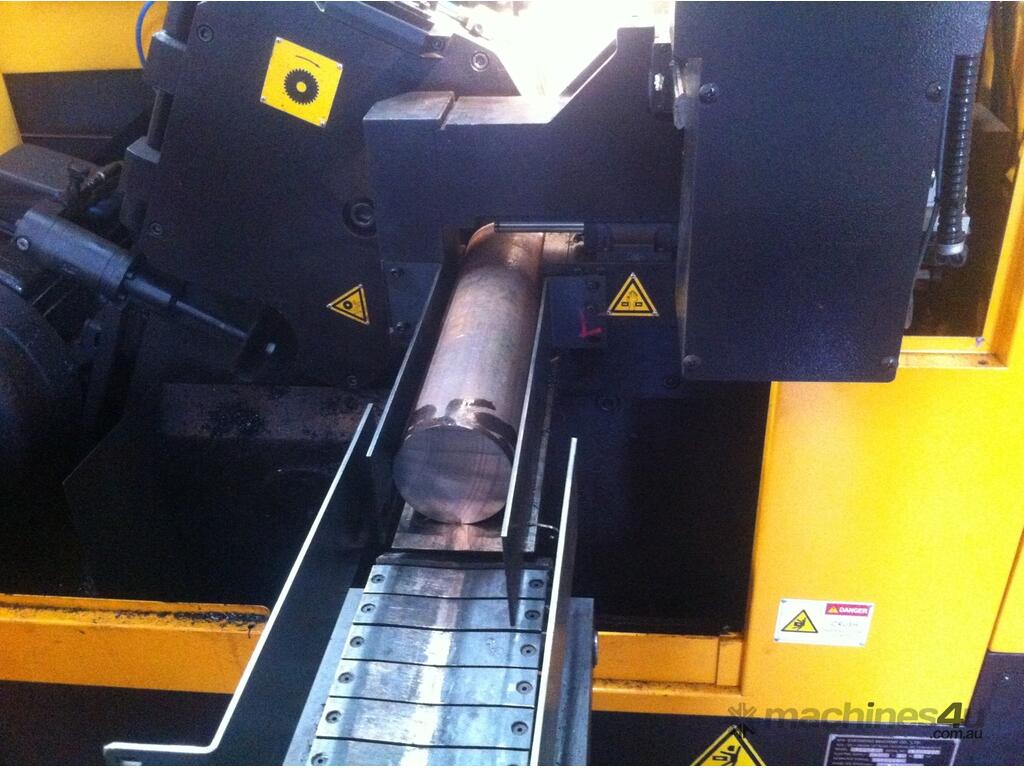

Full stroke hydraulic clamping.
Shutting table is designed with floating mechanism.
Motion control via premium linear guides and ball screw.
Automatic Opt-Electrical Bar Detection
Features

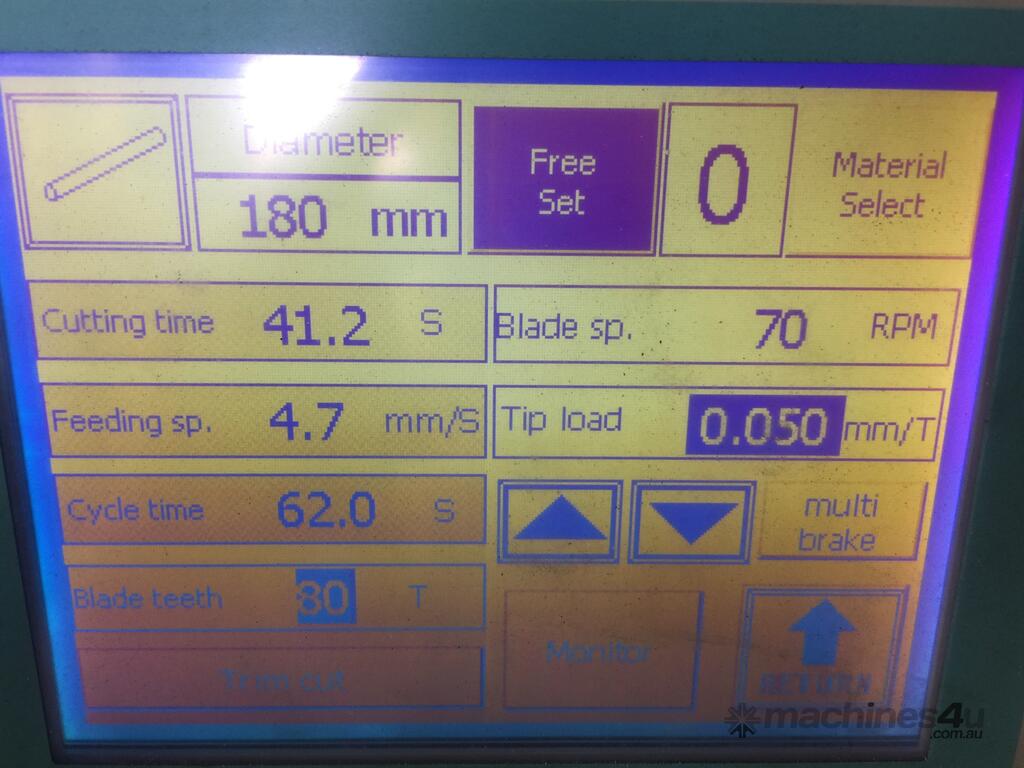

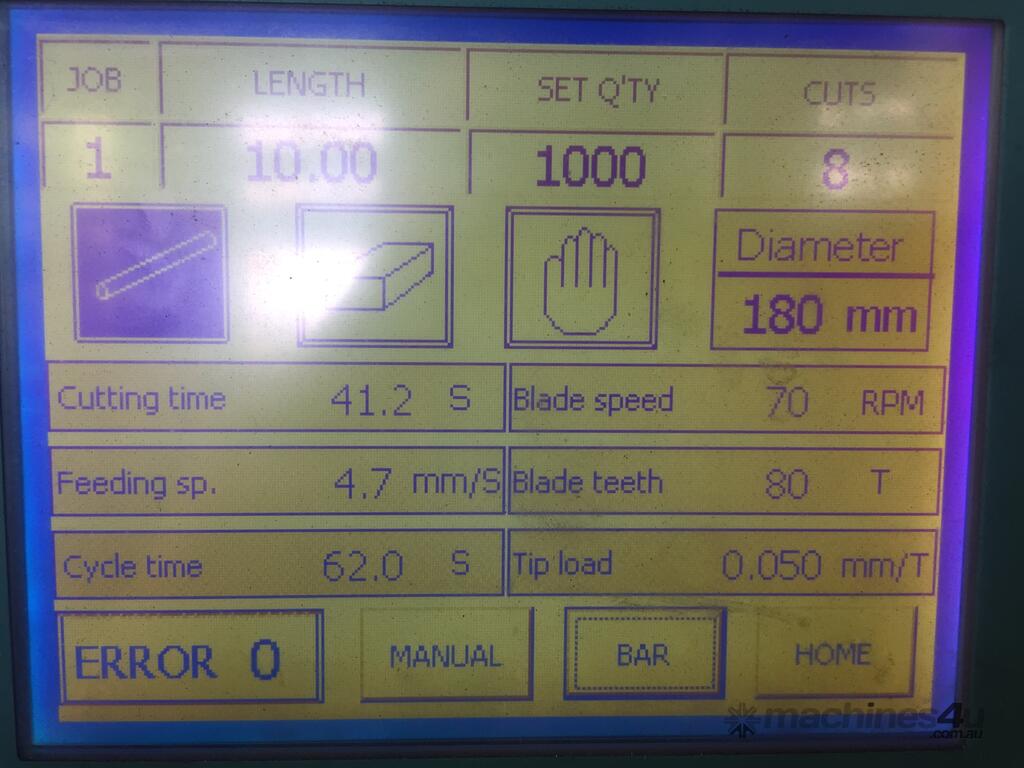

Easy to operate touch screen control.
Hydraulic fron and vertical vices.
Floating shuttle device.
Hydraulic sorting chute
Electromagnetic powered brake.
Individual powered wire brush

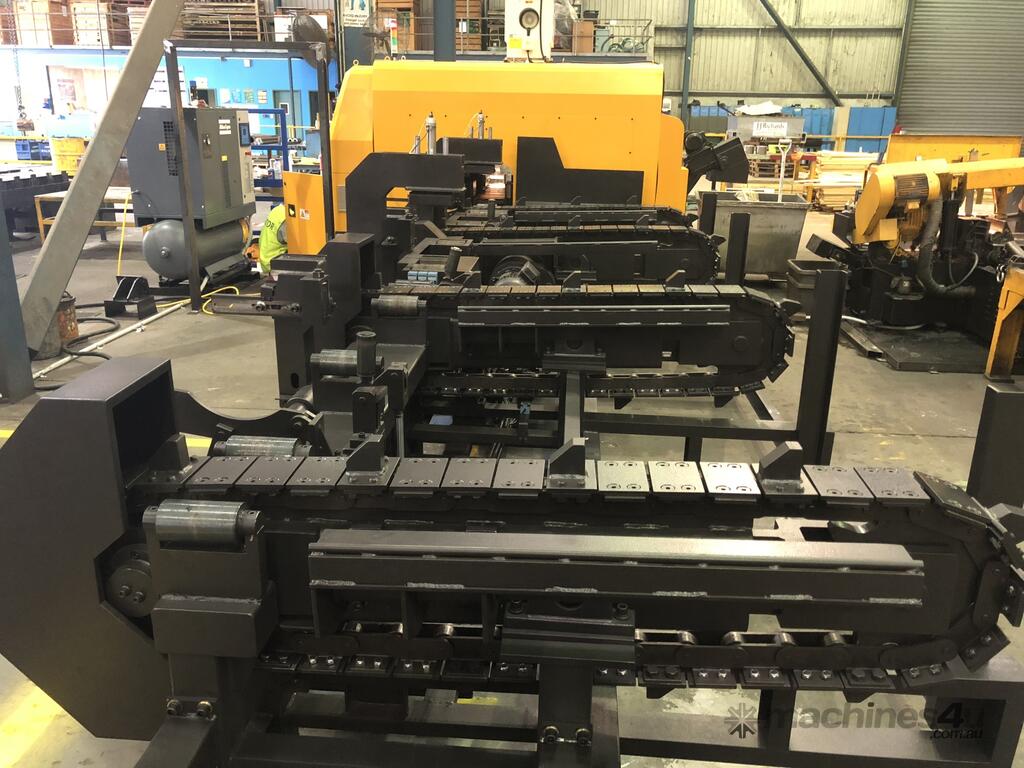

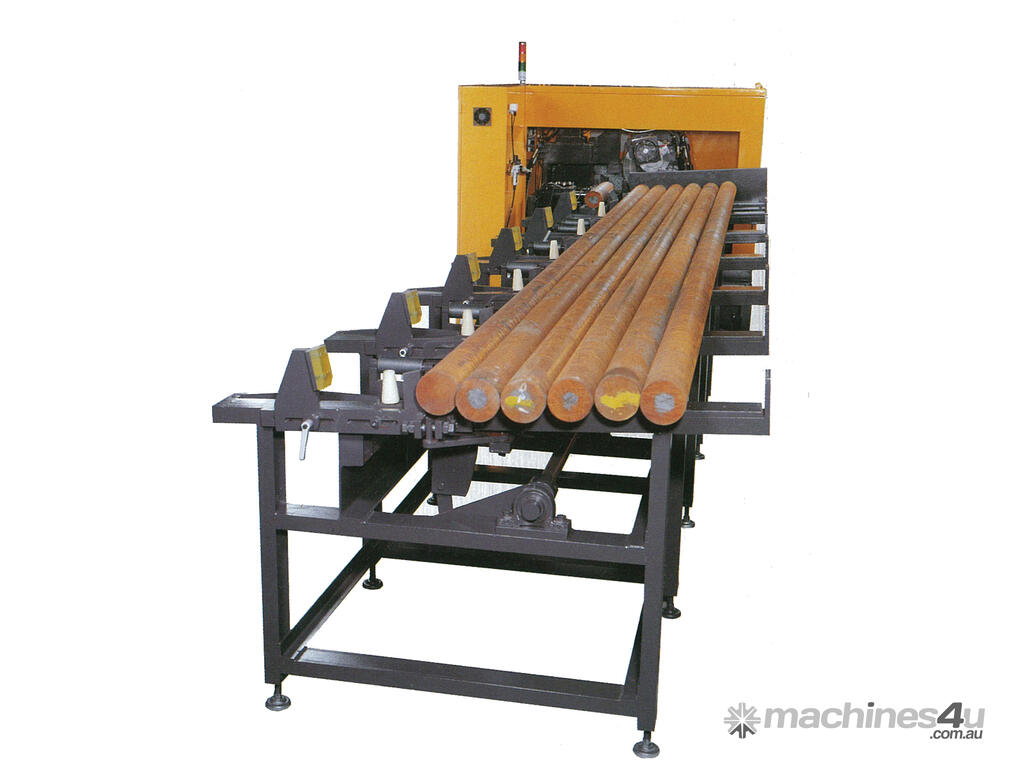

Automatic 5M loading table(for round bar only)
2 saw blades

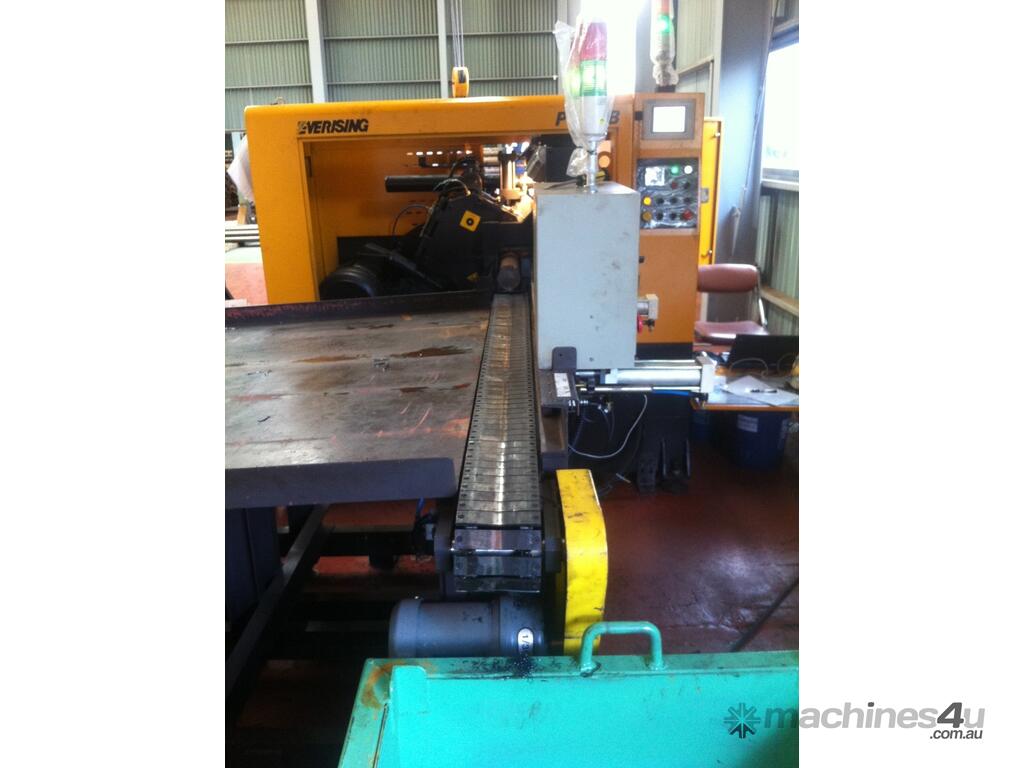

Automatic chip conveyor
2 transmission belts
5 gallons of cutting mist oil
One set of tools with tool box.
Optional Equipment
Air Filter
Air Compressor
Variable vice pressure
Cutting fluid coolant system
Air blow device for tube cutting
Reducing remnant length device
Intelligent bar collecting system ( Taiwan patent M255090)
