Everising is synonymous in Australia and world wide for being reliable, great value for money, feature packed and the leader in its market segment.
For over 20 years Complete Machine Tools have been the proud Aussie agents for Everising band saws and circular saws and have forged a very large loyal customer base with numerous customer having multiple Everising machines and 1 customer boasting over 100 Everising saws operating Australia wide.
Having a great deal of knowledge in sawing and its applications Complete Machine Tools and Everising are the perfect choice when looking for a new band saw whether its a fully auto or semi auto band saw.
A large product range is available that can suit the most demanding of applications regardless of size or complexity.
STANDARD FEATURES
1.Unit Contruction-(Bar feed and saw are on one base).
2. Shuttle type automatic feed.

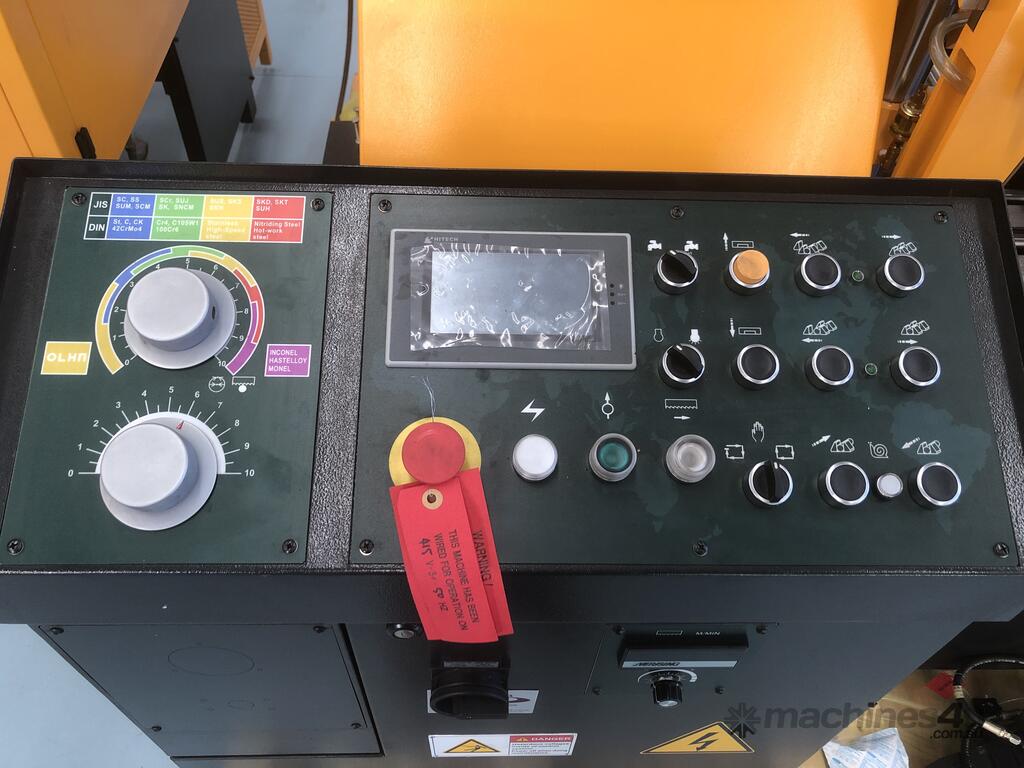

3. P.L.C. control for all electric and hydraulic function.
4. Hydraulically controlled dual vise clamping system.
5. Floating shuttle vise system.
6. Split front vise.

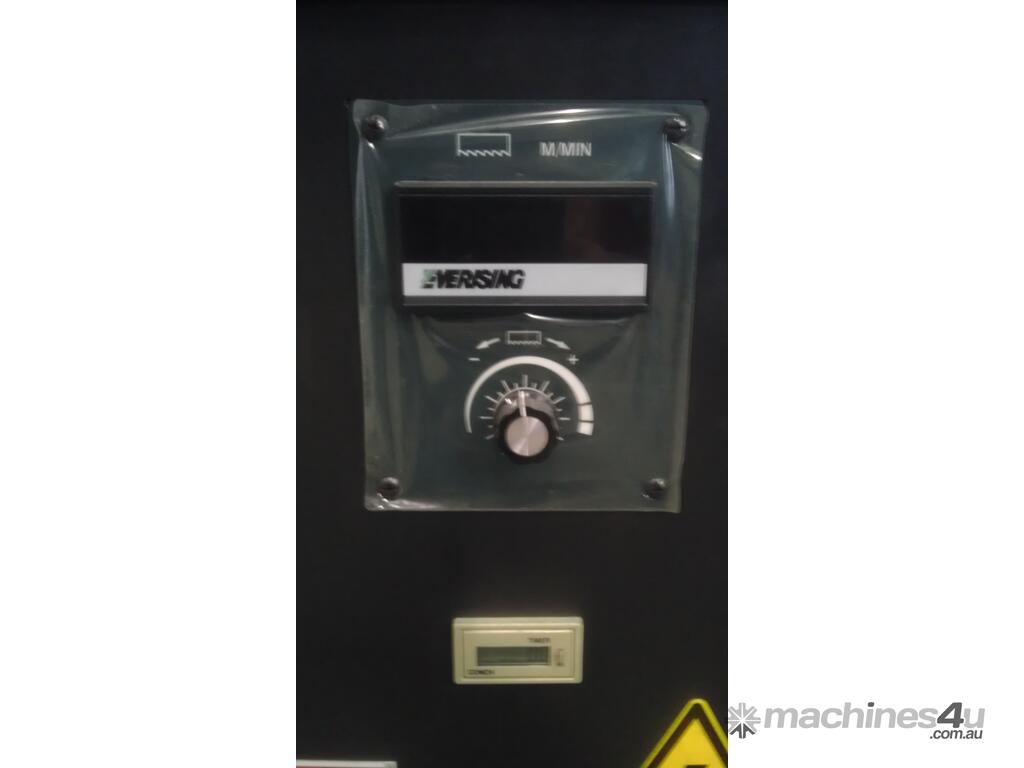

7. Infinitely variable speed control by inverter.
8. Blade speed tachometer.

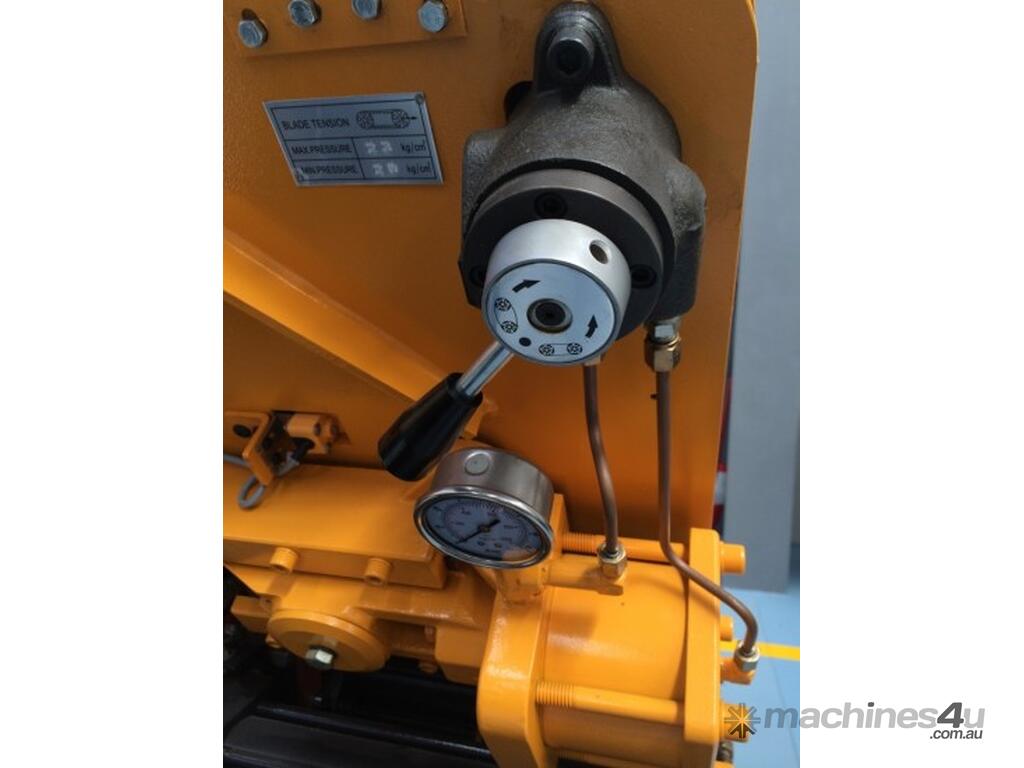

9. Hydraulic blade tensioning.

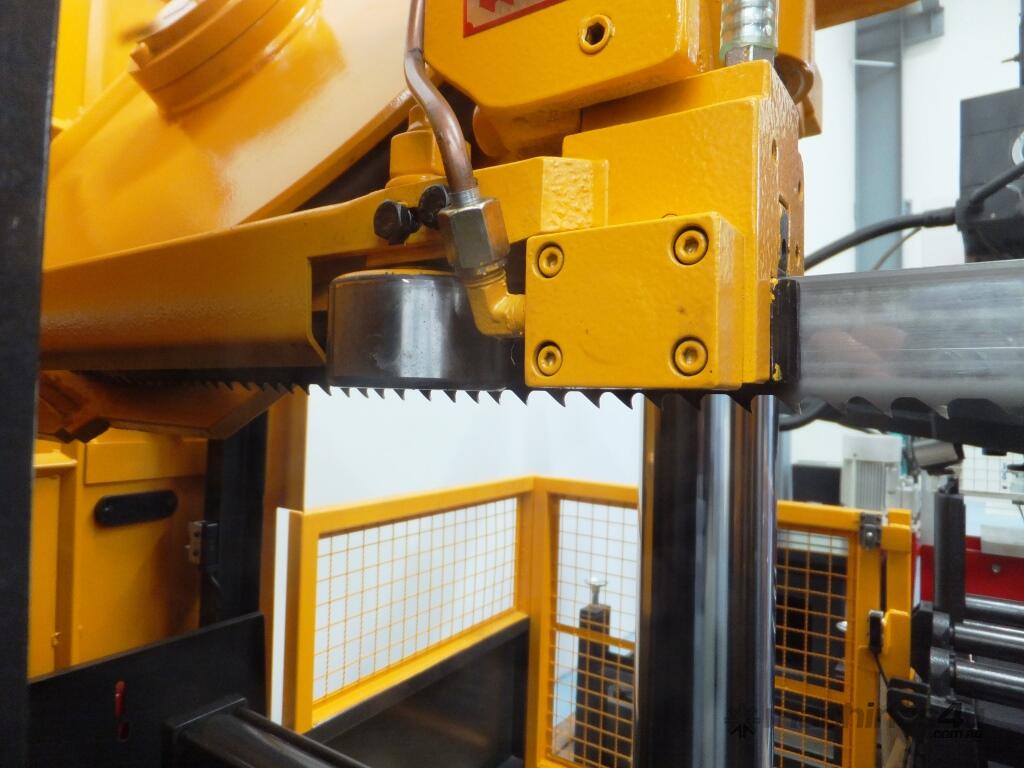

10. Roller bearing with carbide blade guide system.
11. Automatic work height control by fast approach bar sensor.
12. Preset cut counter with shut off.
13. Out-of-stock shut off.
14. Multiple indexing (9 times).

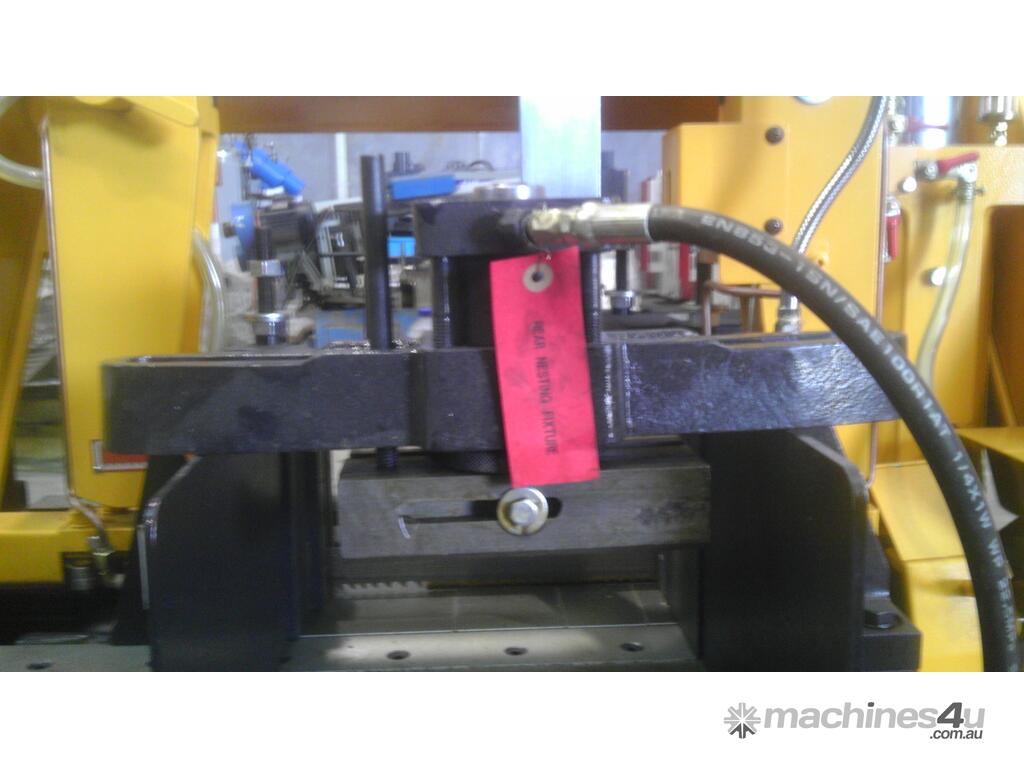

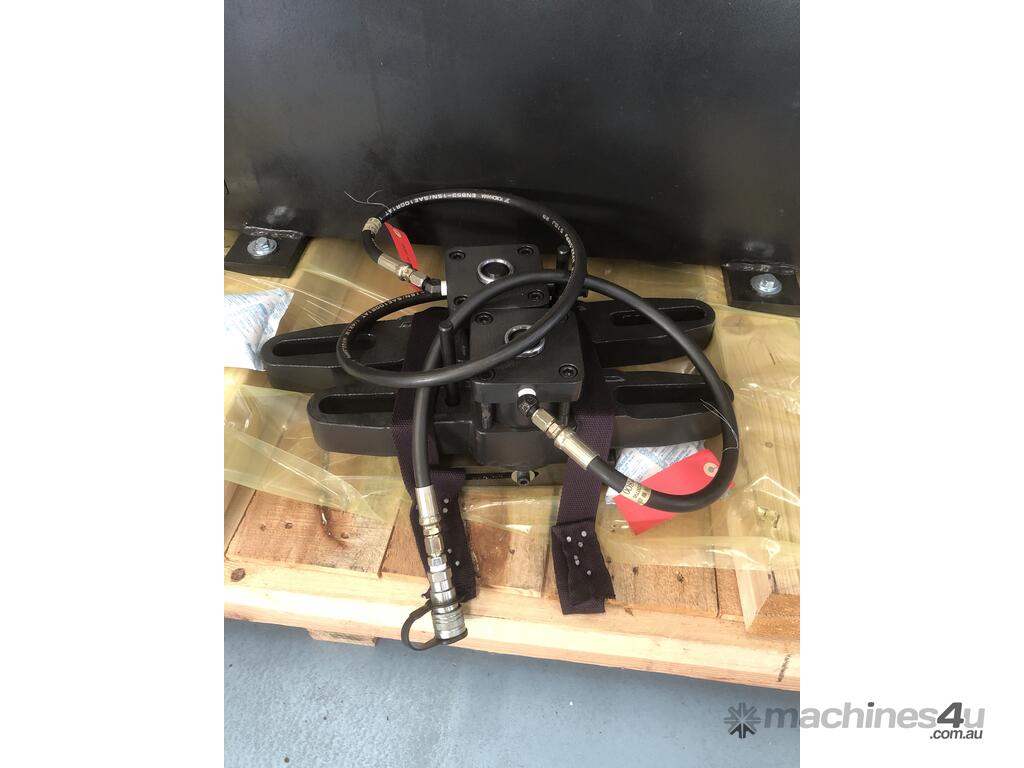

15. Nesting fixture for bundle cutting.
OPTIONAL EQUIPMENT

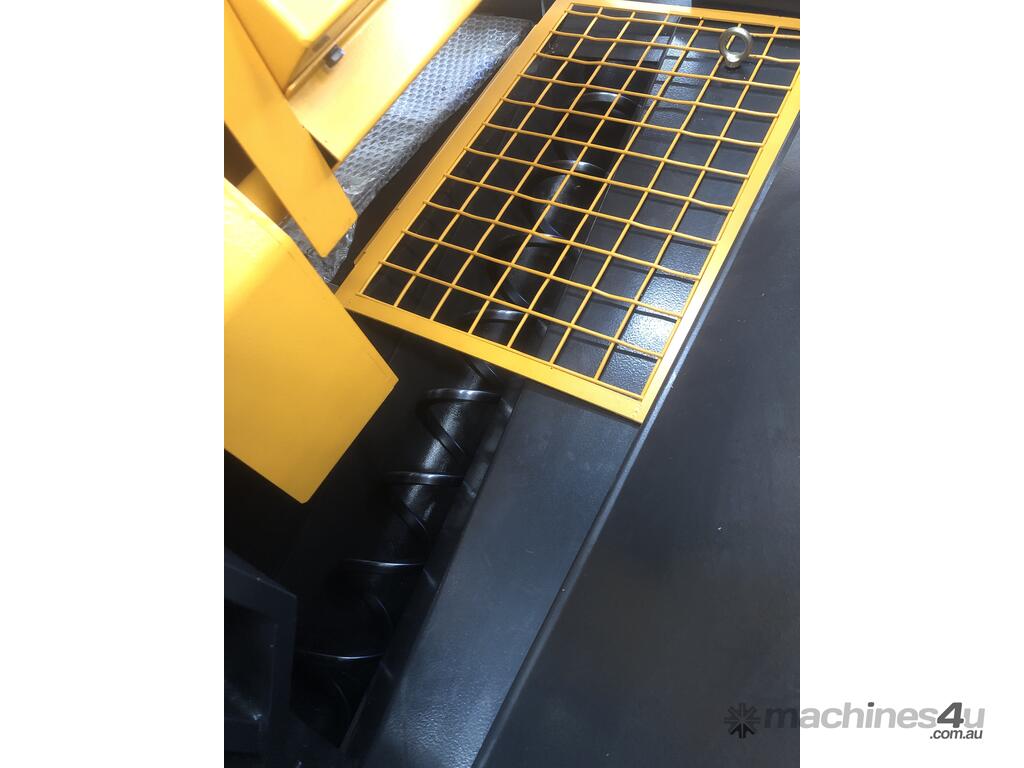

1.Automatic chip conveyor.
2. Variable vise pressure.
3. User friendly NC touch screen control with selfdiagnostic system.
4. Full stroke vise clamping system.
SPECIFICATIONS

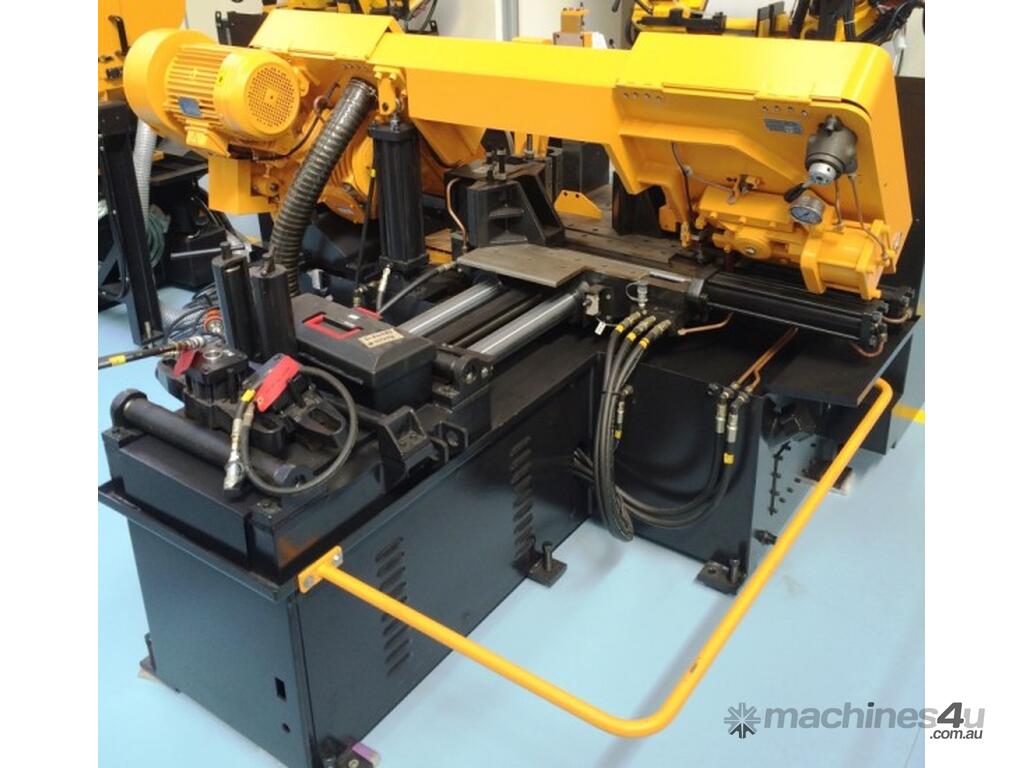

Model S-300HB
Capacity ? 300 mm (12")
? 300 x 250 mm (12"W x 10"H)
Bundle Cutting Width 145 to 230 mm (5.7" to 9")
Height 30 to 130 mm (1.2" to 5")
Blade Speed 50Hz 20 to 100 m/min. (65 to 330 fpm)
(INVERTER)
Motor Blade Drive 3.7 kw (5HP)
Hyd. Pump 0.75 kw (1HP)
Coolant Pump 0.1 kw (1/8HP)
Blade Size 3820 x 34 x 1.1 mm (150" x 1.3" x 0.042")
Blade Tension Spring Loaded-manual
Index Length 400 mm (16") 400 mm x 9 times (16" x 9)
Machine Weight 1550 kg (3417 lb)
Floor Space (L x W) 2100 x 2200 mm (82.6" x 86.6")
