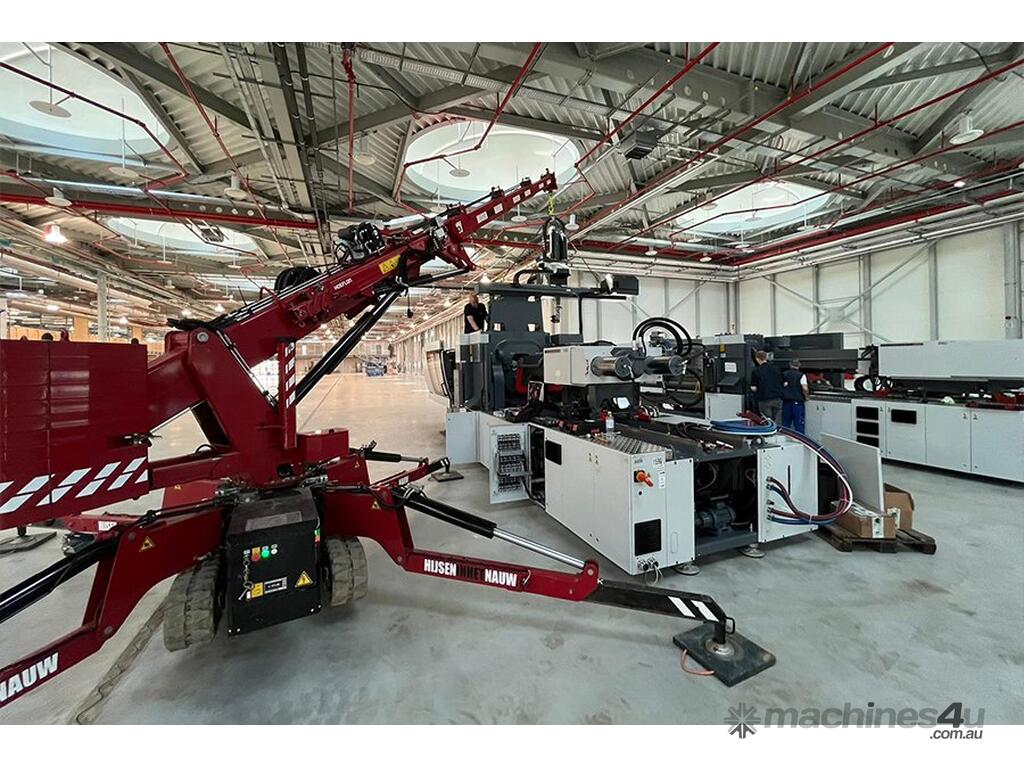

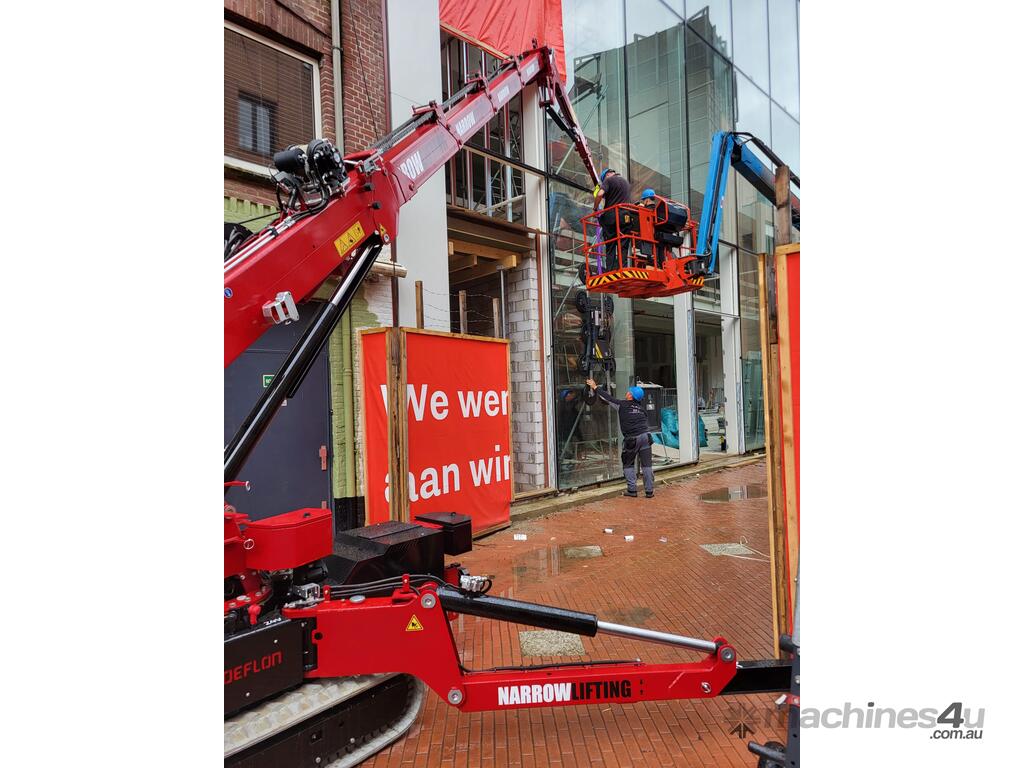

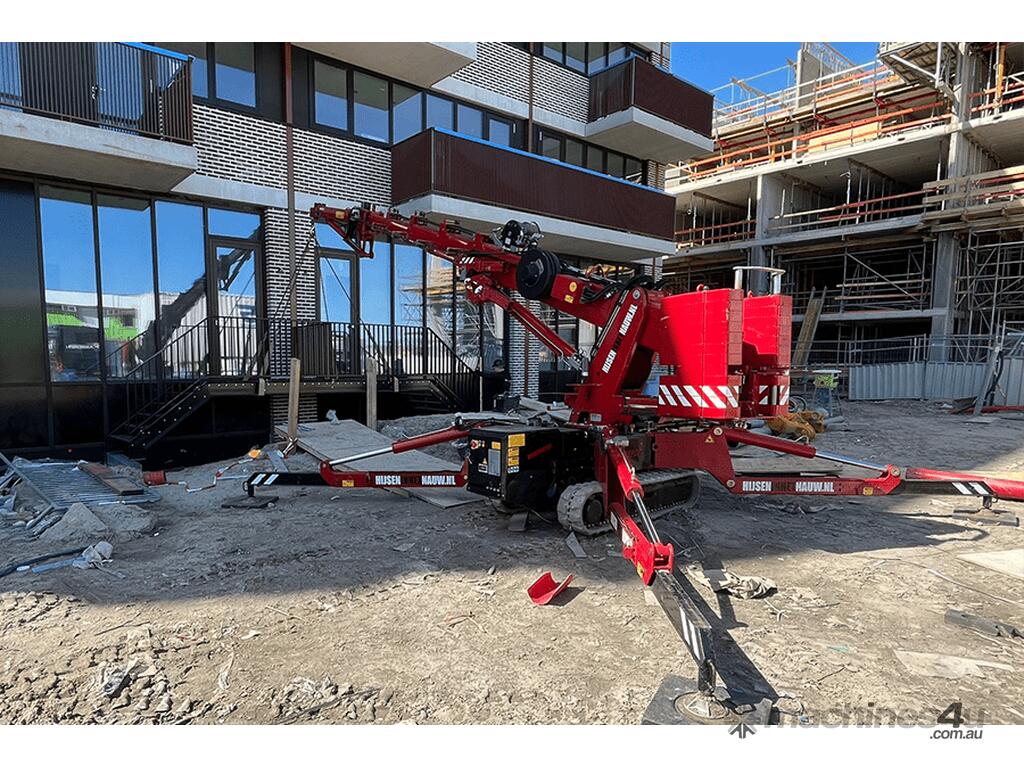

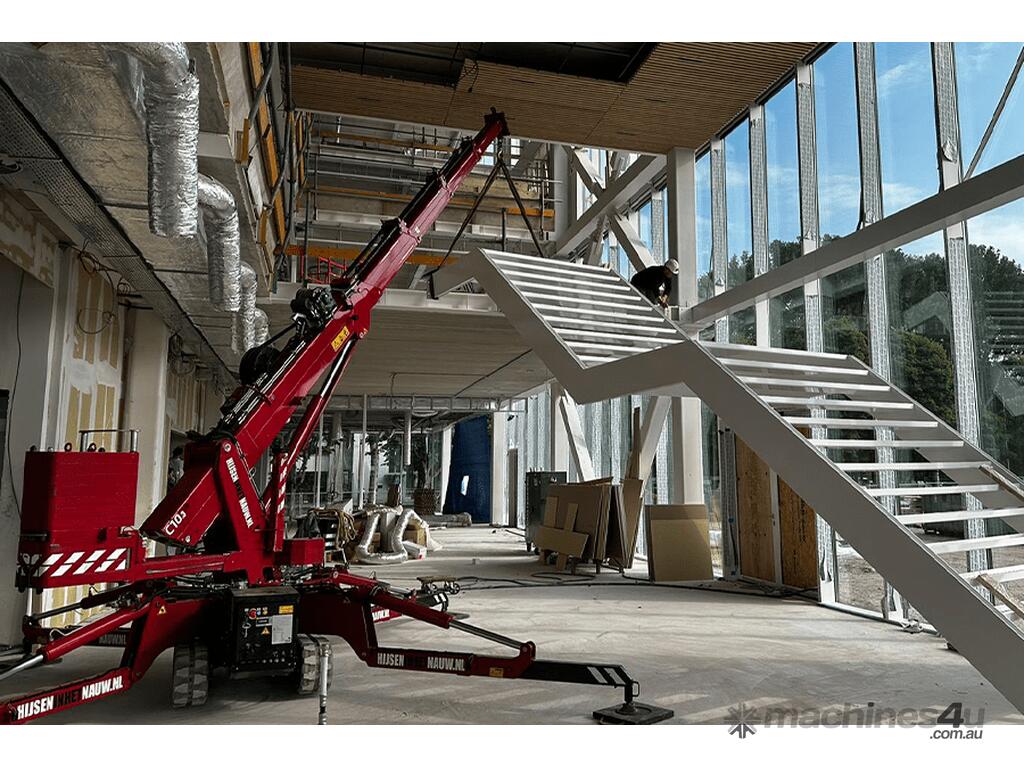

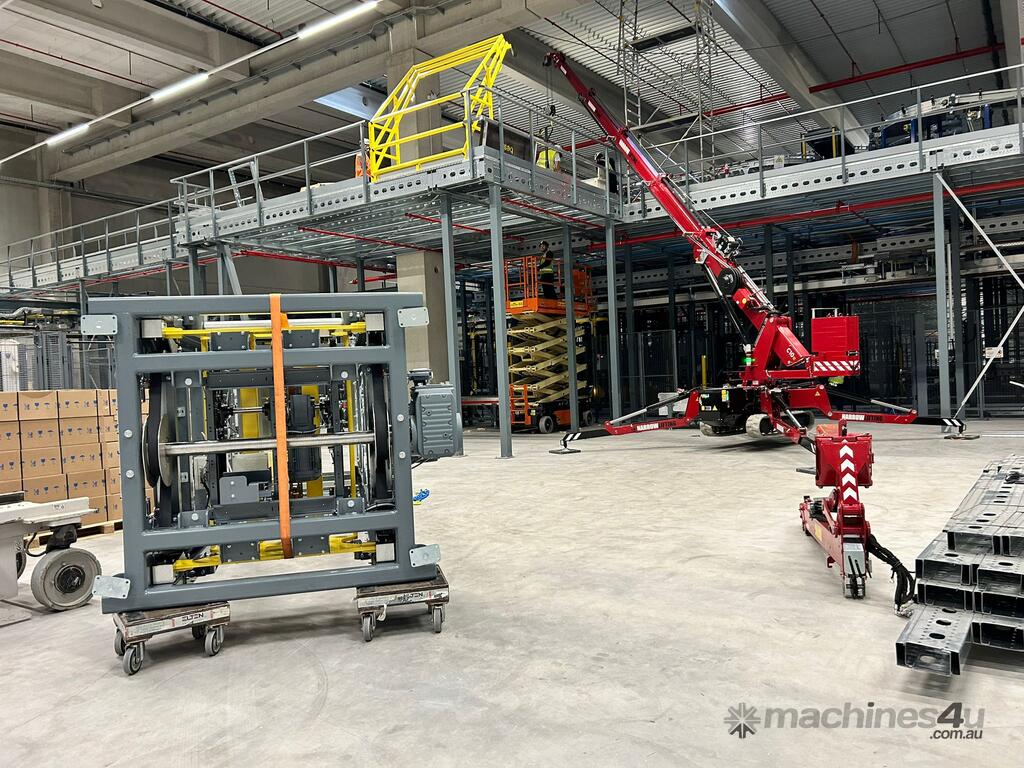

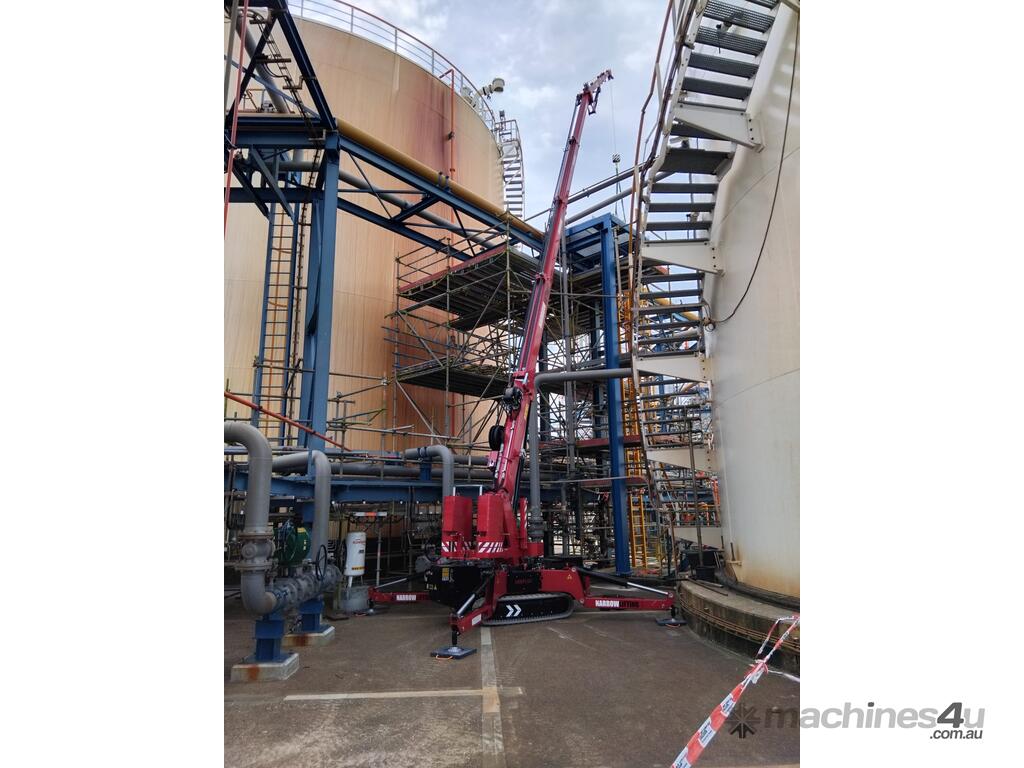

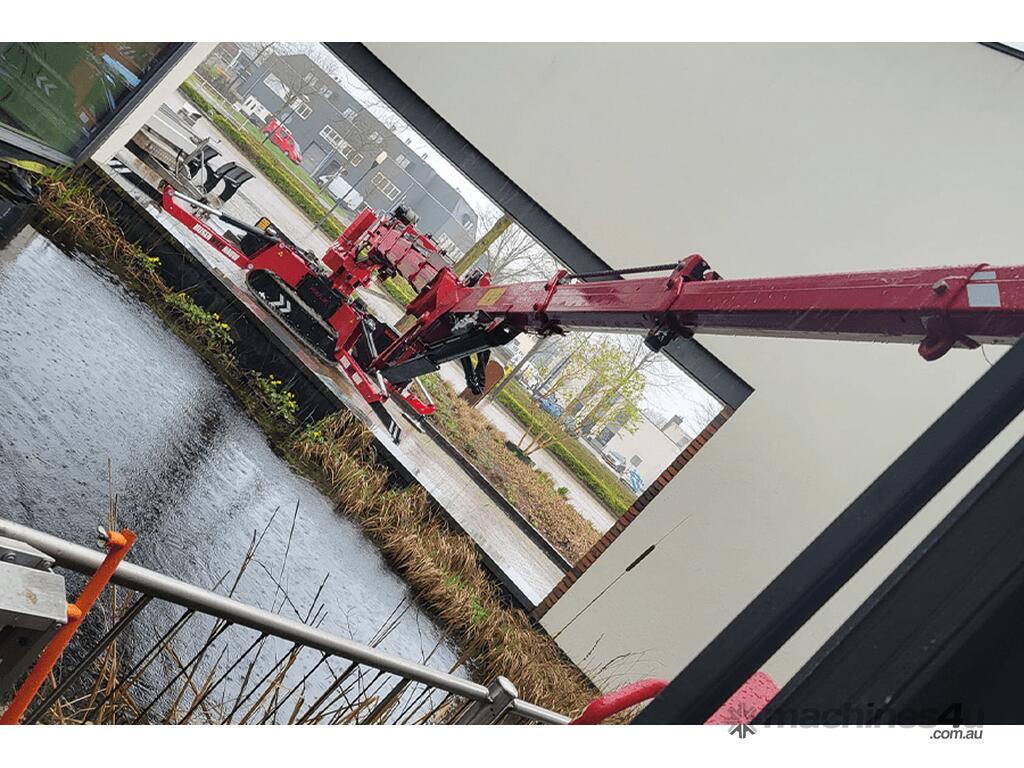

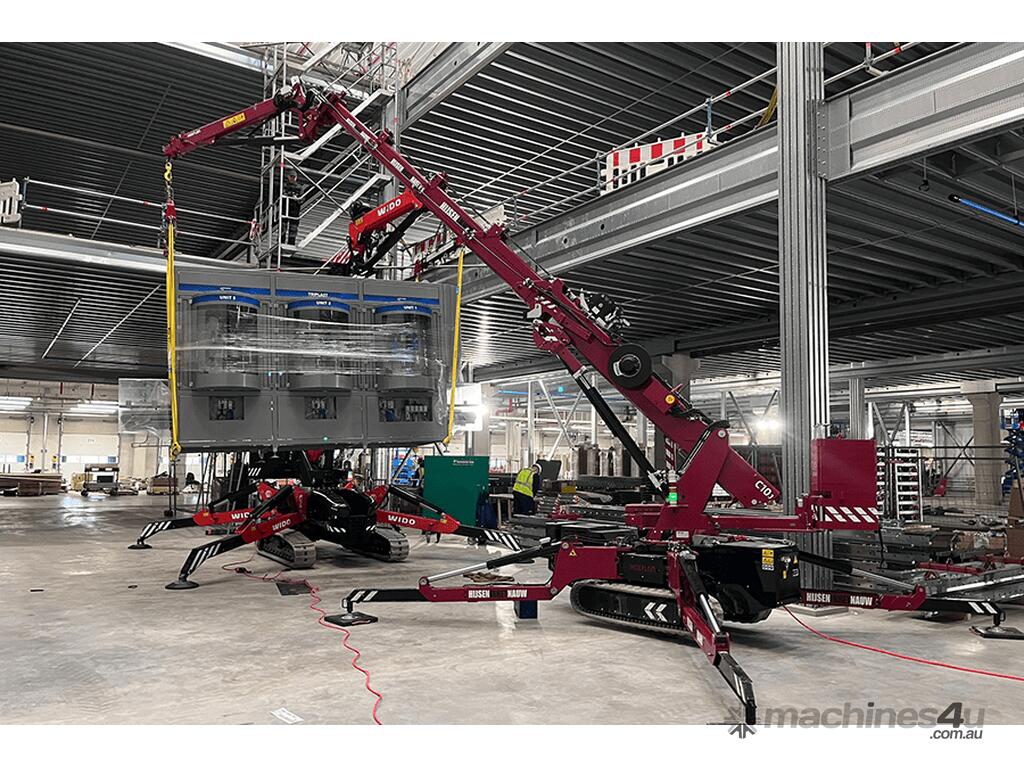

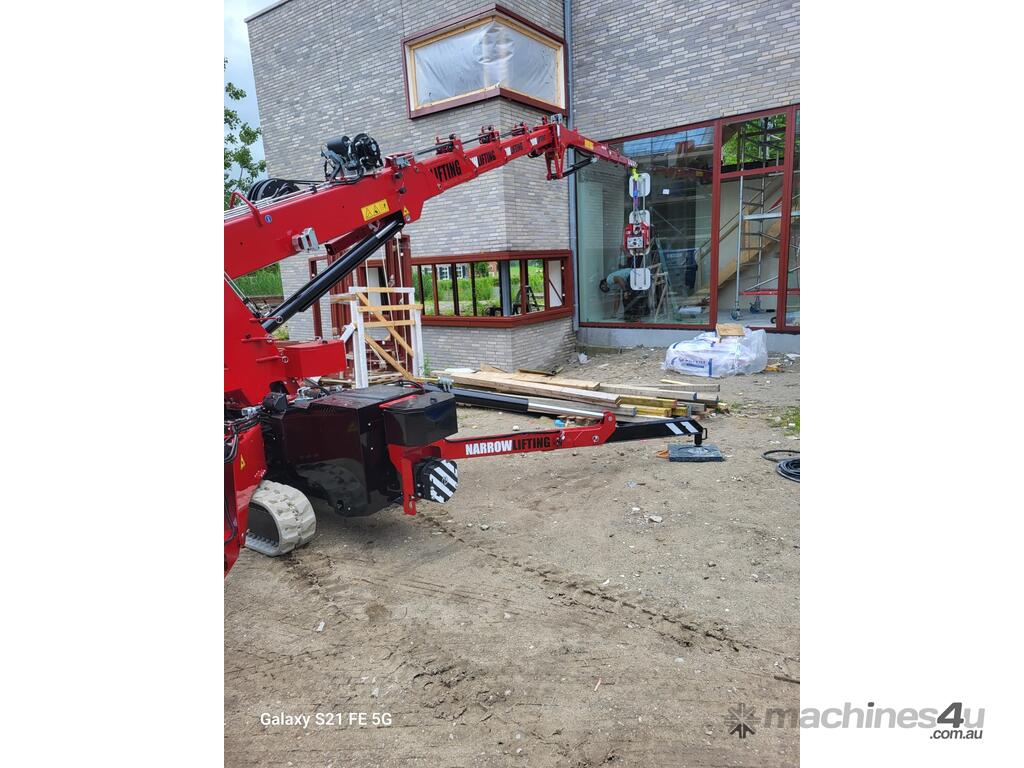

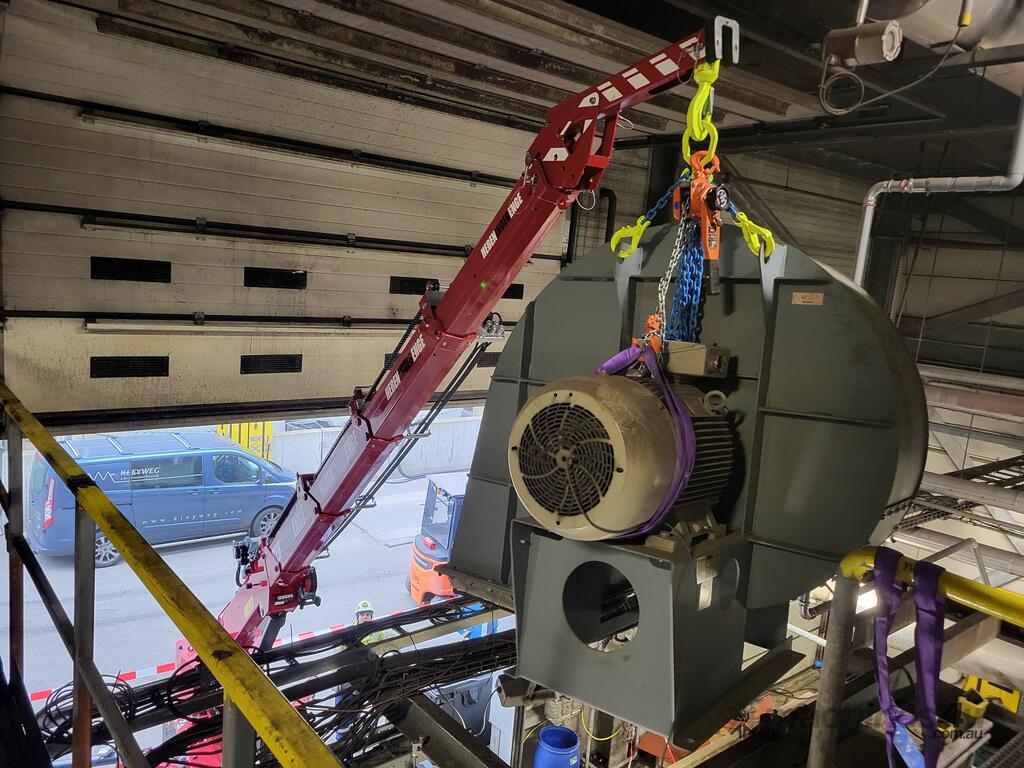

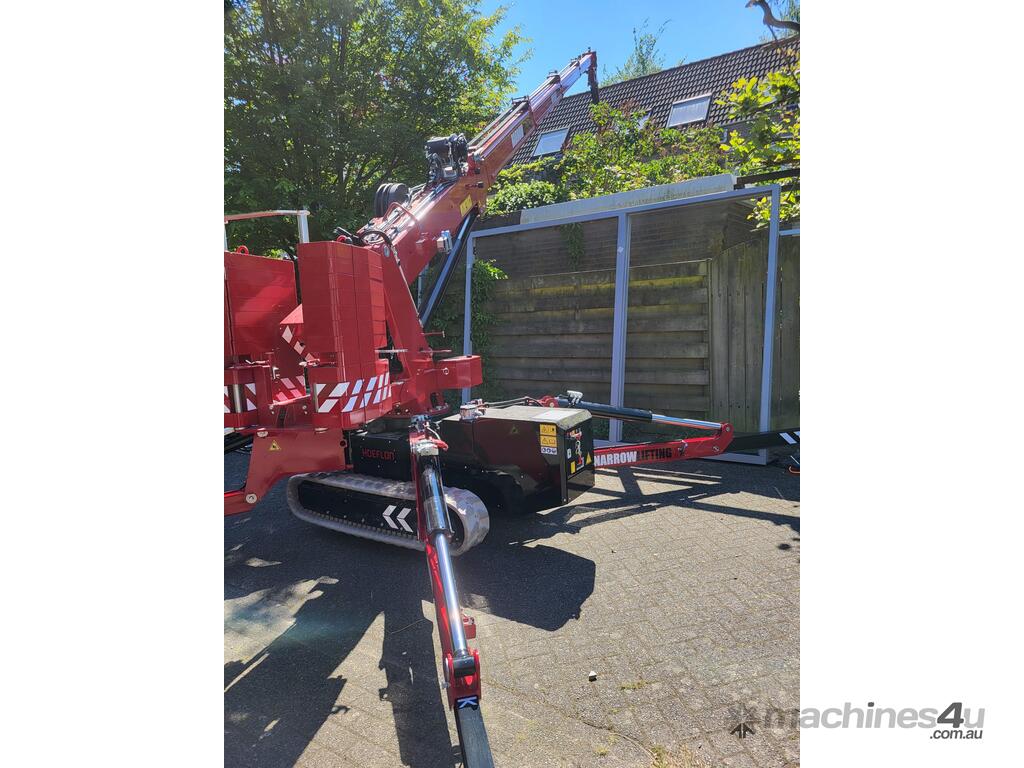

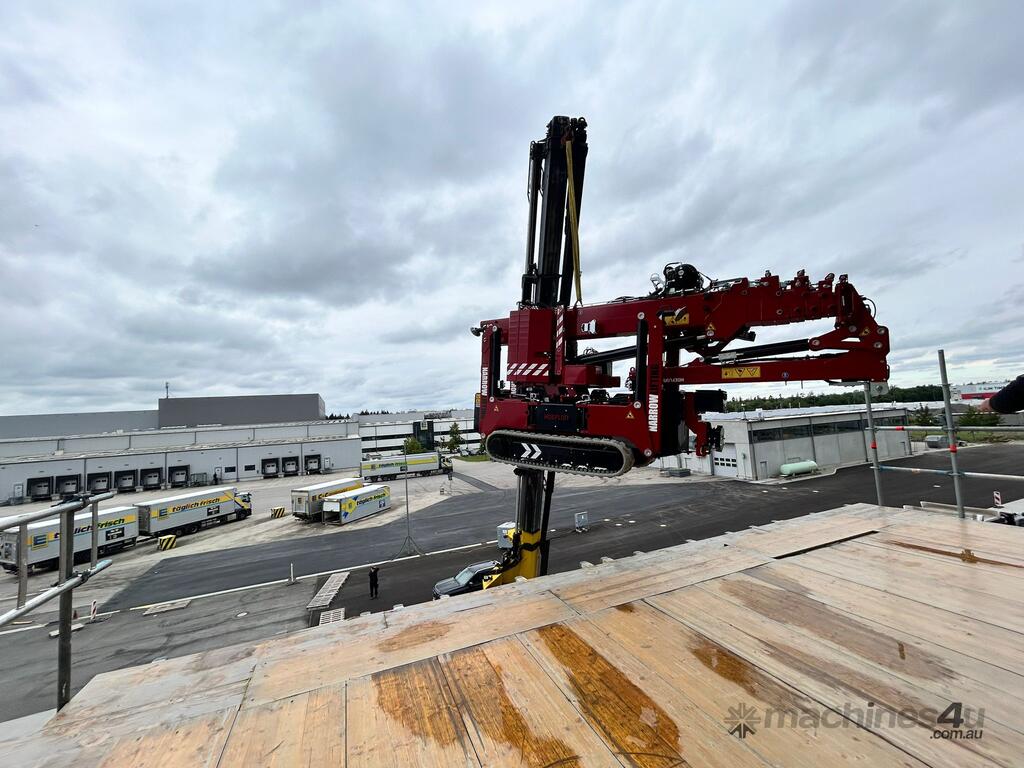

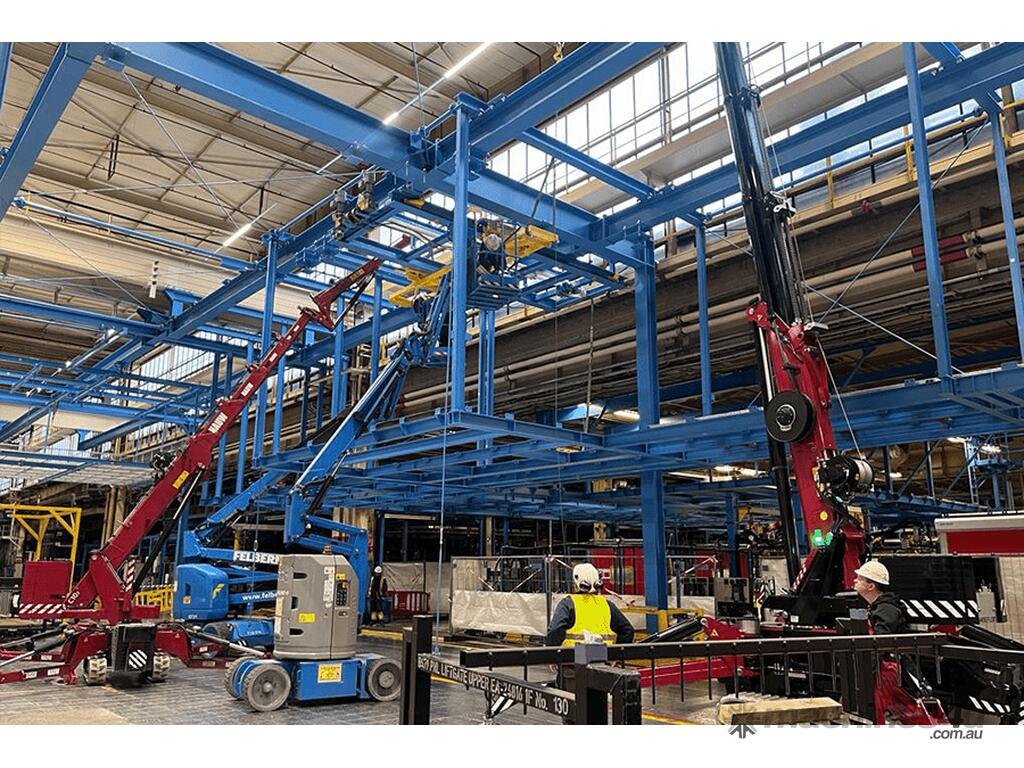

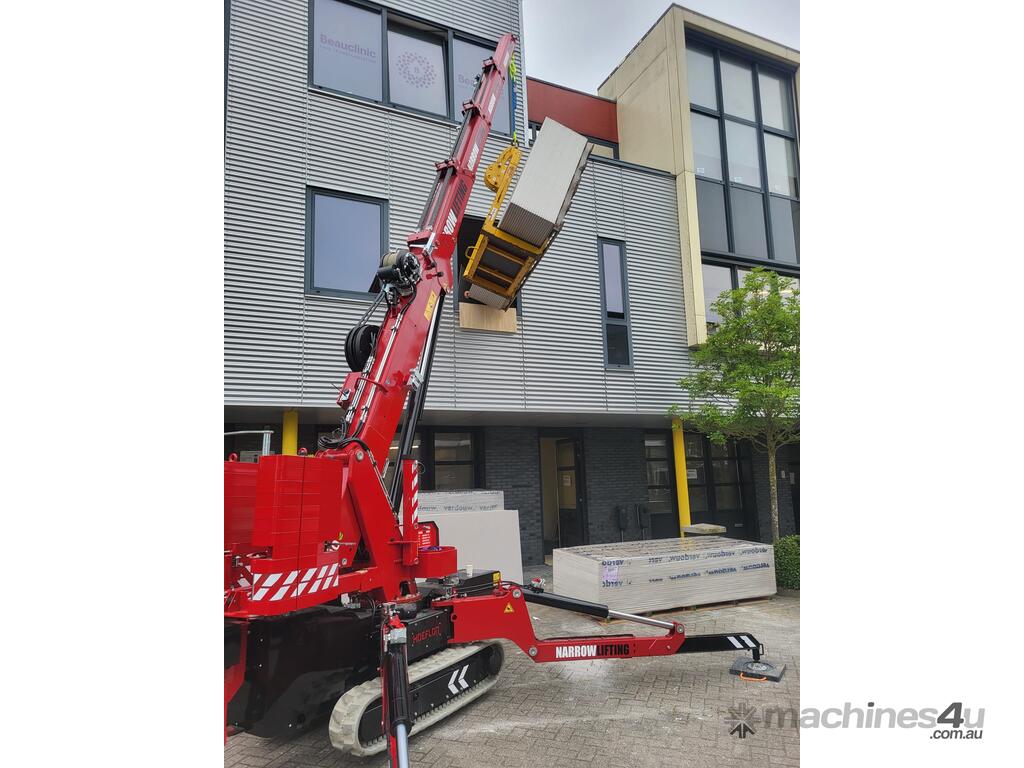

The Crawler crane C10e is a true powerhouse, capable of lifting up to 4 tons, even though it weighs under 5 tons itself. Its compact design makes it easy to manoeuvre, and it’s slim enough to fit through standard doorways with ease.
Capacity : 4,000 kg
Maximum reach : 13.7m, up to 19.8m with options
Maximum lifting height : 16.3m, up to 22m with options
Dimensions (L x W x H) : 3.93m x 0.8m x 1.97m
Dimensions with winch and jib : 4.15m x 0.8m x 2.07m
Total weight : 4,400 kg, up to 4,700 kg with options
Mast system : Cylinder and chain system
Boom angle : -5 to 83 degrees
Swing range : 360 degrees
Drive system : 360°
Power source : OX Power battery
Incline angle : 20°
Ground pressure : 0.72 kg/cm²
Electric motor : 400v
Fly jib length : 5m
Winch capacity : 1,000 kg, 2,000 kg, 4,000 kg
Cable length : 50m
NarrowLifting started in the Netherlands under the name Hijsen in het Nauw B.V., with a mission to bring more flexibility to lifting operations. One of the founders, Appie, had worked as a freelance mechanic and often faced difficulties when renting mini cranes. Teaming up with Leendert, the co-founder of Hijsen in het Nauw, they decided to create a better solution. In 2014, they officially launched Hijsen in het Nauw and purchased their first mini crane, the Hoeflon C10, along with a Dolly for
