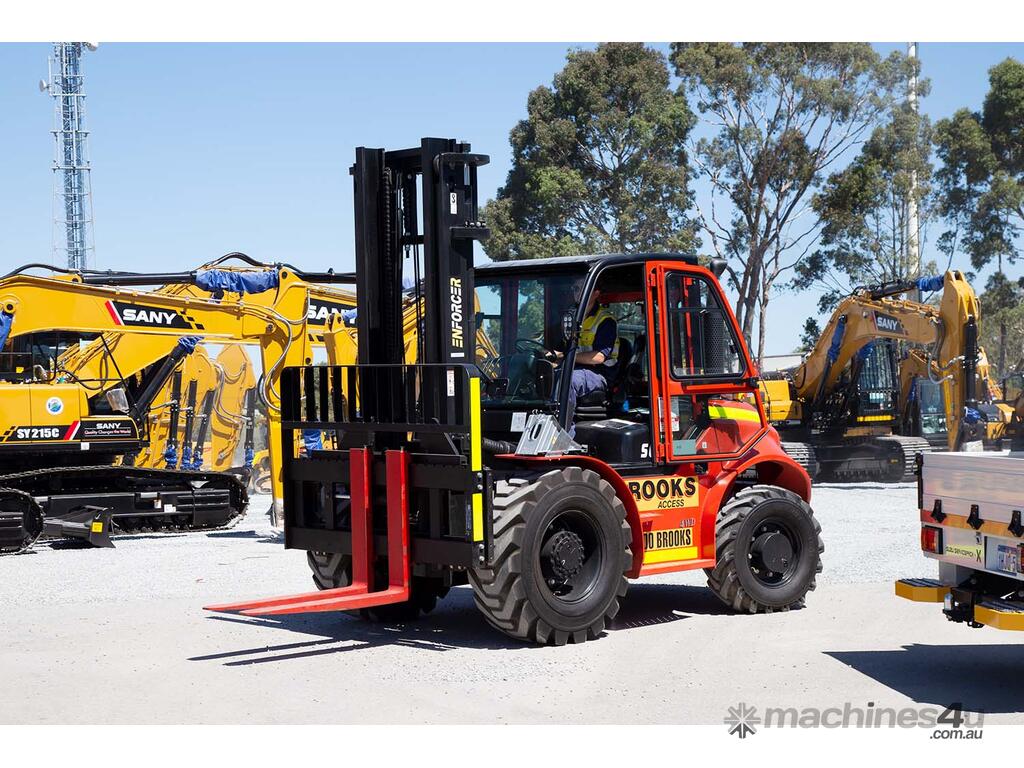

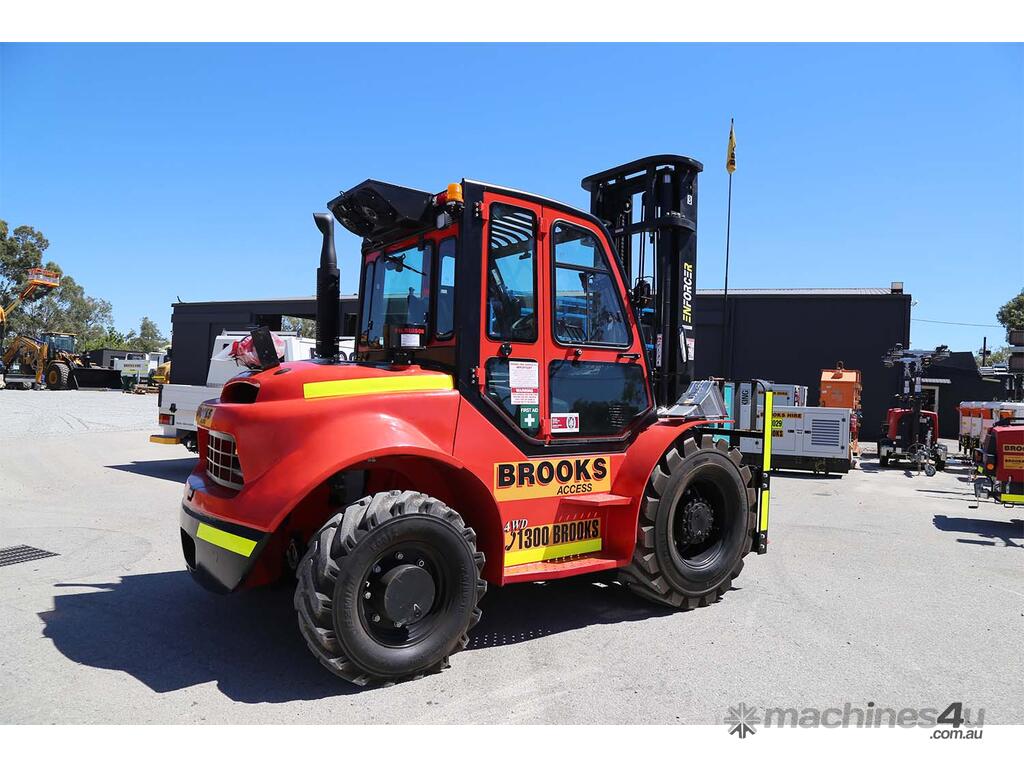

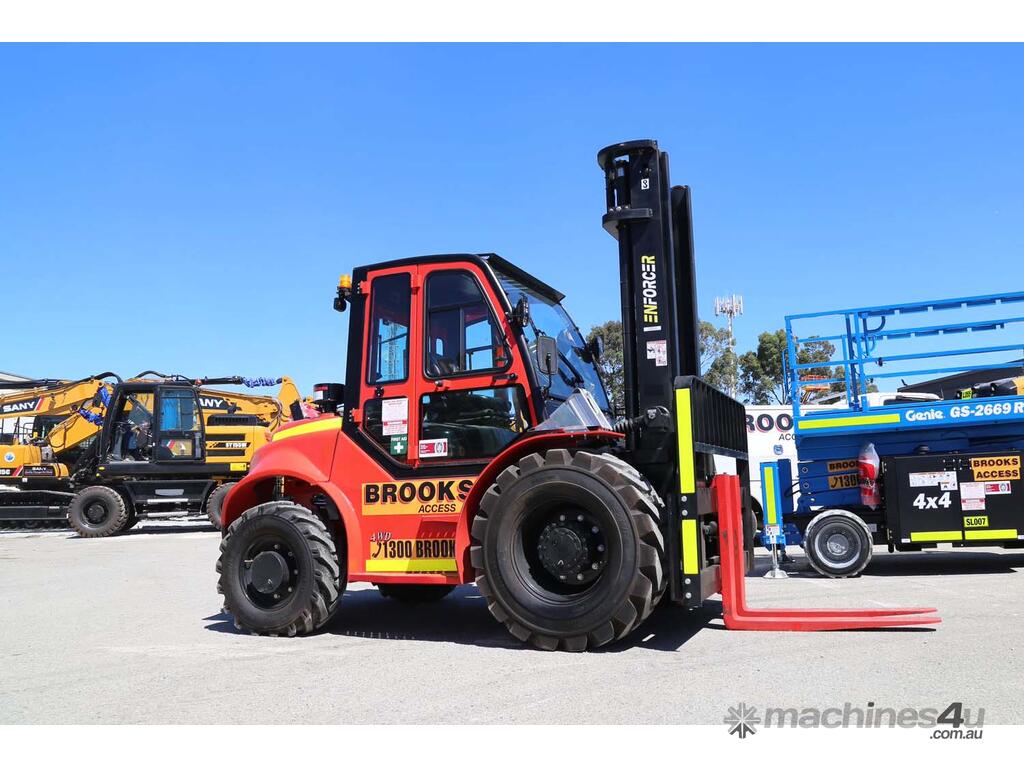

Enforcer FLDAXF50-08C1XS Forklift 4WD 5 Tonne Forklift for Hire

The Enforcer forklift range was designed for tough and rugged applications, both structural and mechanical components are engineered for outstanding proficiency and extended service life.
Premium hydraulics ensure functional excellence on variable load applications, while intuitive controls provide smooth and seamless handling. All Enforcer lift trucks come equipped with built-in diagnostics to significantly reduce service and maintenance downtimes, making sure your forklifts are always prepared to undertake even the most challenging jobs.

Key Features
• Full-suspension seat
• Dual air ?lters
• High-position exhaust
• Fuel tank cap (with lock)
• Fan protection device
• Rear workling light
• Alarm light
• Emergency switch
• Right and left re?ective mirrors
• Rain cover
• Wet brakes
• OPS system
• OPS system & Compatible with Sequential Seat Belt

SPECIFICATIONS

Manufacturer's type designation FLDAXF50-08C1XS
Drive: electric (battery or mains), diesel, petrol, fuel gas Diesel
Operator type: hand, pedestrian, standing, seated, order-pi cker Seated
Rated capacity/rated load Q (kg) 5000
Load centre distance c (mm) 600
Load distance, centre of drive axle to fork x (mm) 735
Wheelbase y (mm) 2150
Service Weight kg 8900
Axle loading, laden front/rear kg 12300/1600
Axle loading, unladen front/rear kg 4250/4650
Tyres: solid rubber, superelastic, pneumatic, polyurethane Pneumatic
Tyre size, front 445/65-22.5
Tyre size, rear 12.5/80-18
Wheels, number front / rear (x = driven wheels) 4x4
Tread, front b10(mm) 1660
Tread, rear b11(mm) 1760
Tilt of mast/fork carriage forward/backward ? /? (°) 15/15
Height, mast lowered h1 (mm) 2685
Free lift h2 (mm) 260
Lift h3 (mm) 3000
Height, mast extended h4 (mm) 4534
Height of overhead guard (cabin) h6 (mm) 2575
Overall length l1 (mm) 4865
Length to face of forks l2 (mm) 3665
Overall width b1(mm) 2105
Fork dimensions ISO 2331 s/e/l (mm) 60×150×1220
Fork carriage DIN 15 173 --- ISO 2328, class/type A,B B
Fork-carriage width b3 (mm) 1950
Distance between fork-arms b5 (mm) 290-1950
Ground clearance, laden, below mast m1 (mm) 385
Ground clearance, centre of wheelbase m2 (mm) 370
Aisle width Ast (mm) 6305
Turning radius Wa (mm) 4150
