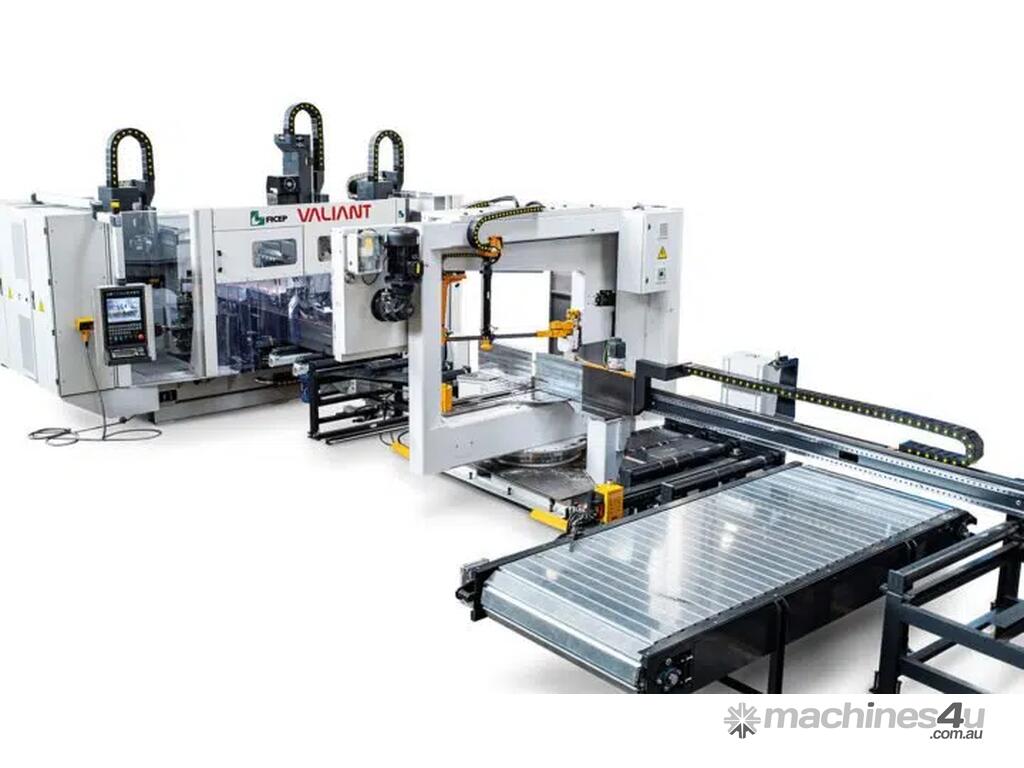

FICEP VALIANT CNC Beam Drill Line with Automatic Band Saw

Section Shapes:
High-Productivity CNC Drilling and Sawing System for Structural Steel Fabrication

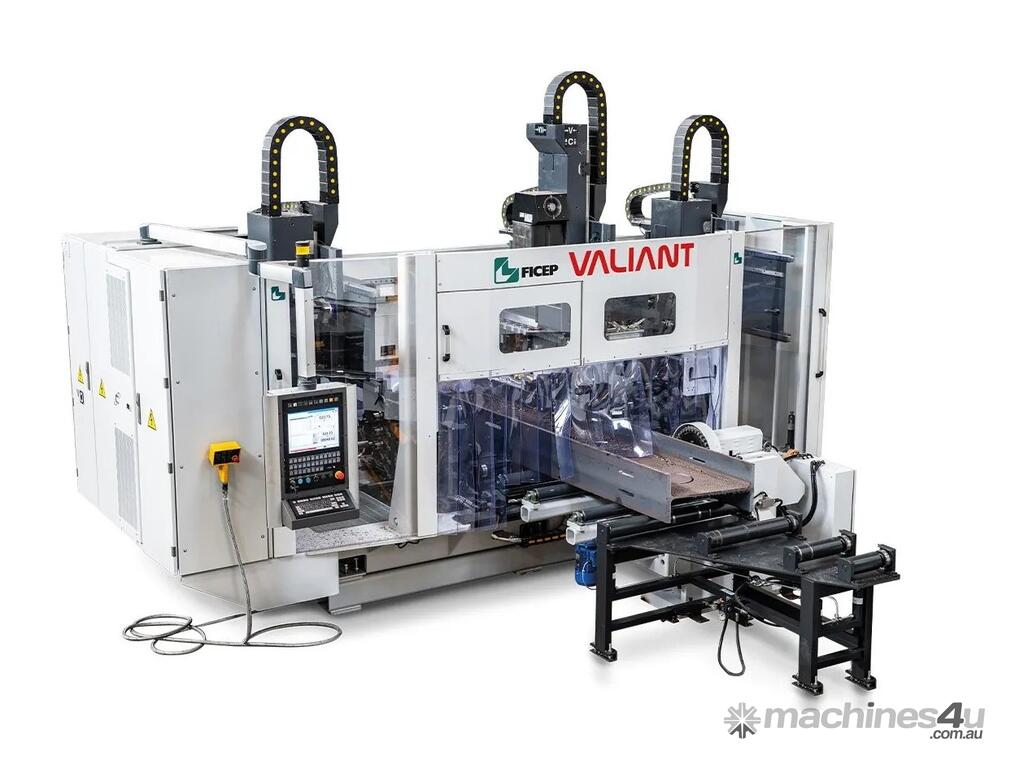

The FICEP VALIANT is an advanced CNC beam drilling and band sawing line designed for efficient processing of structural steel sections.

Manufactured by FICEP, one of the world’s leading producers of structural steel fabrication machinery, the VALIANT represents the latest evolution in CNC drilling technology for structural steel fabrication.

The system features a three-spindle drilling unit designed for comprehensive processing of rolled structural steel shapes. Combined with an automatic band saw, the VALIANT can drill, mark and cut structural steel components in a single automated production line.

This highly automated system improves production efficiency, reduces manual handling and delivers consistent accuracy for structural steel fabricators.

Key Features

• CNC beam drilling and automatic band sawing line
• Advanced three-spindle drilling system
• Simultaneous drilling on three sides of the section
• Integrated scribing and marking capabilities
• Designed for high-productivity structural steel fabrication
• Ideal for automated beam processing environments

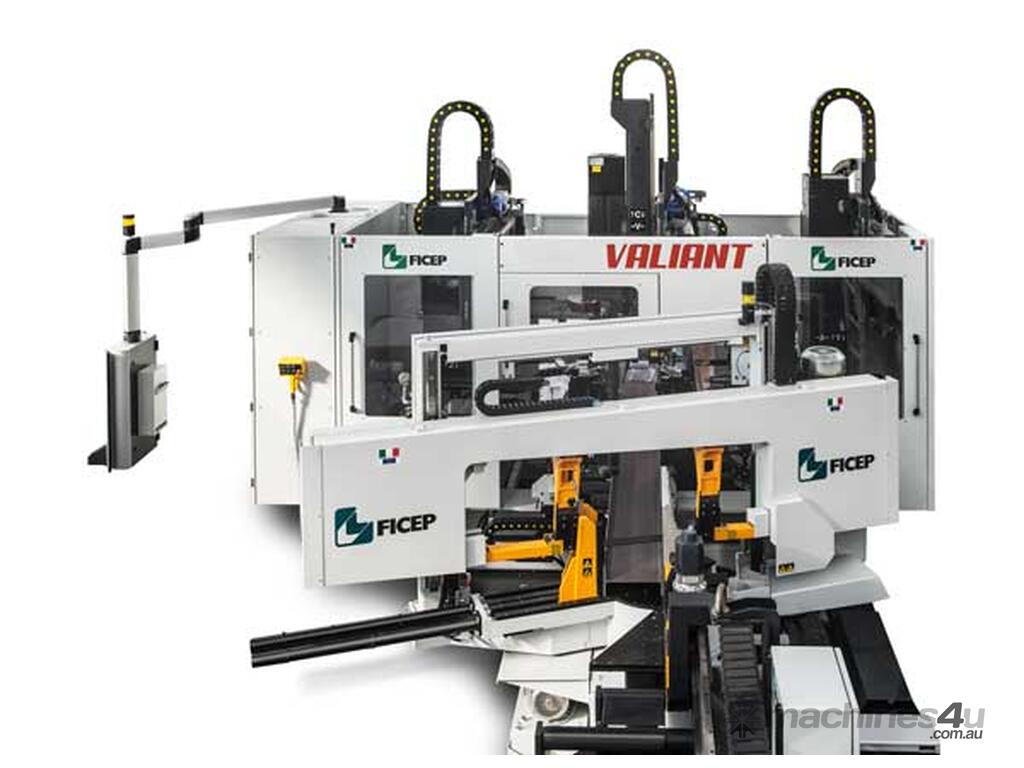

Advanced Three-Spindle Drilling System

The VALIANT drill line incorporates a powerful three-spindle configuration designed to process rolled structural steel sections quickly and accurately.

Key advantages include:

• Simultaneous drilling on three surfaces
• Holes can be drilled even when not aligned
• Faster processing of complex fabrication components
• Increased production efficiency

Auxiliary Axis for Greater Flexibility

Each spindle is equipped with an extended 300 mm auxiliary axis, providing increased control and flexibility for drilling operations.

Benefits include:

• Greater drilling reach and positioning flexibility
• Improved machining precision
• Increased productivity for structural fabrication work

Underside Scribing System

The VALIANT includes an underside scribing device with sub-axis positioning, allowing:

• Simultaneous four-side scribing operations
• Accurate layout and part identification marking
• Elimination of manual marking processes

Automatic Band Saw Integration

The VALIANT drilling system can be integrated with a CNC automatic band saw, allowing the machine to drill, mark and cut structural steel sections in a single automated line.

Benefits include:

• Reduced material handling
• Improved production workflow
• Faster processing of structural steel components
• Reduced labour requirements

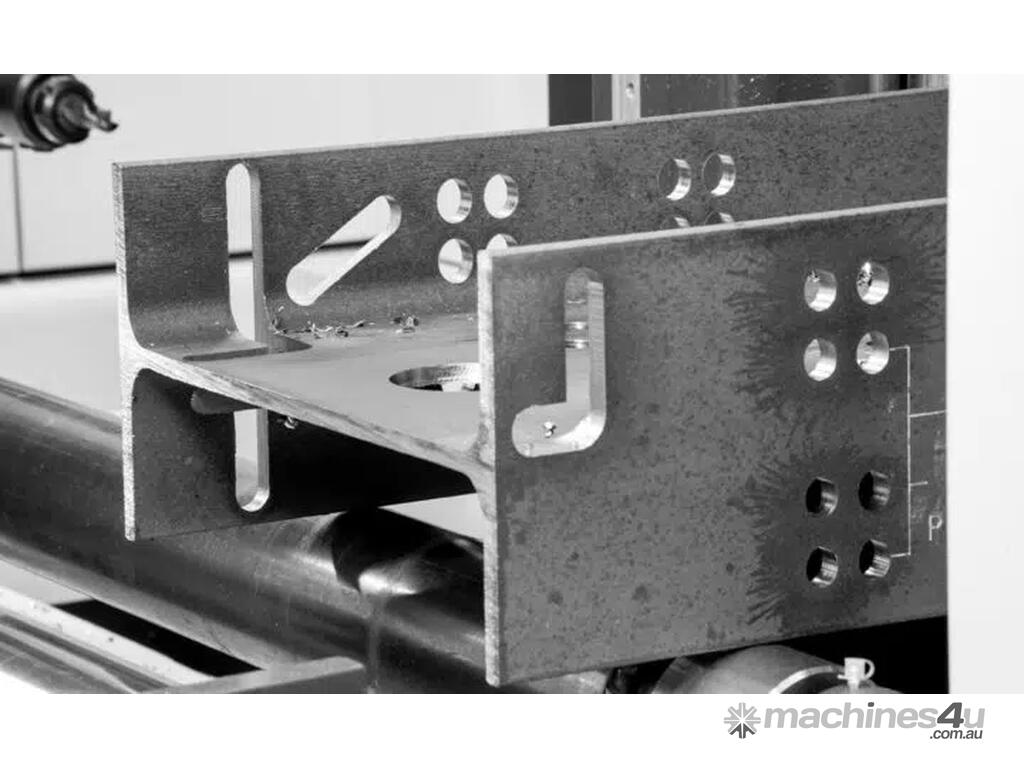

Integrated Processing Capabilities

The VALIANT system can perform multiple fabrication processes including:

• Drilling
• Scribing
• Milling
• Countersinking
• Tapping
• Marking
• Band sawing

Structural Shapes Processed

The system is capable of processing a wide range of structural steel sections including:

• Beams
• Angles
• Flats
• Channels
• Square tubes
• Rectangular tubes

Typical Applications

• Structural steel fabrication
• Steel construction projects
• Engineering and fabrication workshops
• Infrastructure fabrication
• Steel service centres

Why Choose FICEP

With more than 90 years of engineering and manufacturing experience, FICEP is recognised globally as a leader in automated structural steel fabrication systems.

FICEP machines are known for:

• Heavy-duty industrial construction
• Advanced CNC automation
• High productivity
• Long-term reliability

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine sizing and configuration options
• Pricing and availability
• Delivery throughout Australia and New Zealand
• Installation and commissioning
• Integration with structural steel fabrication lines

Our team can help you select the most suitable FICEP structural steel fabrication solution for your production requirements.
