FICEP VALIANT CNC Beam Drill Line with NOZOMI Plasma Coping Robot

Fully Automated CNC Drilling and Coping Line for Structural Steel Fabrication

The FICEP VALIANT and NOZOMI combination creates a highly efficient automated structural steel fabrication line that integrates drilling, marking and plasma coping into a single production system.

Manufactured by FICEP, one of the world’s leading suppliers of structural steel fabrication machinery, this automated line dramatically improves productivity while eliminating manual layout, marking and thermal cutting operations.

The VALIANT CNC drill line performs precision drilling and marking of structural steel profiles, while the NOZOMI 9-axis plasma coping robot performs automated coping, weld preparation and complex thermal cutting.

Together they form a complete CNC beam processing line capable of producing finished components ready for fabrication and assembly.

Key Features

• Complete CNC drilling and coping automation line
• Integrates drilling, marking and plasma cutting in one system
• Designed for high-productivity structural steel fabrication
• Eliminates manual layout and marking operations
• Reduces grinding and secondary processing
• Improves production accuracy and consistency

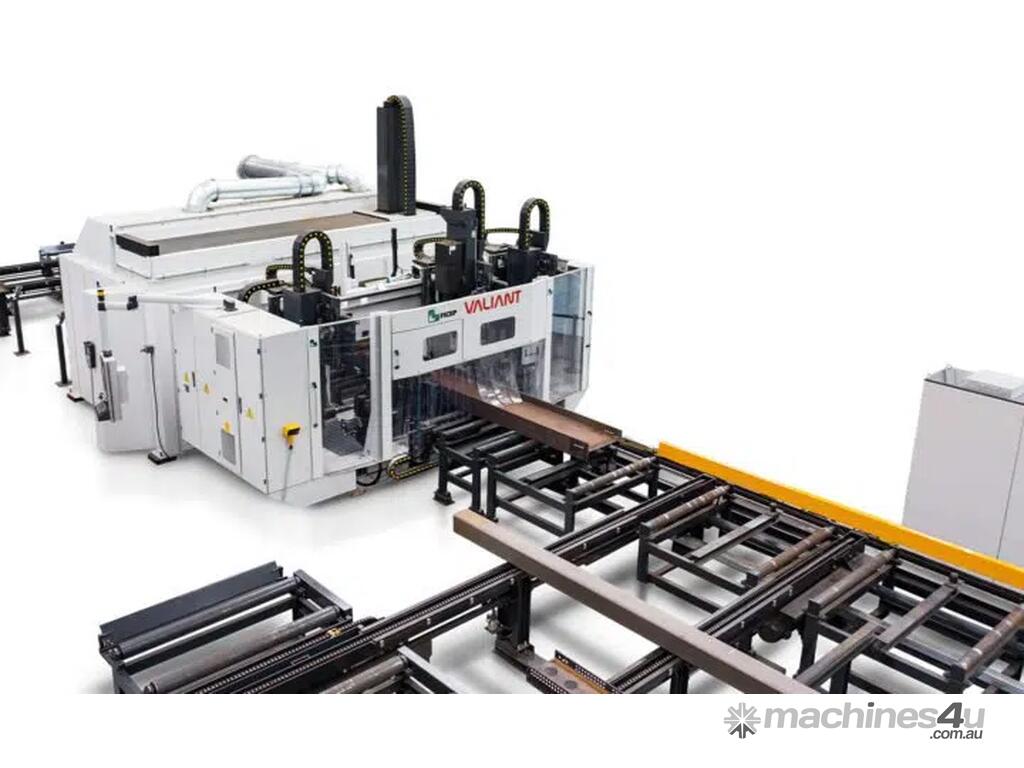

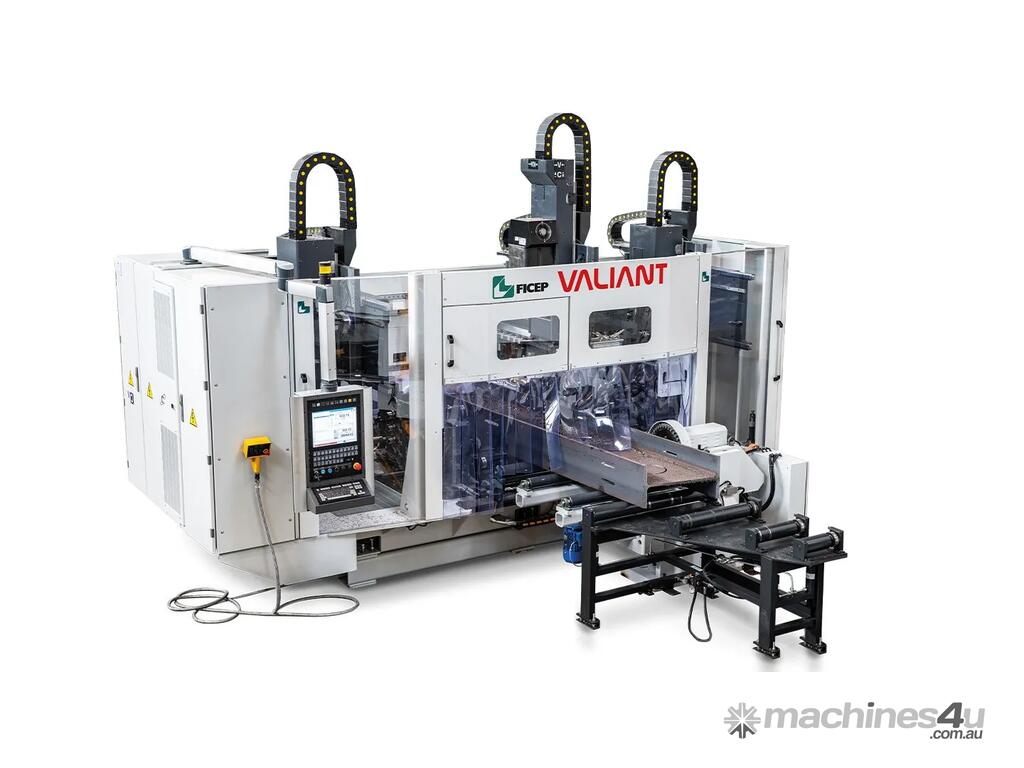

FICEP VALIANT CNC Beam Drill Line

The FICEP VALIANT represents the latest evolution in FICEP’s beam drilling technology.

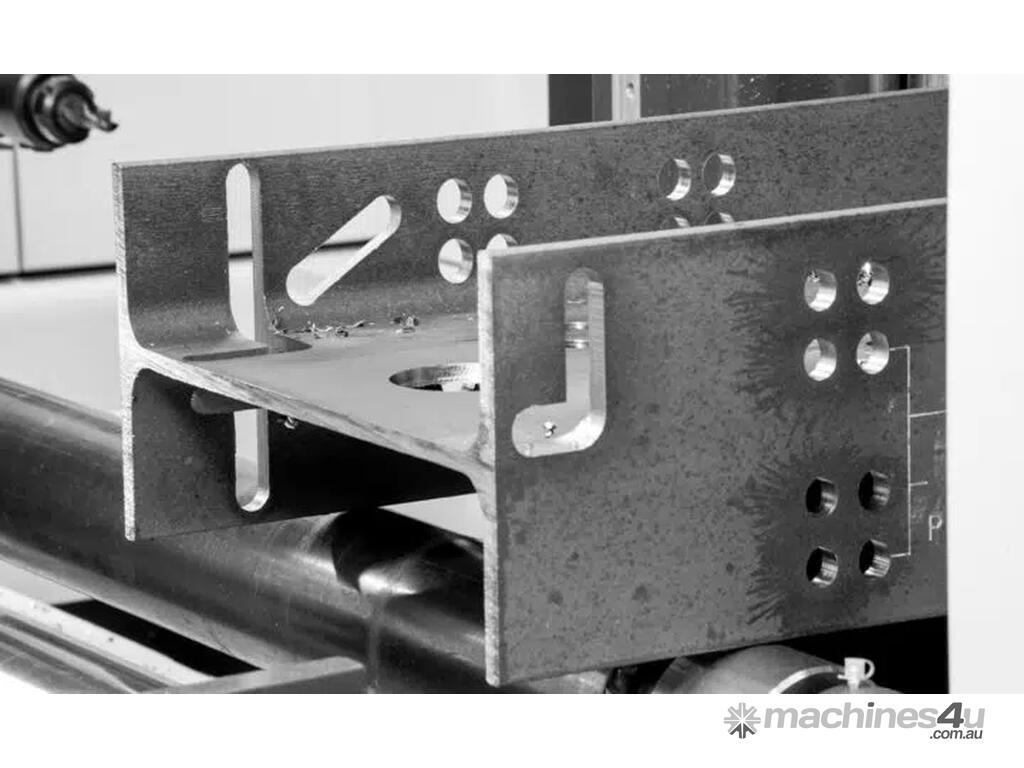

The system features an advanced three-spindle drilling unit designed for efficient processing of rolled structural steel sections.

Advanced Drilling Technology

• Three independent drilling spindles
• Simultaneous drilling on three sides of the section
• Holes can be drilled even when they are not aligned
• Increased productivity for complex fabrication work

Auxiliary Spindle Axis

Each spindle includes an extended 300 mm auxiliary axis, providing greater control and flexibility for drilling operations.

Underside Scribing System

The integrated underside scribing device with sub-axis positioning allows:

• Simultaneous four-side scribing operations
• Accurate part identification and layout marking
• Elimination of manual marking processes

FICEP NOZOMI Plasma Coping Robot

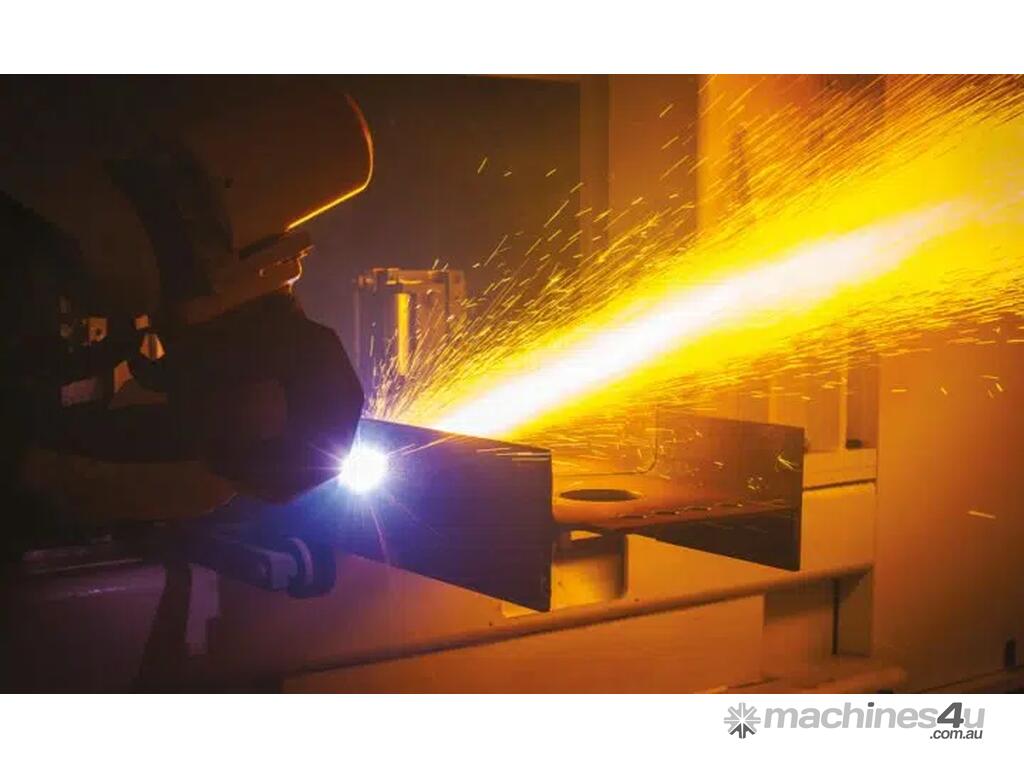

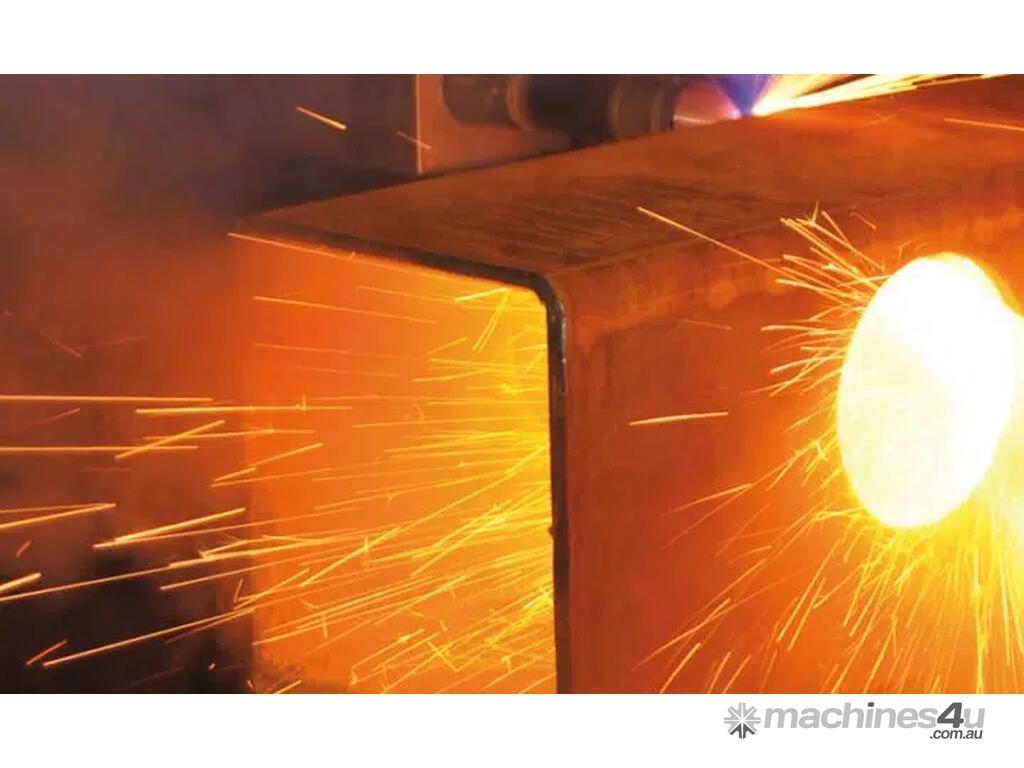

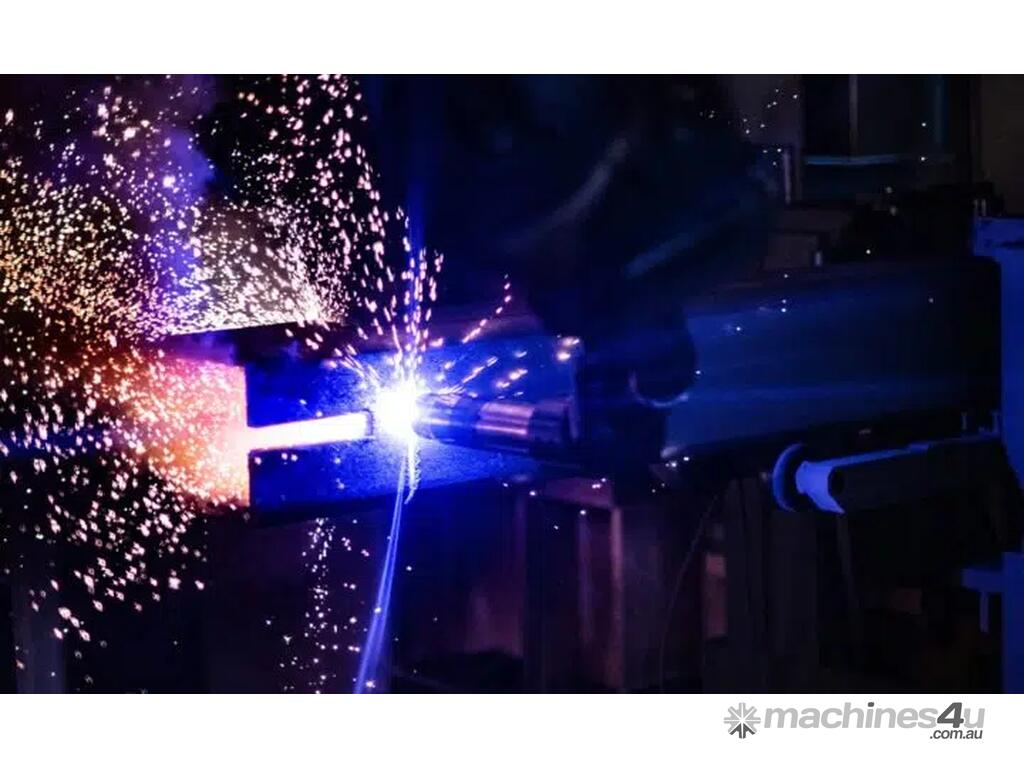

The NOZOMI 9-axis CNC robotic plasma system performs automated thermal cutting of structural steel sections.

Typical coping operations include:

• Beam coping
• Weld preparations
• Mechanical openings

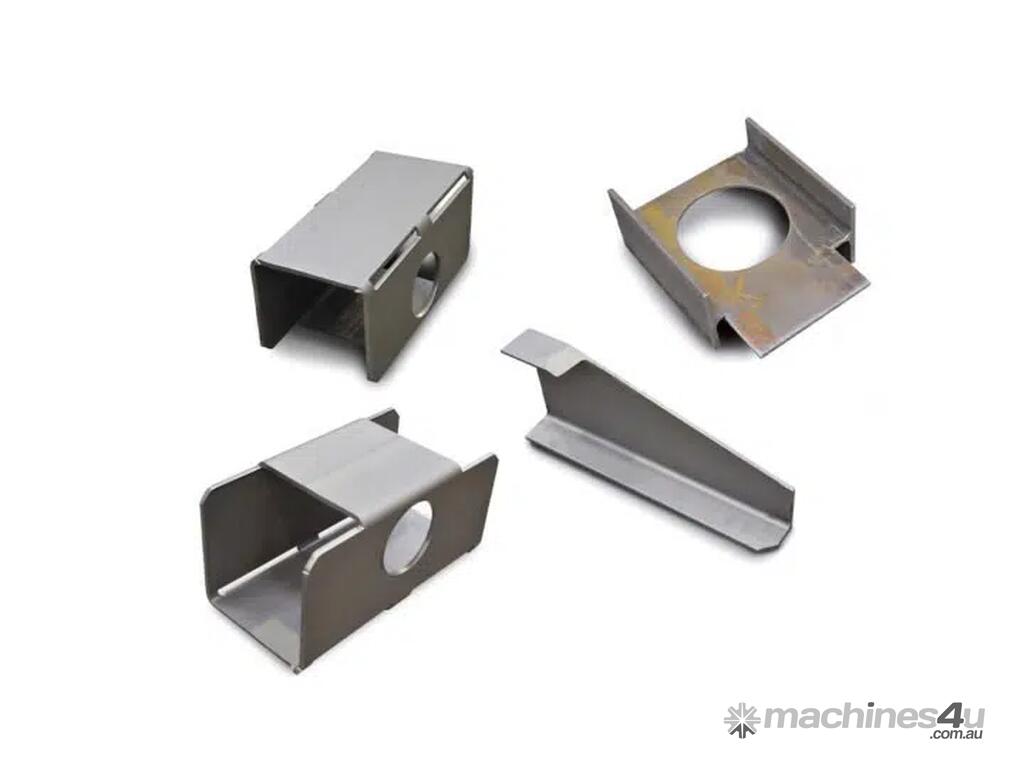

• Contour cutting
• Complex profile cutting

The plasma torch can also perform part marking and layout marking, allowing additional fabrication operations to be completed within the same processing cell.

Complete Automated Fabrication Cell

When combined, the VALIANT drill line and NOZOMI coping robot create a fully automated structural steel fabrication solution.

Benefits include:

• Eliminates manual layout and marking
• Reduces grinding and finishing work
• Improves production speed
• Minimises human error
• Reduces factory floor space requirements

Integrated Processing Capabilities

The combined system can perform:

• Drilling
• Scribing
• Milling
• Countersinking
• Tapping
• Marking
• Plasma cutting

Structural Shapes Processed

The system can process a wide range of structural steel sections including:

• Beams
• Angles
• Flats
• Channels
• Square tubes
• Rectangular tubes

Typical Applications

• Structural steel fabrication
• Steel construction projects
• Bridge fabrication
• Infrastructure fabrication
• Heavy engineering workshops

Why Choose FICEP

With more than 90 years of engineering and manufacturing experience, FICEP is recognised worldwide for advanced automation systems used in structural steel fabrication.

FICEP machines are known for:

• Heavy-duty industrial construction
• Advanced CNC automation
• High production efficiency
• Long service life

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine sizing and configuration options
• Pricing and availability
• Delivery throughout Australia and New Zealand
• Installation and commissioning
• Integration with existing fabrication equipment

Our team can help you select the most suitable FICEP structural steel fabrication solution for your production requirements.
