FICEP XBLADE CNC Beam Processing Line – Drilling, Milling & Disc Sawing System

Advanced CNC Machining and Sawing for Structural Steel Fabrication

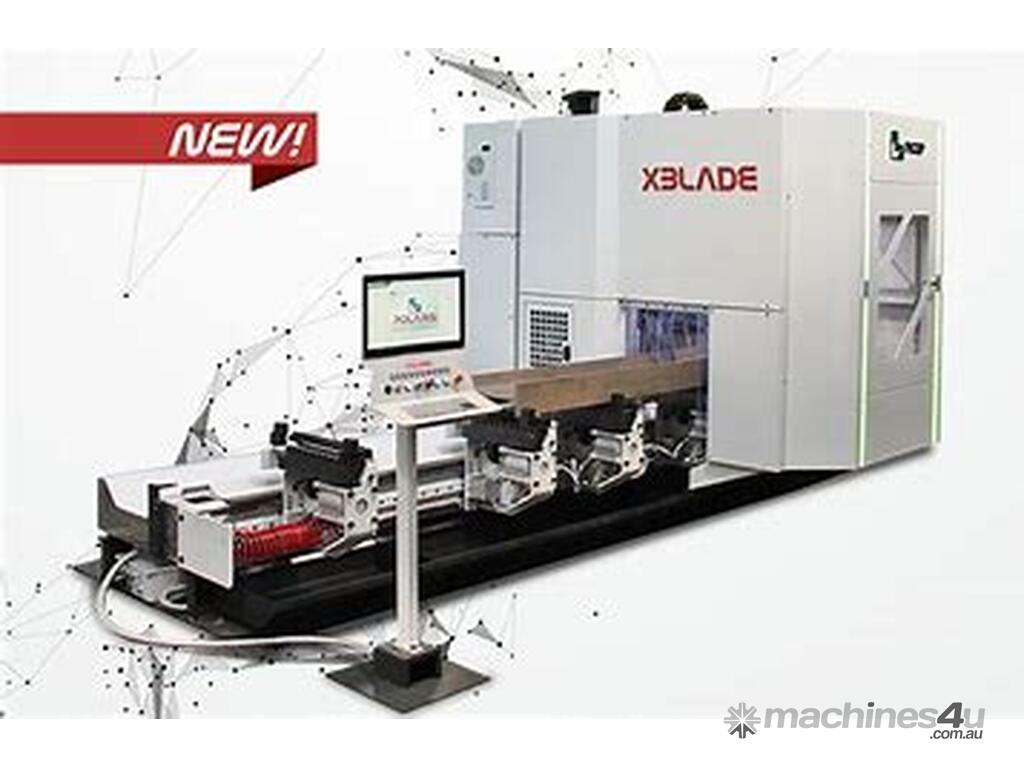

The FICEP XBLADE is a highly advanced CNC beam processing line designed for machining and cutting structural steel sections with exceptional accuracy and productivity.

Manufactured by FICEP, one of the world’s leading suppliers of structural steel fabrication machinery, the XBLADE integrates drilling, milling, tapping and disc sawing into a single automated system.

The machine is capable of processing structural steel beams with section sizes up to 305 × 305 mm on three sides and up to 450 × 450 mm on one side, with variable lengths thanks to its modular machine configuration.

This highly flexible machining system is ideal for fabricators requiring complex machining operations with minimal manual intervention.

Key Features

• Advanced CNC drilling, milling and disc sawing line
• Designed for processing structural steel beams and profiles
• High-precision machining with multi-axis capability
• Modular configuration for variable workpiece lengths
• Compact machine design with integrated electrical cabinet

Integrated Machining Capabilities

The FICEP XBLADE can perform multiple machining operations within a single automated process, including:

• Drilling
• Milling
• Countersinking
• Tapping
• Disc blade sawing

This integrated machining capability significantly reduces production time and eliminates multiple setup operations.

5-Axis Machining Head

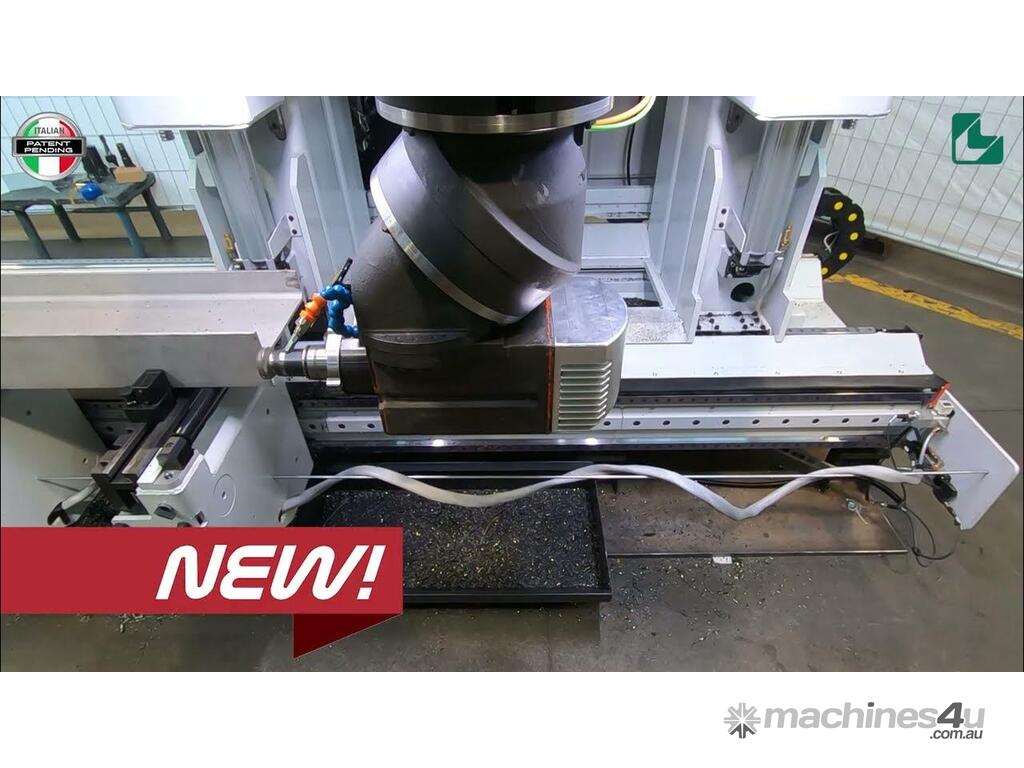

The XBLADE features an advanced 5-axis machining head consisting of two rotating wrists that position the tool anywhere within the working envelope.

This allows the machine to perform three-axis machining operations even on inclined planes, greatly expanding the range of fabrication possibilities.

Disc Blade Sawing

The integrated disc blade saw expands the machine’s processing capabilities, enabling the XBLADE to machine and cut profiles in a single operation.

Combined with the 5-axis machining head, the system can work around the workpiece and perform machining operations on up to five faces without manual repositioning.

Automatic Tool Changer

The machine features a CNC-controlled tool changer system including:

• 8 positions for standard tools
• 2 positions for large tools
• 1 position for the 560 mm disc blade

This system allows multiple machining operations to be completed automatically.

Material Handling System

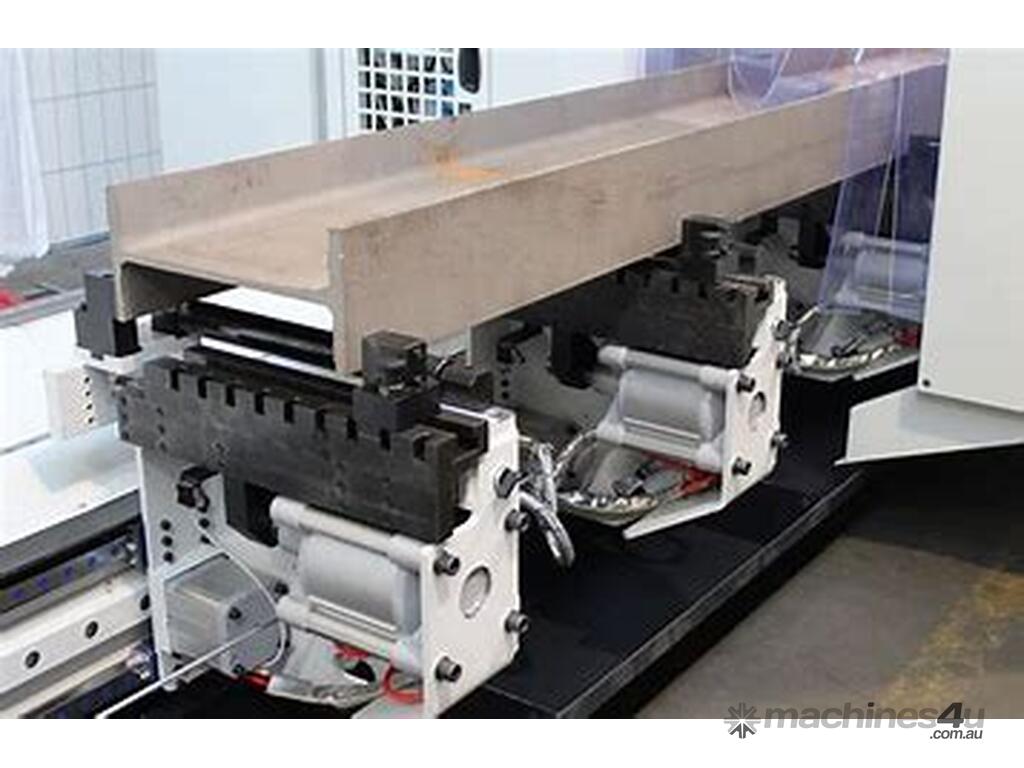

The XBLADE is equipped with roller supports and repositionable vices that securely hold the material during machining operations.

The vices can be positioned along the X-axis and locked into position using pneumatic cylinders to ensure stable and precise machining.

Compact Machine Design

The machine has a compact industrial design, with the following systems integrated into the machine frame:

• Electrical cabinet
• Spindle cooling system
• Air conditioning system

This integrated design simplifies installation and optimises factory floor space.

Advanced Programming Software

Through FICEP Steel Project software, profile nesting can be programmed and optimised for maximum production efficiency.

Using integrated CAM software, ISO programs can be generated quickly and the machining cycle can be launched with ease.

Section Types Processed

The XBLADE can process a wide range of structural steel and profile materials including:

• Structural steel beams
• Steel profiles
• Light alloy profiles

Typical Applications

• Structural steel fabrication
• Engineering and fabrication workshops
• Steel construction projects
• Industrial manufacturing
• Infrastructure fabrication

Why Choose FICEP

With more than 90 years of engineering and manufacturing experience, FICEP is recognised worldwide for its advanced automation solutions for structural steel fabrication.

FICEP machines are known for:

• Heavy-duty industrial construction
• Advanced CNC automation technology
• High productivity and precision
• Long-term reliability

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine sizing and configuration options
• Pricing and availability
• Delivery throughout Australia and New Zealand
• Installation and commissioning
• Integration with structural steel fabrication lines

Our team can help you select the most suitable FICEP machining solution for your production requirements.
