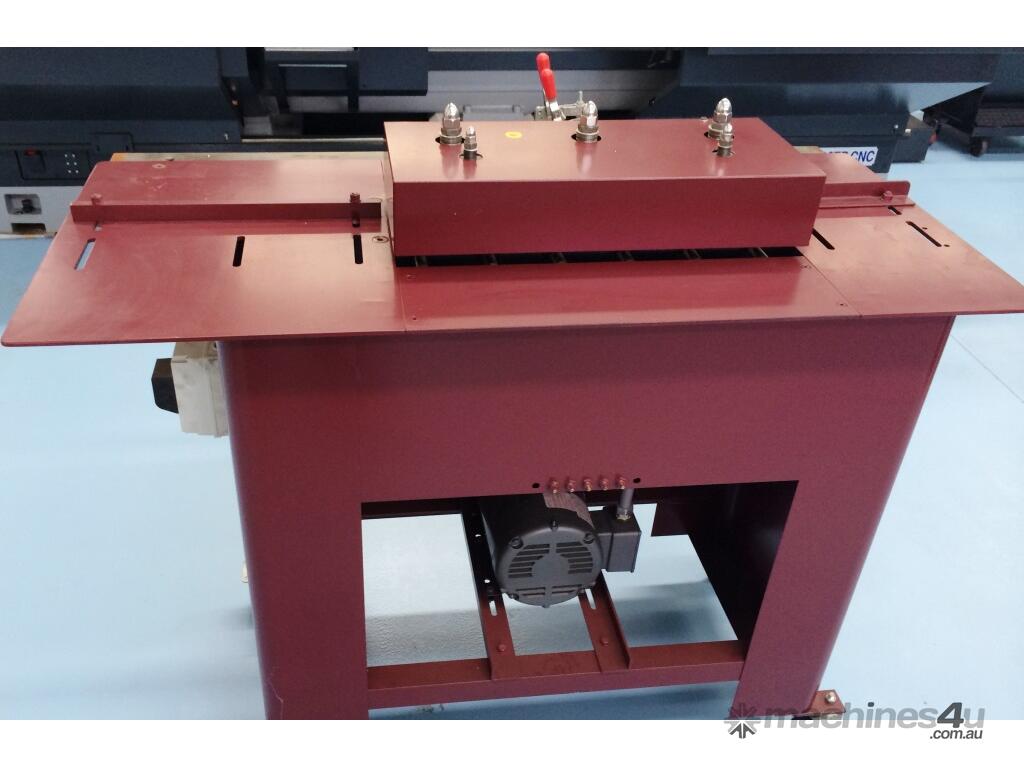

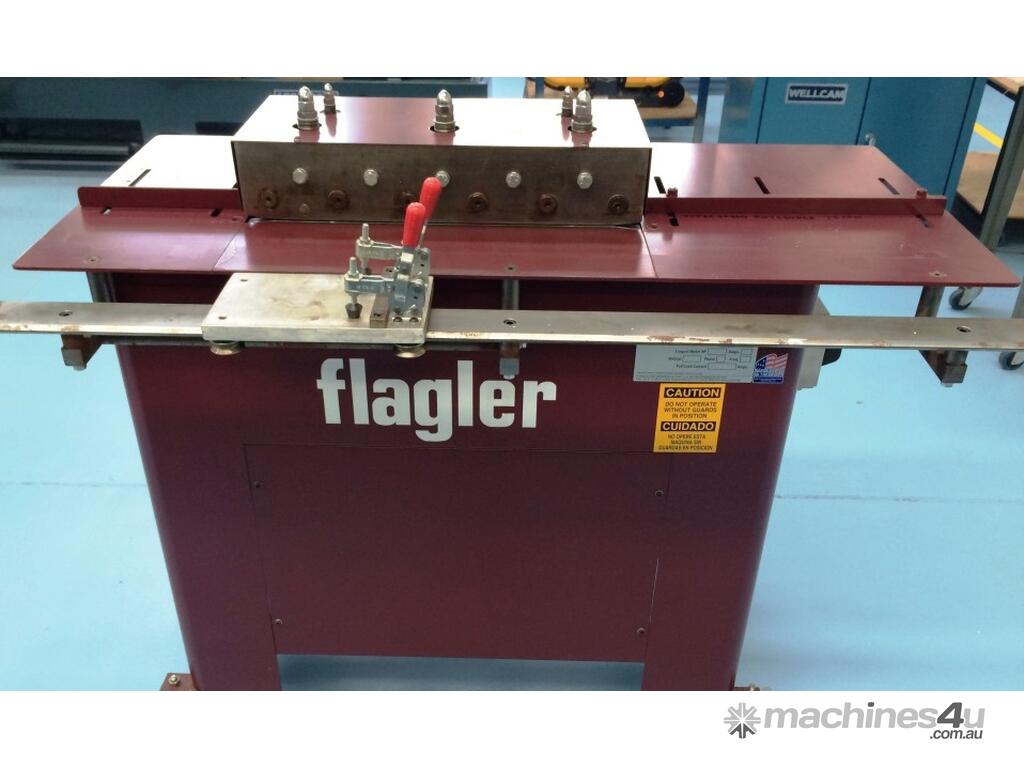

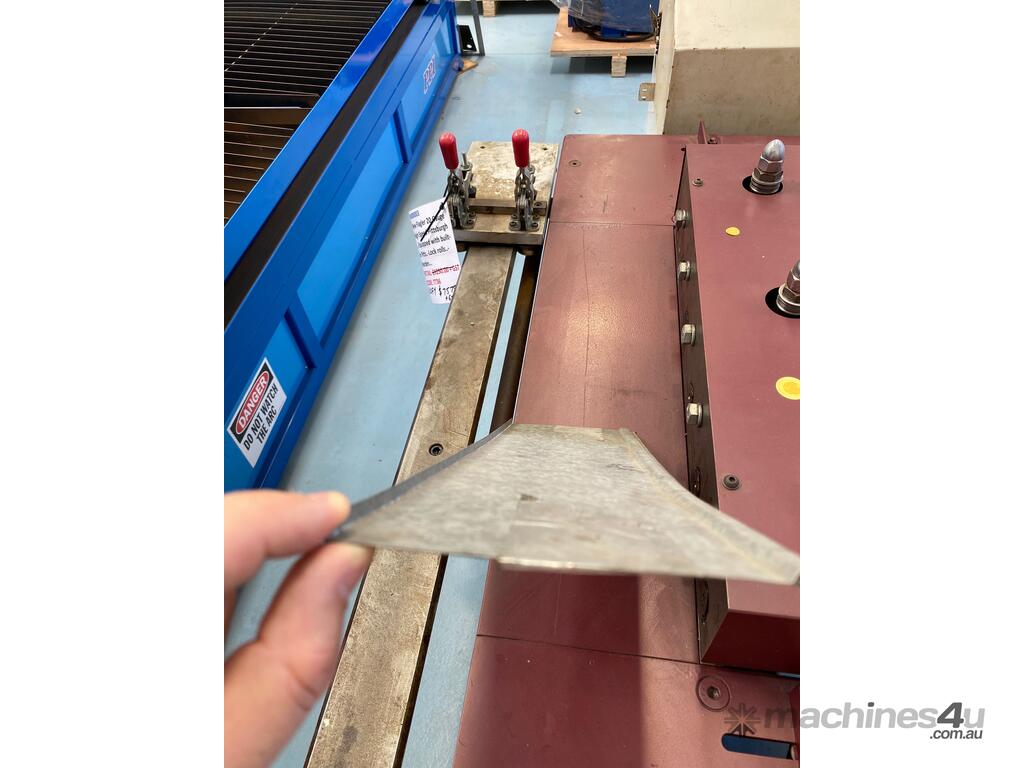

Flagler super speed pittsburgh will speed up any production line, this quality made machine comes out of the USA.
PITTSBURGH 20 GAUGE HD (HIGH SPEED)

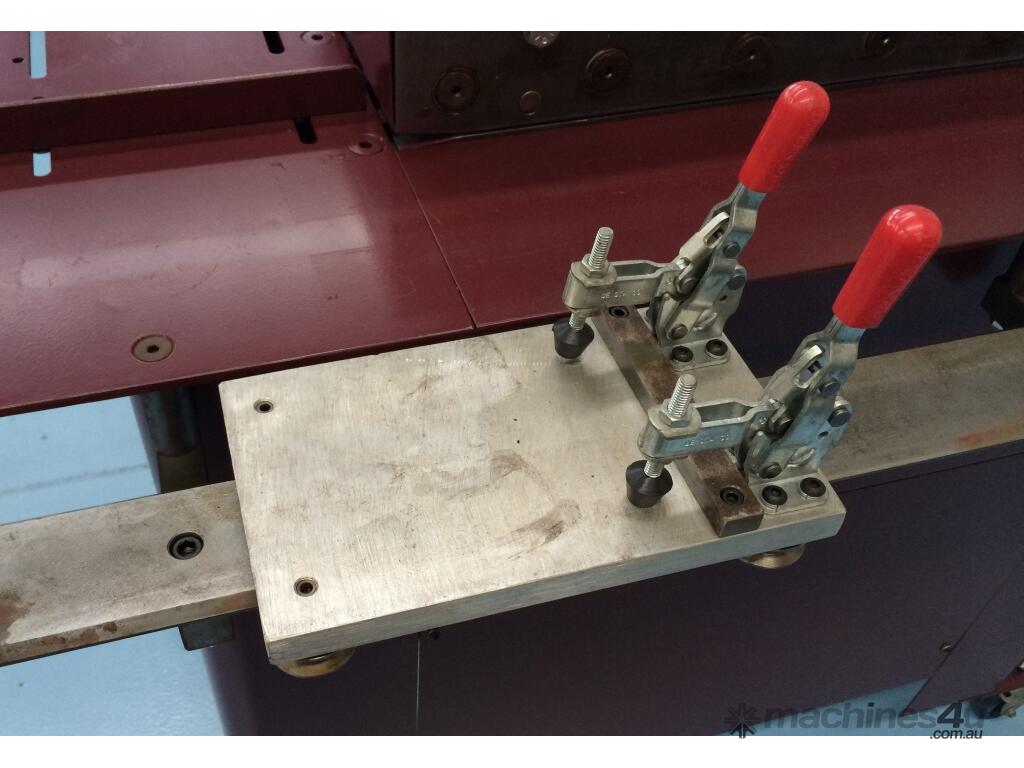

SHORTS PART FEEDER

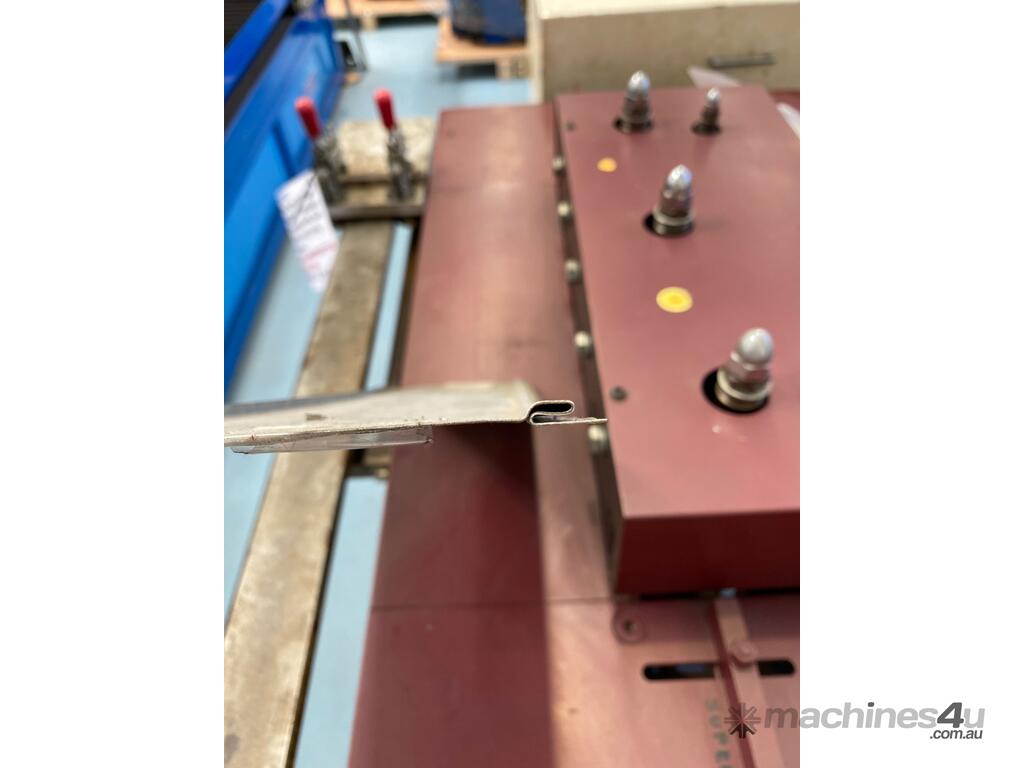

LOCK ROLLS
HARDENED FEED GAUGE
EXTENDED SHAFTS FOR AUXILIARY TOOLING
CAPACITY: 20 TO 26 GAUGE (1.0MM-.4MM MILD STEEL)
DEPTH OF POCKET: 5/16" WIDTH, BUILT IN PITTSBURGH LOCK ROLLS,
ADJUSTABLE HAMMER OVER EDGES
EXTENDED SHAFTS: FOR STANDARD AUX ROLLS DOUBLE SEAM,
DRIVE CLEAT, RIGHT ANGLE FLANGE
FEED GUIDES: HARDENED
SPEED: APPROX. 75 FEET PER MINUTE ( 22.8 METRES/MINUTE)

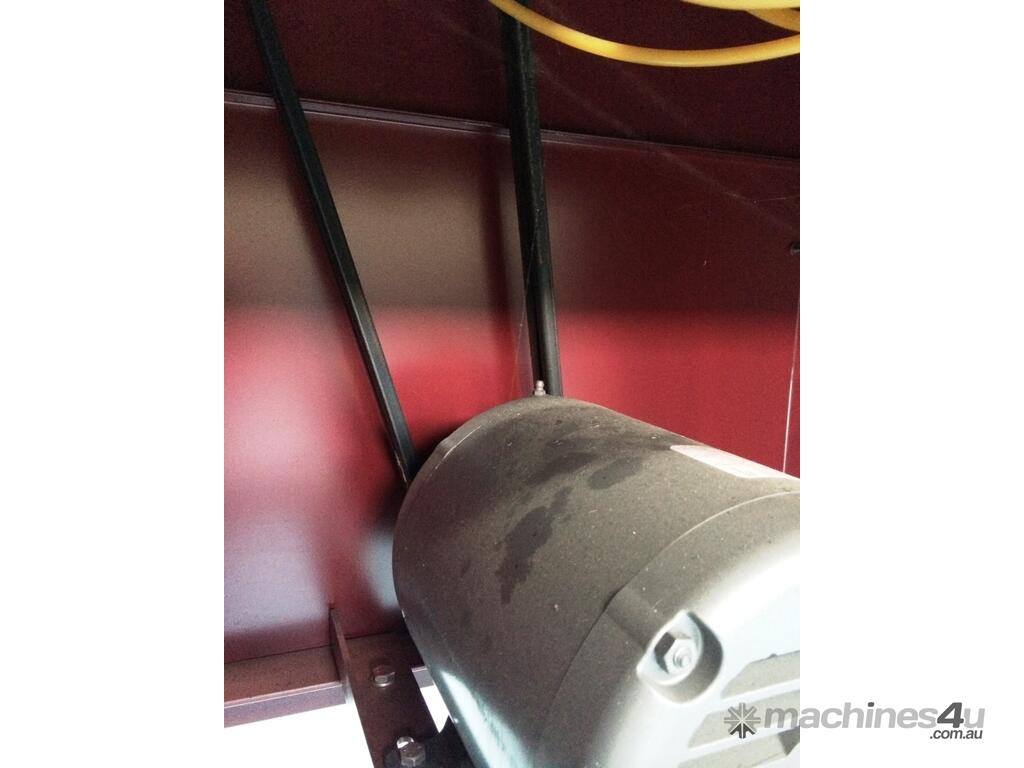

MOTOR: 1HP 240 VOLT 1PHASE 1800 RPM
DRIVE: VEE BELT
BASE: ARC WELDED STEEL
DIMENSIONS: 36"L X 16-1/2"W X 37"H ( 915MM X 419MM X 940MM ),
FEED TABLE HEIGHT 32-5/8"(829MM)
SHIPPING WEIGHT: 320 LBS (146 KGS)
