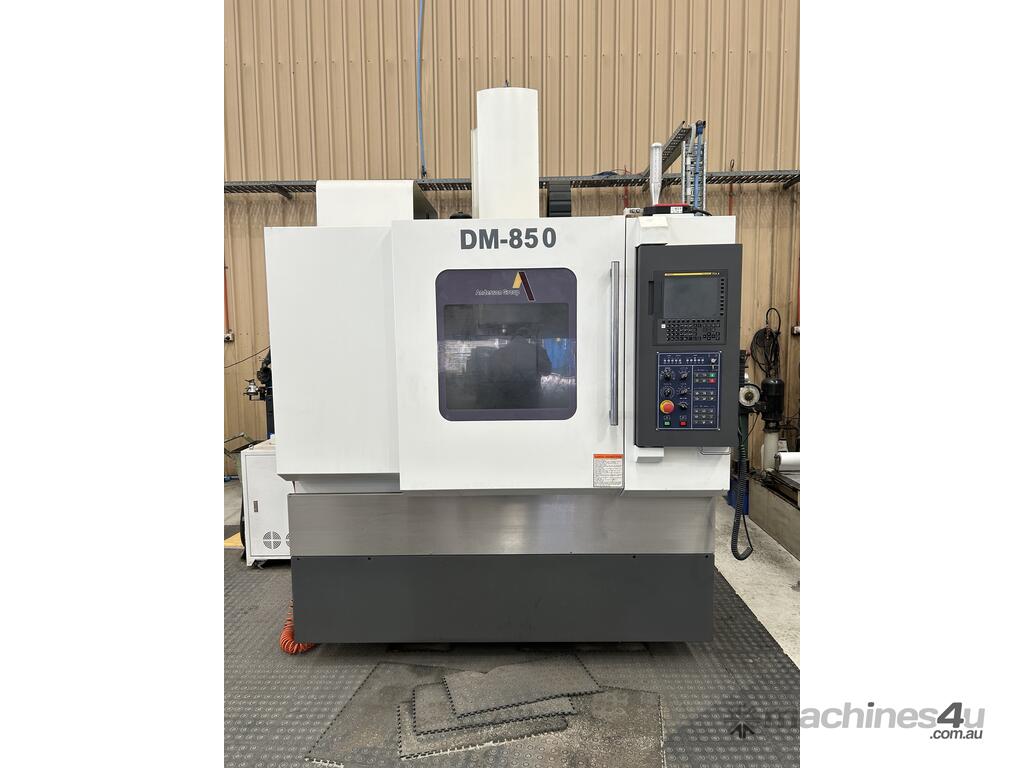

FOCASEIKI DM-850 VERTICAL MACHINING CENTRE

FOCASEIKI MODEL DM-850 VERTICAL MACHINING CENTRE c/w FANUC Oi-MF CNC CONTROLLER

MACHINE FEATURES:
? X/Y/Z axis travel 850/520/500 mm
? Table size 900x510 mm
? T-Slot (No x W x Pitch) 5 x 100 x 14 mm
? Table load capacity 270 kg
? Rapid feed rates X/Y/Z, 60/60/48 m/min
? Cutting feed rate 12 m/min
? Spindle nose to table 95-595 mm
? Spindle speed 12,000 RPM Direct Type
? Spindle power 5.5/7.5 kW AiT6/12000
? Spindle taper BBT-40 BIG PLUS
? Ridid synchronised tapping, AICC II, Custom Macro B

STANDARD EQUIPMENT:

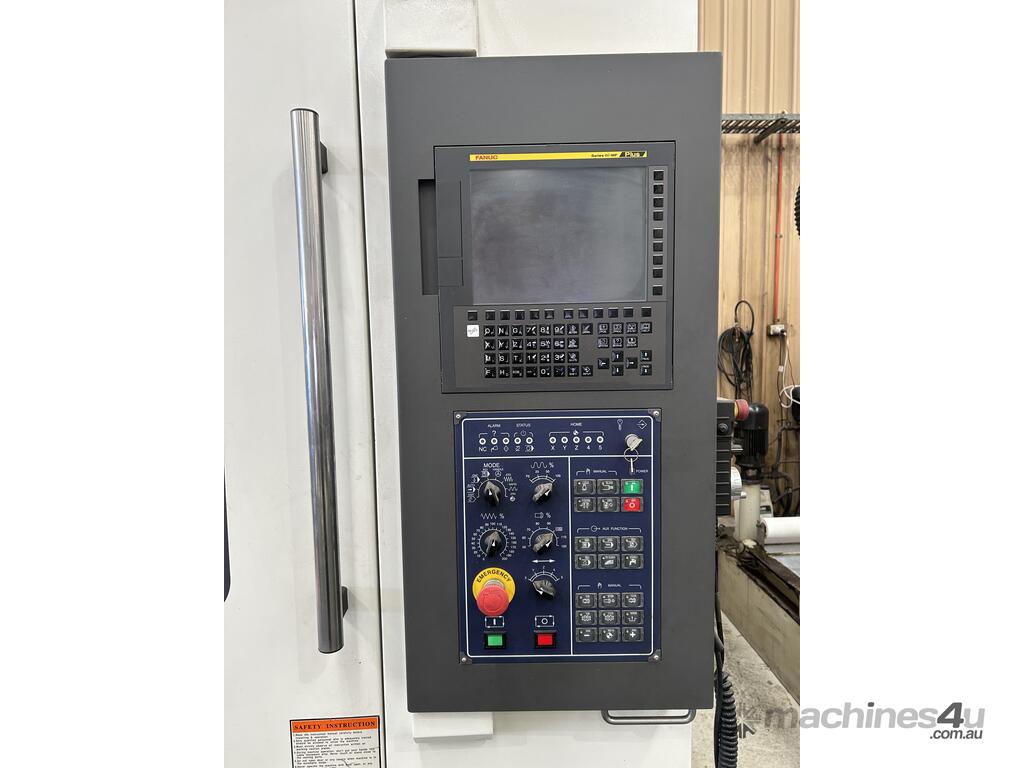

? Fanuc OiMF 15” control with Manual Guide i
? Controller warranty 2 years**
? Servo motors X axis Fanuc AiF8 Y axis Fanuc AiF8 Z axis Fanuc AiF22B
? USB & Ethernet interface
? Side mount 24 tool Arm type tool changer
? Spindle air curtain
? Ball screws X/Y axis: Ø28mm / Z axis Ø 32mm
? Contactors ‘Schneider’, Sensor & Relay ‘Omron’
? Auto power off
? Work light
? Auto lubrication system
? 30 Bar CTS
? ATS (Air Through Spindle)
? Chip conveyor
? Operation and service/parts manual
? Fanuc programming manuals
? Heat Exchanger
? 4th axis ready
? Transformer
? Leveling bolts& pads



INCLUDED OPTIONS:
Renishaw TS27R contact tool setting probe.
