-Automatic pneumatic single clamping.
-Automatic cutting feed.
-Sawblade HSS Ø250 ~ Ø300mm, Ø300mm. (standard)
-2 Speeds.

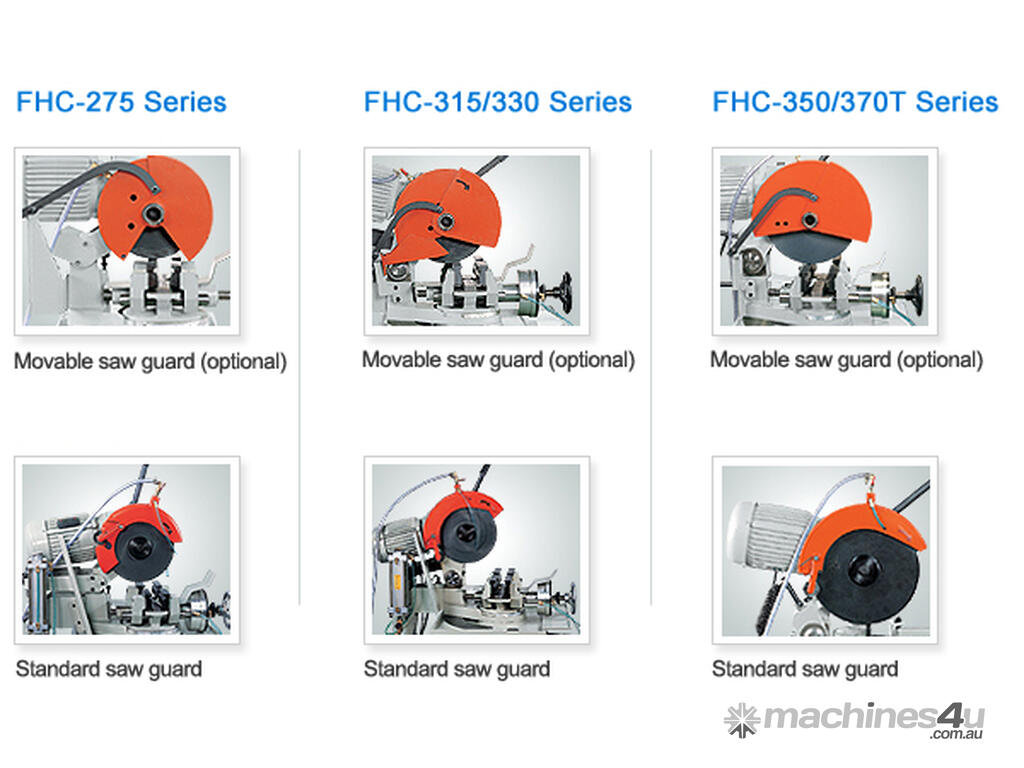

-Movable guard. (standard)
Standard Equipment:
Motor, switch, complete cooling system, adjustable stop, service tools.
Optional Equipment:
Saw blade, cutting fluid.
MODEL FHC-300SA
Main Drive Motor 3.0 HP/1.5 HP (2/4 Pole) 50/60 HZ
Blade Speeds L Type:60HZ 35/70 RPM, 50HZ 58/29 RPM(std.)
H Type:60HZ 52/105 RPM, 50HZ 86/43 RPM(opt.)
Head Swivel 90°/45°
Clamping Vise Single
Coolant Pump Motor 40W
Saw Blade Size Diameter (mm) HSS 50-Ø300(1"-12")
Bore (mm) Ø32
Pin Holes (mm)
Air Pressure (Consumption) 6 kg/cm²(120 ?/min)
Hydraulic Pump Motor
Operation Pressure
Machine Dimensions (LxWxH) (mm) 1300x1150x1500
Packing Dimensions (LxWxH) (mm) 750x1060x1510
Packing Dimensions (LxWxH) (inch) 30"x48"x59"
Net Weight 300 kgs (660 lbs)
Gross Weight 360 kgs (792 lbs)
* The manufacturer always performs product improvements to achieve the best possible performance. All specifications, dimensions and design characteristics shown in this catalogue are subject to change without notice. ( Product specifications are based on the actual machines. )
