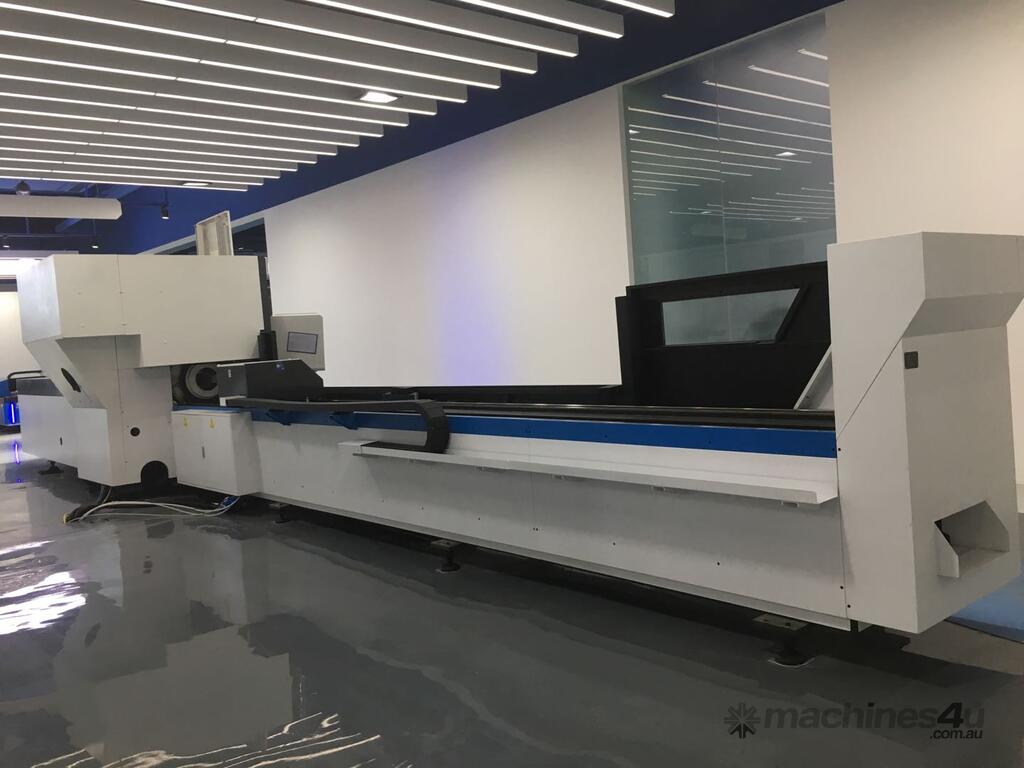

Alpha Senfeng Fiber Laser tube cutting machine SF6020T with 2KW Raycus laser source.
Model SF6020T/2000/3000/4000/6000
Pipe Length: 6000mm
Pipe Diameter: 20-200mm (up to 140x140mm square tube)
Dimension With Auto Loading: 13073x4977x2400mm
Dimension Without Auto Loading: 13073x2900x2400mm
Laser Power: 2KW
Positioning Accuracy: ±0.05mm
Repetitive Accuracy: ±0.03mm
Maximum Speed: 100m/min
Power: 3 Phase 415V/50Hz /160-250A
Machine Weight: 6500KG
Laser Source: Raycus fiber laser 2KW
Laser Head: Raytools
CNC Controller: Cypcut TubePro pipe cutting software PC based CNC - easy integration into factory network
Cabinet Electrical Components: SIEMENS/Schneider
Water Chiller Specialized for 2KW laser
Dust Exhausting Fan 3KW
Auto obtaining the center deviation in the process of machining
TubePro can check the deviation between the center of pipe and the center of chuck rotation by collecting the Z-axis information in real time during processing. Real-time compensation for subsequent cutting graphics is carried out to achieve high precision processing.

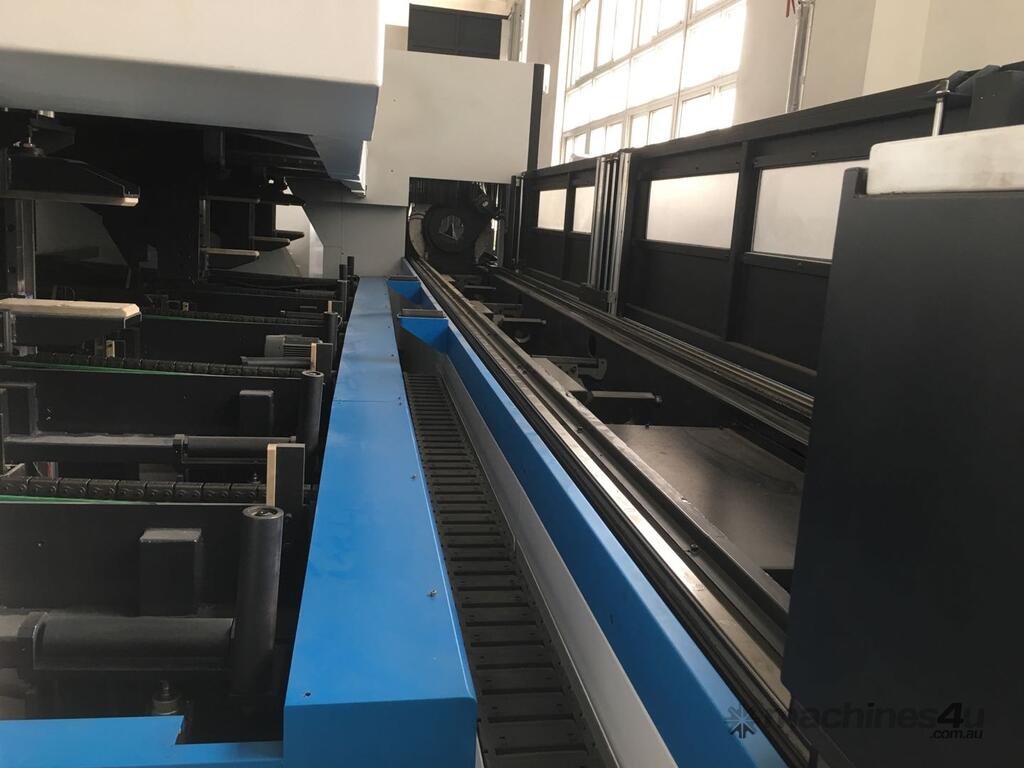

Bracket Support
When a long pipe is processed, a bracket is usually needed to support the pipe. TubePro supports the bracket function. During the whole processing, the bracket can rise or fall automatically according to the position of the chuck, and the bracket has automatic alarm function to ensure absolute safety between the chuck and the bracket. At the same time, brackets can be used to achieve the purpose of automatic blanking.
Corner Technology
TubePro specially introduces the process of pipe corner to solve the problems of difficult cutting and poor cutting. Through debugging and testing, a set of reasonable corner pressure, peak power, duty cycle and so on are set to make the cutting of pipe corners faster and more perfect.
Auto Height Control
When cutting pipes, there are usually situations where the corner can not be cut well. When TubePro is processed, the Z-axis not only plays the role of following and lifting, but also controls instructions. TubePro automatically calculates the height difference between the tube before and after rotation based on the cross-section information of the graph, and sends an upward or downward instruction to the Z-axis on the basis of random cutting at the corner.
Rapid operation
TubePro can ensure the reasonable height of Z axis according to the section of pipe in West Sydney and the location of pipe hole. In the process of air movement, the three axes of XYB and Z axes move simultaneously, avoiding the time of Z axis rising and following the time, so as to achieve high efficiency.
Shape Of Profiled Steel
TubePro not only supports the cutting of circular and square tubes. At the same time, it also supports the cutting of various profiles. For example, I-beam, channel, angle, elliptical, waist, polygon and so on. For these special-shaped pipes, the center deviation can also be automatically obtained.
