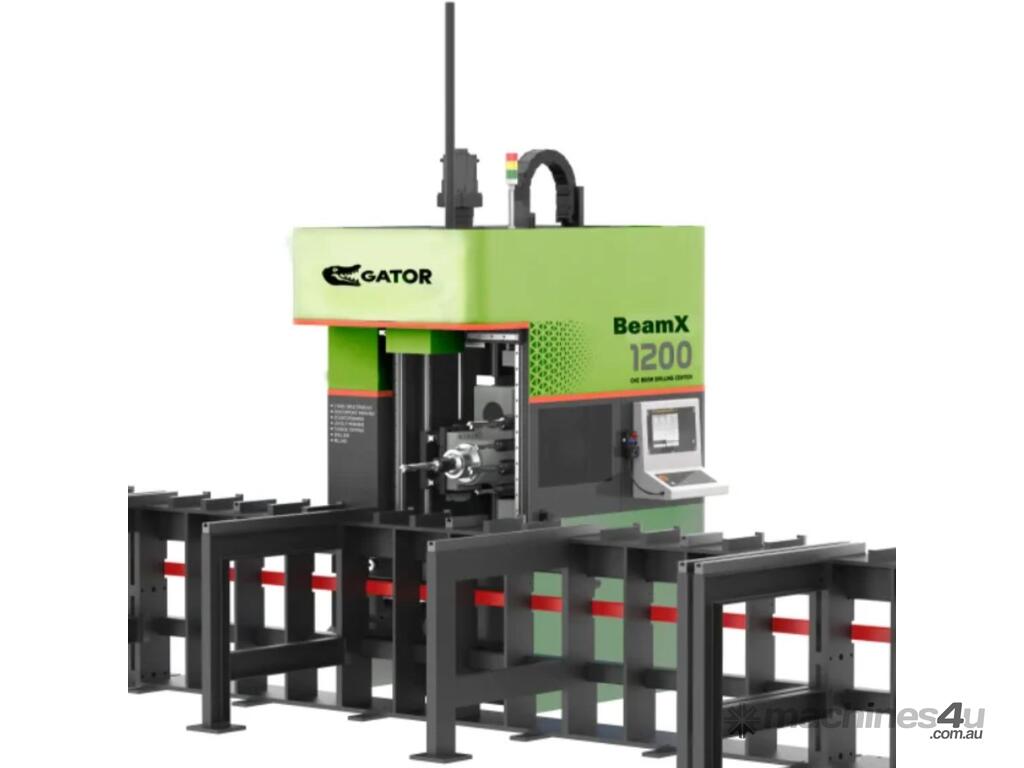

The Gator BeamX is a versatile, single-spindle CNC drilling station designed for structural steel profiles (I-beams, H-beams, channels, and RHS). Featuring a high-torque spindle and an integrated tool changer, it automates the most tedious part of fabrication. It is the perfect entry point for workshops looking to digitize their workflow and take on higher-spec structural contracts.
Key Technical Specifications:
Spindle Type: High-speed, high-torque single spindle with BT40/ISO40 taper.
Automatic Tool Changer (ATC): 4 to 6-station carousel for seamless drilling, tapping, and countersinking.
Processing Range: Handles sections up to 1000mm+ wide (model dependent).
Marking: Integrated "Scribing" or "Pop-marking" for easy layout of gussets and plates.
Cooling: Through-spindle coolant for high-speed carbide drilling.
Control: User-friendly CNC interface with direct import of DSTV/CAD files.
Feeding: High-precision "Gripper" or "Feeding Carriage" for accurate beam positioning.
Top 5 "Gator BeamX" Advantages:
Eliminate Manual Layout: Stop measuring by hand. Upload your CAD file, and the BeamX handles the positioning and drilling automatically. The holes match the drawing 100% of the time.
Multitasking Capability: It doesn't just drill. The BeamX can Tap, Countersink, and Scribe in one setup. It prepares the beam entirely, including marks for where the next plate needs to be welded.
Small Footprint, Big Capacity: Unlike 3-spindle lines that take up a whole warehouse, the BeamX fits into most medium-sized workshops while still handling the same heavy structural sections.
Carbide-Ready Power: Designed to handle modern carbide tooling. You can punch through 20mm steel in seconds, not minutes, dramatically reducing your "floor-to-floor" time.
User-Friendly Tech: You don't need a PhD in robotics to run this. The software is designed for steel fabricators, making the transition from manual to CNC smooth and profitable.
Contact Specialist Machinery Sales today for a technical consultation and to see how the GATOR BeamX integrates into your current workflow.
