GATOR GPM CNC Angle Lines

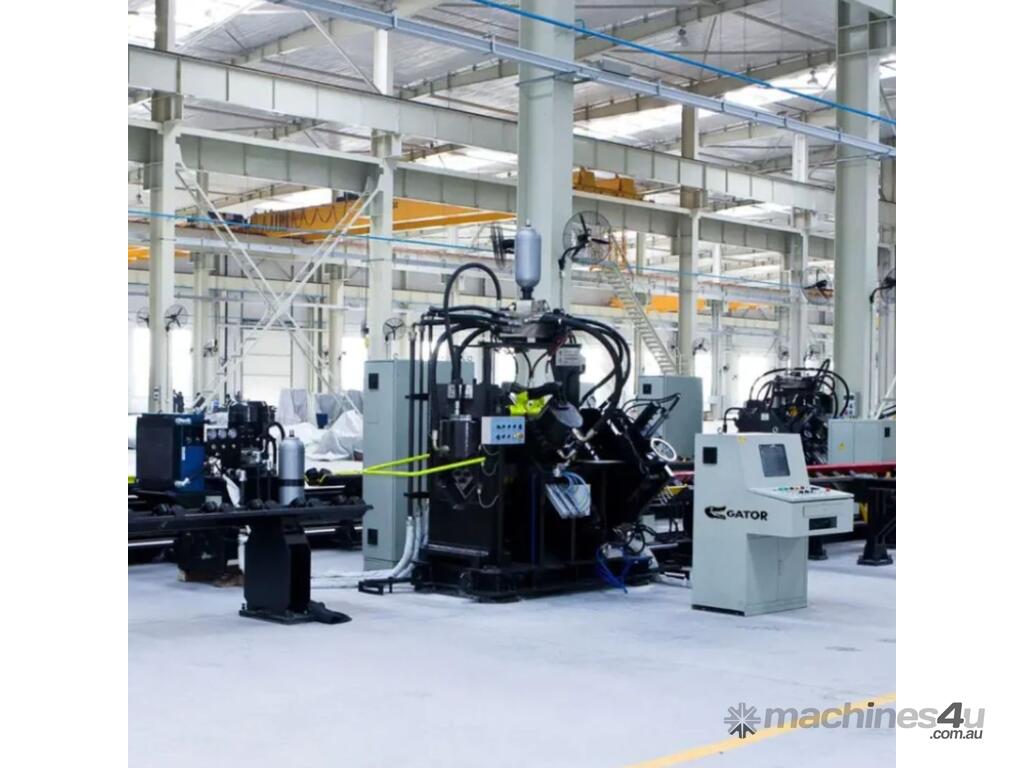

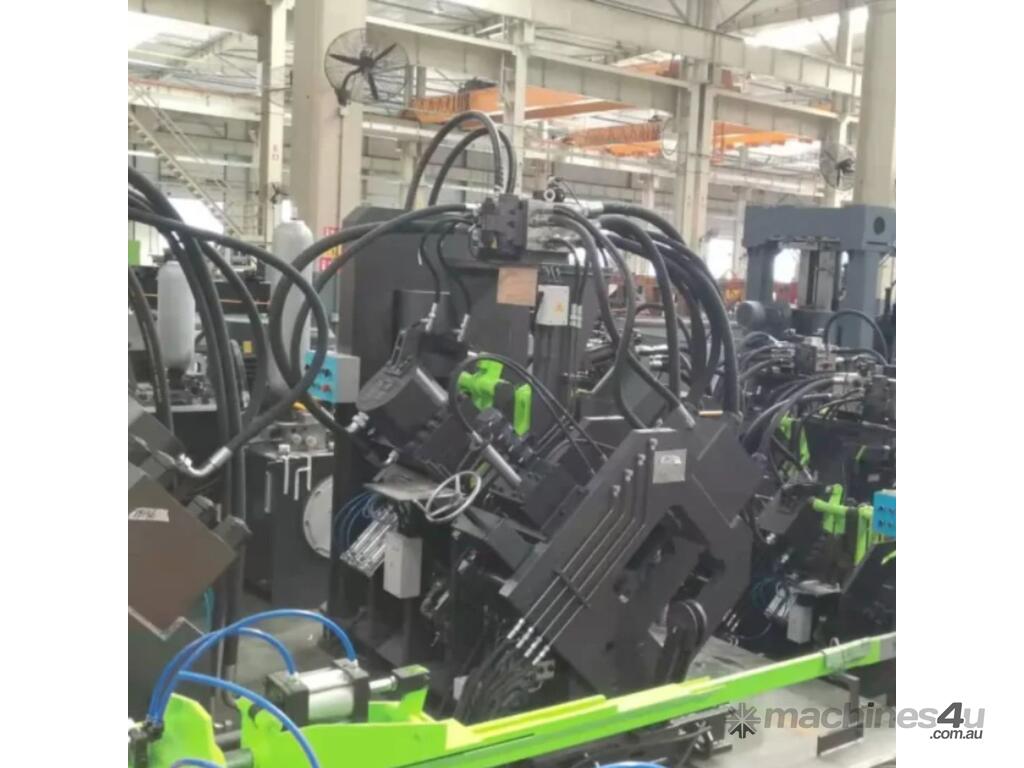

The Gator GPM Series is an industrial CNC processing line specifically engineered for angle steel. It replaces the traditional drill/saw combo with high-speed hydraulic punching and shearing. By eliminating the "drill-and-wait" time, the GPM line can process tons of steel per shift with a single operator. It is the gold standard for high-volume structural framing and tower fabrication.

Key Technical Specifications:

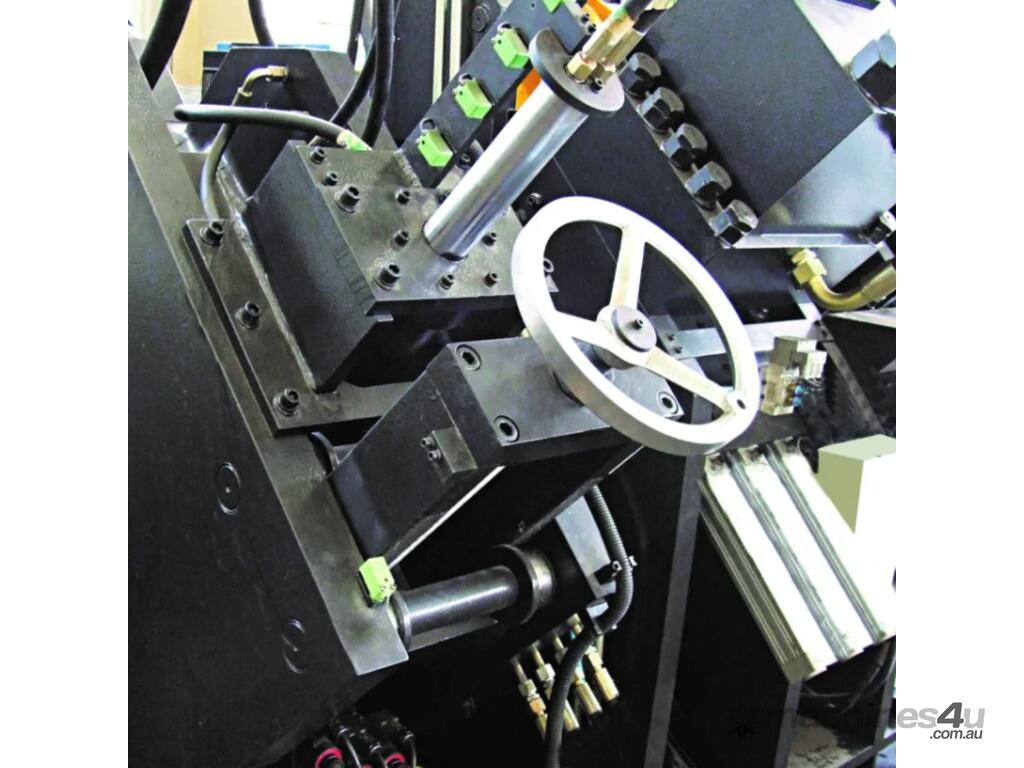

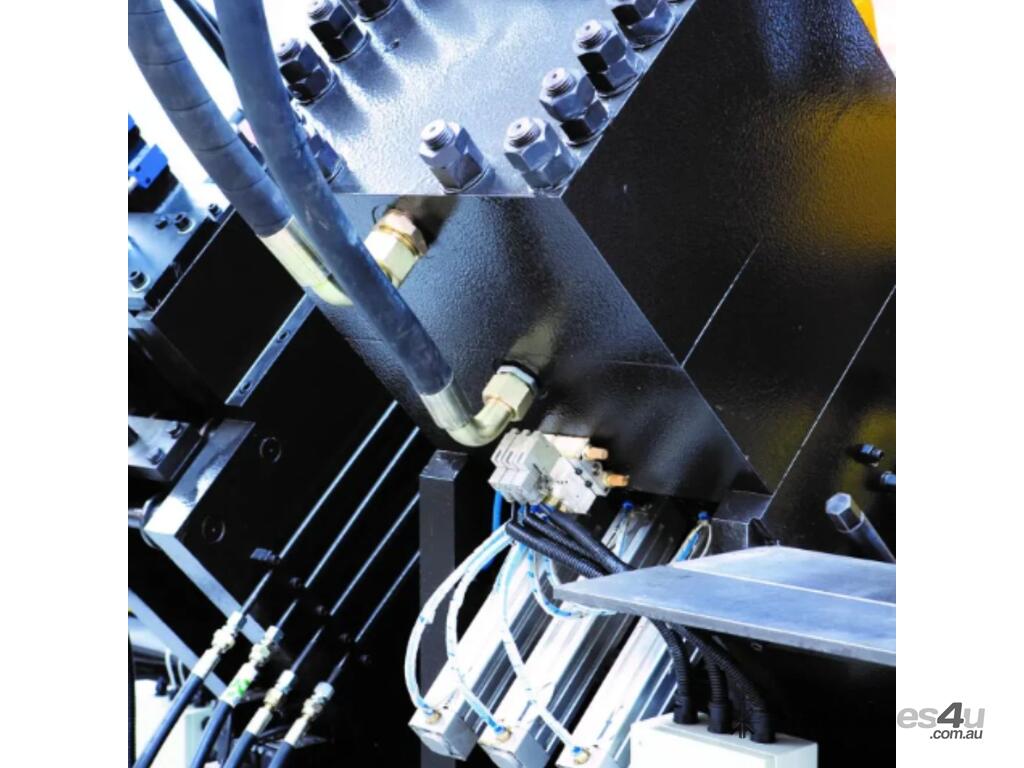

Punching System: Dual-head hydraulic punching (processes both legs of the angle).
Marking: Integrated character stamping unit for clear part identification.
Shearing: High-power hydraulic "single-cut" shear (no material waste/kerf).

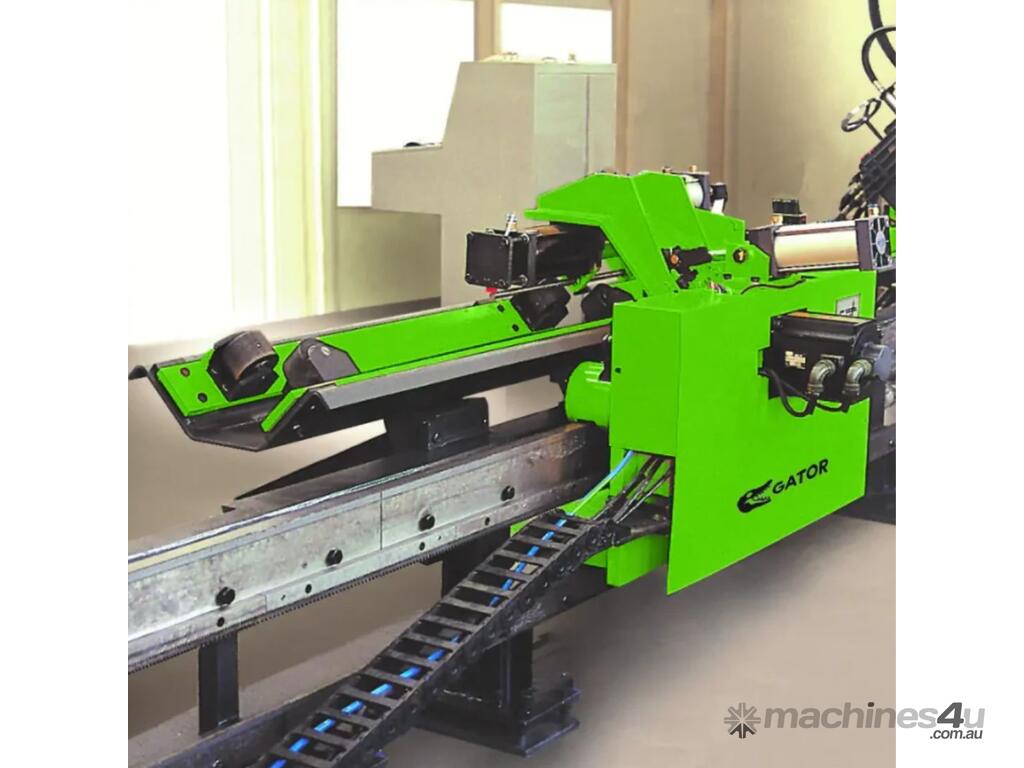

Infeed: High-speed CNC "Gripper" or "Carriage" feed for maximum precision.
Control: Industrial PLC with direct DSTV/CAD file import.
Capacity: Models available for angles from 40x40mm up to 200x200mm+.
Automation: Optional automatic loading and unloading systems for true "hands-off" production.

Top 5 "Gator GPM" Advantages:
Punching is Faster than Drilling: Why wait for a drill bit? Hydraulic punching creates a perfect hole in a fraction of a second. For high-volume angle work, this is the single biggest productivity boost possible.
Zero-Waste Shearing: Unlike a bandsaw that removes 2mm of material with every cut (kerf), the GPM shear uses a clean bypass cut. Over thousands of parts, this saves meters of material and thousands of dollars.
Automatic Marking: Every part comes out with its "DNA" stamped into the steel. This makes sorting and on-site assembly foolproof, eliminating the "Where does this piece go?" phone calls from the job site.
Simultaneous Dual-Leg Processing: The machine is designed to punch both legs of the angle in a single pass. You don't have to flip the material or run it through twice for total accuracy, half the time.
Digital Workflow Integration: Simply upload your Tekla or Revit files via DSTV. The machine knows exactly where every hole and mark needs to be, eliminating manual data entry errors.
