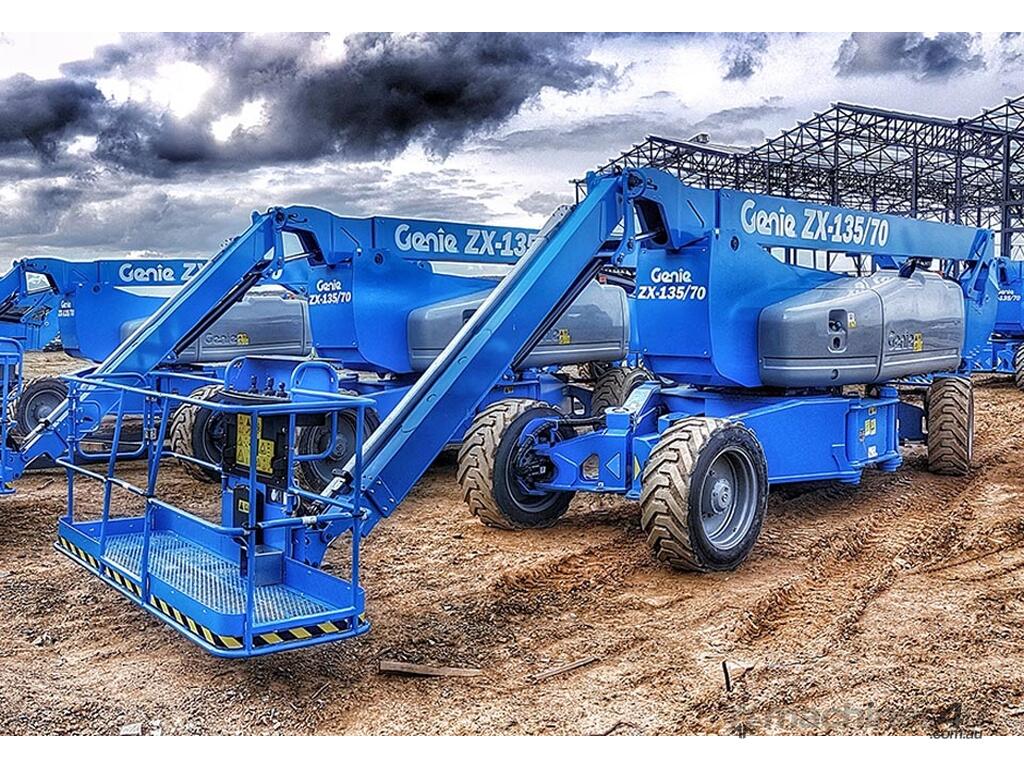

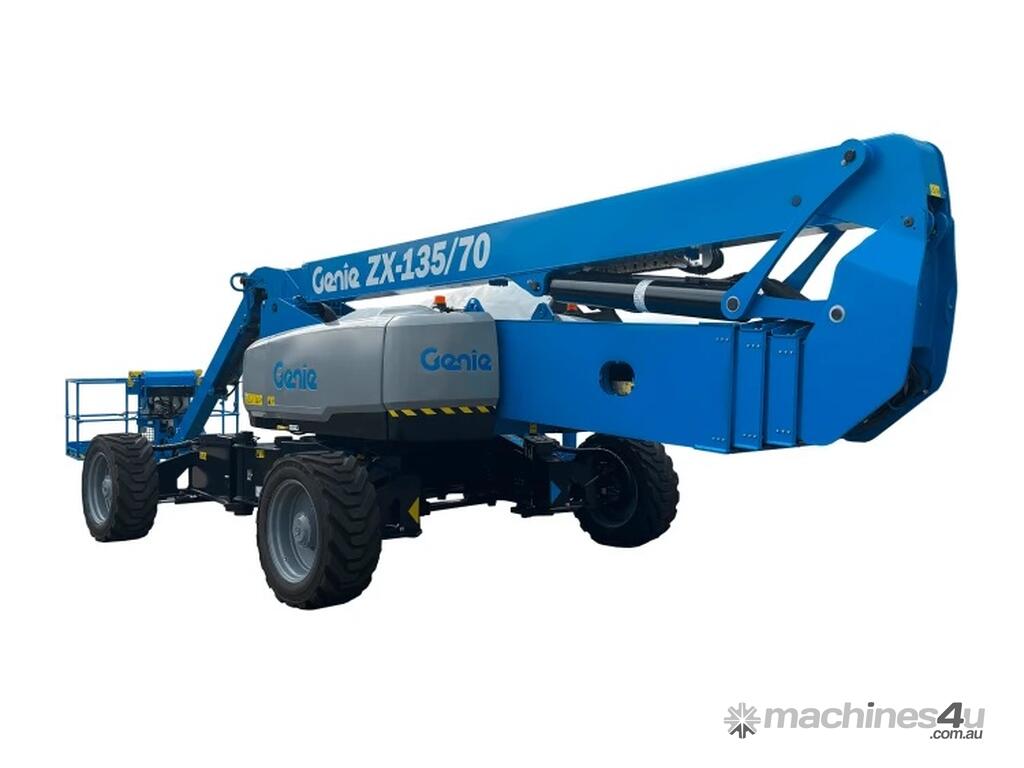

Ideal for outdoor construction and industrial applications, the Genie® ZX®-135/70 articulating boom lift delivers access to up, over and out applications inaccessible by a traditional jib. Four-wheel drive and steer means that this articulating boom can handle rough jobsite ground conditions with ease.

Overview

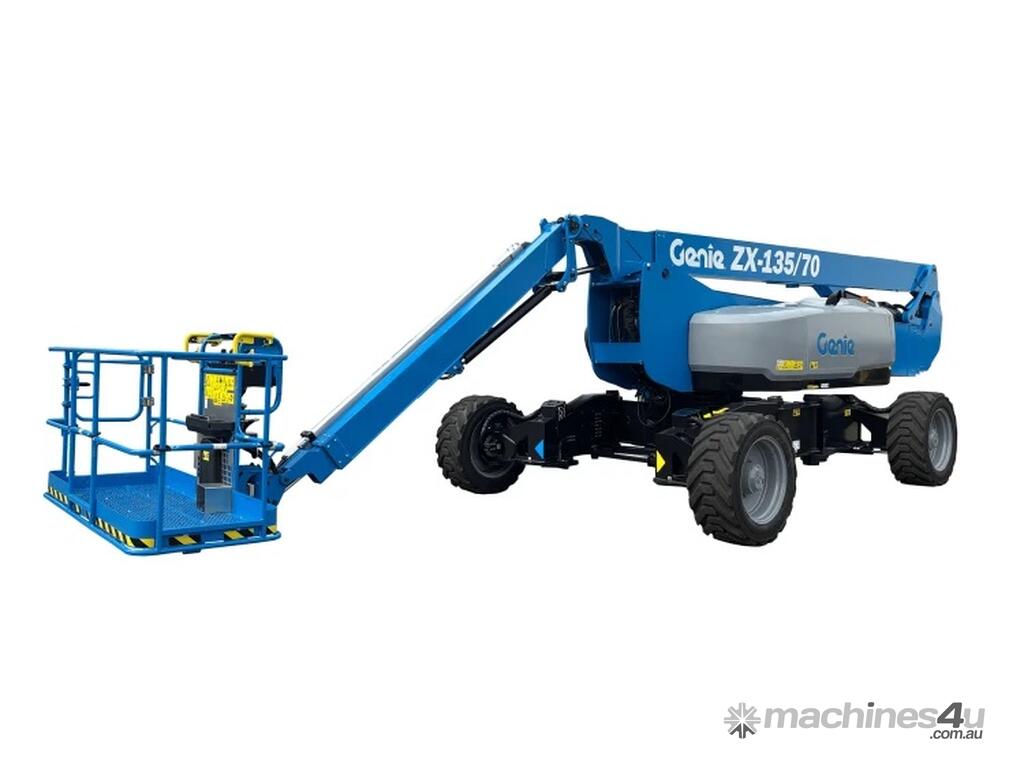

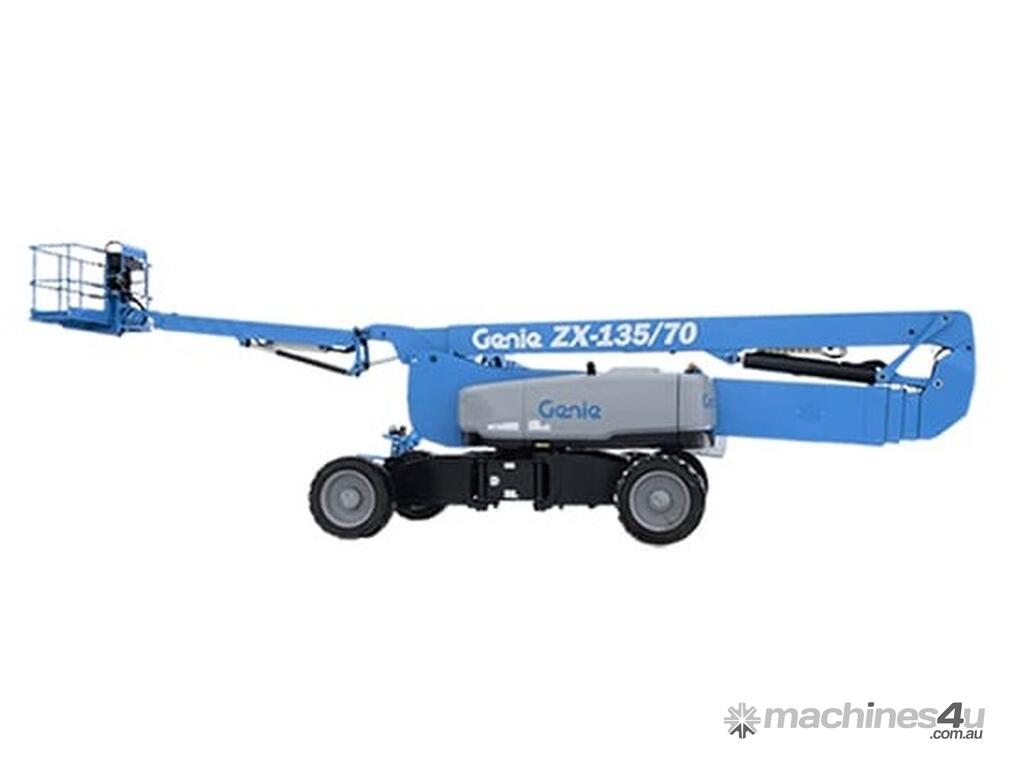

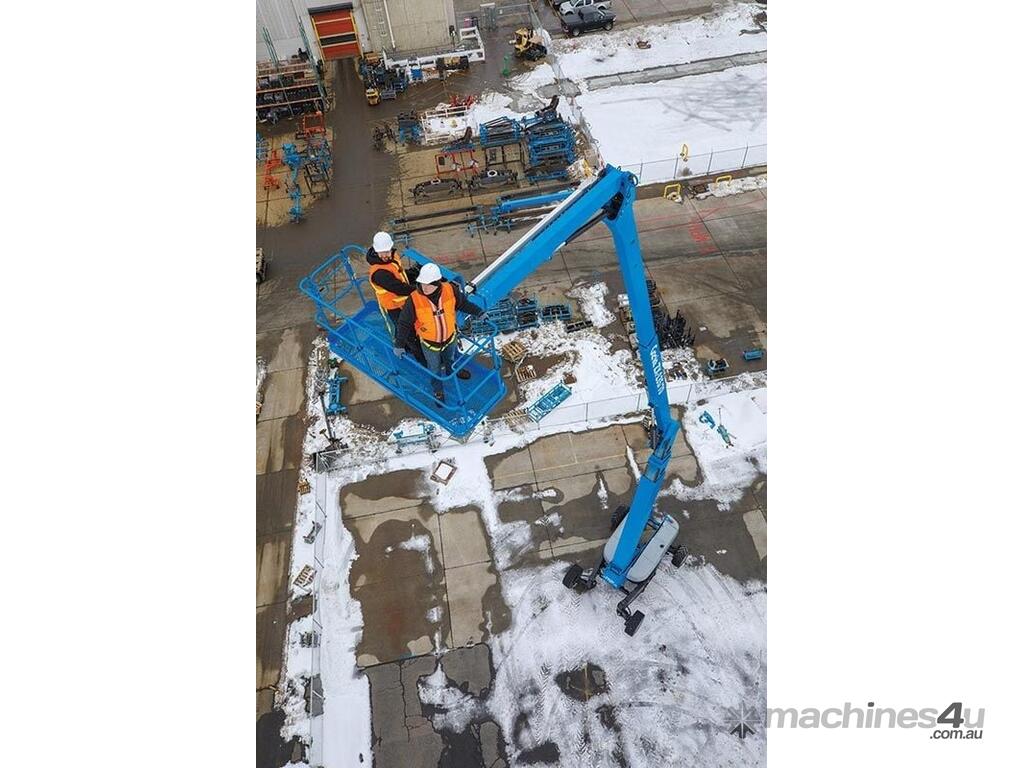

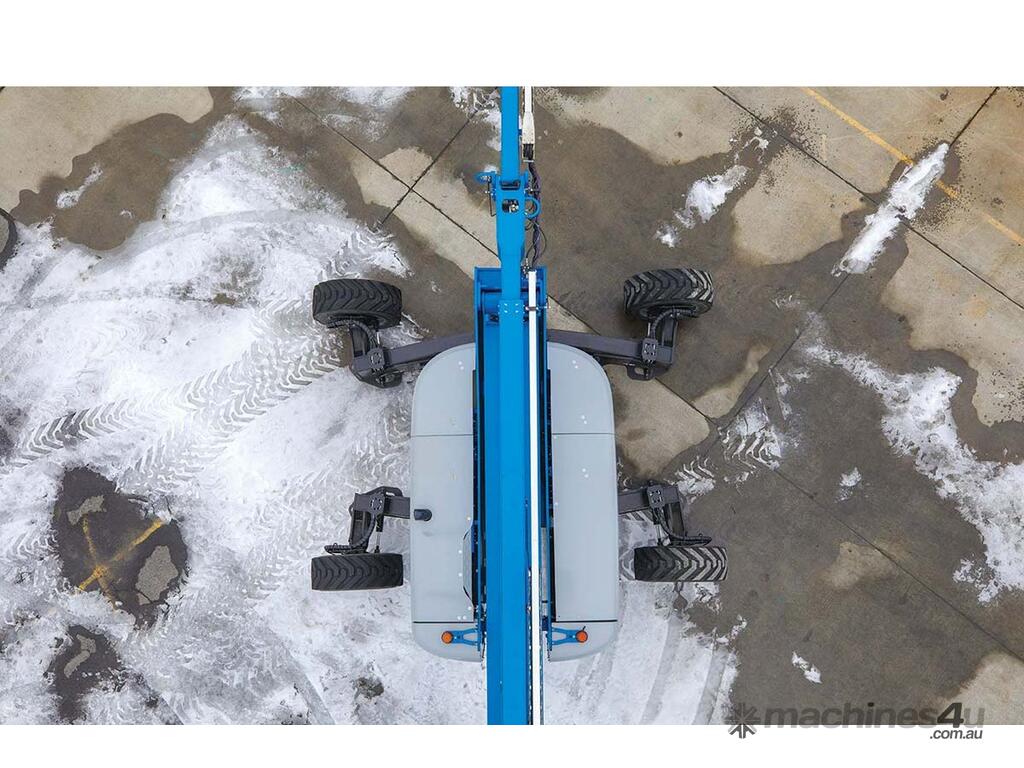

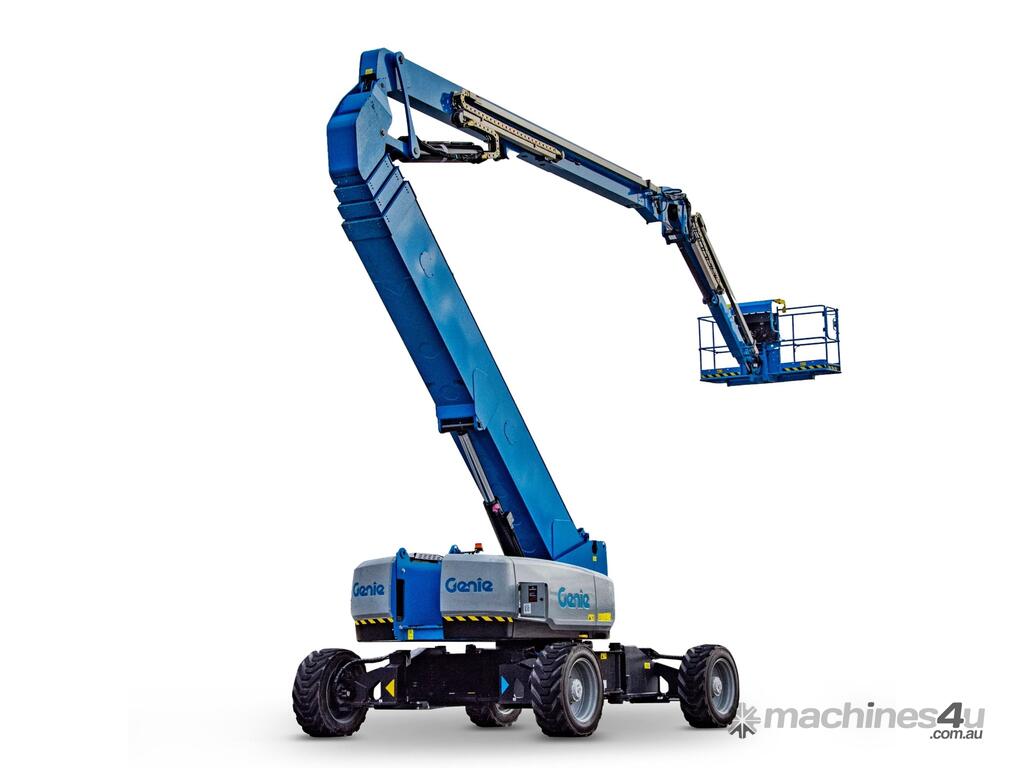

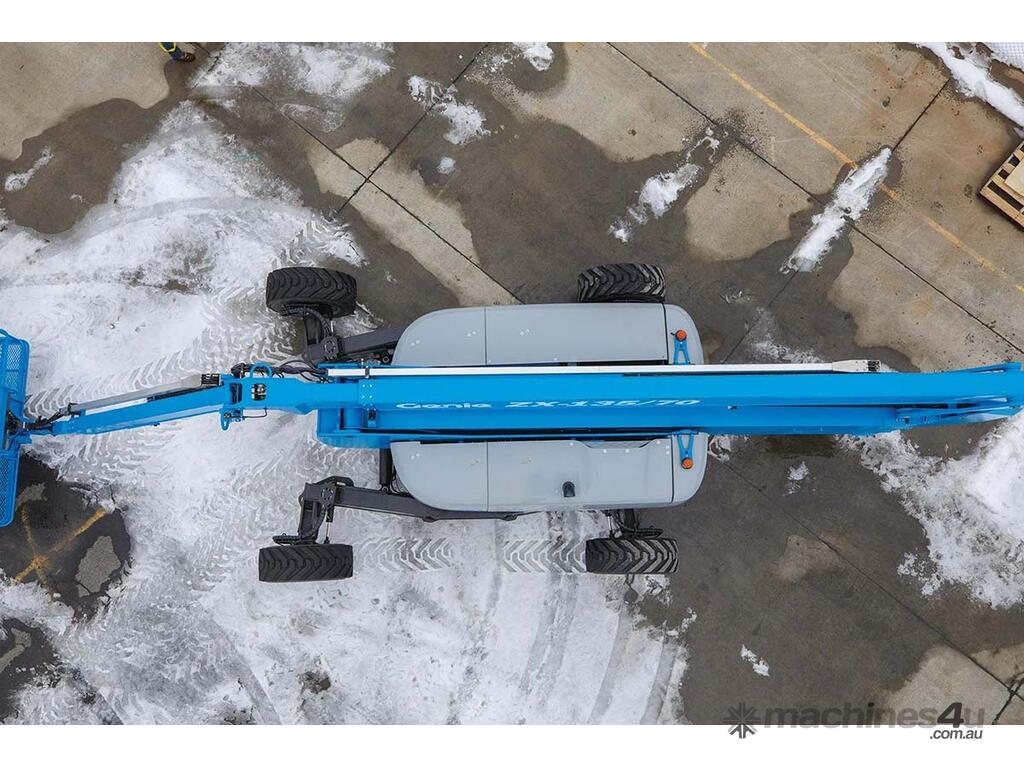

• Mini Genie X-Chassis® system extends and retracts to provide both stability on the job and a narrow profile for transport

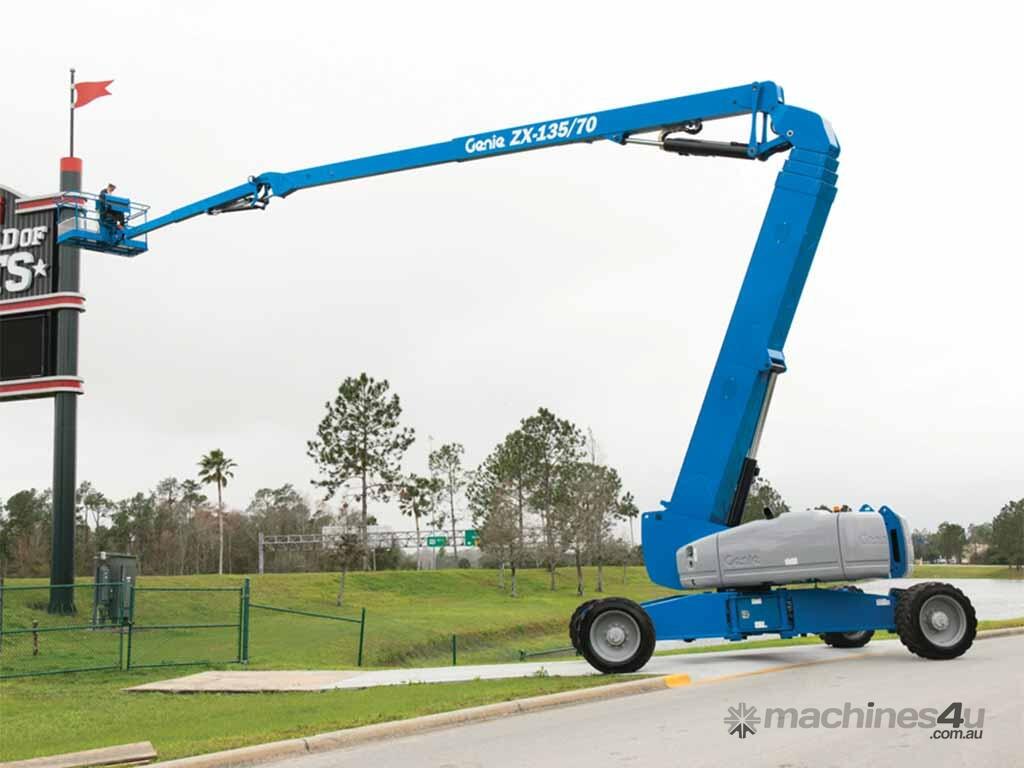

• 3.66 m to 6.10 m (12 ft to 20 ft) telescoping Jib-Extend® with a 110? vertical range of motion
• 360? continuous rotation turntable and 160?platform rotation for fast, easy positioning

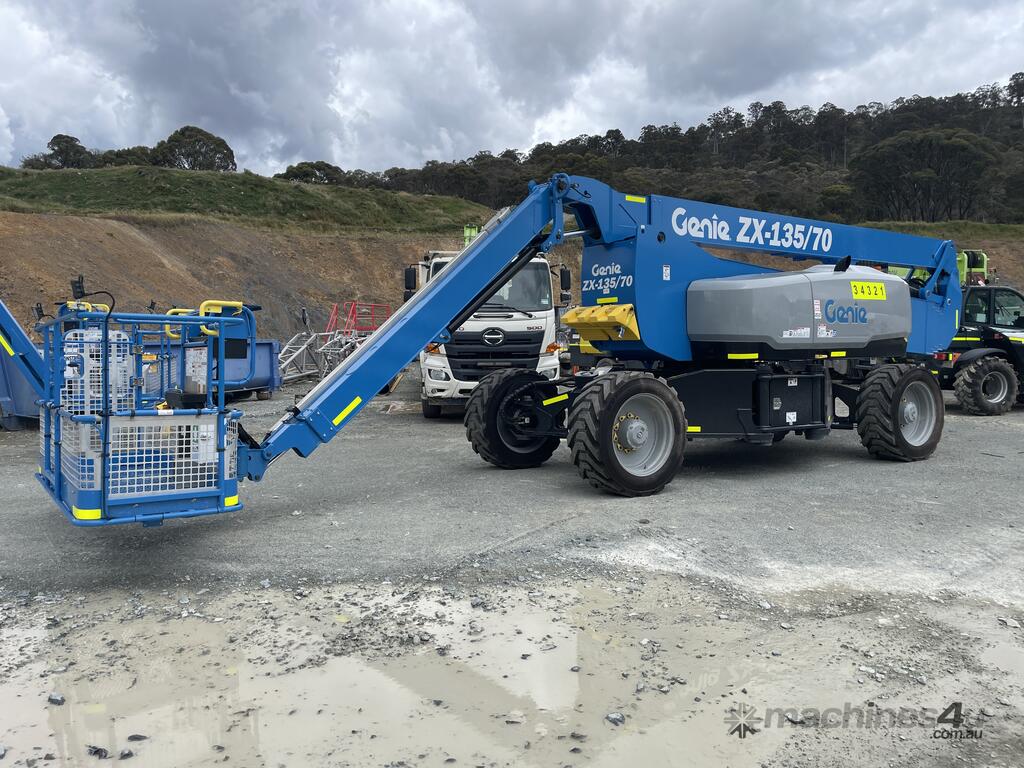

• Four-wheel steer with front-wheel, rear-wheel, crab and coordinated steer options available to provide additional manoeuvrability

SPECIFICATIONS

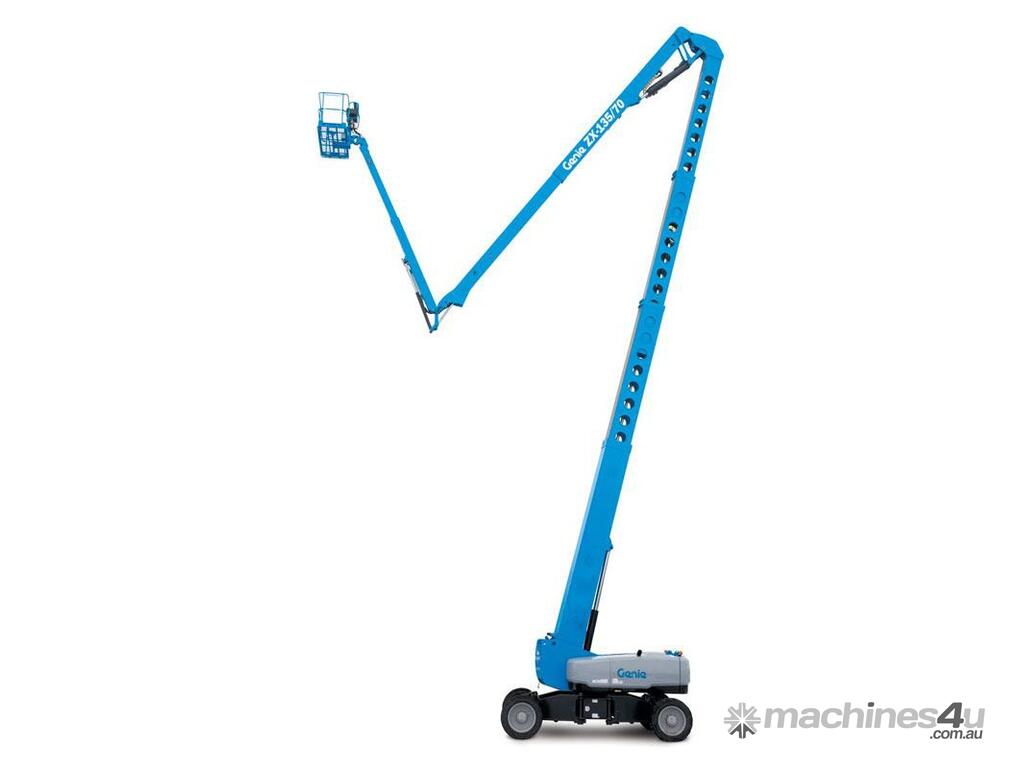

Working height max. 43.15 m
Platform height max. 41.15 m
Below ground reach 5.87 m
Horizontal reach max. - riser extended 18.03 m
Horizontal reach max. - riser retracted 21.26 m
Up and over clearance max. - riser extended 23.01 m
Up and over clearance max. - riser retracted 9.91 m

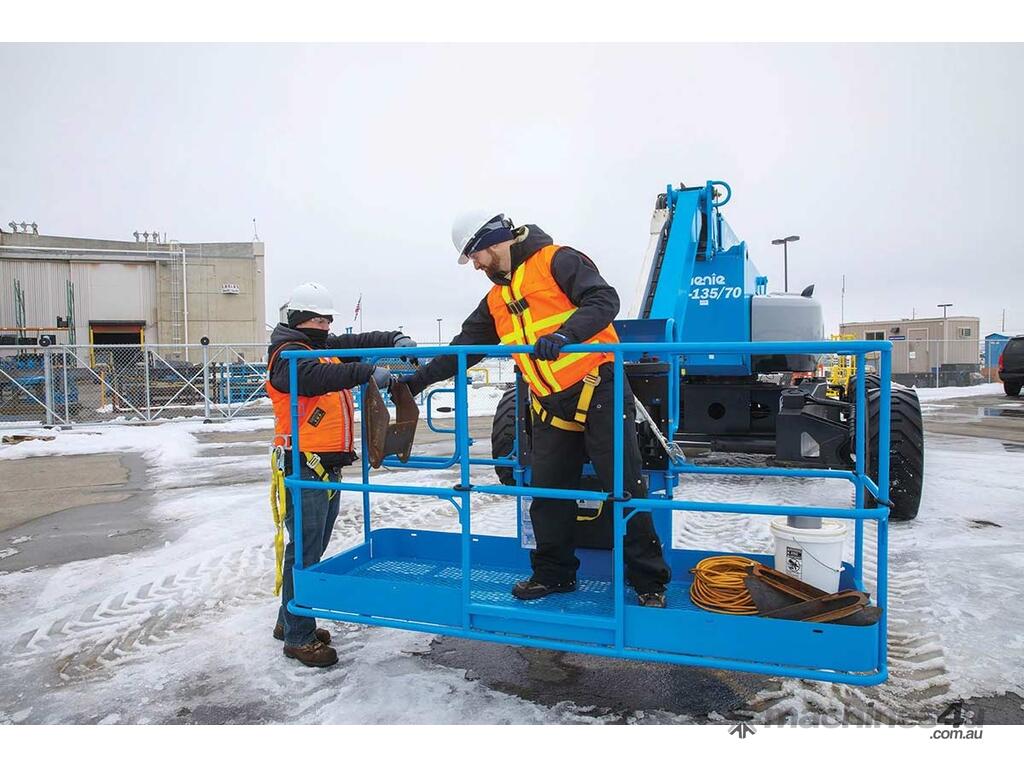

Platform length (8 ft/6 ft) 0.91 m / 0.76 m
Platform width (8 ft/6 ft) 2.44 m / 1.83 m

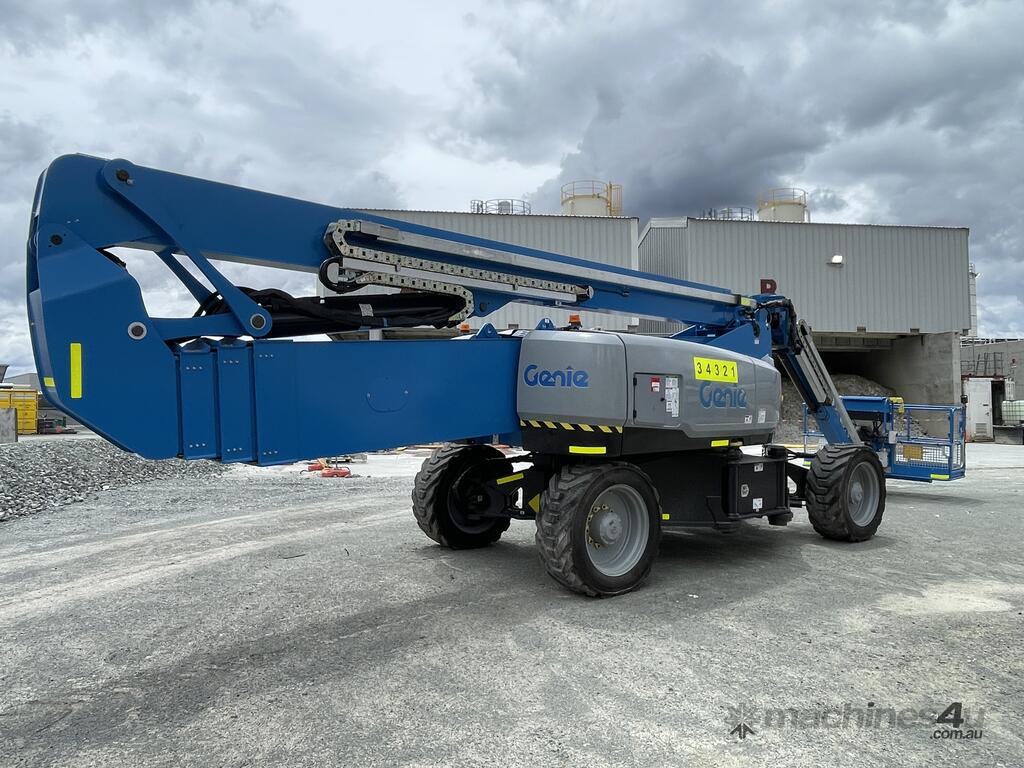

Height - stowed 3.09 m
Length - stowed 12.93 m
Width (axles retracted) 2.49 m
Width (axles extended) 3.94 m
Wheelbase (axles retracted) 4.11 m
Wheelbase (axles extended) 4.11 m
Ground clearance - center 0.38 m
Lift capacity max. - unrestricted 272 kg
Platform rotation 160°
Jib length 3.66 / 6.10 m
Vertical jib rotation 110°
Turntable rotation 360°
Drive speed – stowed 4.8 km/h
Drive speed – raised 1.1 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 4.5° / 4.5°
Turning radius - inside/outside (axle retracted) 8.03 m / 9.96 m
Turning radius - inside/outside (axle extended) 2.90 m / 6.17 m
Tires (foam-filled) 445 D50 / 710
Power Diesel
Auxiliary power unit 12 V DC
Hydraulic tank capacity 246.1 L
Fuel tank capacity 151 L
Weight 21,092 kg
