GENIE – 30FT – ELECTRIC - KNUCKLE BOOM LIFT - GENIE – ARTICULATING JIB AND KNUCKLE - CHERRY PICKER

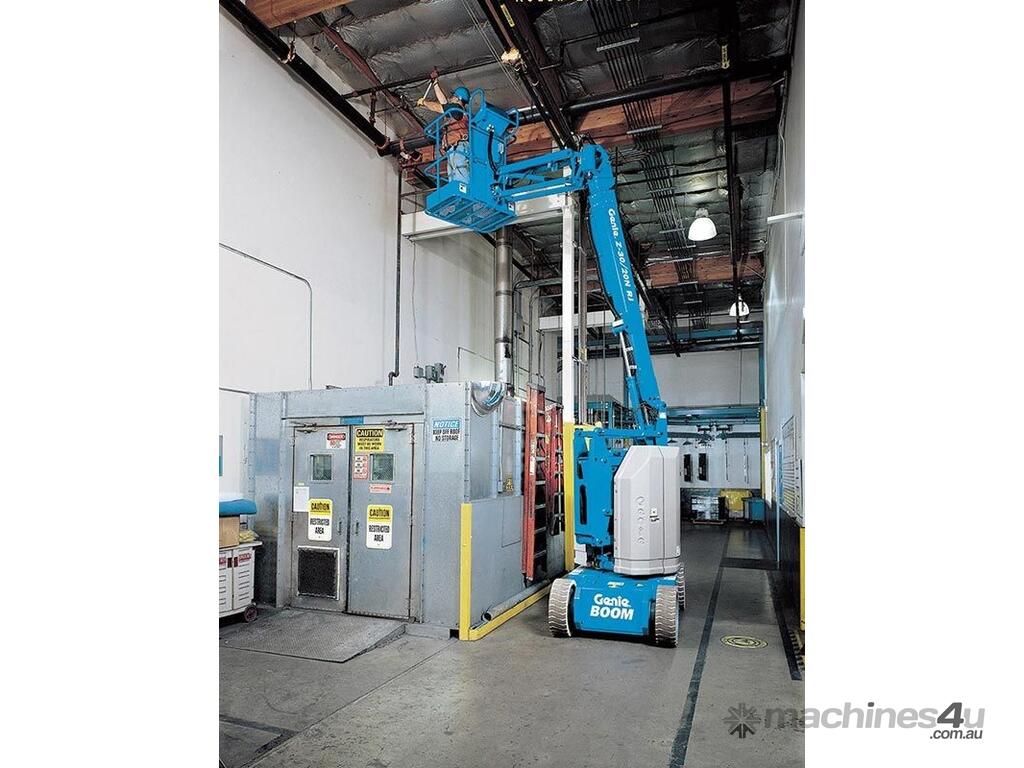

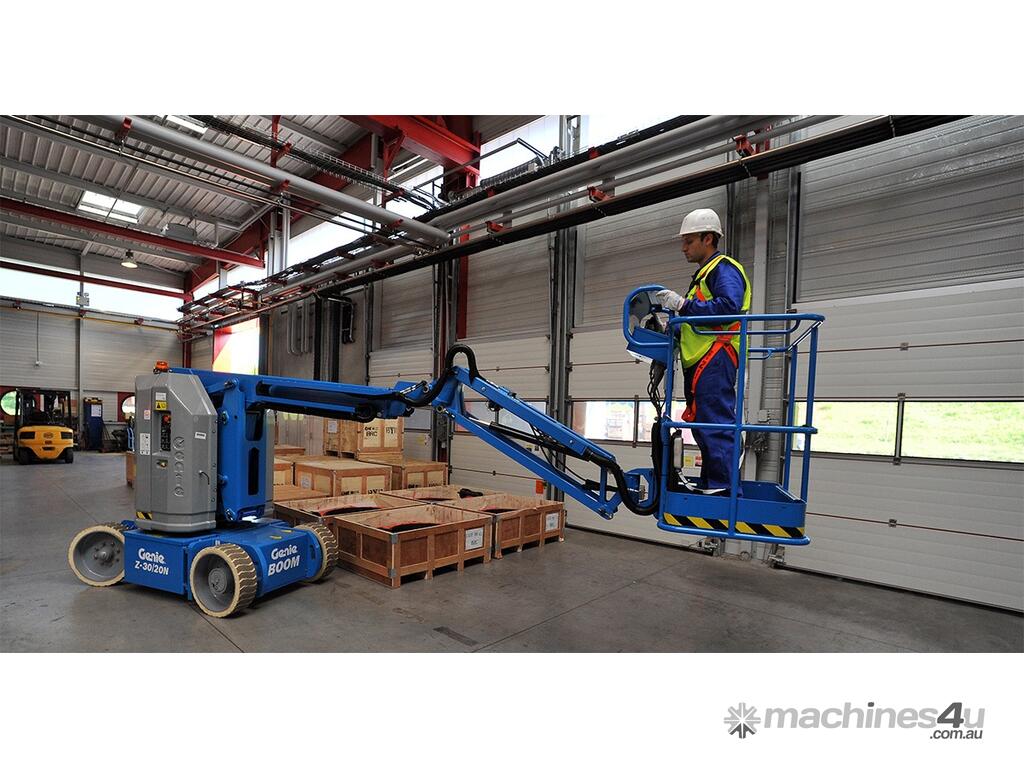

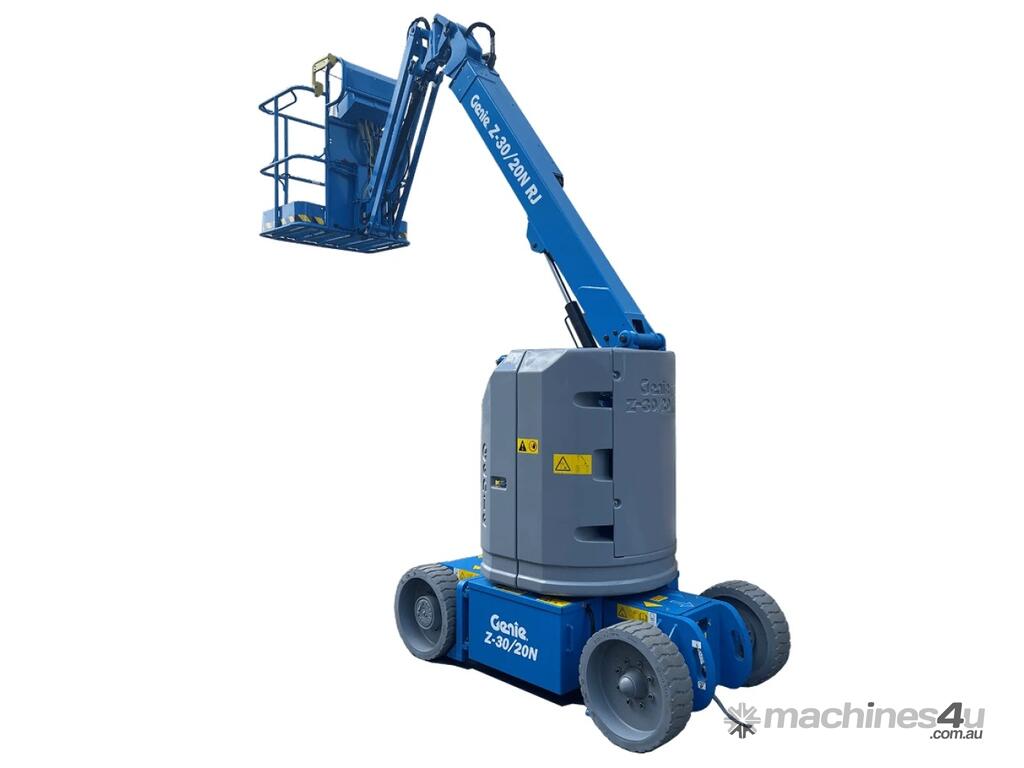

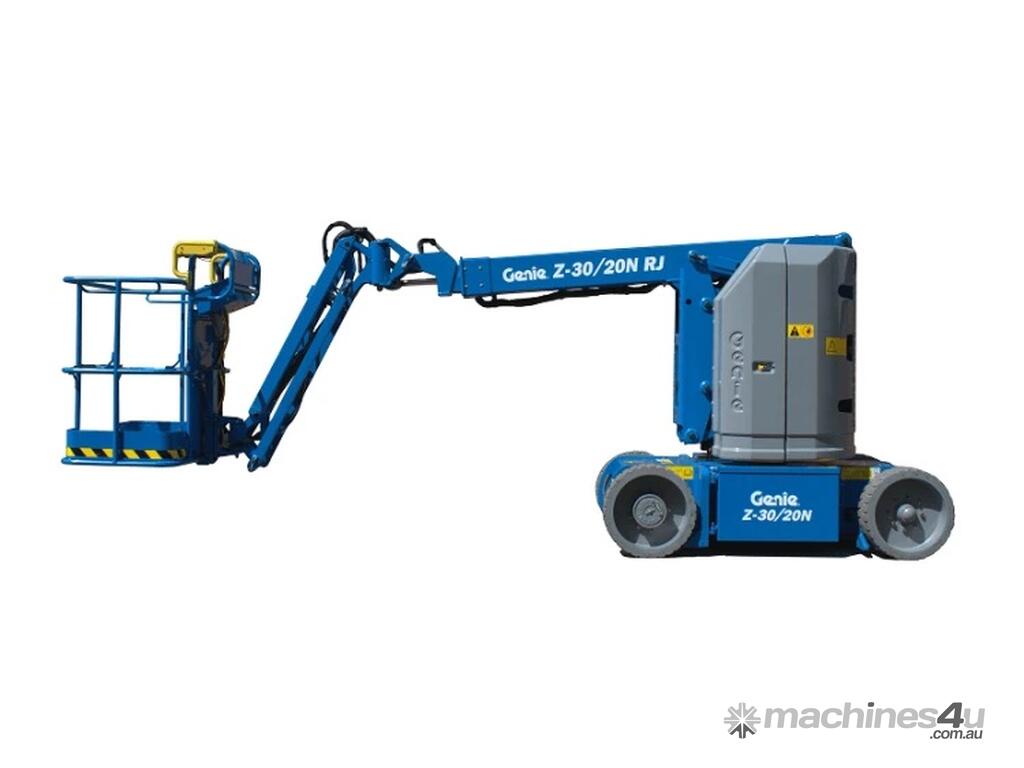

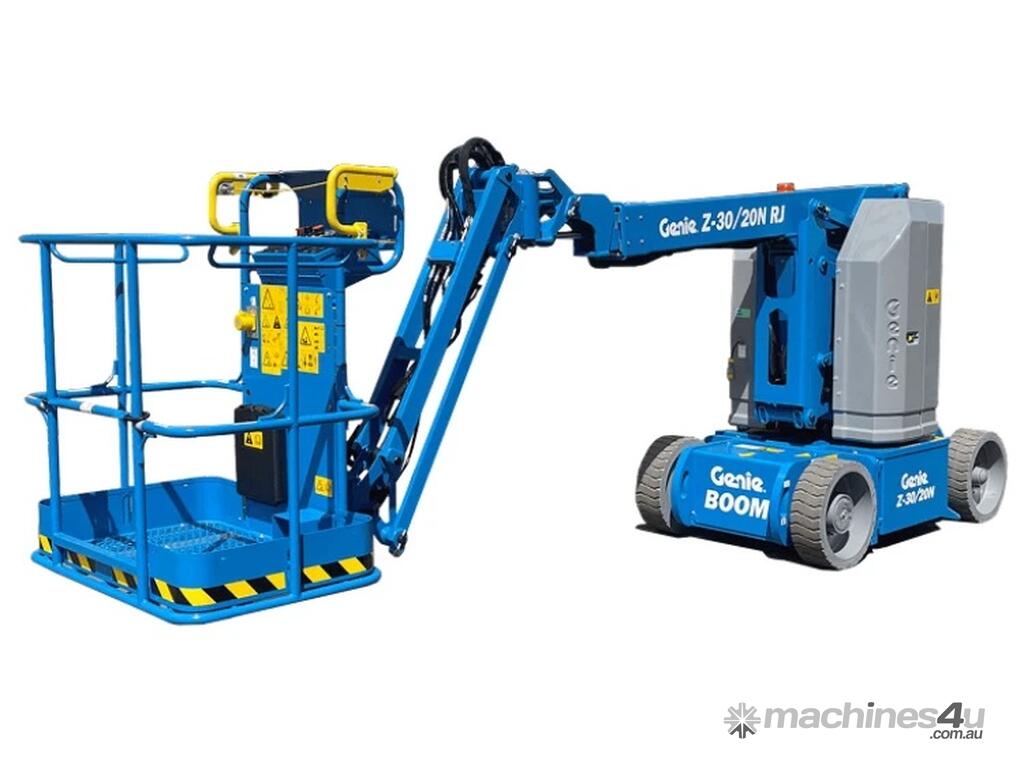

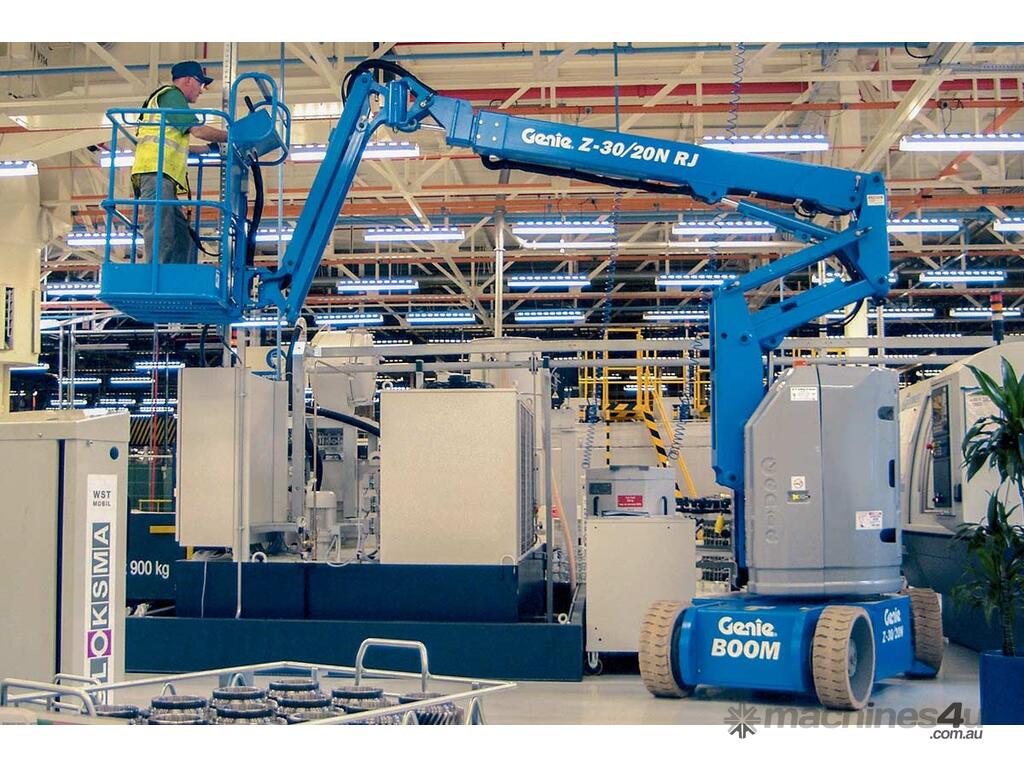

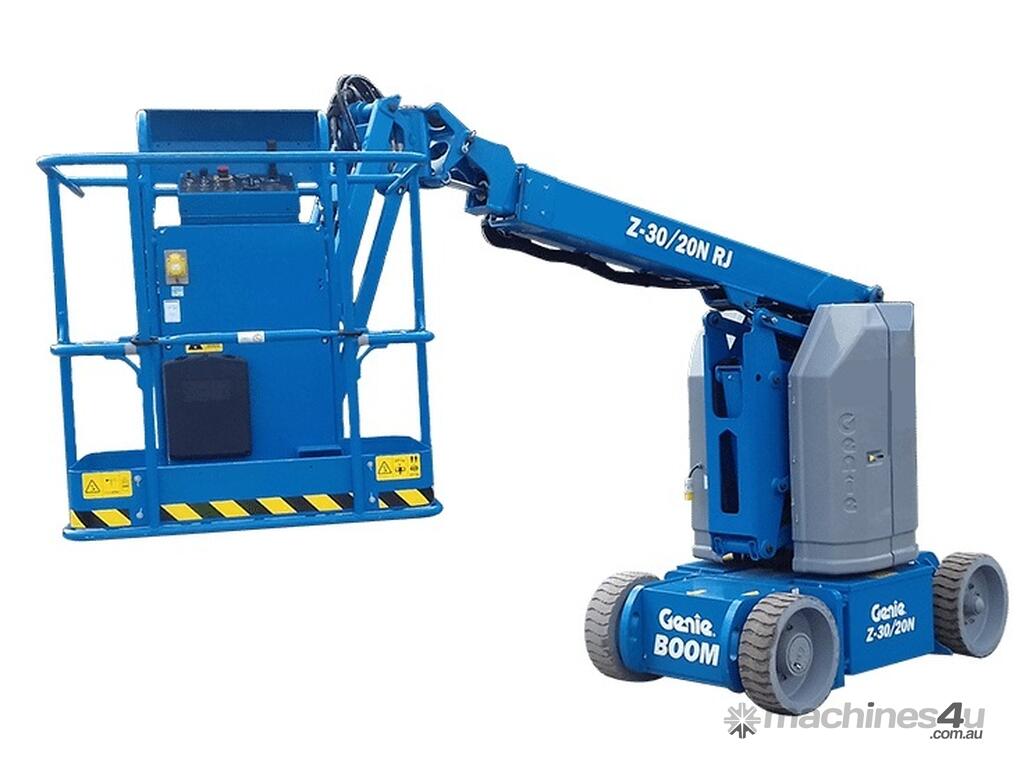

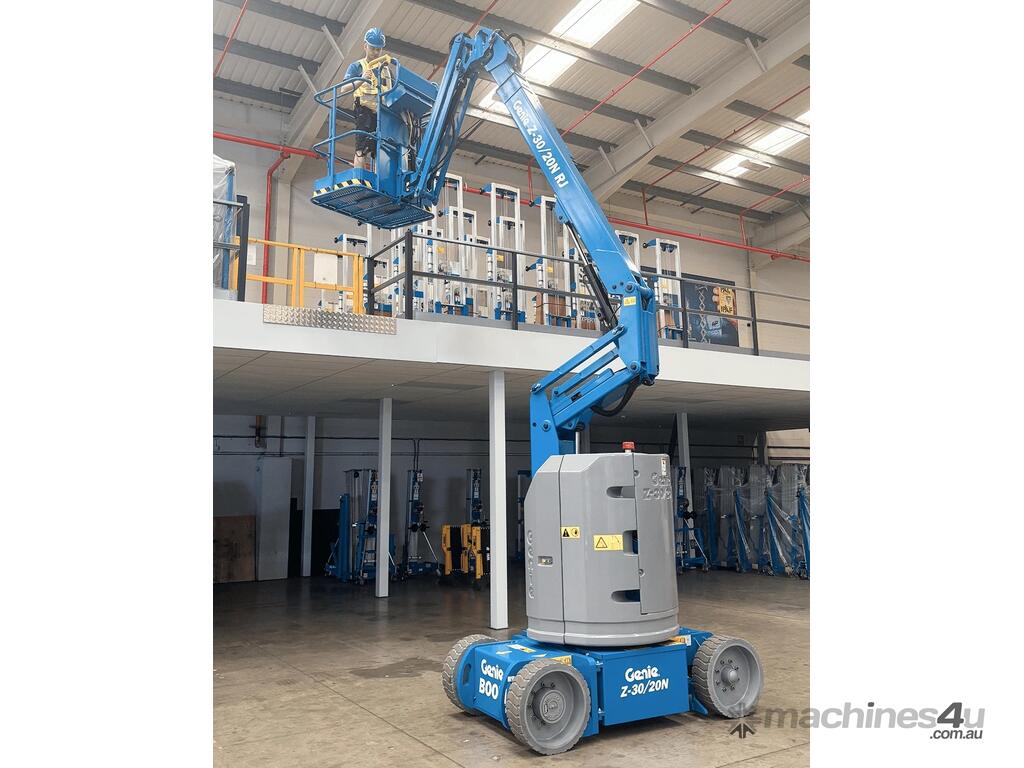

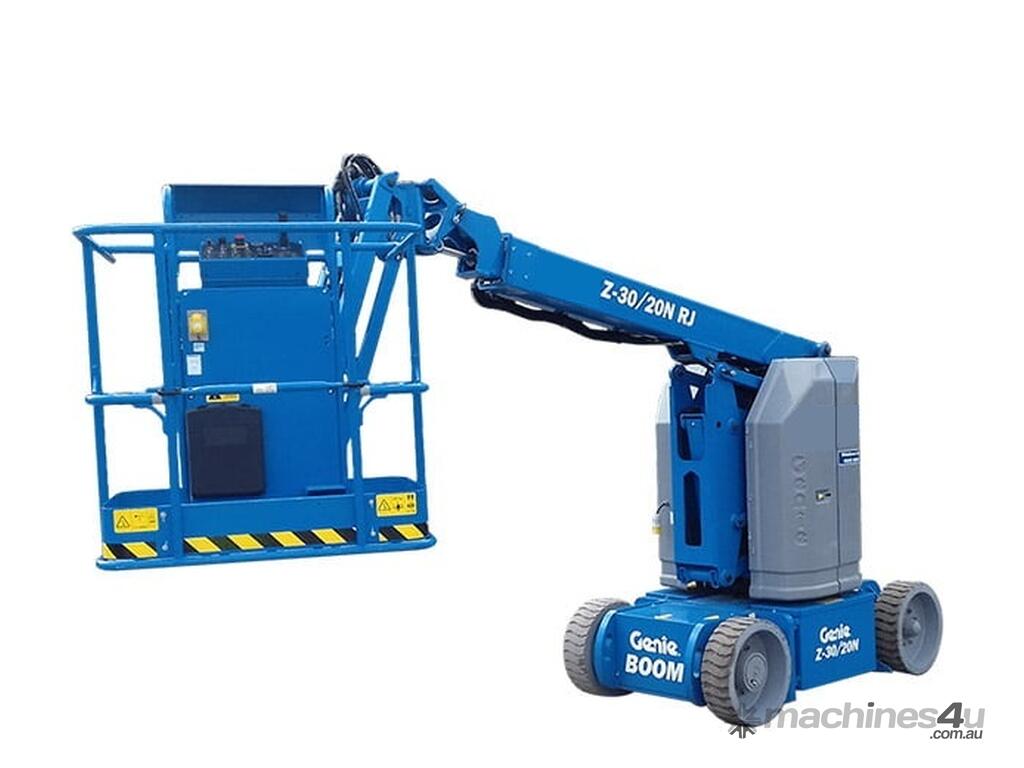

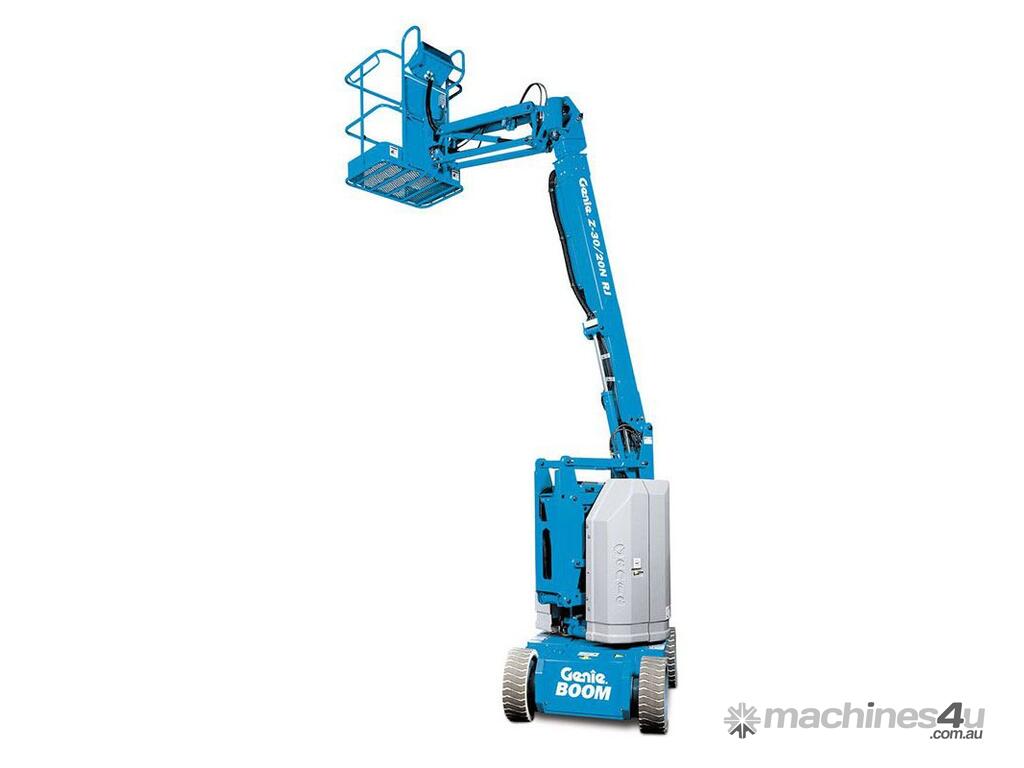

With its new-generation AC power system, the Genie® Z®-30/20 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban jobsites. For increased versatility it features a rotating jib offering industry-leading horizontal rotation as well as standard vertical reach. Narrow dimensions make it easy to drive through standard doorways, to work around obstacles and access overhead tasks from aisles or areas where space is limited.
Overview
• Zero tailswing and zero front arm swing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability and 4.8 km/h (3.3 mph) travel speed for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation
Specifications

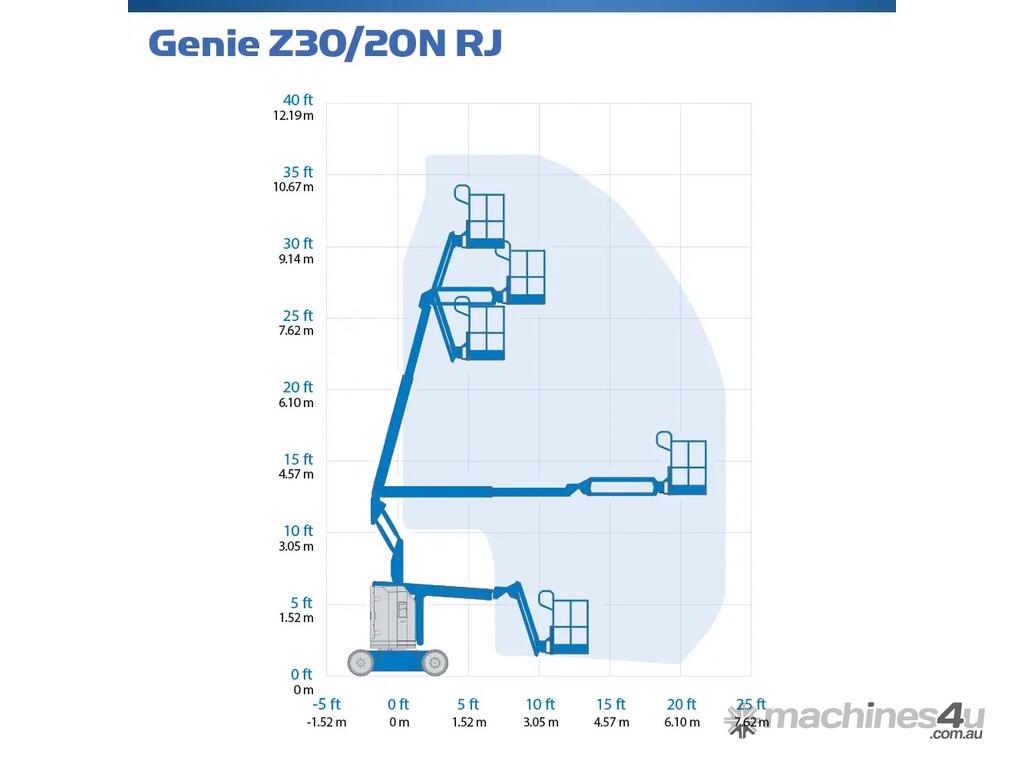

Working height max. 10.89 m
Platform height max. 8.89 m
Horizontal reach max. 6.25 m
Up and over clearance max. 3.86 m
Platform length 0.76 m
Platform width 1.17 m

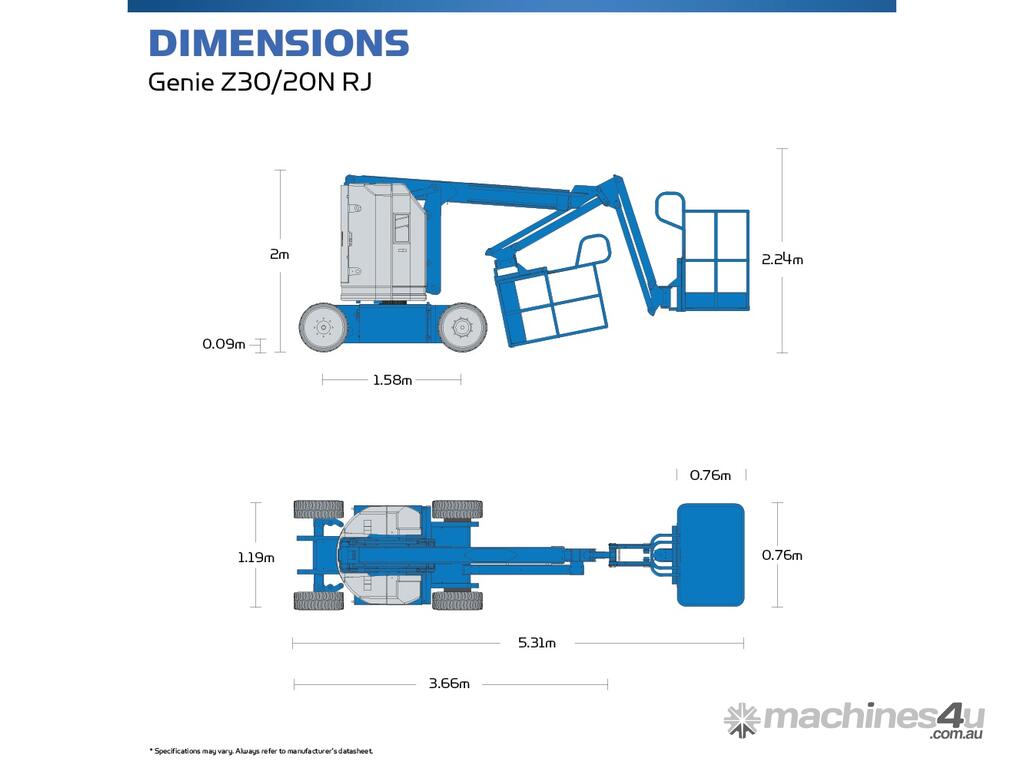

Height - stowed 2.00 m
Length - stowed 5.31 m
Storage height 2.24 m
Storage length 3.66 m
Width (Tires) 1.19 m
Wheelbase 1.58 m
Ground clearance - center 0.09 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 180°
Jib length 1.22 m
Vertical jib rotation 139°
Horizontal jib rotation 180°
Turntable rotation 355°
Turntable tailswing 0 cm
Drive speed – stowed 4.8 km/h
Drive speed – raised 1.1 km/h
Gradeability – stowed 35 %
Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5°
Turning radius - inside/outside 1.65 m / 3.23 m
Tires (solid, non-marking) 56 × 18 × 45 cm
Power 48 V DC (8 × 6 V 350 Ah)
Hydraulic tank capacity 15.1 L
Weight 6,605 kg
