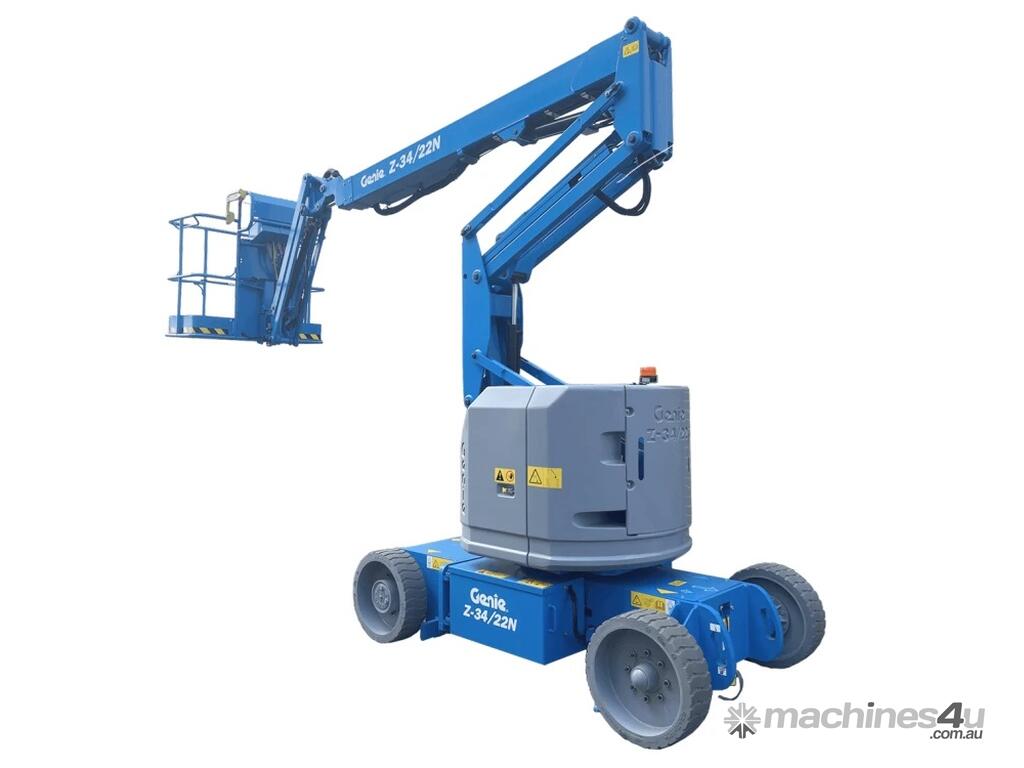

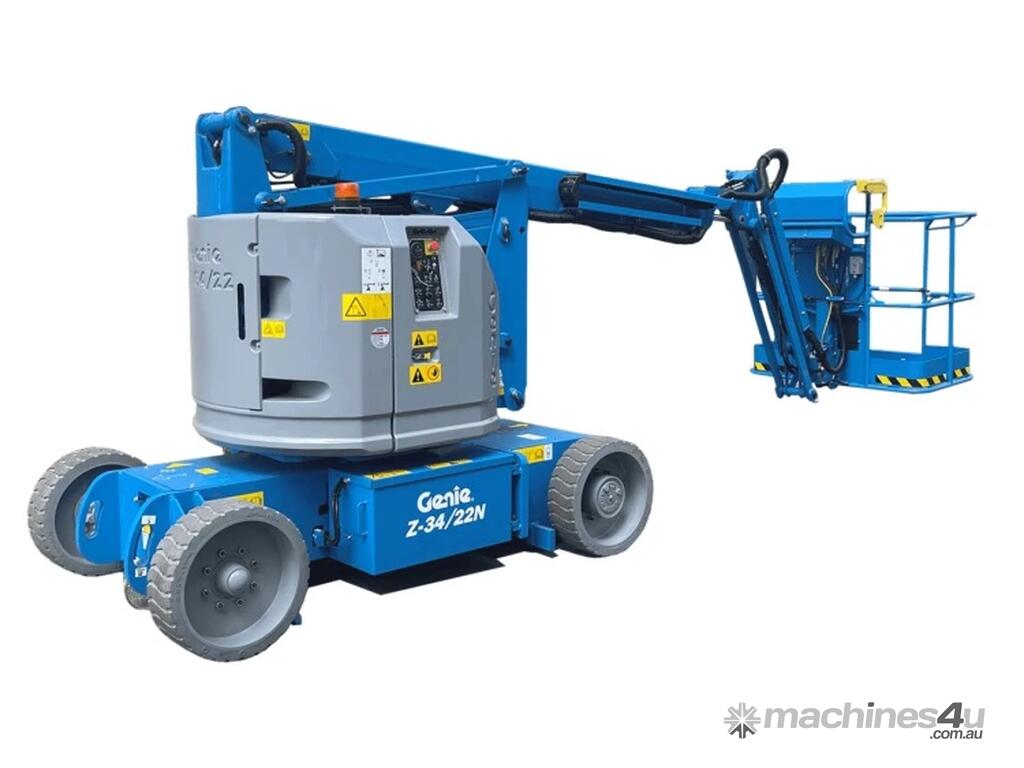

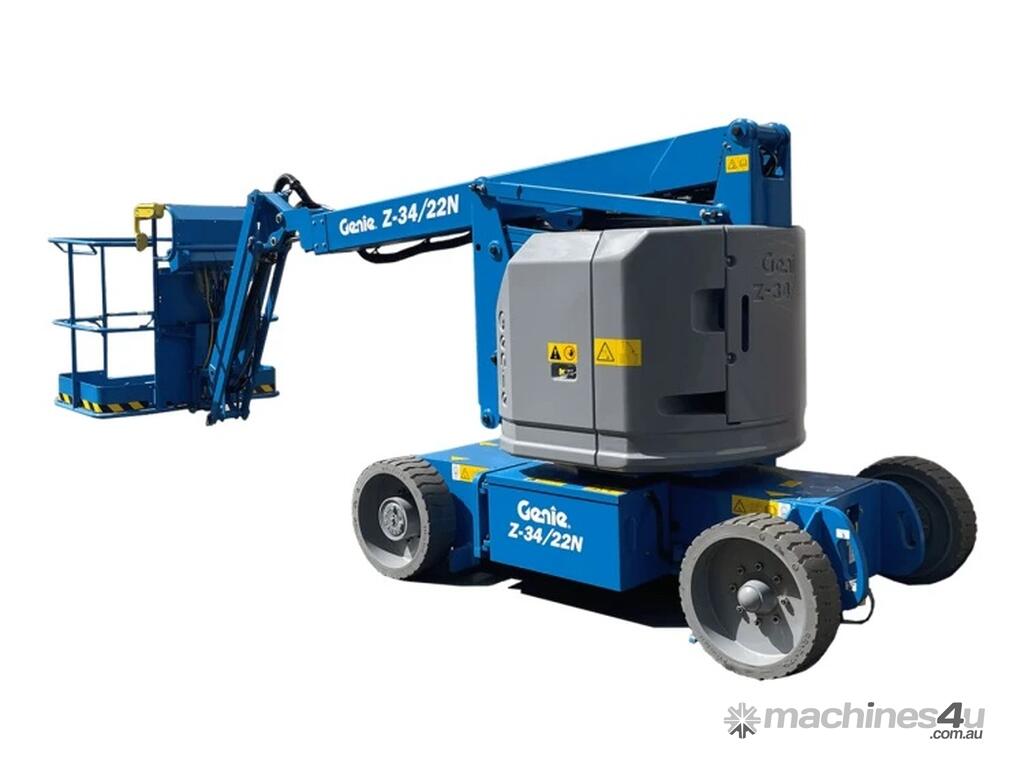

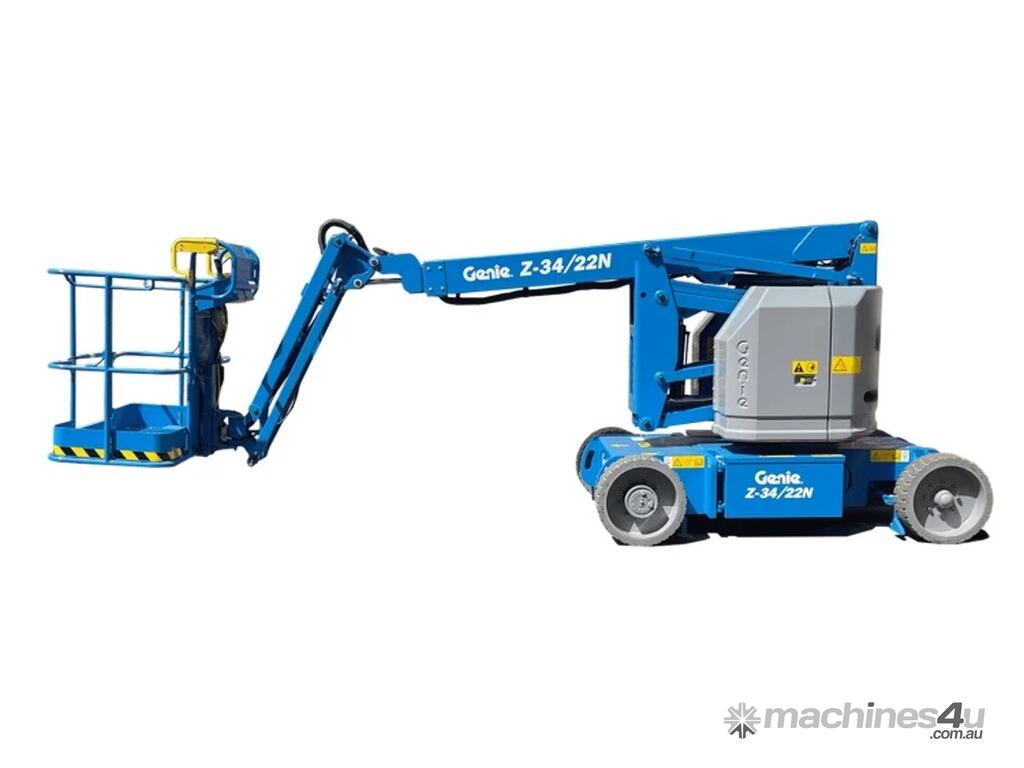

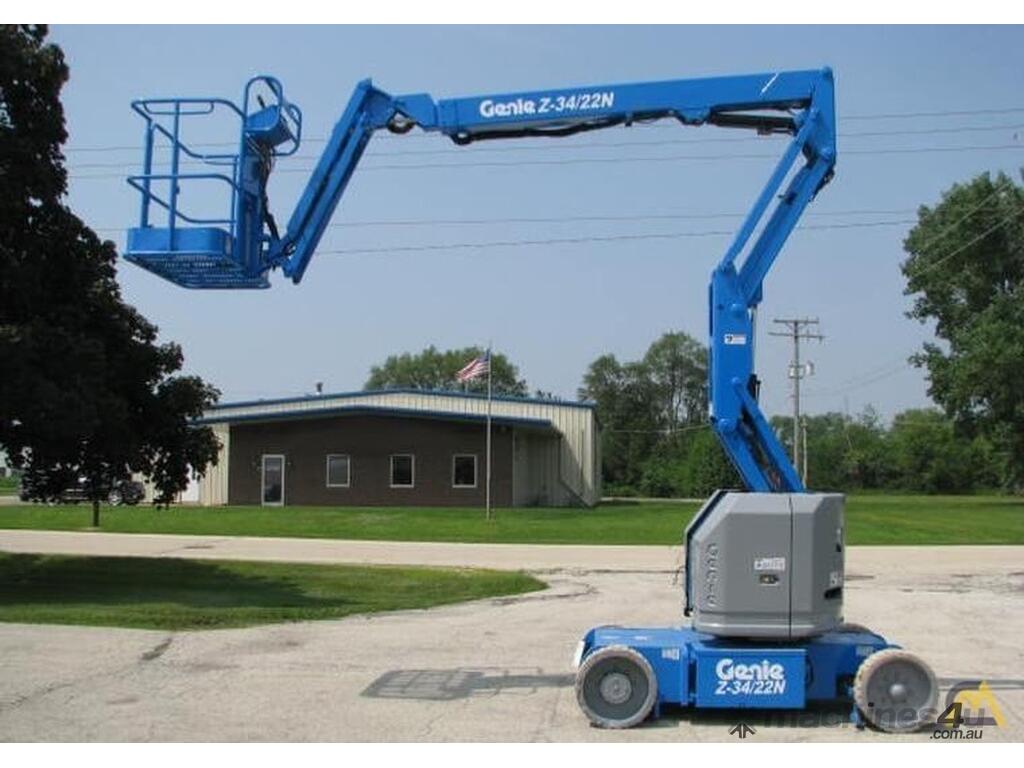

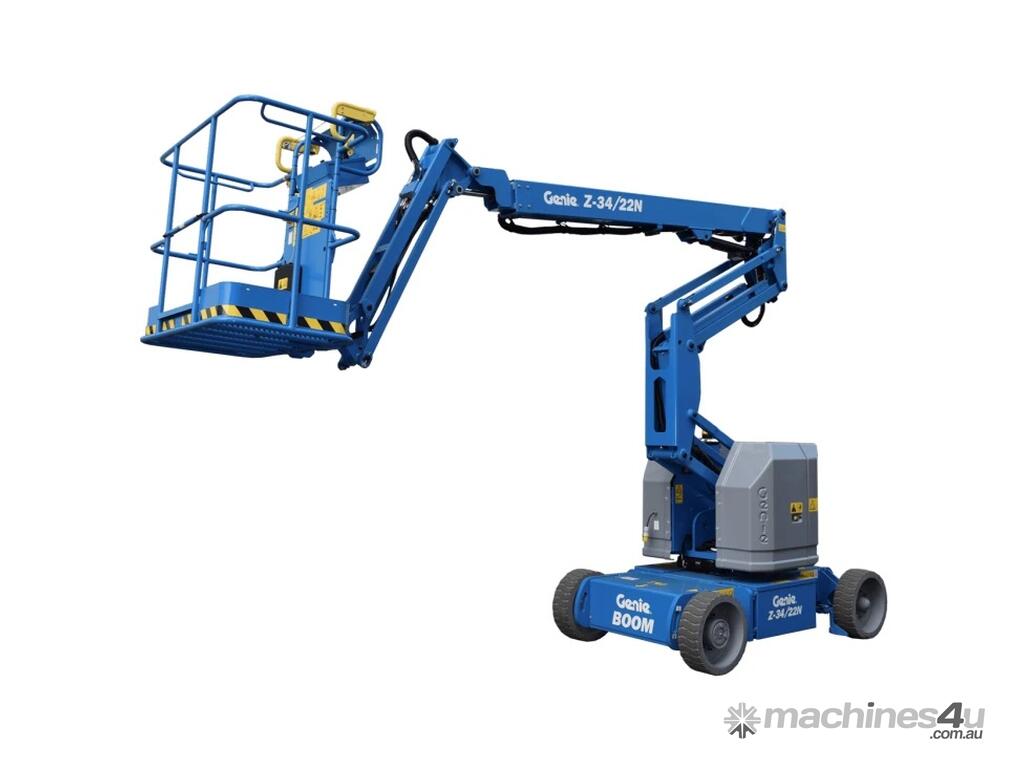

GENIE – 34FT – ELECTRIC - KNUCKLE BOOM LIFT - GENIE – ARTICULATING BOOM - CHERRY PICKER

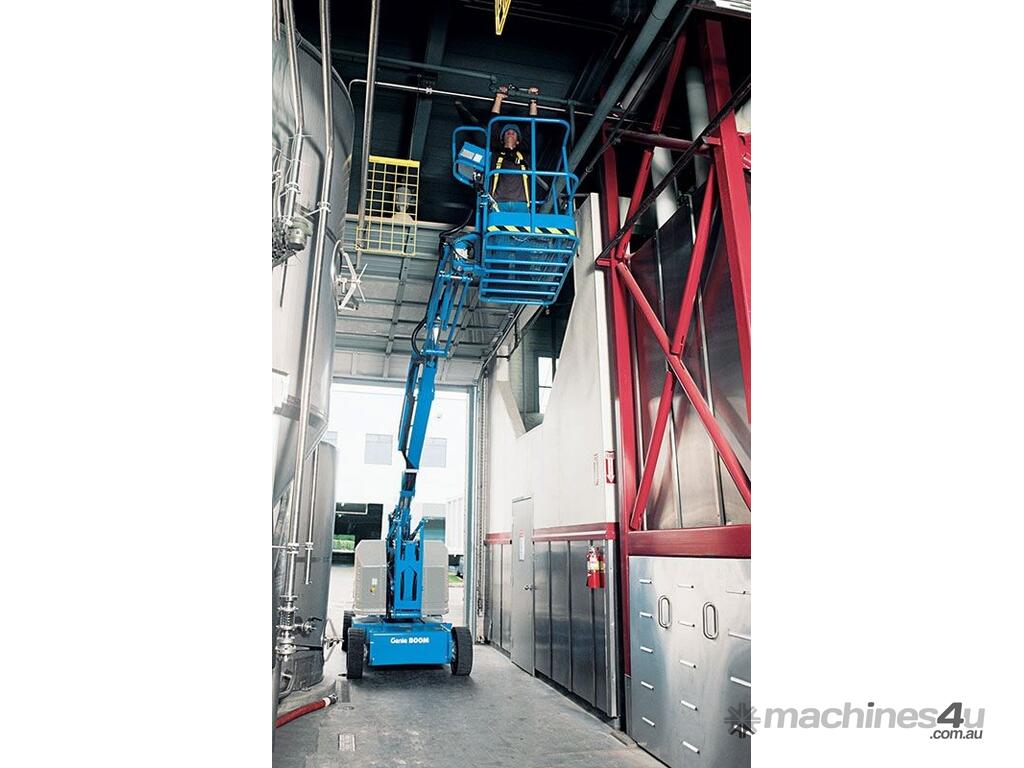

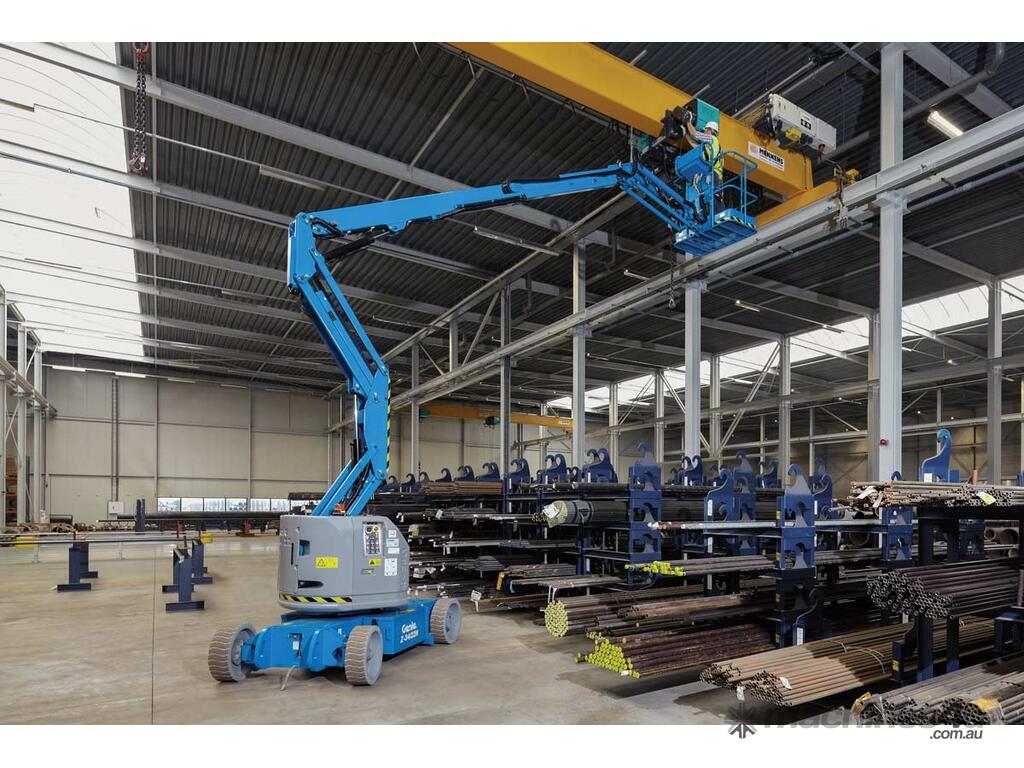

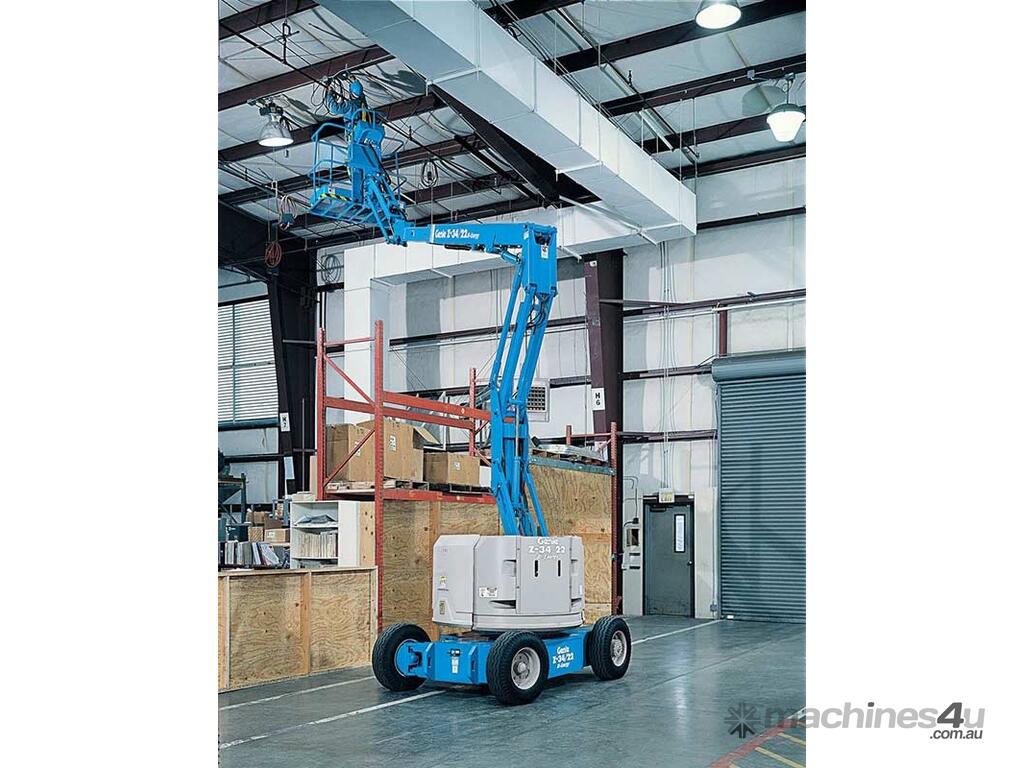

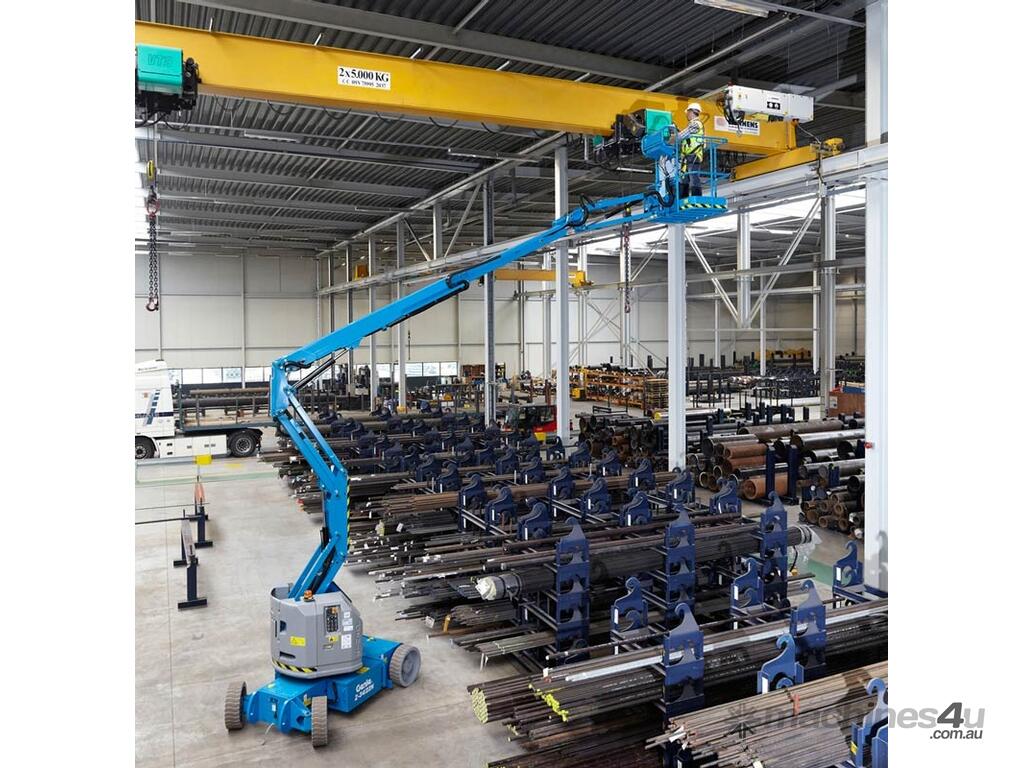

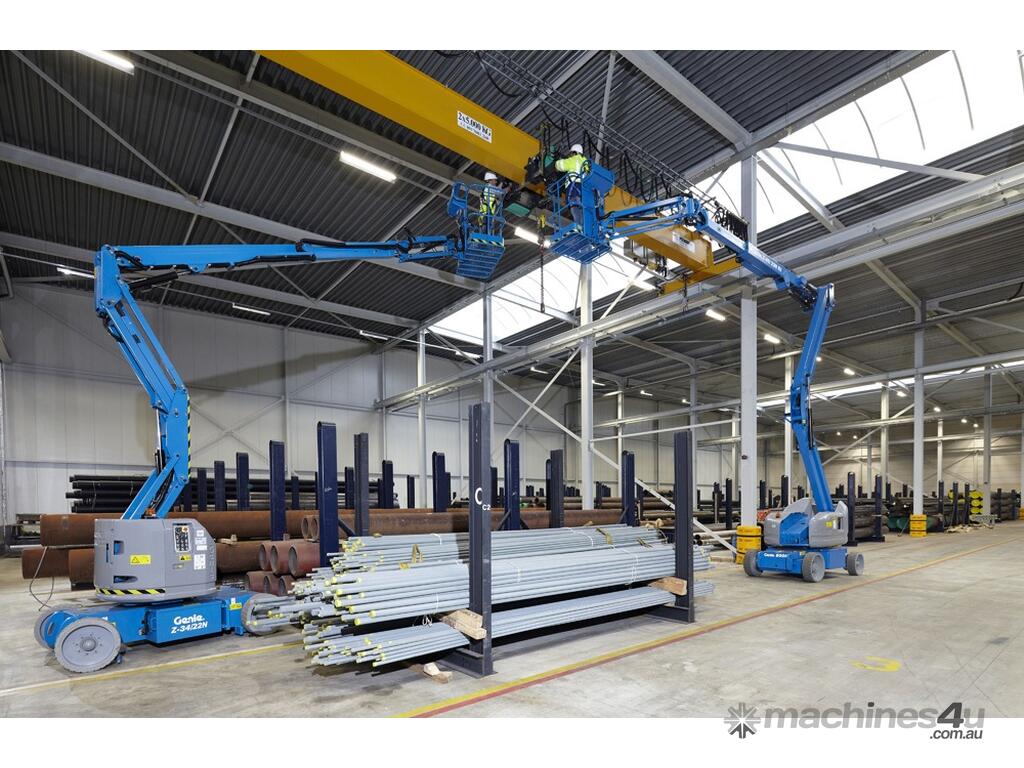

The Genie® Z®-34/22 N articulating boom lift offers quiet, emission-free operation. With this narrow electric lift, operators can easily drive through standard double doorways, work close to buildings or around obstacles and access overhead work from aisles or other congested areas.
Overview
• Zero tailswing in stowed and raised positions allow for work in tight spaces
• Compact chassis for narrow aisle access
• 35% gradeability for excellent drive performance
• 1.22 m (4 ft) articulating jib with a 139° range of motion to accurately position workers
• 180° hydraulic platform rotation and self-levelling platform for easy operation

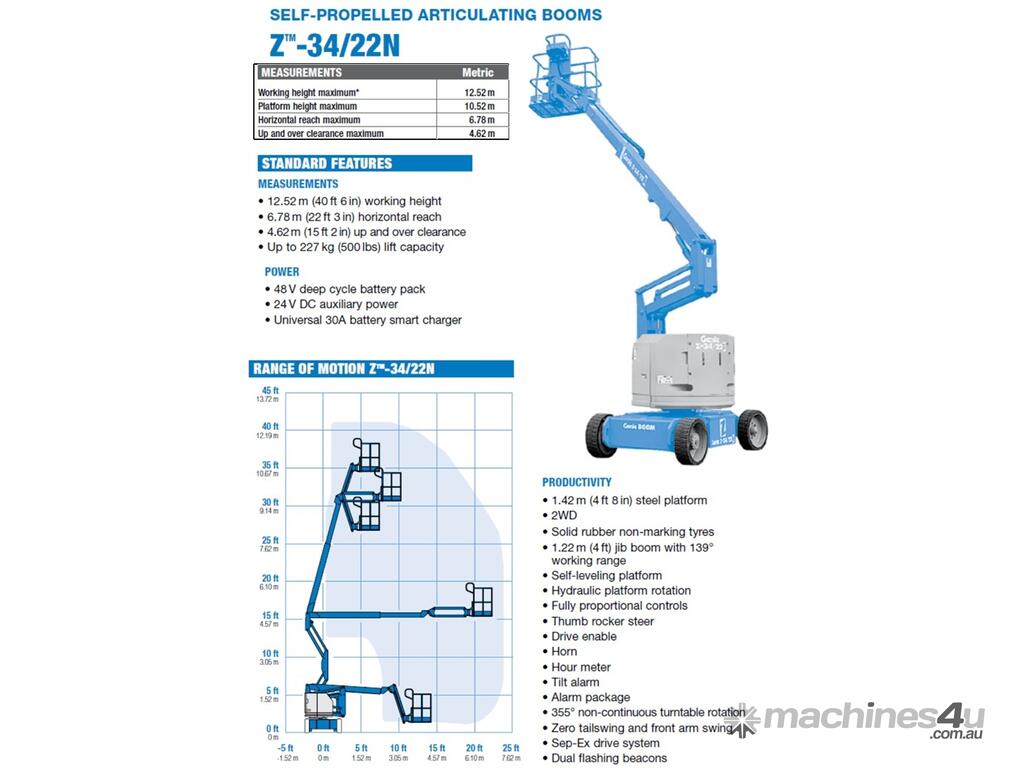

SPECIFICATIONS
Working height max. 12.52 m
Platform height max. 10.52 m
Horizontal reach max. 6.78 m
Up and over clearance max. 4.65 m

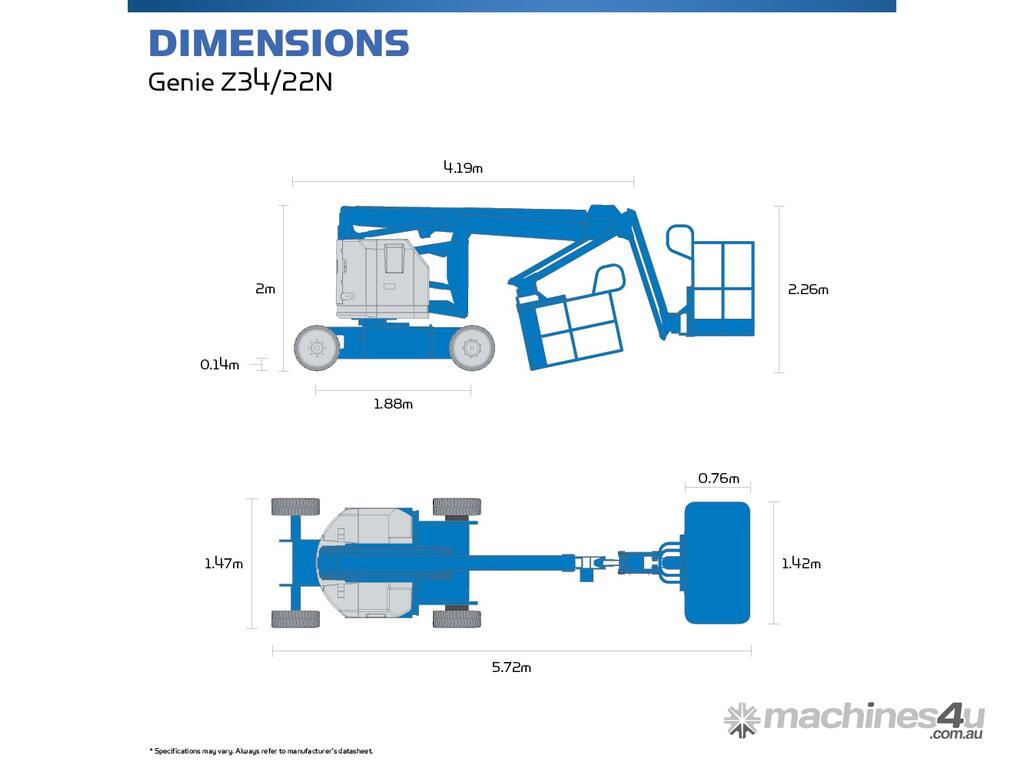

Platform length 0.76 m
Platform width 1.42 m
Height - stowed 2.00 m
Length - stowed 5.72 m
Storage height 2.26 m
Storage length 4.19 m
Width (Tires) 1.47 m
Wheelbase 1.88 m
Ground clearance - center 0.14 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 180°
Jib length 1.22 m
Vertical jib rotation 139°
Turntable rotation 355°
Turntable tailswing 0 cm
Drive speed - stowed(2) 6.4 km/h
Drive speed - raised 1.1 km/h
Gradeability - stowed(2) 35 %
Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5°
Turning radius - inside/outside 2.13 m / 4.08 m
Tires (solid, non-marking) 56 × 18 × 45 cm
Power 48 V DC (8 × 6 V 315 Ah)
Hydraulic tank capacity 15.1 L
Weight 5,178 kg
