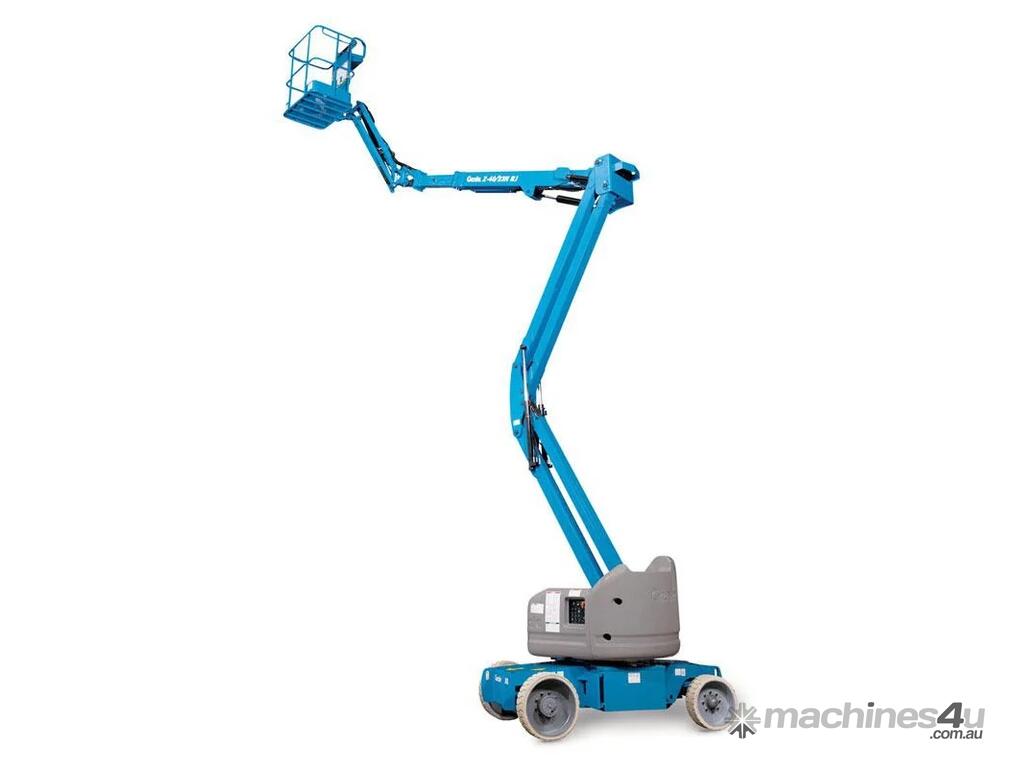

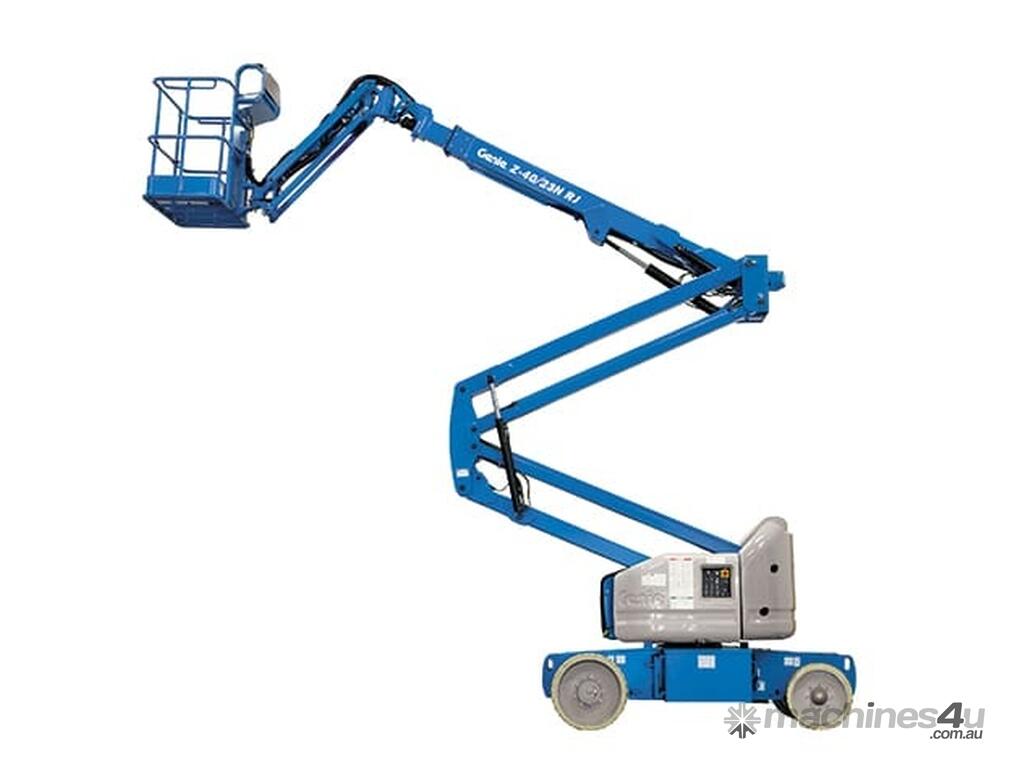

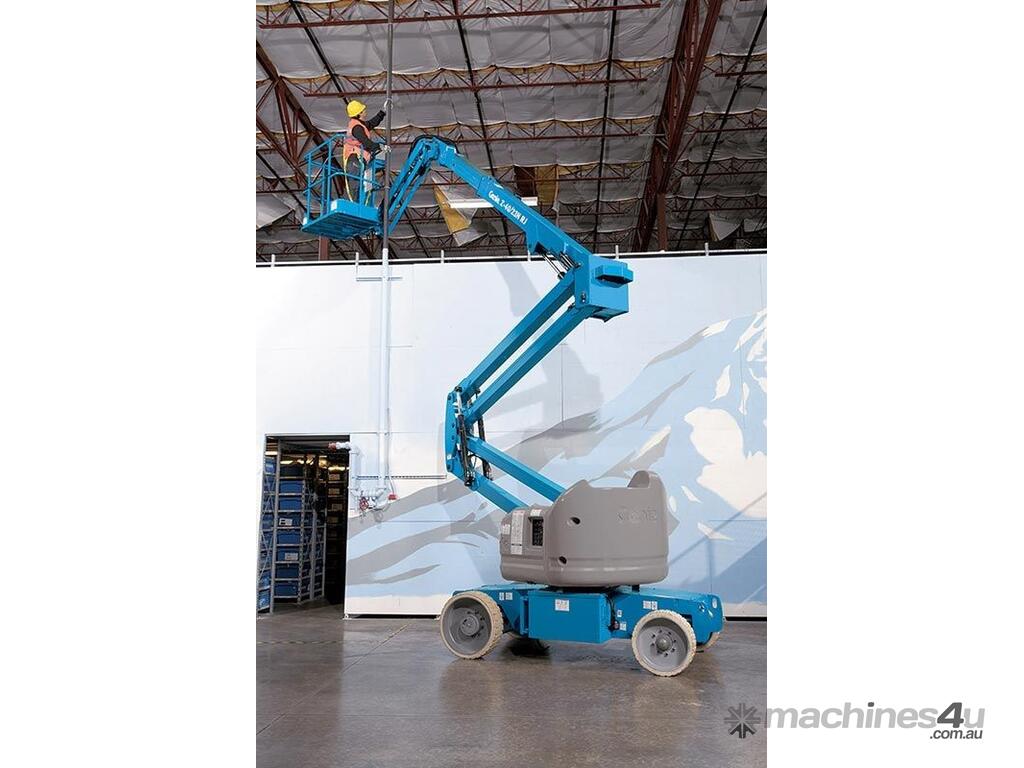

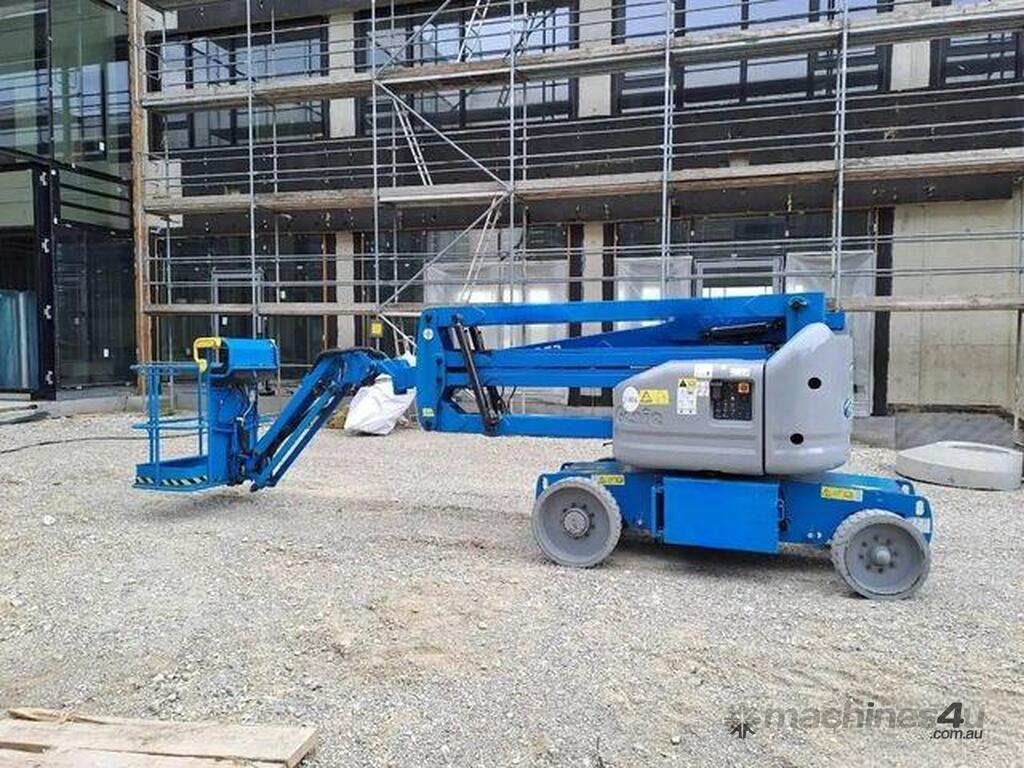

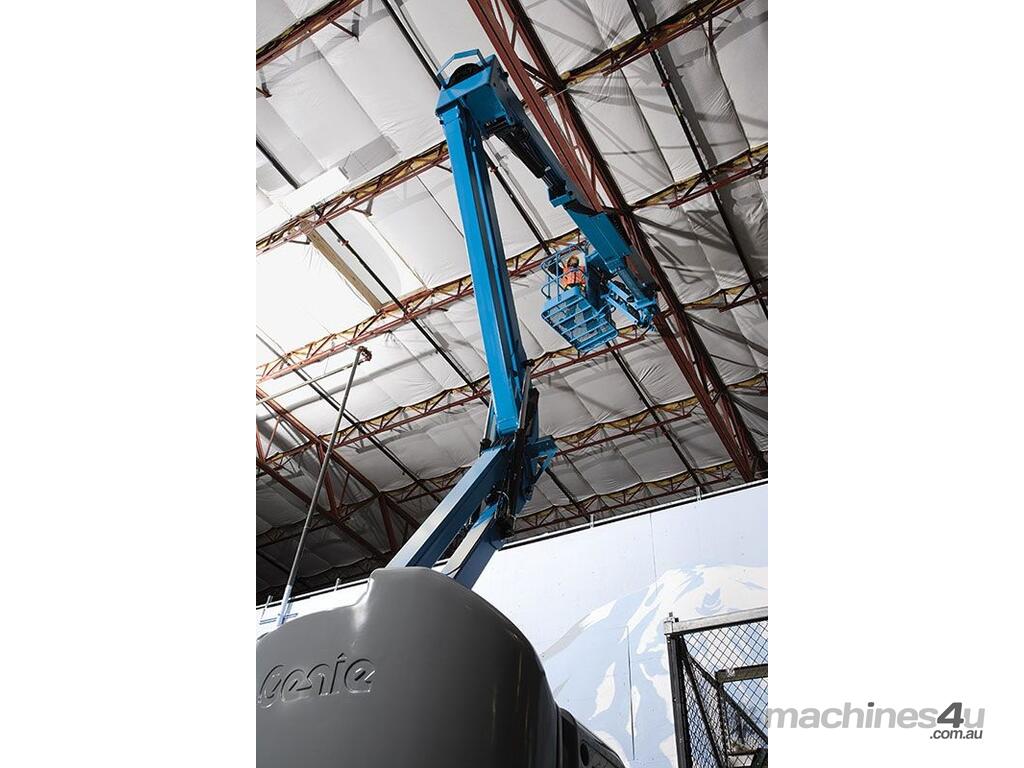

Narrow, compact and equipped with the latest generation of eco-friendly AC drive systems, the Genie® Z™-40/23 N RJ electric articulating boom lift is a quiet, emission-free, cost-efficient solution ideal for sensitive, congested and urban work environments. It features a rotating jib offering industry-leading horizontal rotation as well as the standard vertical reach for increased jobsite versatility.

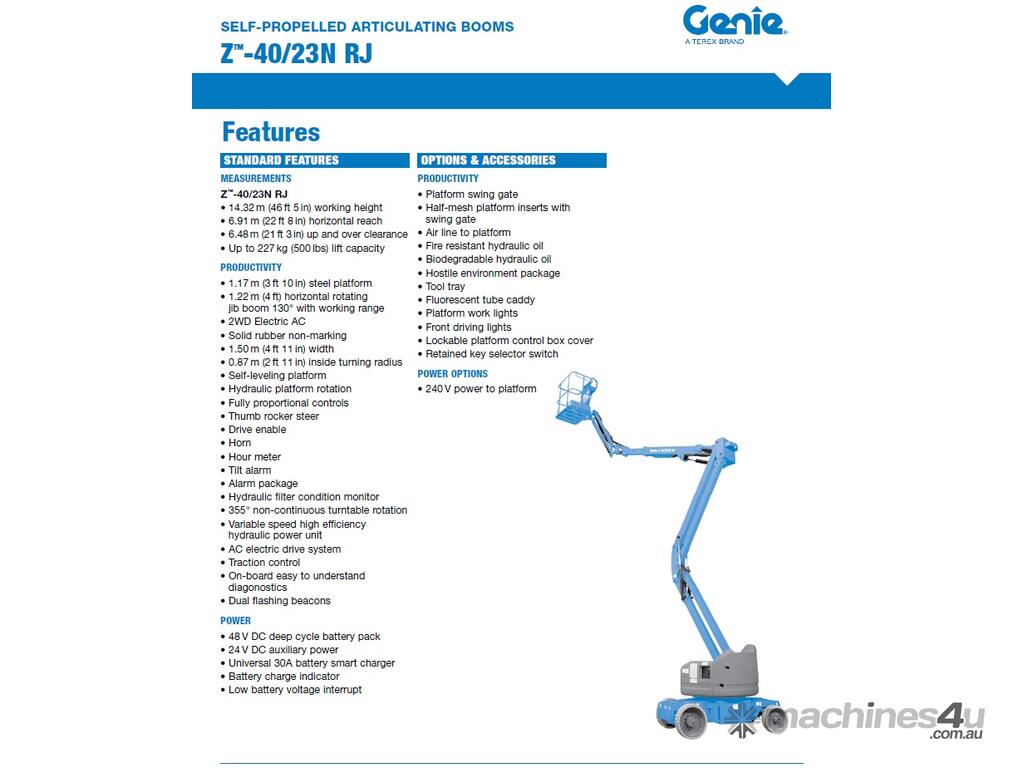

Overview

• Minimal tailswing, tight turning radius and compact dimensions for easy manoeuvring in confined jobsites

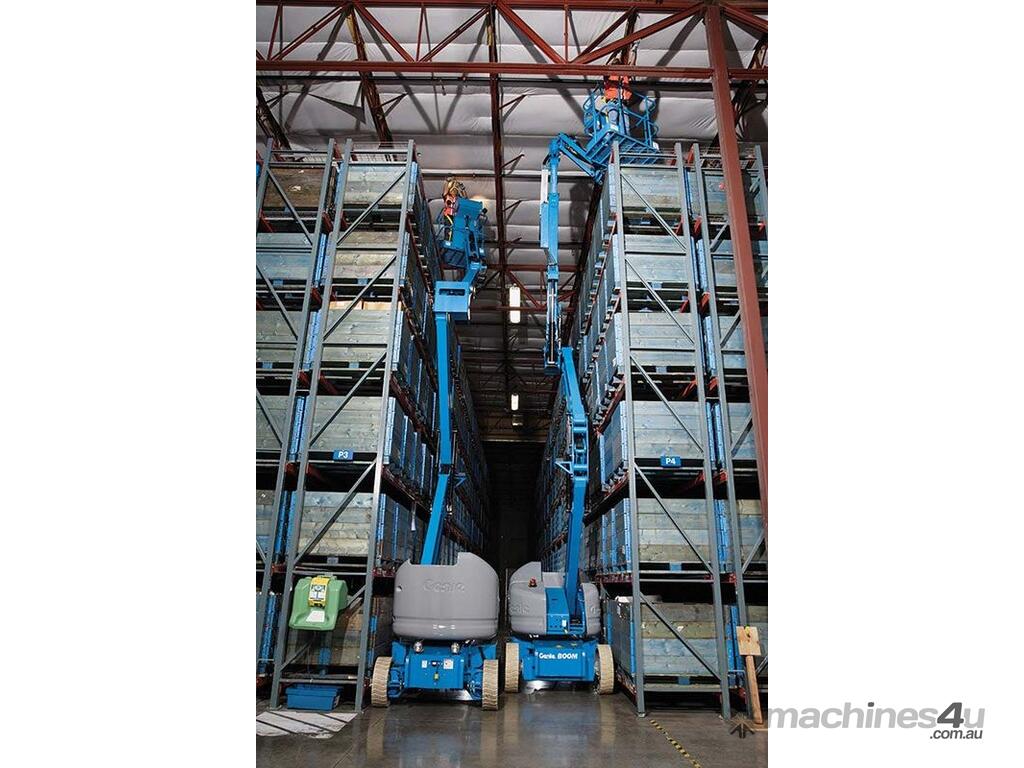

• Compact chassis for narrow aisle access
• 30% gradeability and 7.2 km/h (4.5 mph) travel speed for excellent drive performance
• AC drive system for enhanced driving performance and simplified maintenance
• 1.22 m (4 ft) articulating jib with a 128° vertical rotation and a 180° horizontal rotation for increased versatility
• 180° hydraulic platform rotation and self-levelling platform for easy operation

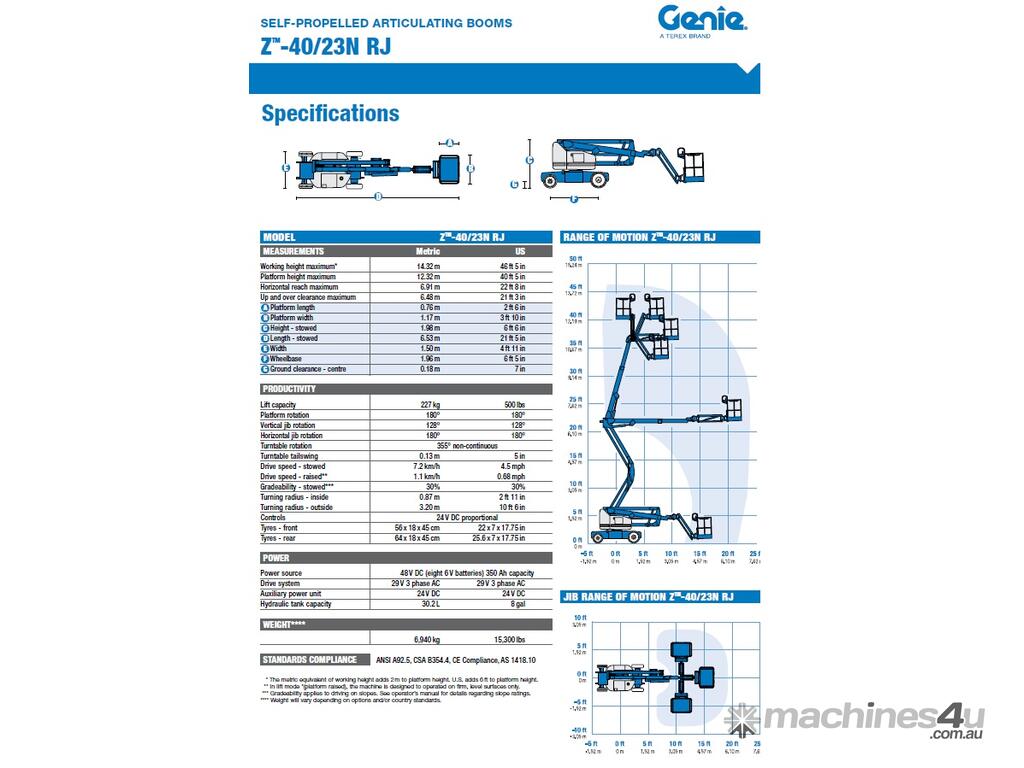

SPECIFICATIONS

Working height max. 14.32 m
Platform height max. 12.32 m
Horizontal reach max. 6.91 m
Up and over clearance max. 6.48 m
Platform length 0.76 m
Platform width 1.17 m
Height - stowed 1.98 m
Length - stowed 6.53 m
Width 1.50 m
Wheelbase 1.96 m
Ground clearance - center 0.24 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 180°
Jib length 1.22 m
Vertical jib rotation 128°
Horizontal jib rotation 180°
Turntable rotation 355°
Turntable tailswing 0.13 m
Drive speed – stowed 7.2 km/h
Drive speed – raised 1.1 km/h
Gradeability - stowed 30 %
Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5°
Turning radius - inside/outside 0.87 m / 3.20 m
Tires (solid, non-marking) 0.56 × 0.18 × 0.45 m
Power 48 V DC (8 × 6 V 350 Ah)
Drive system 48 V 3-Phase AC
Hydraulic tank capacity 30.3 L
Weight 6,940 kg
