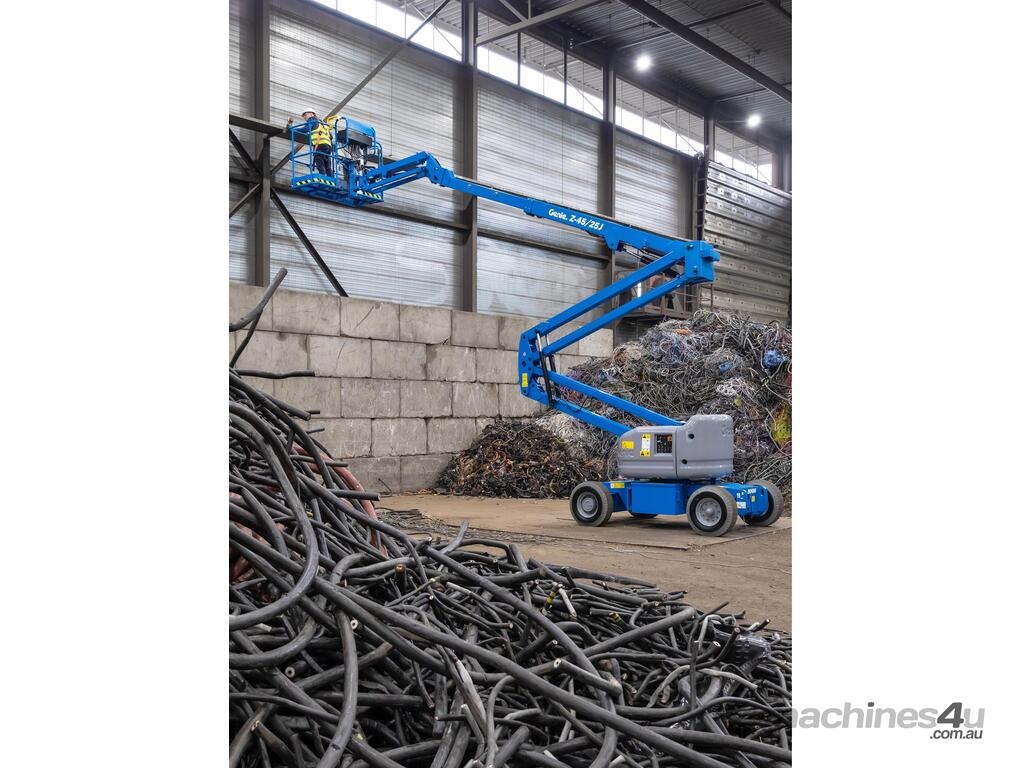

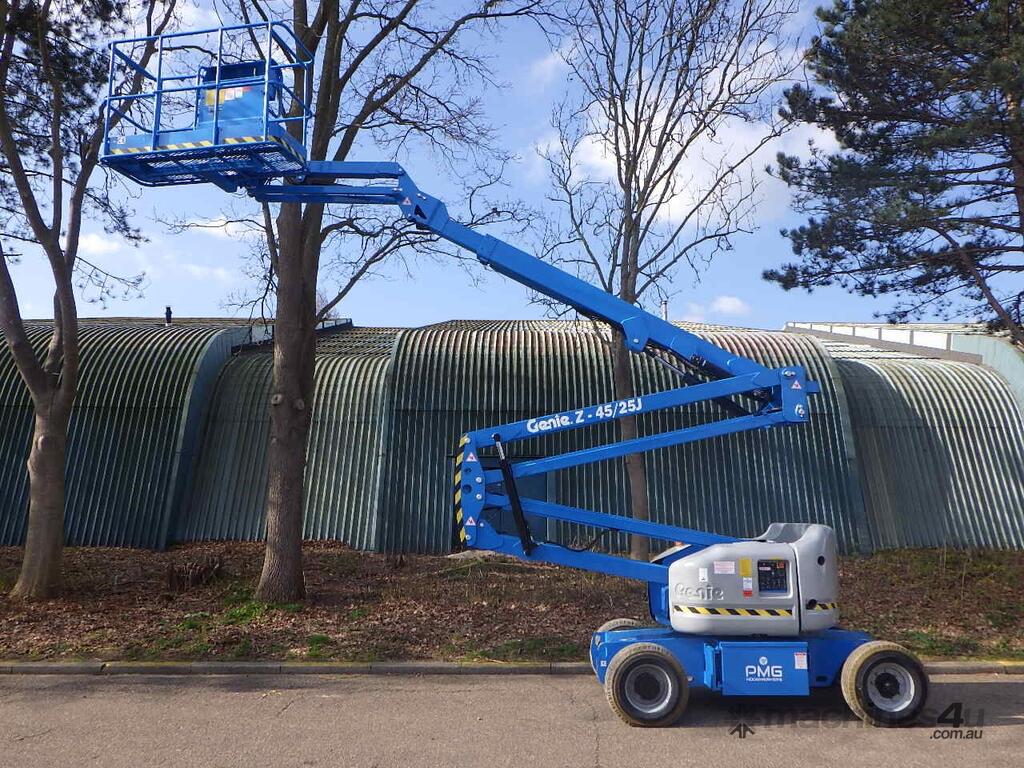

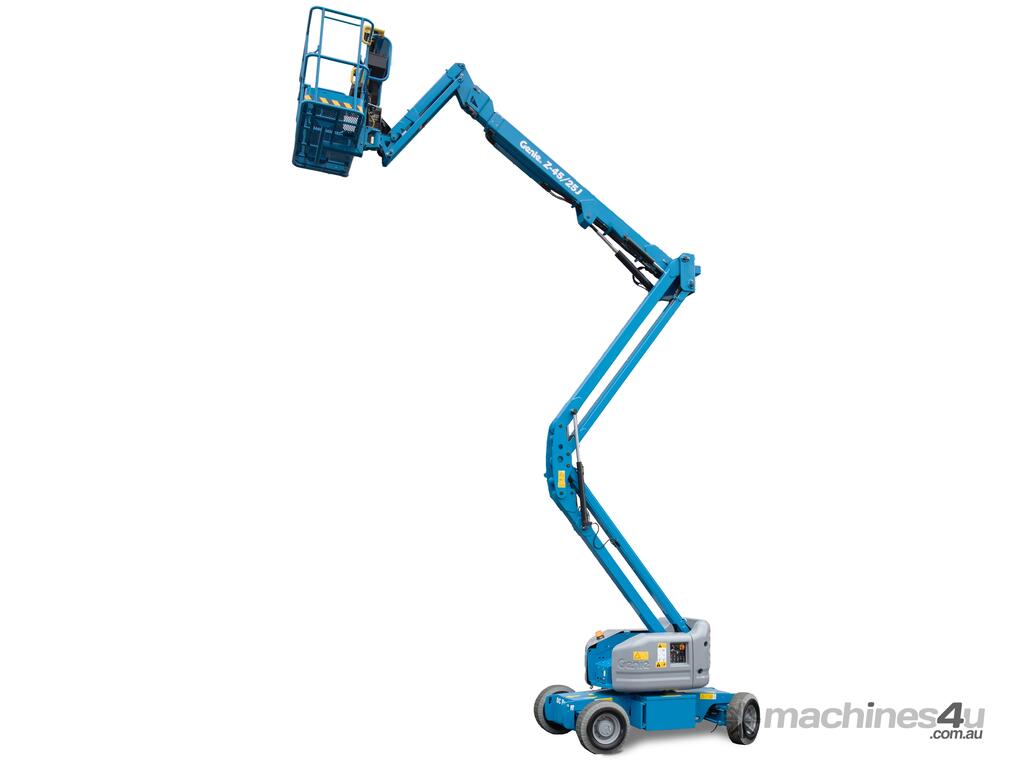

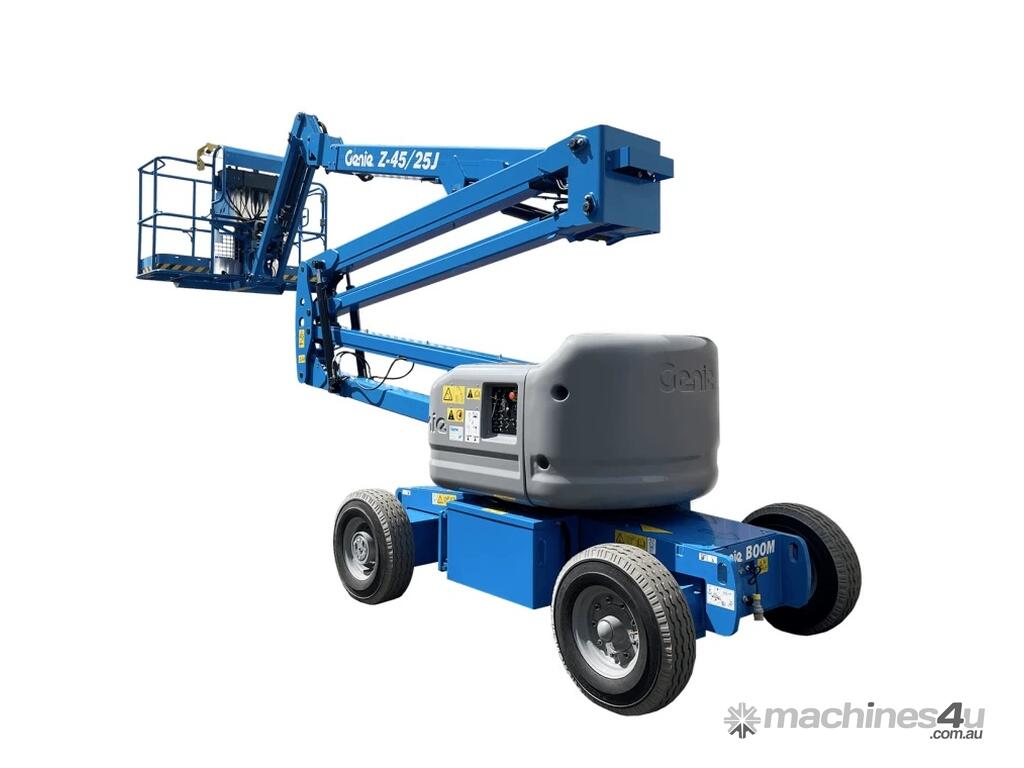

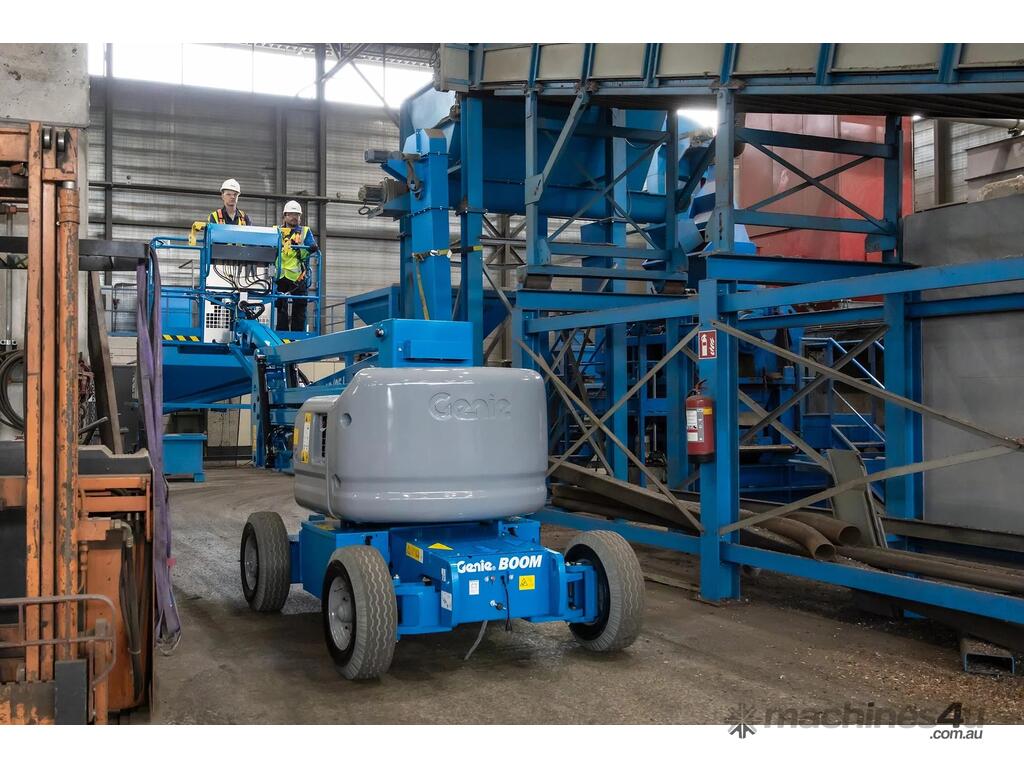

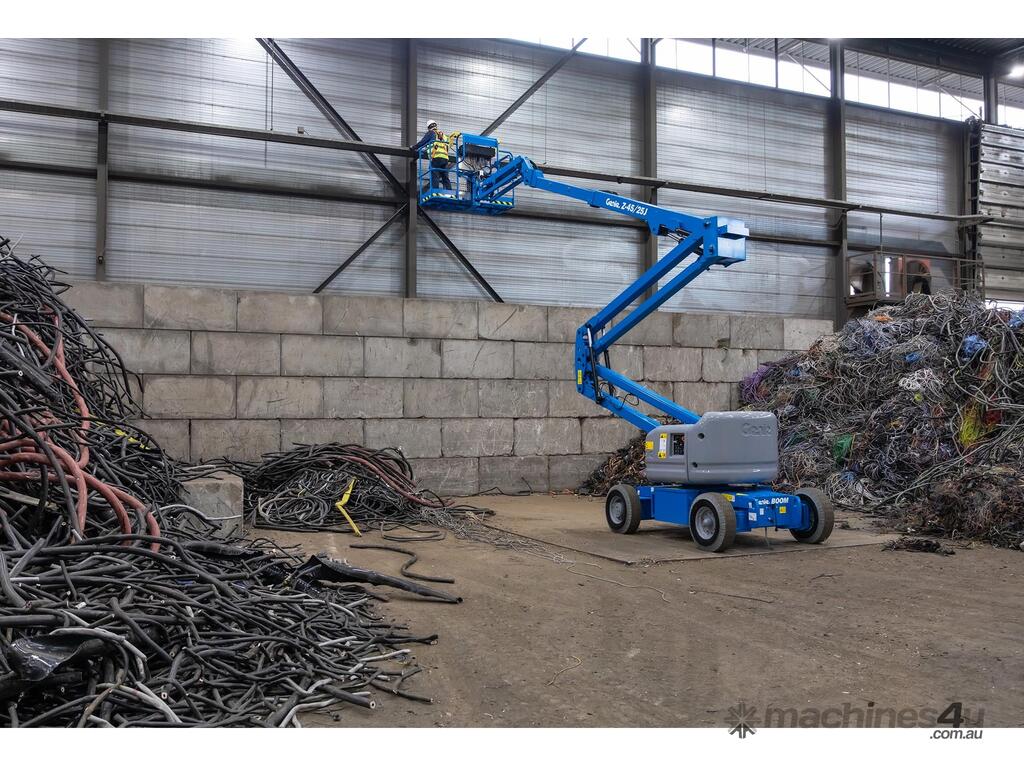

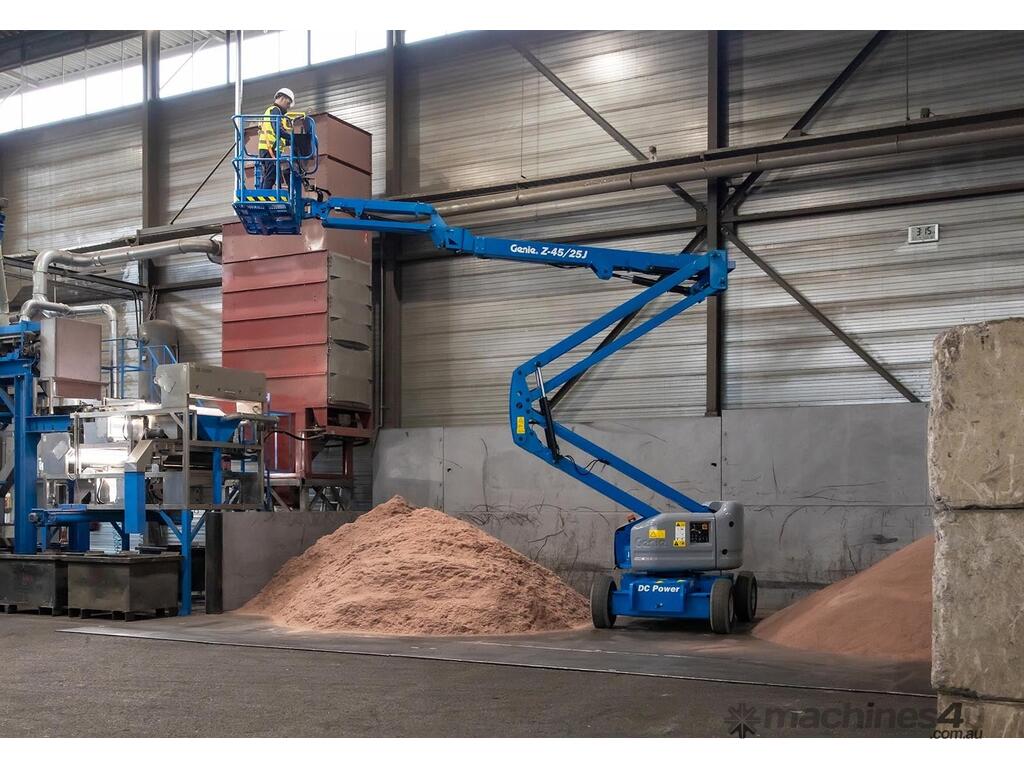

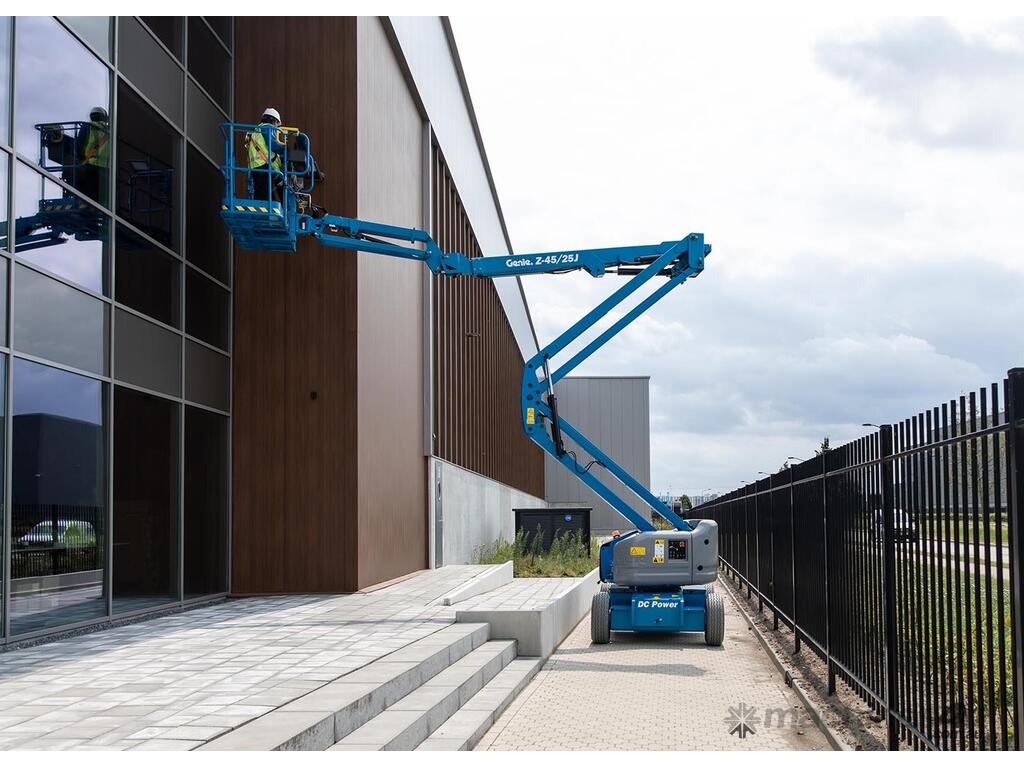

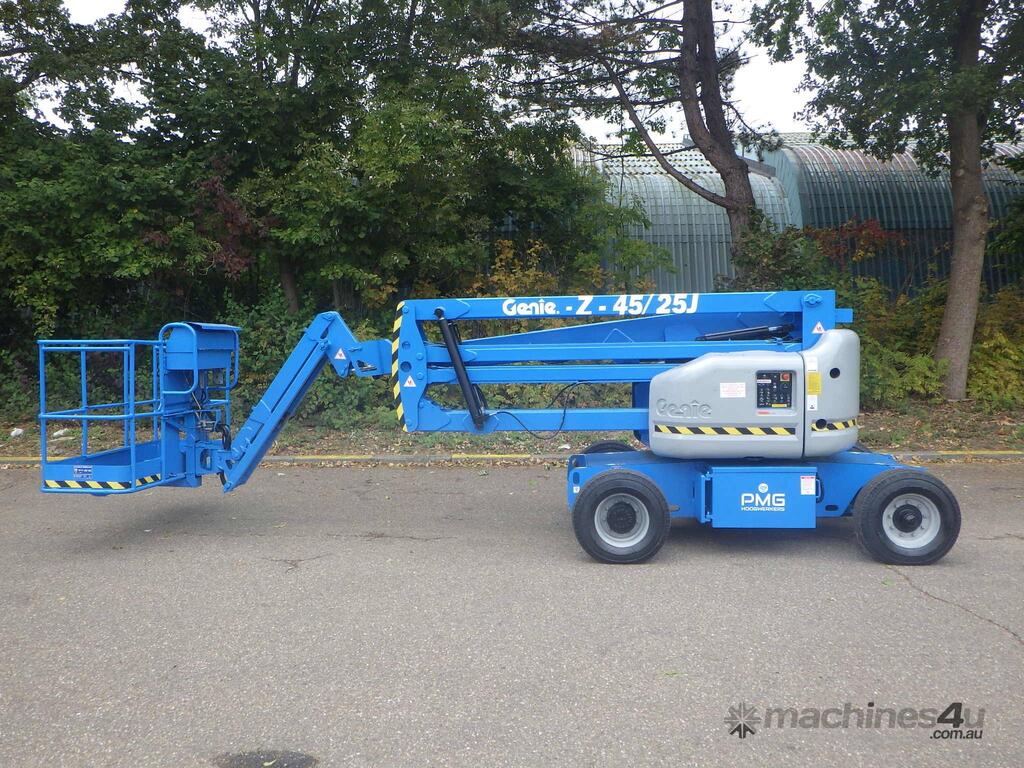

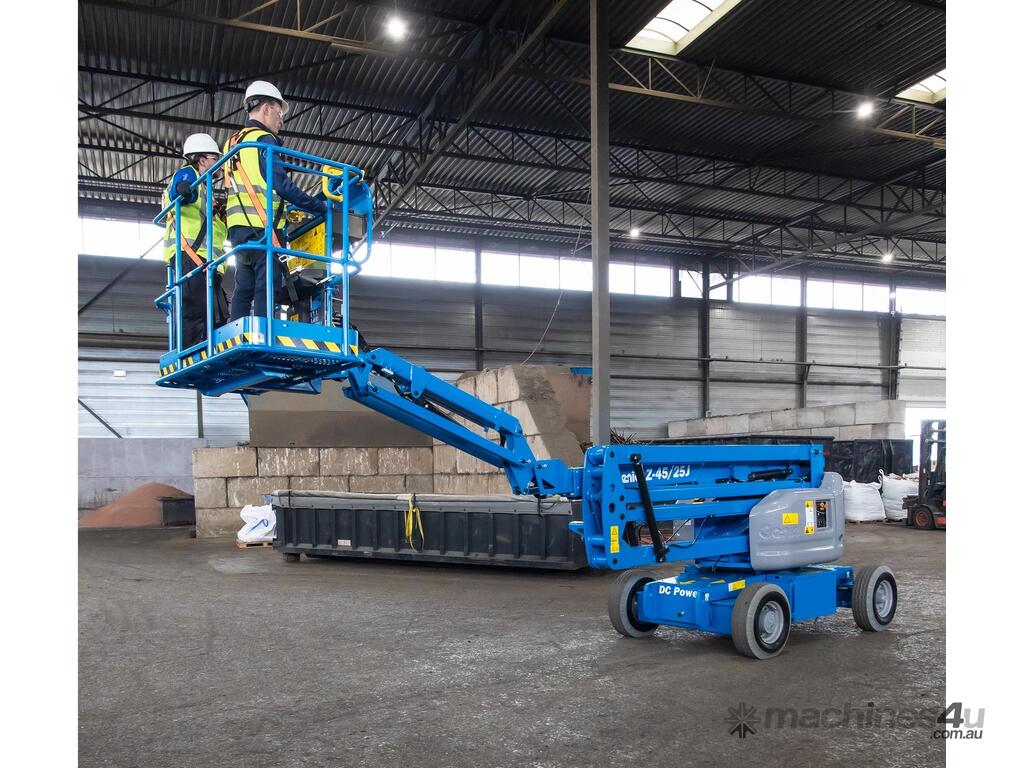

The Genie® Z®-45/25J DC electric articulating boom lift offer quiet, emission-free operation. With this Genie electric boom lift, operators can easily work close to buildings or around obstacles, and access overhead work from aisles and other congested areas.

Overview

• Zero tailswing and tight turning radius for easy manoeuvring in confined jobsites
• 30% gradeability and 4.8 km/h (3 mph) travel speed for excellent drive performance
• 1.52 m (5 ft) articulating jib with a 135° vertical rotation to accurately position workers
• 160° hydraulic platform rotation and self-levelling platform for easy operation
• Large 1.83 m (6 ft) all-steel platform lifts up to 227 kg (500 lb)

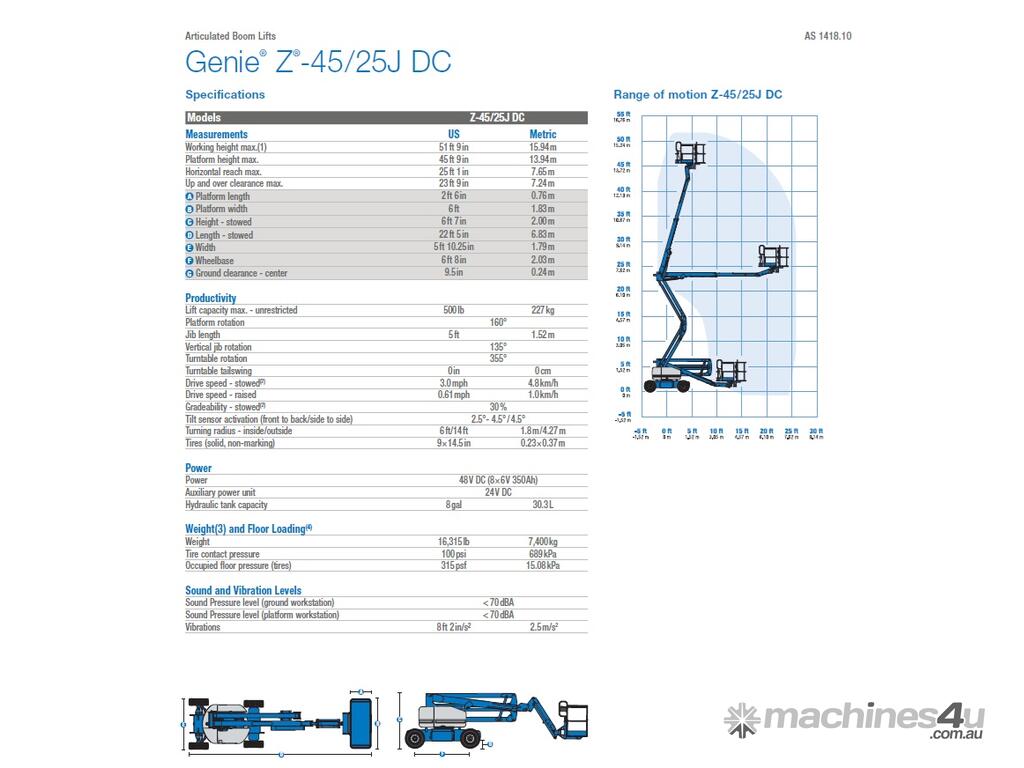

SPECIFICATIONS

Working height max. 15.94 m
Platform height max. 13.94 m
Horizontal reach max. 7.65 m
Up and over clearance max. 7.24 m
Platform length 0.76 m
Platform width 1.83 m
Height - stowed 2.00 m
Length - stowed 6.83 m
Width 1.79 m
Wheelbase 2.03 m
Ground clearance - center 0.24 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 160°
Jib length 1.52 m
Vertical jib rotation 135°
Turntable rotation 355°
Turntable tailswing 0 cm
Drive speed – stowed 4.8 km/h
Drive speed – raised 1.0 km/h
Gradeability - stowed 30 %
Tilt sensor activation (front to back/side to side) 2.5°- 4.5° / 4.5°
Turning radius - inside/outside 1.8 m / 4.27 m
Tires (solid, non-marking) 0.23 × 0.37 m
Power 48 V DC (8 × 6 V 350 Ah)
Hydraulic tank capacity 30.3 L
Weight 7,400 kg
