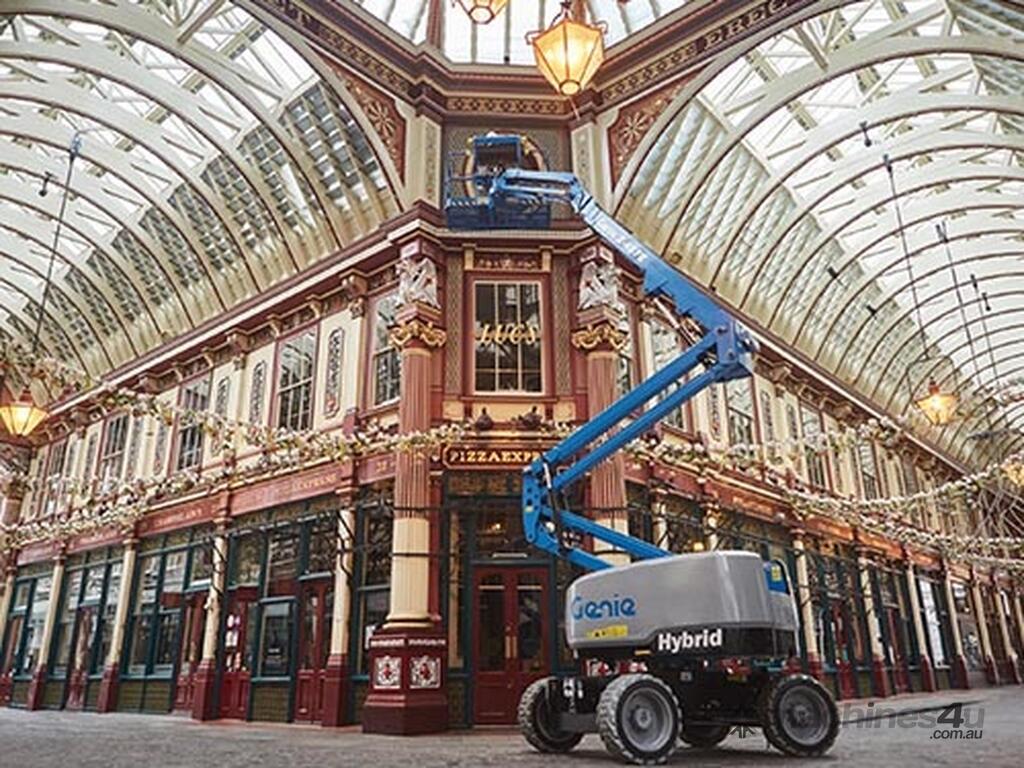

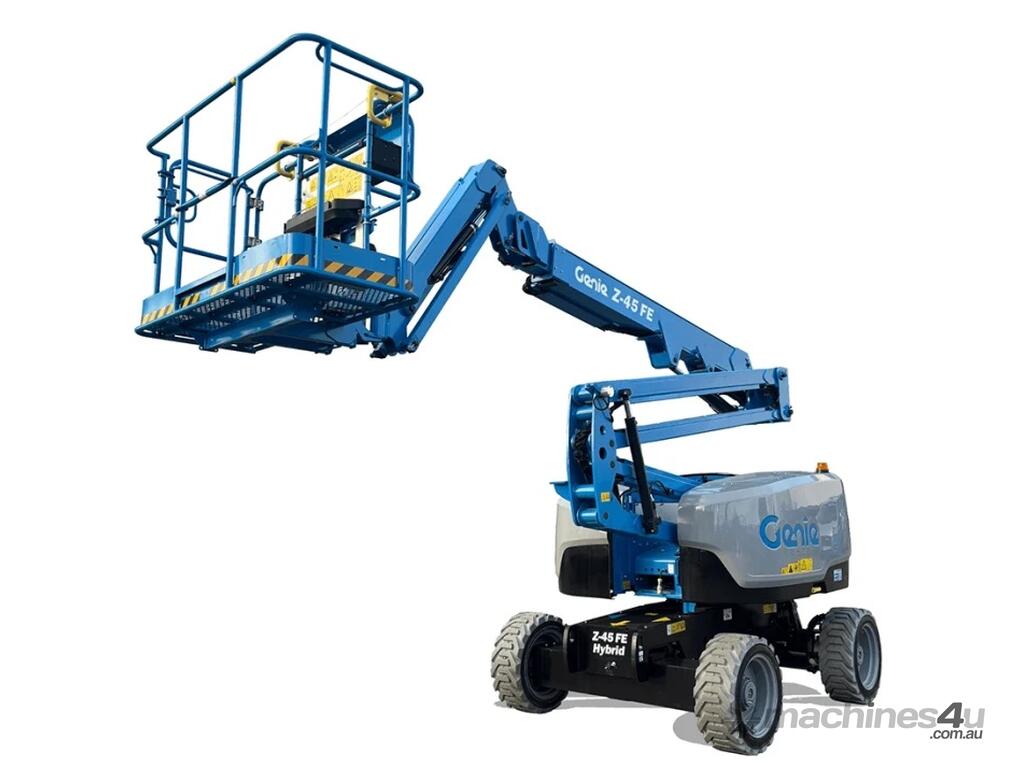

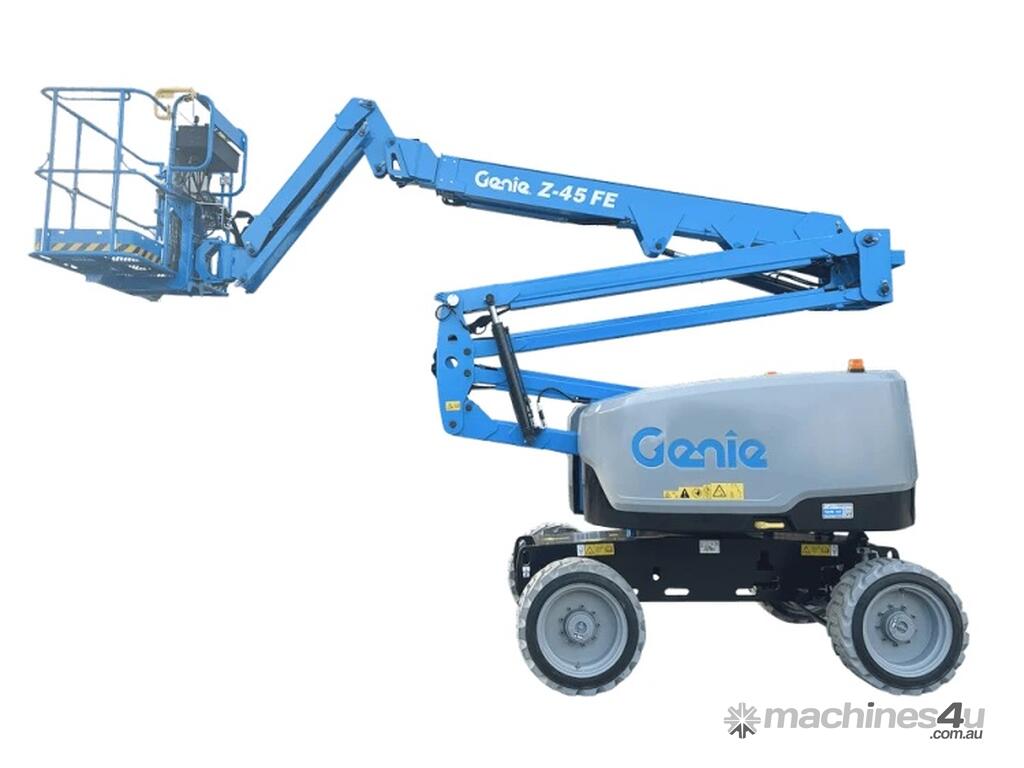

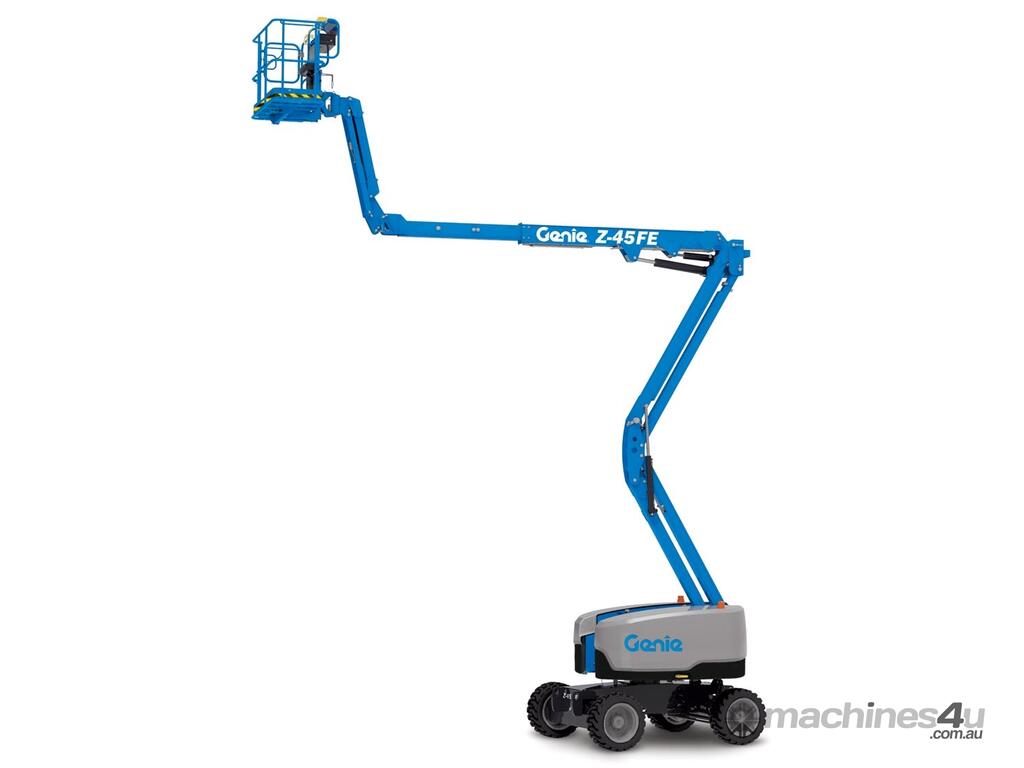

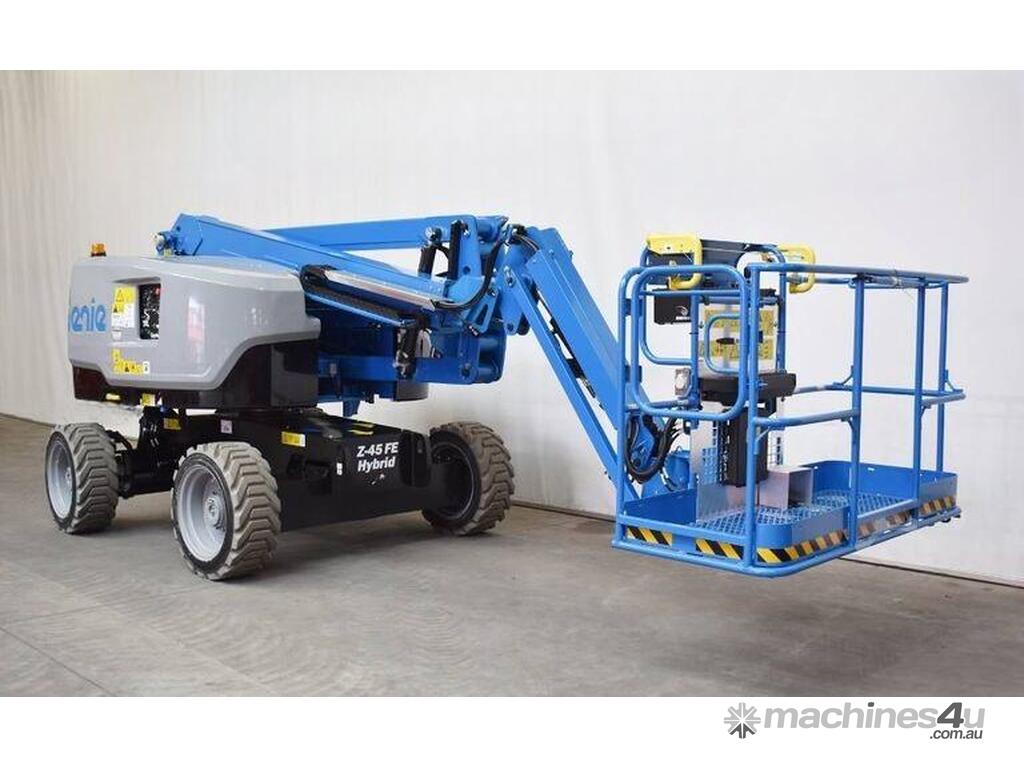

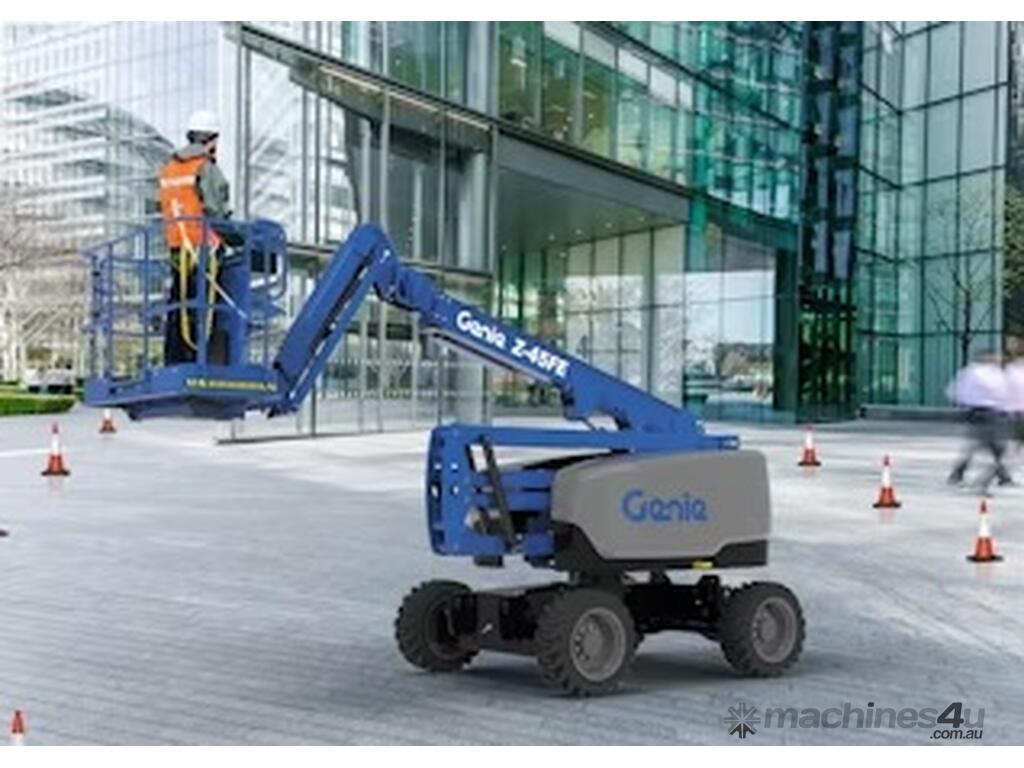

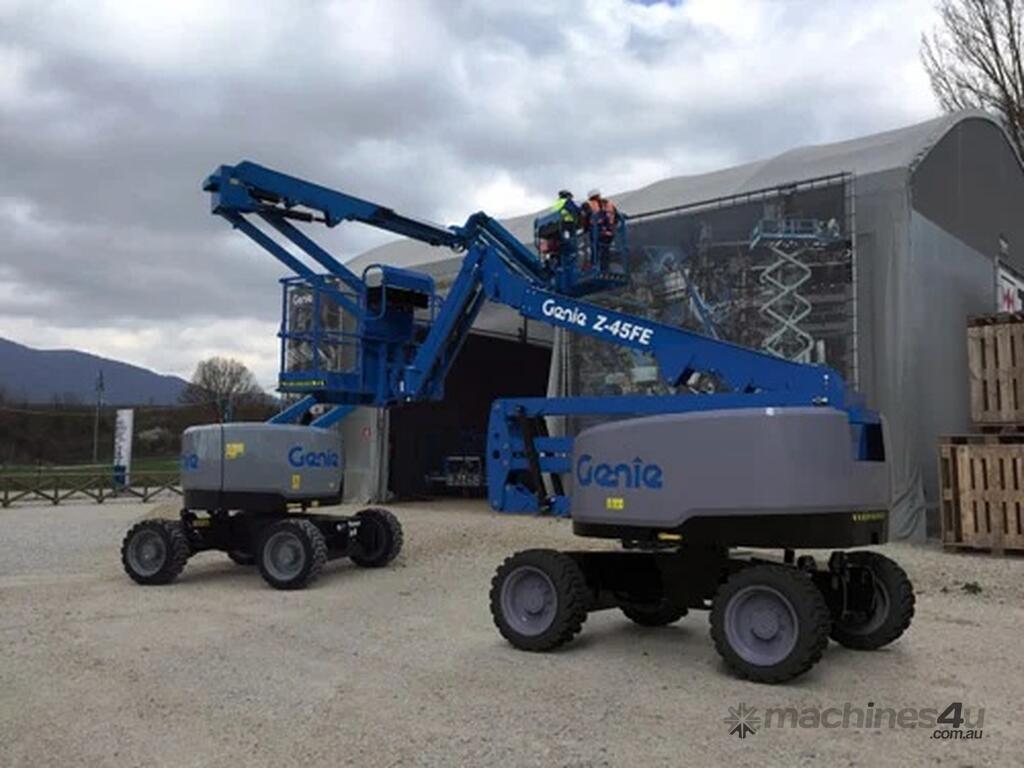

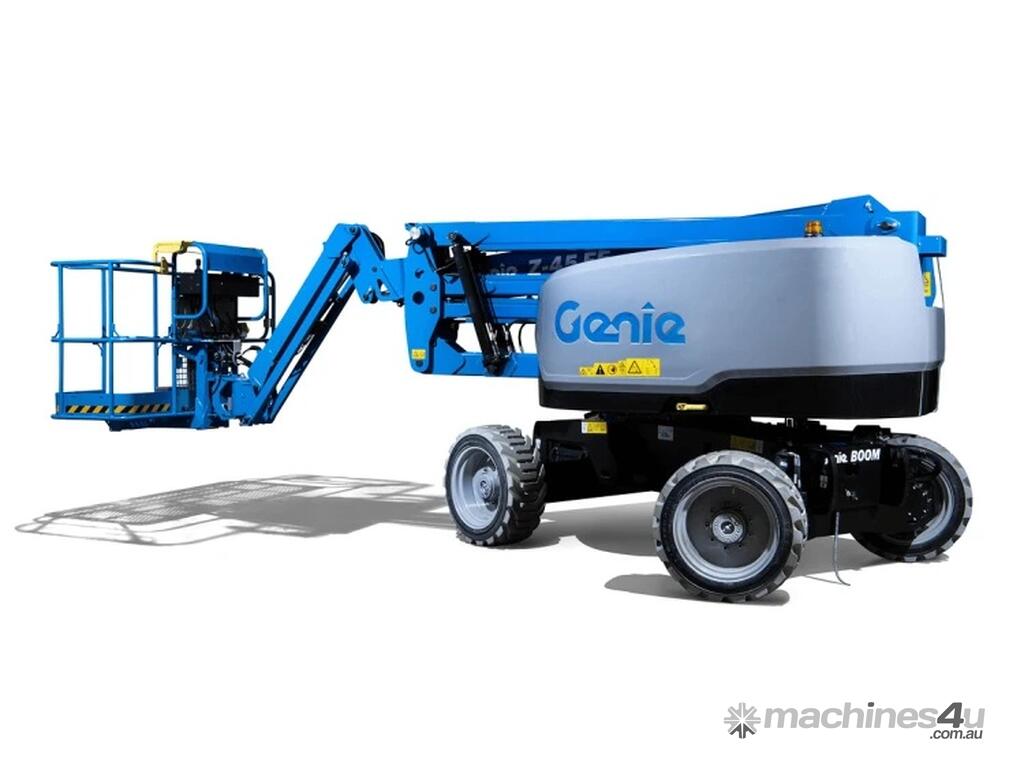

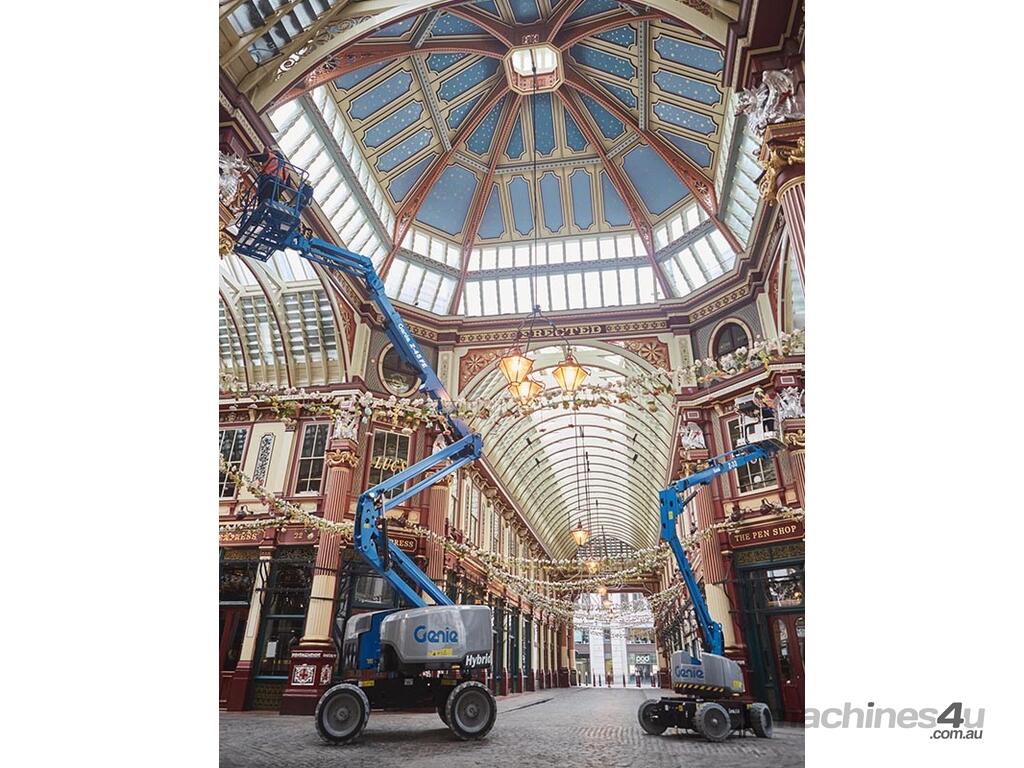

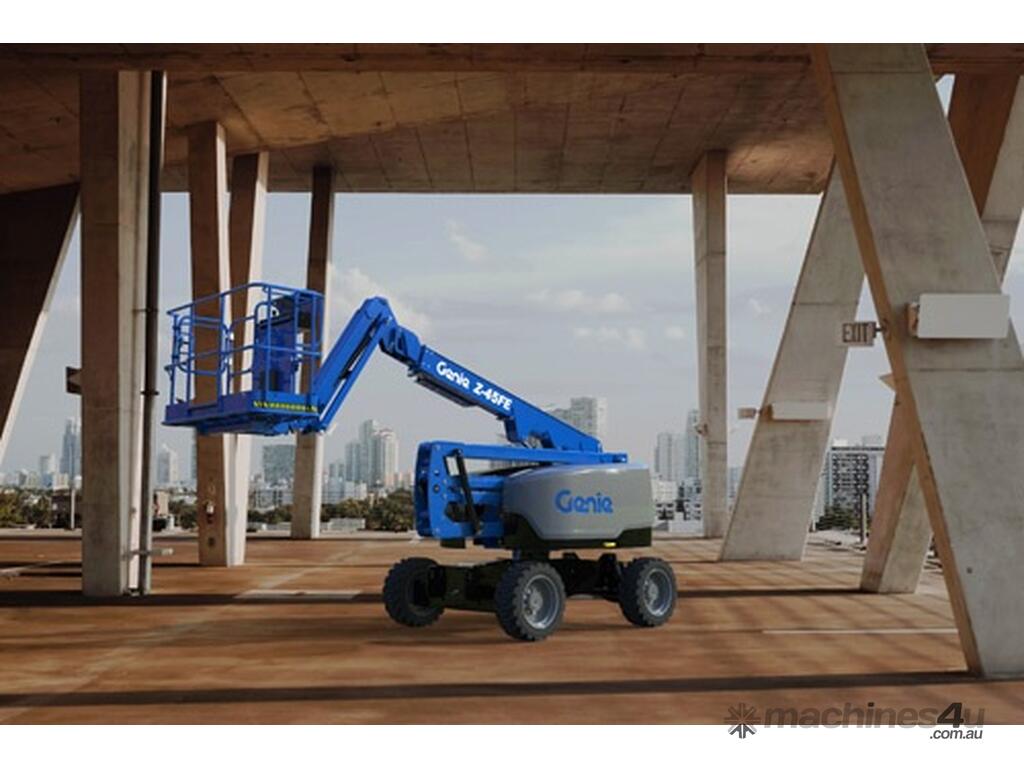

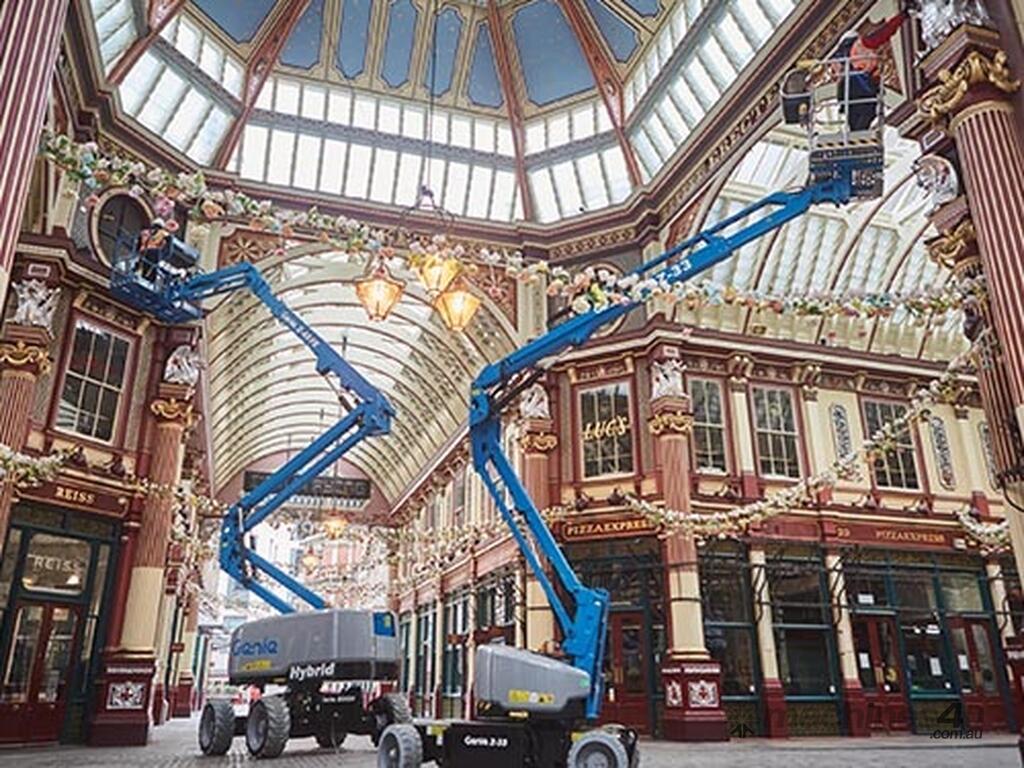

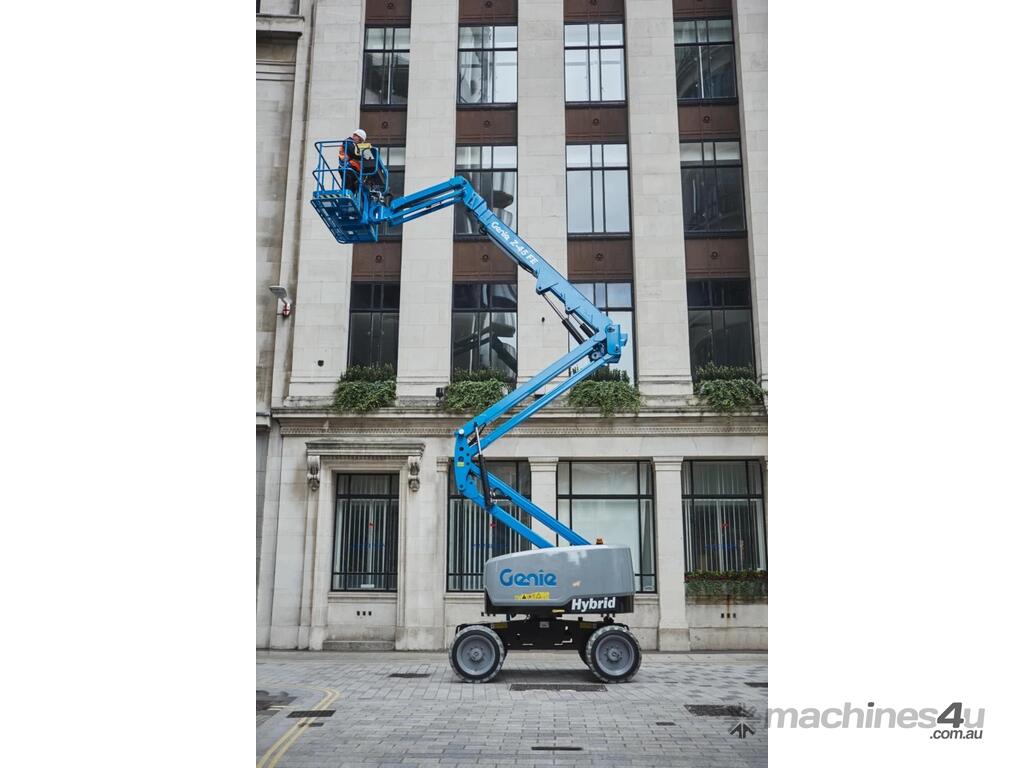

GENIE – 45FT – HYBRID – Z45FE - KNUCKLE BOOM LIFT - GENIE – ARTICULATING BOOM – 4WD - CHERRY PICKER
Two machines in one, the Genie® Z®-45 FE hybrid articulating boom lift is the ideal, environment-friendly solution for increased efficiency and low cost of operation. In ‘all-electric’ mode it offers a full workday of emissions-free run time on a single battery charge.
In ‘hybrid’ mode, it offers one week of run time with a single tank of diesel.
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• High-efficiency AC drive system for enhanced driving performance and simplified maintenance
• Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 5 ft (1.52 m) articulating jib with a 135° vertical rotation to accurately position workers
SPECIFICATIONS
Working height max. 15.92 m
Platform height max. 13.92 m
Horizontal reach max. 6.94 m
Up and over clearance max. 7.50 m
Platform length 0.76 m
Platform width 1.83 m
Height - stowed 2.29 m
Length - stowed 6.11 m
Width 2.29 m
Wheelbase 2.03 m
Ground clearance - center 0.41 m
Lift capacity max. - unrestricted 300 kg
Platform rotation 160°
Jib length 1.52 m
Vertical jib rotation 135°
Turntable rotation 355°
Turntable tailswing 0.37 m
Drive speed - stowed 7.24 km/h
Drive speed - raised 0.50 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 4.5° / 4.5°
Turning radius - inside/outside 2.40 m / 4.30 m
Tires 315 / 55 D20
Drive system 34V 3-Phase AC
Battery Pack, FE 48V DC (8 × 6V), 370 Ah, AGM
AC generator, FE Diesel
Hydraulic tank capacity 40 L
Fuel tank capacity 64 L
Weight, FE 6,559 kg
