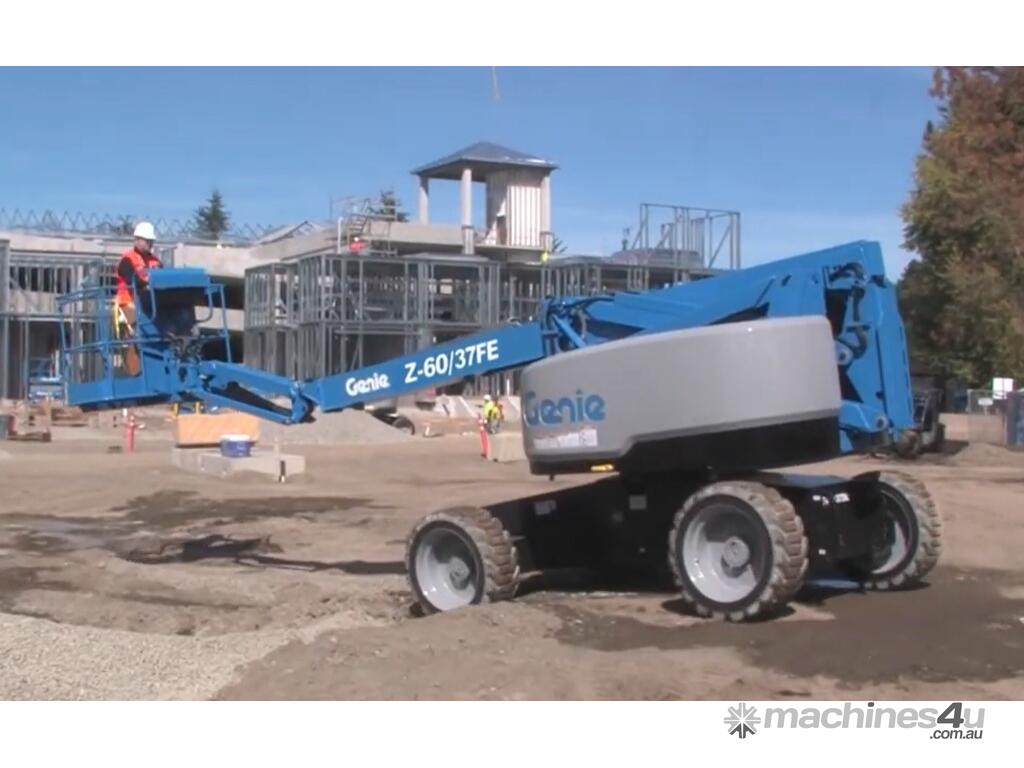

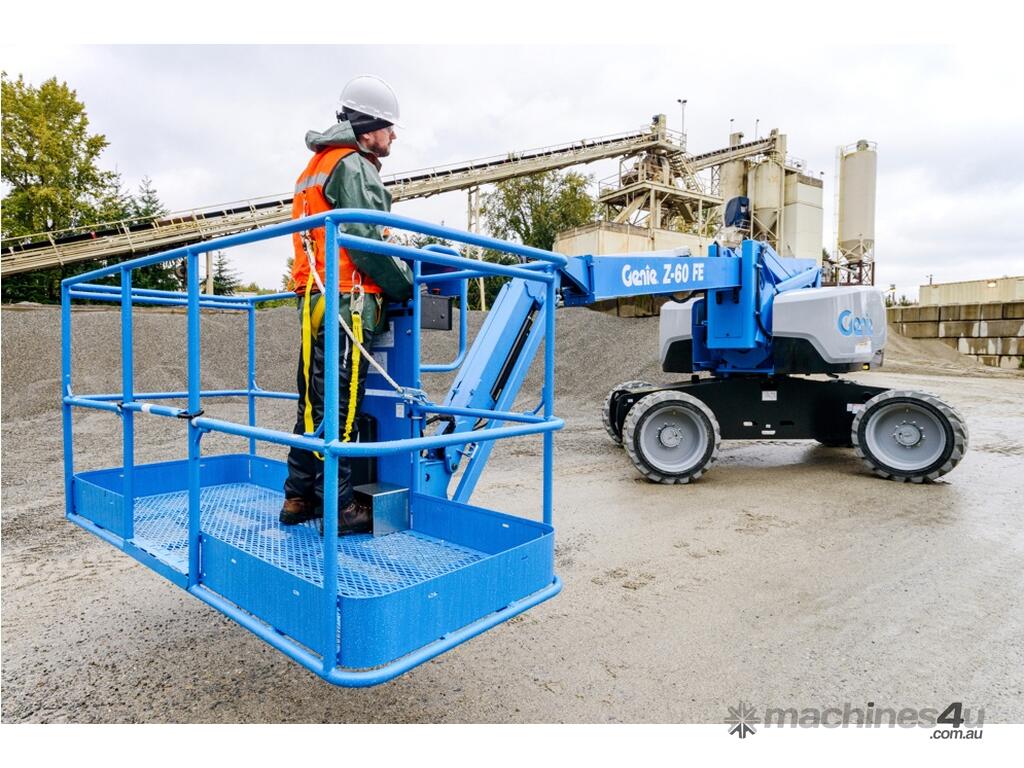

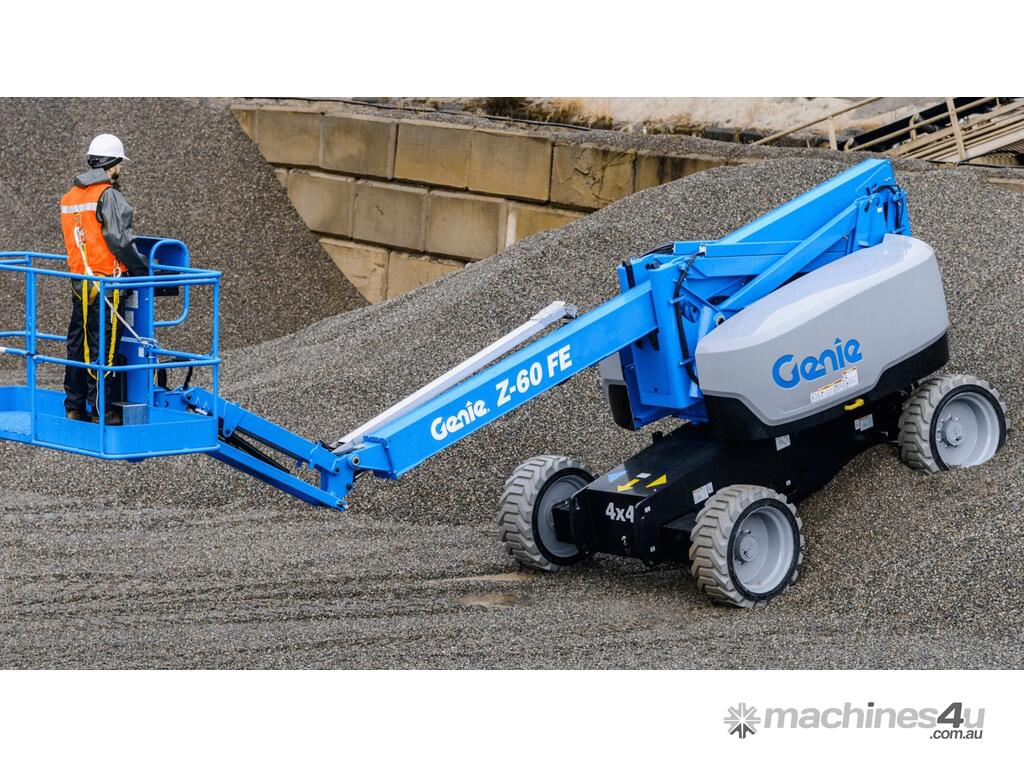

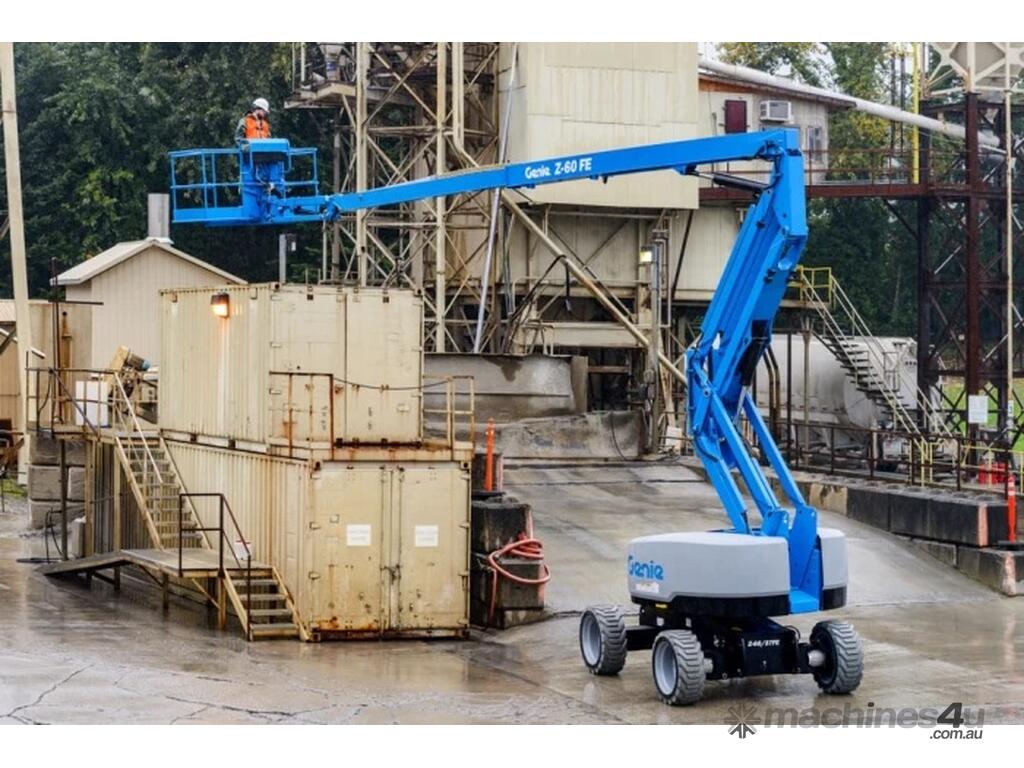

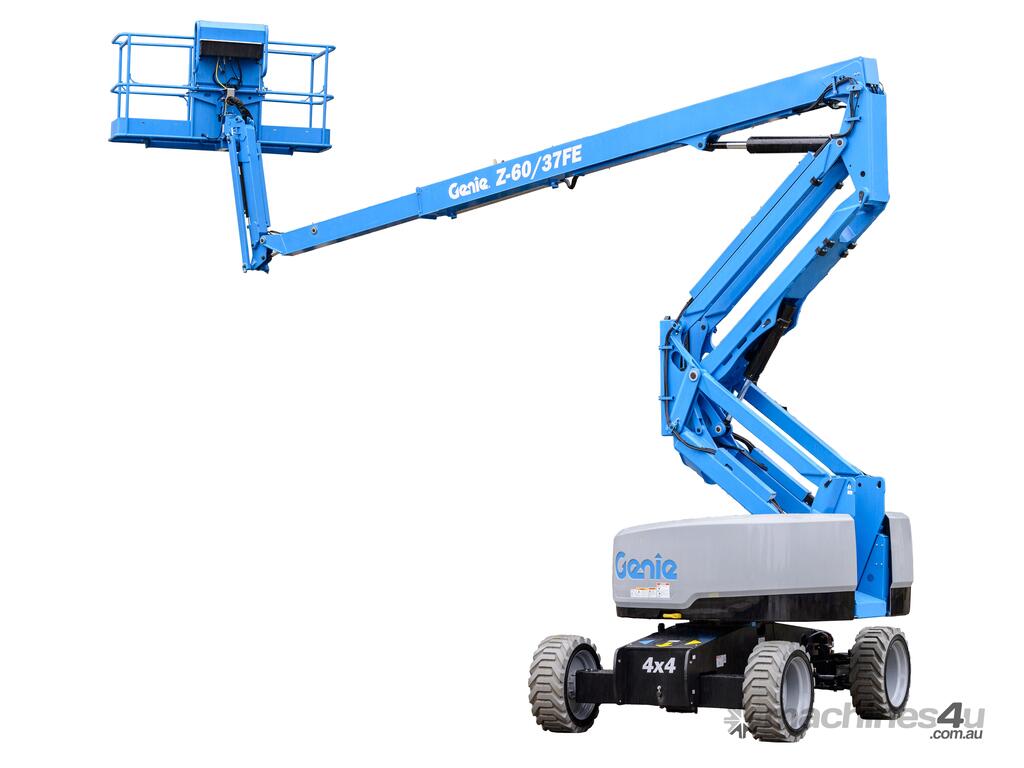

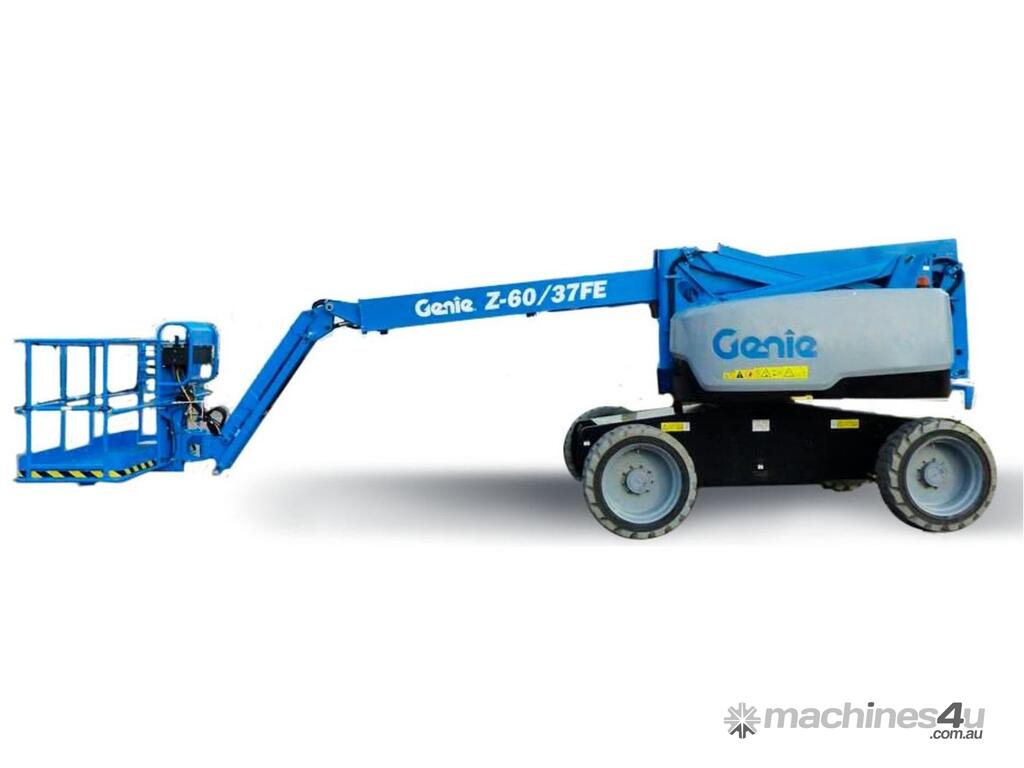

GENIE – 60FT – HYBRID – Z60FE - KNUCKLE BOOM LIFT - GENIE – ARTICULATING BOOM – 4WD - CHERRY PICKER

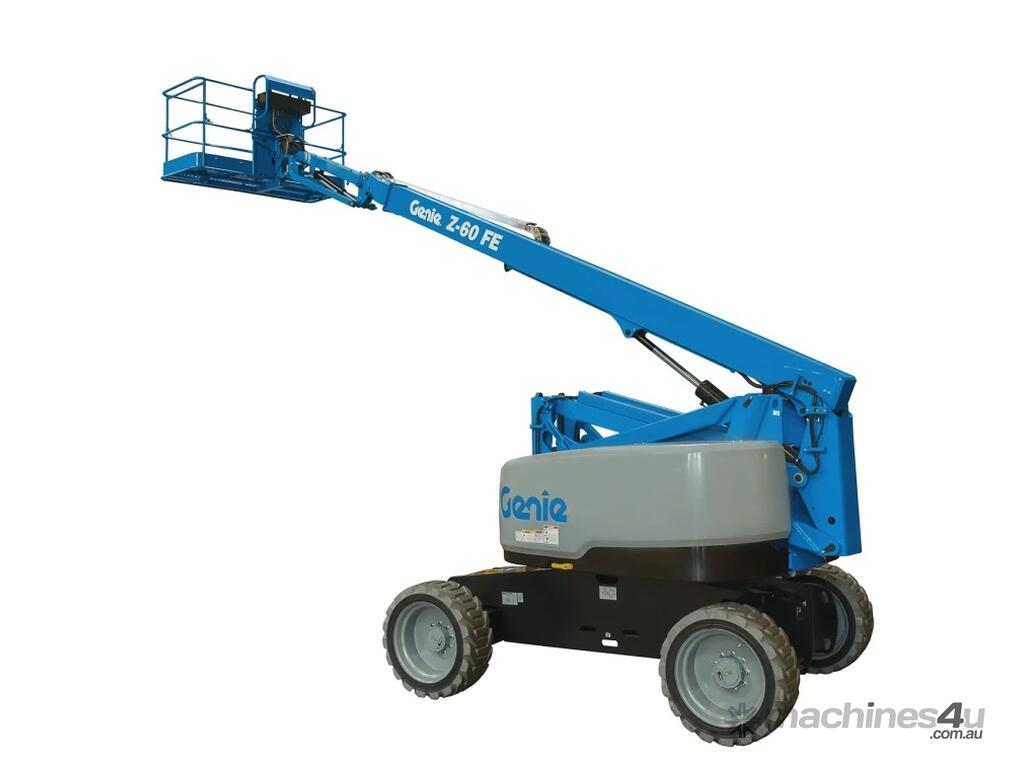

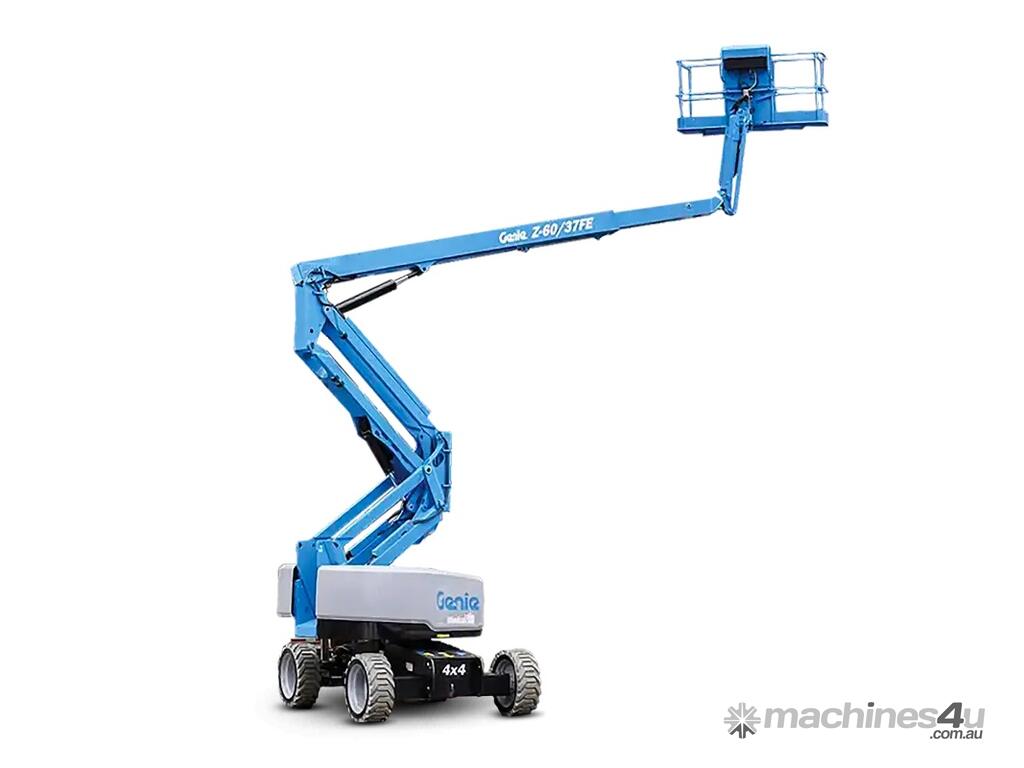

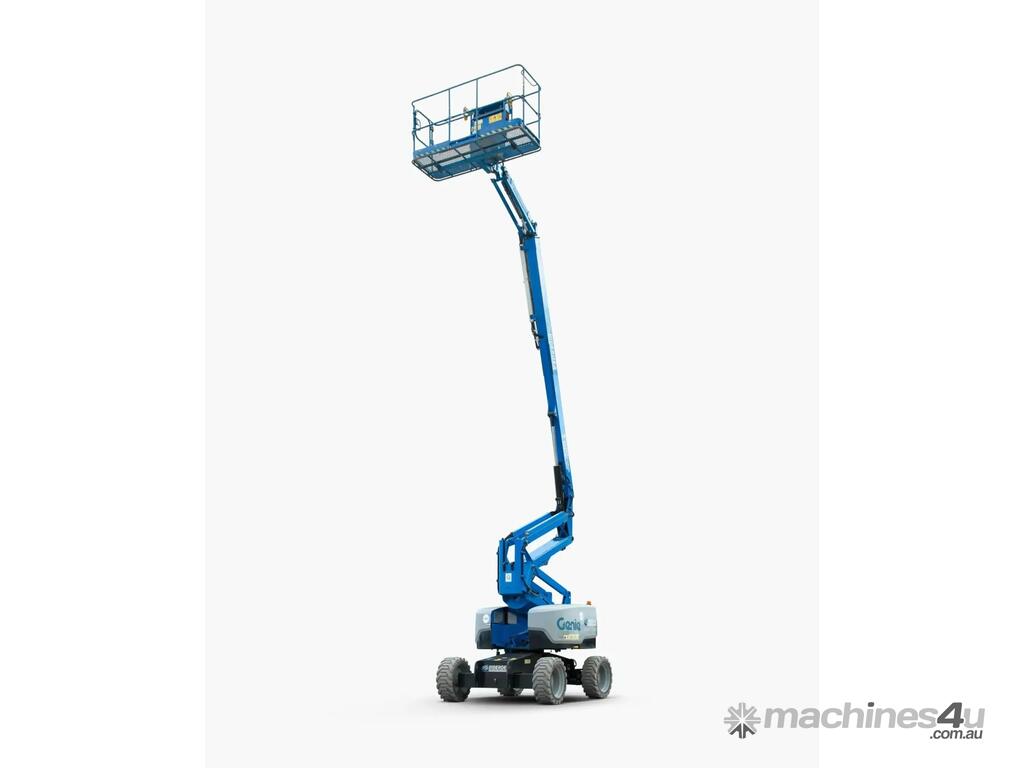

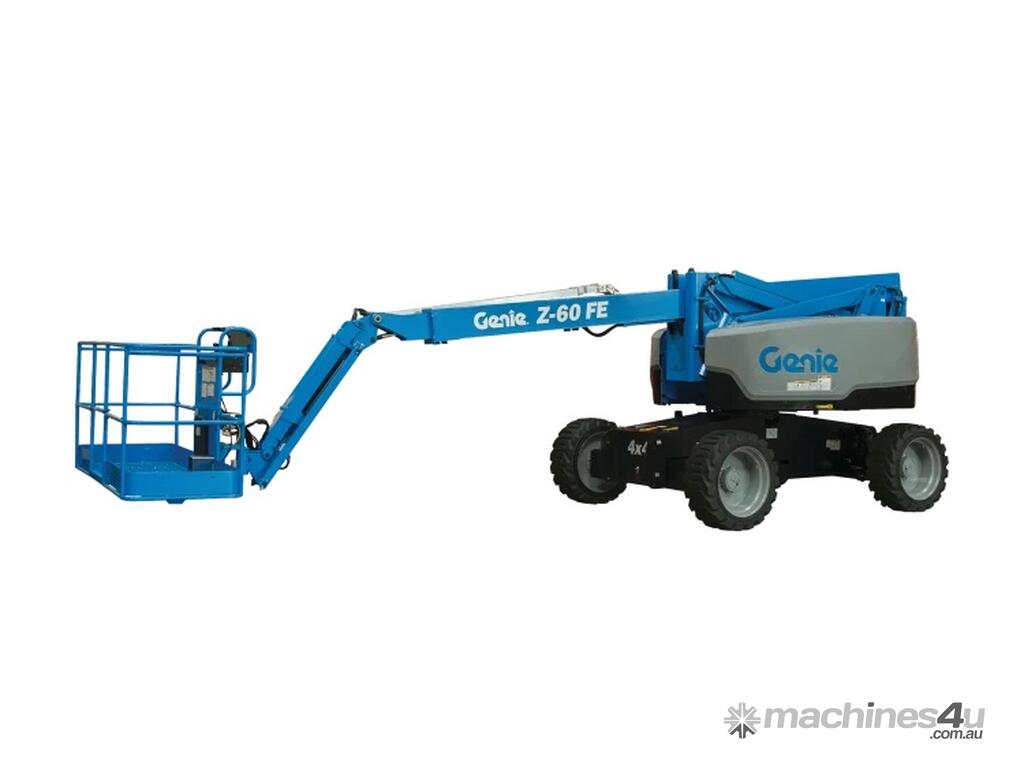

The Genie® Z®-60 FE is two machines in one. The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time with a single tank of diesel. The ideal, environmentally-friendly solution for increased efficiency and a lower cost of operation.
Overview
• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• High-efficiency AC drive system for enhanced driving performance and simplified maintenance
• Two modes of operation: all-electric and Hybrid, with outstanding efficiency and jobsite versatility
• Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height
SPECIFICATIONS
Working height max. 20.16 m
Platform height max. 18.16 m
Horizontal reach max. 11.15 m
Below ground reach 2.46 m
Up and over clearance max. 7.39 m
Platform length 0.91 m
Platform width 2.44 m
Height - stowed 2.54 m
Length - stowed 8.15 m
Width 2.49 m
Wheelbase 2.49 m
Ground clearance – center 0.33 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 160°
Jib length 1.52 m
Vertical jib rotation 135°
Turntable rotation 355°
Drive speed - stowed 6.44 km/h
Drive speed - raised 1.1 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 2.5° / 4.5°
Turning radius - inside/outside 2.51 m / 5.69 m
Tires 355 / 55 D625
Drive system 34V 3-Phase AC
Battery Pack, FE 48V DC (8 × 6V), 415 Ah, AGM
Hydraulic tank capacity 68.14 L
Fuel tank capacity 64 L
Weight, FE 7,756 kg
