GENIE – 60FT – Z60DC - ELECTRIC - KNUCKLE BOOM LIFT - GENIE – ARTICULATING BOOM - CHERRY PICKER

GENIE – 60FT – Z60DC - ELECTRIC - KNUCKLE BOOM LIFT - GENIE – ARTICULATING BOOM - CHERRY PICKER

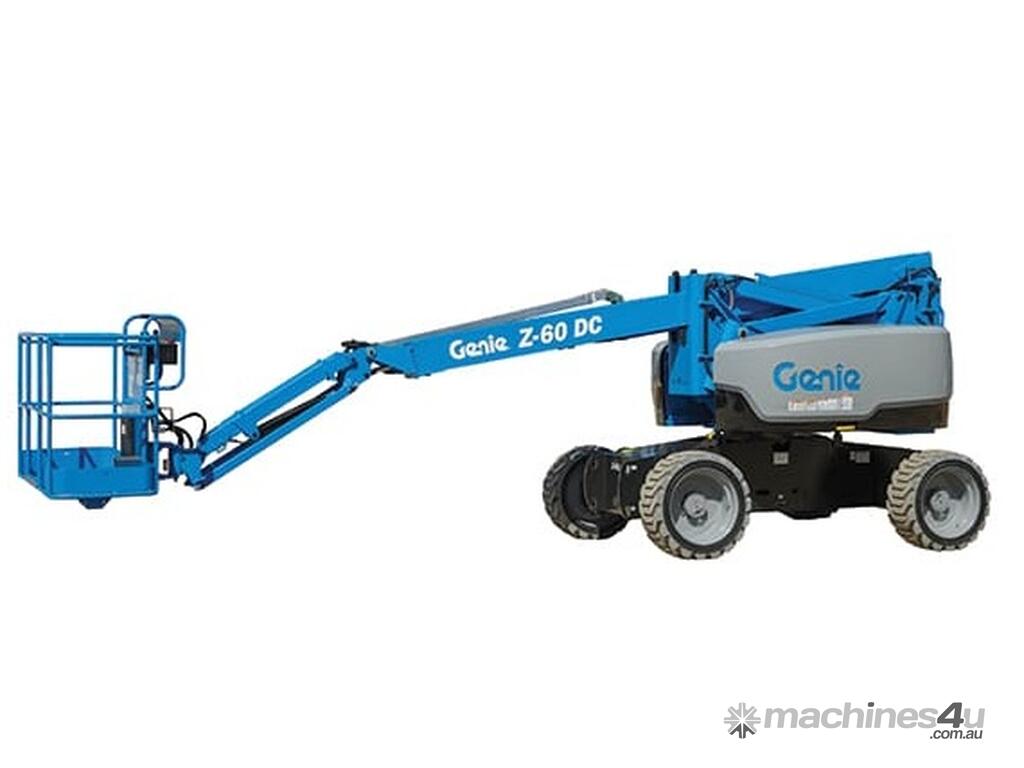

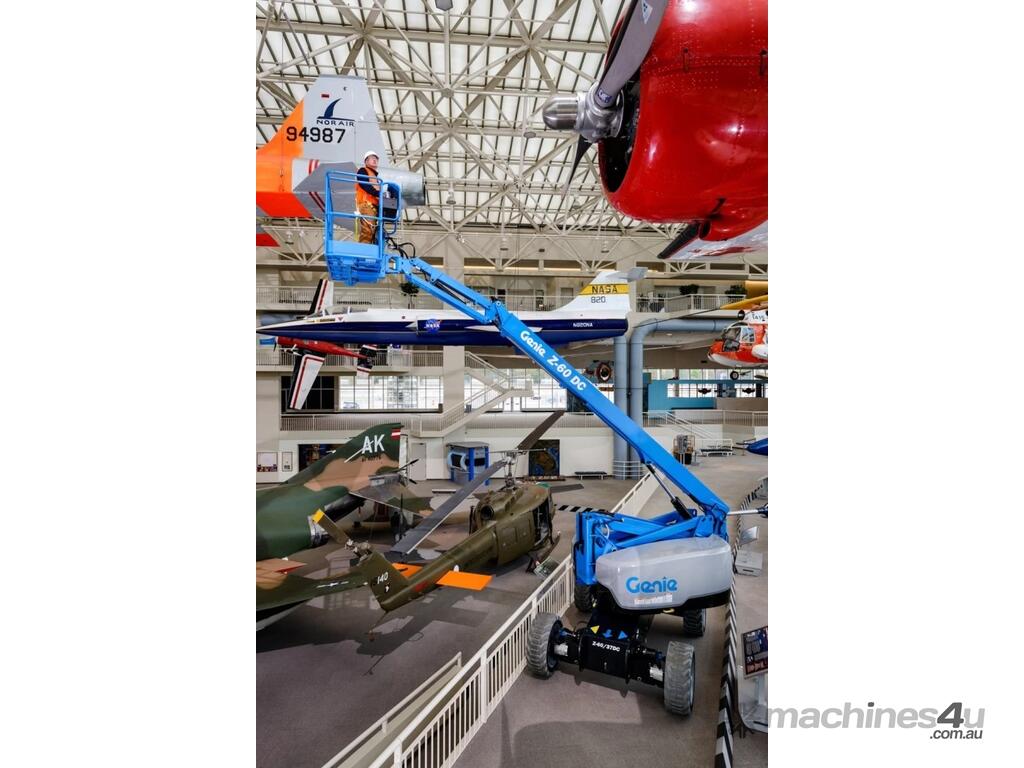

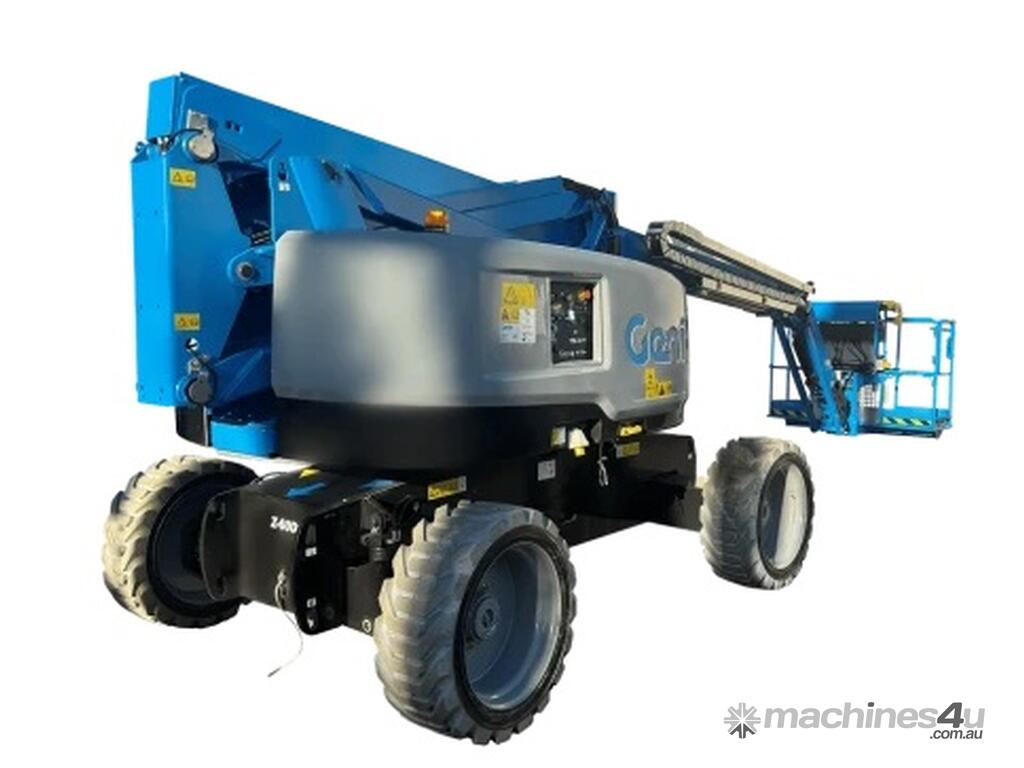

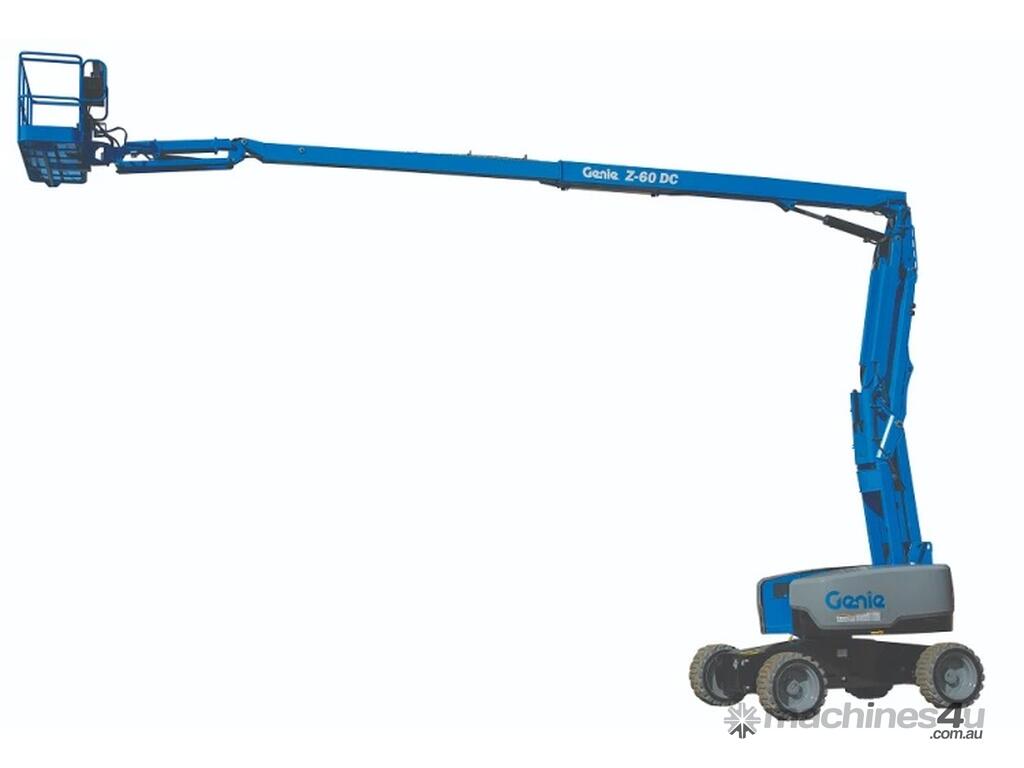

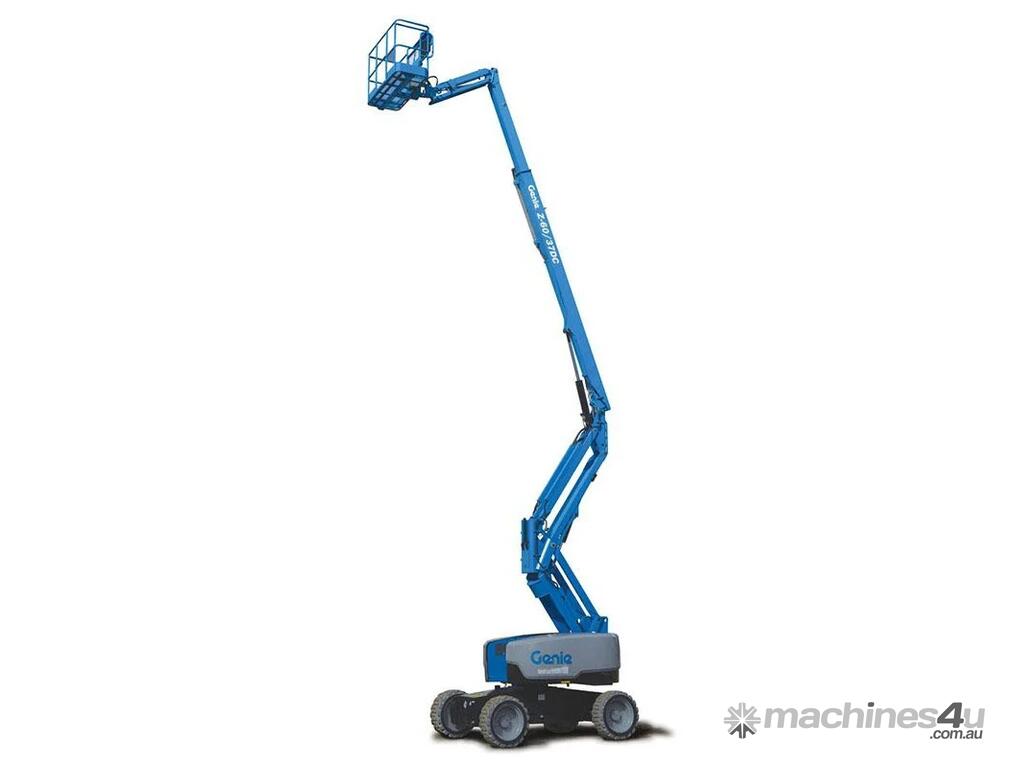

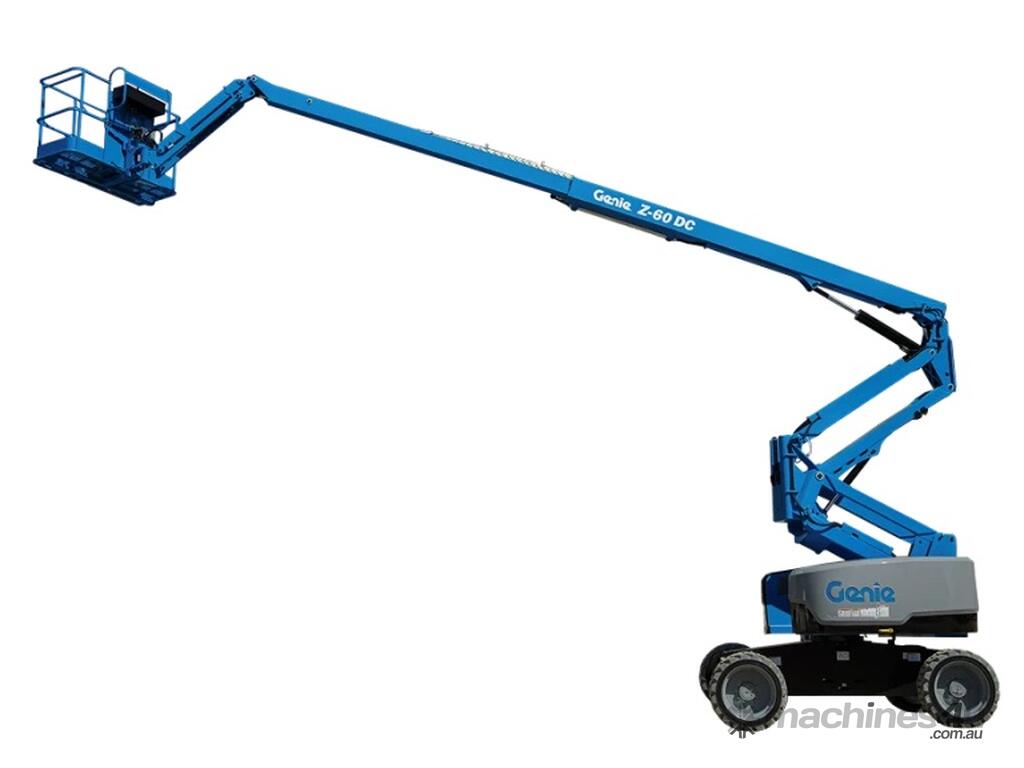

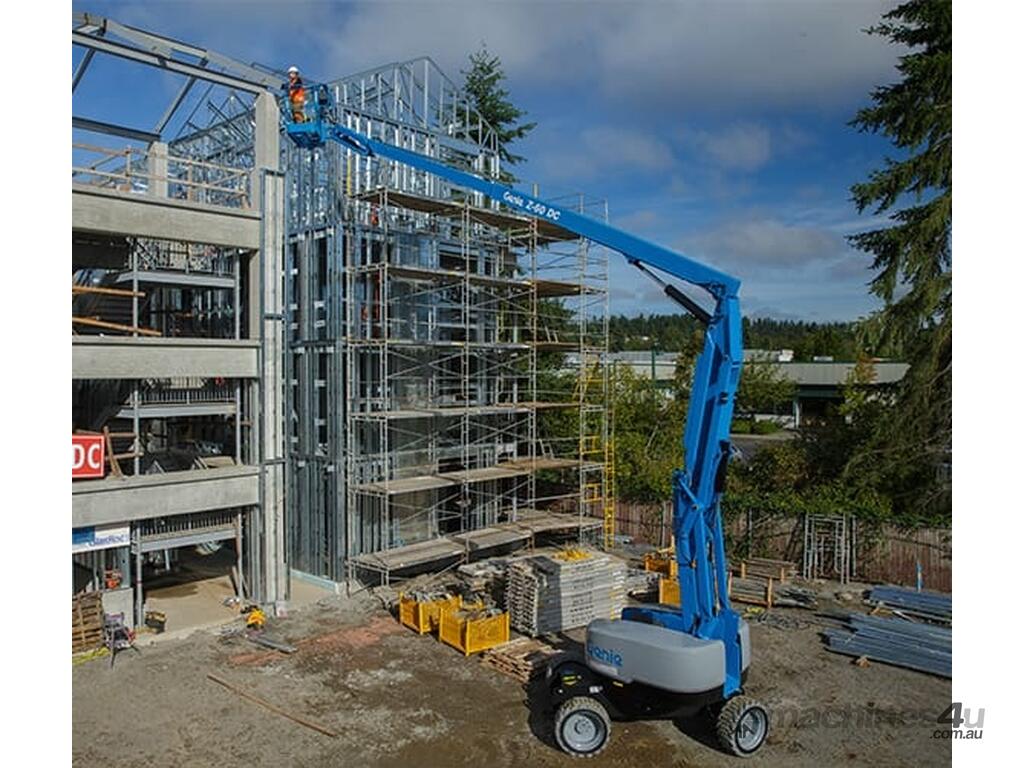

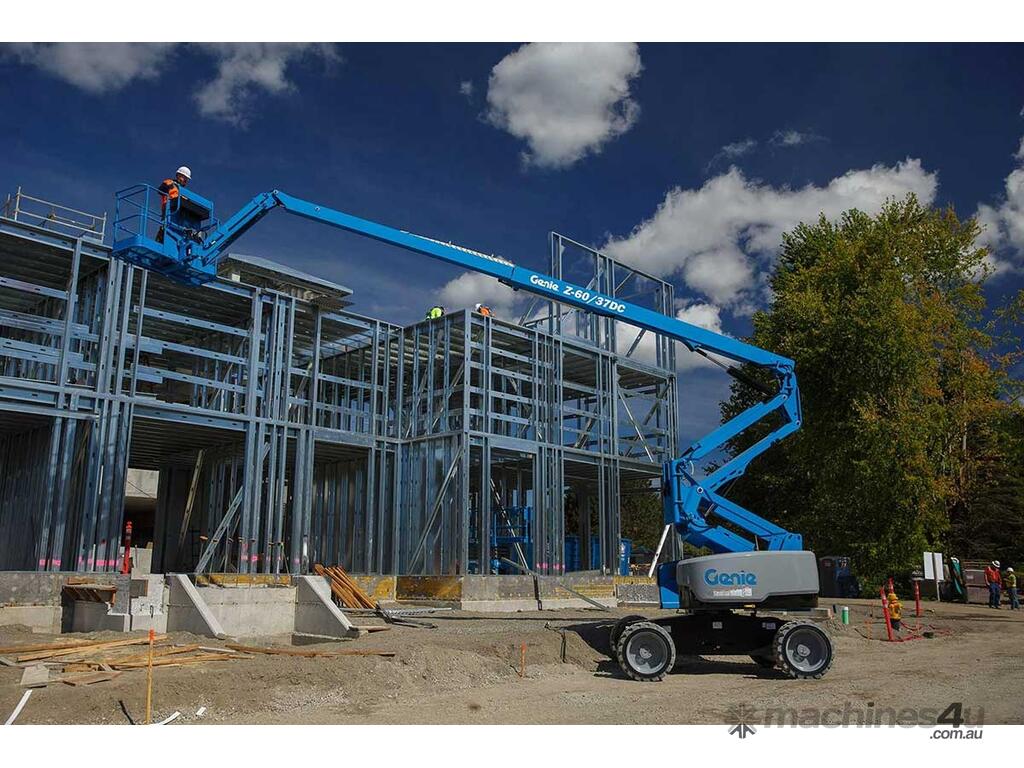

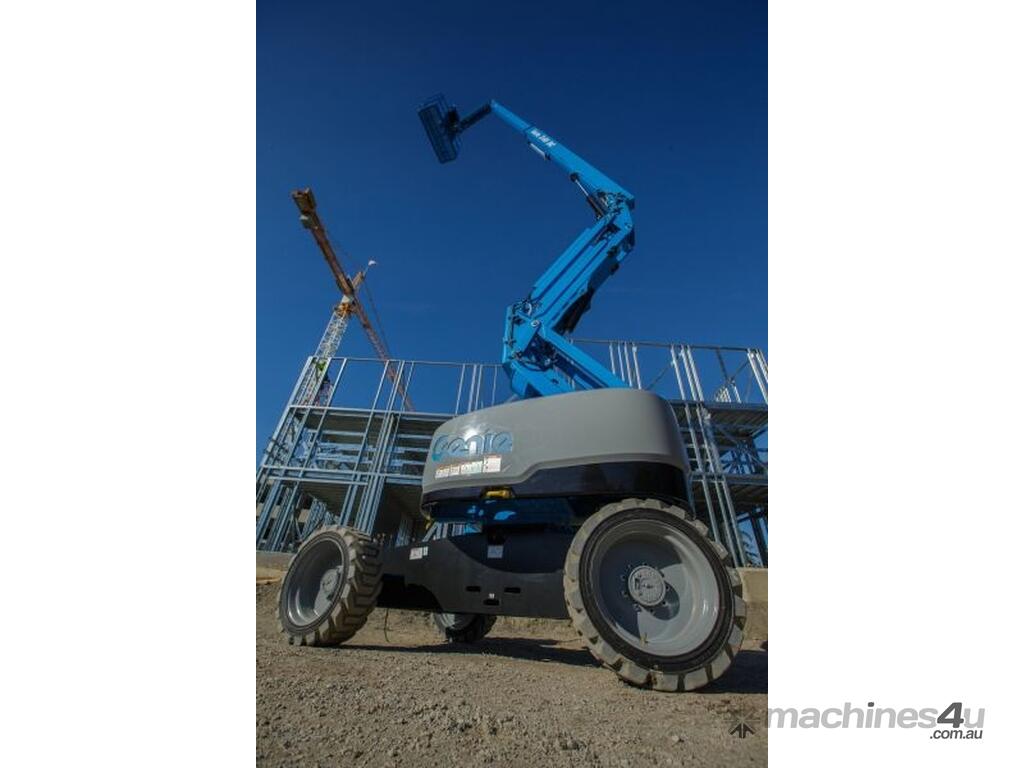

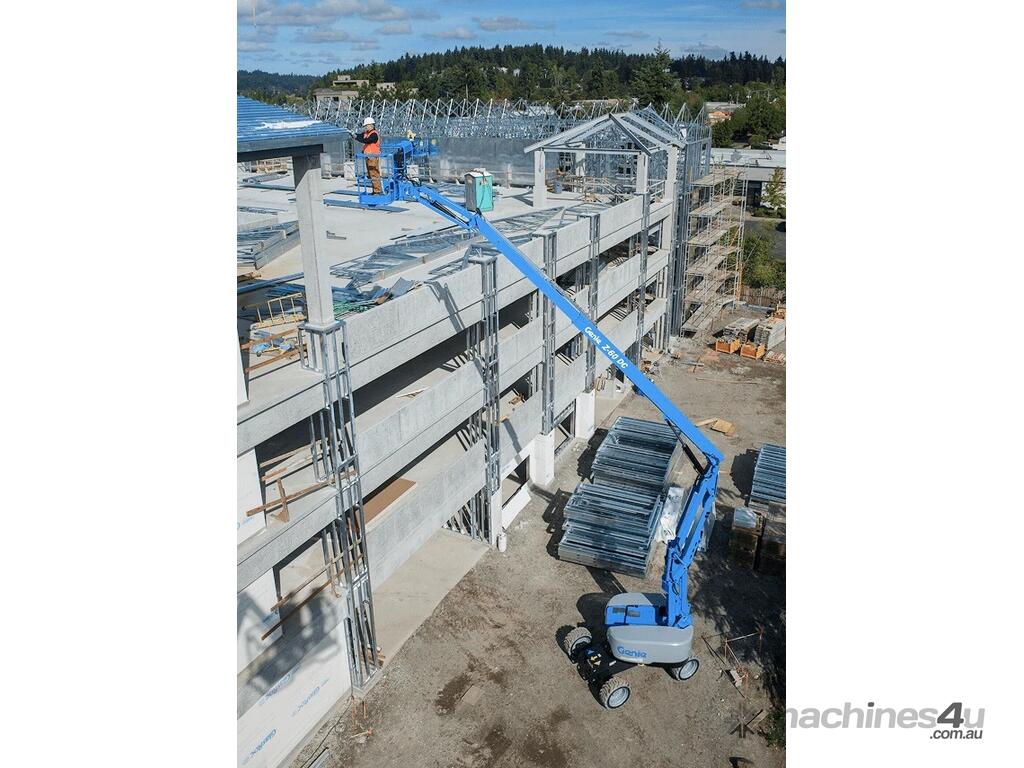

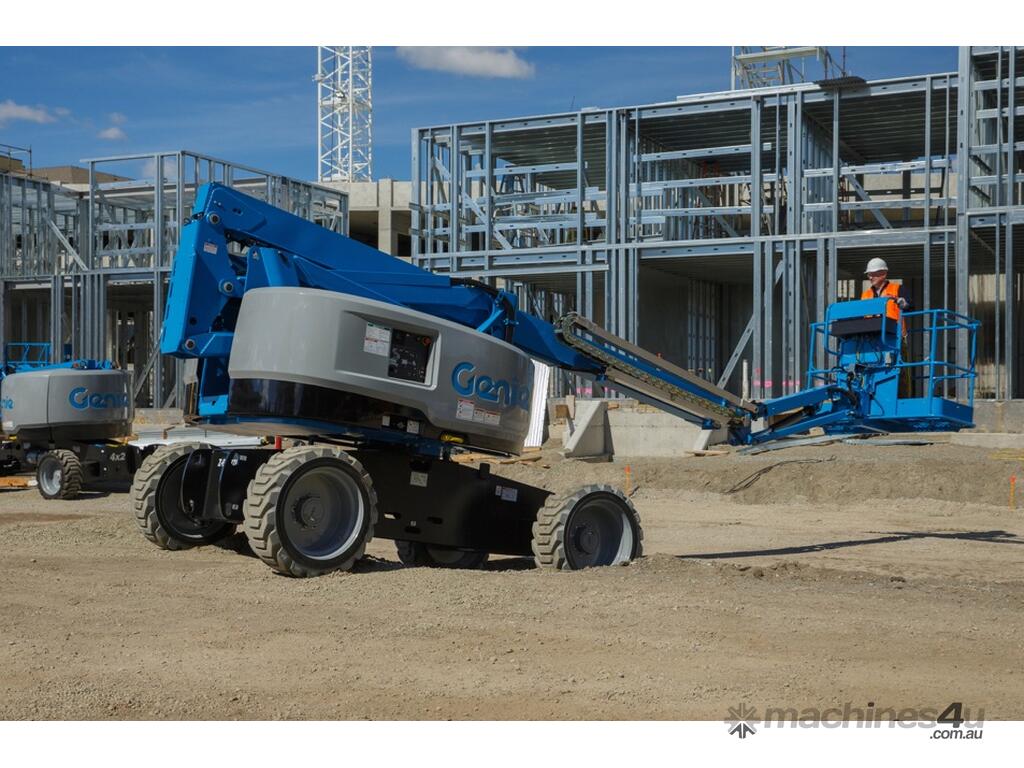

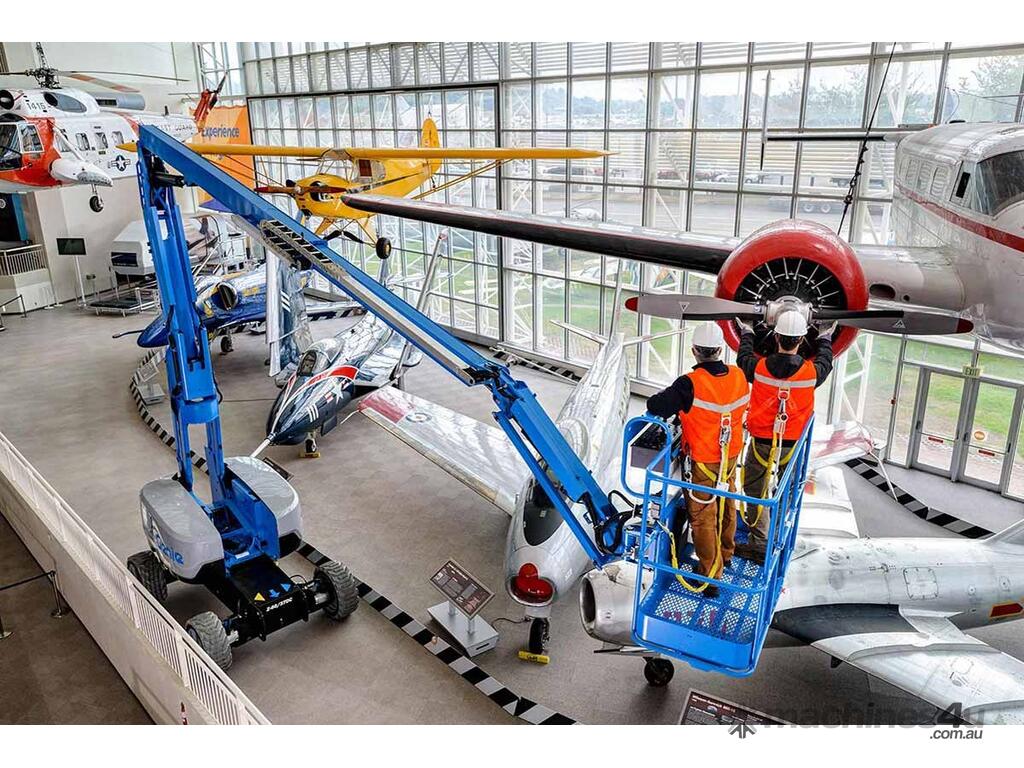

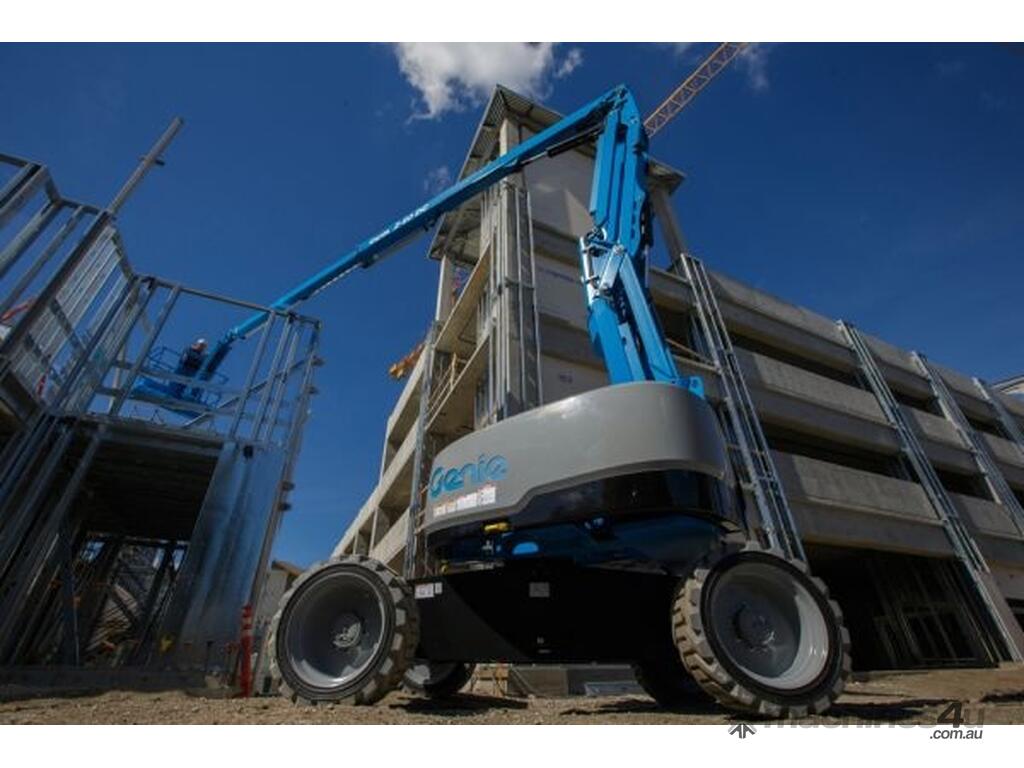

Thanks to its quiet, clean performance and four-wheel drive abilities, this Genie® Z®-60 DC is a versatile, all-electric articulating boom lift, ideal for a number of outdoor and indoor applications on construction sites, sports arenas, malls, facilities, and even challenging pedestrian areas.

Overview

• Full-time active oscillating axle helps maintain traction on rough terrain
• 4WD and 45% gradeability for superior terrainability
• High-efficiency AC drive system for enhanced driving performance and simplified maintenance
• Dual parallelogramme and fully proportional controls for precise boom positioning and smooth performance
• 1.52 m (5 ft) articulating jib with a 135° range of motion to accurately position workers
• Genie Fast Mast™ boom system allows operators to descend and retrieve materials and quickly return to working height

SPECIFICATIONS

Working height max. 20.16 m
Platform height max. 18.16 m

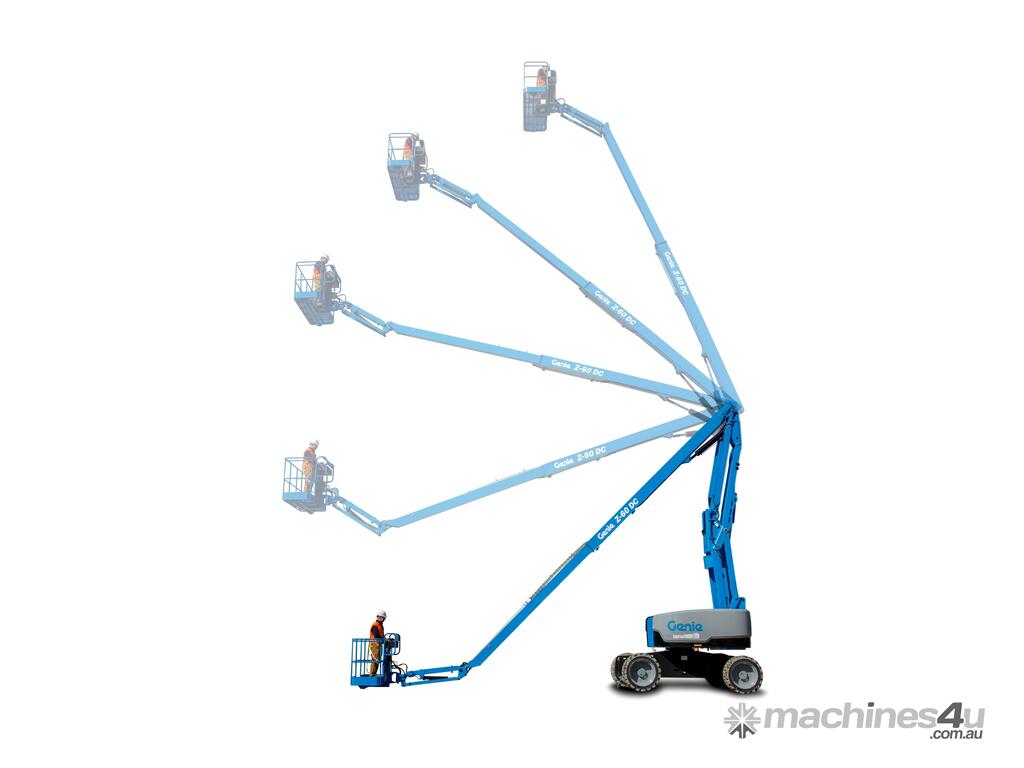

Horizontal reach max. 11.15 m
Below ground reach 2.46 m
Up and over clearance max. 7.39 m
Platform length 0.91 m
Platform width 2.44 m
Height - stowed 2.54 m
Length - stowed 8.15 m
Width 2.49 m
Wheelbase 2.49 m
Ground clearance – center 0.33 m
Lift capacity max. - unrestricted 227 kg
Platform rotation 160°
Jib length 1.52 m
Vertical jib rotation 135°
Turntable rotation 355°
Drive speed - stowed 6.44 km/h
Drive speed - raised 1.1 km/h
Gradeability - stowed 45 %
Tilt sensor activation (front to back/side to side) 2.5° / 4.5°
Turning radius - inside/outside 2.51 m / 5.69 m
Tires 355 / 55 D625
Drive system 34V 3-Phase AC
Battery Pack, DC 48V DC (8 × 6V), 400 Ah, AGM
Hydraulic tank capacity 68.14 L
Fuel tank capacity 64 L
Weight, DC 7,530 kg
