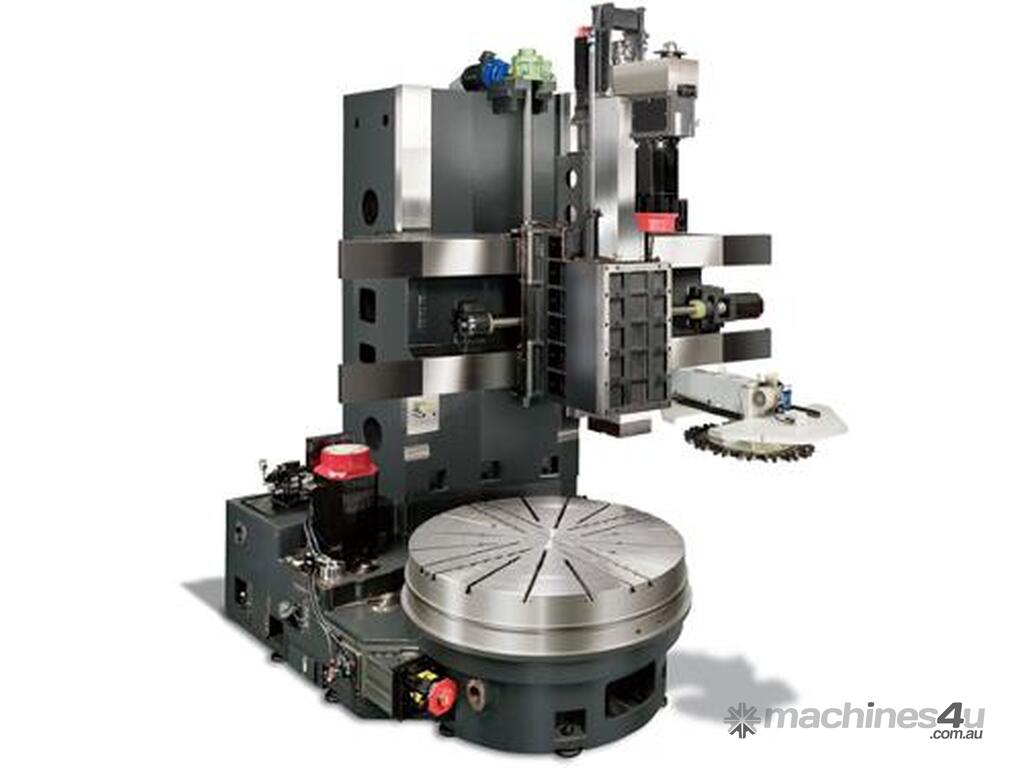

Packed with industry leading technology and top quality components, the GOODWAY GV-1 series vertical turning centres combine incredible power, strong constructions, and heavy- duty cutting capabilities to bring you The Ultimate Machining Power®. These maximum performance machines will easily accomplish the demanding turning applications of today and tomorrow. With maximum turning diameter up to Ø2,000 mm, maximum weight load up to 8,000 kg, and available live tooling spindle & Cf-axis capabilities, turning, milling, contour milling and drilling applications may be completed in one single machine.
Model: GV-1200 / GV-1600 / GV-2000
Chuck size (mm): Manual 4 Jaw 1250 / 1600 / 2000
Max turning diameter (mm): 1300 / 1800 / 2000
Max swing diameter (mm): 1600 / 2000 / 2000
Max turning length (mm): 1300 (1700 opt on 2000E)
ATC: 16 tools
Spindle speed (rpm): 350 / 250 / 200
Rapid traverse (X/Z m/min): 12 / 10
Motor (Kw): 45 / 37
C/w Fanuc or Siemens Conversational Control, 2 Speed Gearbox, Chip Conveyor, Tool Setter. Live tools available
Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components.
Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø8000mm vertical lathe currently in development and the recently released CNC Flat Bed Lathes with swings up to Ø2000mm.
Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø520mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 6000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
