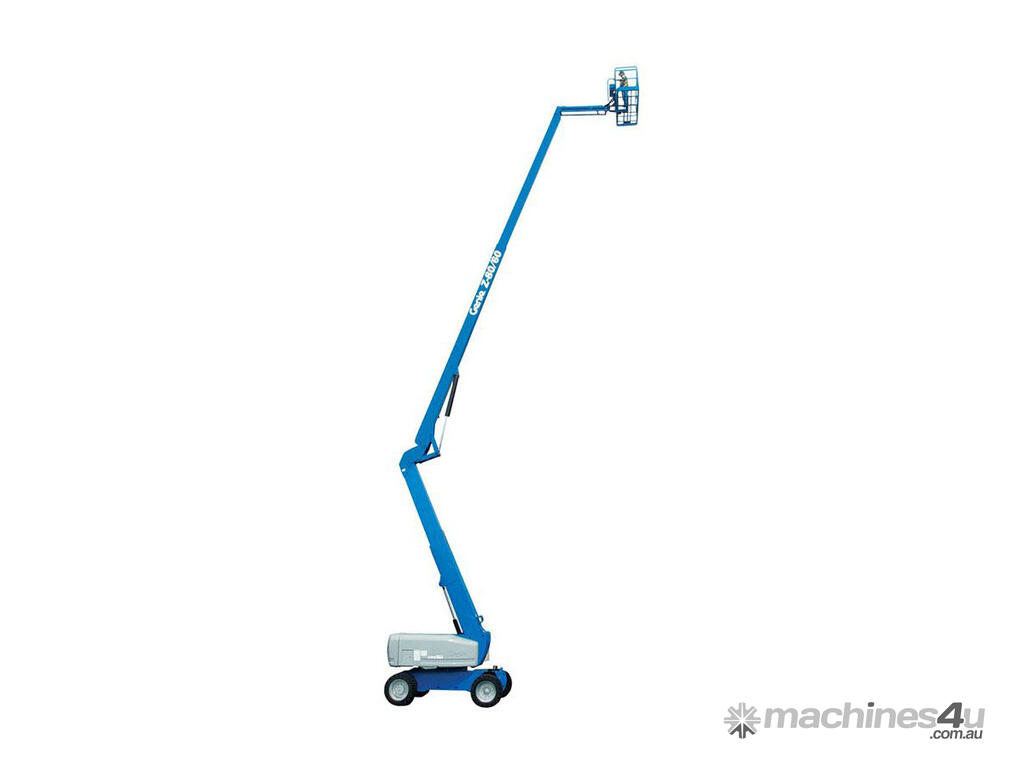

Genie Z-80/60 Rough Terrain Articulated Boom Lift for Hire

With outreach that’s second to none, the Genie Z-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Overview

Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously
Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing
Quiet diesel engine options for increased performance, gradeability and terrainability.
Specifications

Specification Value

Max Working Height 84 ft | 25.77 m
Max Horizontal Reach 60 ft | 18.29 m
Max Up and Over Clearance (riser extended) 29 ft | 8.83 m
Below Ground Reach 15 ft 10 in | 4.83 m
Platform Capacity 500 lb | 227 kg
