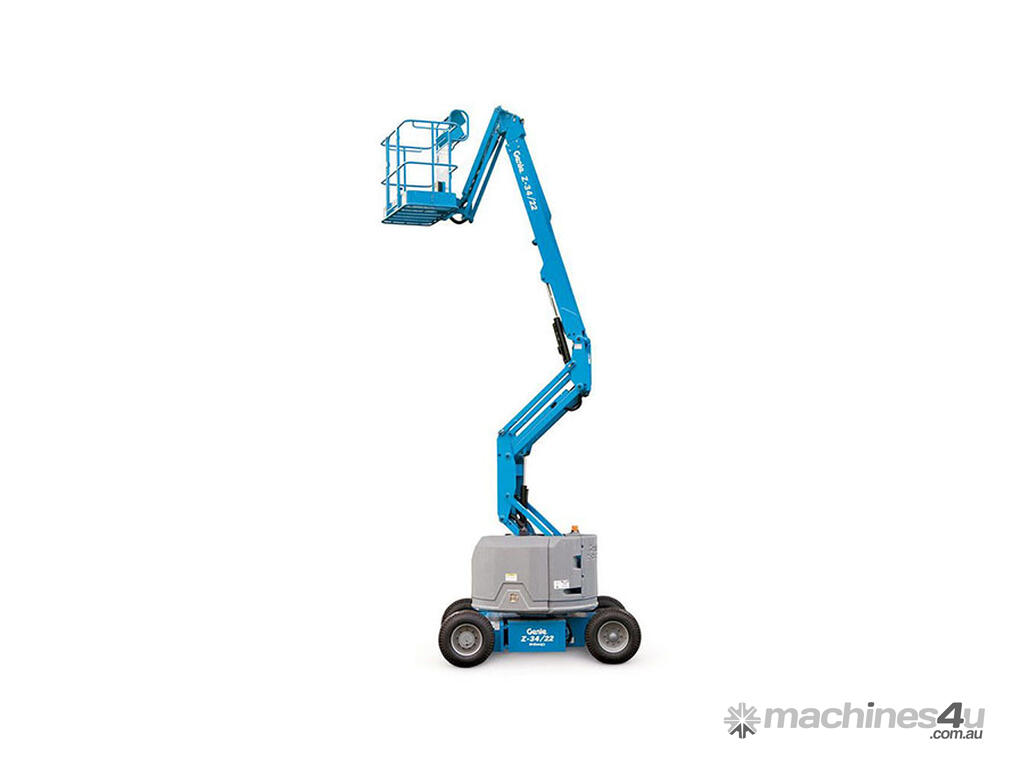

The Genie Z-34/22 IC rough terrain articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. This model is available in 4WD.
Overview
• Zero tail swing and nose swing in all positions allow excellent manoeuvrability in confined areas
• Two speed hydraulic motors drive and efficient power transmission for optimum speed and torque on rough terrain
• 4WD and up to 45% gradeability for superior terrainability
• Dual parallelogram and fully proportional controls for precise boom positioning and smooth performance
• 1.22 m (4 ft) articulating jib with a 139° vertical rotation and 180° hydraulic platform rotation to accurately position workers
Max Working Height 40 ft 6 in | 12.52 m
Max Horizontal Reach 22 ft 3 in | 6.78 m
Max Up and Over Clearance (riser extended) 15 ft 3 in | 4.65 m
Platform Capacity 500 lbs | 227 kg
Brooks Equipment Sales specialise in the sale of new and used mining and construction equipment. They are authorised dealers for the world’s third largest construction equipment manufacturer, XCMG, offering excavators, loaders, rollers, graders, haul trucks, articulated dump trucks, access equipment, forklifts, and skid steers. Brooks Equipment also sell quality new equipment from Husqvarna, Italdem, Genmac, Chicago Pneumatic, and Euromacchine, including compactors, generators
