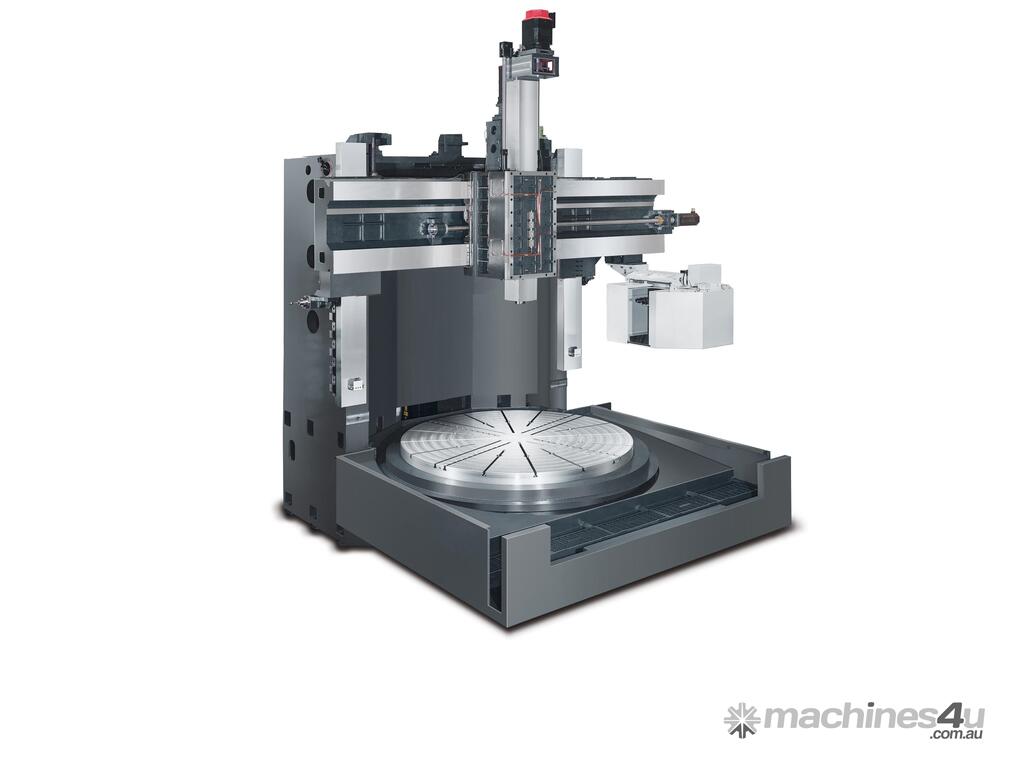

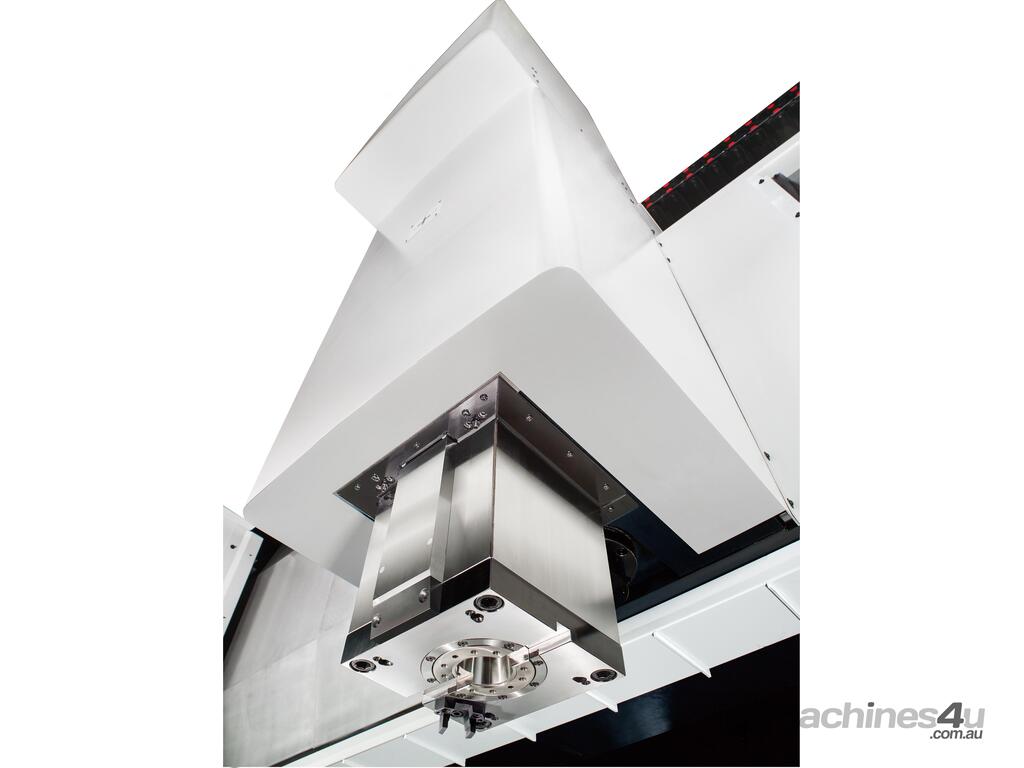

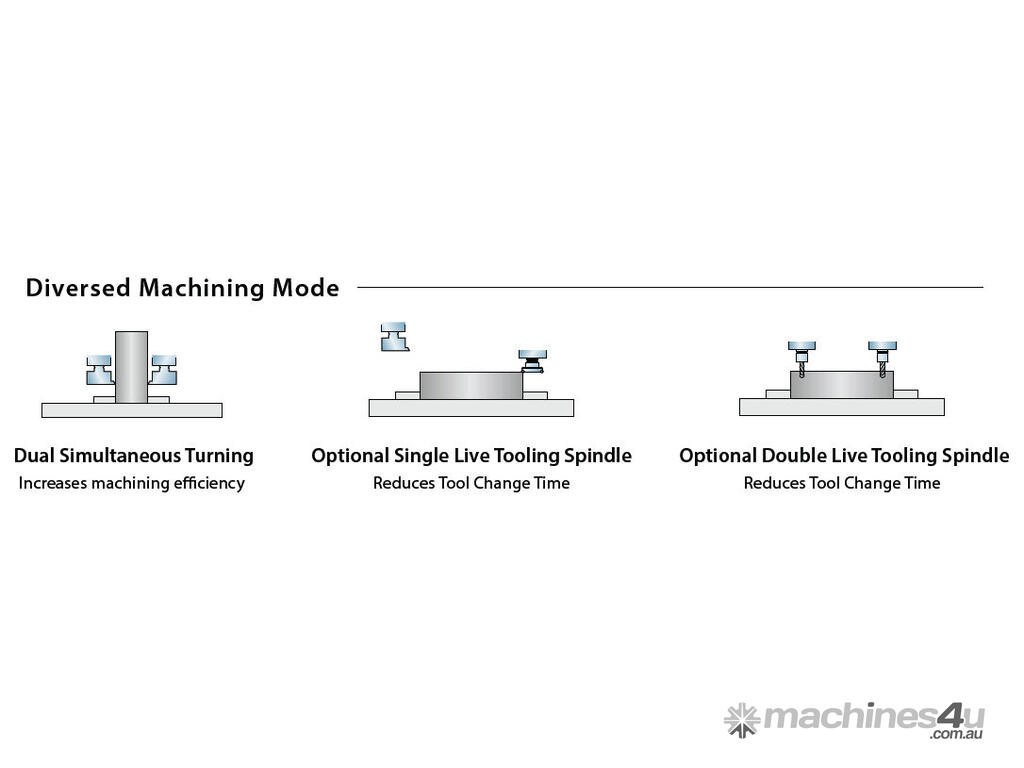

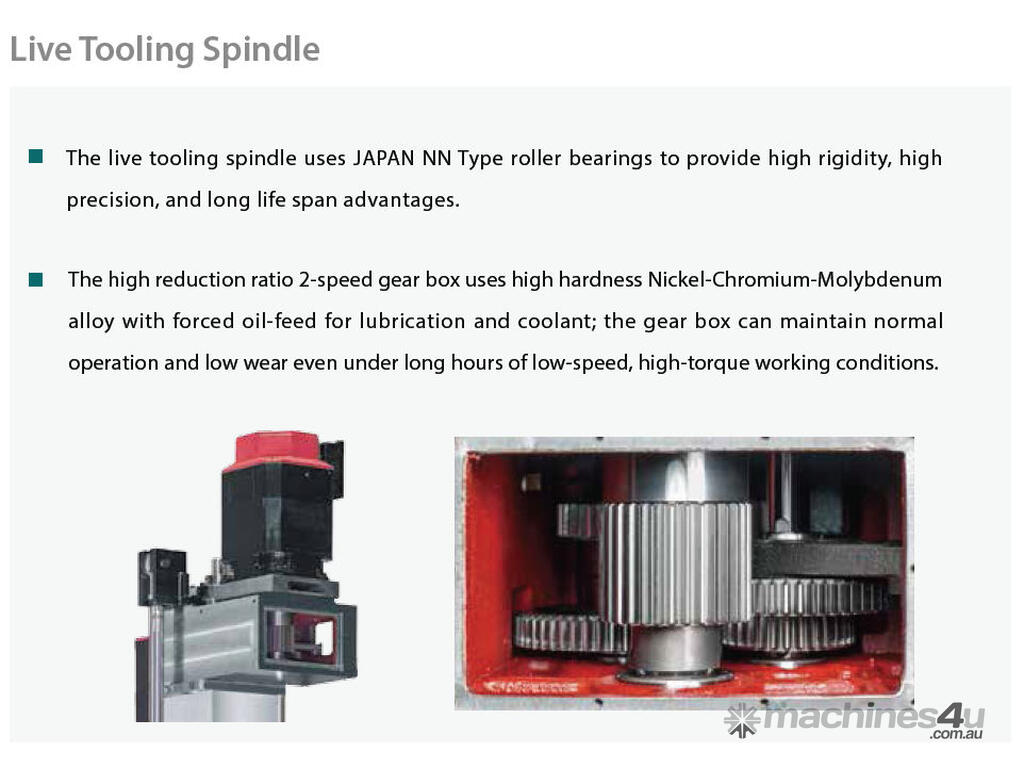

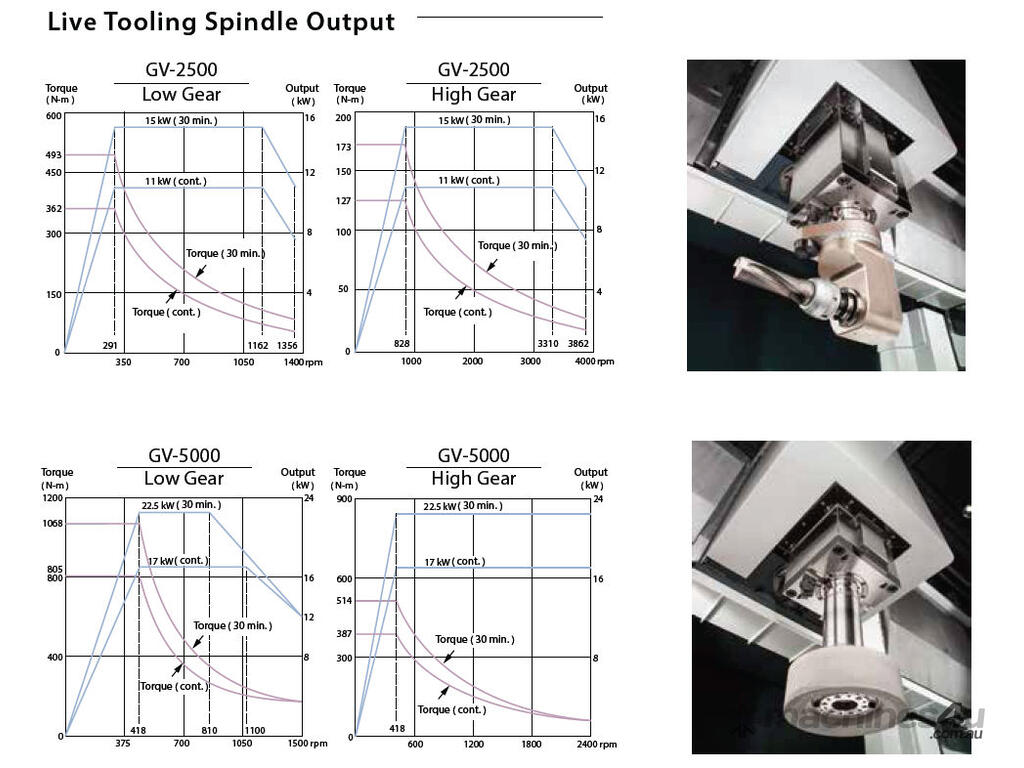

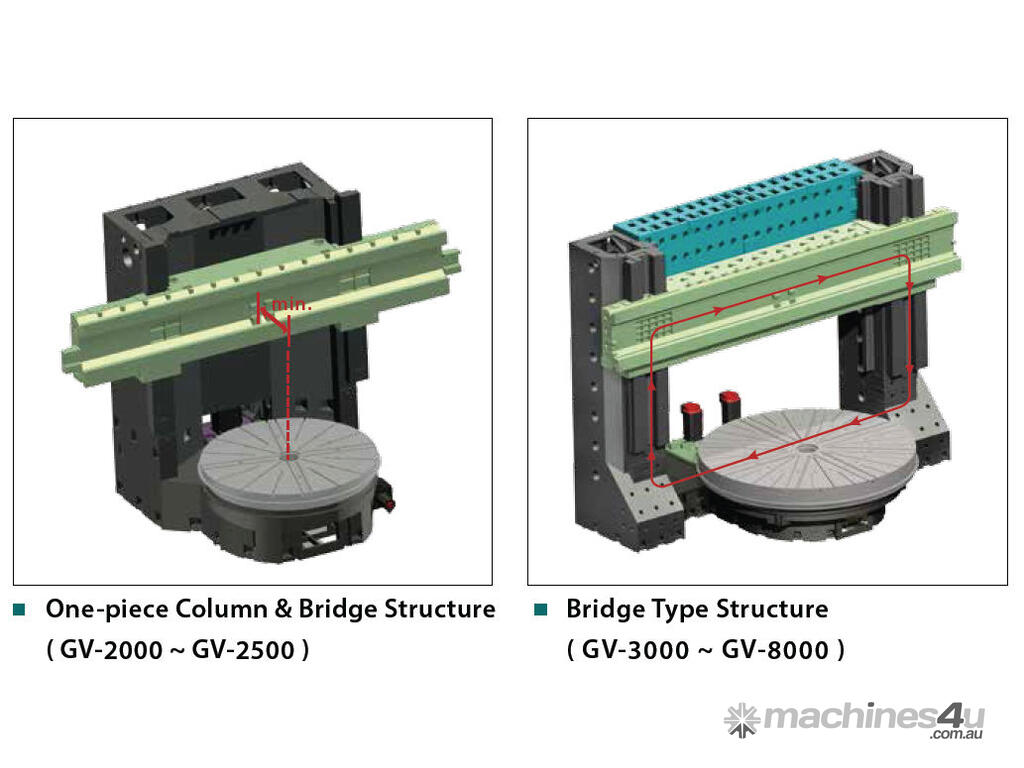

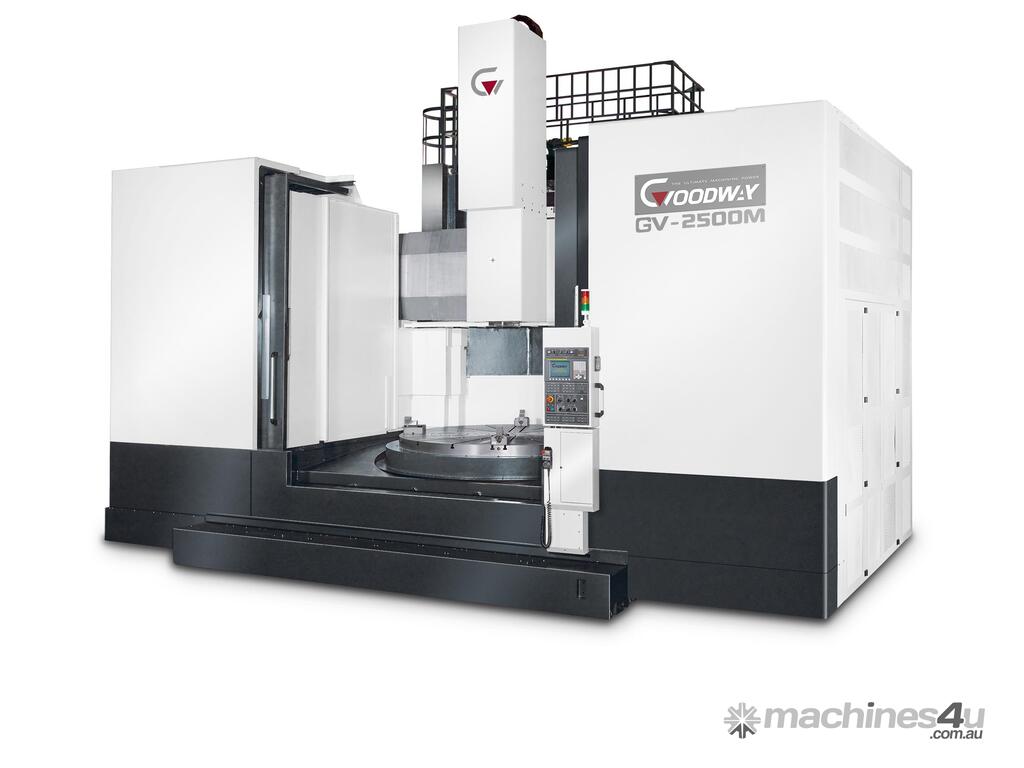

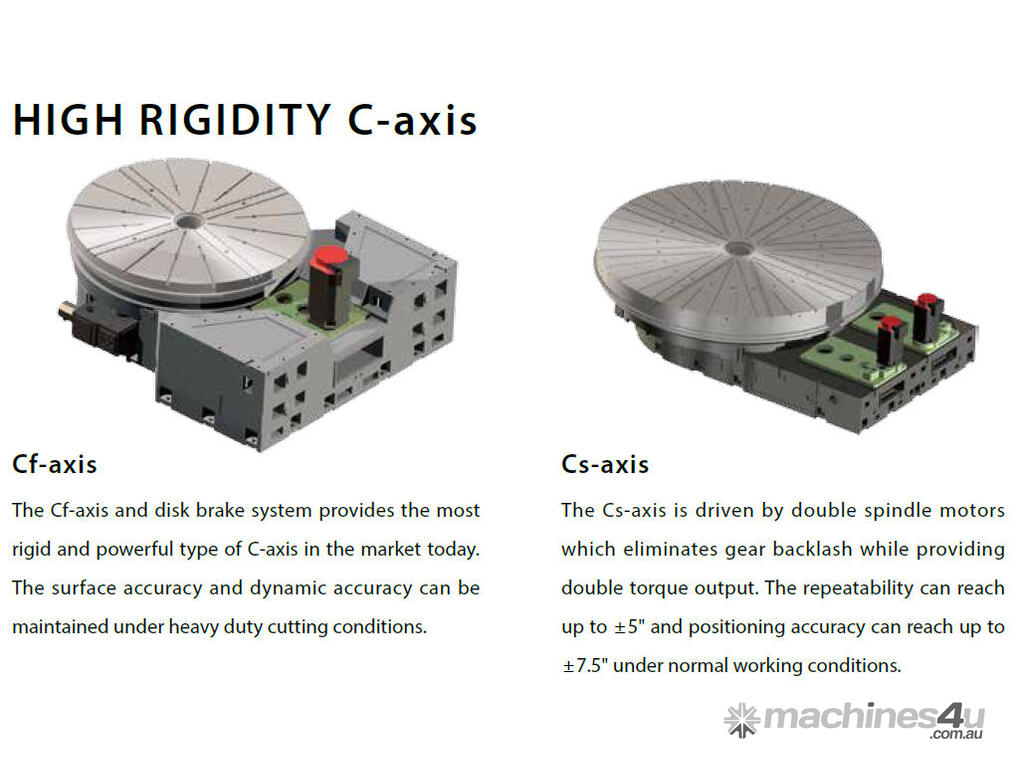

With leading technologies and high quality components, the SUPER GV CNC vertical turning centre combines heavy-duty, high rigidity and super large machining range advantages to provide you with large sized, asymmetric work piece turning capabilities. The optimal reinforced structure of these series can maintain long term precision even if the table diameter is reached up to 8,000mm. Plus, with the optional dual ram or live tooling spindle and C-axis, all kinds of complex turning applications can be done easily, which can meet your needs for today and tomorrow.
Model: Super GV

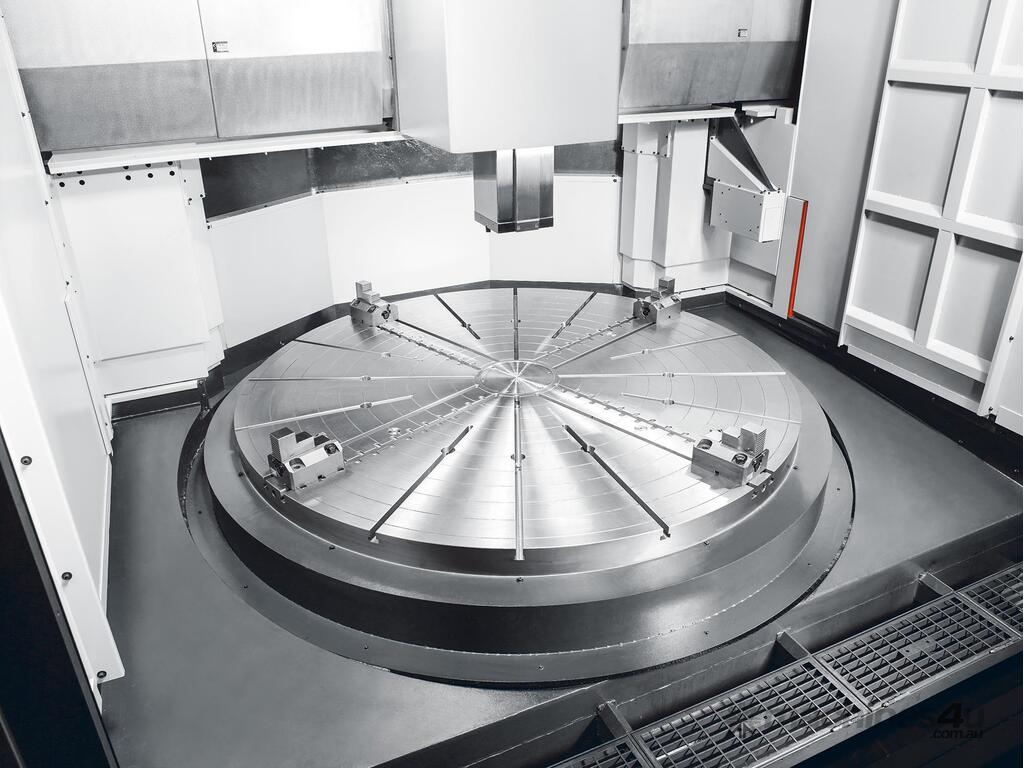

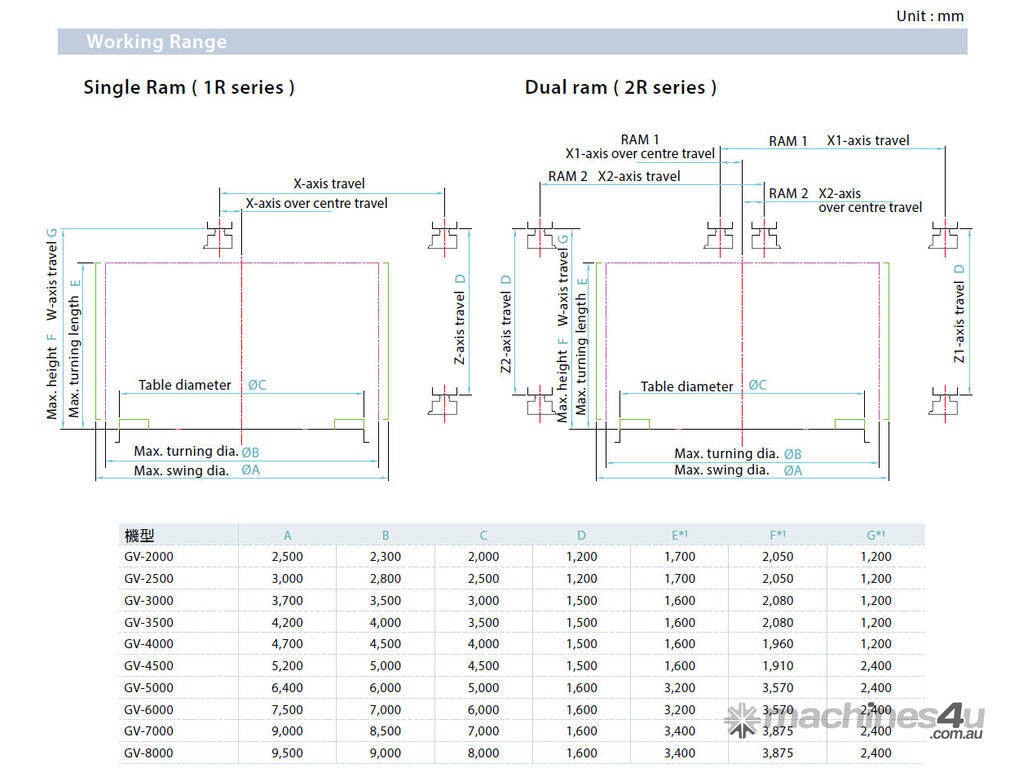

Chuck diameter (mm): 2000 / 2500 / 3000 / 3500 / 4000 / 5000 / 6000 / 7000 / 8000
Max swing dia (mm): 2500 / 3000 / 3700 / 4200 / 4700 / 6400 / 7400 / 9000 / 9500
Max turning dia (mm): 2300 / 2800 / 3500 / 4000 / 4500 / 6000 / 7000 / 8000 / 9000
Max turning height (mm): 1700 ~ 5000
Max w’piece weight (kg): 10000 / 15000 / 45000 / 45000 / 60000 / 100000 / 150000 / 250000 / 300000

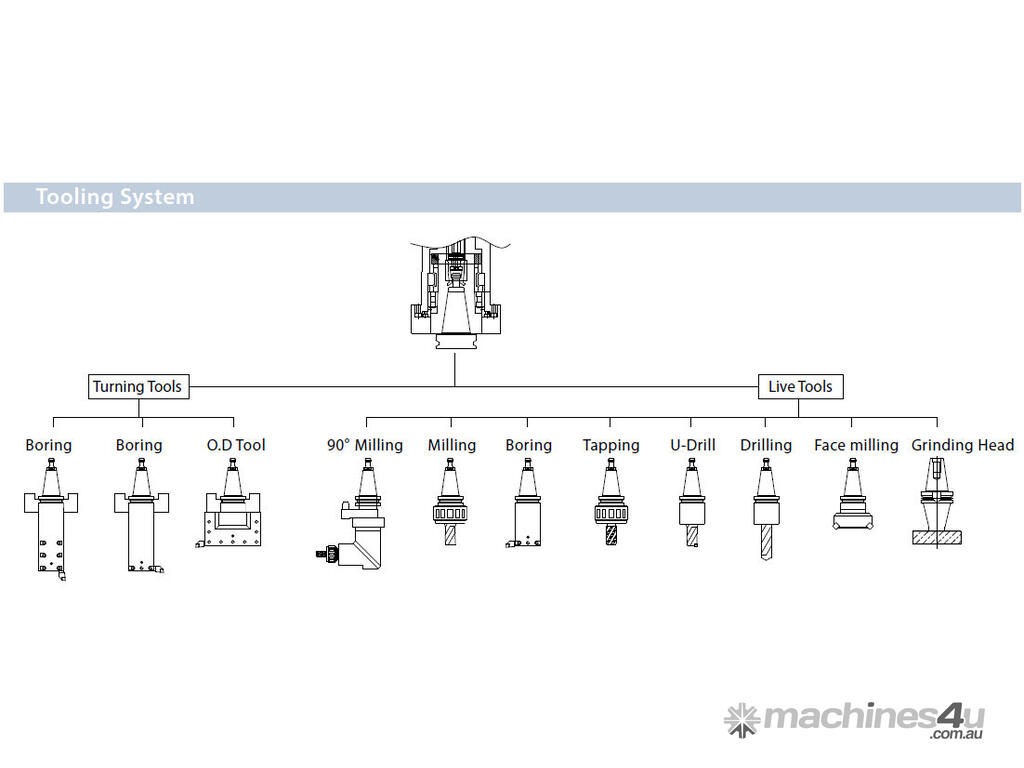

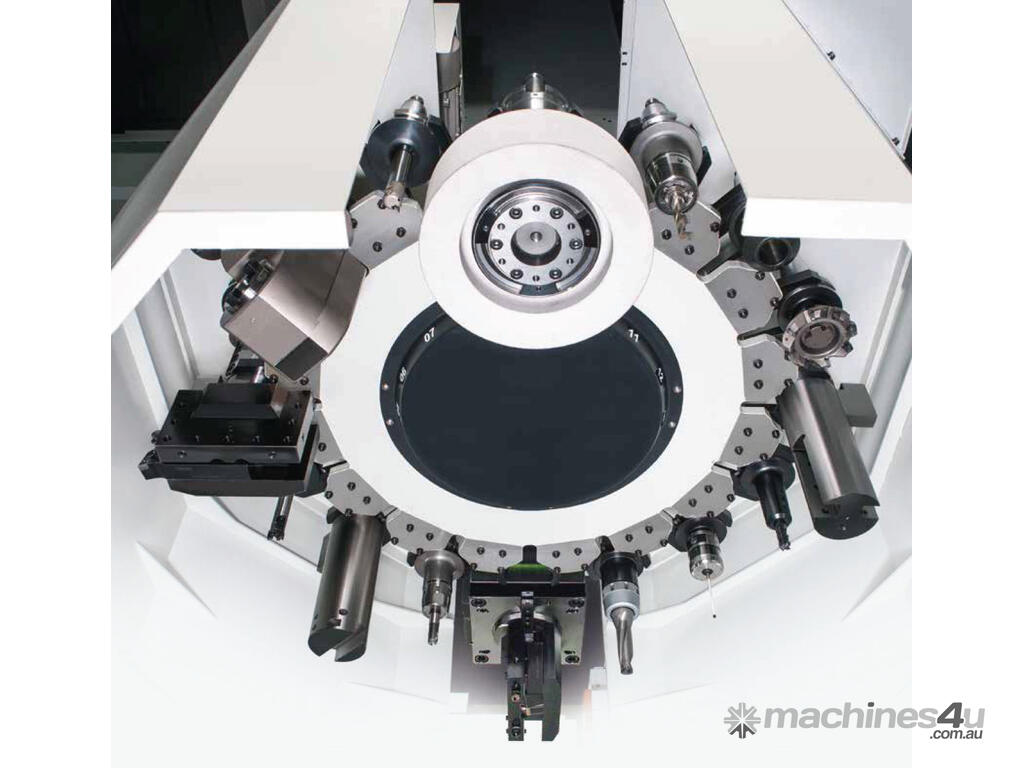

C/w Fanuc or Siemens Conversational Control, Chip Conveyor, Tool Setter. Live tools and 5 axis milling heads available.
Goodway’s are now one of the largest CNC Lathe manufacturers in the world and their recently opened state of the art manufacturing facility enables them to produce their range of CNC turning Centres in one the most modern plants in Taiwan, they are also one of the few Taiwanese machine tool manufacturers with their own sophisticated machine shop to produce critical components
Goodway’s massive investment in new development areas over recent years has seen their range grow into new areas such as: Multi Tasking Machines, Swiss Type Lathes, Large Slant Bed Lathes up to Ø980mm turning diameter, CNC Vertical Lathes including a Ø5000mm vertical lathe currently in development and the soon to be released CNC Flat Bed Lathes with swings up to Ø2000mm.
Since 1975 Goodway Machine Corp has specialised in the development and manufacture of high precision turning centres, currently Goodway produce in excess of 2,000 CNC Lathes each year and have grown to be one of the largest CNC lathe manufacturers in the world. Their machines are now well known in over 50 countries for their exceptional performance, quality and value and with over 75 model variants ranging from Ø32 ~ Ø520mm bar capacity, Ø6” ~ Ø24” chuck size, turning lengths up to 6000mm and 2 ~ 9 axis configurations, Goodway has the capability to meet virtually any turn / mill application. There really is a solution for every turning requirement in the Goodway range of Turning Centres!
