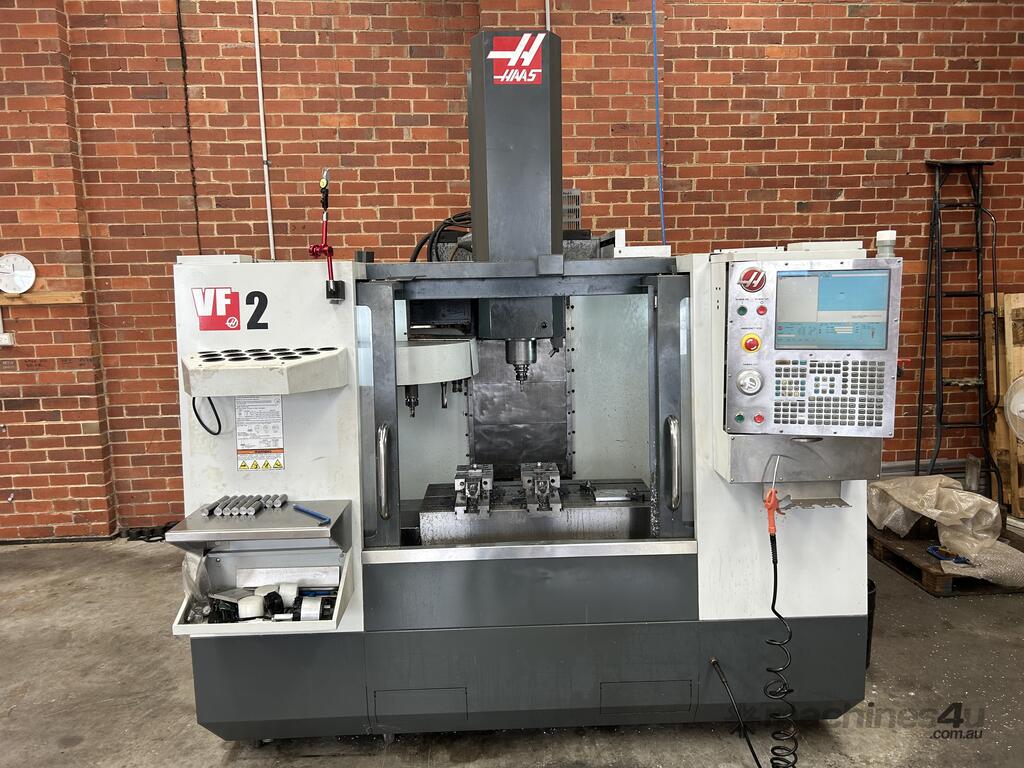

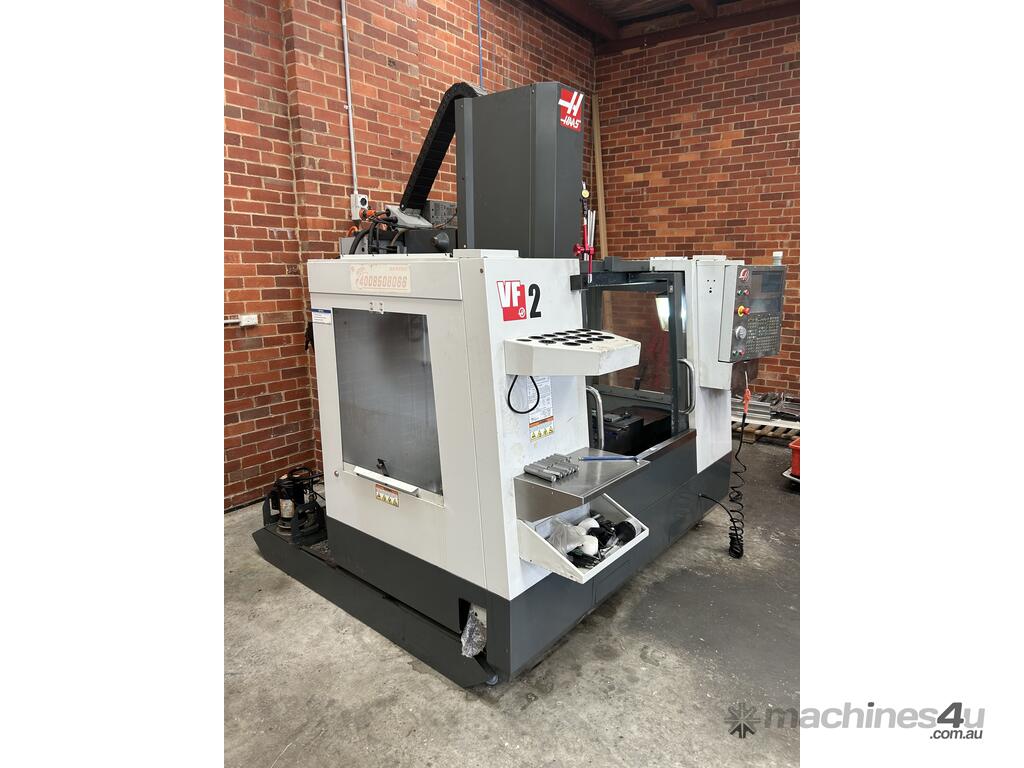

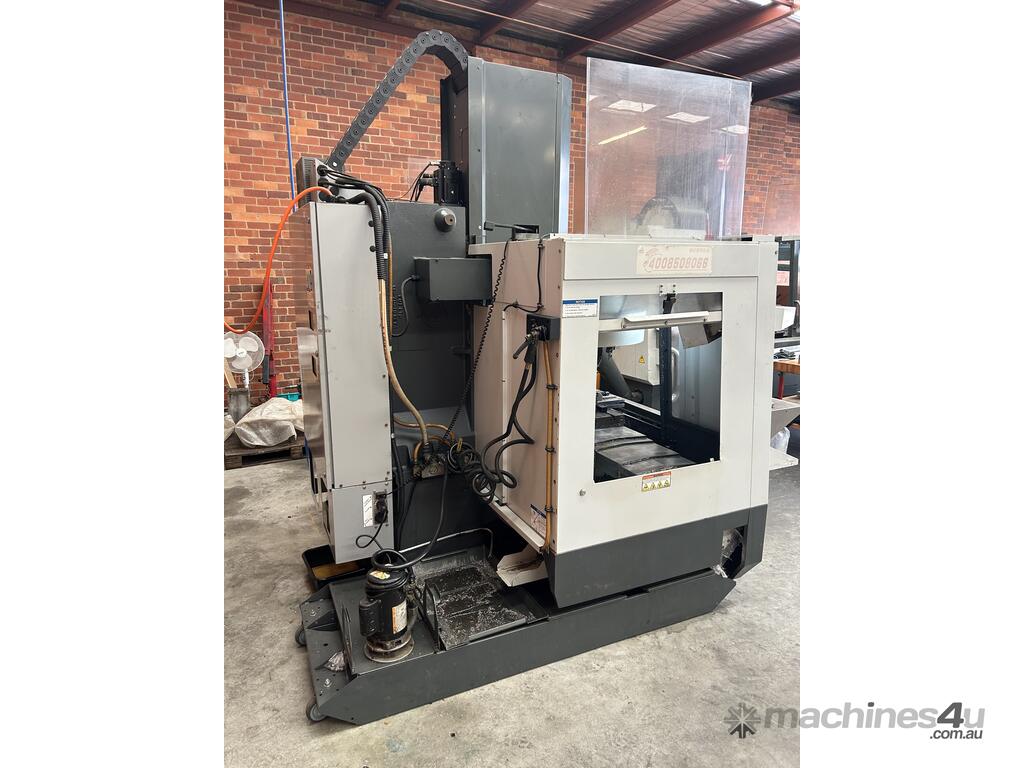

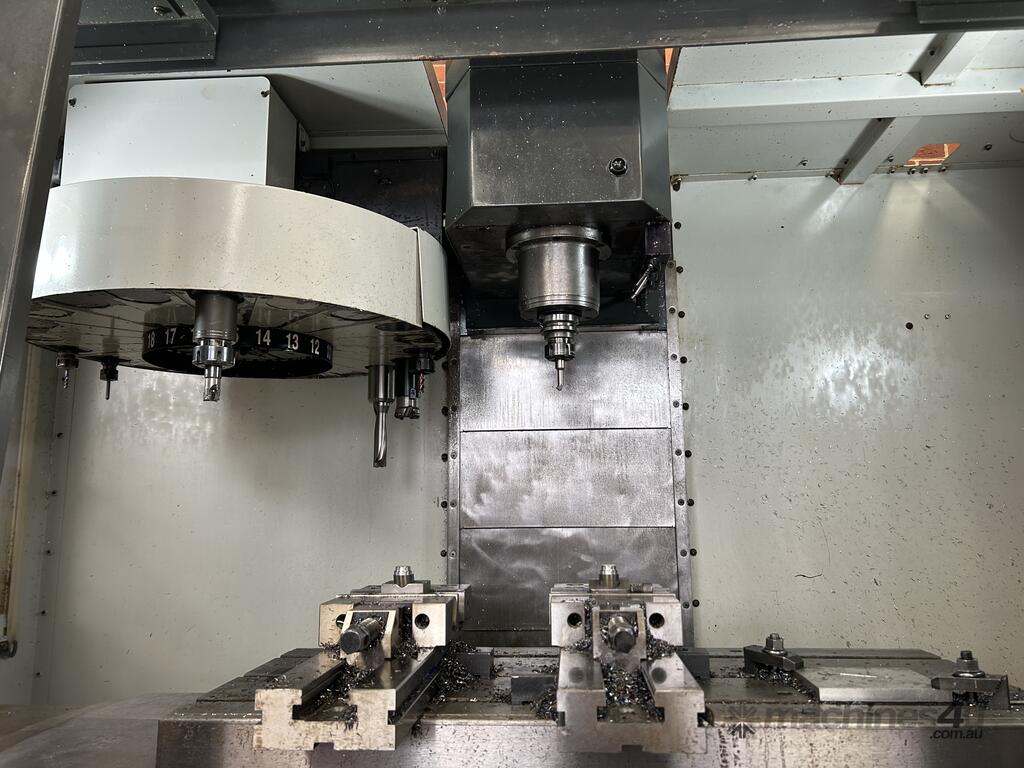

HAAS VF2 15000rpm Spindle CNC MILLING MACHINE Vertical MACHINING CENTRE

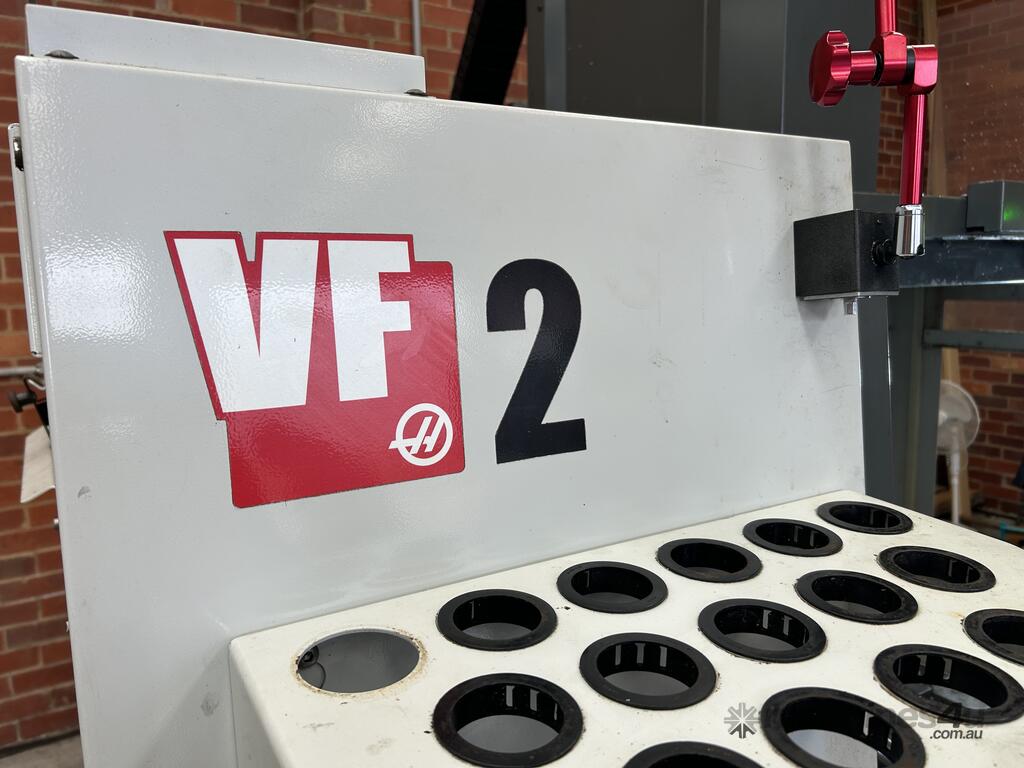

HAAS VF2 CNC MILLING MACHINE MACHINING CENTRE
- 15000rpm spindle
- Machine is in great working order
- Machine is still powered up and can see running
- Selling due to upgrade


Shipping cost:
Ship to Sydney: $3000 + gst
Ship to Adelaide: $3500 + gst
Ship to Brisbane: $3700 + gst

TRAVELS S.A.E METRIC
X Axis 30.00 in 762 mm
Y Axis 16.00 in 406 mm
Z Axis 20.00 in 508 mm
Spindle Nose to Table (~ max) 24.0 in 610 mm
Spindle Nose to Table (~ min) 4.0 in 102 mm
SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 15000 rpm 15000 rpm
Max Torque 90.0 ft-lbf 2000 rpm 122.0 Nm 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf 450 rpm 339 Nm 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT40 | BT40 | HSK-A63 CT40 | BT40 | HSK-A63
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled

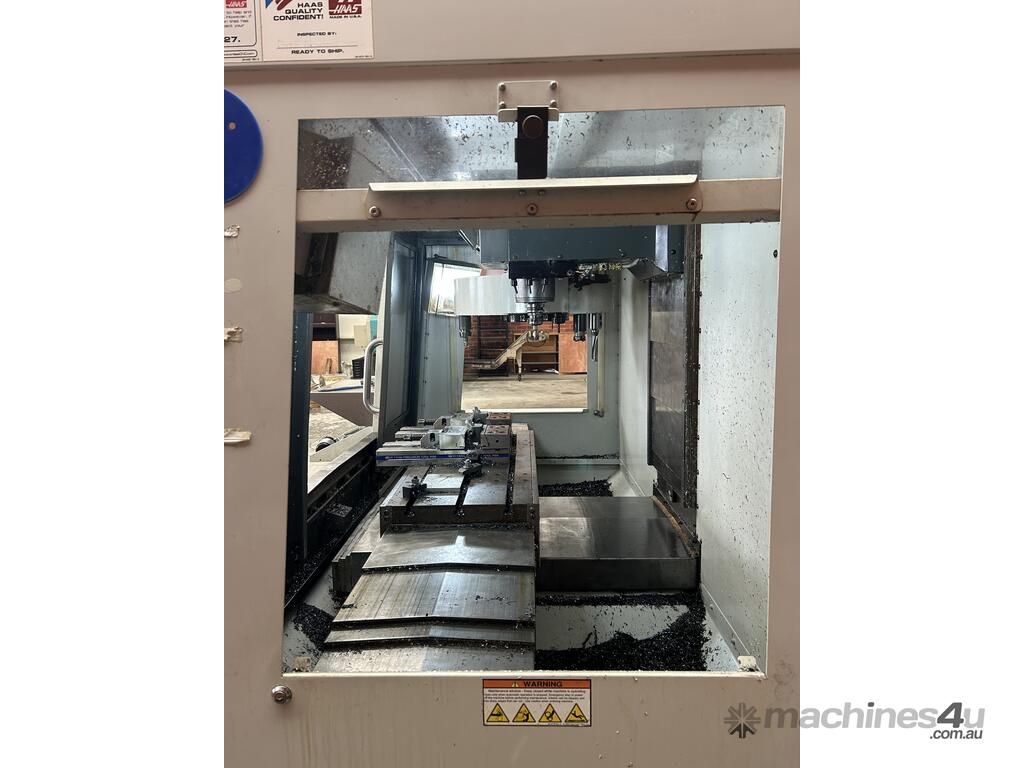

TABLE S.A.E METRIC
Length 36.0 in 914 mm
Width 14.0 in 356 mm
T-Slot Width 0.626 in to 0.630 in 15.90 mm to 16.00 mm
T-Slot Center Distance 4.92 in 125 mm
Number of Std T-Slots 3 3
Max Weight on Table (evenly distributed) 3000 lb 1361 kg
FEEDRATES S.A.E METRIC
Max Cutting 650 ipm 16.5 m/min
Rapids on X 1000 ipm 25.4 m/min
Rapids on Y 1000 ipm 25.4 m/min
Rapids on Z 1000 ipm 25.4 m/min
AXIS MOTORS S.A.E METRIC
Max Thrust X 2550 lbf 11343 N
Max Thrust Y 2550 lbf 11343 N
Max Thrust Z 4200 lbf 18683 N

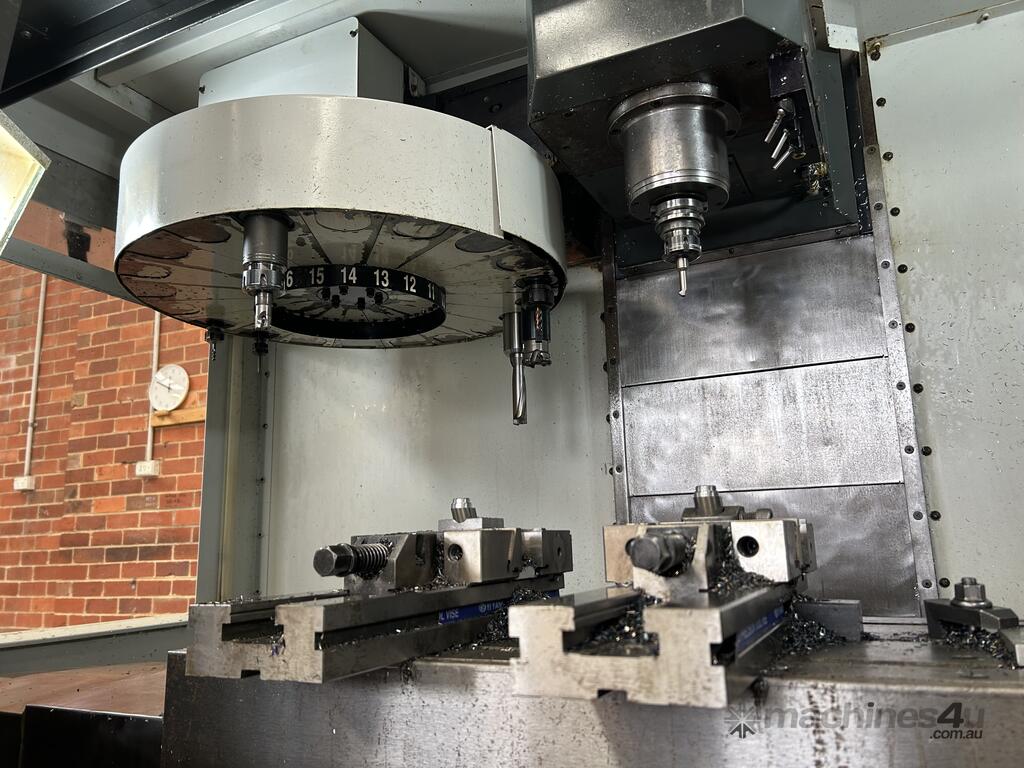

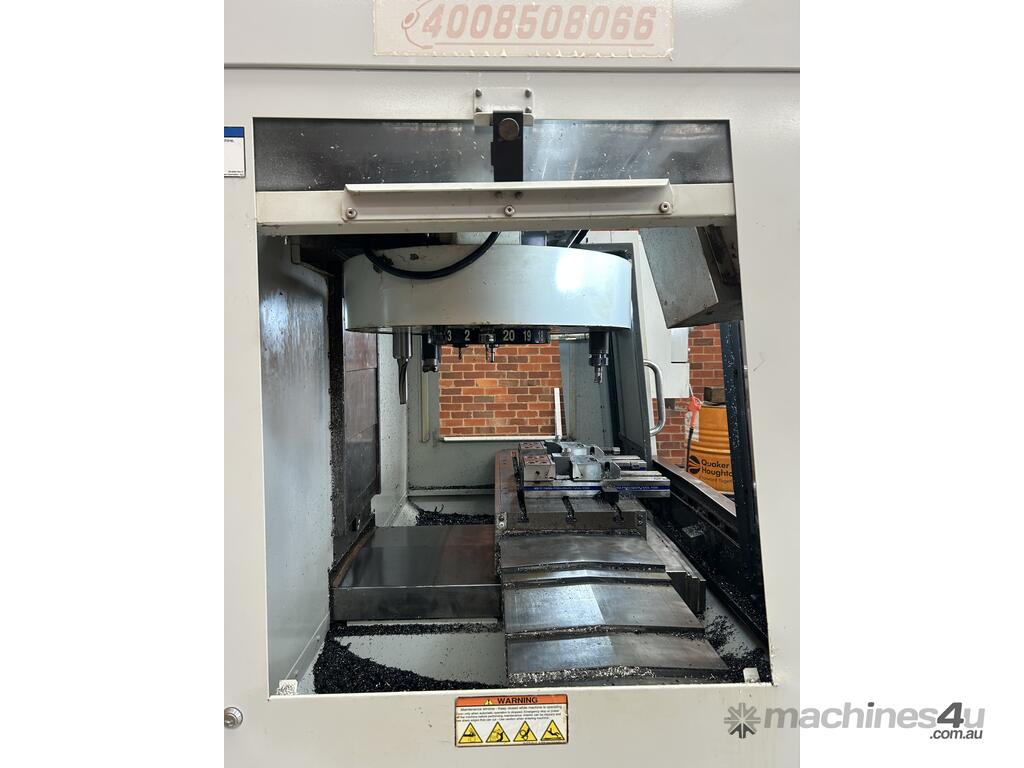

TOOL CHANGER S.A.E METRIC
Type Carousel Carousel
Capacity 20 20
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12.0 lb 5.4 kg
Tool-to-Tool (avg) 4.20 s 4.20 s
Chip-to-Chip (avg) 4.50 s 4.50 s
GENERAL S.A.E METRIC
Coolant Capacity 55 gal 208 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm 100 psi 113 L/min 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 101.0 in x 99.0 in x 101.0 in 257 cm x 251 cm x 257 cm
Export Pallet 98.0 in x 91.5 in x 100.0 in 249 cm x 232 cm x 254 cm
Weight 7800 lb 3539.0 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
