HACO ATLANTIC CNC PLASMA CUTTING

***A plasma cutting machine with integrated fume exhaust chambers and cutting table.***

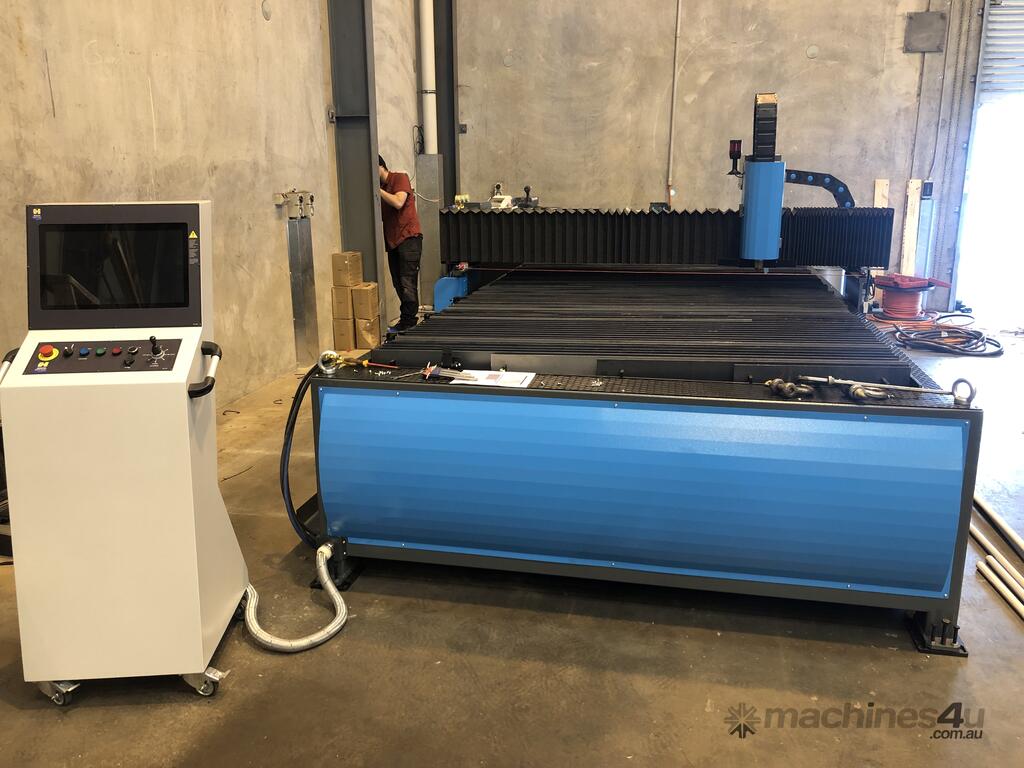

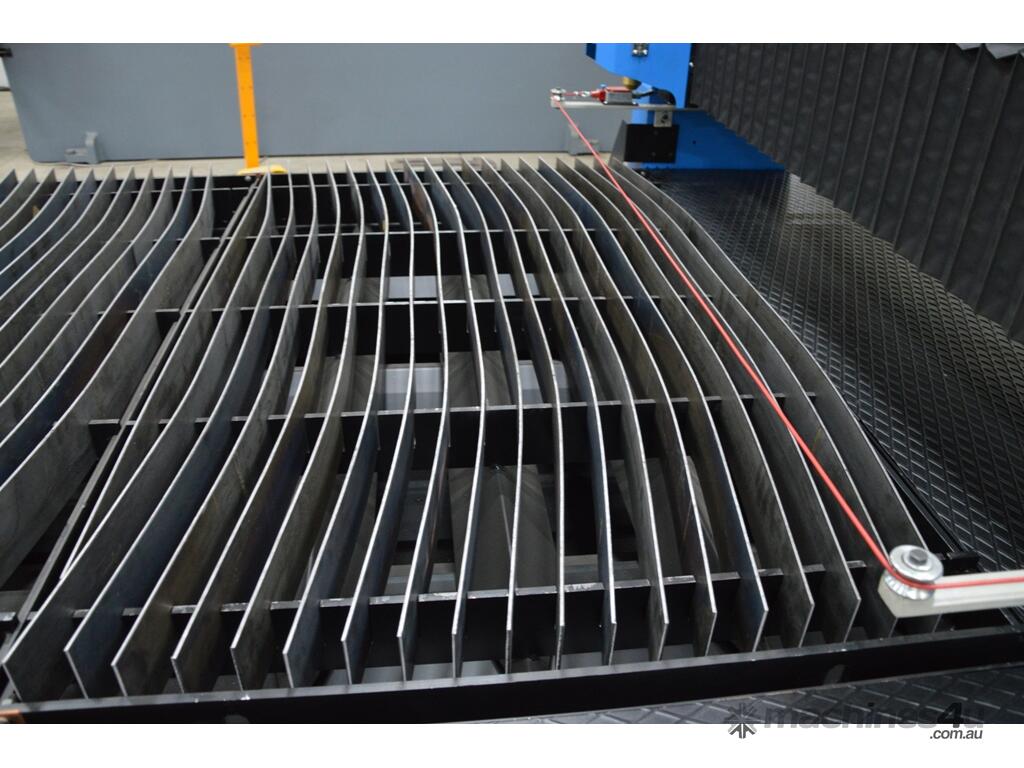

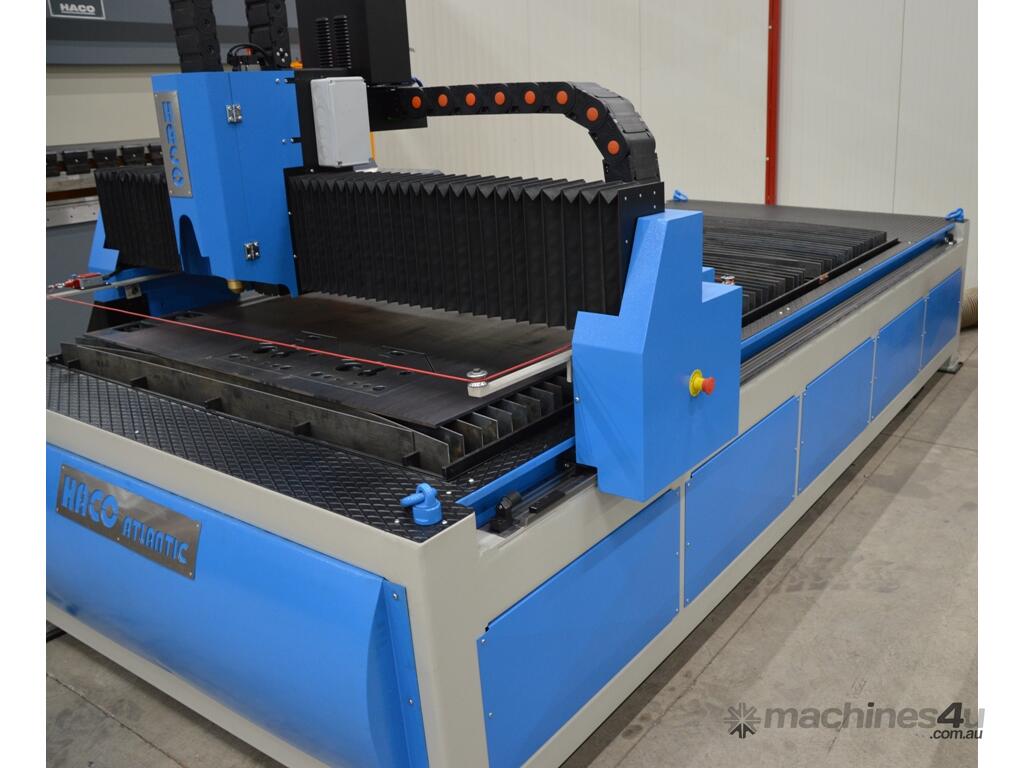

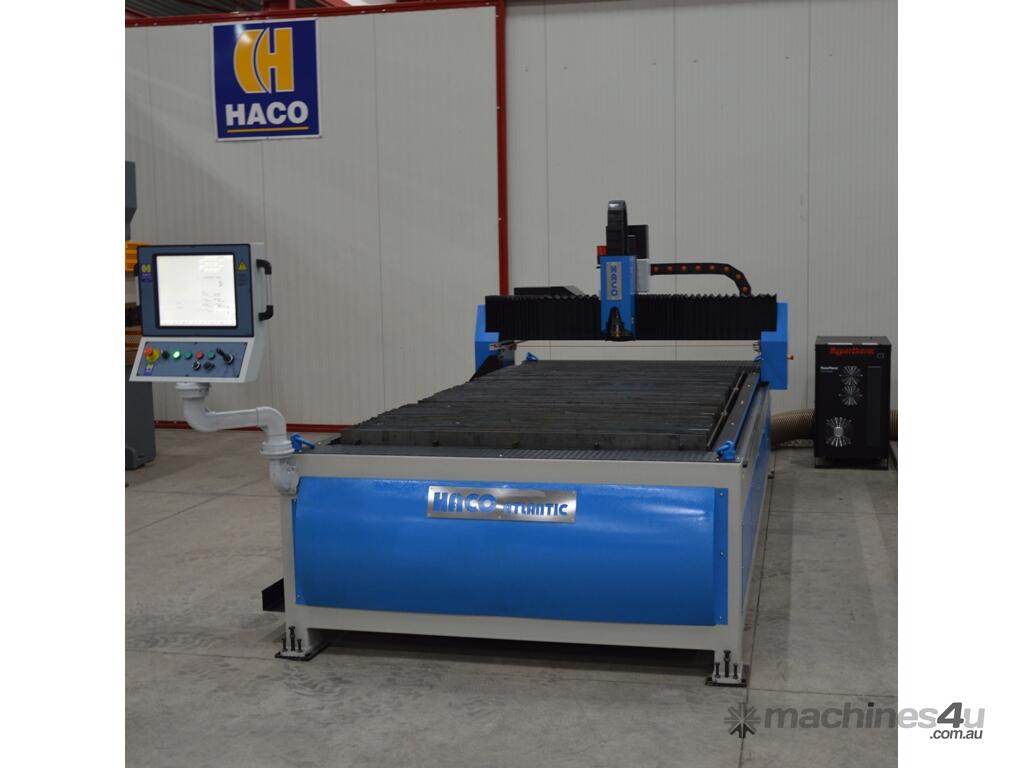

The ATLANTIC BLUE LINE ATPL has a sturdy welded table structure, with integrated fume exhaust chambers and bolted-on cutting table.

Sizes available 2x1m, 3x1.5m, 4x2m, 6x1.5m & 6x2m Cutting Sizes

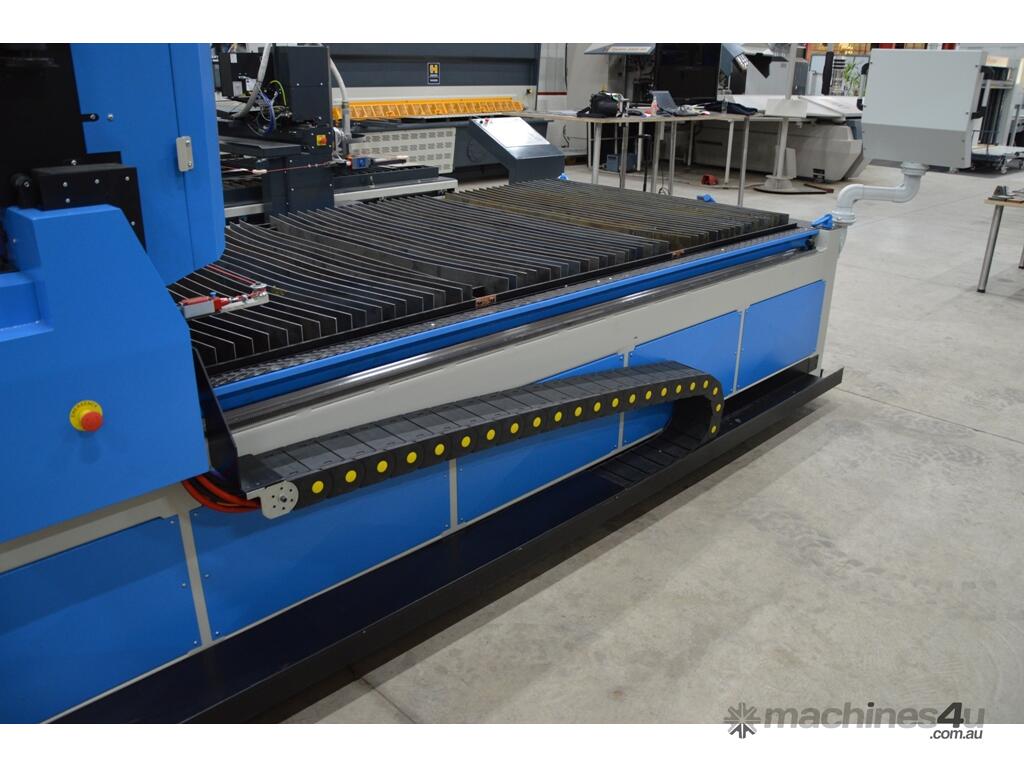

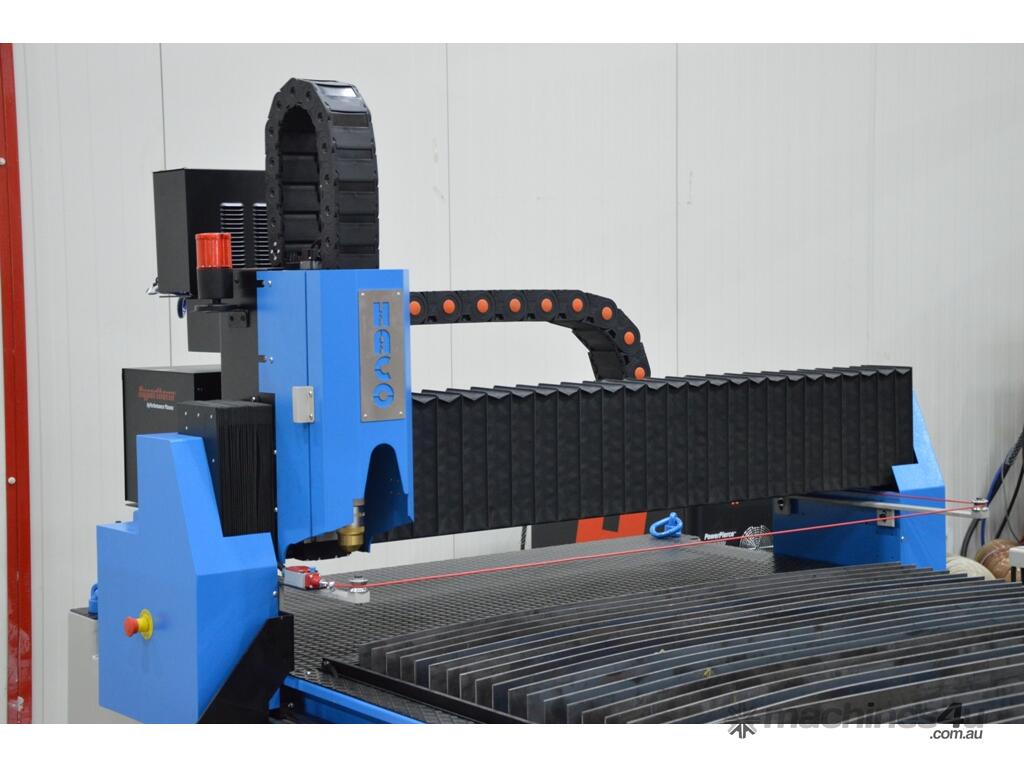

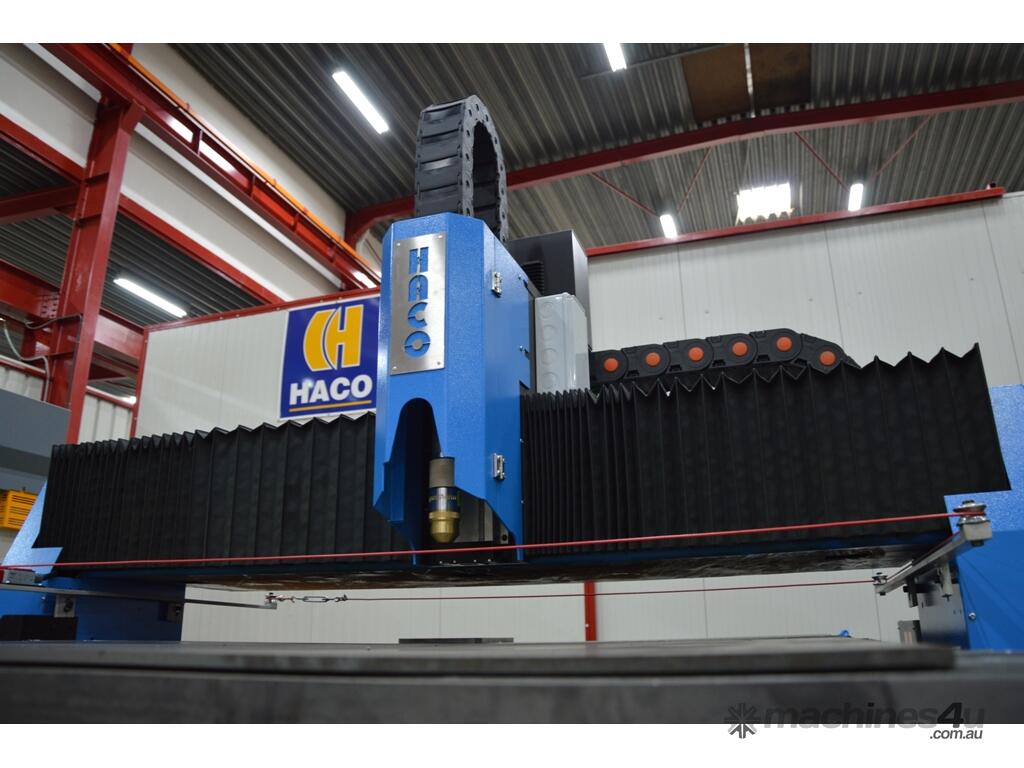

The gantry of the machine rests on linear guides, mounted on the welded profiles, and is driven by two brush-less AC Servo motors with helical rack-and-pinion system (double X-axis drive). The synchronized system of the two X-axis motors assures perfect parallel movement of the gantry over the linear guides.

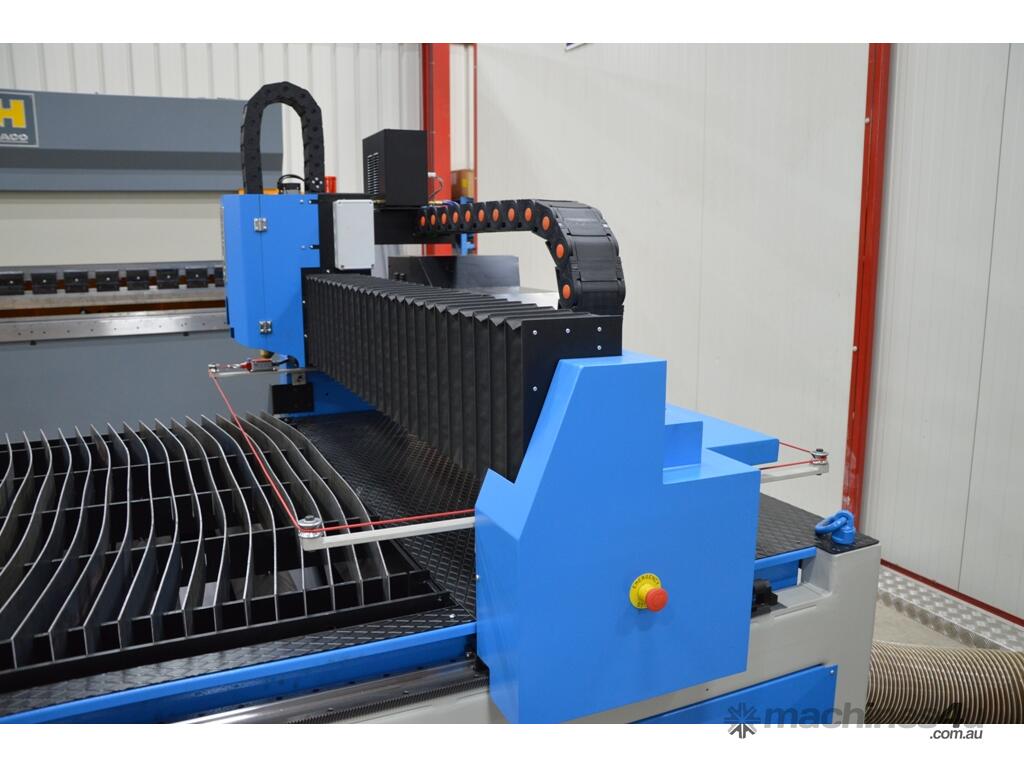

Two oversized linear guides are mounted on the gantry for accurate Y-movement of the cutting head
also with AC servo motor with helical rack & pinion system

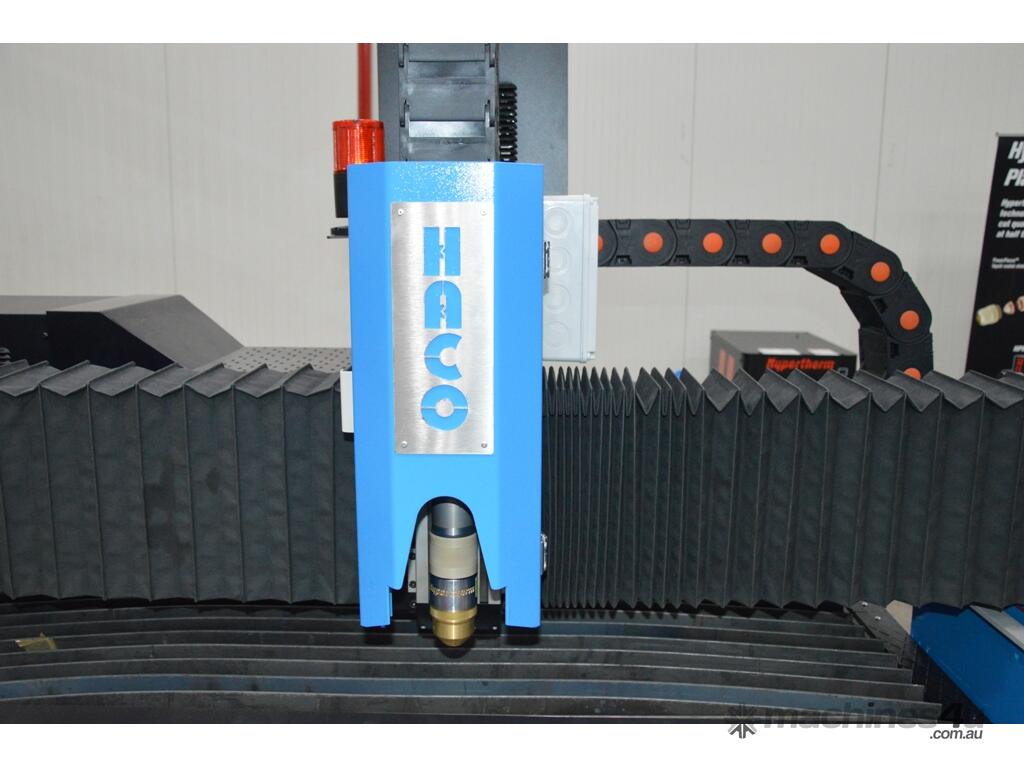

On top of the gantry, The integrated Z-Axis controls the height of the cutting head by means of a Servo motor with ball screw drive system.

The correct positioning on all axes is assured by high-resolution encoders, mounted on the motors.

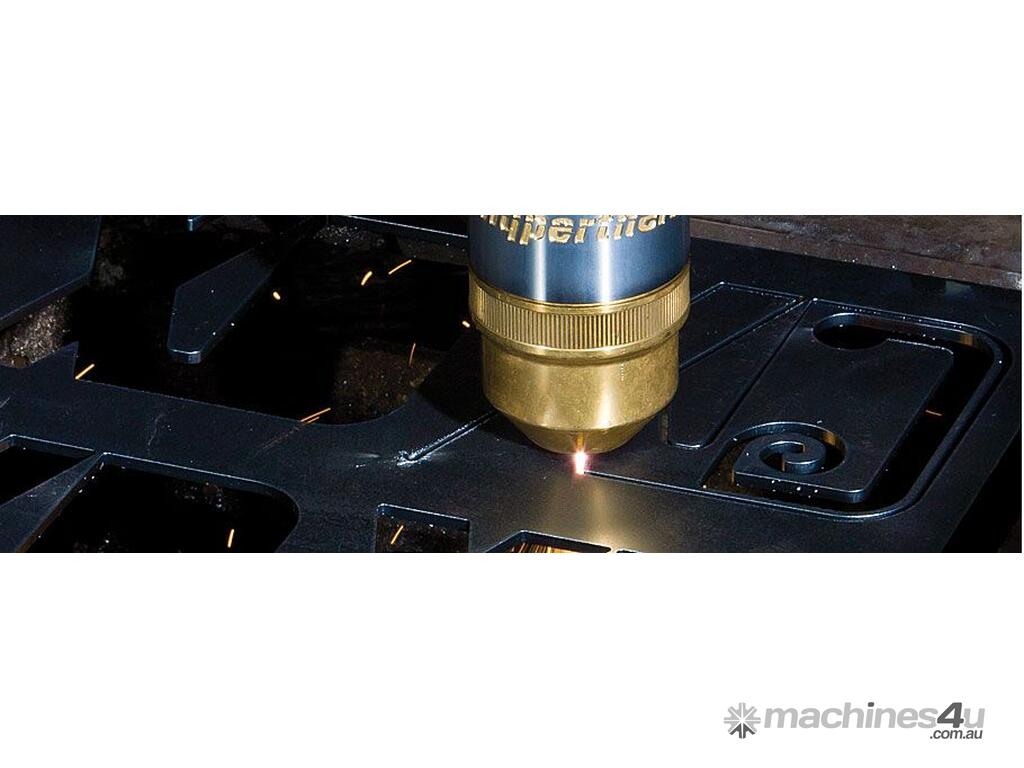

The HYPERTHERM plasma cutting system is mounted on the main carrier of the machine. Included is a Torch Height Control (THC) unit, monitoring the Z-axis (Servo motor) for the automatic height positioning of the torch during the cutting process. During the cutting process, the THC unit measures the Arc Voltage and adjusts the Z-axis motor to maintain a constant distance from the sheet for optimum cutting results.

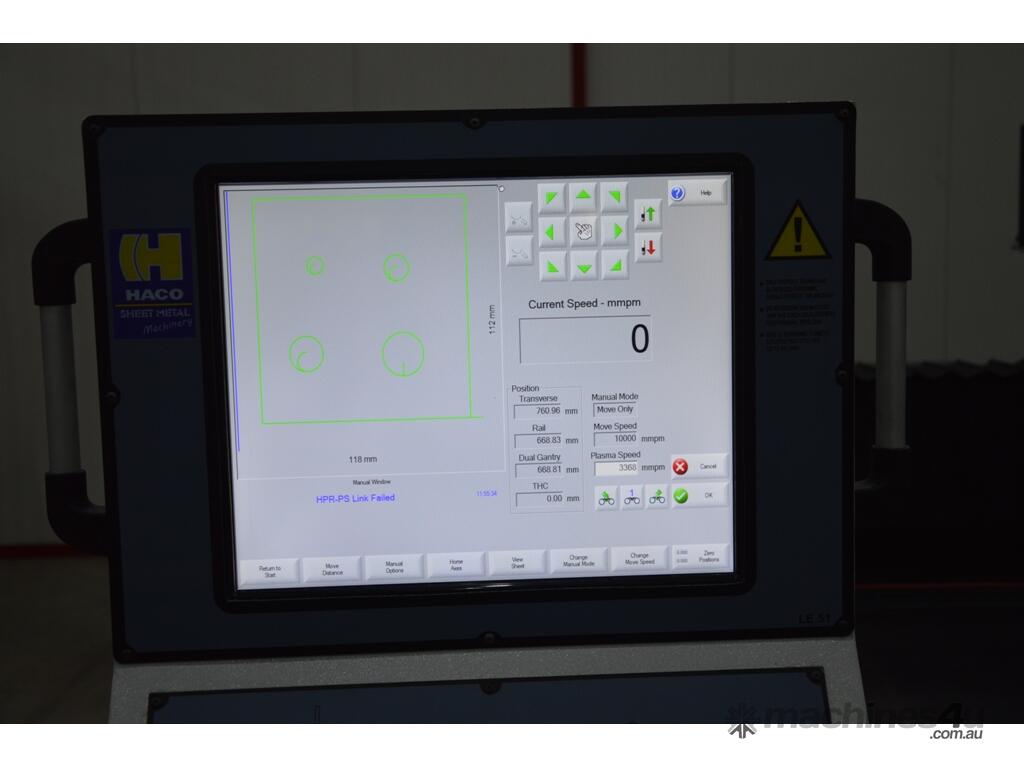

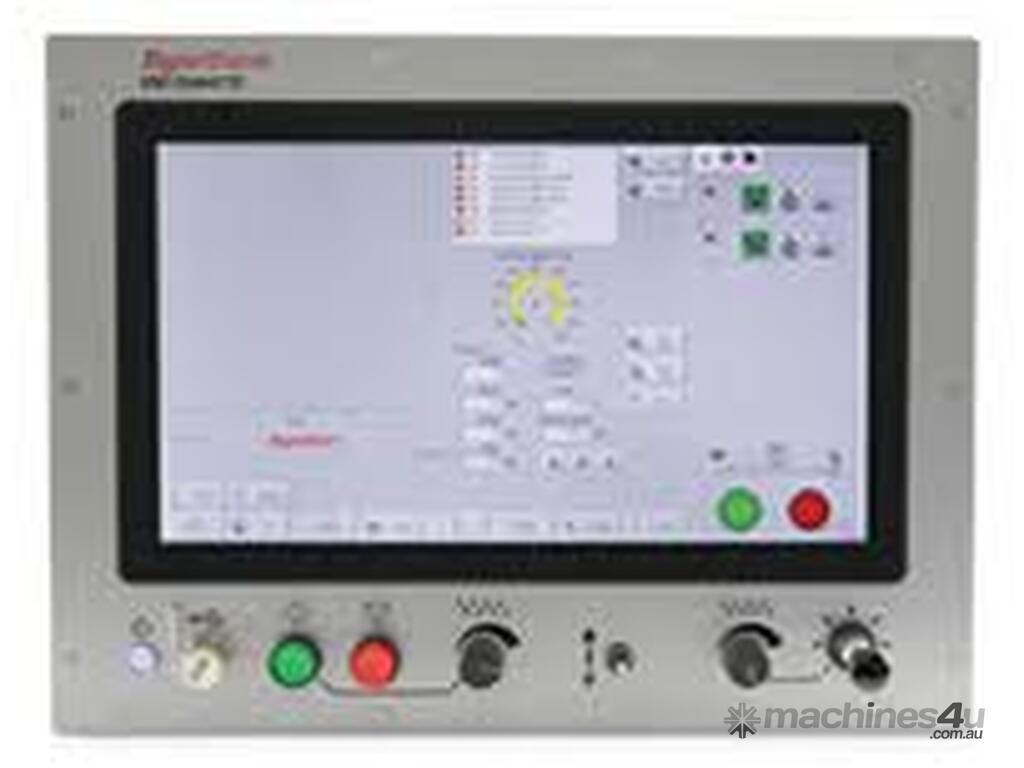

*** Hypertherm Edge Connect Plasma operator Control

EDGE Connect is the next generation of Hypertherm’s industry leading automated control systems. This new platform is built upon almost 50 years of experience and commitment to develop, build, and sell products that improve your cutting operation.
New with EDGE ® Connect CNC
• Hypertherm’s Phoenix® version 10 CNC software
• Microsoft Windows 10 embedded operating system
• Internal software Programmable Logic Controller (PLC) and software-based operator’s console that enable unique cutting machine features
• EtherCAT machine interface for easy connectivity and superior motion
• OEM HACO Projected capacitive IntelliTouch 19.5" Elo with 1920x1080 Pixels IP65
• Solid state hard drive
• Remote Help enables diagnostics and repair over the Internet
• Can control up to 12 Axes
Easy to use Hypertherm’s proprietary Phoenix software is common across the entire family of CNCs. This software is designed specifically for the X-Y and bevel cutting market. Through years of cutting experience, Hypertherm® engineers have learned the critical parameters to achieve superior cut quality on every part.
Phoenix CNC software improves cut quality and productivity by delivering our expertise to your factory, making it as if you have your best operator on every shift.

Reliable
The EDGE Connect line of CNCs significantly enhances overall system reliability.
• High-speed digital EtherCAT machine interface and communications with single wire connectivity
• Low power, fan-less quad core processor PC requires no active cooling
• Solid state hard drive with no moving parts for increased data access speed and reliability
• Projected Capacitive (PCAP) touch technology offers pristine optical clarity, high-touch durability,
resistance to water, and long-term stability over temperature in industrial applications
• Designed and stress tested to ensure reliable and consistent operation in harsh cutting environments
• 2-year factory warranty

Option
***The Edge Connect TC CNC brings Hypertherm’s latest hardware and Phoenix software technology to a product that is custom-able for a wide variety of applications. Designed for reliability and ease of use, the Edge Connect TC improves cut quality, productivity and profitability by delivering Hypertherm’s cutting process expertise to your factory. It is as if you have your best operator on every shift.

The Edge Connect TC CNC is the most versatile CNC offering from Hypertherm. The Edge Connect TC control package provides a unique combination of configurations, expandable features, and common software with the other Hypertherm CNCs., This scaleable CNC offers the OEM the ability to standardize on a control solution without compromising application range.

*** Hypertherm ProNest Offline Software ***

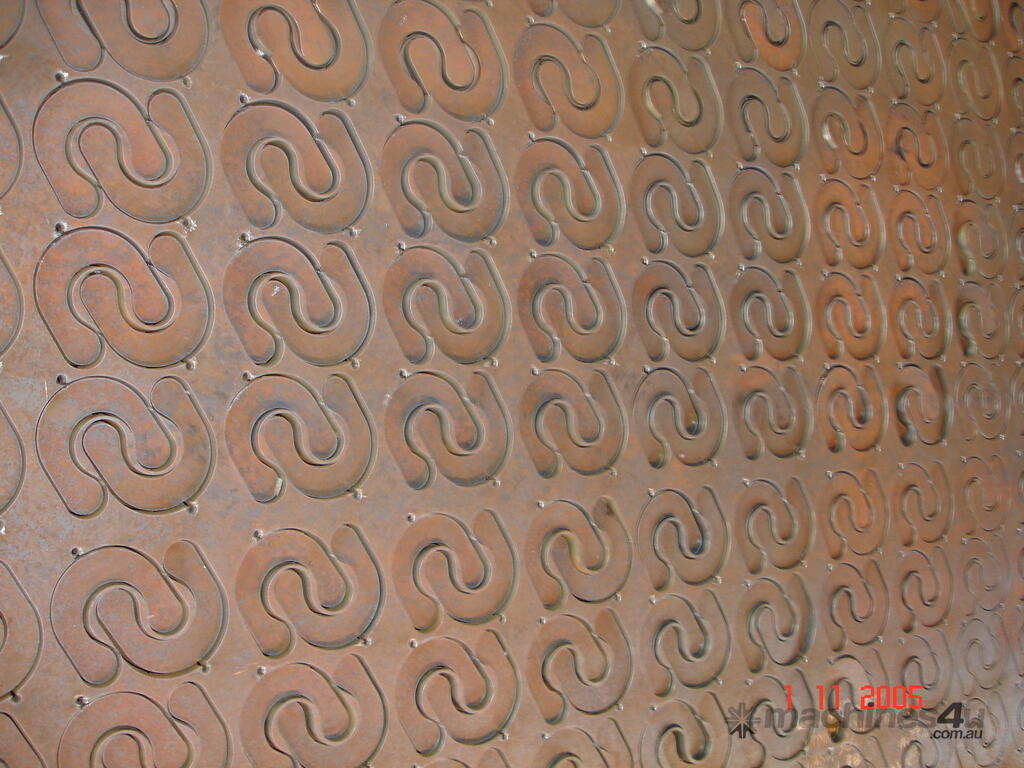

ProNest is an industry leading CAD/CAM nesting software for advanced mechanized cutting. It provides a single solution for all of your profile cutting needs, including plasma, laser, water jet, and oxy fuel. It is specifically designed to help fabricators and manufacturers increase material savings, boost productivity, lower operating costs, and improve part quality.

ProNest does automatically integrate the cutting process expertise into the NC code. Whether it’s material type, thickness, or grade, ProNest is drawing on years of research and development.

ProNest is brought to you by the cutting experts at Hypertherm. This allows you to leverage breakthrough cutting technologies like True Hole® and Rapid Part™, which are delivered automatically without operator intervention, and True Bevel™ which greatly reduces bevel set up time.

Users agree that ProNest is surprisingly easy to learn and use. The intuitive software only requires one interface, and users do not have to switch between different programs to complete the job. Your team will be up and running faster, and will be able to complete the job in fewer steps.

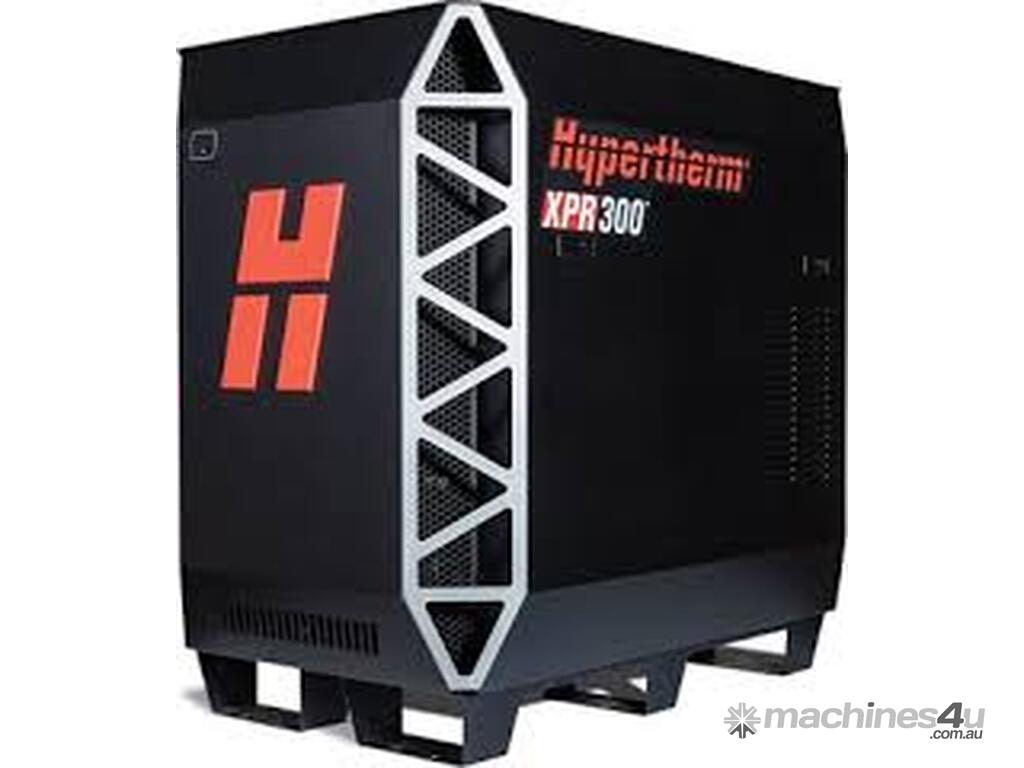

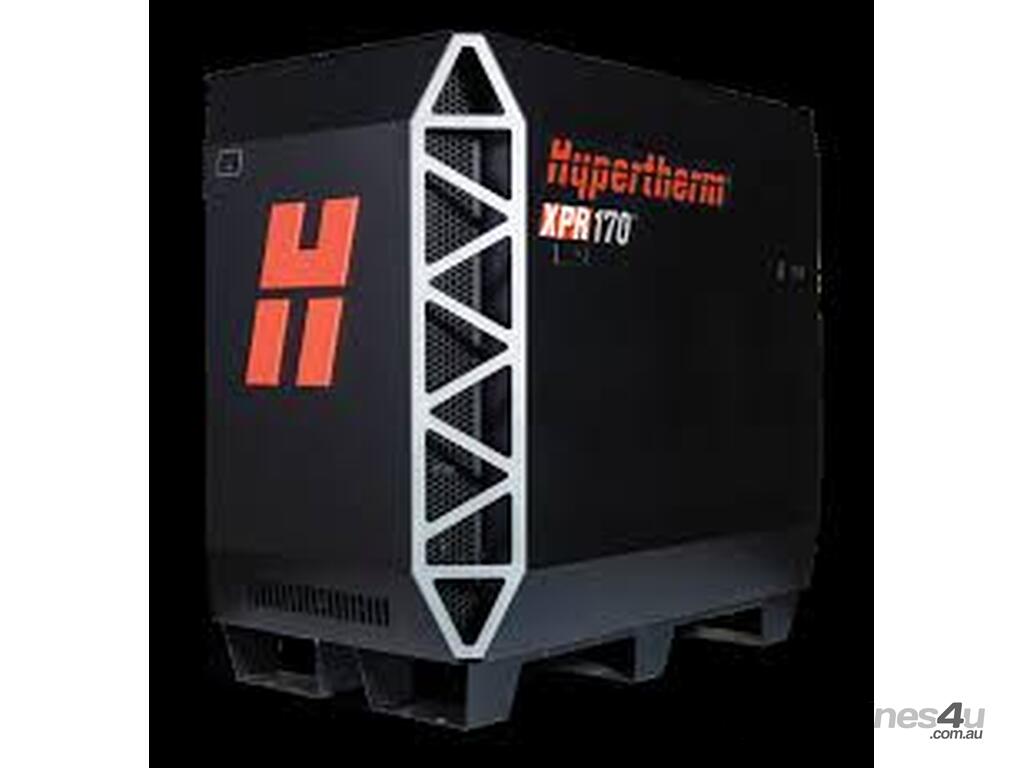

** HYPERTHERM'S NEW XPR170 or XPR300 PLASMA SOURCE WITH AUTO GAS CONSOLE **

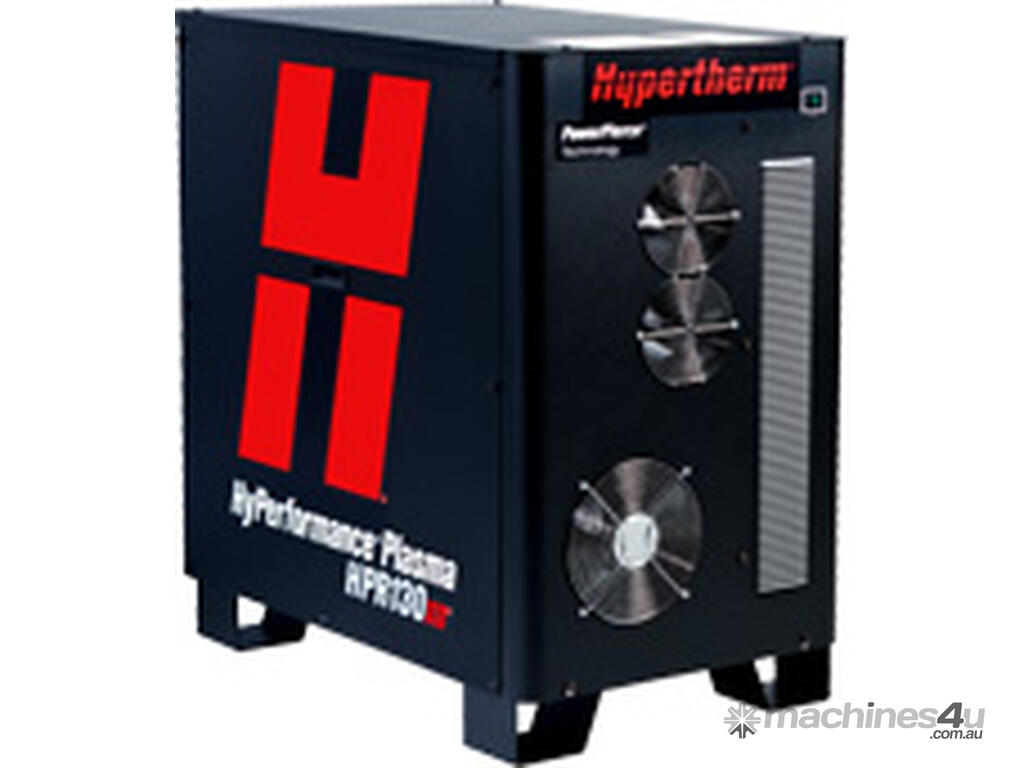

Hypertherm’s new XPR series HyPerformance Plasma delivers HyDefinition® cut quality for mild steel and stainless steel with greater consistency, faster cut speeds, longer consumable life and half the operating cost of competing technologies.

By incorporating Hypertherm's proven HyDefinition, LongLife, SilverPlus and patented PowerPierce and True Hole technologies, HyPerformance Plasma boosts overall performance, productivity and profitability. The systems offer unmatched process flexibility to cut, bevel and mark metals up to 160 mm thick. With over twenty thousand systems in use worldwide, it is clear that HyPerformance Plasma is the system of choice for customers that demand performance they can count on.
Other power sources available Powermax 105, Maxpro 200, 130Xd

Built for Business: Integrated Cutting Solutions

Hypertherm’s Built for Business Integrated Cutting Solutions has over 40 years of innovation and cutting process expertise built into them. Hypertherm’s nesting and process optimization software, computer numerical controllers (CNCs), torch height controls (THCs), and plasma systems work together seamlessly to get the most out of your cutting operation. It is like having your best operator equipped with the latest technology optimizing cut quality, productivity and operating cost every day.

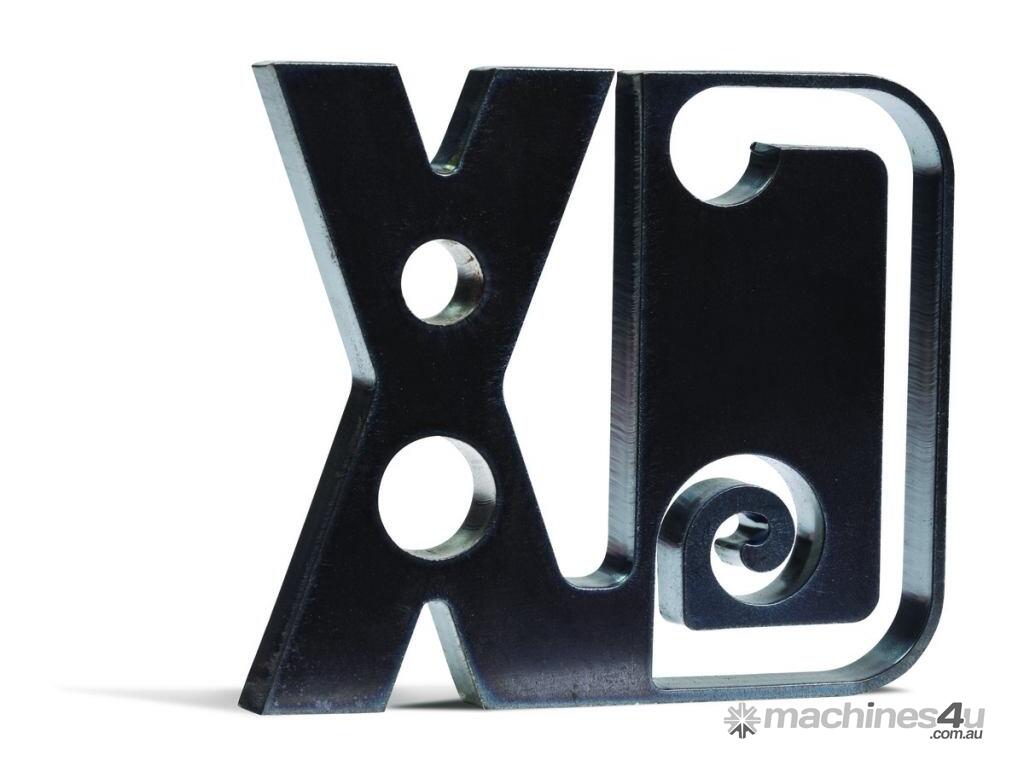

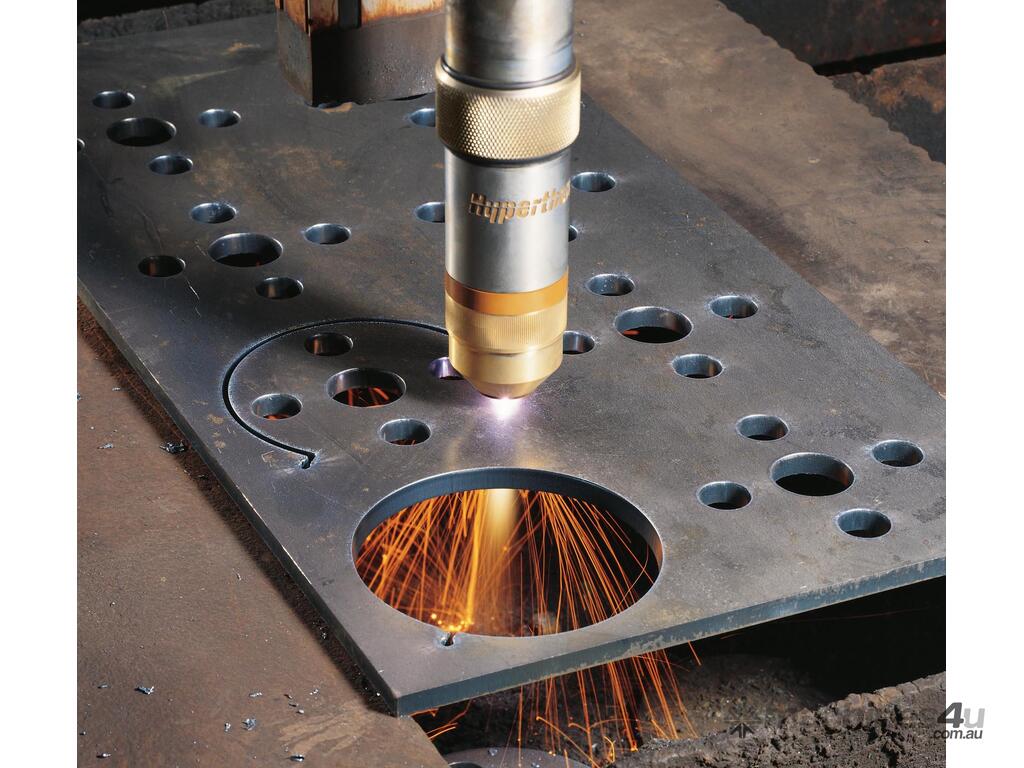

True Hole technology

True Hole cutting technology for mild steel produces significantly better hole quality than what has been previously possible using plasma. This is delivered automatically without operator intervention. only available wit XPR or Xd power sources

Options
• Portal extension
• Tube Rotator for round pipes 30... 140 mm , Square pipes 20x20mm ... 100x100 mm

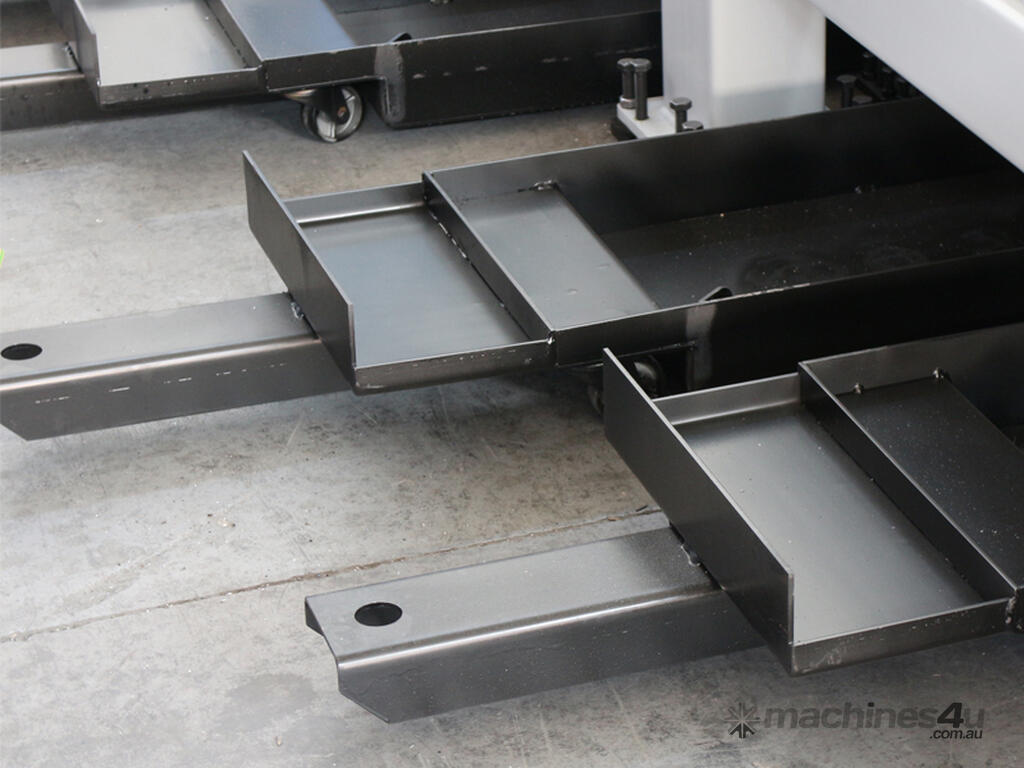

• Movable drawer to collect parts and dross
• Available with Hypertherm Powermax, Maxpro200 series and New XPR170 &
XPR300 High Definition plasma sources
• True Hole technology (with XPR auto gas plasma source)
• Dust/Fume extraction filter units
