HACO RAPTOR CNC PLASMA CUTTING 3060

REPEATABLE, PRECISE, COST-EFFECTIVE PROFILE CUTTING.

The HACO RAPTOR CNC cutting system is designed to be a repeatable, precise, cost-effective profile cutting machine, meeting your high performance cutting requirements.

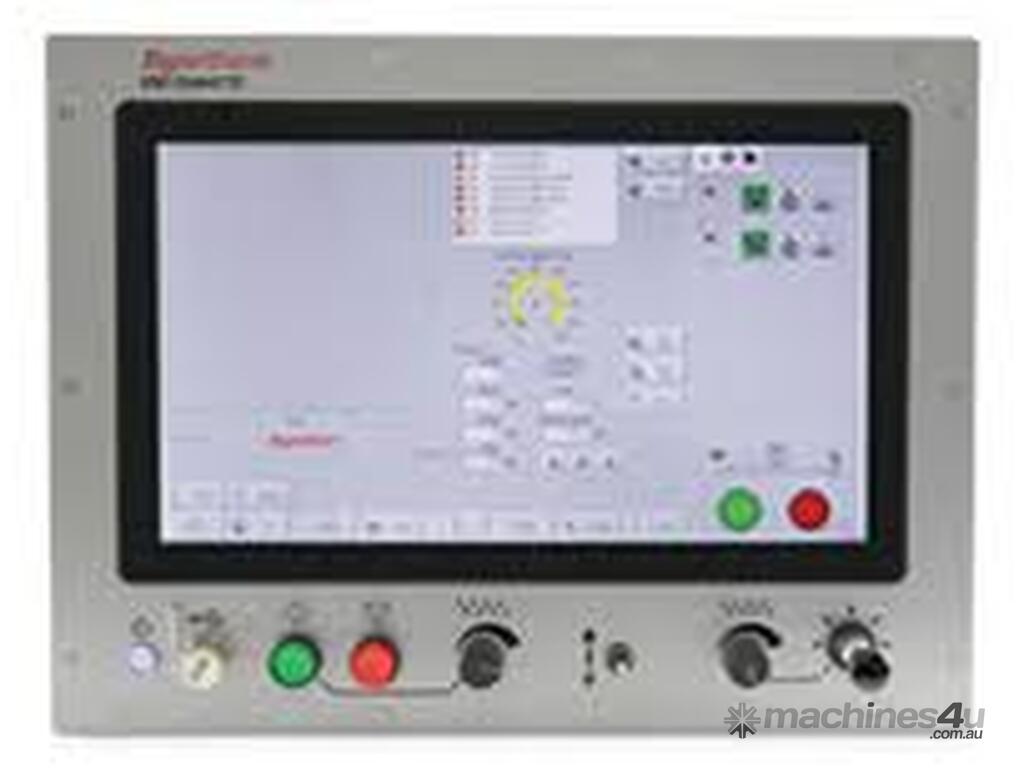

The HACO RAPTOR CNC series are standard equipped with a Hypertherm CNC control system, precision linear guide ways, self aligning plasma torch collision device, automatic height control and automatic ignition system.

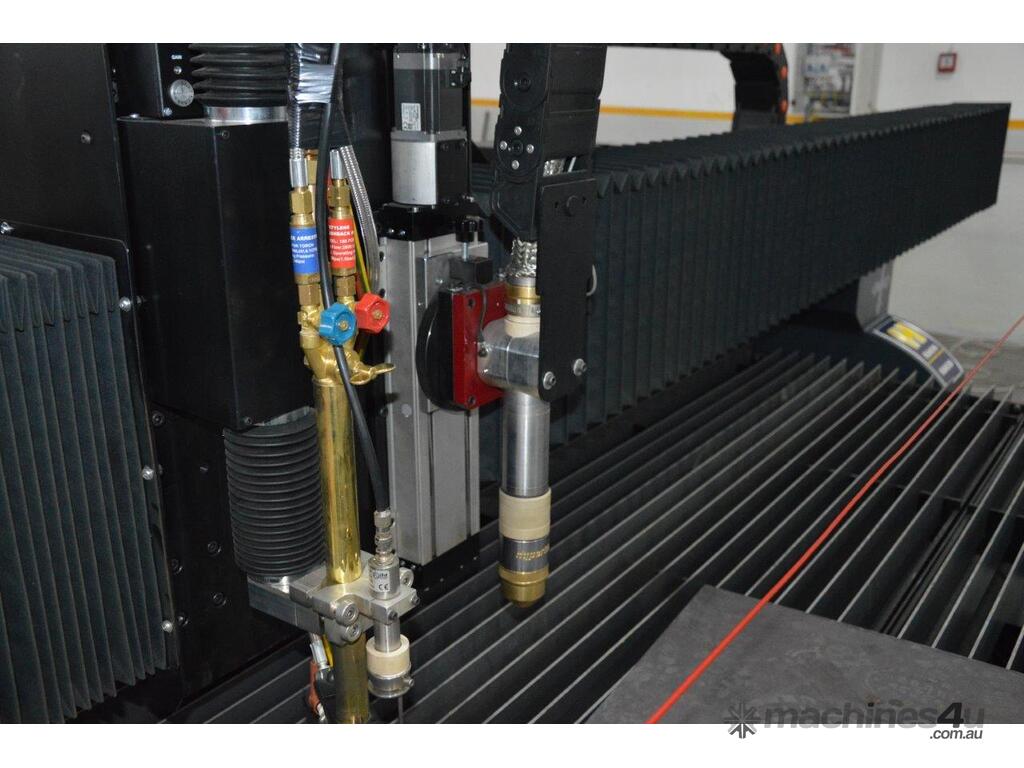

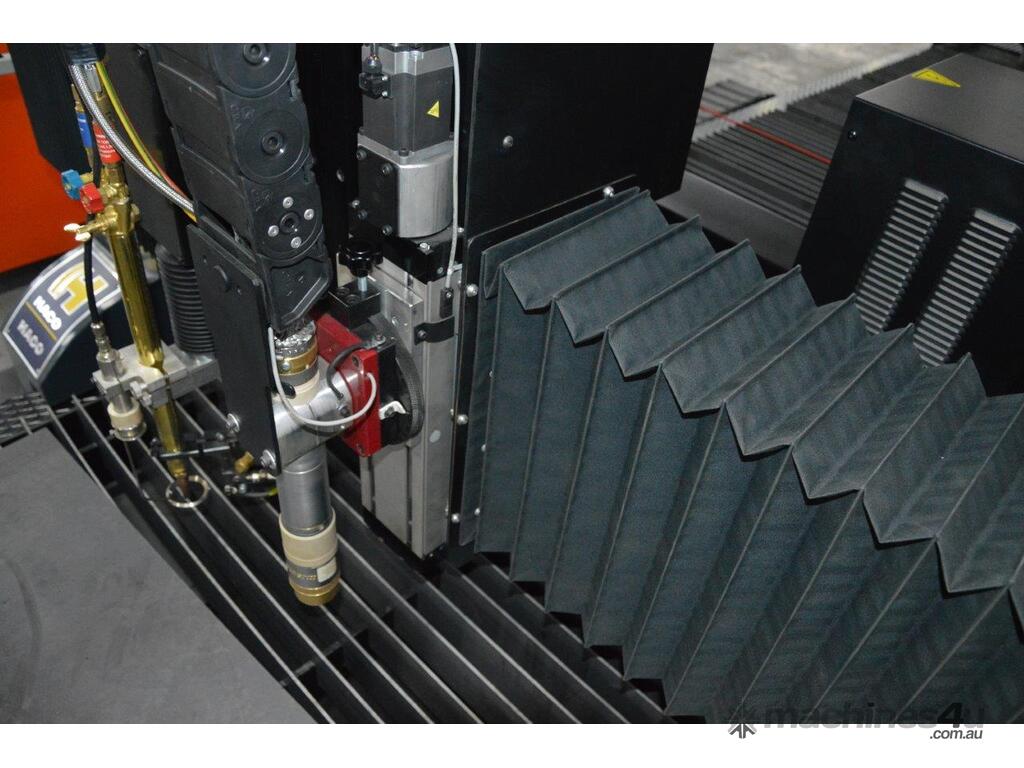

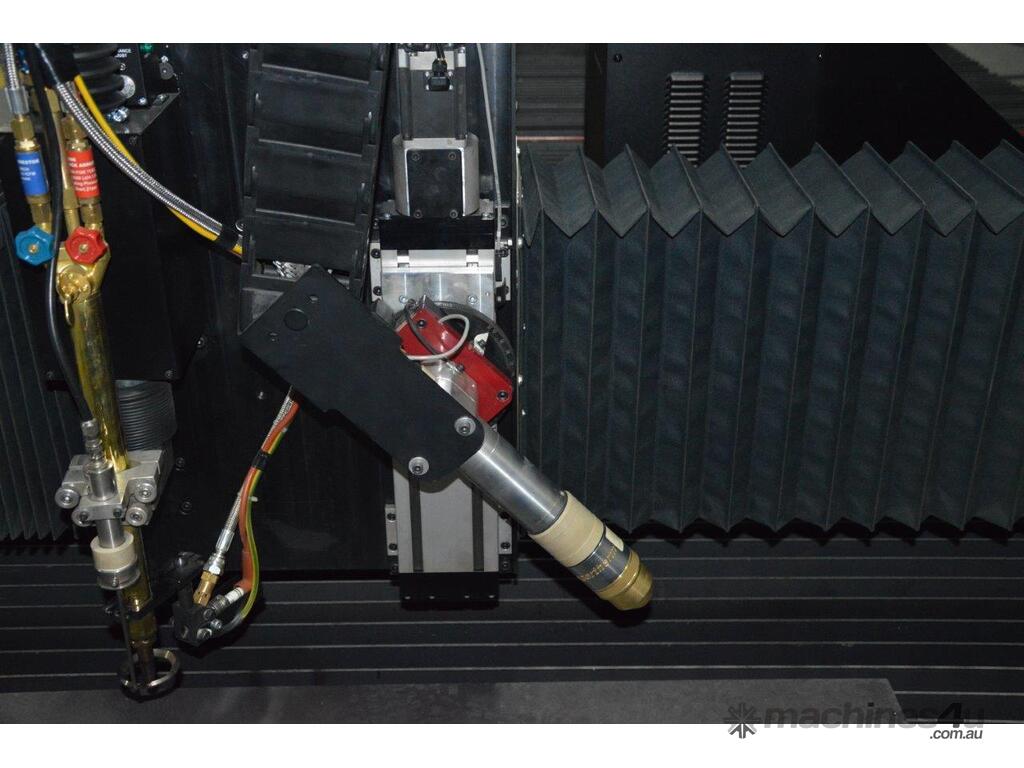

The HACO RAPTOR can accommodate multiple stations such as plasma and/or oxy torches, bevel cutting head and pipe rotator.

Included is a Torch Height Control (PTHC) unit, monitoring the Z-axis (by brushless AC Servo motor) for the automatic height positioning of the torch during the cutting process.

*** Hypertherm ProNest Offline Software ***

ProNest is an industry leading CAD/CAM nesting software for advanced mechanized cutting. It provides a single solution for all of your profile cutting needs, including plasma, laser, water jet, and oxy fuel. It is specifically designed to help fabricators and manufacturers increase material savings, boost productivity, lower operating costs, and improve part quality.

ProNest does automatically integrate the cutting process expertise into the NC code. Whether it’s material type, thickness, or grade, ProNest is drawing on years of research and development.

ProNest is brought to you by the cutting experts at Hypertherm. This allows you to leverage breakthrough cutting technologies like True Hole® and Rapid Part™, which are delivered automatically without operator intervention, and True Bevel™ which greatly reduces bevel set up time.

Users agree that ProNest is surprisingly easy to learn and use. The intuitive software only requires one interface, and users do not have to switch between different programs to complete the job. Your team will be up and running faster, and will be able to complete the job in fewer steps.

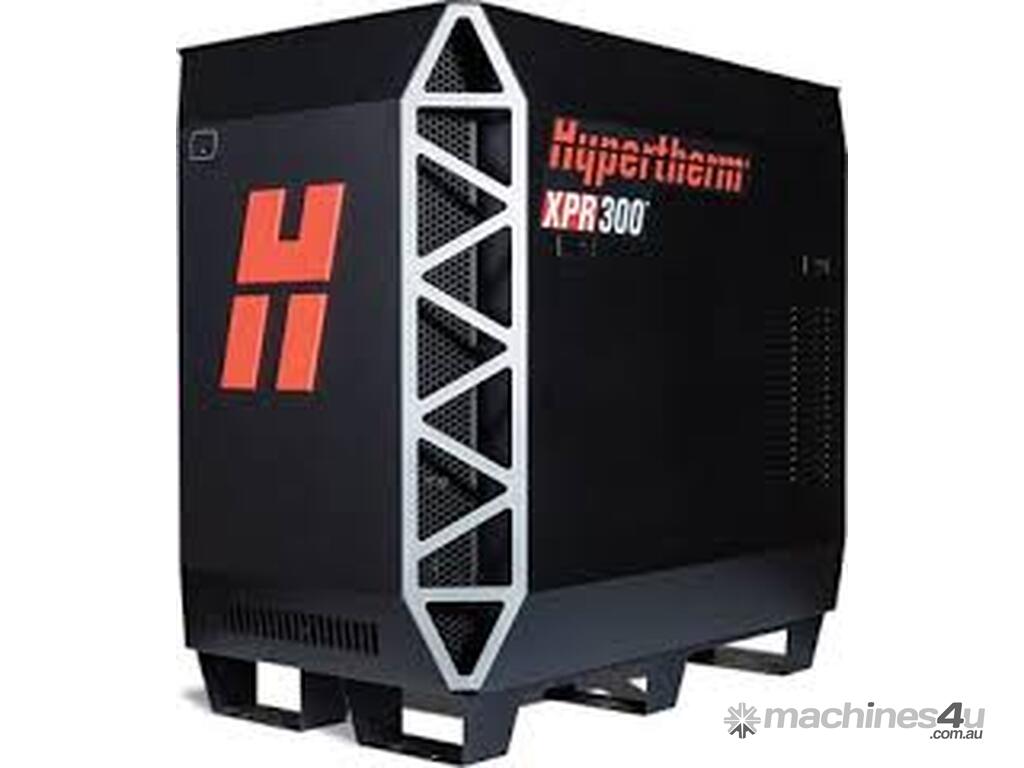

*** HYPERTHERM XPR170 & XPR300 PLASMA SOURCE WITH AUTO GAS CONSOLE ***

other options available 130Xd, 400Xd or Maxpro200

Hypertherm’s HPR & XPR series HyPerformance Plasma delivers HyDefinition® cut quality for mild steel and stainless steel with greater consistency, faster cut speeds, longer consumable life and half the operating cost of competing technologies.

By incorporating Hypertherm's proven HyDefinition, LongLife, SilverPlus and patented PowerPierce and True Hole technologies, HyPerformance Plasma boosts overall performance, productivity and profitability. The systems offer unmatched process flexibility to cut, bevel and mark metals up to 160 mm thick.

With over twenty thousand systems in use worldwide, it is clear that HyPerformance Plasma is the system of choice for customers that demand performance they can count on.

Built for Business: Integrated Cutting Solutions

Hypertherm’s Built for Business Integrated Cutting Solutions has over 40 years of innovation and cutting process expertise built into them. Hypertherm’s nesting and process optimization software, computer numerical controllers (CNCs), torch height controls (THCs), and plasma systems work together seamlessly to get the most out of your cutting operation. It is like having your best operator equipped with the latest technology optimizing cut quality, productivity and operating cost every day.

True Hole technology

True Hole cutting technology for mild steel produces significantly better hole quality than what has been previously possible using plasma. This is delivered automatically without operator intervention.
