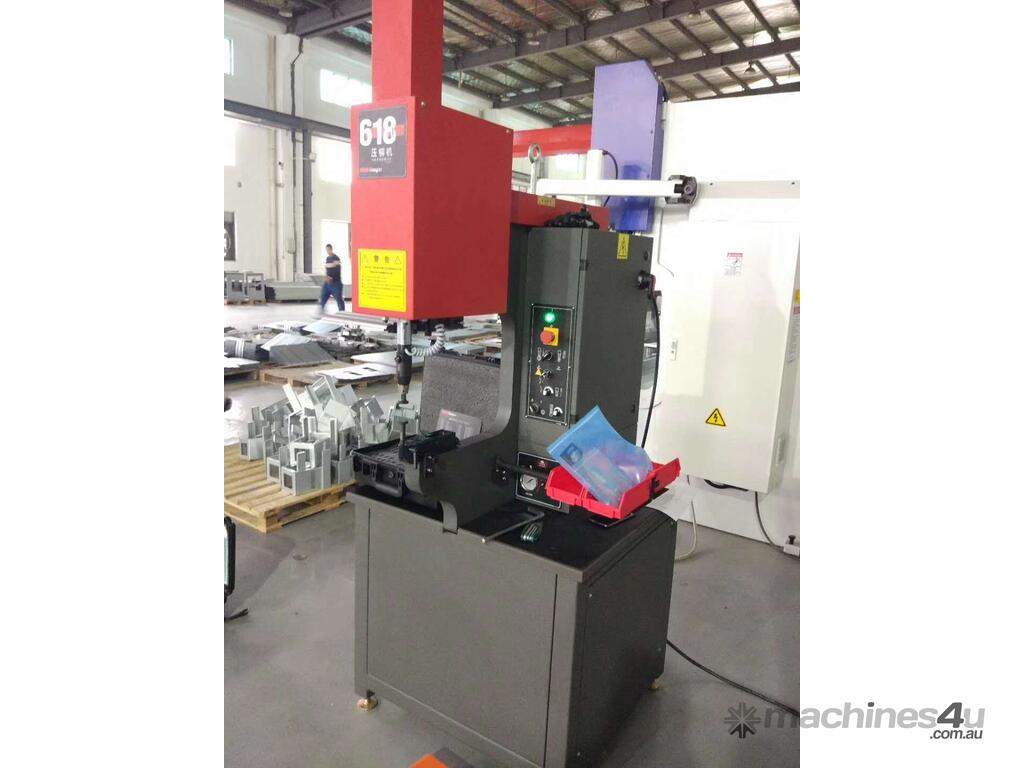

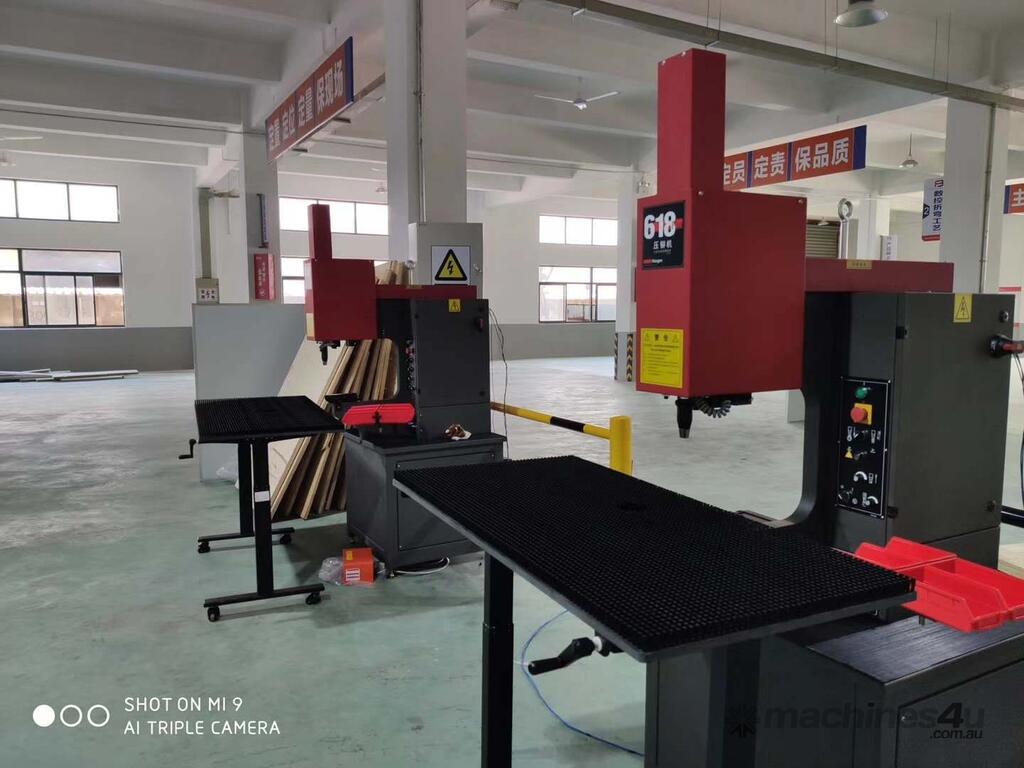

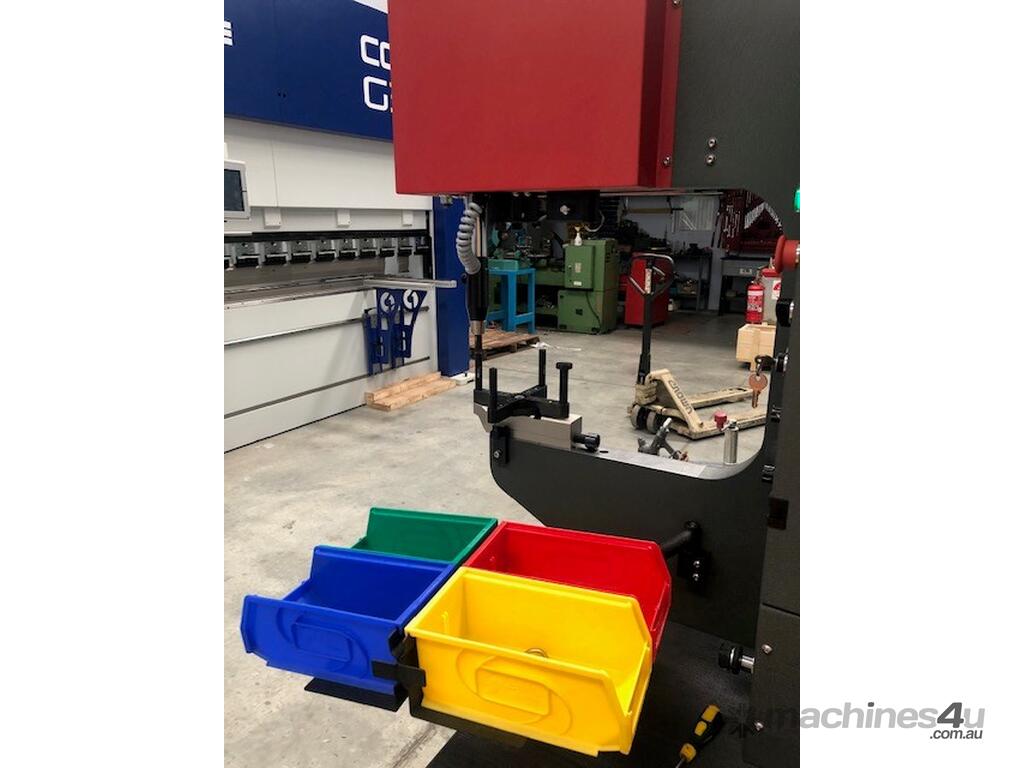

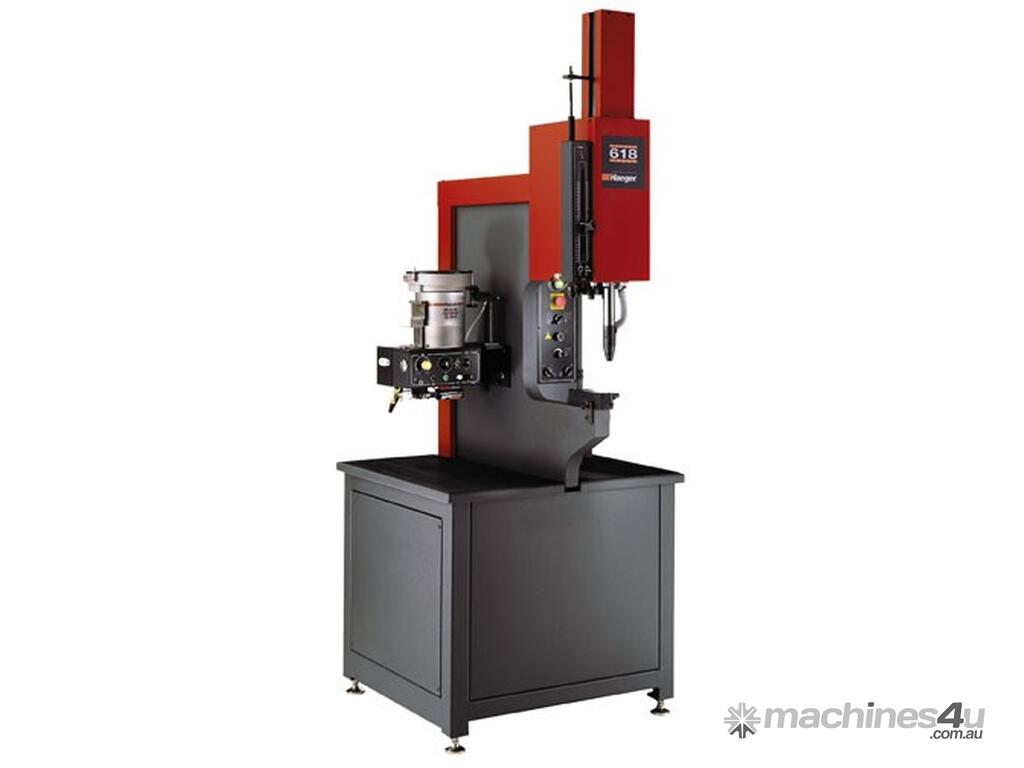

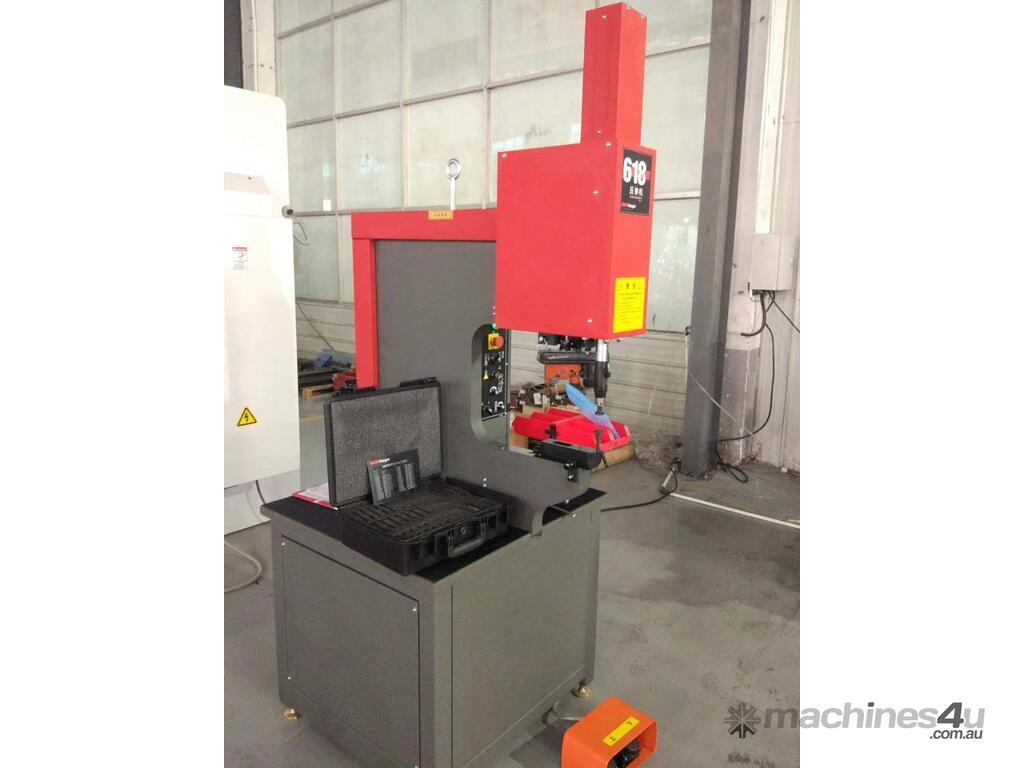

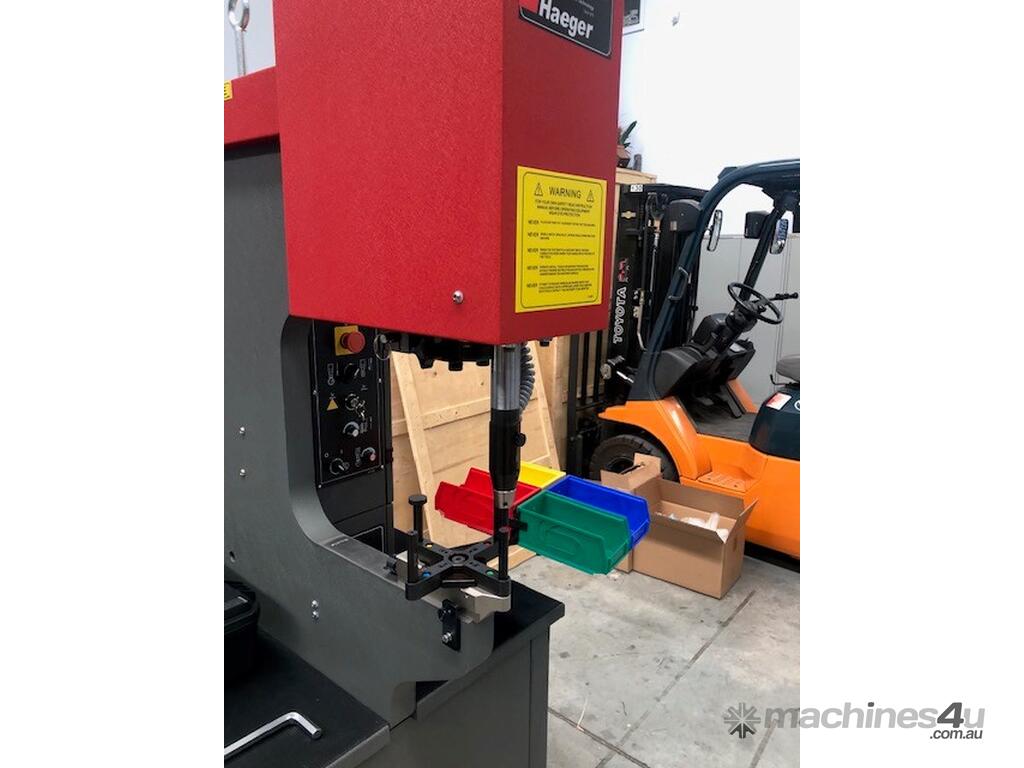

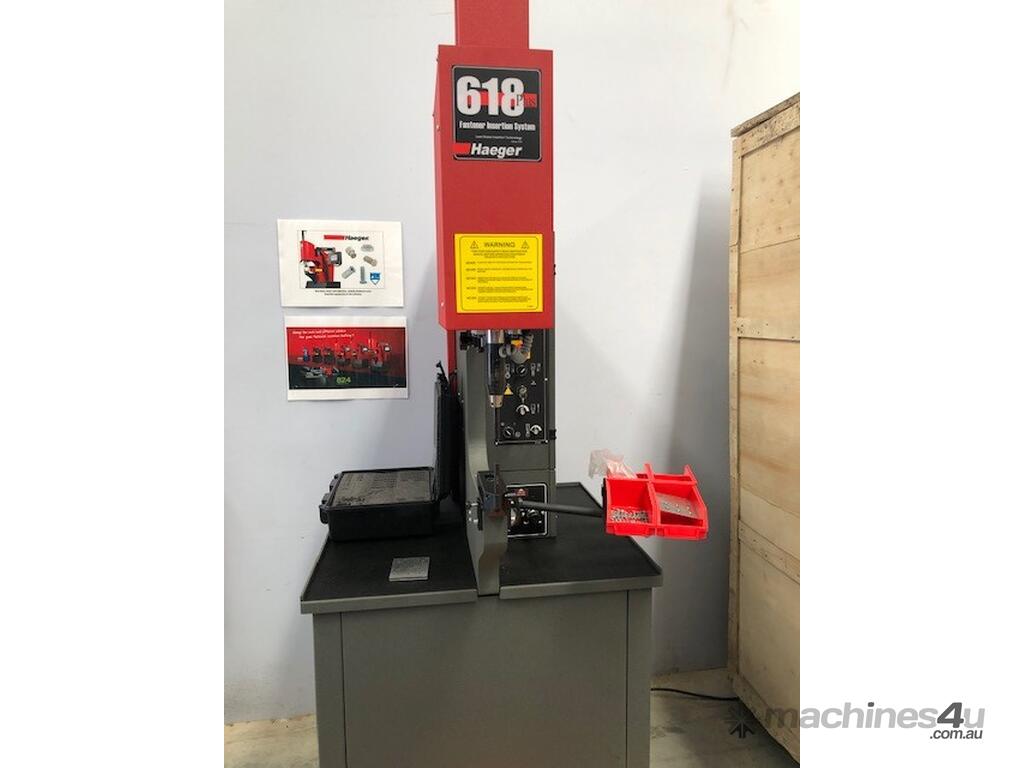

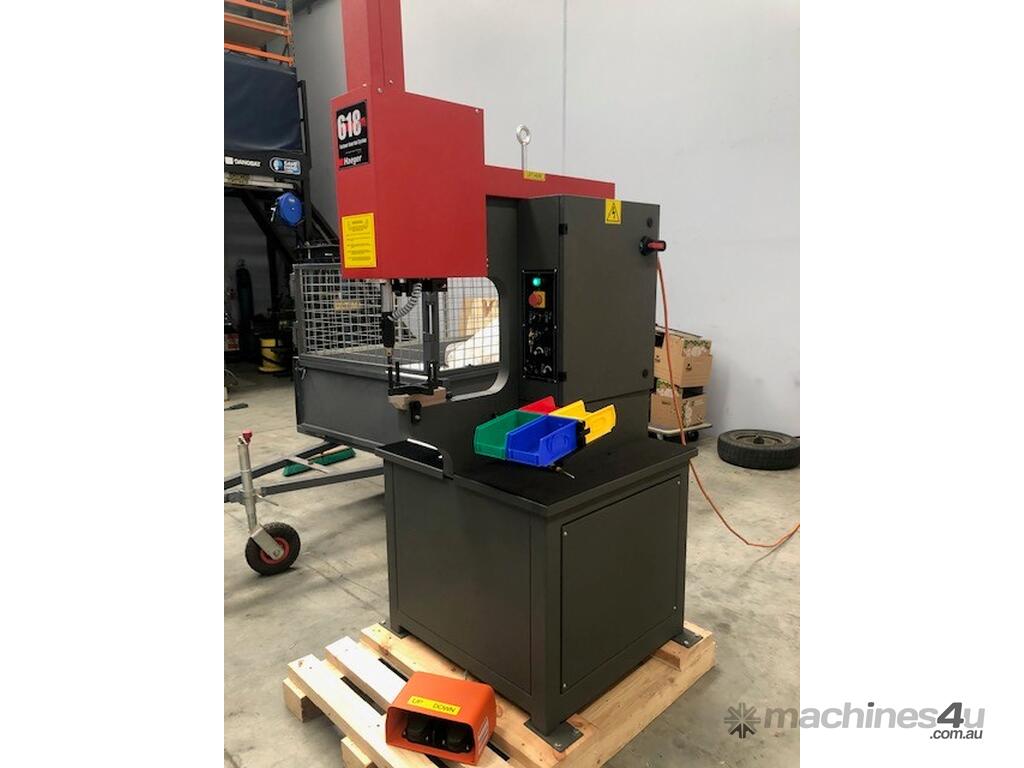

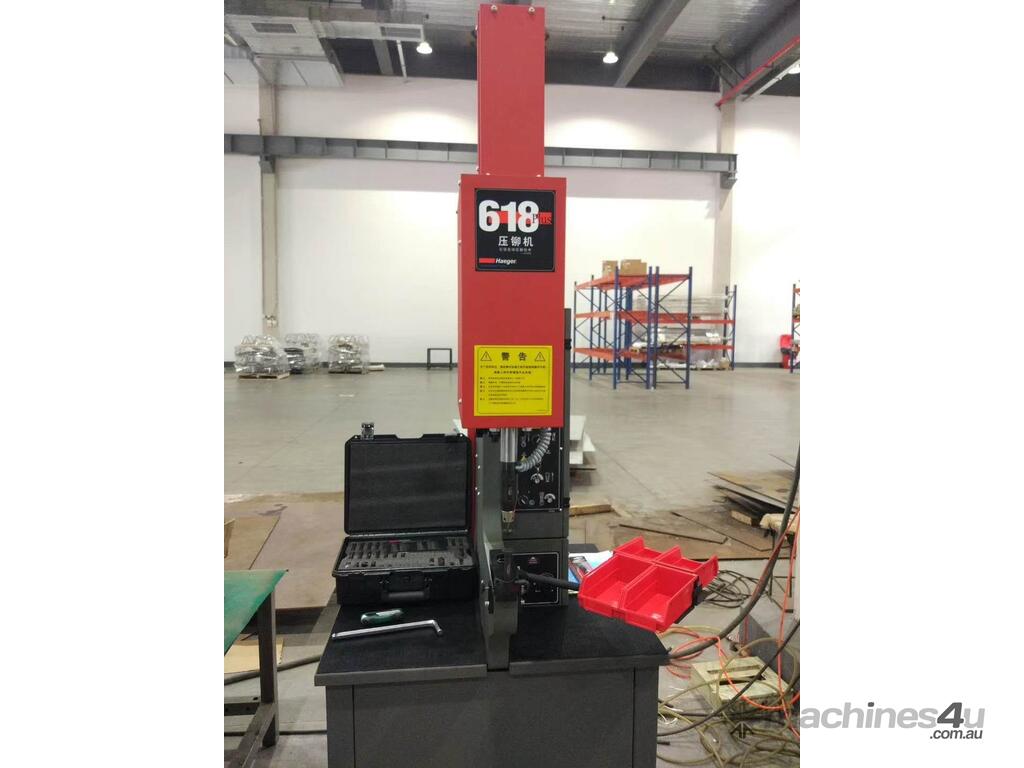

HAEGER 618 Plus - NEW STOCK
Specifications and Dimensions:
- Force Range 400 lbs. (4Kn) to 12,000lbs. (53Kn)
- Repeatability +/- 2% of force setting
- Throat Depth 18” (457mm)
- Stroke Length 0 to 8.0” (0 to 200mm)
- Adjustable up stroke 3/8” – 6” (10 – 150mm)
- Oil Tank Reservoir 10 gallons (39 liters)
- Hydraulic Pump Motor 2 HP
- Electrical 220v to 575v 3 phase 50 or 60hz.
- Foot print dimensions (LxWxH)) 1143mm x 864mm x 2388mm – 7100kgs
- Fastener Range M2 to M10
- Clinching Capability 1mm to 6mm combined thickness]
Technical specifications subject to modifications
Incl 33pce Standard Tooling kit case and Hydraulic Oil
