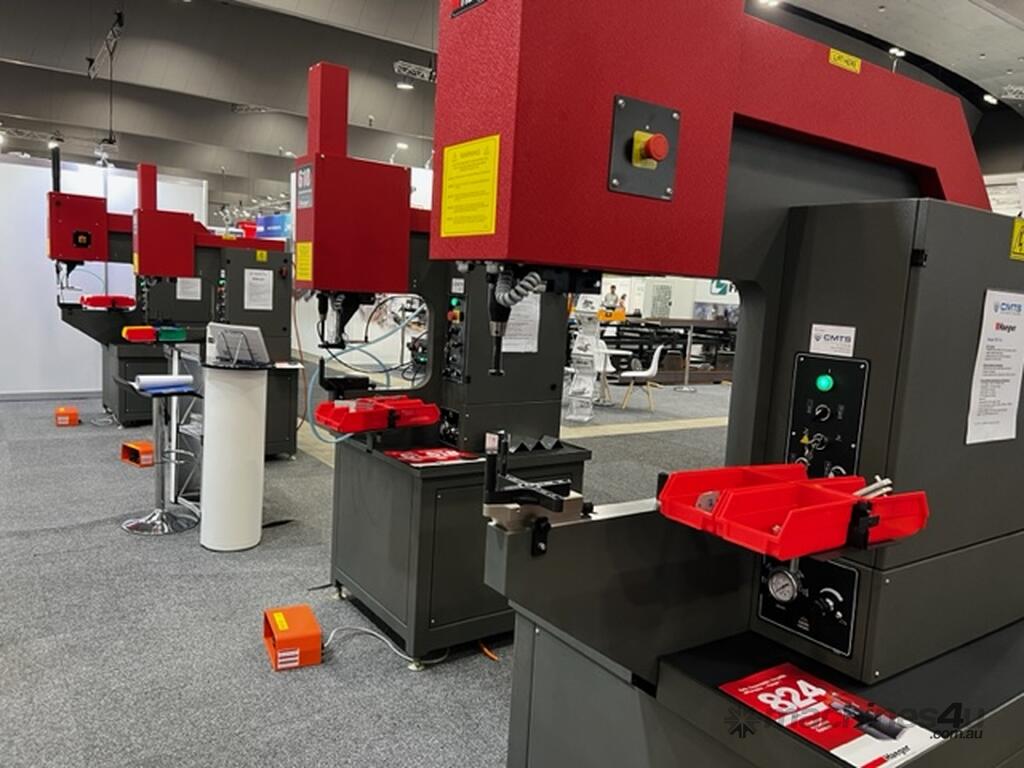

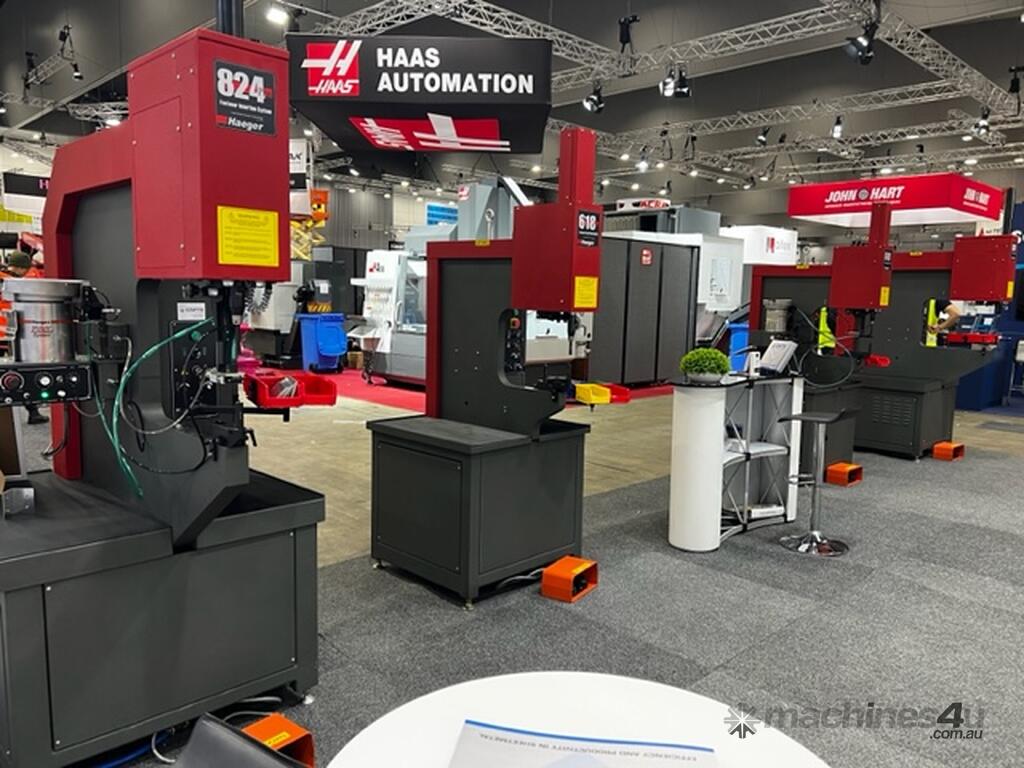

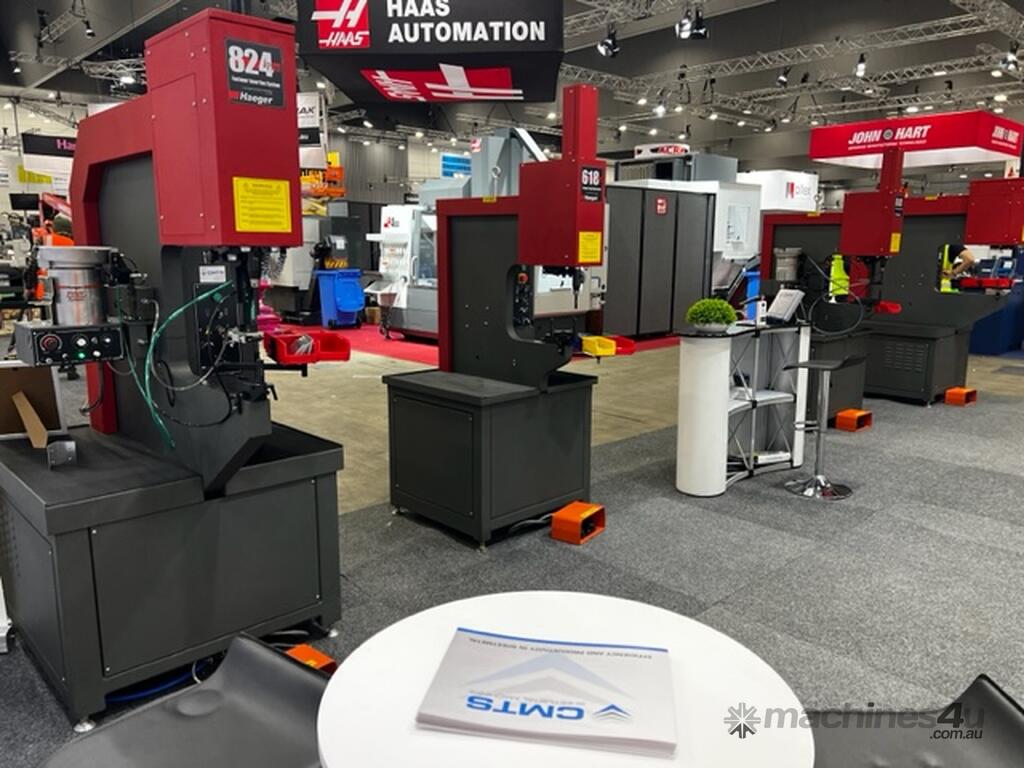

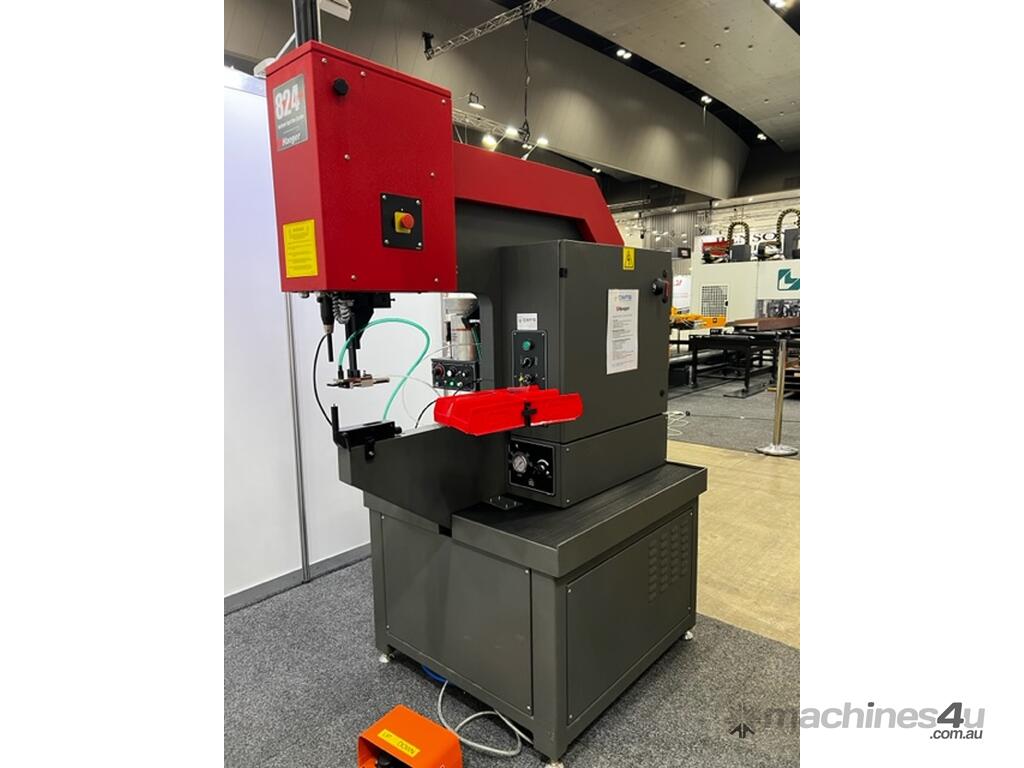

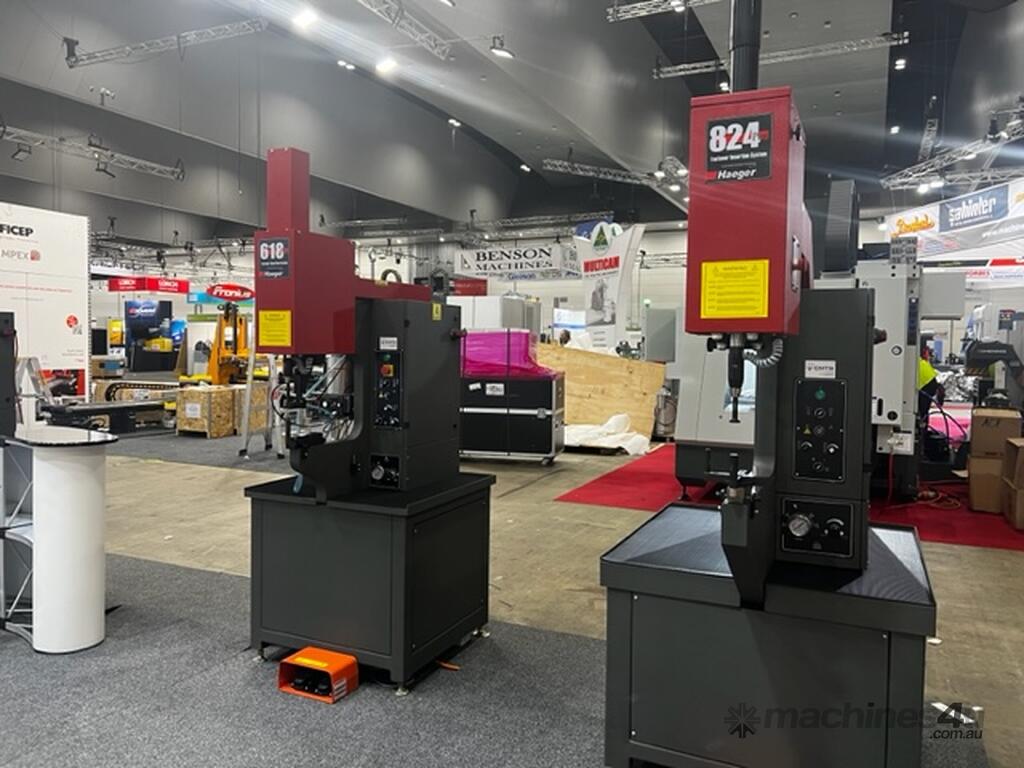

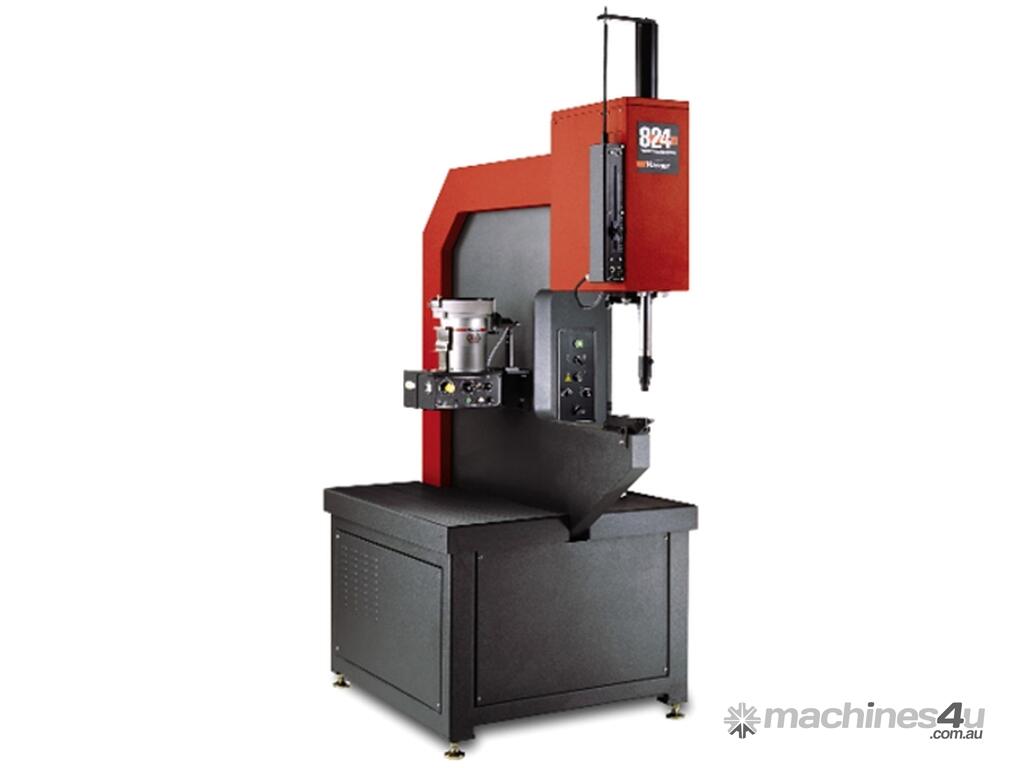

IN STOCK - Haeger 824 plus Insert Machine with Optional Auto Feed Bowl
Force Range Adjustable 225 lbs. (1kN) to 16000 lbs. (72kN) - Optional 20000 lbs. (90kN) modification available
Throat Depth 610mm
Stroke Length Adjustable 0 to 220mm
Electrical 208 to 575V 3 phase - 50 or 60 Hz
Motor 5 HP
Oil Tank Reservoir 83 liters
Speed up to 2000 insertions per hour
Repeatability +/- 2% of force setting
Footprint (L x W x H) 1499mm x 966mm x 2388mm
Fastener Range M2 to M12
Clinching Capability 1mm to 6mm combined thickness
