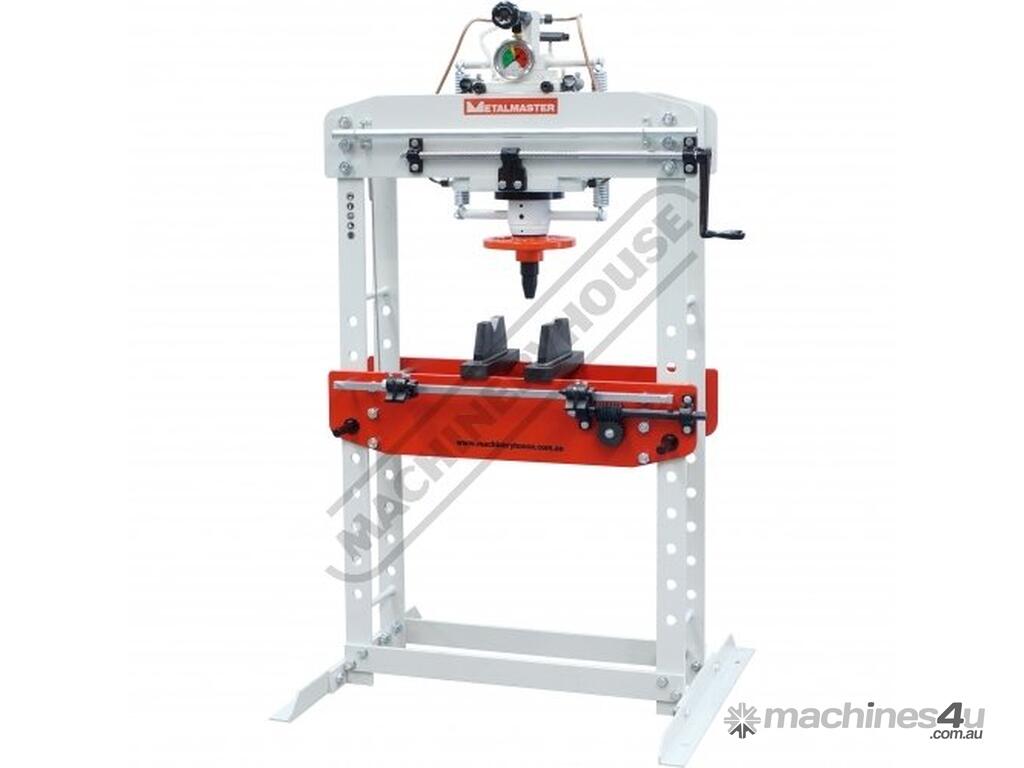

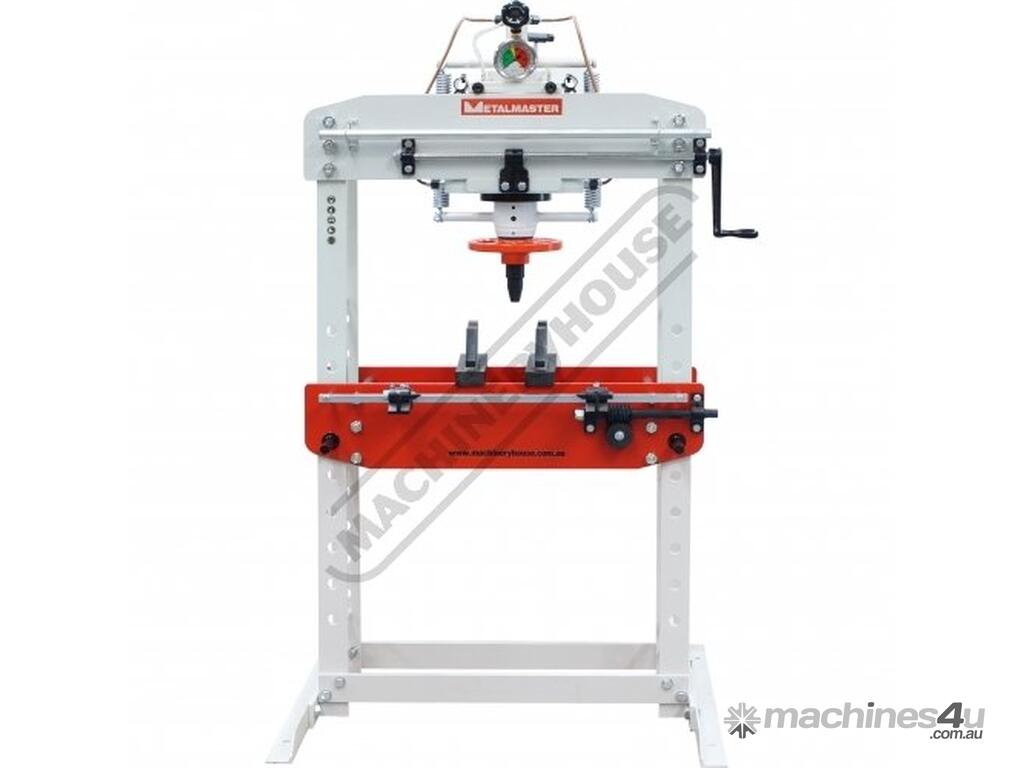

METALMASTER HDP-35 Trade Hydraulic Press - 35 Tonne S45C High Carbon Steel Frame Construction Includes 2 Speed Pump, Adjustable Sliding Cylinder Ram, Rapid Approach Ram, Table Winch System, Pressure Gauge & Bending Vee Blocks
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: P129

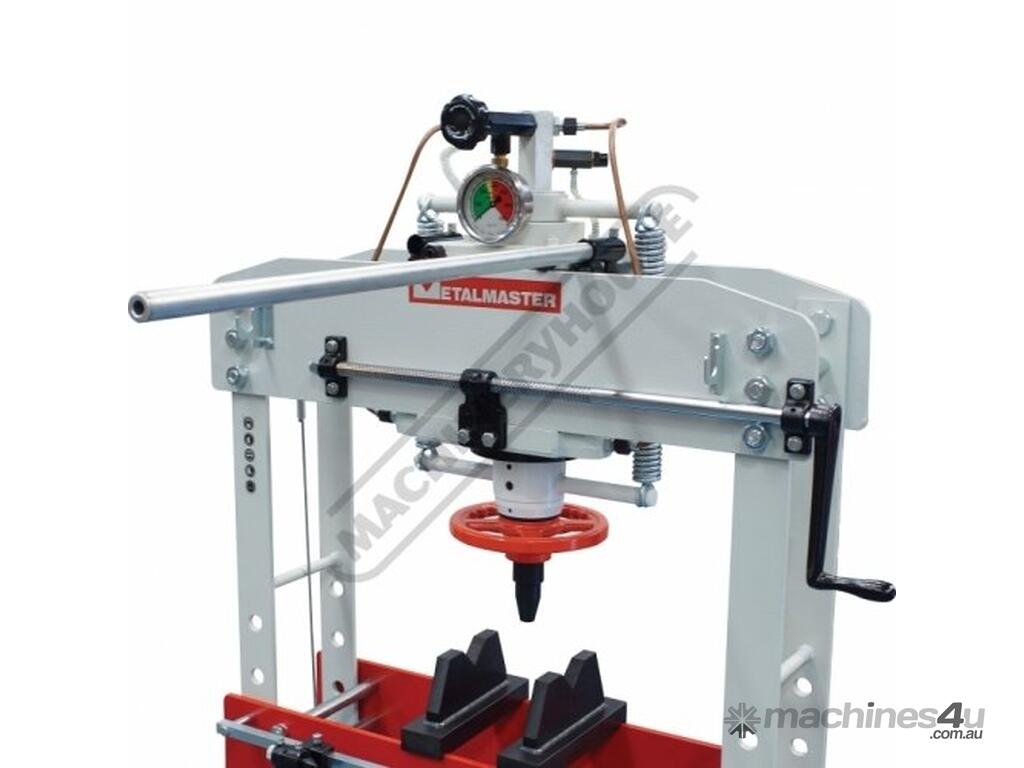

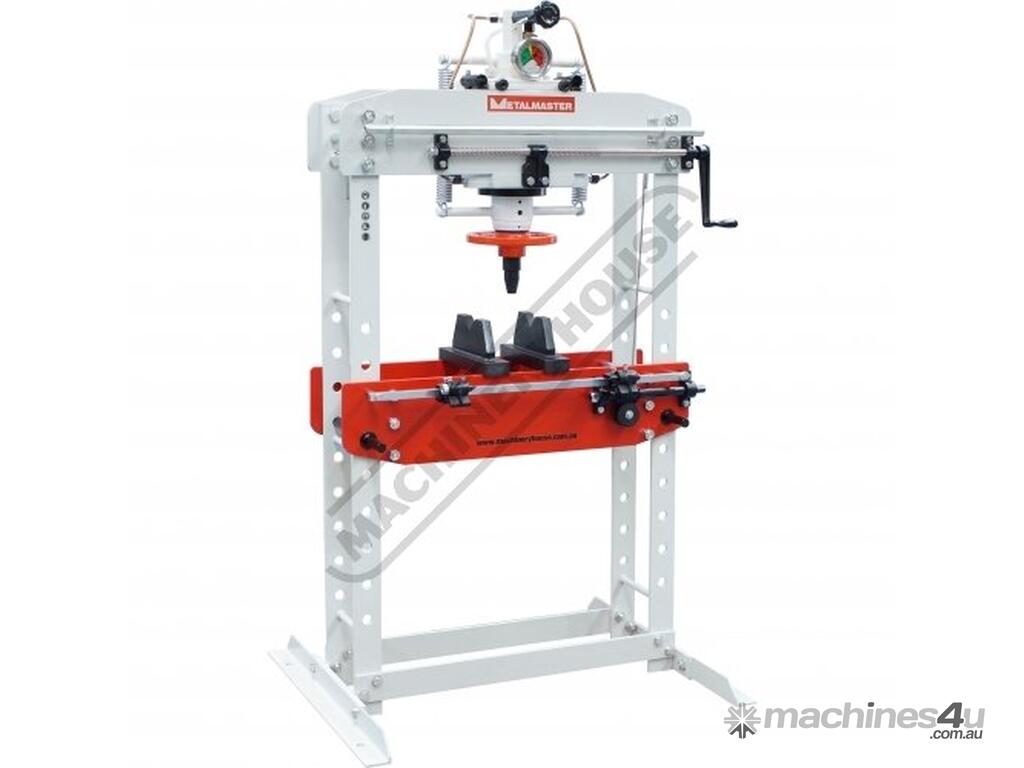

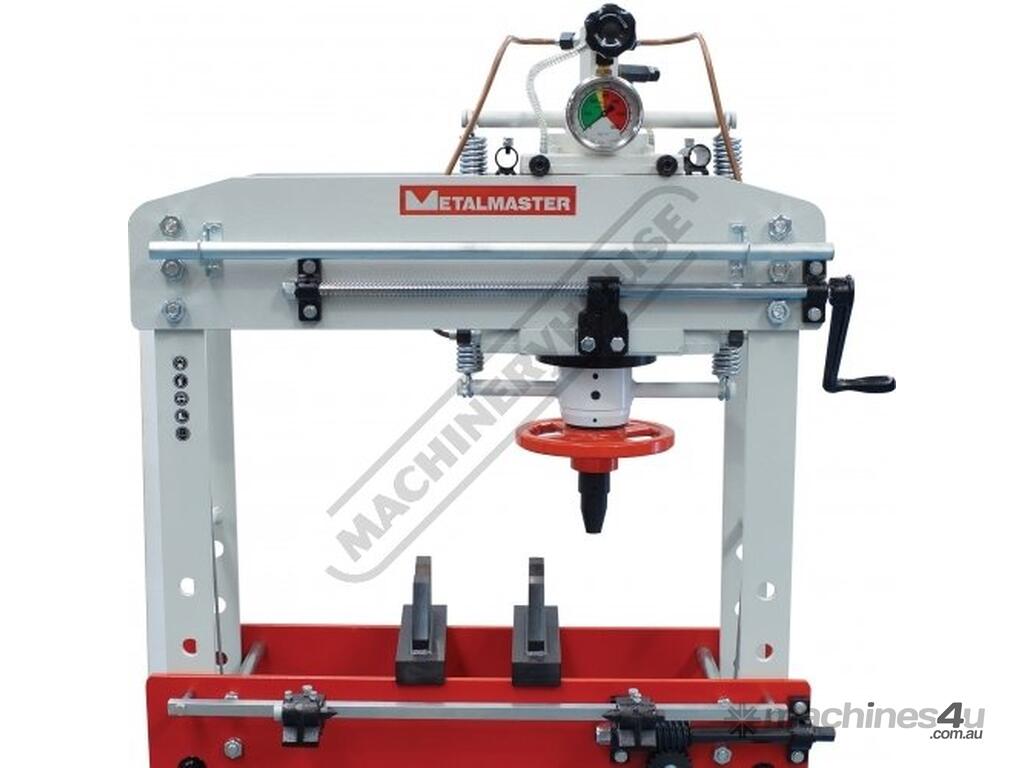

The Metalmaster HDP-35 35 tonne Trade press manufactured in Taiwan from tough S45C steel offers the most useful features of all the presses that are on market. So if you are after an all in one press you certainly can't look past this magnificent all-rounder to tackle those variety of jobs like removing and installing bushes, ball joints, bearings, gears, pulleys etc.

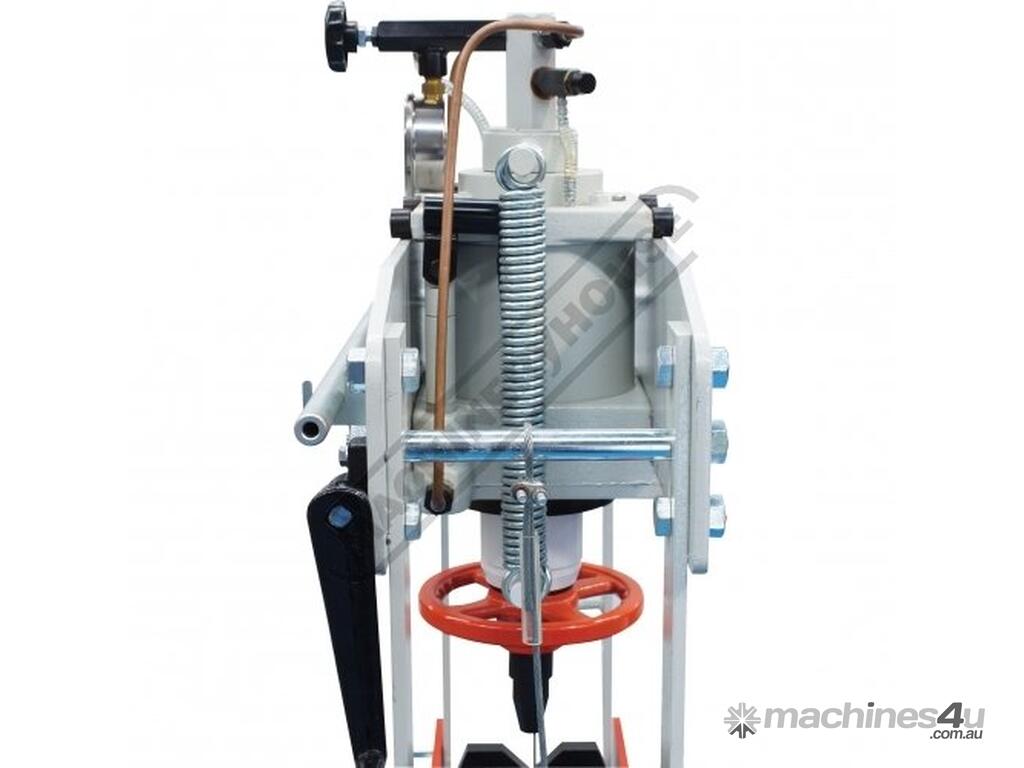

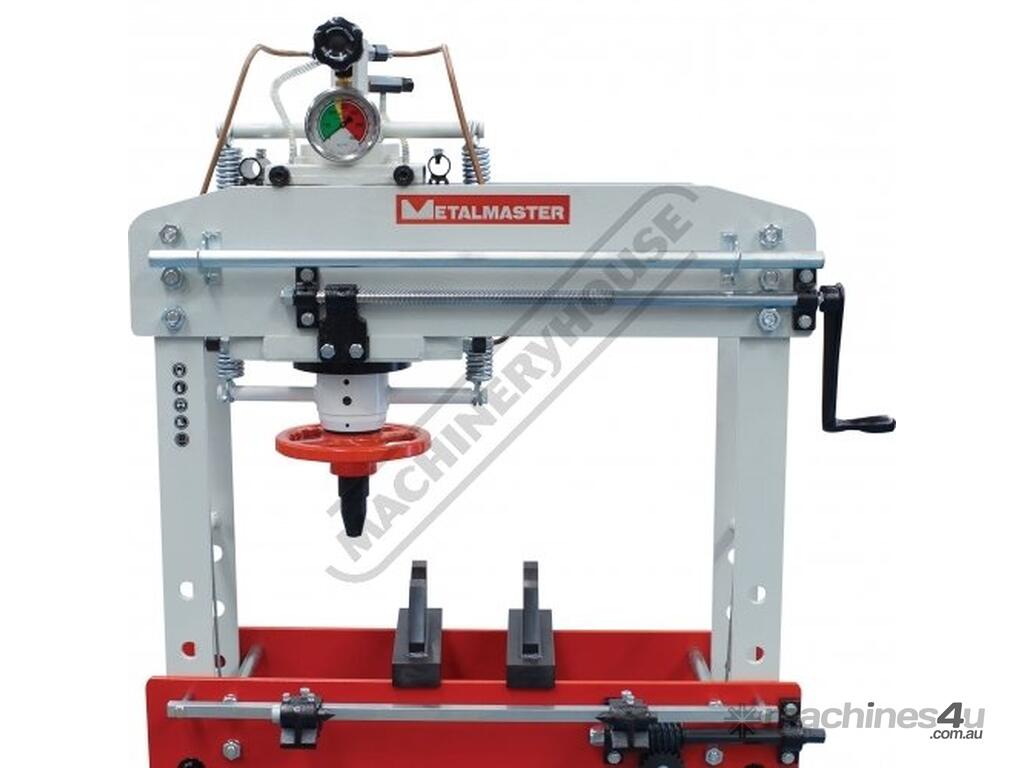

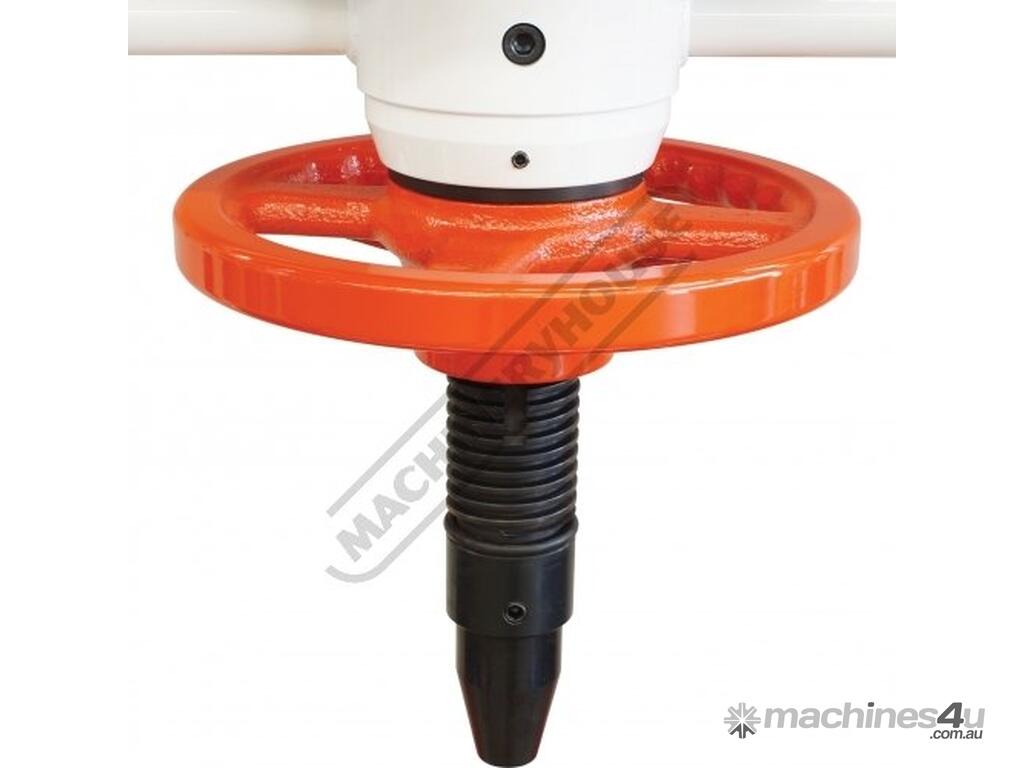

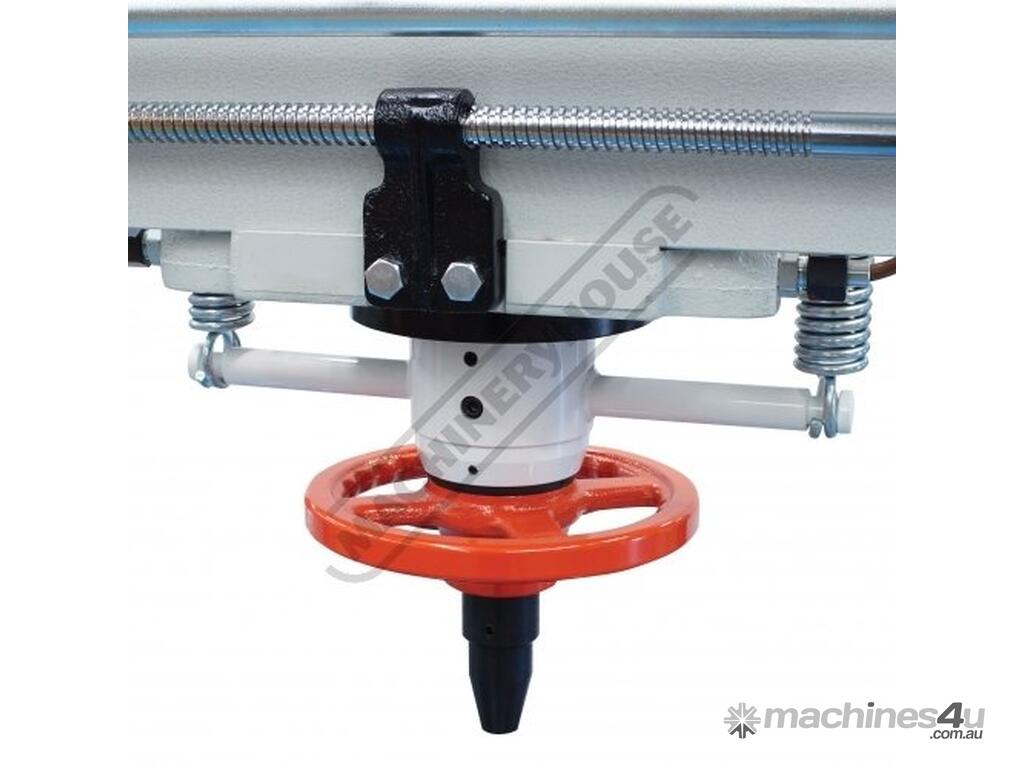

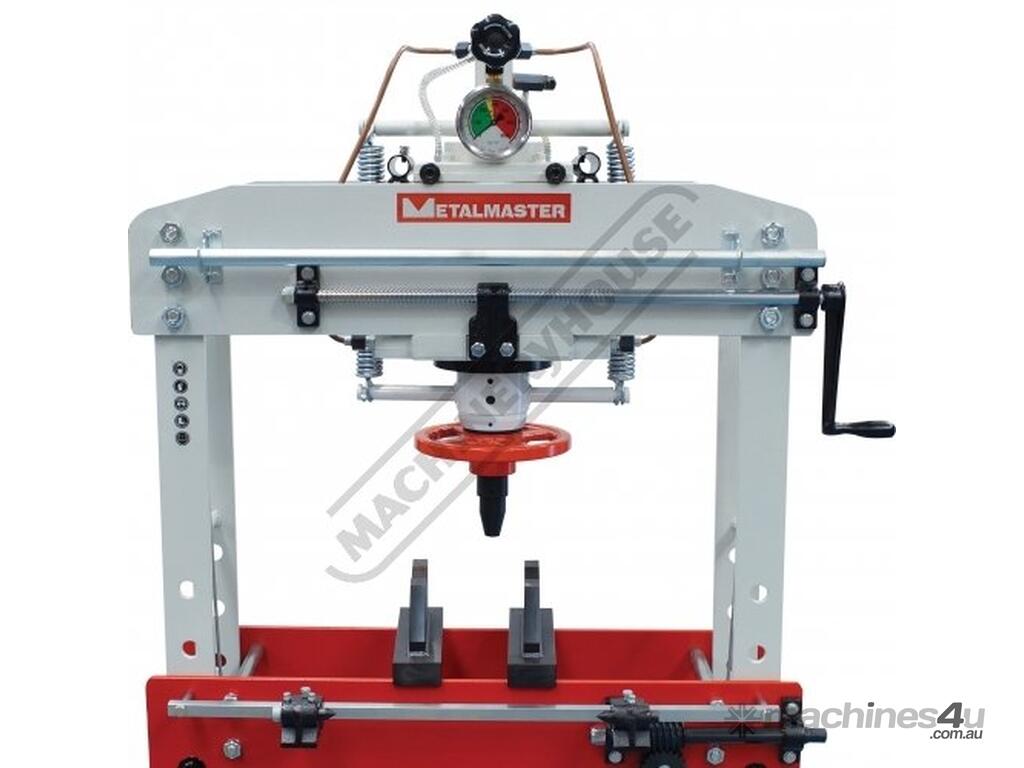

Firstly when using a press you are always finding yourself endlessly searching around for an adaptor to take up the distance between your job and ram, with this HDP-35 press you no longer require to do that as it has a unique screw type hand wheel attached to the ram ram that allows you to wind down the pressing head closer to your job. The ram also features a sliding head via a user friendly crank handle which can be rotated to move to the side allowing for those offset pressing jobs.

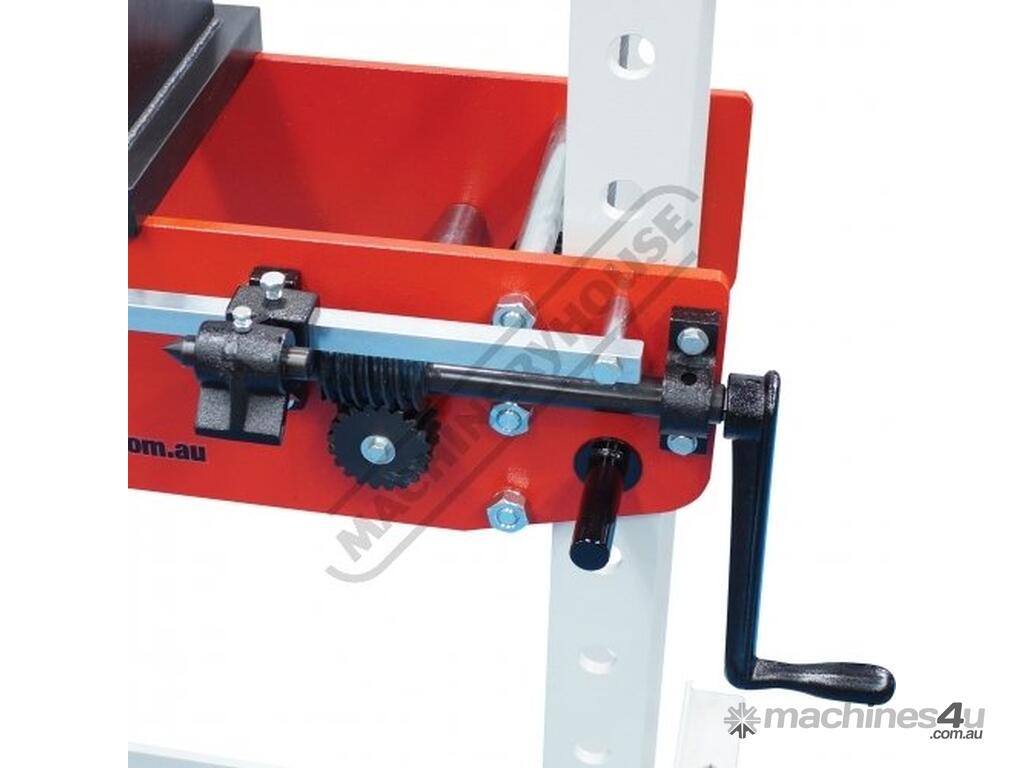

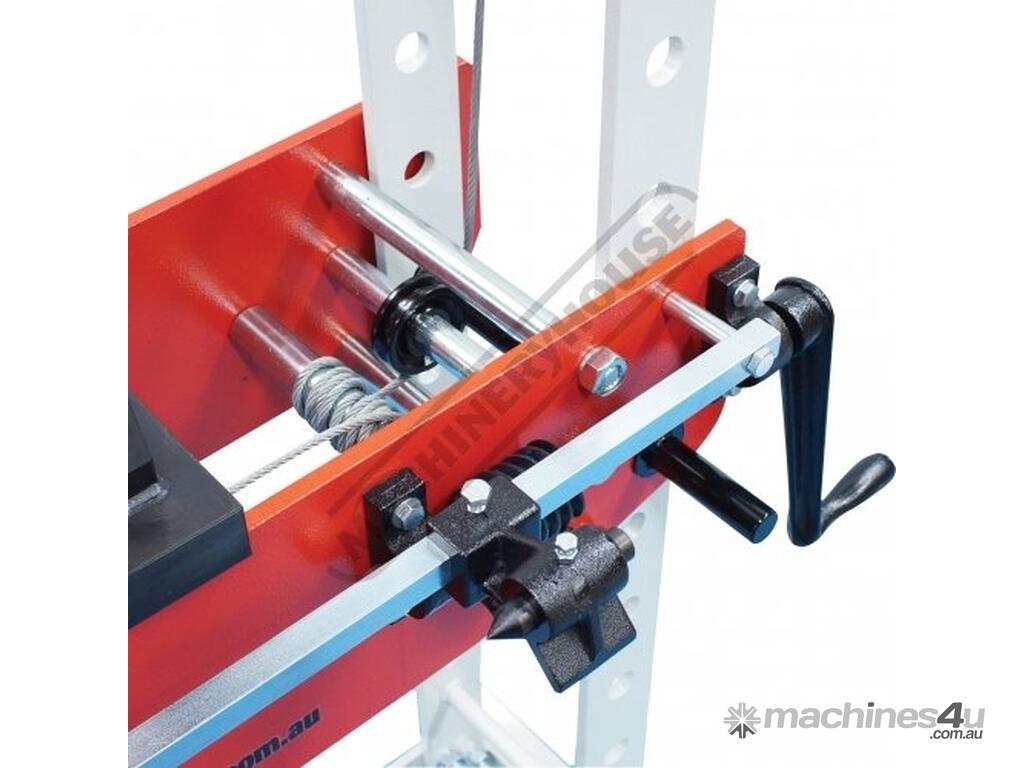

When it comes to shaft straightening we have you covered there as well, mounted on the front of the press is a centring shaft system allowing you to measure a bend shaft between centres with the aid of a dial indicator. Another great feature that everyone looks for in a quality all rounder press is that this HDP-35 pump also has a 2 speed pump system for rapid approach and high pressure allowing greater productivity. Included with this press is a large 100mm pressure gauge, heavy duty winch to raise & lower the work table to the desired height & a pair of vee block plates that has multiple uses.
Features:
Ideal for removing and installing - bushing ball-joints bearings gears pulleys etc
Manufactured from S45C high carbon & grade medium strength steel
Adjustable horizontal ram position
Double pump ram for rapid & high pressure
Screw type rapid approach on ram

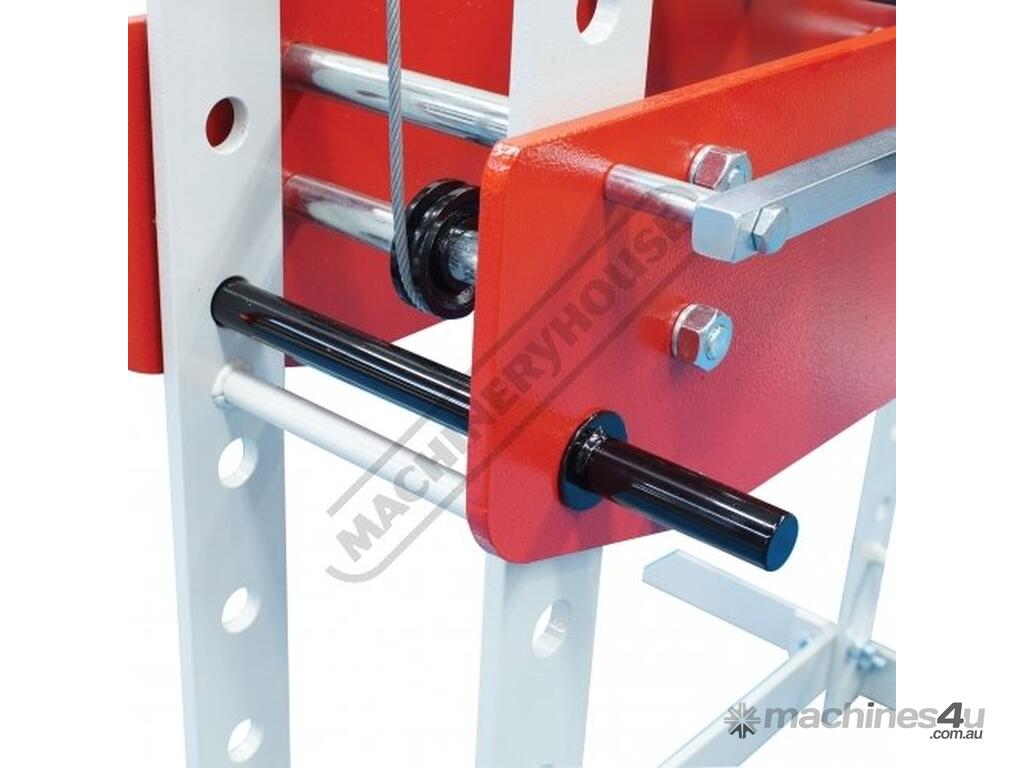

Heavy duty winch on table rise and fall

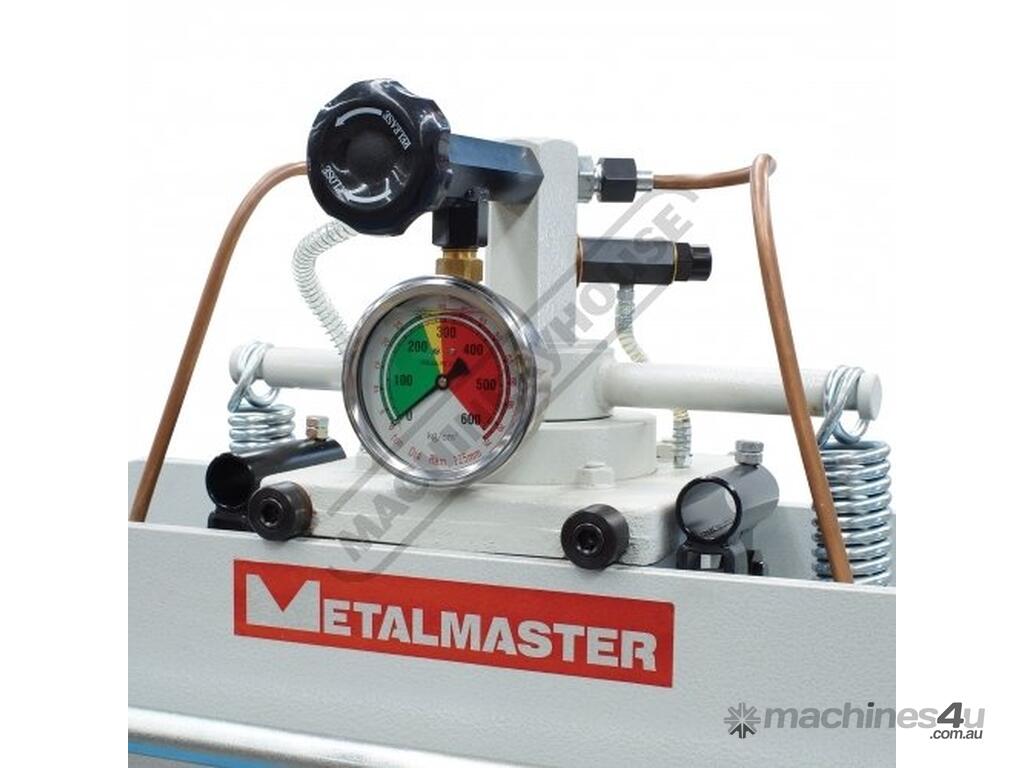

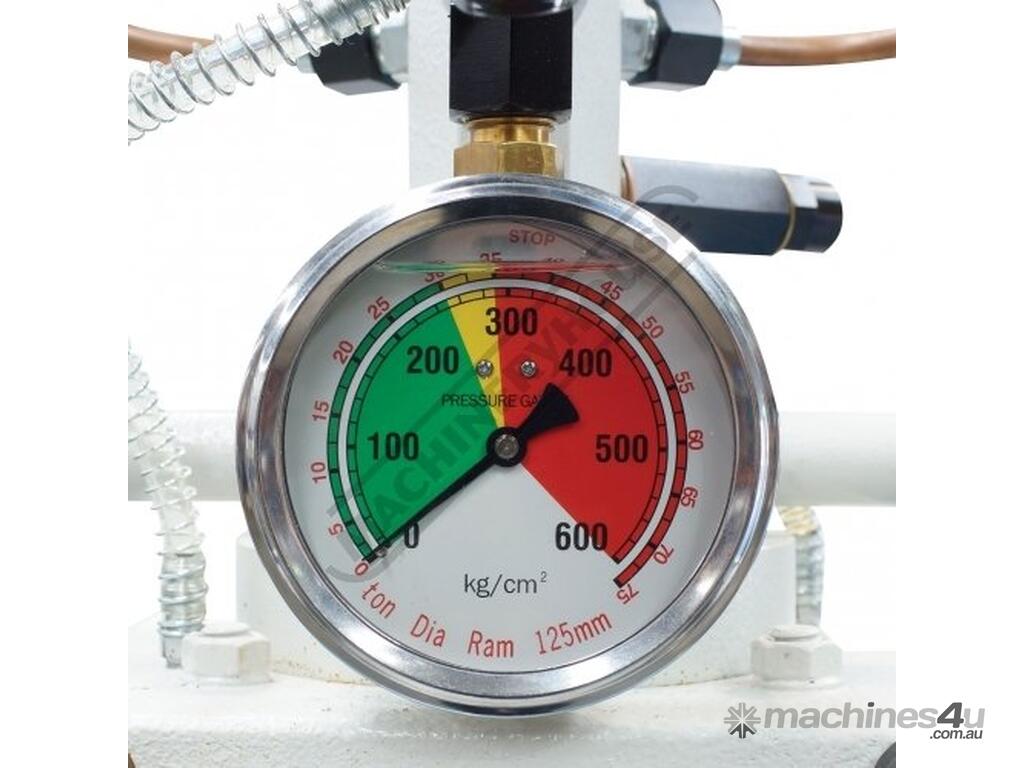

100mm pressure gauge
Spring return on ram

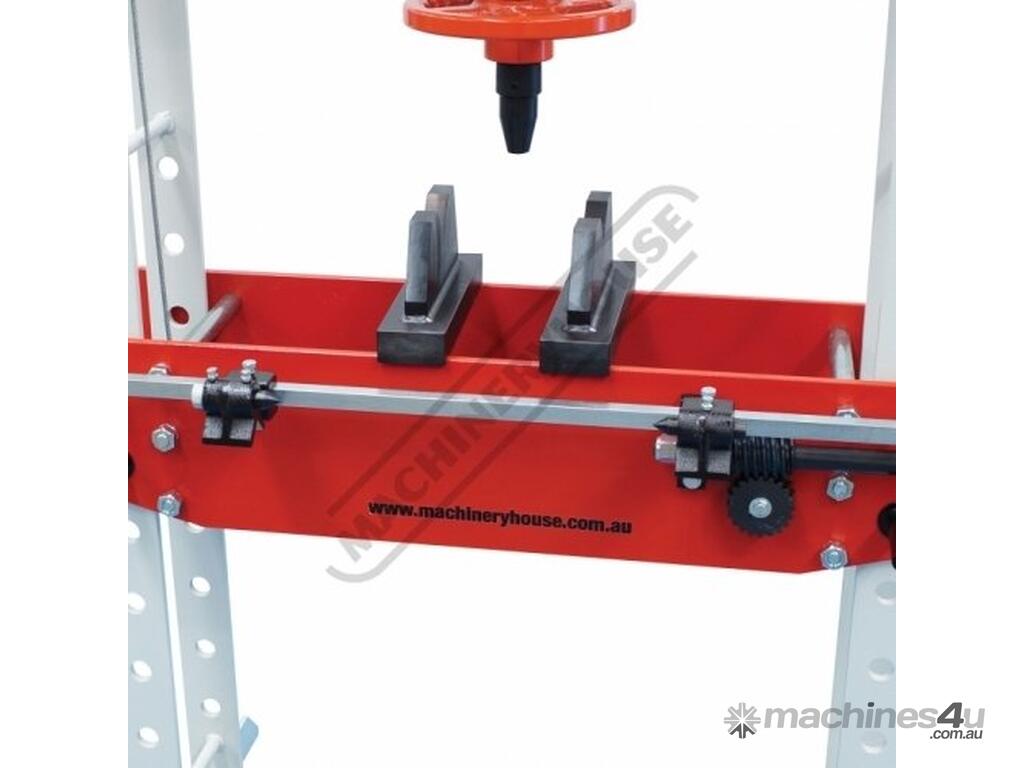

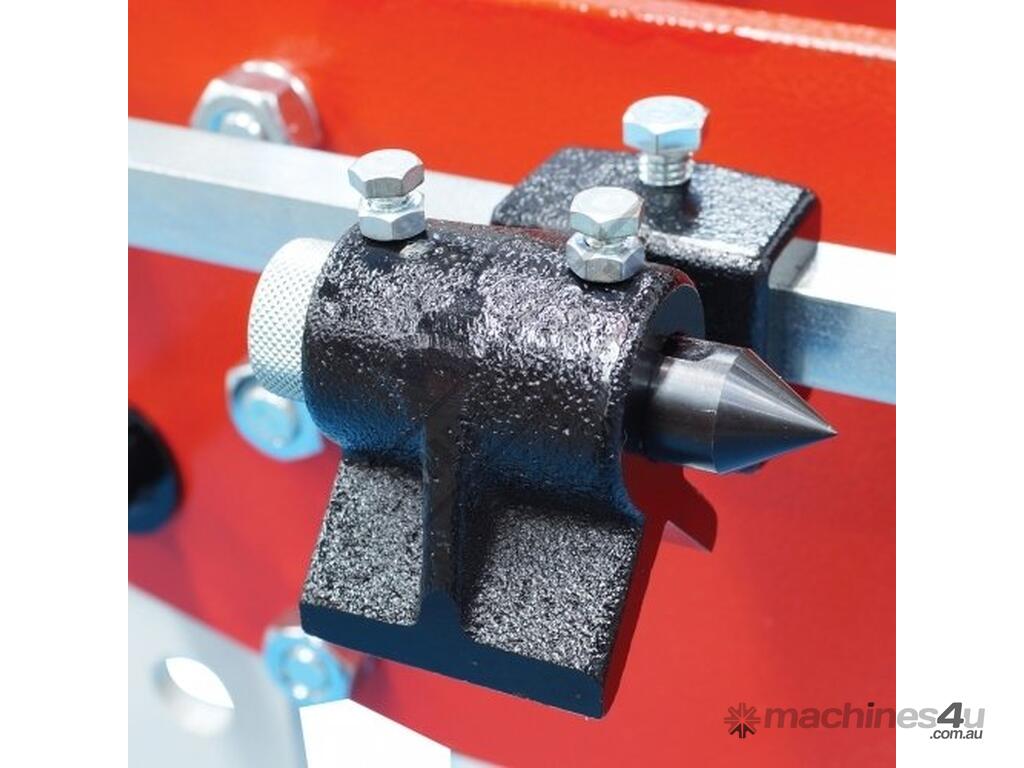

Adjustable dead centres for shaft straightening

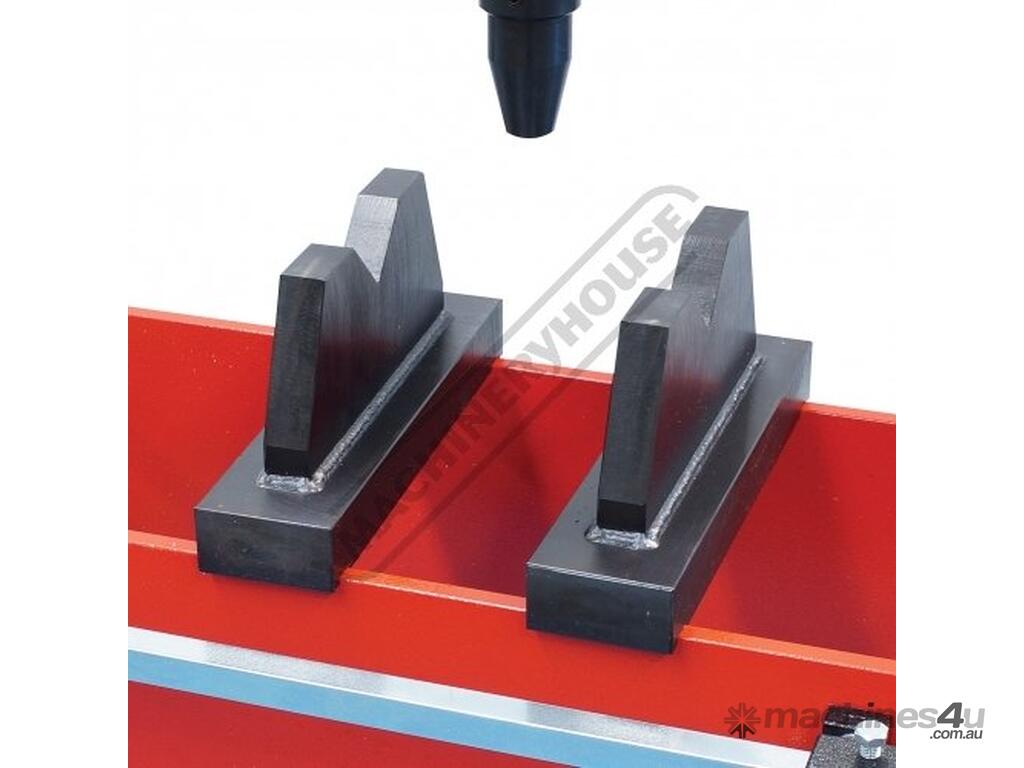

Includes vee blocks
Includes:
- Vee blocks
Specifications:
ORDER CODE: P129
MODEL: HDP-35
Pressing Capacity (Tonne): 35
Hydraulic Ram Operation (Type): Manual Hand Lever
Hydraulic Ram Operation (Type): ~
Sliding Ram (left-right) (Yes / No): Yes
Width Between Front Posts (mm): 790
Width Between Side Posts (mm): 208
Table Top Opening - (Front to Back) (mm): 240
Ram To Table (Max.) (mm): 730
Piston Ram Stroke (mm): 130
Ram Diameter (mm): Ø80
Motor Power (kW / hp): ~
Voltage (V): ~
Floor Space (W x D x H) (mm): 1170 x 850 x 1870
Shipping Dimensions (L x W x H) (mm): 1950 x 1100 x 500
Nett Weight (kg): 358
