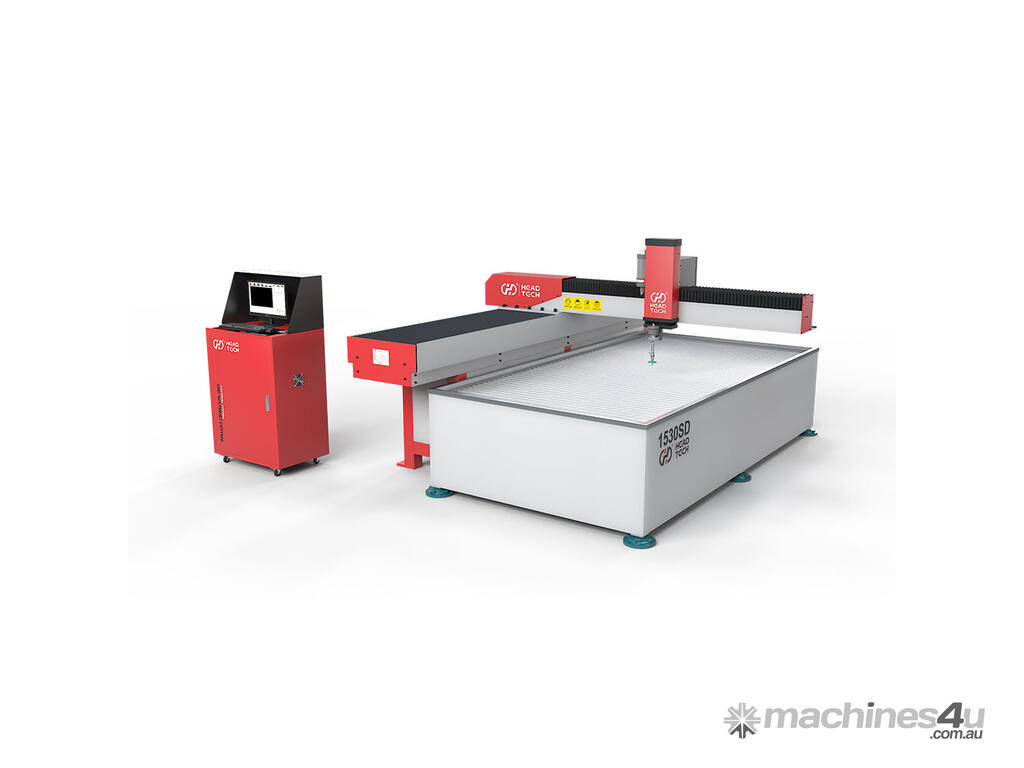

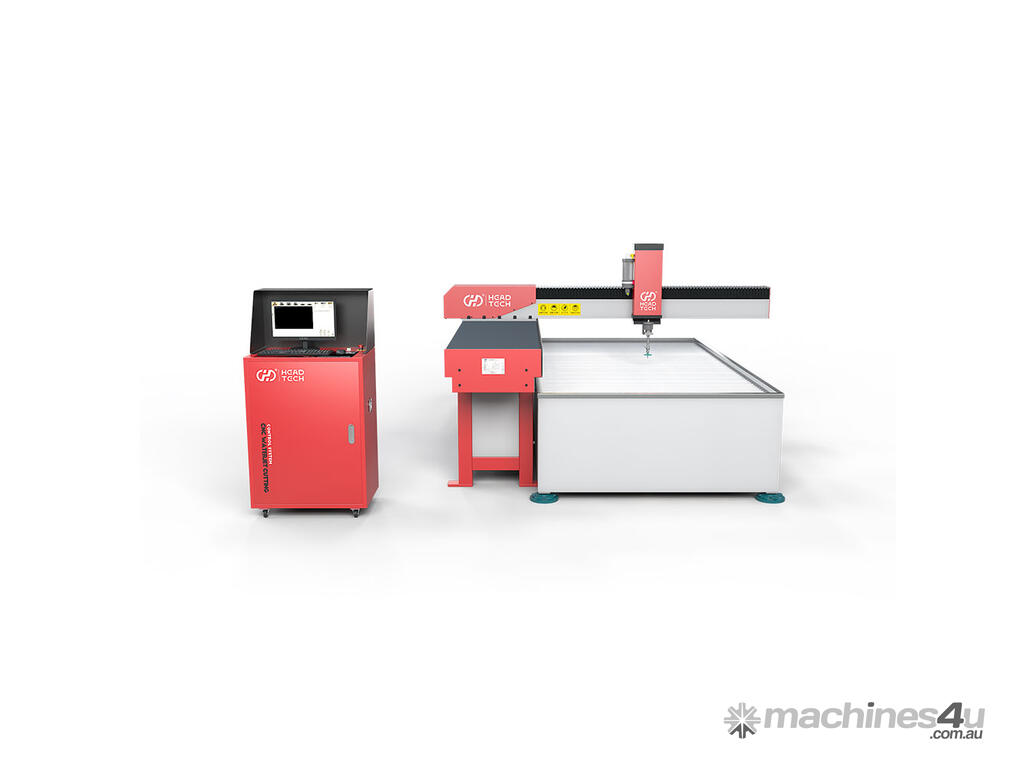

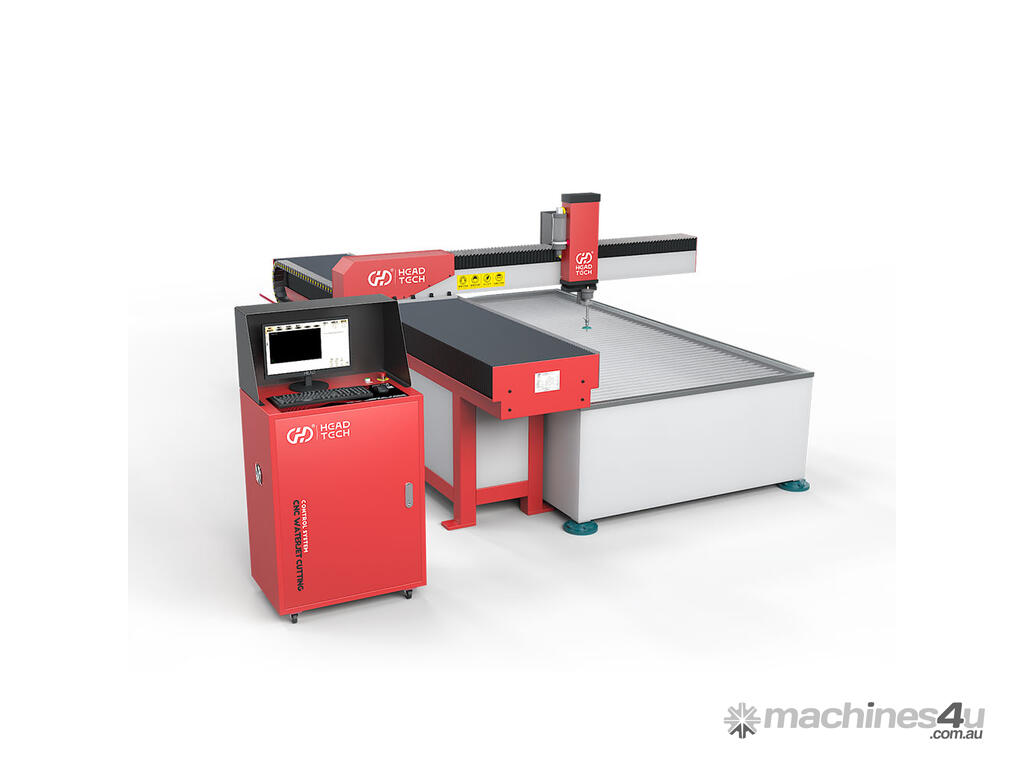

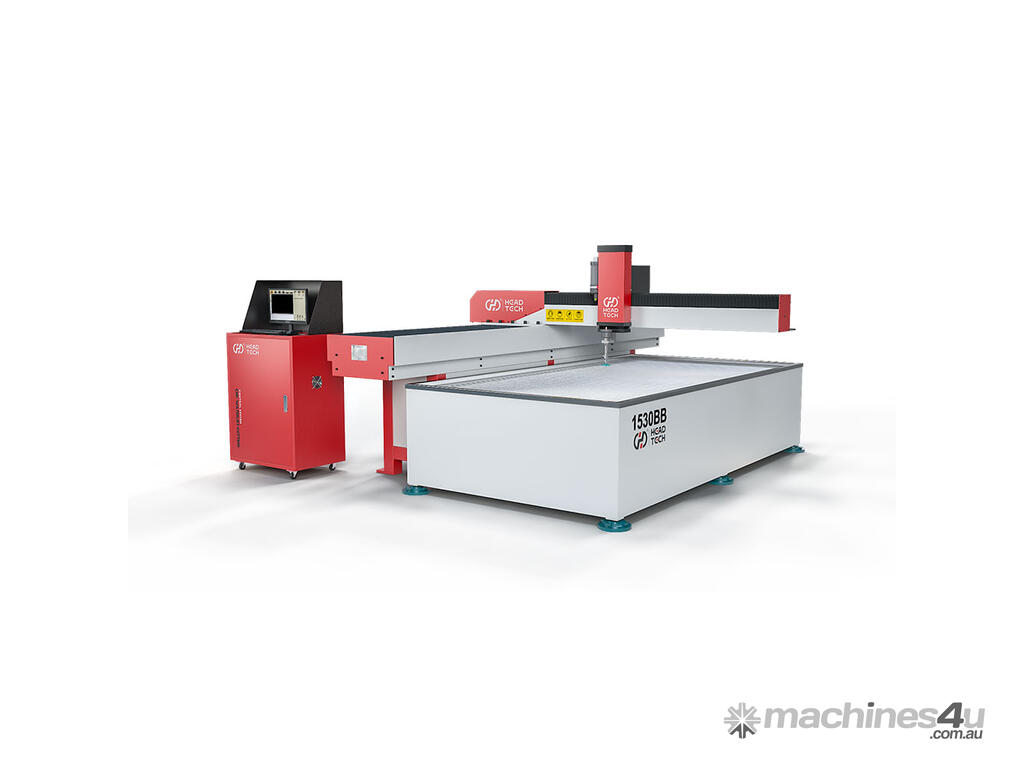

In the competitive landscape of metal processing, the HEAD1530SD (MP-C Series) represents the future of suspended control and precision. This cantilever split waterjet machine innovatively balances high-performance output with a compact design, making it the ideal entry-level solution for workshops looking to maximize both operational space and cutting accuracy.
Key Advantages for Your Workshop

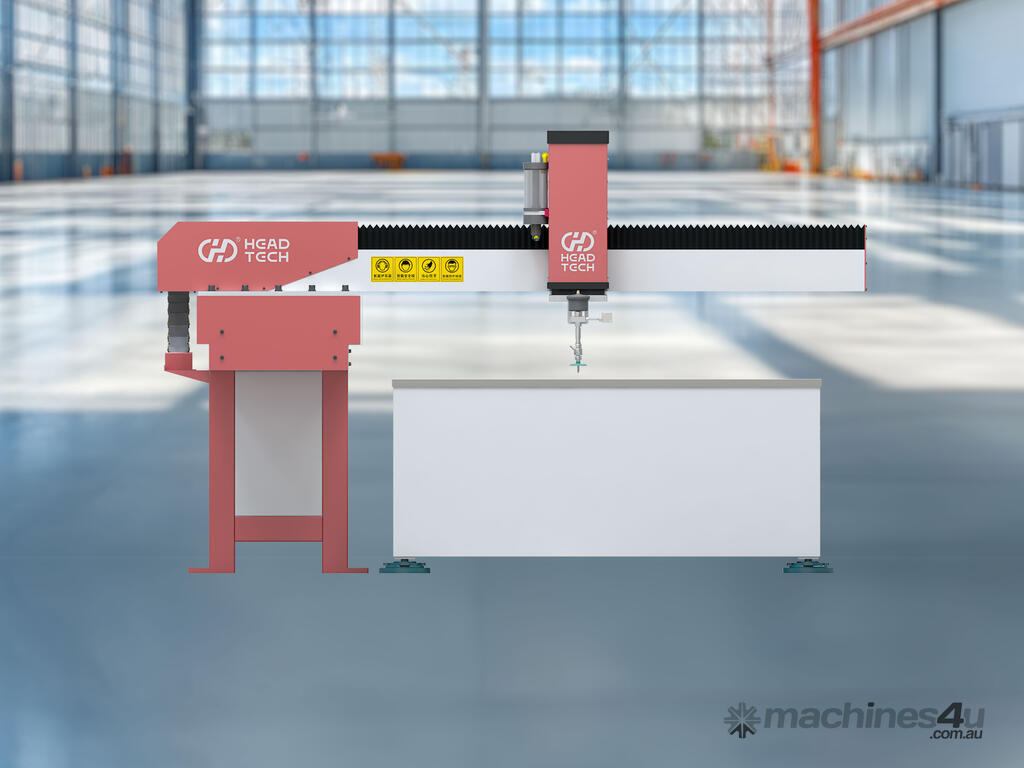

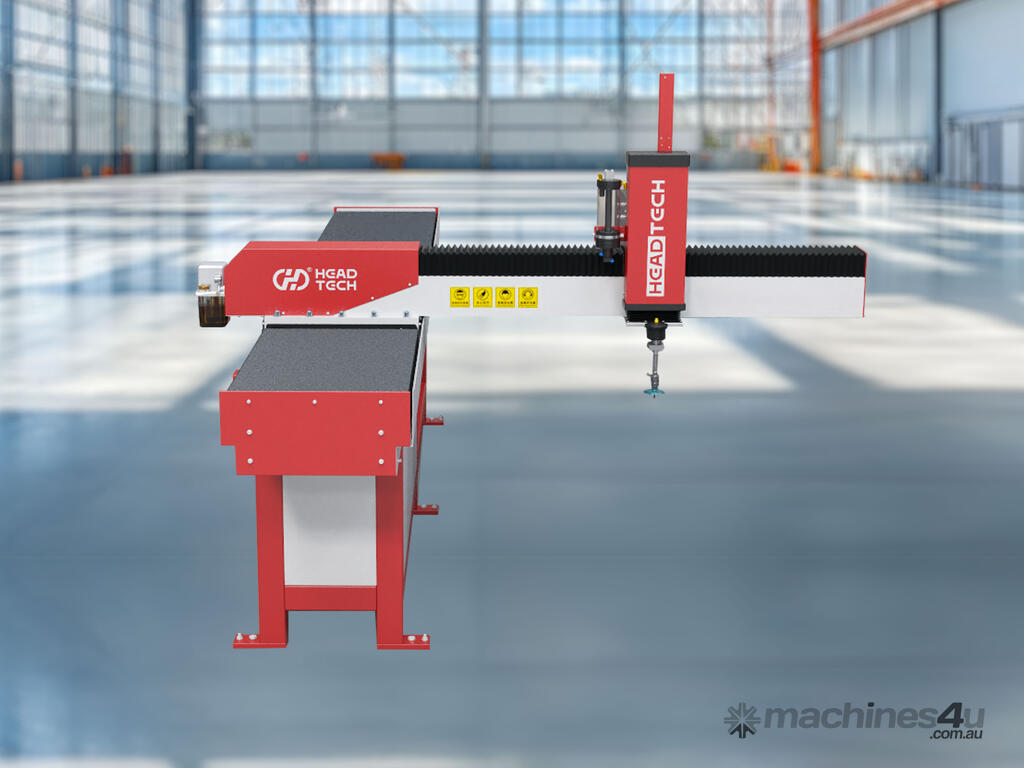

Optimized Space & High Adaptability: The cantilever structure features single-side support and an open layout. This design significantly increases space utilization, helping you optimize production lines and reduce overhead costs without sacrificing performance.
Engineering Rigidity & Stability: By combining a new welding process on the Y-axis with an extrusion-formed aluminum alloy X-axis, the machine achieves a perfect balance of lightweight agility and high rigidity. This ensures consistent stability during high-speed operations.
Efficiency Through Flexible Feeding: A specialized three-side feeding design allows for easy loading and unloading. This simplifies maintenance, reduces material handling damage, and ensures a seamless workflow between loading and cutting to double your processing efficiency.

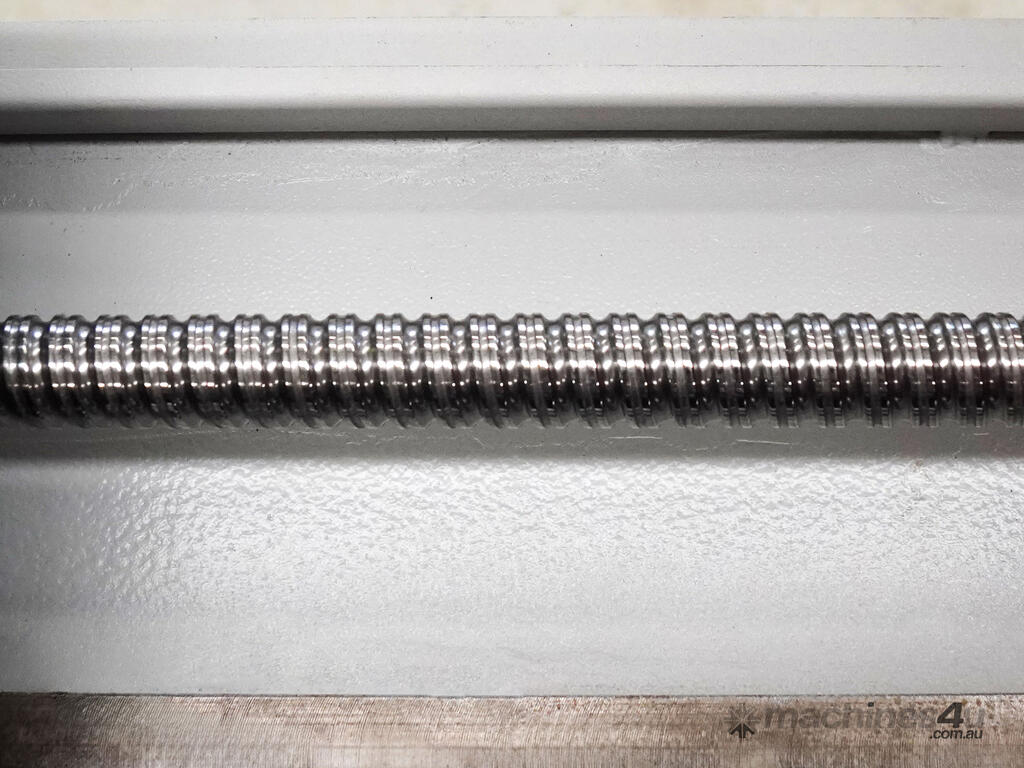

Premium Component Integration: The core of the HEAD1520SD features imported high-precision guide rails, gapless ball screws, and a bus-based CNC system. Paired with a high-performance booster and imported low-pressure water pump, it meets the complex processing needs of metals and general materials with ease.
Item,Technical Parameters
Platform Structure,Cantilever Split
X-axis Travel,1500mm
Y-axis Travel, 3000mm
Z-axis Travel,150mm
Cutting Accuracy, ±0.1mm
Positioning Accuracy, ±0.05mm/500mm
Repeat Positioning Accuracy, ±0.03mm/500mm
Maximum Idle Speed, 9000mm/min
Water Tank Load Capacity,500kg/m²
Why Choose the MP-C Series?
The cantilever structure empowers the precision art of water cutting through steel, ensuring that even entry-level users can achieve professional-grade results. Whether you are handling intricate metal art or heavy-duty industrial components, the HEAD1520SD provides the stability and accuracy required for modern manufacturing
