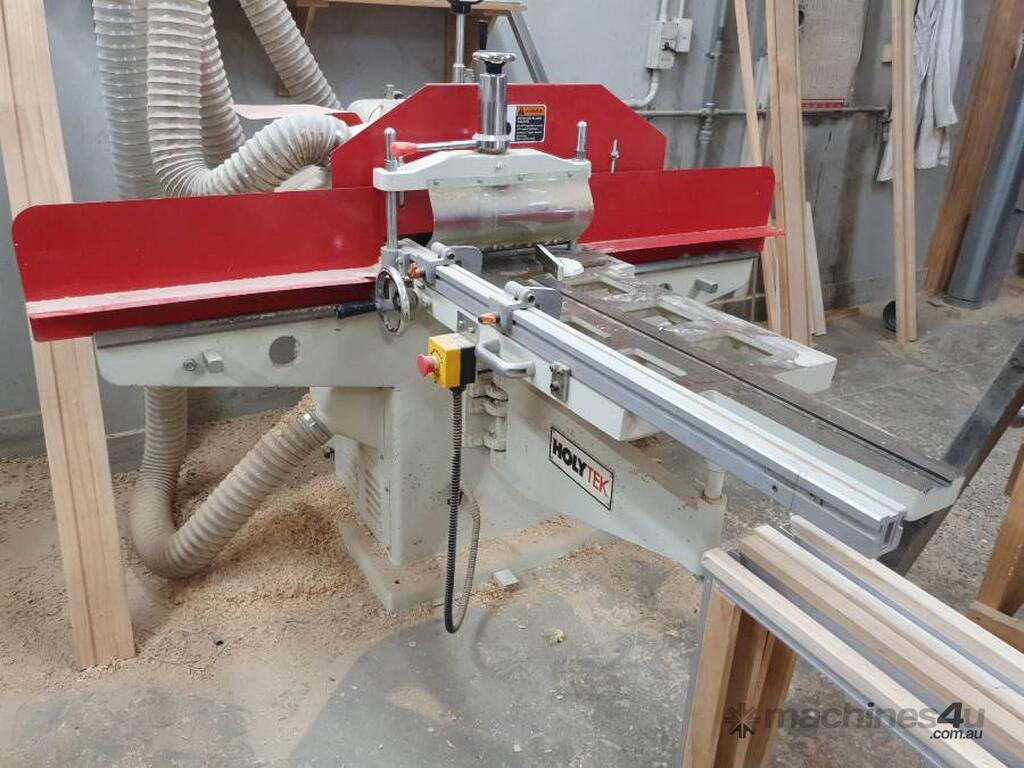

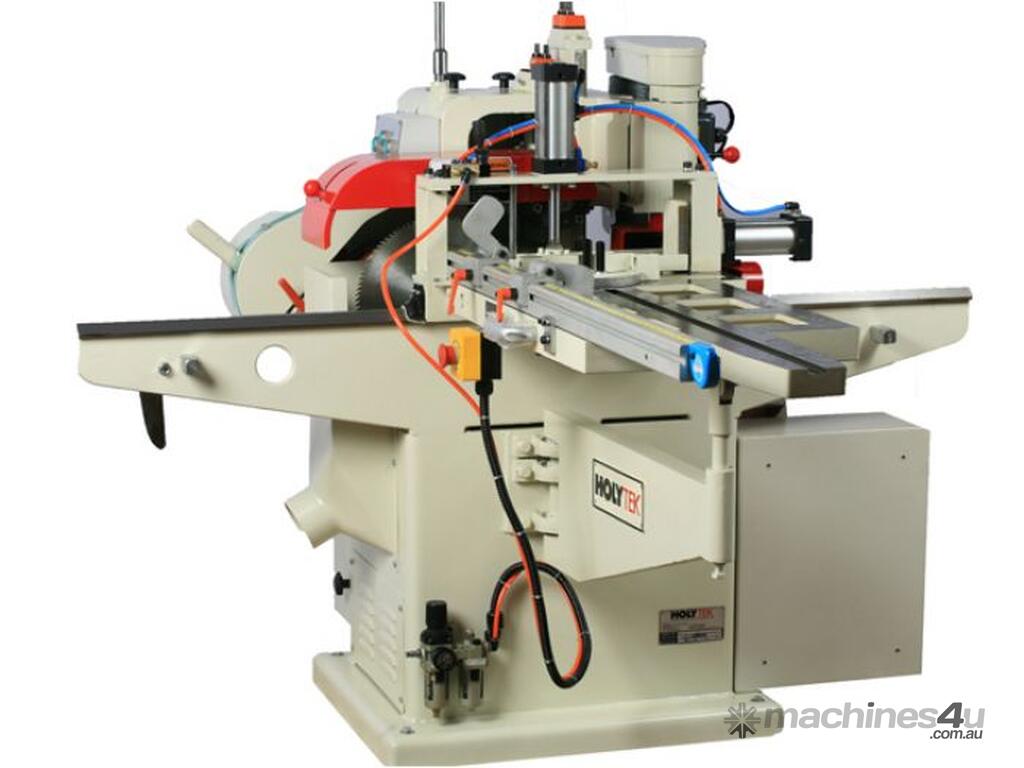

TRUPRO ST-152A SINGLE END TENONER New design with manual ballscrew type movement of tenon carriage and pneumatic clamping of workpiece
- 5HP-Horizontial spindles
- 3HP-Vertical spindle
- Spiral cutter head Horizontial spindles
- Maximum tenon cut: Length:152mm x Width:350mm x Thickness:120mm
- Maximum tenoning cutter head size: Diameter 110mm x 152mm Length
- Maximum Profiling/shaping cutter size: Diameter x 270mm
- Cut off sawblade diameter:300mm
- Tenon spindle: dia. 31.75mm
- Cope spindle: dia.31.75mm
- Saw spindle: dia 31.75mm
- Sliding table area:1280x450mm
N.W/G.W:530/650kgs
