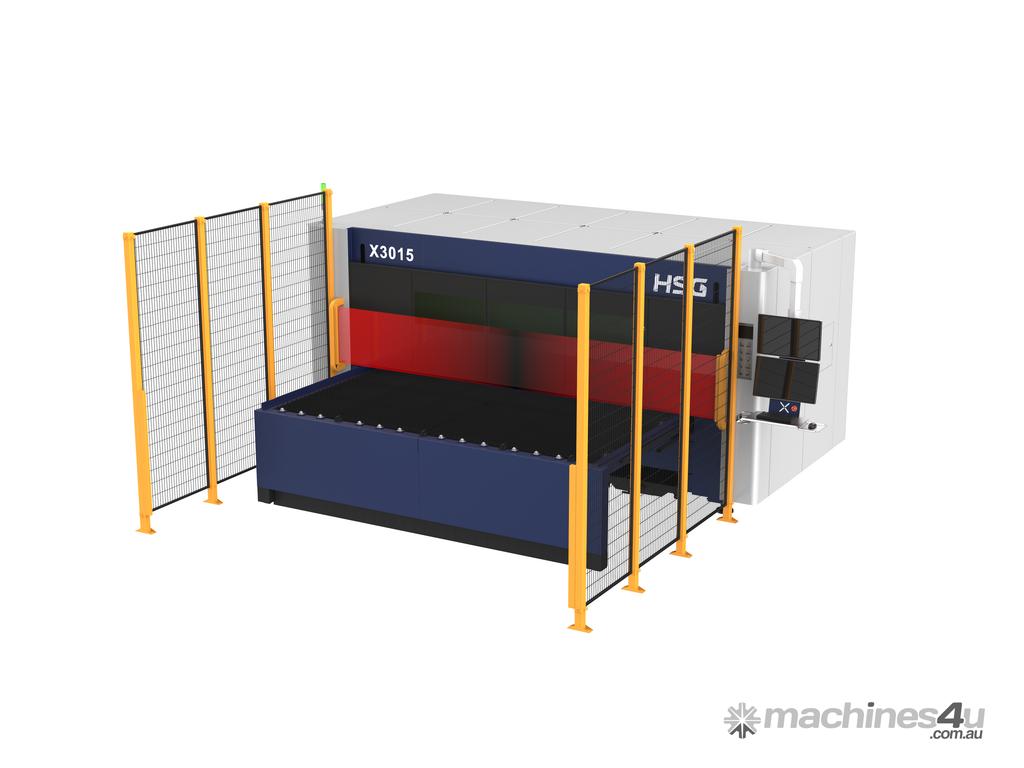

HSG X3015 6kW Fiber Laser Cutting Machine

HSG X3015 6kW Fiber Laser Cutting Machine
West Australian Supplied & Supported | From $167,790 + GST
(Available in varying power levels. Pricing varies depending on power source and optional equipment.)

The HSG X3015 6kW Fiber Laser Cutting Machine is a high-performance open-bed CNC laser cutting system, designed for fabrication businesses seeking to maximize their productivity, easy material accessibility, and exceptional cutting precision.

Featuring HSG's proven fiber laser technology, intelligent AlphaT control system, and rigid machine construction, the X3015 delivers reliable, high-speed processing of mild steel, stainless steel, aluminium, brass, copper, and galvanised materials.

The open-platform design allows rapid loading and unloading of sheet material, making the X-Series an ideal solution for workshops requiring flexibility, efficiency, and streamlined production workflow.

Suitable for a wide range of industries including:

- General fabrication
- Sheet metal manufacturing
- Engineering workshops
- Automotive manufacturing
- Agricultural manufacturing
- Architectural metalwork
- Jobbing shops and contract cutting
- Production cutting environments

Key Specifications:

- Machine Size = 3080mm × 1524mm
- Z-Axis Stroke = 75mm
- Positioning Precision of X/Y Axis = ±0.03mm/m
- Repetitive Positioning Precision of X/Y Axis = ±0.03mm
- Maximum Linkage Speed = 120m/min
- Maximum Linkage Acceleration = 1.5G
- Maximum Loading Capacity = Approx. 900kg
- Power Supply = 380V (3-Phase)
- Frequency = 50/60Hz
-Power Consumption = 38KW/76A(6000W)

Machine Dimensions:

- Length × Width × Height (Including Grating) = 4600mm × 2452mm × 2520mm
- Including Safety Railing = 4600mm × 4252mm × 2520mm

Standard Features:

- HSG Auto-Focus Cutting Head
- High-Efficiency Fiber Laser Source
- AlphaT Control System
- EtherCAT Bus Communication
- Intelligent Process Database
- Multi-Stage Piercing Functions
- Automatic Maintenance Reminders
- Process Reporting Functions

Suitable For Cutting:

- Mild Steel
- Stainless Steel
- Aluminium
- Brass
- Copper
- Galvanised Steel

Benefits:

- Fast and efficient sheet loading and unloading
- Increased production throughput
- Reduced subcontract cutting costs
- High-speed processing capability
- Excellent cut quality and repeatability
- Lower operating costs compared with traditional CO2 laser systems
- Compact footprint compared to enclosed shuttle-table machines
- Australian supplied and locally supported
- Local and factory warranties and elite After-Sales Support

Unlike many online-only machinery suppliers, BORNER Machinery provides comprehensive Australian support including:

- Machine installation & commissioning
- Operator training
- Technical support
- Spare parts & consumables supply
- Preventative maintenance support
- Ongoing servicing and after-sales assistance
- Full Western Australian and Northern Territory service coverage
- Optional Equipment & Upgrades
- Nitrogen generators
- Air compressors
- Dust extraction systems
- Voltage stabilisers
- Automation systems
- Loading and unloading solutions
- Software and nesting upgrades
- Sheet and tube processing solutions

Financing options available on request.

Availability to arrange a demonstration within Perth-Metro area, on request.

Contact BORNER Machinery today for full specifications, lead times, cutting samples, and our full range of available machine configurations/modifications.
