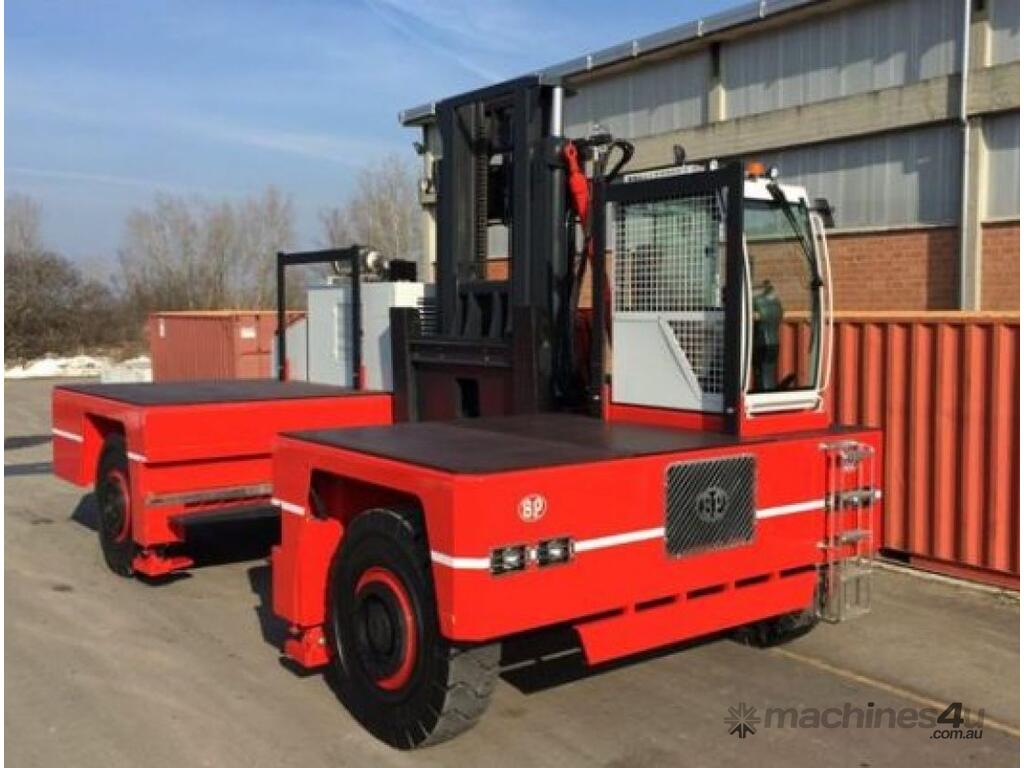

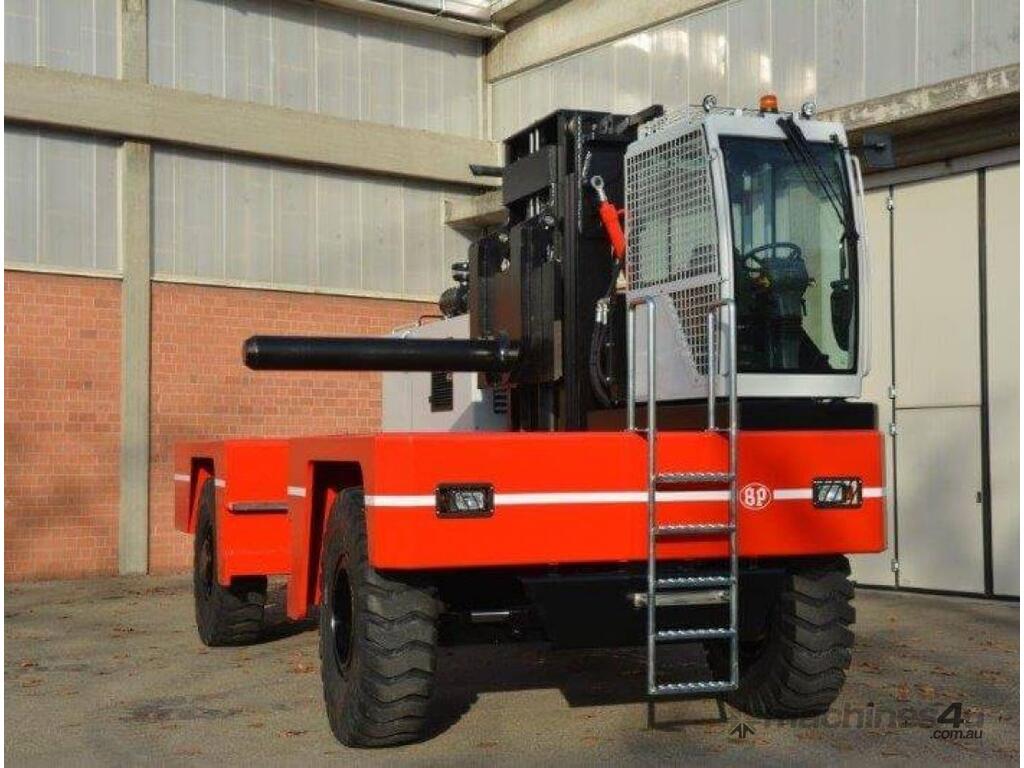

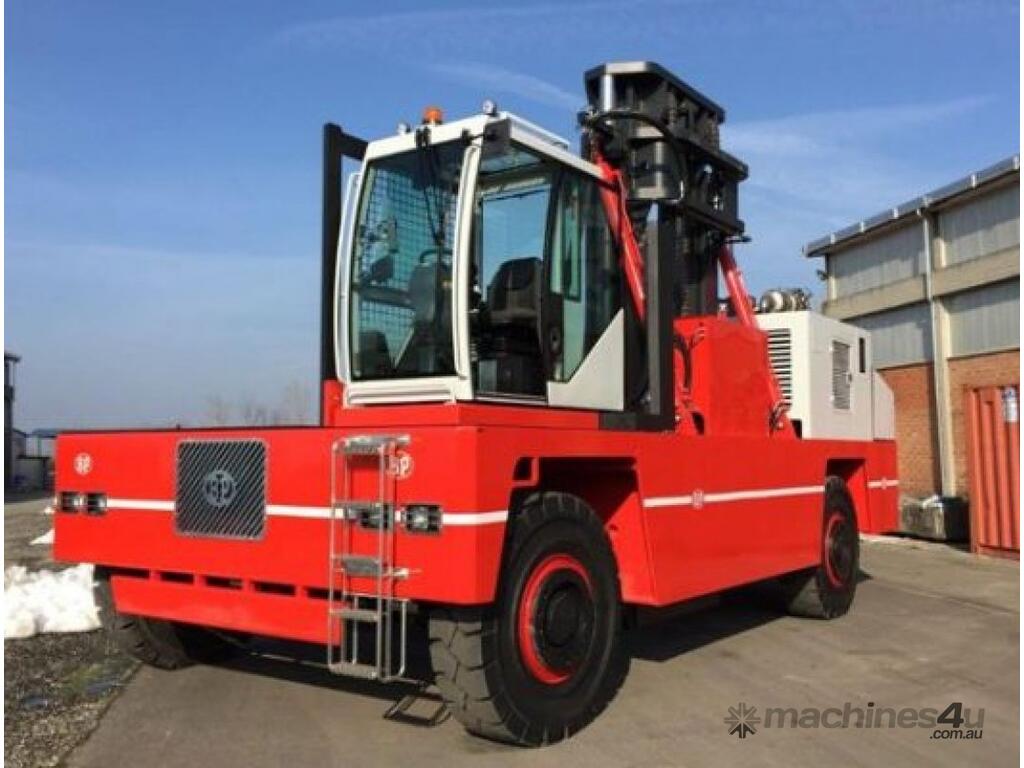

HT25 - Side Loader - Hire

BP Side Loaders – Diesel & LPG

The HT25 Side Loader includes a turbo diesel engine and pneumatic tires for operating in indoor and outdoor spaces, over a very wide range of grounds and under all weather conditions. It is powerful and strong, with an ability to easily and safely handle and transport heavy and bulky loads.

FEATURES & BENEFITS

Turbo diesel engine
Pneumatic tires
Traction is hydrodynamic “power shift“ with 3 speeds forwards and 3 reverse reaching a max. speed of 25 Km/h
Two front steering wheels with power steering (servo assisted):
Hydraulic mono cylinder front axle enabling narrow steering
Rear axle with double reduction group and high resistance special steel half shafts providing for maximum torque to the wheels
Separate service brake circuits on the front and rear axles with brake pedal control
Hydraulic service brake with disc servo assisted braking on the front wheels and with bath oil disc servo assisted braking on the rear wheels
Dust protection filter for hydraulic system cleaning
Two rollaway hydraulic stabilisers for loading. Capacities are given with and without stabilisers
Special steel profiles of lifting mast with traverse guide rollers mounted on high resistance bearings
Reinforced special steel profiles protecting the cabin side and the engine bonnet
Reverse alarm
Working lights and rotating yellow lamp on cabin roof
Complete road circulation lighting
Equipped with all mandatory Safety Devices and Systems as specified by EEC Equipment Directive 98/37, 89/336, 92/31, 2004/108
Supplied with Usage and Maintenance Instruction Book, Spare Parts Catalogue and Certificate of Conformity To EEC Equipment Directive 98/37, 89/336, 92/31, 2004/108


SPECIFICATIONS

Capacity: (kg):
20,000
Fork Length (mm):
1500/1600/1800/2000/2500
Load Center (mm):
750/800/900/1000/1250
Tyres:
Pneumatic 16.00×25
Engine:
Perkins 1106D-E66TA Turbo 151 KW – 2200 rpm
Transmission:
Hydrodinamic DANA-CLARK 32000
Tilting:
Chassis
