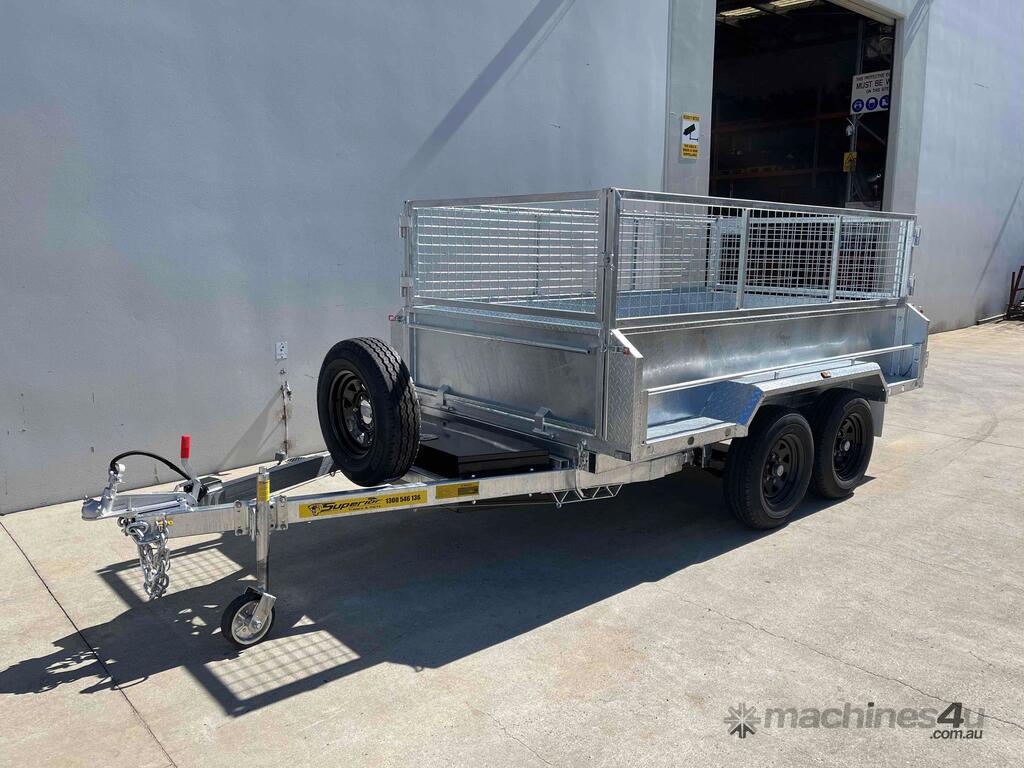

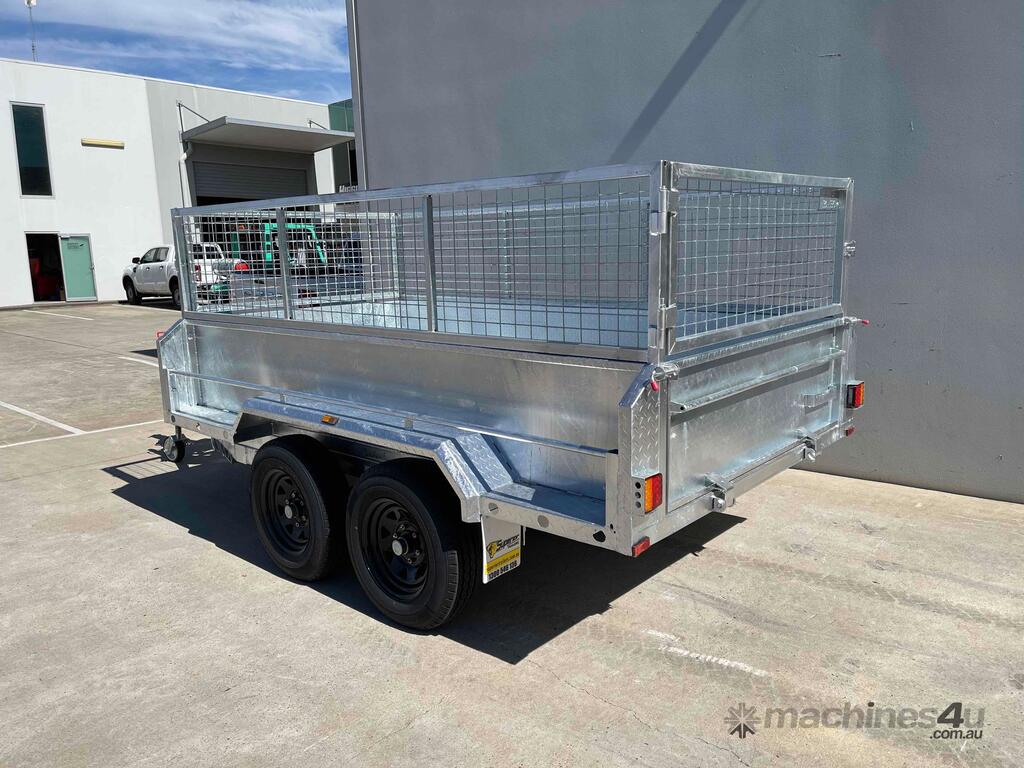

HYDRAULIC TIPPER PREMIUM TRAILER 3.5t 10X5

SUPERIOR HYDRAULIC TIPPER 10x5 PREMIUM TRAILER 3500KG RATING

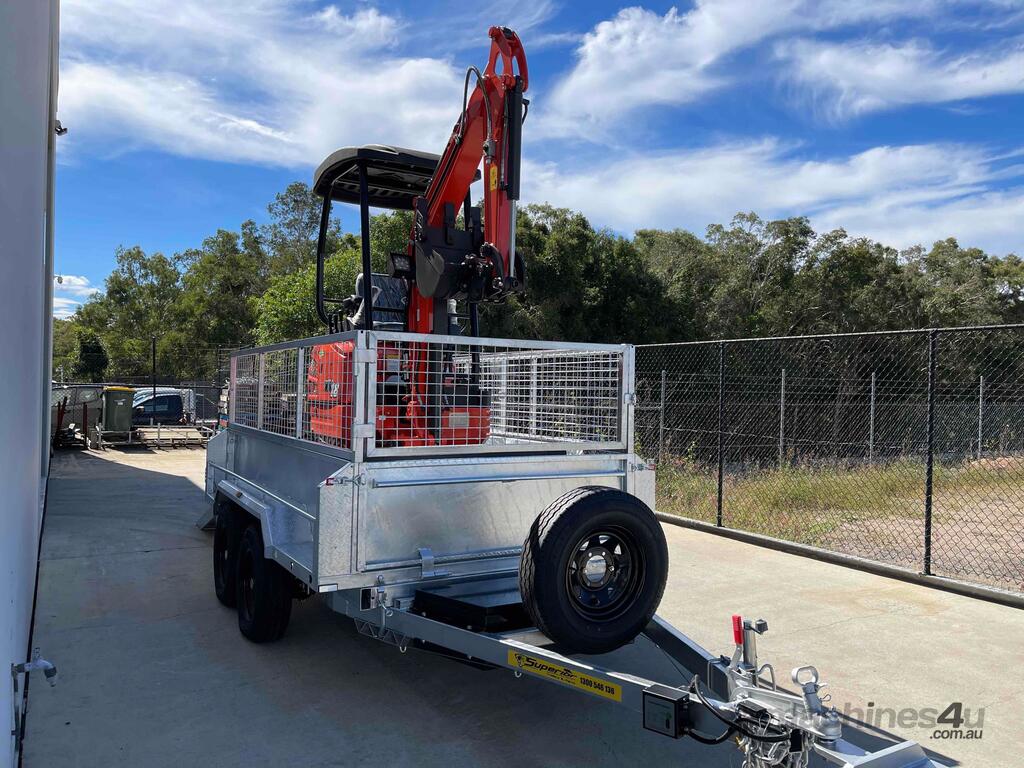

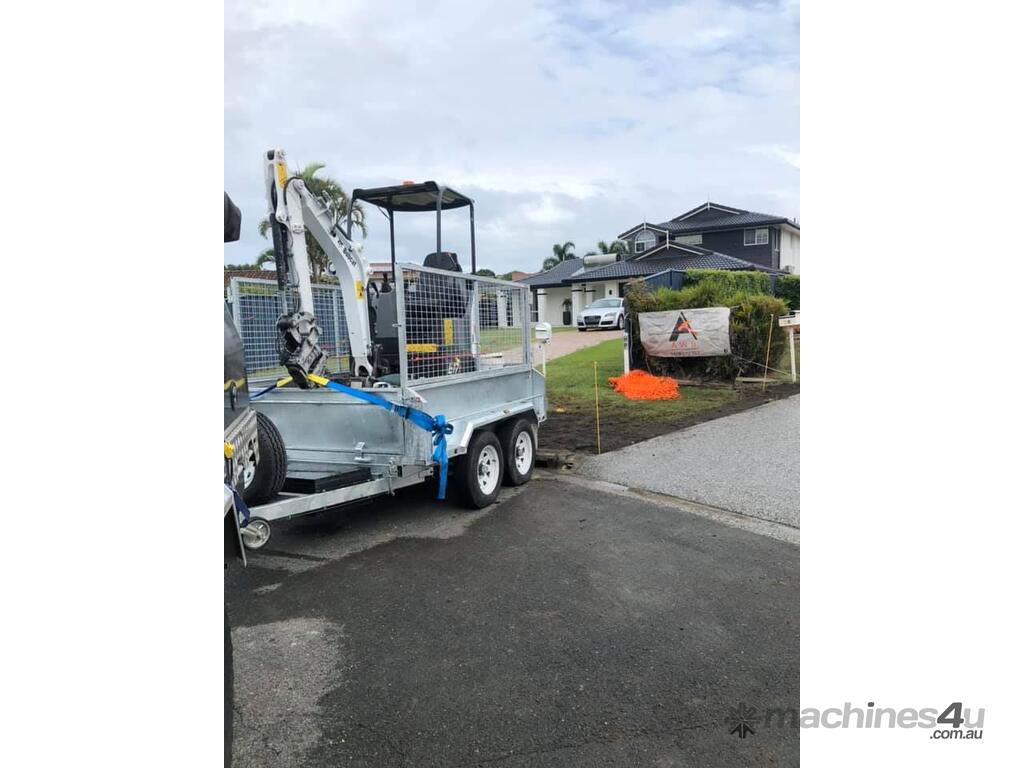

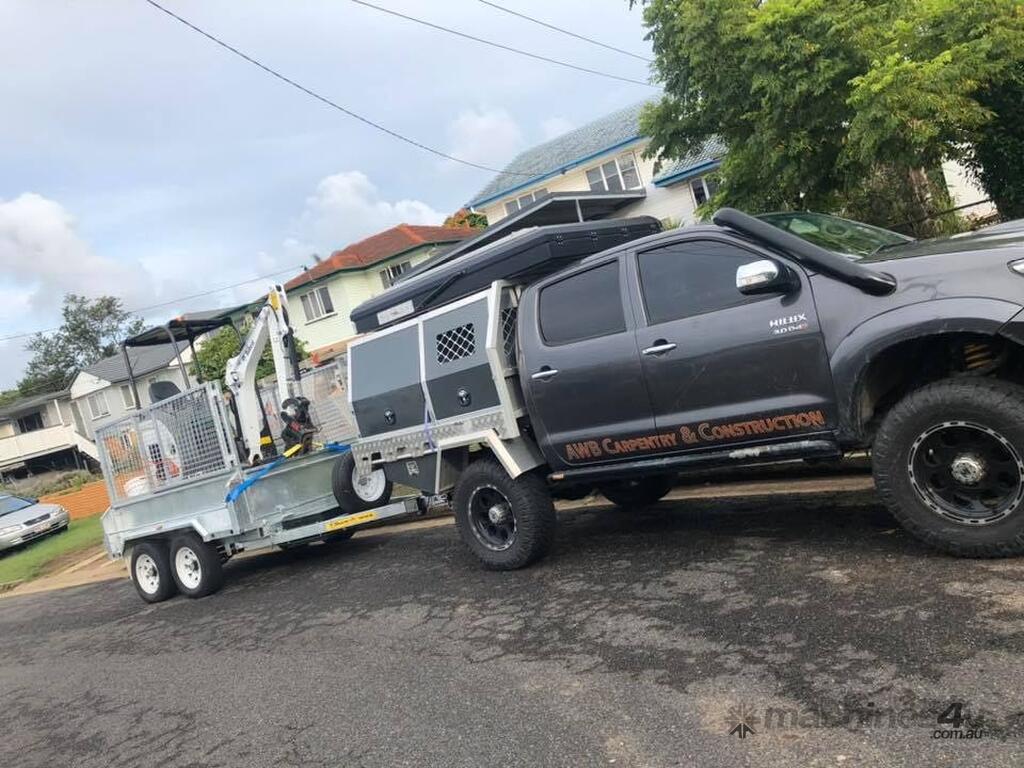

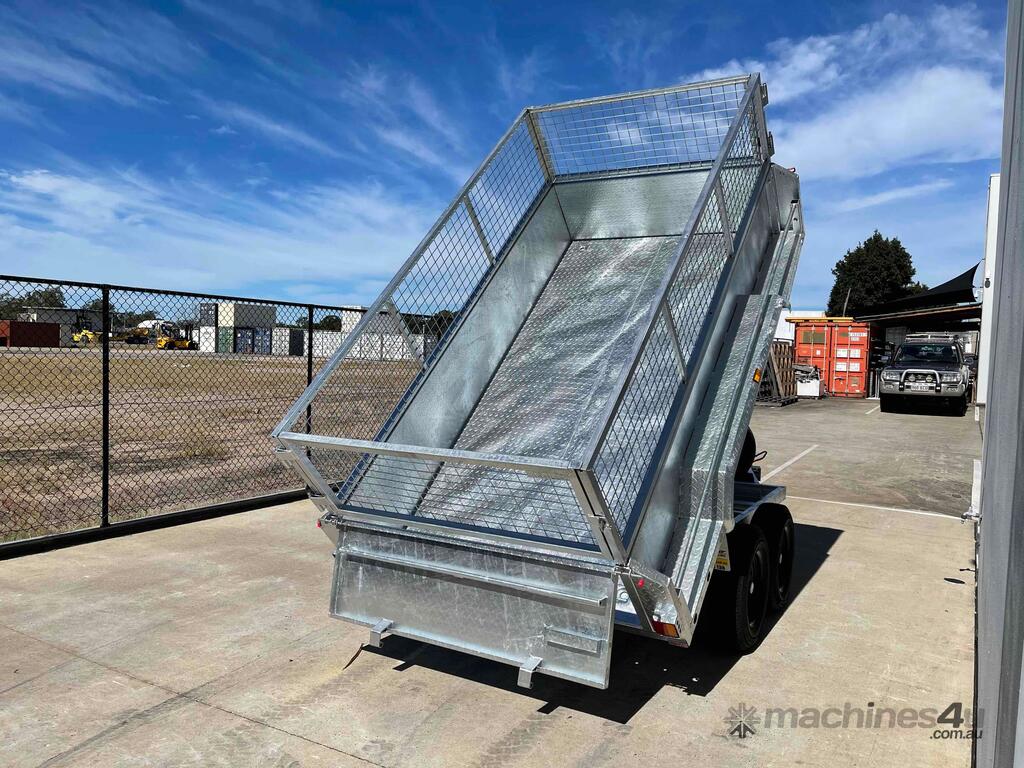

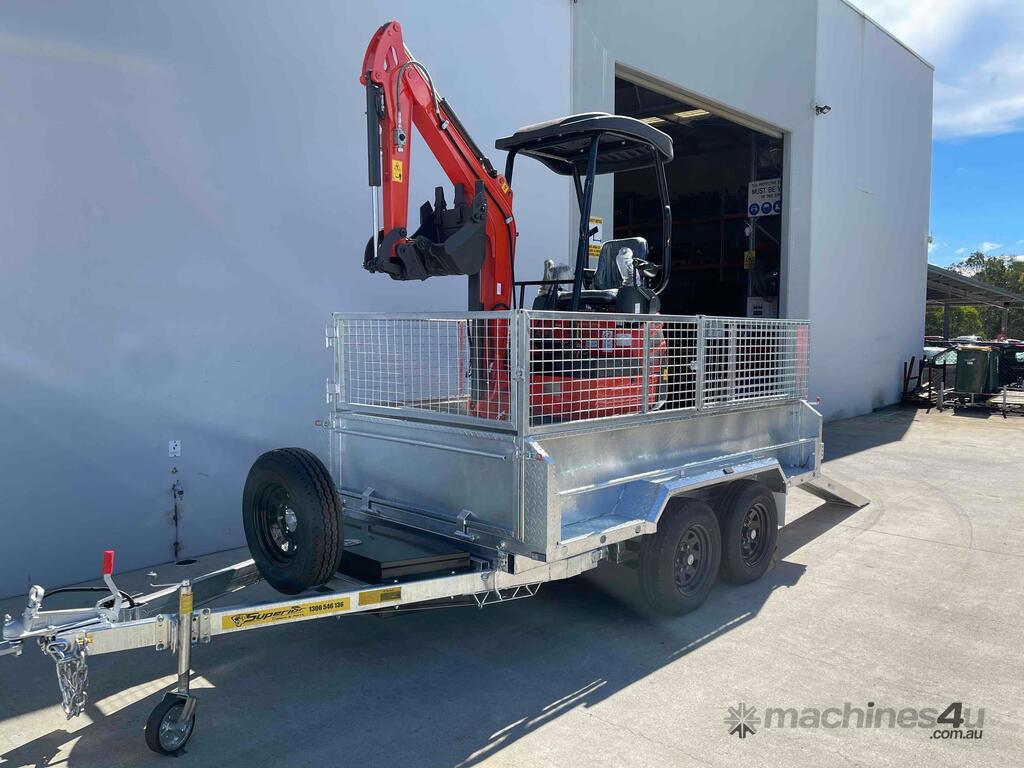

Superior Trailers ATM 3500kg Hydrualic Tipper is the multi purpose premium grade trailer used for carting mini excavators, skid steers, mini dumpers and other mini machinery up to 2200kg. The main feature is being able to fill the trialer with with all types of material such soil, wood chips, trees and demolition / construction waste etc that can be dumped with ease by the 4 stage hydraulic tipping ram with a 4000kg loading capacity.

The Superior Plant Trailers have a very high build specification and are designed to provide an exceptionally long service life. Details such as tripple folded full length mudgaurds and Heavy Duty Greasable Rocker Roller Suspension make this the trailer of choice for builders, contractors and businesses looking to move all types of material.

FEATURES


• 12 months QLD registration

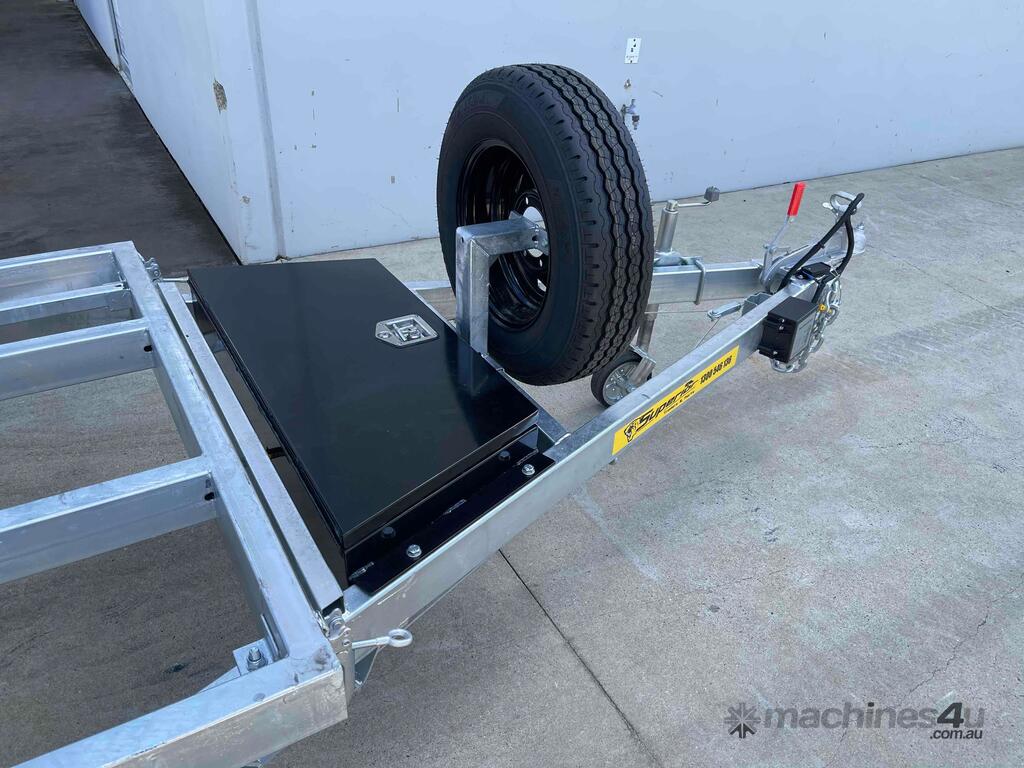

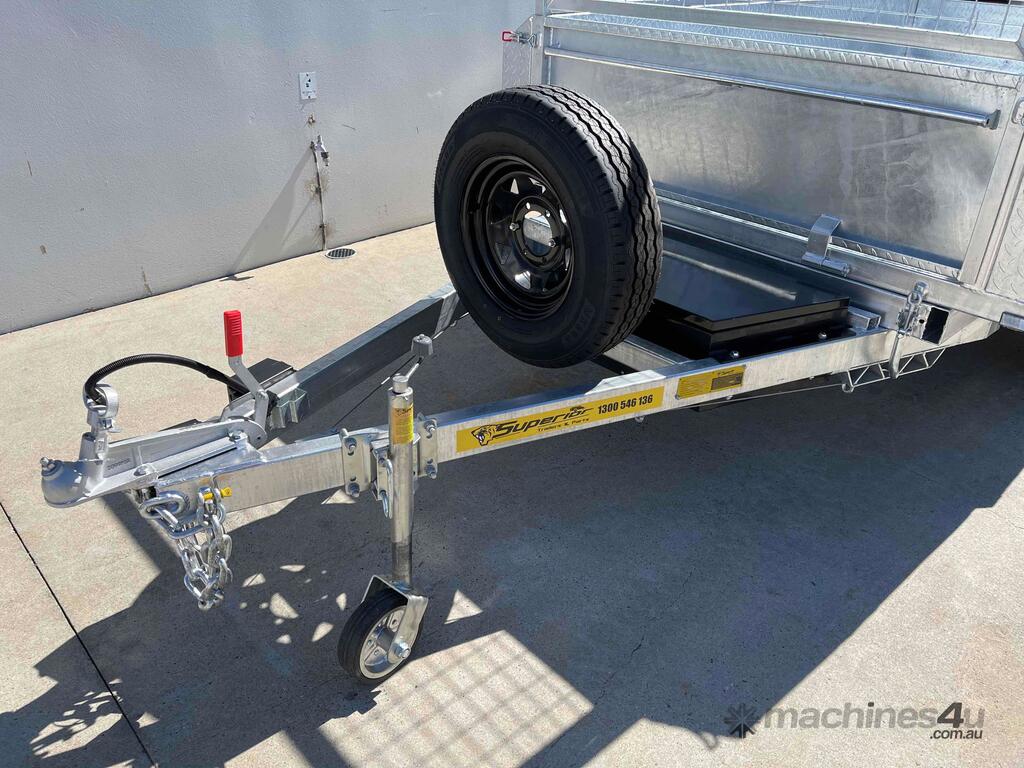

• Spare Wheel with bracket
• 500mm sides and PLUG-IN® Mechanism 600mm Cage with Minimal Effort to Remove
• 8” Solid Rubber Jockey Wheel
• 4 Tie Down Rails are Welded All The Way Around

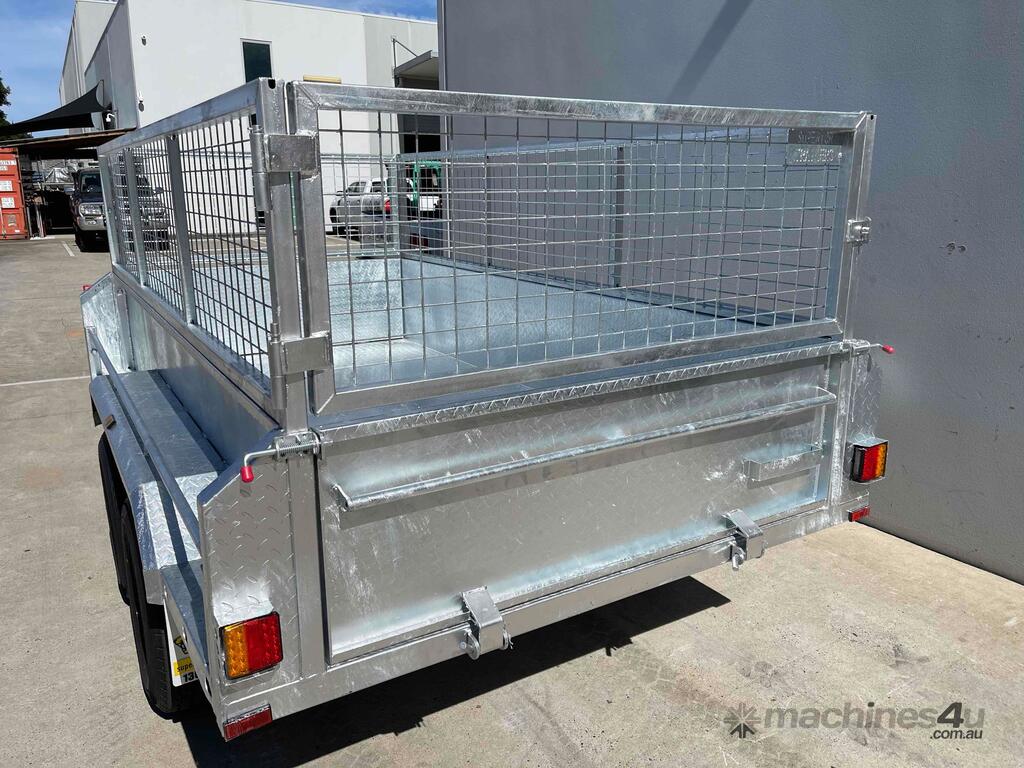

• Front and Rear Tailgates That Can Be Easily Removed

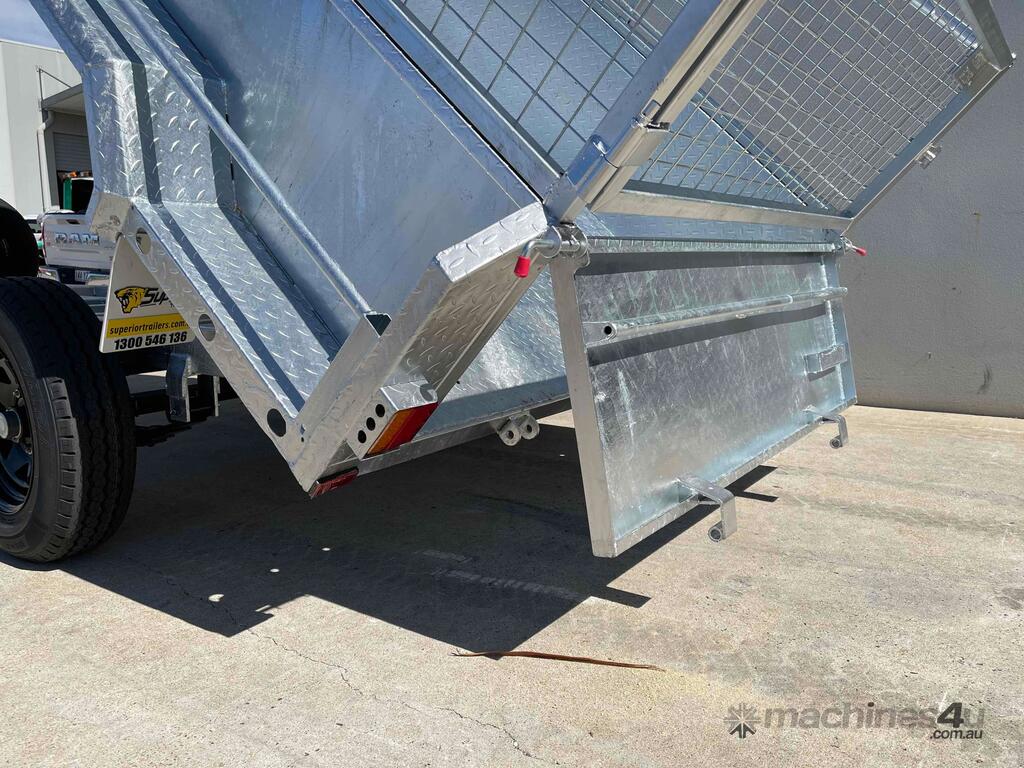

• 2 Way Opening Rear Gate for Easy Tipping and Removing
• Extended Foot Step for Jerry Can Hold and Toolboxes.
• Premium rubber mud flaps
• Quick Release Tilting Mechanism
• 8” Solid Rubber Jockey Wheel
• Reinforced Chassis & Hinges Designed for ATM 3500kg
• Greasable 7 Leaf Rocker Roller Suspension

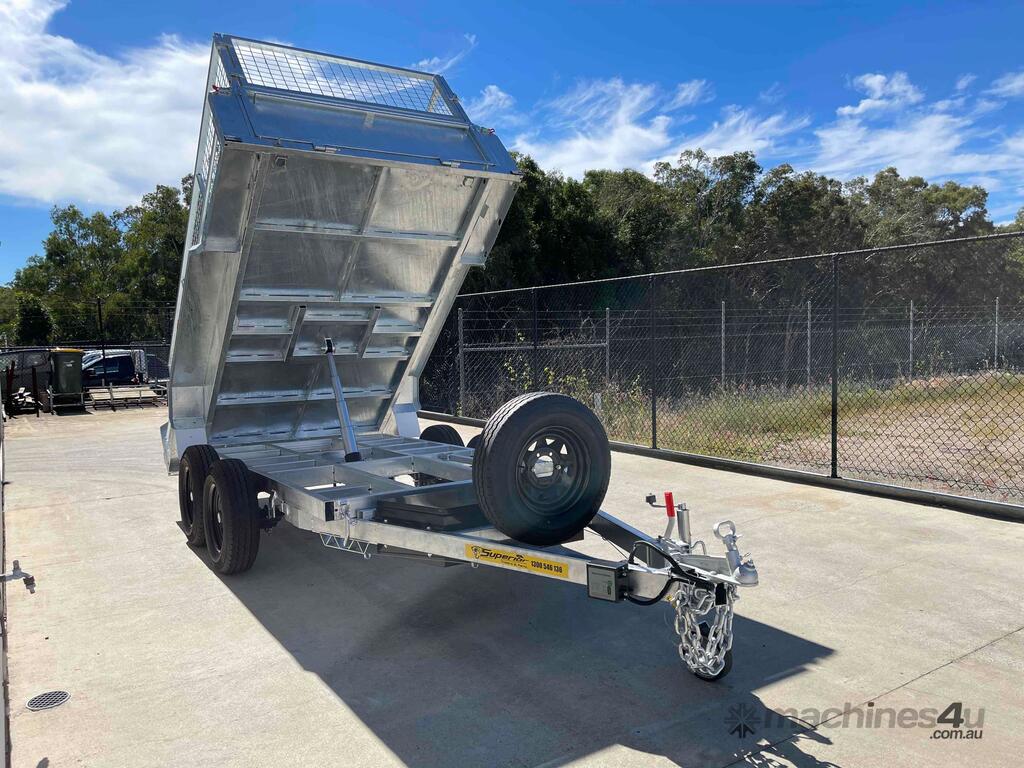

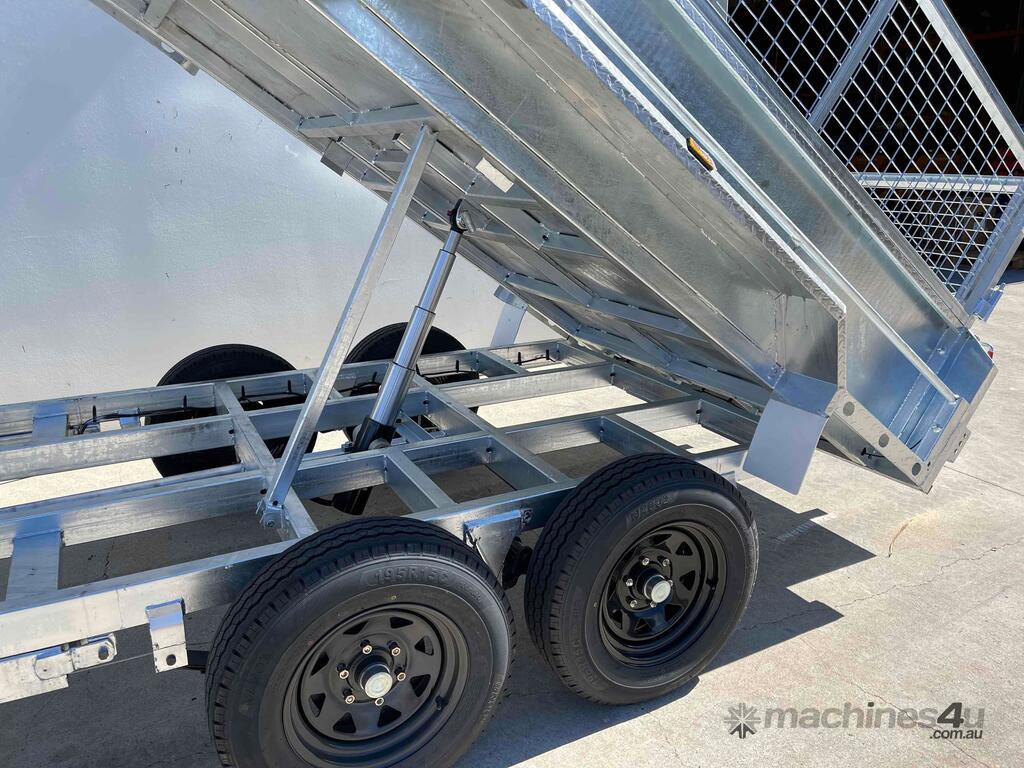

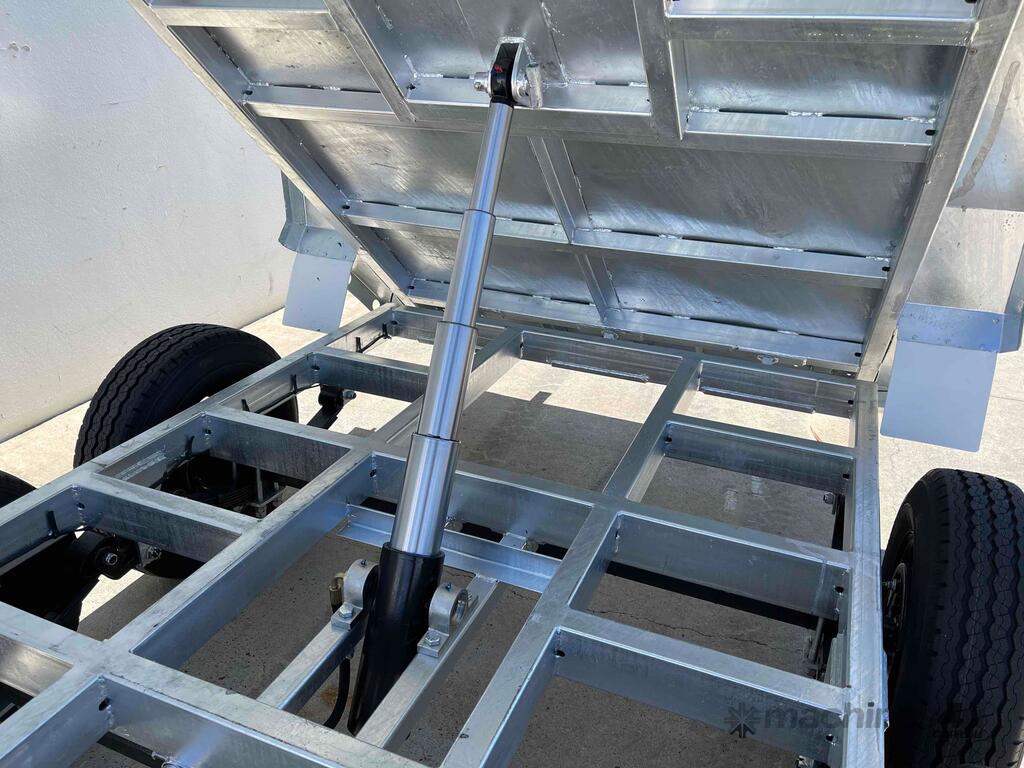

• 4 Stage Hydraulic Tipping Ram with 4000KG Loading Capacity

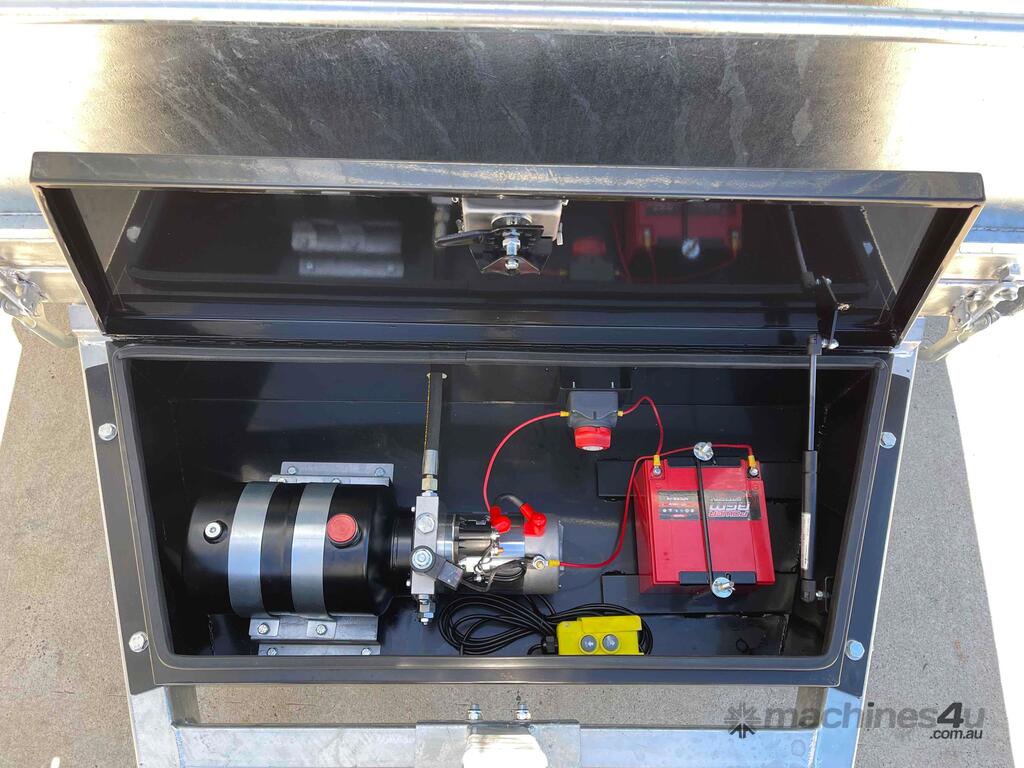

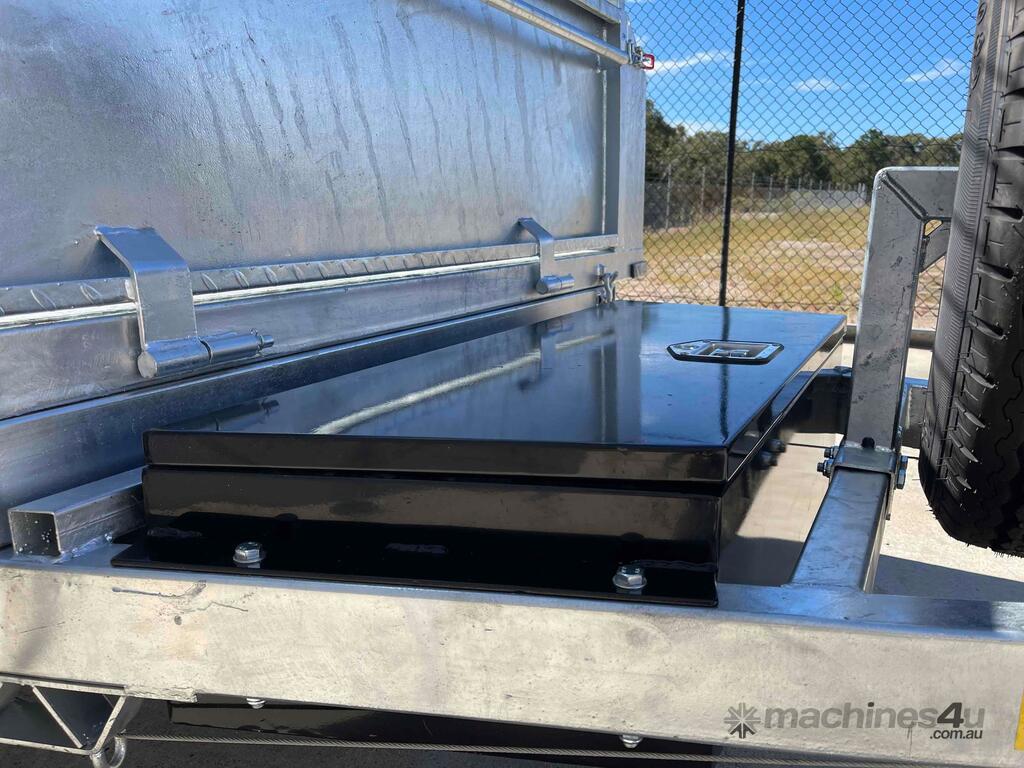

• Flush Drawbar Mount Gas Struts Supported Lockable Toolbox with AGM Battery, Pump, Isolate Switch, Remote Control
• Fully Welded & HOT DIPPED GALVANISED INSIDE-OUT



SPECIFICATIONS :

ATM : 3500kg
Tare : 1150kg
Internal Size : 3040x1820mm
External Size : 5080x2350mm
Drawbar : 1900mm 100x50x3.0mm Tube
Chassis Frame : 75x50x3.0mm Tube
Finish : Hot Dipped Galvanized (Rust free)
Side : 500mm High (One Piece of Checker Plate Fold Up)

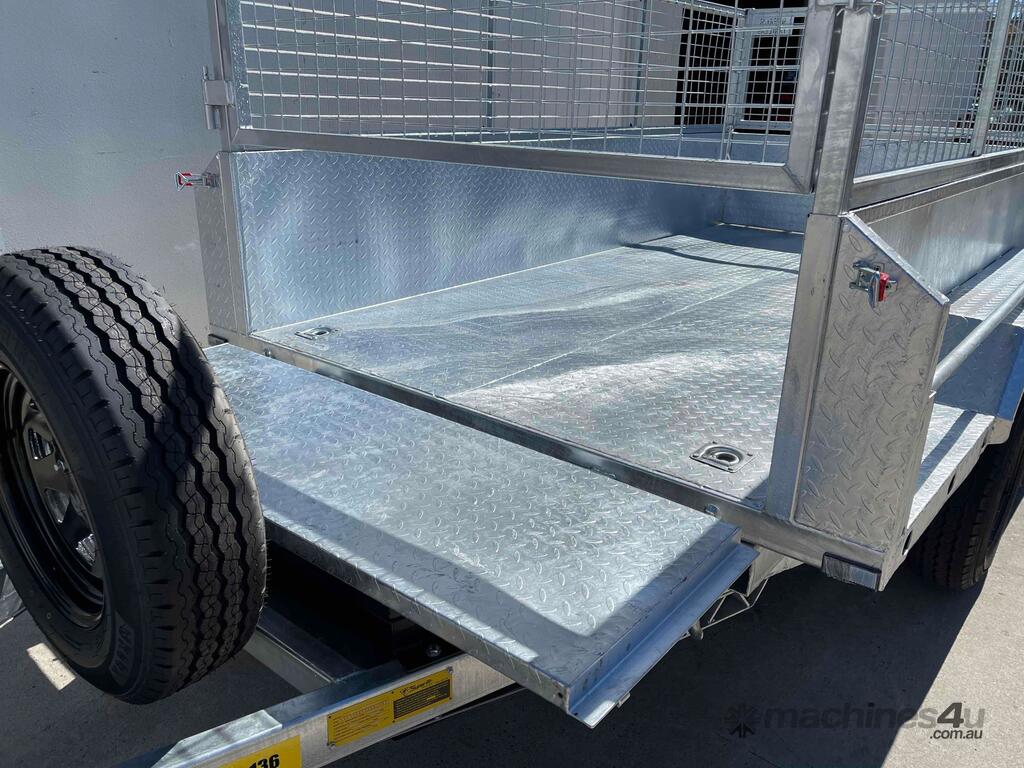

Floor : 2.66mm 2 Piece of Fully Welded Checker Plate
Mudguard : Triple Folded Mudguard with Full Length Footsteps
Jockey Wheel : 10" Steel Rim Swing up
Tyre : Brand New 15" 195/75R15C Light Truck
Wheel : Sunraysia Style with 5 Studs Ford Hub Pattern
Axle : 50x50mm Square Solid
Suspension : Heavy Duty Greasable Rocker Roller Suspension
Spring : Heavy Duty 7 Leaf Eye to Eye Spring 8mm Per Leaf
Coupling : 50mm ADR Approved Australia Standard with Grease Nipples
Trailer plug : Flat 7 Pin Plug
Safety Chain : 10mm
Brake : Electric Brake Upgrade
Light : LED Set

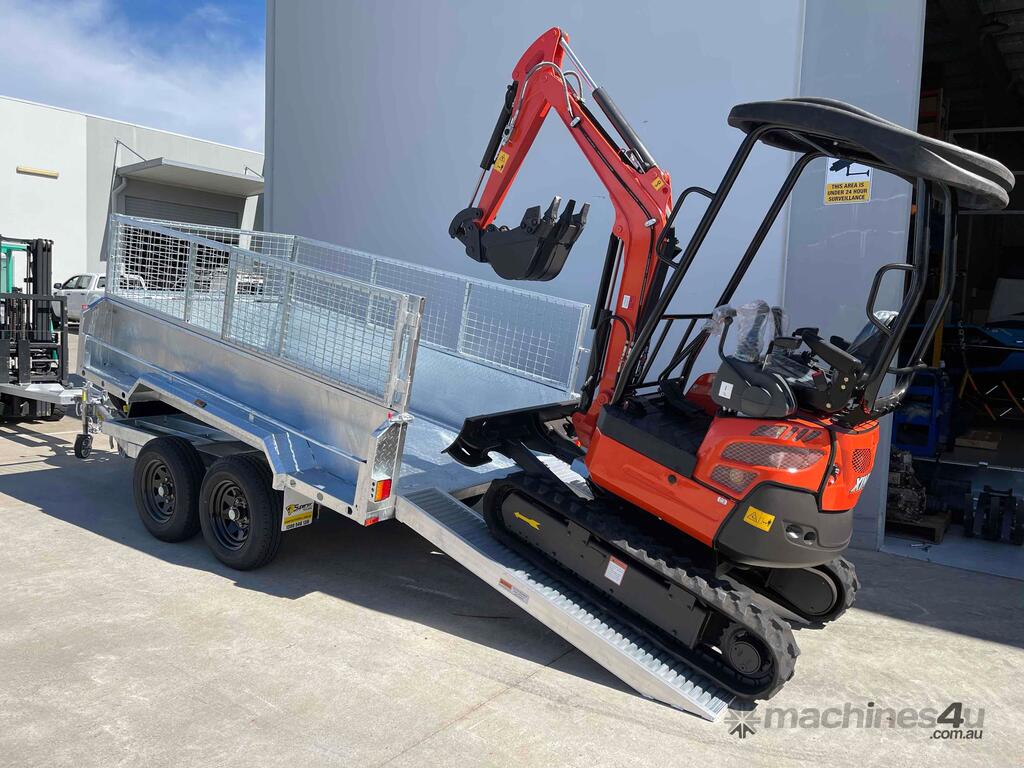

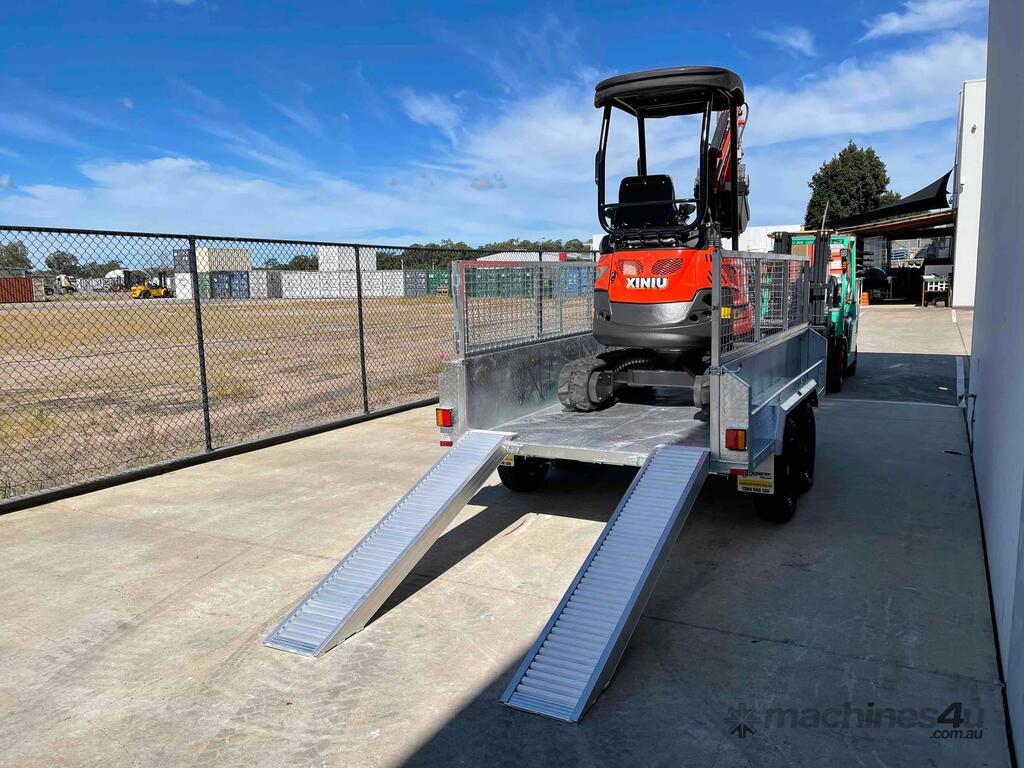

* Optional Extra : ALLOY RAMPS 2.2T 2000mm long $590.00 inc gst
