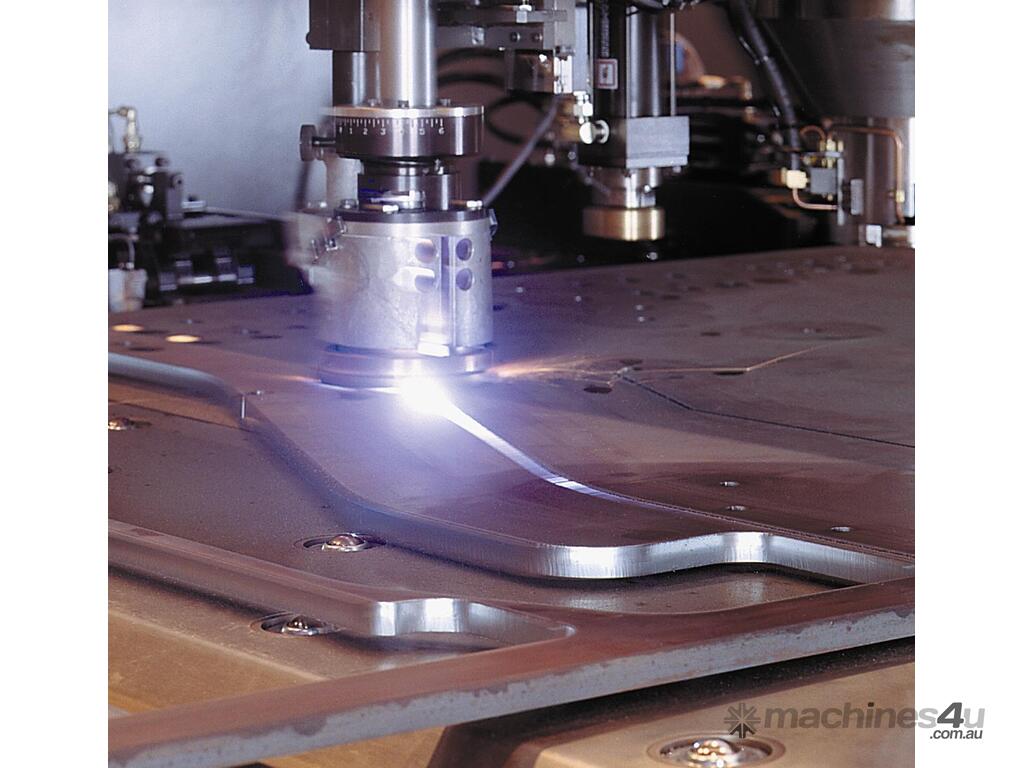

Achieve the lowest cost of equipment ownership with Whitney™ combination machines. The RAMPAGE! Oxygen Plasma Cutting System or optional Hypertherm© HPR260 High performance plasma system combines with the power of hydraulic punching to produce precision parts from plate up to 25mm thick.

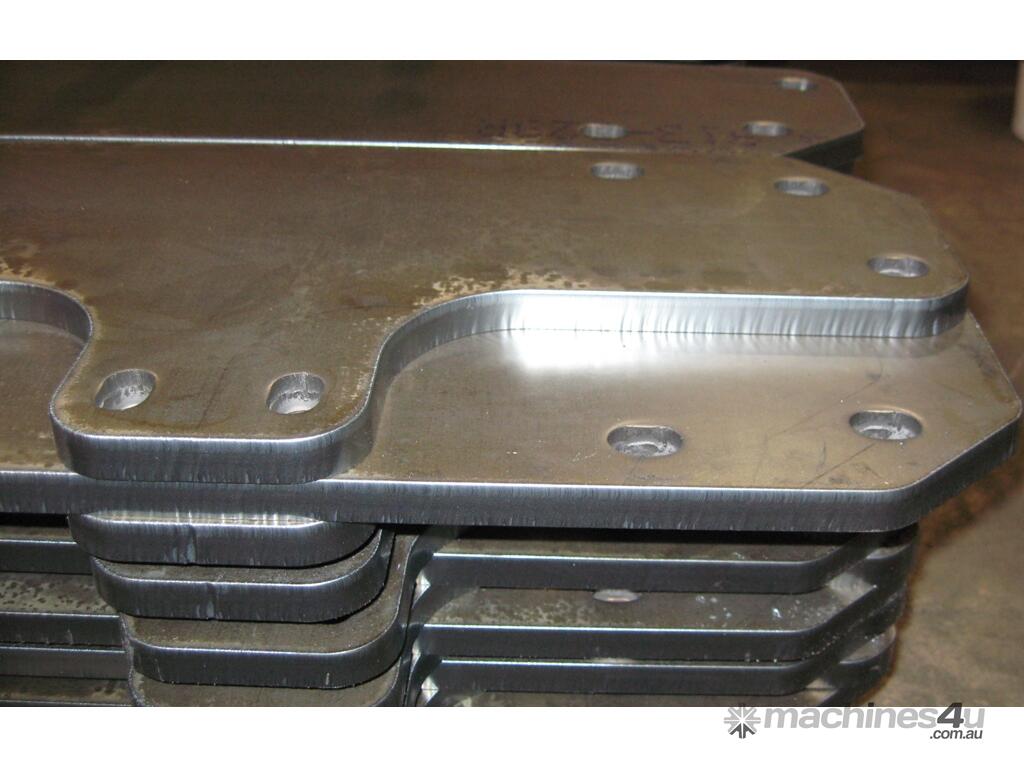

High speed, dross-free plasma cutting, clean hydraulic punching, and precision forming work together to produce complete parts in one operation. Parts flow to bending, robotic welding or assembly.
Hydraulic punching is the lowest cost, most accurate way of producing holes. You determine whether standard tooling or the very tough premium TuffSkin punches are best for your application. Full bodied tooling, insert punches and forming tools, all available in standard or TuffSkin, expand the capabilities of your plasma-punch combination. The Tooling Configuration helps you choose the right tooling for a specific job.

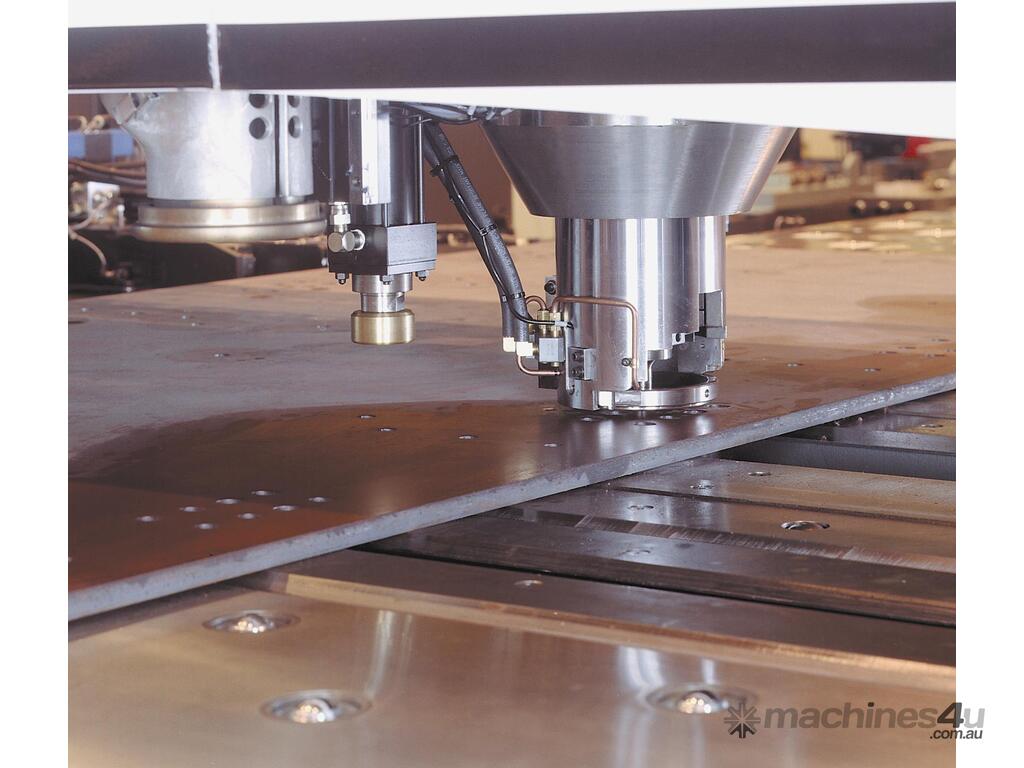

The 4400 MAX (MAXimum Speed, MAXimum Tonnage, MAXimum Capacity and MAXimum Capability) plasma-punch combination machine adds 90 tons of punching power to the RAMPAGE! Oxygen Plasma Cutting System or the optional HPR260 for maximum productivity in plate up to 25mm. A drill and tap station option adds even more flexibility.
Features include:
Capacity to process raw material up to 2200Kgs.
Retractable work clamps that eliminate work zone interference for MAXimum material utilization.
900KN (90T) punching capacity to easily handle high strength steels.
Modular machine configuration allowing worktable expansion from standard 4300 x 2400mm without repositioning to 6000 x 3000mm* without repositioning
Optional features:
Hypertherm© HPR-260
Small parts conveyor
Drill/Tap Station
Technical specifications:
Max plate thickness: 25mm
Punching capacity: 900KN (90T)
Tool changer: 16 stations
Small parts removal: 2400 x 600
Different table configurations as follow: 4300 x 2400mm without repositioning
6000 x 2400mm without repositioning
4300 x 3000mm without repositioning*
6000 x 3000mm without repositioning*
On 3000mm y-axis, tonnage reduced to 630KN or 63Ton
