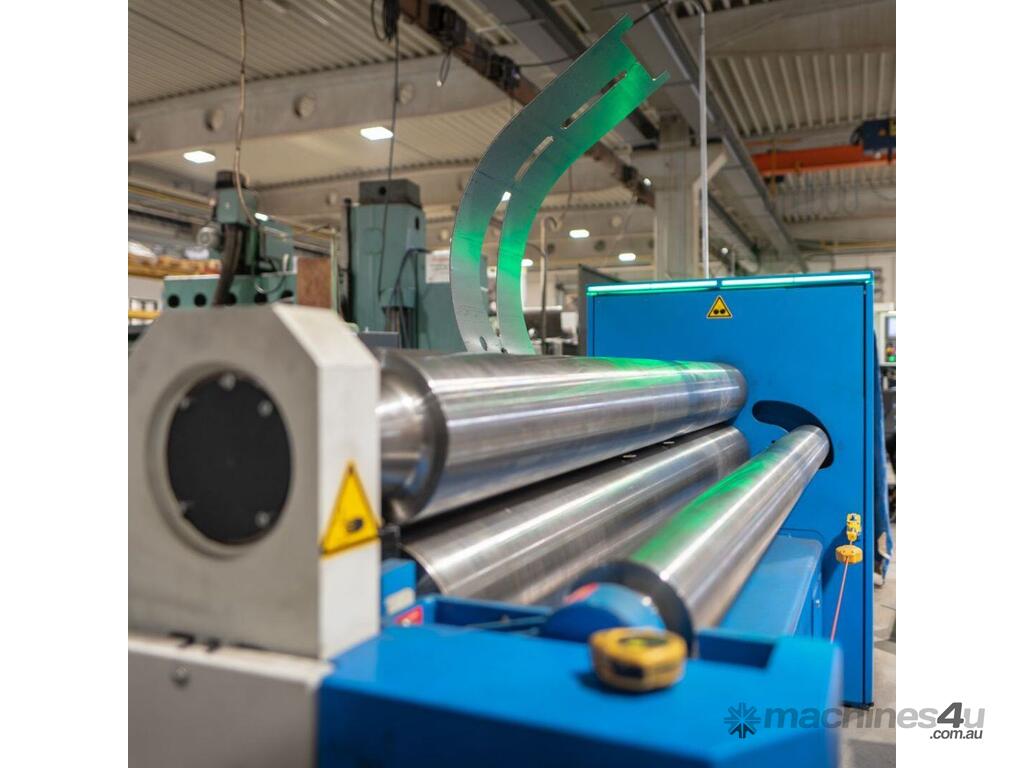

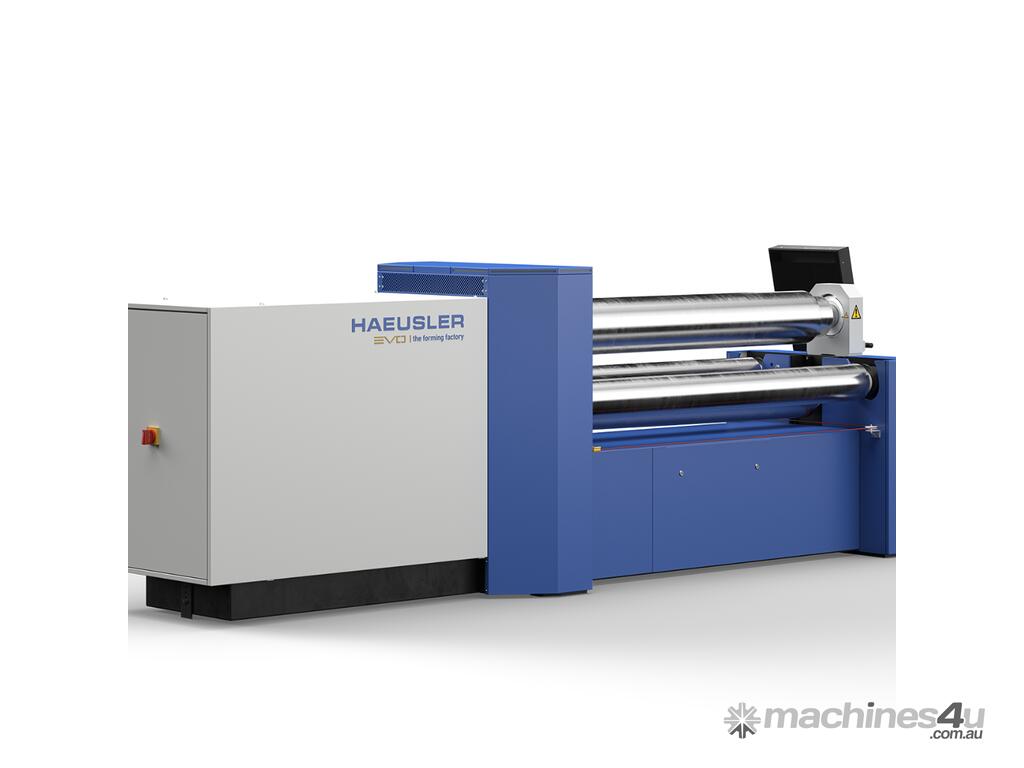

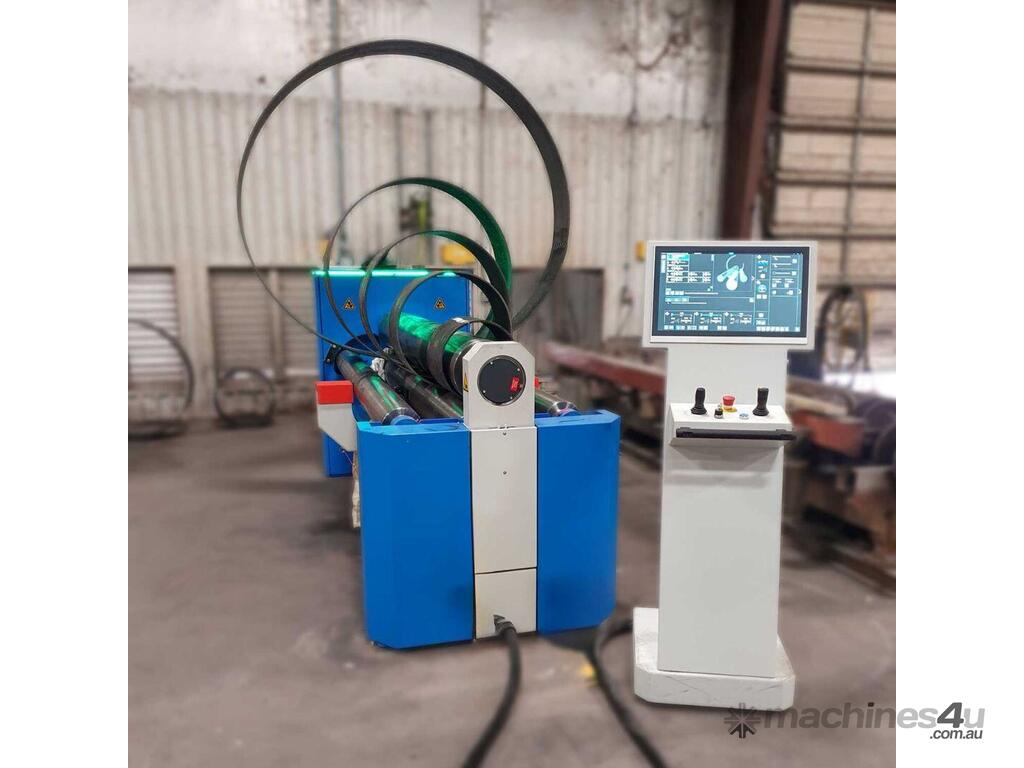

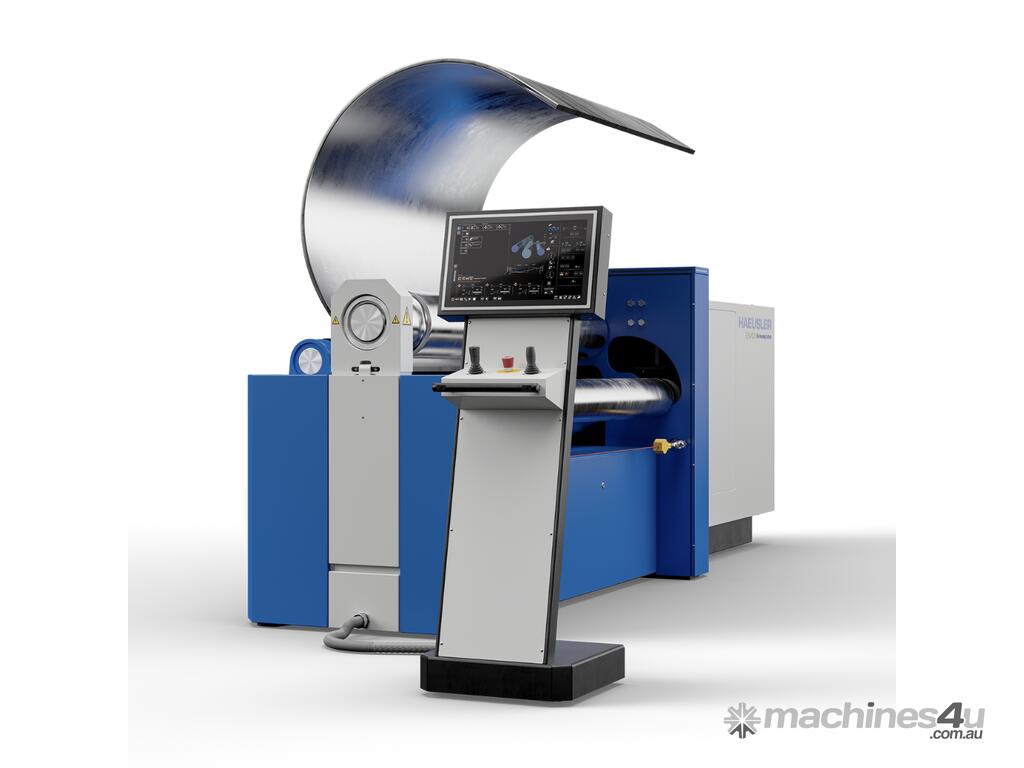

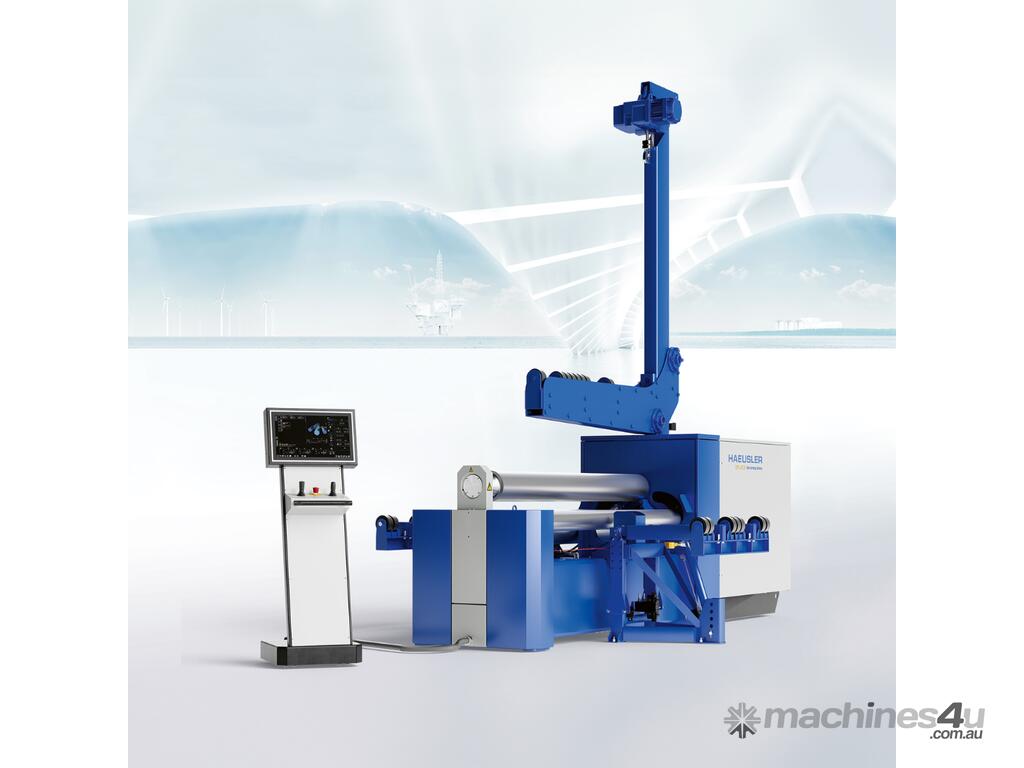

The HAEUSLER EVO is the most advanced 4-roll plate-bending machine on the global market. Unlike standard machines, where the lower rolls move in a fixed arc, the EVO’s rolls move in a "V" geometry. This allows for unmatched pre-bending power and the ability to roll much tighter diameters and thicker materials than any other machine of its size.
Key Technical Specifications:
Roll Configuration: 4-Roll System with patented V-Adjust geometry.
Pre-Bending: Ultra-short flat ends (1.5x to 2x plate thickness).
Control System: BEND-IT CNC, the world’s most advanced bending software.
Drive System: Direct-drive high-torque hydraulic motors on all rolls.
Compensation: Automatic "Roll Crowning" compensation for perfect parallelism.
Capacity: Modular range from boutique precision to heavy-wall (100mm+) industrial.
Top 5 "HAEUSLER EVO" Advantages
Patented V-Adjust Geometry: By changing the distance between the side rolls, the EVO adjusts its leverage to suit the plate thickness. This gives you the power of a giant machine in a compact, precise frame.
Shortest Flat Ends in the Industry: The EVO excels at pre-bending. By minimising the "unbent" edge, you save thousands in material waste and secondary cutting time.

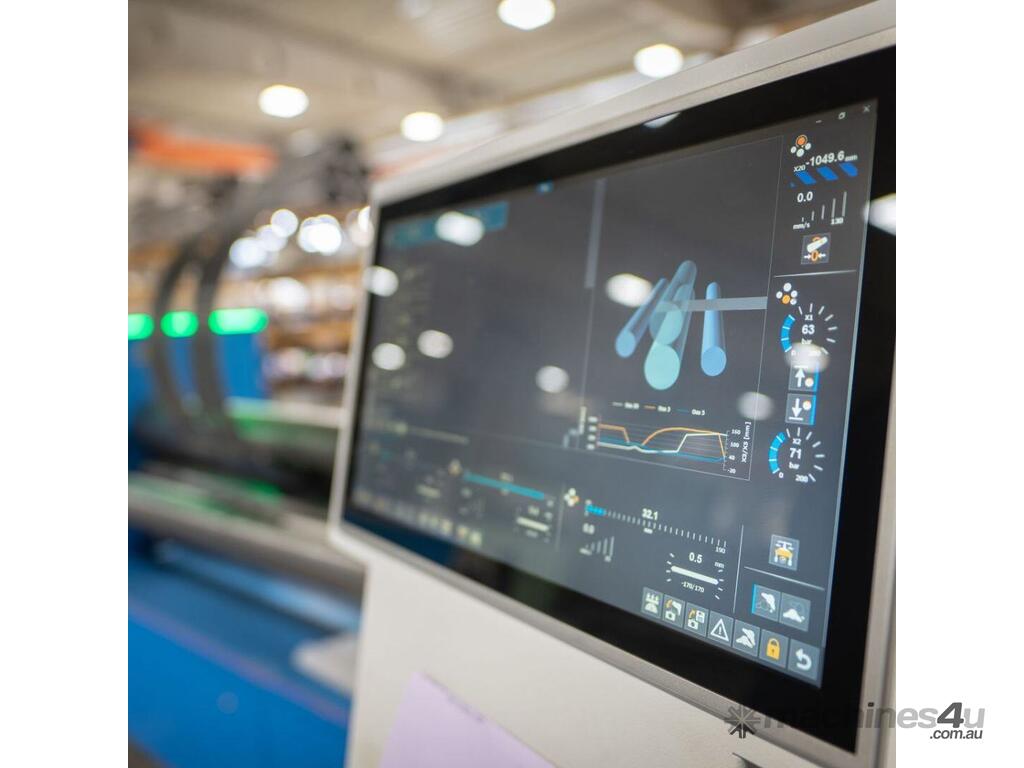

BEND-IT CNC Intelligence: This isn't just a screen; it’s a bending expert. Enter your material grade and diameter, and the software calculates the roll positions, including spring-back compensation.
One-Pass Productivity: While competitors require 3 or 4 passes to reach a radius, the EVO is designed to do it in one. This triples your output and reduces work-hardening of the material.
Unmatched Cone Bending: Thanks to the V-Adjust movement, the EVO can tilt its rolls to extreme angles, making it the world leader in producing high-accuracy conical sections.
Contact Specialist Machinery Sales today for a technical consultation and to see how the Haeusler EVO integrates into your current workflow.
