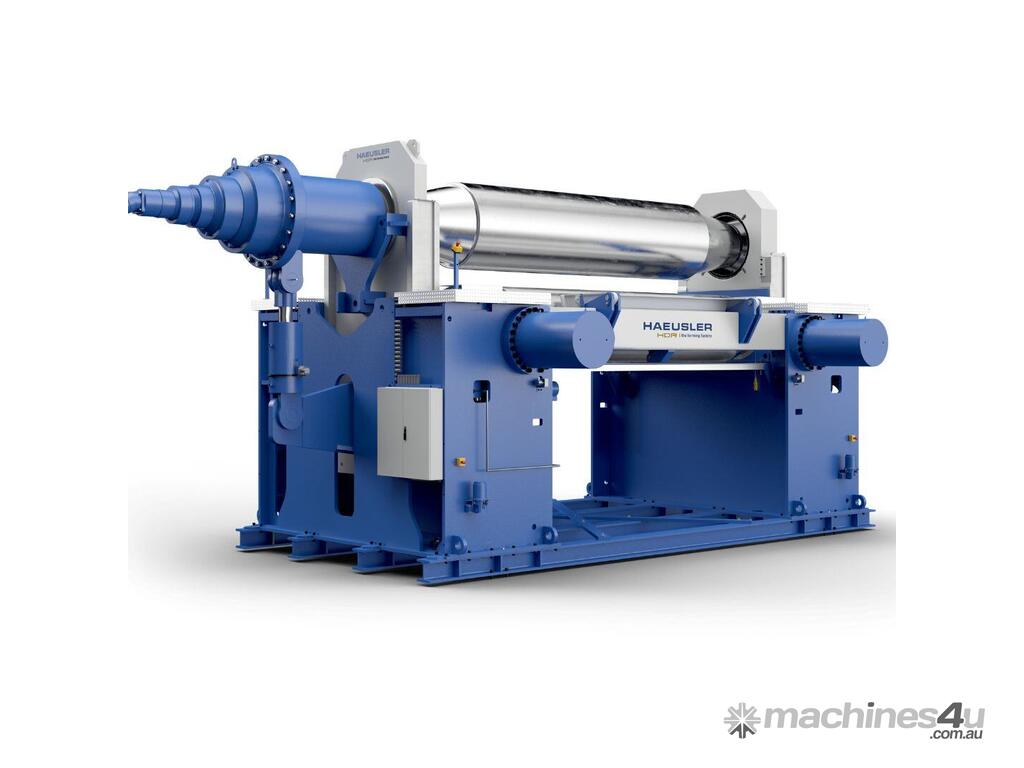

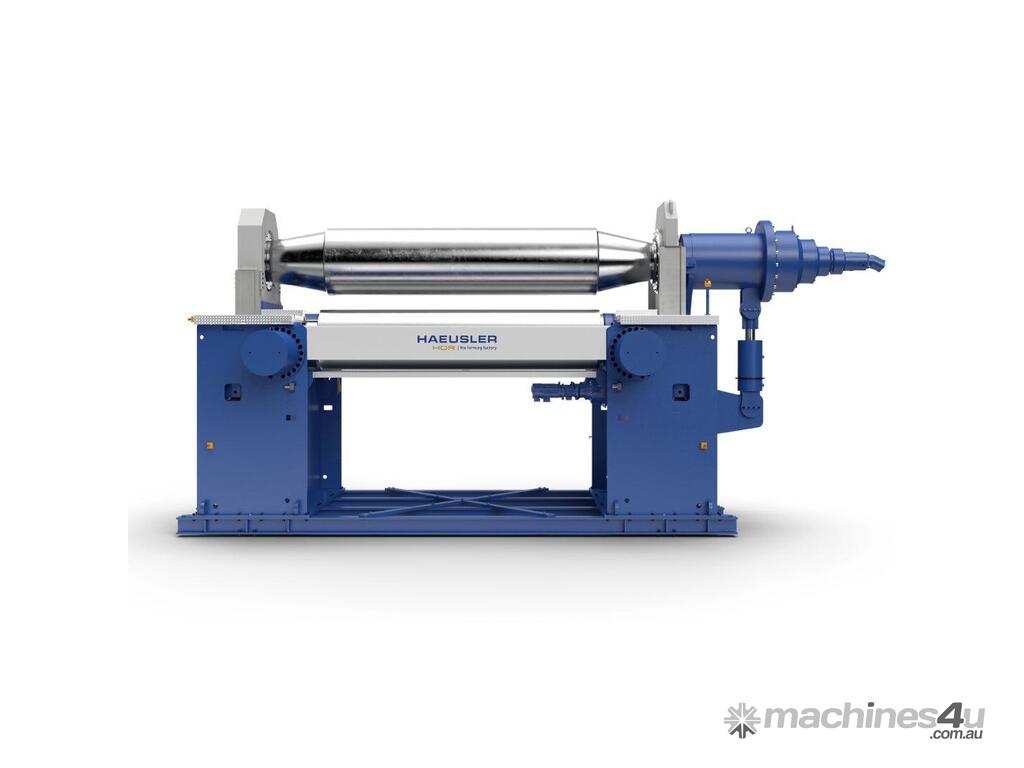

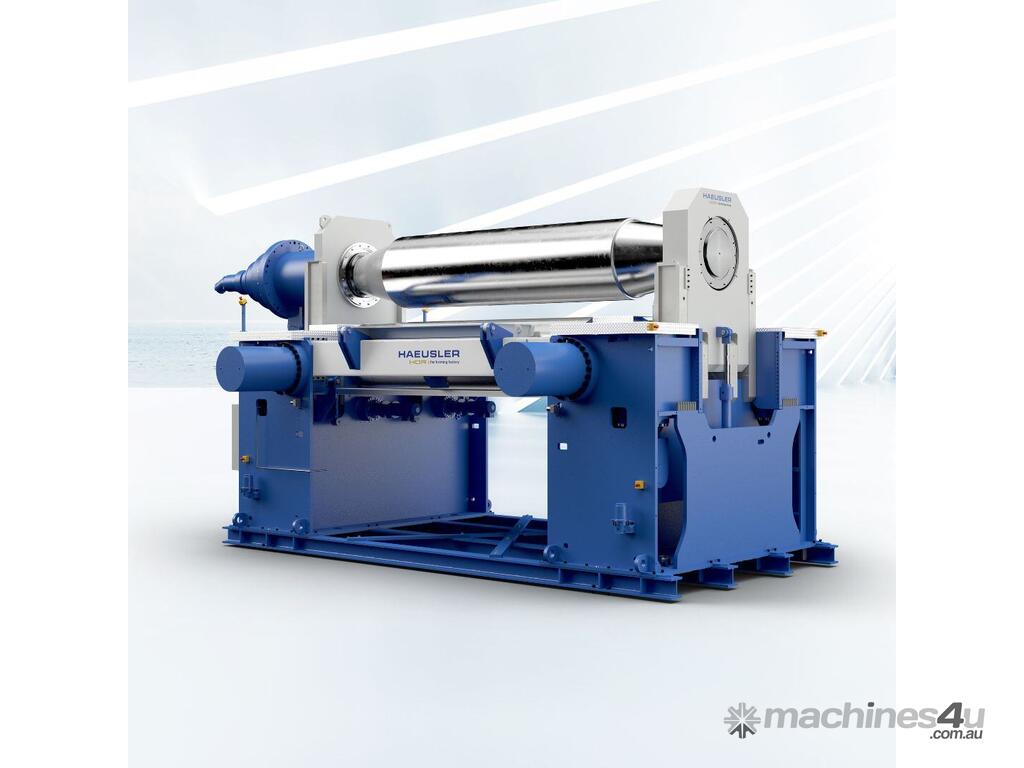

Haeusler HDR 3-Roll Plate Bending Machine

The HAEUSLER HDR is the pinnacle of 3-roll development. By utilising linear hydraulic movement on all three rolls, it eliminates the "arc" movement of lesser machines, providing a more direct flow of force. This results in a machine that is more compact, requires significantly less foundation work, and offers the operator a clearer view of the bending process compared to traditional massive 4-roll units.

Key Technical Specifications:
Roll Configuration: 3-Roll Variable Geometry (Vertical Top Roll / Horizontal Bottom Rolls).
Movement: 100% Linear hydraulic movement (No pivot points or arc movement).
Symmetry: Patented 4-cylinder top roll adjustment for total machine symmetry.
Drive System: High-torque hydraulic drives and brakes on all three rolls.
Guideways: Ultra-long T-Slides for maximum precision and minimal wear.
Capacity: Modular range covering pre-bending from 70mm to 320mm+ thickness.

Top 5 "HAEUSLER HDR" Advantages:
Total Machine Symmetry: Because the frame and cylinders are 100% symmetrical, the machine achieves the same bending quality regardless of which direction you feed the plate.
Adjustable Bending Geometry: You aren't locked into one leverage ratio. Adjust the bottom rolls to roll very thick plates with low force, or move them together to minimise flat ends on thinner material.
High-Alloy Forged Rolls: HAEUSLER uses premium high-alloy steels that are forged to shape. This eliminates the risk of surface cracks common in surface-hardened rolls used by competitors.
No Process Force in Foundations: The compact, closed-frame design absorbs the bending forces internally. This means you don't need a 3-meter deep concrete pit, saving you tens of thousands in installation costs.
Excellent Operator Visibility: Because all main cylinders are located below the working level, the operator has an unobstructed view of the plate and the radius, improving safety and precision.

Contact Specialist Machinery Sales today for a technical consultation and to see how the Haeusler HDR integrates into your current workflow.
