Heated press ITALPRESSE Premium quality

From the world leaders in pressing technology ITALPRESSE

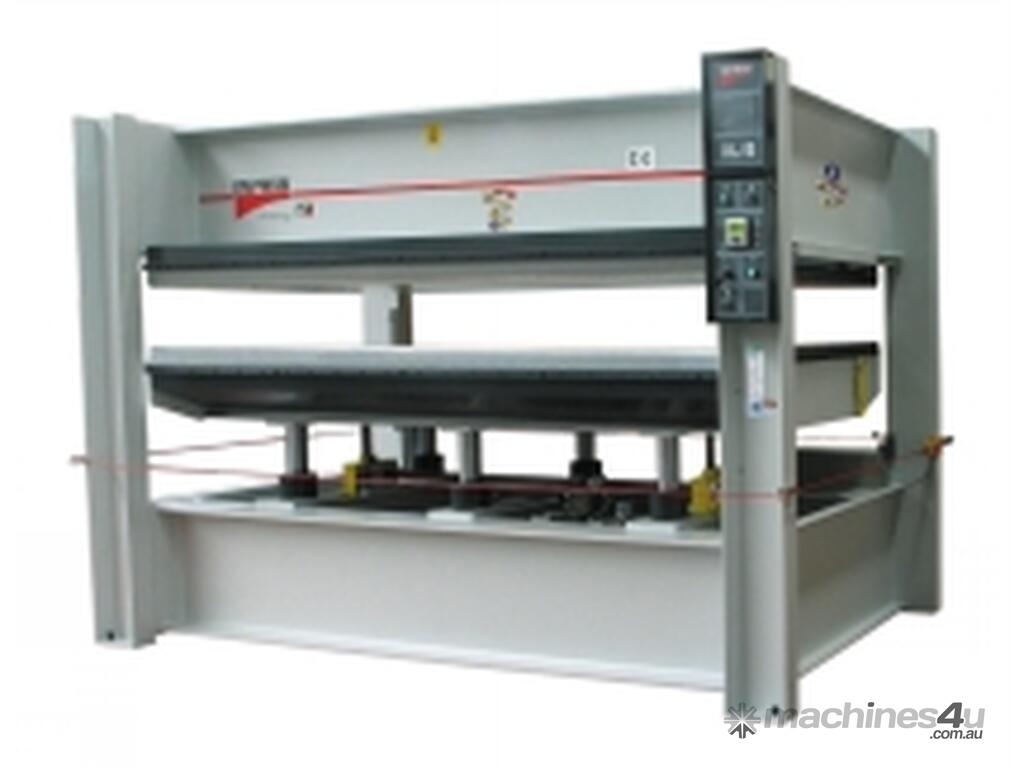

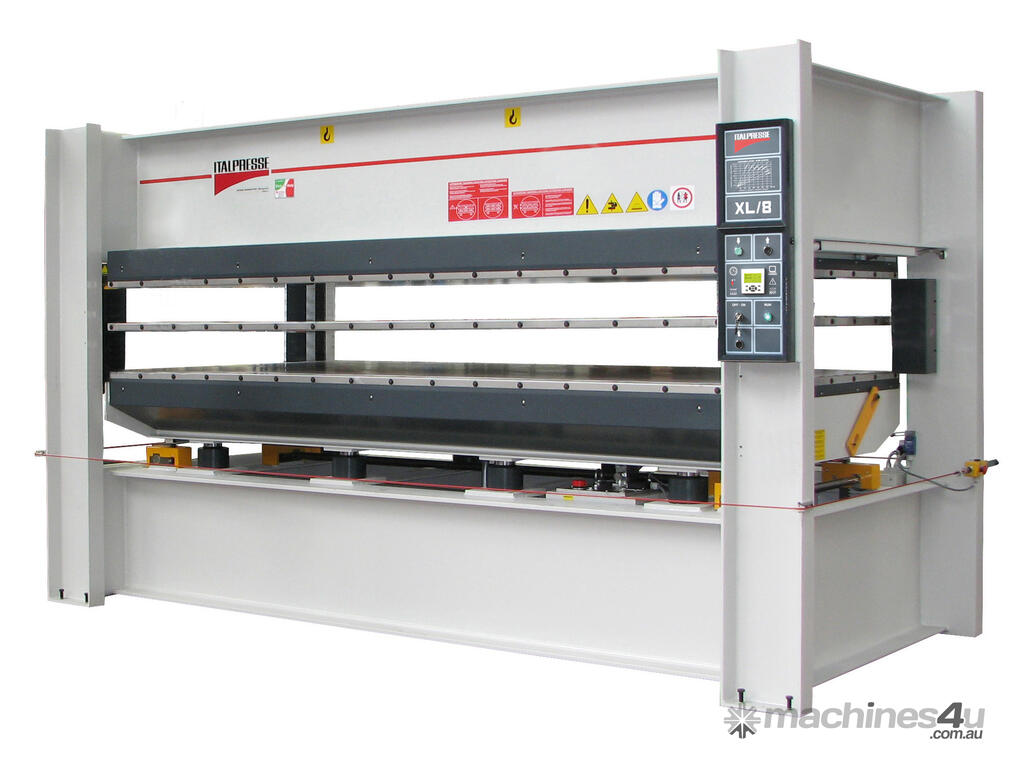

MAIN TECHNICAL FEATURES: HEATING PLATENS XL/6-J 30-13 PA BO
The solidity and stiffness of XL construction are far superior to many other competitors’ presses
because ITALPRESSE manufactures every mechanical press component in its own shops to ensure
complete control of quality in every phase of construction. Coupled with the best electrical and
hydraulic components on the market, the XL is the benchmark of presses in its class.

Every XL electrical system is built in strict compliance with
CE/89/392 safety regulations and is also certified to CSA,
UL, and VDE standards. A PLC integrated into the operator console controls all press functions.
Mounted on the front panel are the main power switch, a two-hand timed operator pushbutton
system for safely closing the press, a single pushbutton for opening the press, a programmable
press cycle timer, a programmable temperature setpoint control, a cylinder lock-out pushbutton,
and a resettable e-stop switch.

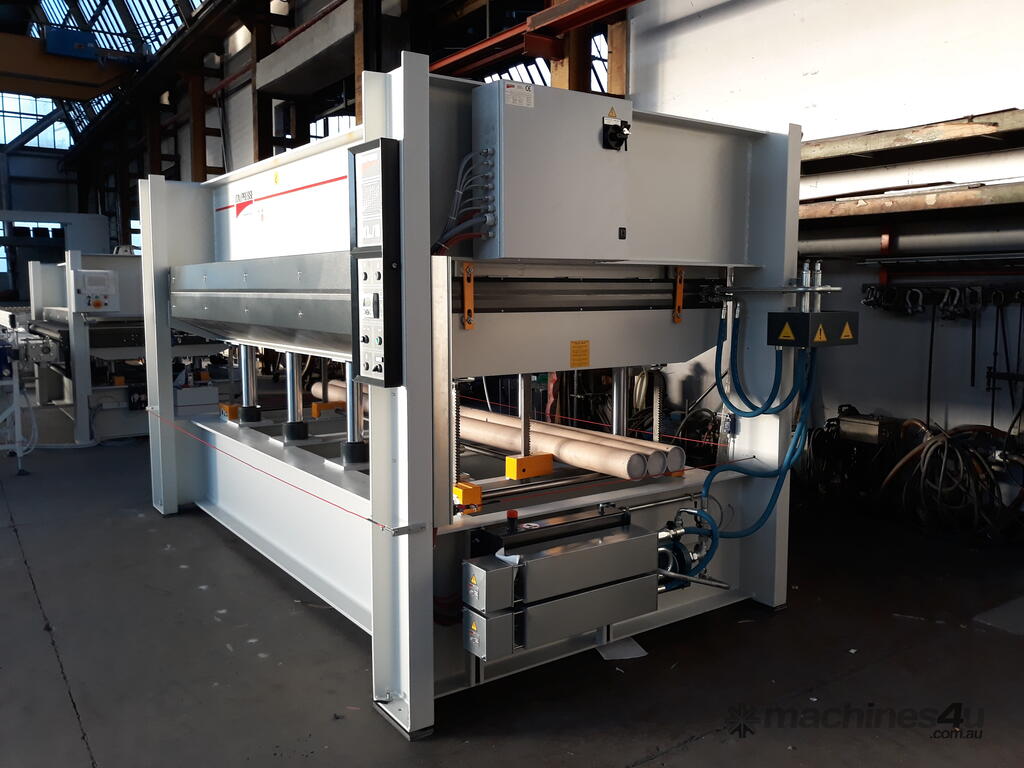

A powerful, compact hydraulic power supply mounted in the base of each XL press and consists
of the components mounted to the R/H side.

The XL’s hydraulic cylinder casings are fabricated from FC 510/C grade steel and robotically
welded in an inert atmosphere. The rams are manufactured with chrome-plated double precision-
ground 40 NI CR Mo 4 round stock. The double grinding cycles assure diametrical uniformity,
superior surface finish and proper fit with the cylinder casings and gasket seals. Each cylinder
sub-assembly is then housed in a circular seat that helps limit thermally-induced stresses.

Fabricated platens are made using square cross-section steel tubing fixed between two steel plates.
Steel tubing used to circulate the heating oil is configured as a continuous serpentine conduit fixed to a steel
sub-plate. Gaps in the conduit array are filled with lengths of square steel tubing •A second steel plate is fixed
opposite the first plate to form a sandwich with the tubing. Platens are then covered with thin aluminum sheet.

Optional Solid Steel platens.
Each platen is machined of Fe 430/B grade steel plate to assure flatness and a smooth surface finish.
Deep channels for the heating oil are gun drilled with diameters appropriate to the thermal and dimensional
characteristics of the press. Working surfaces of the platens are covered with mylar, Teflon, or aluminum sheet.

SAFETY:
safety is paramount in the design, manufacture and use of all ITALPRESSE S. p. A. press products and accessories.
We’ve designated a department to address safety issues as they relate to our products and to ensure that all products meet or
exceed established practices. This is an ongoing process as safety standards are continuously being updated and ITALPRESSE
S. p. A. revises current products and releases new models for sale.

- 70 Ton (90, 120,160 or 190 Ton available on request)
- Platen dimensions mm. 3000x1300 (3500mm 3900mm & 4900mm available on request)
- Touch screen controller
- Heated platens - 2
- Openings - 1
- Opening daylight mm. 400
- Type of heating platens: Steel
- Heating circuit made of special square section steel tubes, pressure tested and certified by the steel mill.
- High quality steel sheets on both faces of the heating circuit grant platen surface uniformity and flatness
- Insulating sheets between heating platens and press structure to prevent heating dispersion
- The working surfaces of the platens are covered with a high-grade aluminum sheet
For full technical details, call us anytime.
