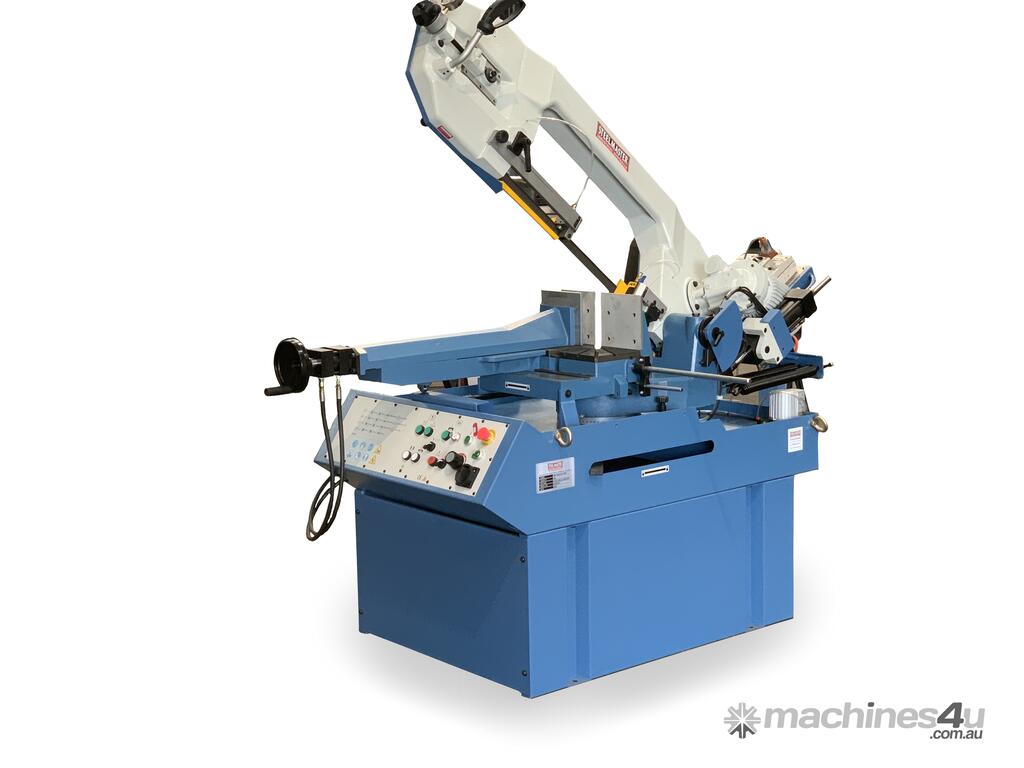

Heavy Duty Industrial 530mm x 330mm Semi Auto 60 Degree Cut Hydraulic Clamp

SM-HBS530-SAM. Bandsaw Double Mitre. 530mm x 330mm RHS, 355mm Round Capacity, Hyd Vice Auto Return
34mm Blade, Blade Tension Gauge, Carbide Blade Guides, Integrated Stand, Quick Set Angle & Vice. 3ph - V

Description

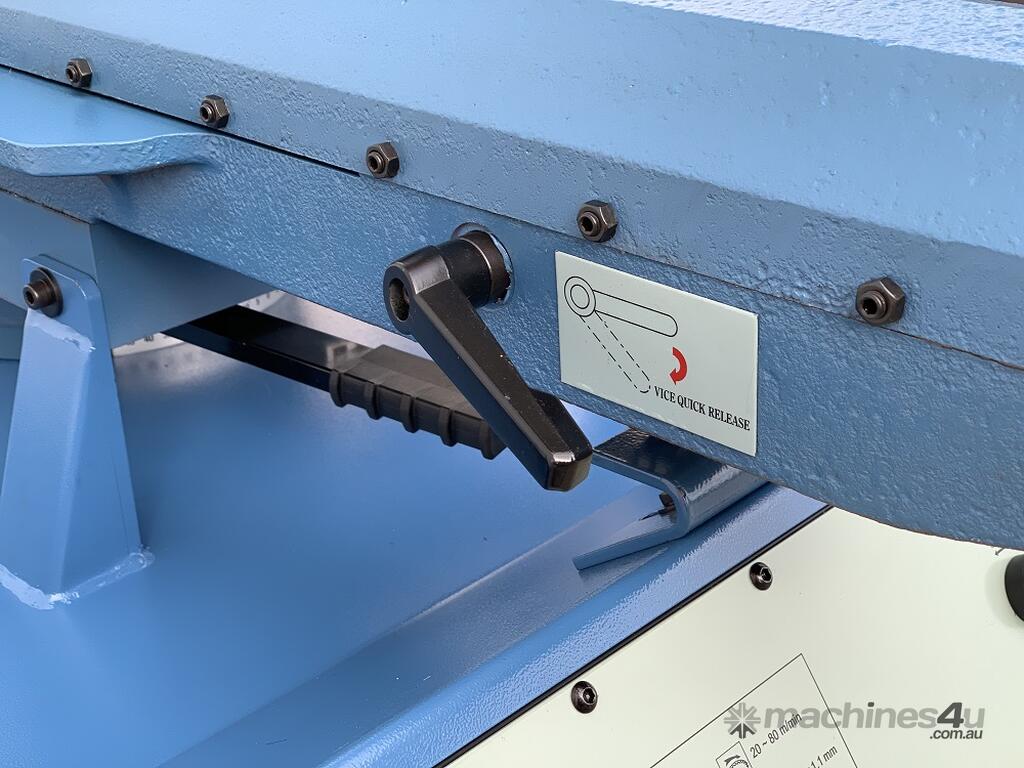

This variable speed heavy duty double mitre saw is built for accuracy and production! Easy quick action angle set-ups between 0 and 60 degrees means no wasted time between cuts. Lever controlled blade guide locks allow adjustments right up to the work piece for optimum support and the blade guides have fully adjustable ball bearings so you know you're going to get straight cuts. And when you're done, use the quick release lever and stock length stop to get on with the next cut. It's fast and simple to use! We have included other features including carbide blade guides, blade pressure gauge, hydraulic down feed, trigger switch operation, to set this aside from other base machines.

## AUTO BEAM RETURN & HYDRAULIC VICE- SAM ##

Features
?double mitre cutting bandsaw with quick action angle positioning
?super industrial strength 34mm wide bi metal blade.

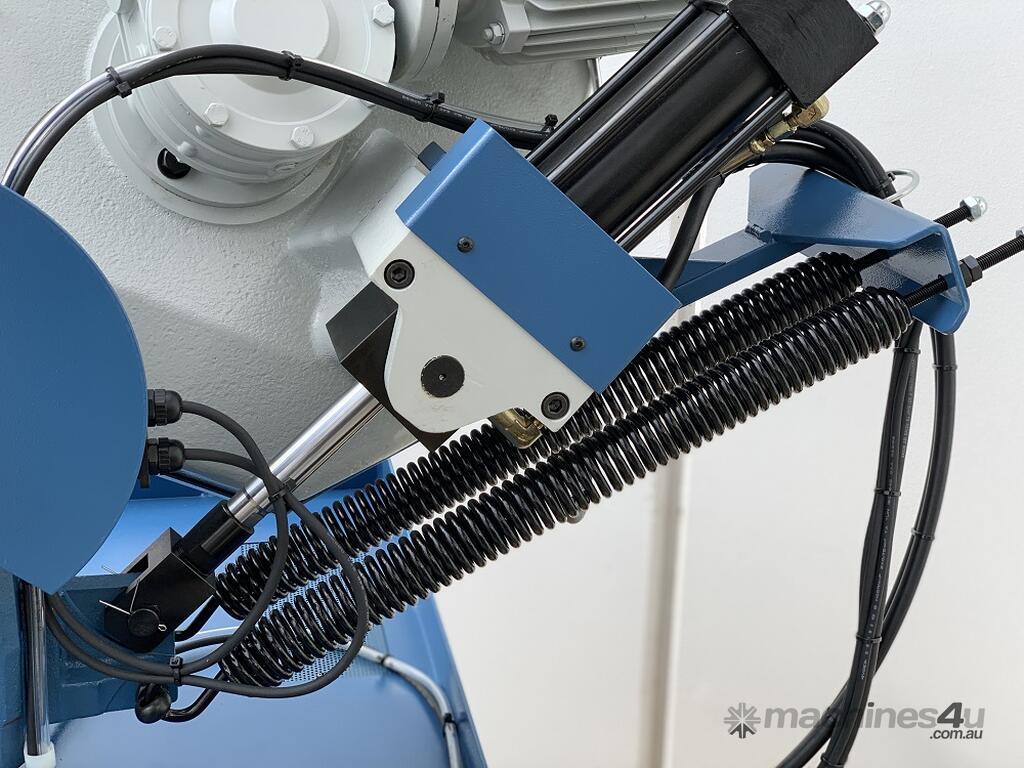

?hydraulic down feed system for automatic continuous lowering of the saw frame
?hardened, polished worm gear with bronze drive gear for longer service life
?variable blade speed operation to enable the cutting on a variety of materials

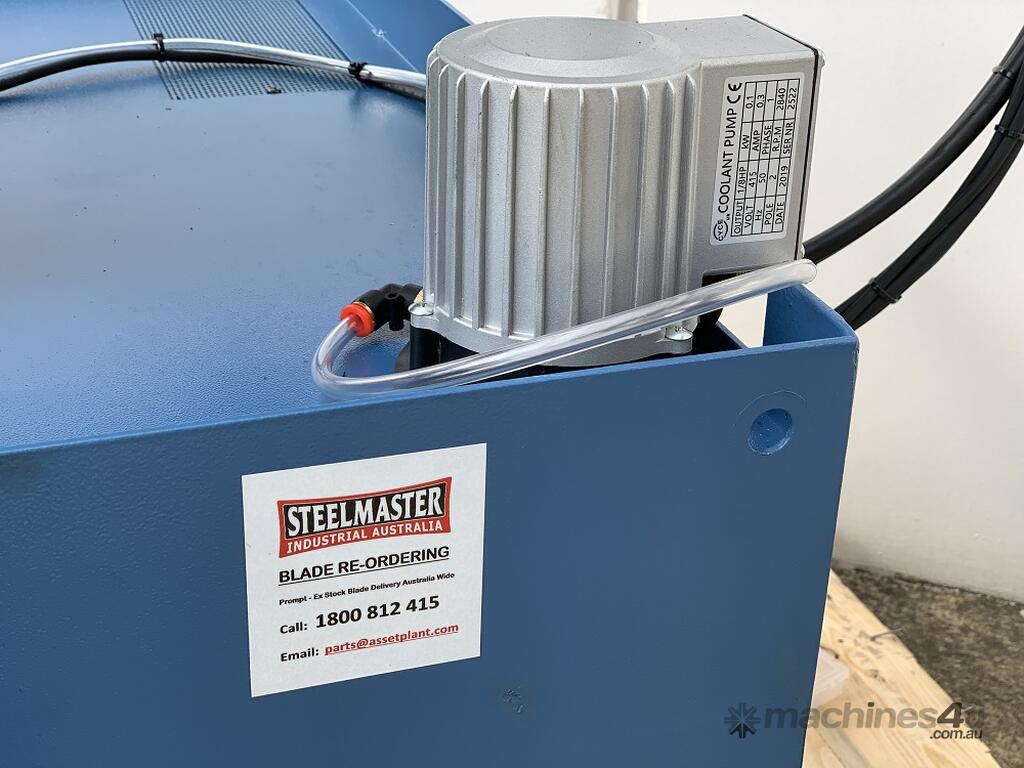

?machine stand with integrated cooling fitted as standard

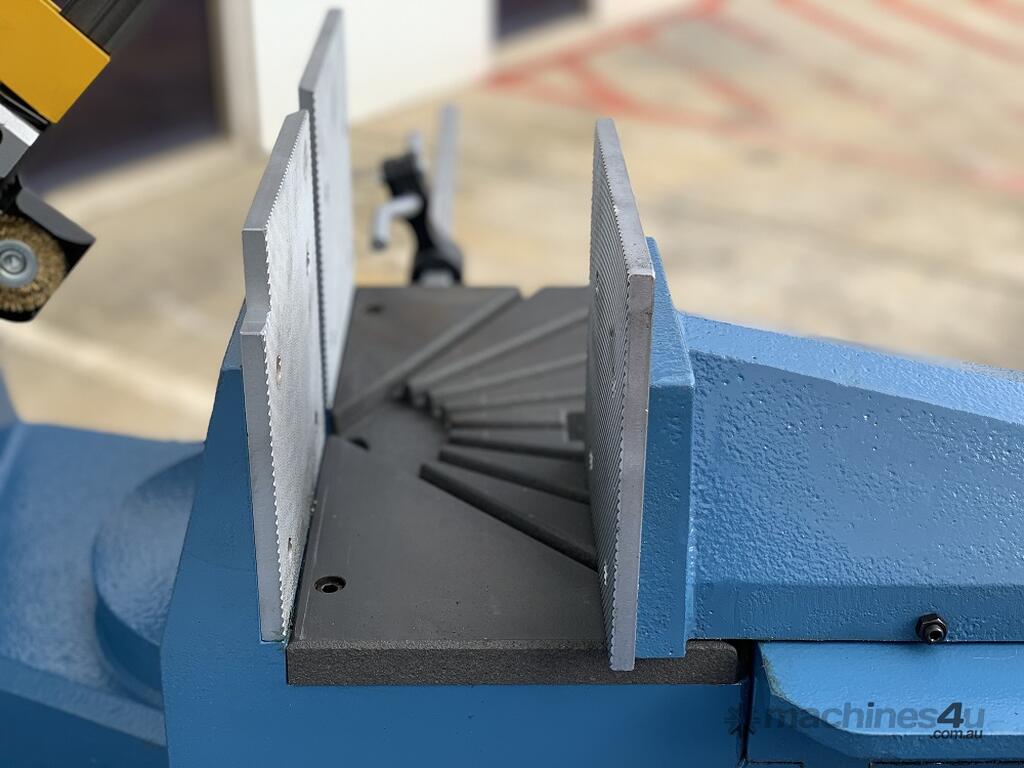

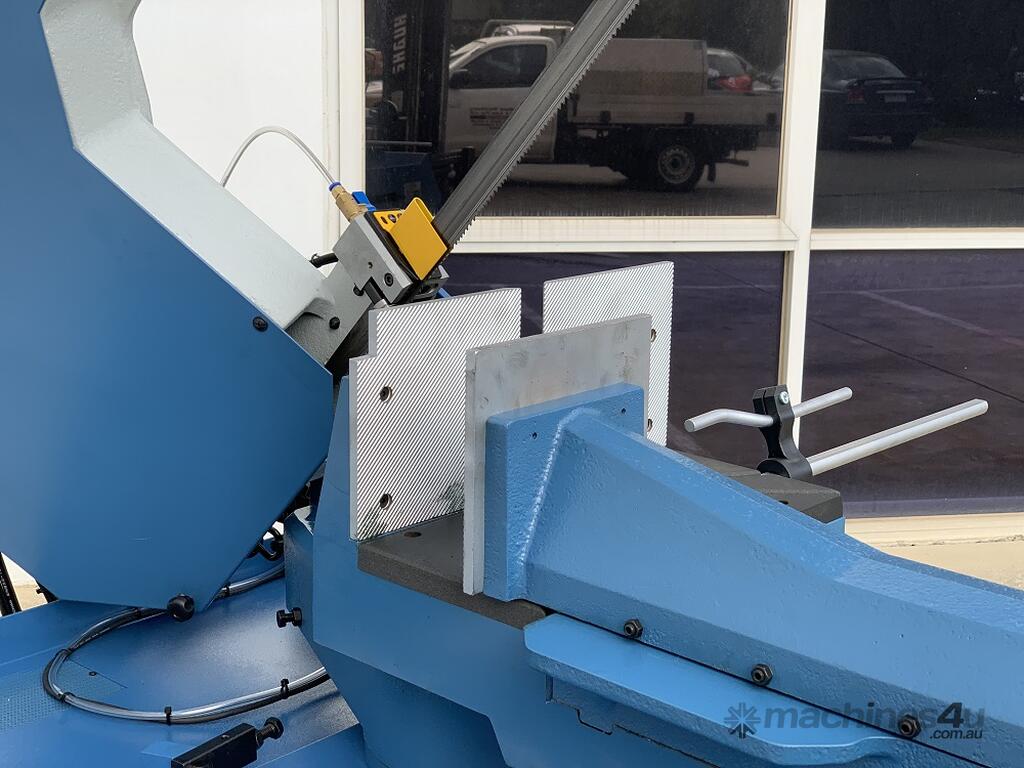

?quick action clamping vice
?powerful motor suitable for continuous operation

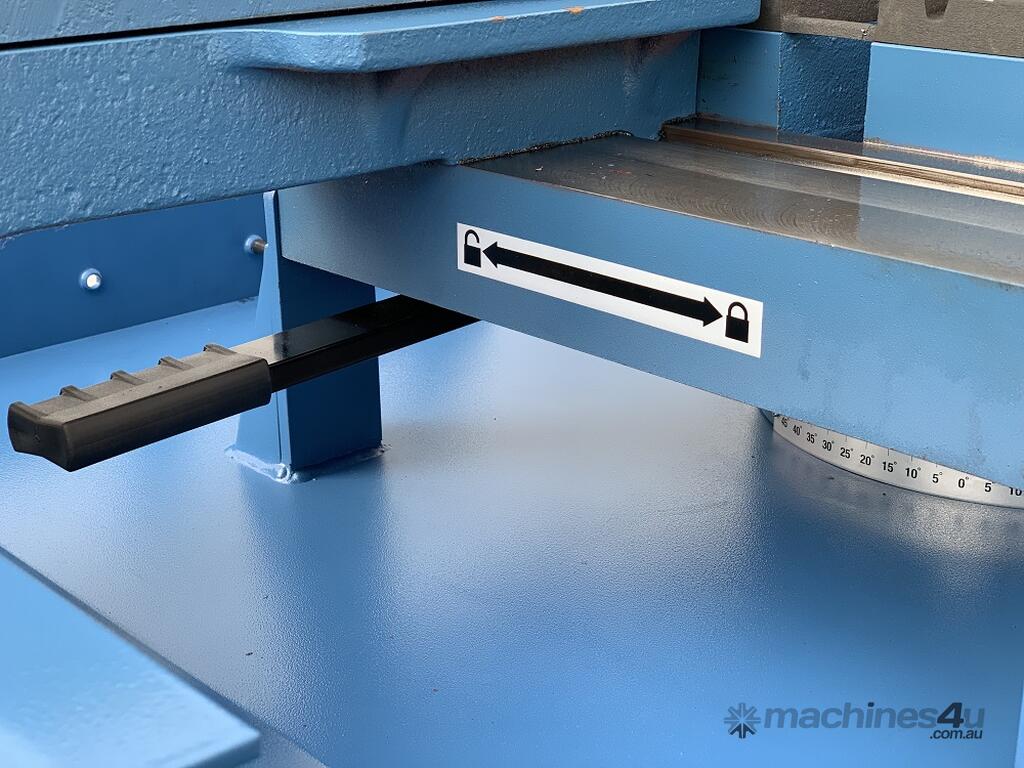

?saw arm mitres up to 60° featuring space saving and convenient mitre cutting
?vibration free, low noise operation ensures clean cut and high precision

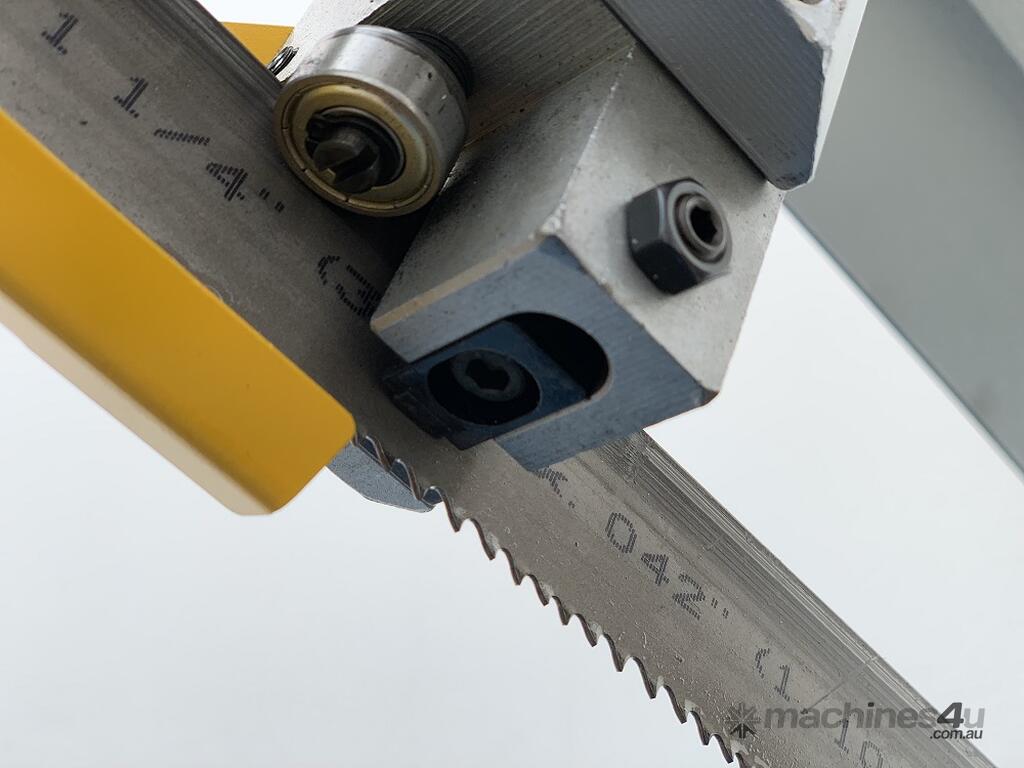

?carbide blade guides

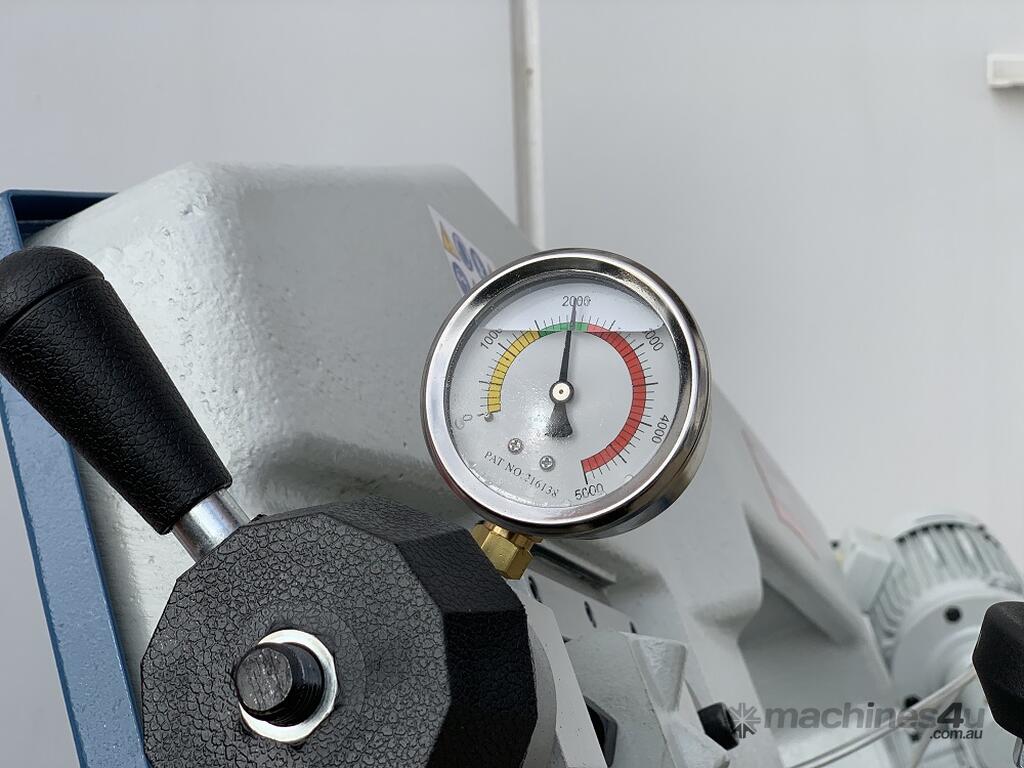

?blade tensioning gauge
?stand included
?CE compliant

Technical Data

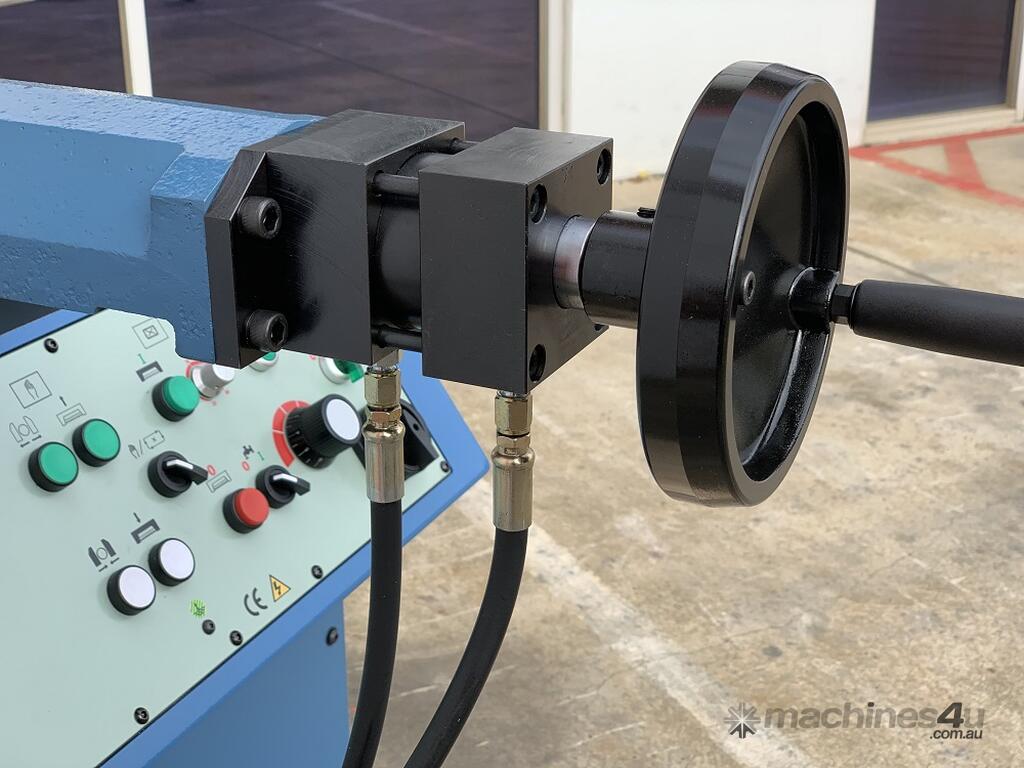

?semi auto operation - hydraulic clamp & release / hydraulic beam downfeed & auto return

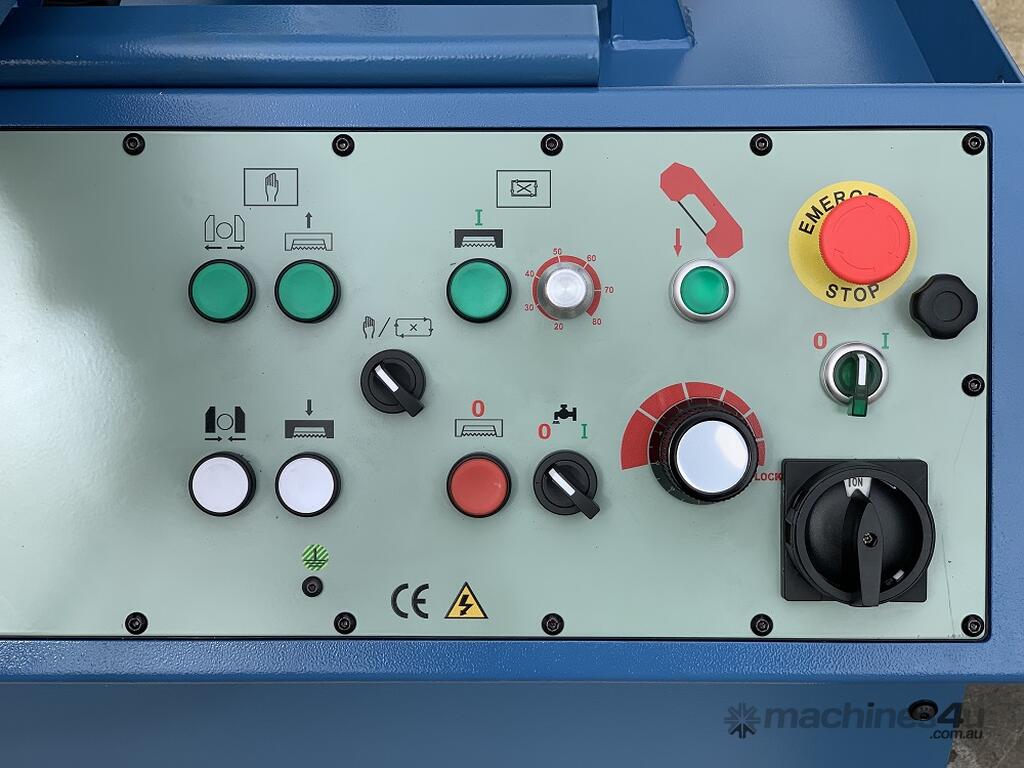

?push button power cutting beam raise feature
?355mm round capacity
?530mm x 290mm rectangular capacity.

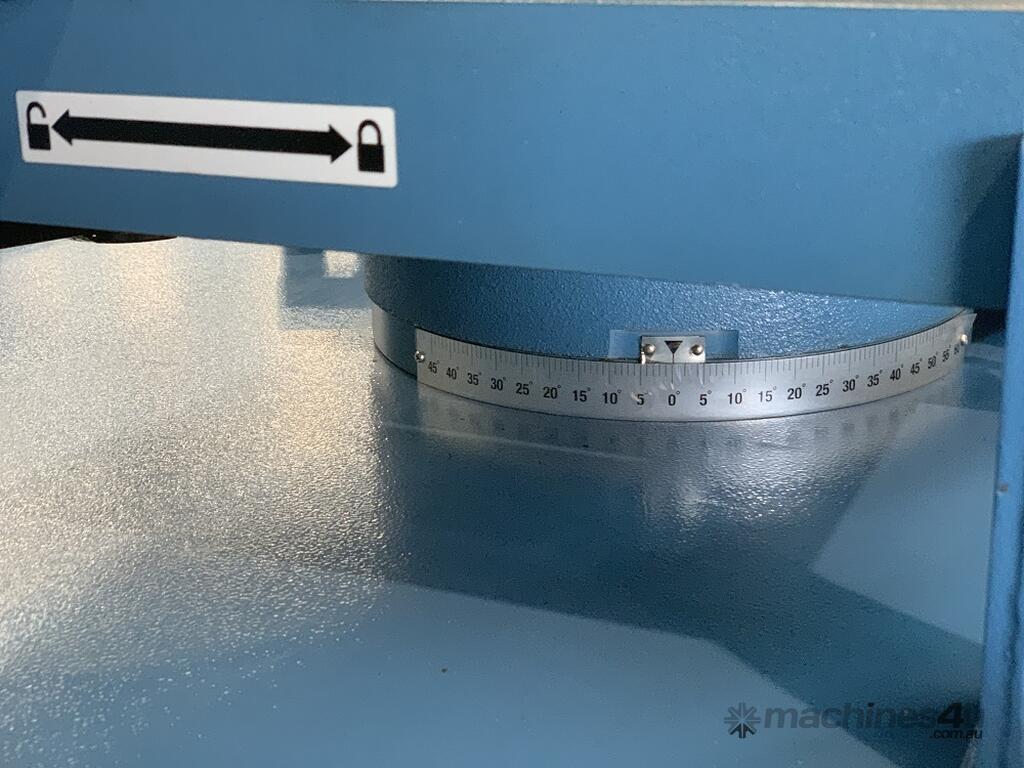

?mitre cutting range - 0 ~ 60 degrees
?blade speed: 20 ~ 80m/min variable speed
?blade size: 3770mm x 34mm x 0.9mm
?table working height: 975mm
?dimensions: 2180mm x 970mm x 1130mm
?crate size: 1900mm x 1000mm x 1400mm x 860kg
?weight: 855Kg
?motor: 2.2Kw / V
