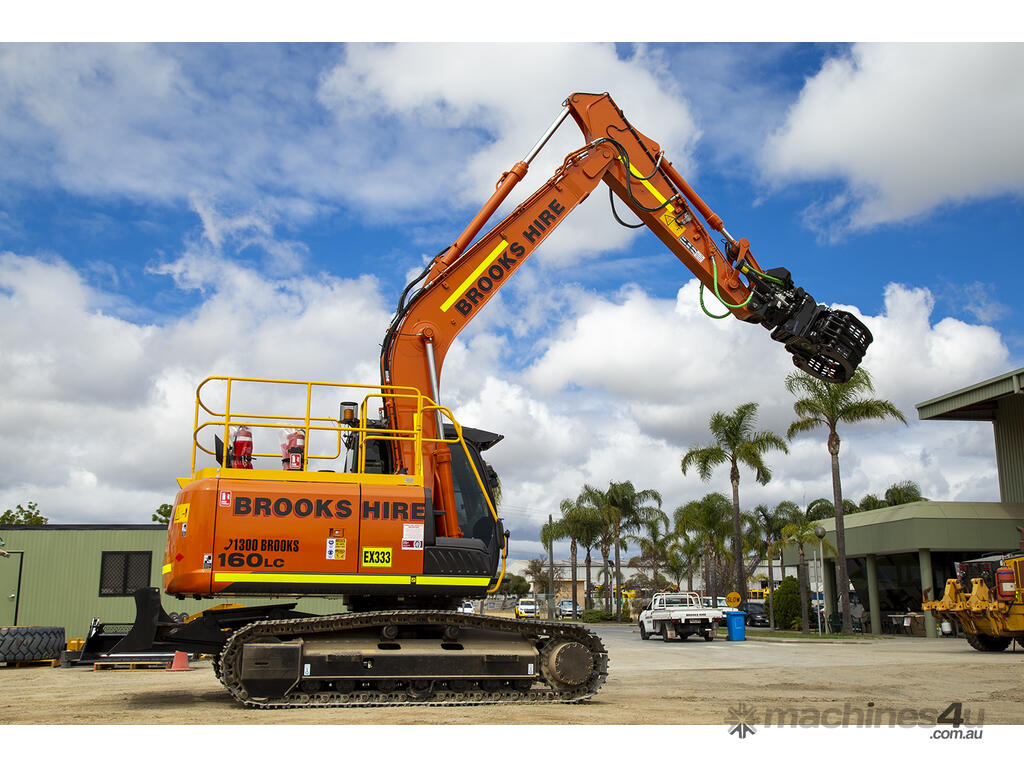

Hitachi’s improved ZX160LC-5 delivers on five key levels: performance, productivity, comfort, durability and reliability. It provides fleet owners with a high-quality, efficient machine that can work effectively, even in challenging conditions. The ZX160LC-5 provides operators with a safer, user- friendly work space, and responds with speed precision. Easy maintenance features maximise machine availability and gets the job done on time, on budget and to a high standard.
ENGINE
Model: Isuzu AM-4JJ1X.
EU Stage IIIB / EPA Tier 4 Interim emission certified.
Type: 4-cycle water-cooled, common rail direct injection.
Aspiration: variable geometry turbocharged, intercooled, cooled EGR.
Aftertreatment: muffler filter (DPF).
Air filter double elements, dry type with restriction indicator.
Pre-cleaner, maintenance free.
Auto shut-down control.
ELECTRICAL
Battery disconnect switch, ISO compliance.
Work lights, boom (1) and upper structure (1).
Additional work lights on cab, front (2) and rear (1).
Rotating beacon provision.
12V power outlet.
HYDRAULICS
2 variable displacement axial piston pumps (2x 191L/min).
Auxiliary dual flow piping.
Work mode selector, adjustable flow rate and pressure.
Pilot accumulator.
Auto power lift.
Overload alarm.
UPPER STRUCTURE
D-section revolving frame.
Counterweight - 3,200kg.
Rear view camera.
Upper structure undercover.
Skid-resistant plates and handrail.
UNDERCARRIAGE
Track frame, long crawler.
Track undercover.
Track guard - 1.
Shoes, triple grouser 500mm.
Travel alarm.
FRONT ATTACHMENT
5.10m monoblock boom.
Boom cylinders, hose rupture valve.
Arm cylinder, hose rupture valve.
2.58m arm, lower reinforced.
Bucket cylinder.
Bucket link A, cast.
Bucket link B.
Quick hitch piping provision.
OPERATOR ENVIRONMENT
ROPS certified cab: all-weather sound suppressed, top and front bracket.
Glasses: front upper windshield: laminated, others: tempered.
Overhead window, polycarbonate.
Auto air conditioner.
Air suspension seat with headrest, fabric.
Retractable seat belt, 50mm.
Short wrist control levers.
Auxiliary function, proportional control, right lever.
Level indicator.
AM/FM radio and AUX terminal for digital audio player.
LCD multi function colour monitoring system.
Windshield washers and wipers, front.
