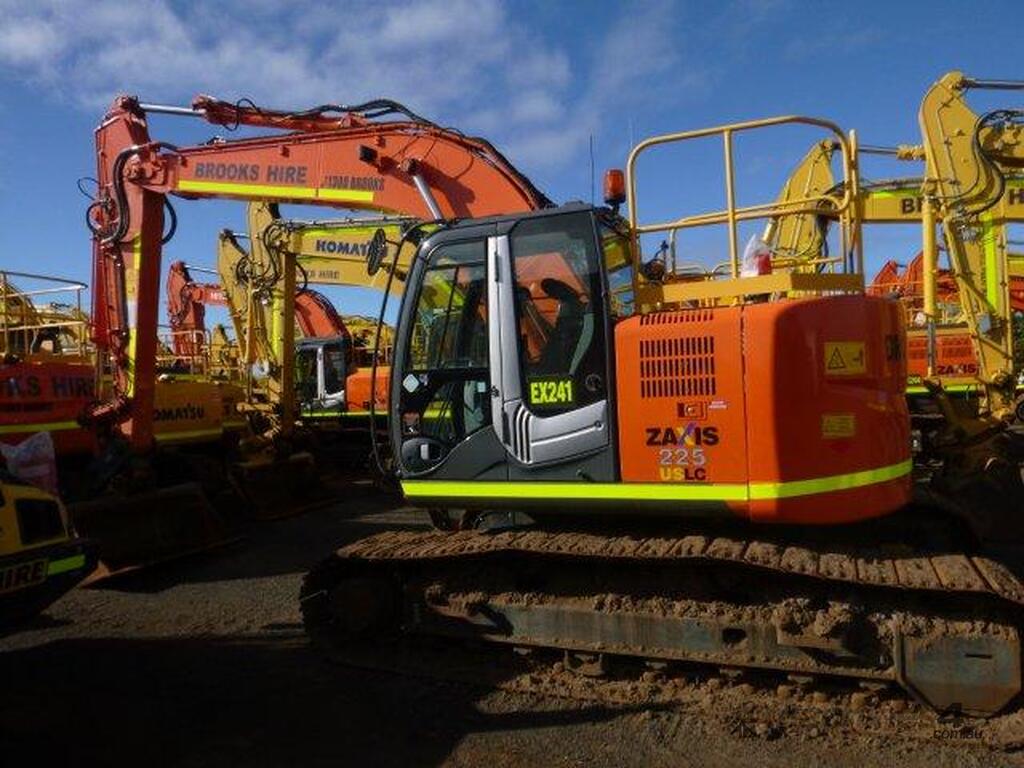

Hitachi ZX225USLC-3 Excavator Steel Tracked - 20 to 24 tonne for Hire

The undercarriage of the ZAXIS 225USLC-3 has become much more enduring.
With improved construction and enlarged box sections, a track undercover plate that protects the center joint and hydraulic hoses this machine is a lot more durable.

EQUIPMENT DETAILS
Year 2012
Make Hitachi
Model ZX225USLC-3

SPECIFICATIONS
Operating Weight 23,600 kg
Flywheel horse power 122 kW / 2,000 rpm
Bucket capacity (SAE heaped) 0.51 m3
Bucket capacity (CECE heaped) 0.45 m3
Bucket width 720 mm
Bucket with (incl. side cutters) 830 mm

PERFORMANCE
Travel speed – Hi 5.5 km/h
Travel speed – Lo 3.5 km/h
Swing speed 13.3 rpm
Ground pressure 0.50 kg/cm2
Max. traction force 20,700 kg
Gradeability 35 deg.
Bucket digging force (ISO) 15,400 kg
Arm crowd force (ISO) 13,600 kg

DIMENSIONS

A Distance between tumblers 3,660 mm
B Undercarriage length 4,460 mm
C Counterweight clearance 975 mm
D Rear-end swing radius 1,680 mm
E Overall width of upperstructure 2,870 mm
F Overall height of cab 2,950 mm
G Min. ground clearance 450 mm
H Track gauge 2,390 mm
I Track shoe width 600 mm
J Undercarriage width 2,990 mm
K Overall width 2,990 mm
L Overall length 9,190 mm
M Overall height of boom 3,200 mm
N Track height with triple grouser shoes 920 mm

WORKING RANGE

A Max. digging reach 10,010 mm
B Max. digging depth 6,700 mm
C Max. cutting height 10,980 mm
D Max. dumping height 8,050 mm
E Min. swing radius 3,370 mm
F Max. vertical wall 5,920 mm
