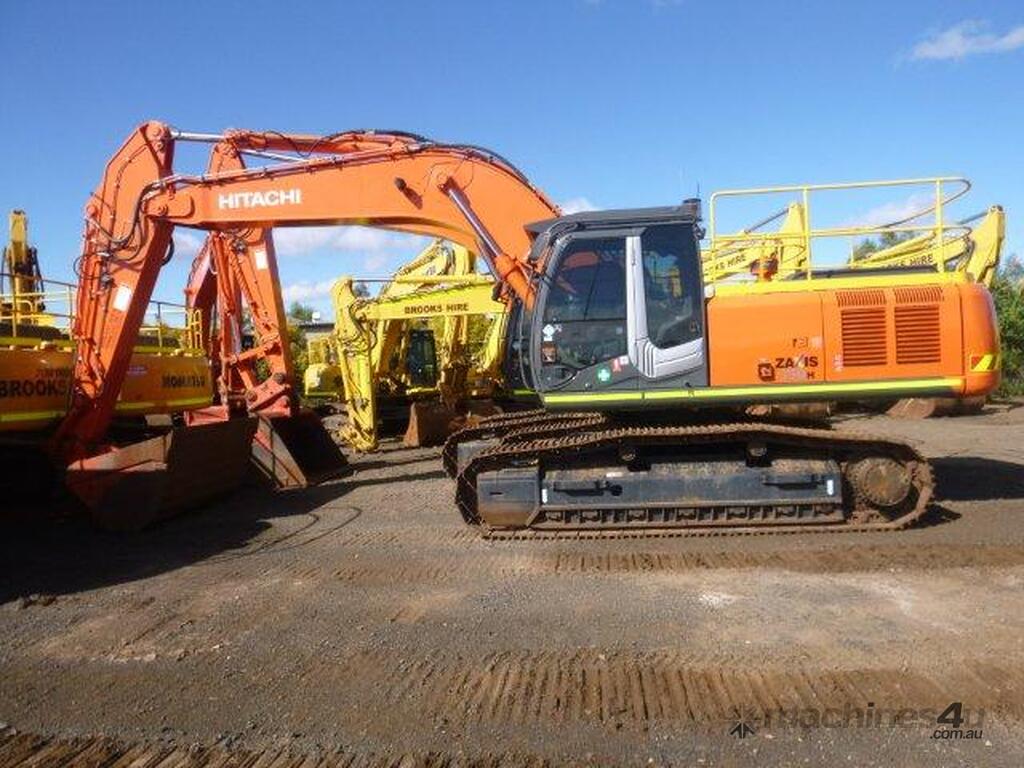

Hitachi ZX350H-3 Excavator Steel Tracked - 30 to 34 tonne for Hire

The ZAXIS-3 series is a new generation of excavators designed to provide more efficient power, productivity and improved operator comfort. A high-quality, efficient machine that can work effectively, even in challenging conditions.


NEW AND IMPROVED

Performance
– 10 % higher production

Comfort
– Excellent visibility
– Enhanced controllability
– Lower noise level

Reduced running costs
– Lower fuel consumption per m3
– Improved durability and reliability

New equipment
– Rear view camera (optional)
– Theft deterrent system

EQUIPMENT DETAILS
Year 2013
Make Hitachi
Model ZX350H-3

SPECIFICATIONS
Operating Weight 36,000 kg
Flywheel horse power 202 kW / 1,900 rpm
Bucket capacity (SAE heaped) 1.15 m3
Bucket capacity (CECE heaped) 1.00 m3
Bucket width 1,100 mm
Bucket with (incl. side cutters) 1,230 mm

PERFORMANCE
Travel speed – Hi 5 km/h
Travel speed – Lo 3.2 km/h
Swing speed 10.7 rpm
Ground pressure 0.65 kg/cm2
Max. traction force 30,400 kg
Gradeability 35 deg.
Bucket digging force (ISO) 23,900 kg
Arm crowd force (ISO) 21,500 kg



DIMENSIONS

A Distance between tumblers 3,370 mm
B Undercarriage length 4,640 mm
C Counterweight clearance 1,160 mm
D Rear-end swing radius 3,370 mm
E Overall width of upper structure 2,990 mm
F Overall height of cab 3,160 mm
G Min. ground clearance 500 mm
H Track gauge 2,590 mm
I Track shoe width 600 mm
J Undercarriage width 3,190 mm
K Overall width 3,190 mm
L Overall length 11,130 mm
M Overall height of boom 3,470 mm
N Track height with triple grouser shoes 1,060 mm

WORKING RANGE
A Max. digging reach 10,570 mm
B Max. digging depth 6,840 mm
C Max. cutting height 9,990 mm
D Max. dumping height 6,940 mm
E Min. swing radius 4,610 mm
F Max. vertical wall 5,510 mm
