Automatic bandsaw with electronic control

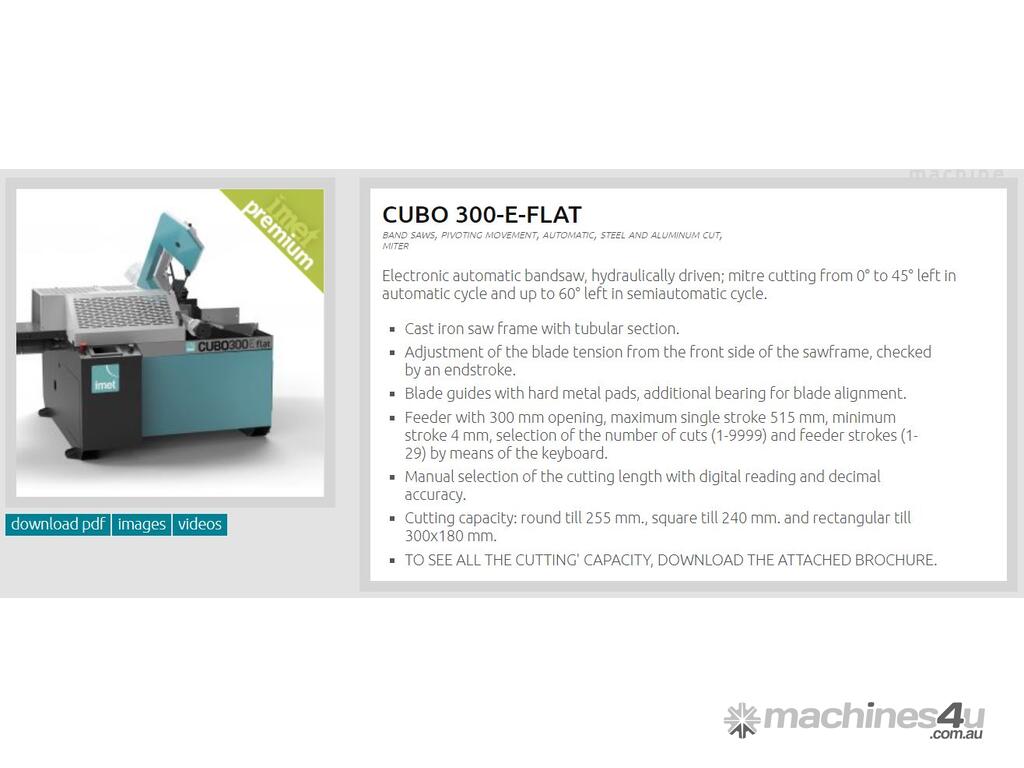

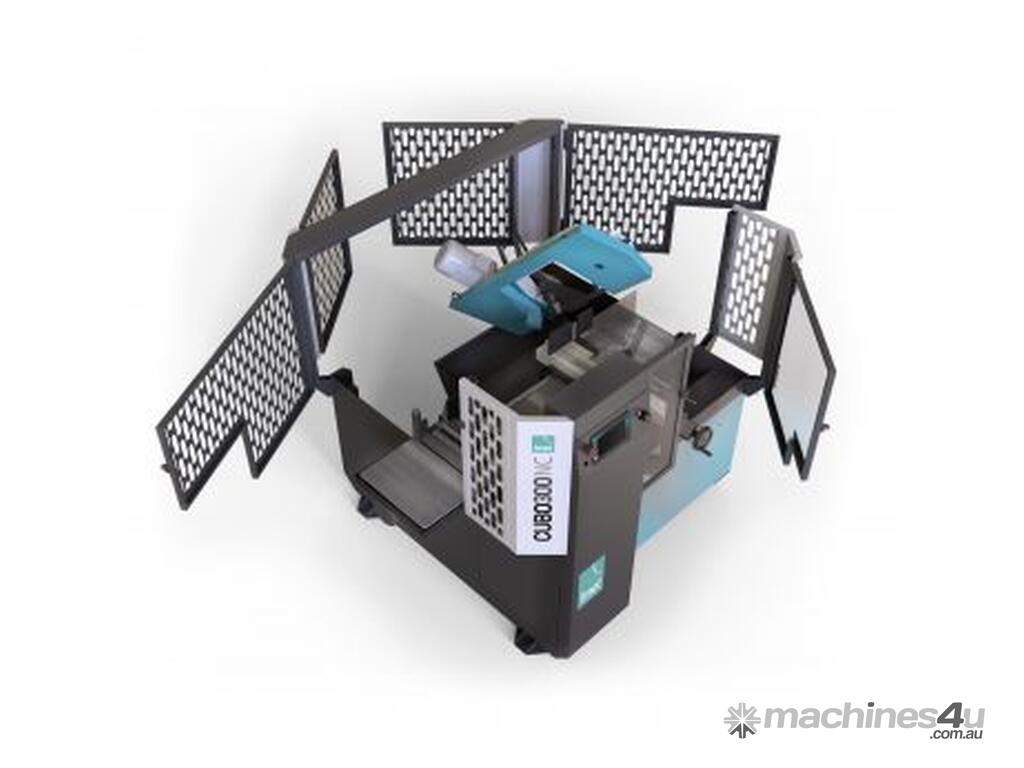

CUBO 300 E FLAT is the electronic automatic bandsaw, is an innovative working tool intended to cut medium size tube, profiles and bars. The machine allows to cut one cutting length at a time by setting the measure and the position with the manual handler with digital reading. Machine has manual rotation of the bow and automatic material feeder.
- Electronic automatic bandsaw, hydraulically driven; mitre cutting from 0° to 45° left in automatic cycle and up to 60° left in semiautomatic cycle.
- Cast iron saw frame with tubular section.

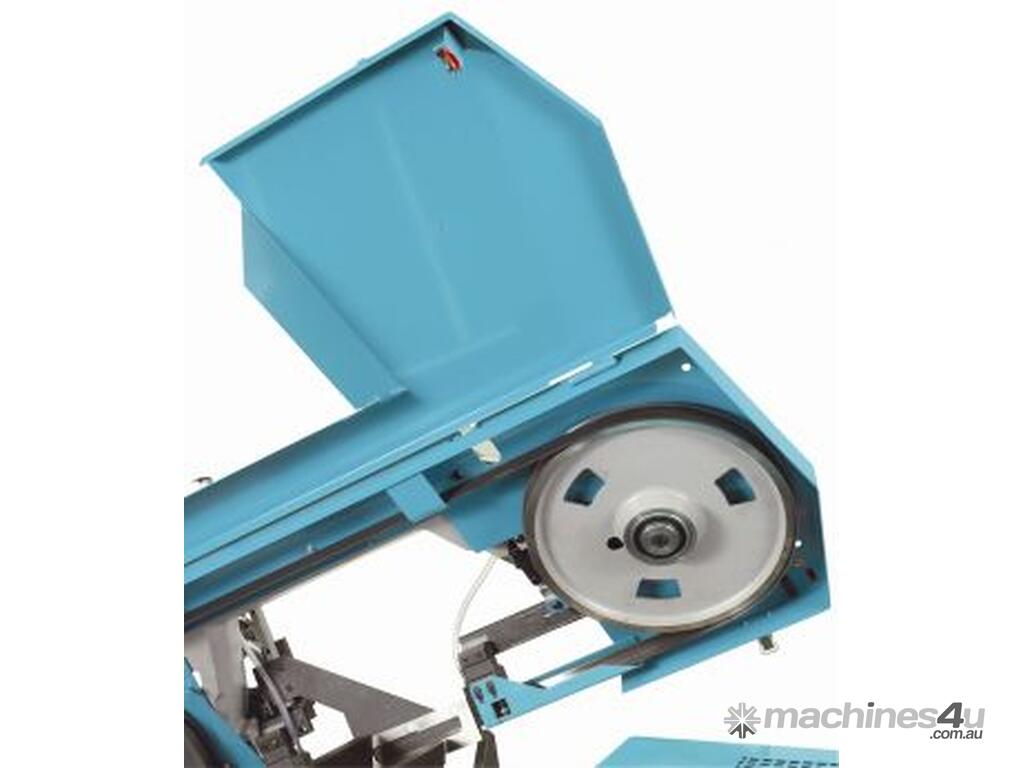

- Adjustment of the blade tension from the front side of the sawframe, checked by an endstroke.

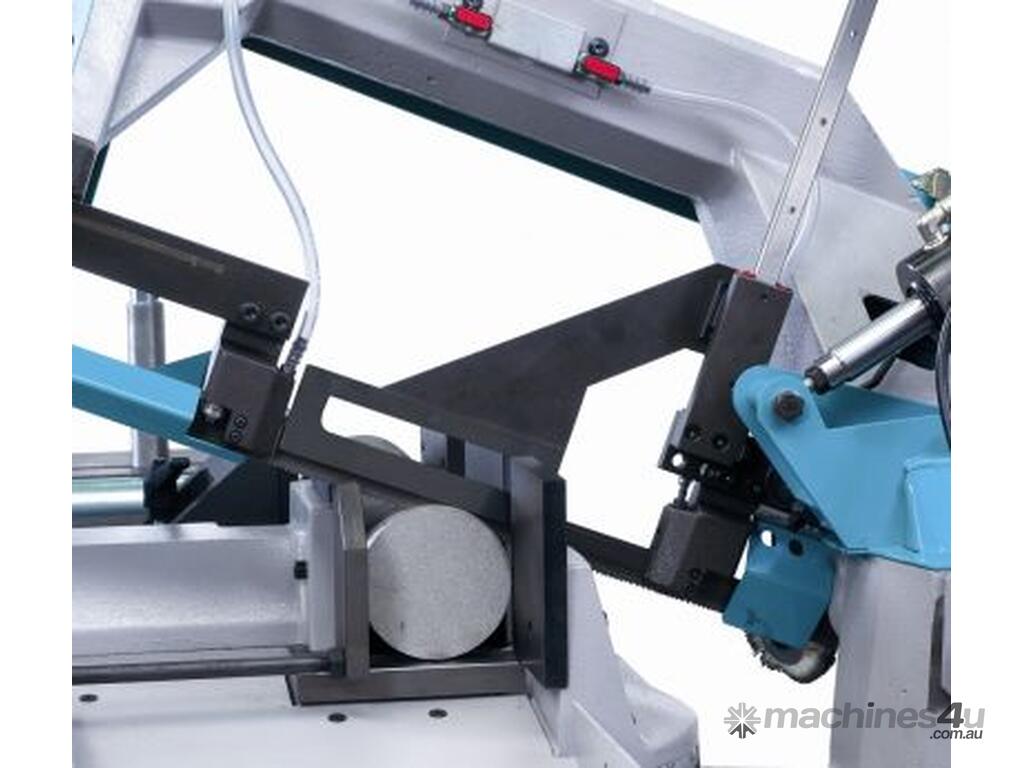

- Blade guides with hard metal pads, additional bearing for blade alignment.

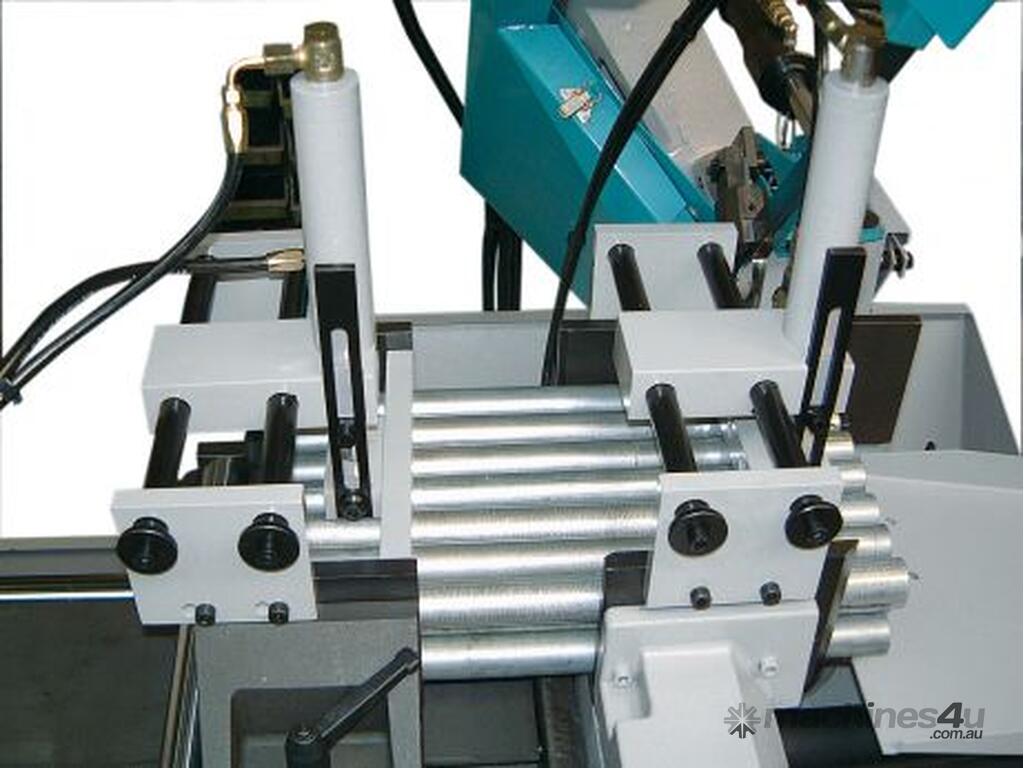

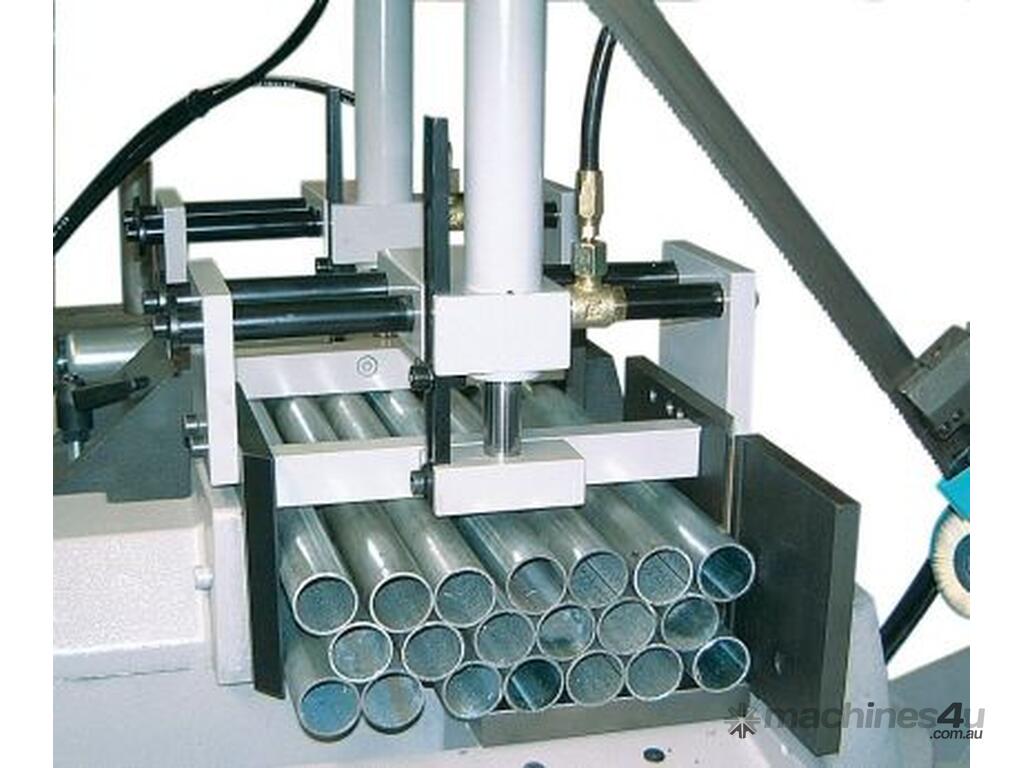

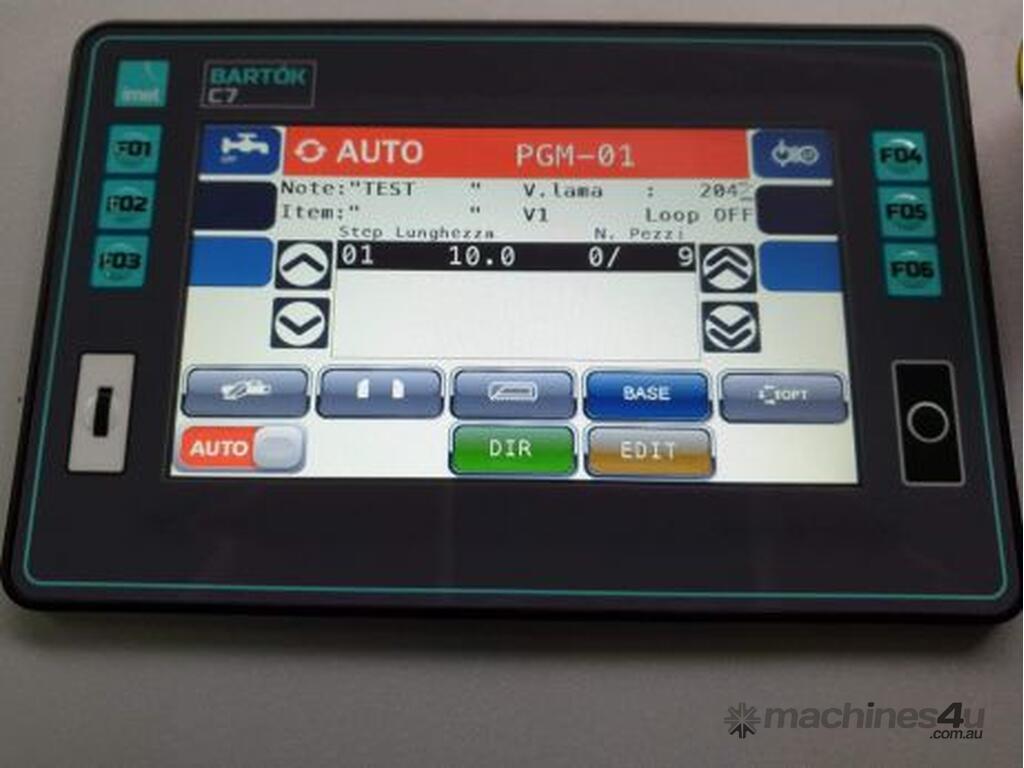

- Feeder with 300 mm opening, maximum single stroke 515 mm, minimum stroke 4 mm, selection of the number of cuts (1-9999) and feeder strokes (1-29) by means of the keyboard.

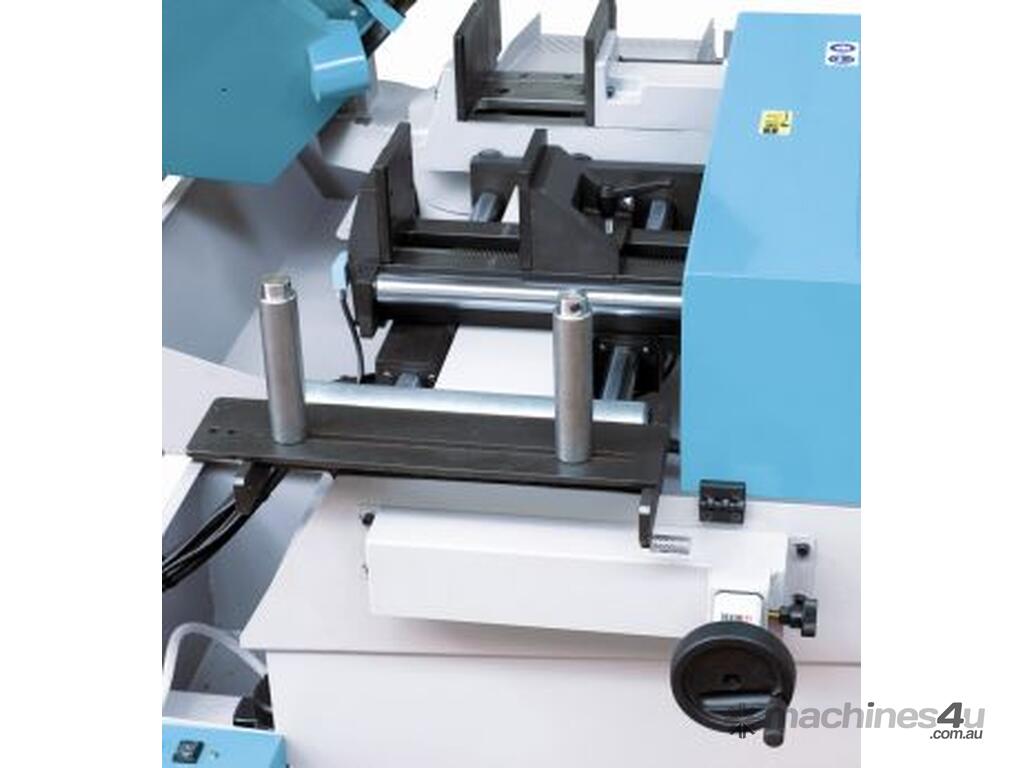

- Manual selection of the cutting length with digital reading and decimal accuracy.
- Cutting capacity: round till 255 mm., square till 240 mm. and rectangular till 300×180 mm.
