IMS-3kW CNC Laser Cutting Machine – 1.5X3m Fiber Laser

High-Precision CNC Fibre Laser for Sheet Metal Fabrication

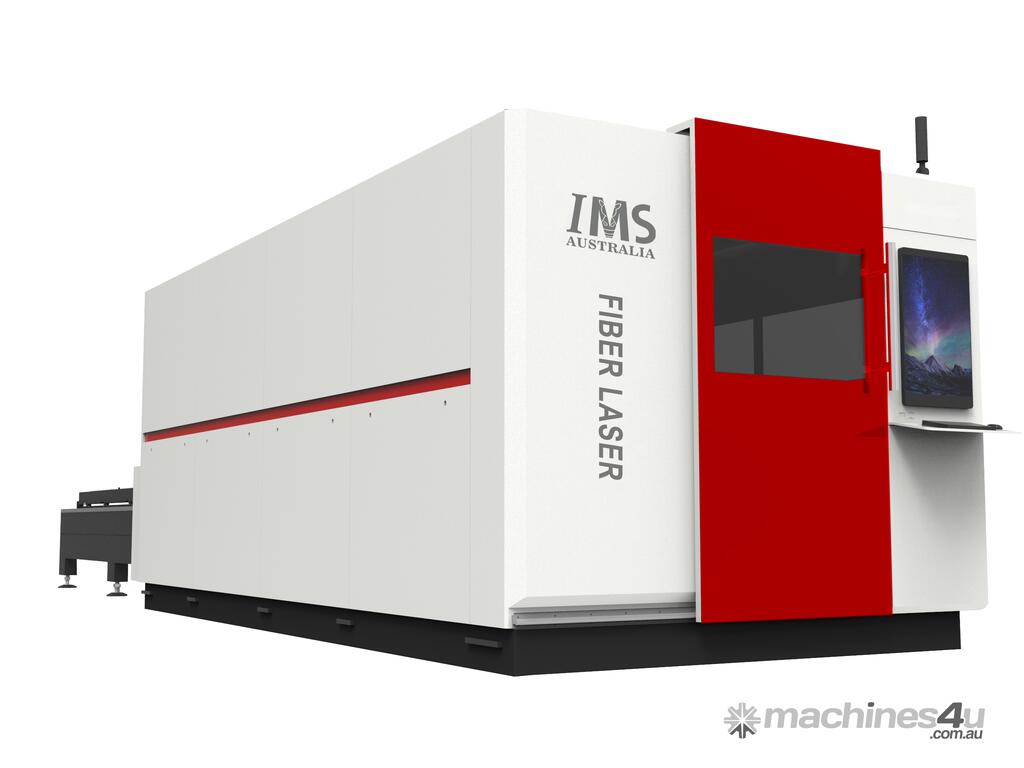

The IMS 3kW Fibre Laser Cutting Machine is designed to deliver reliable, high-precision cutting for modern sheet metal fabrication workshops.

Supplied by A&S Machinery Sales Pty Ltd, this advanced fibre laser system features a heavy-duty welded gantry structure, high-quality international components and a fully enclosed cutting area meeting Australian safety standards.

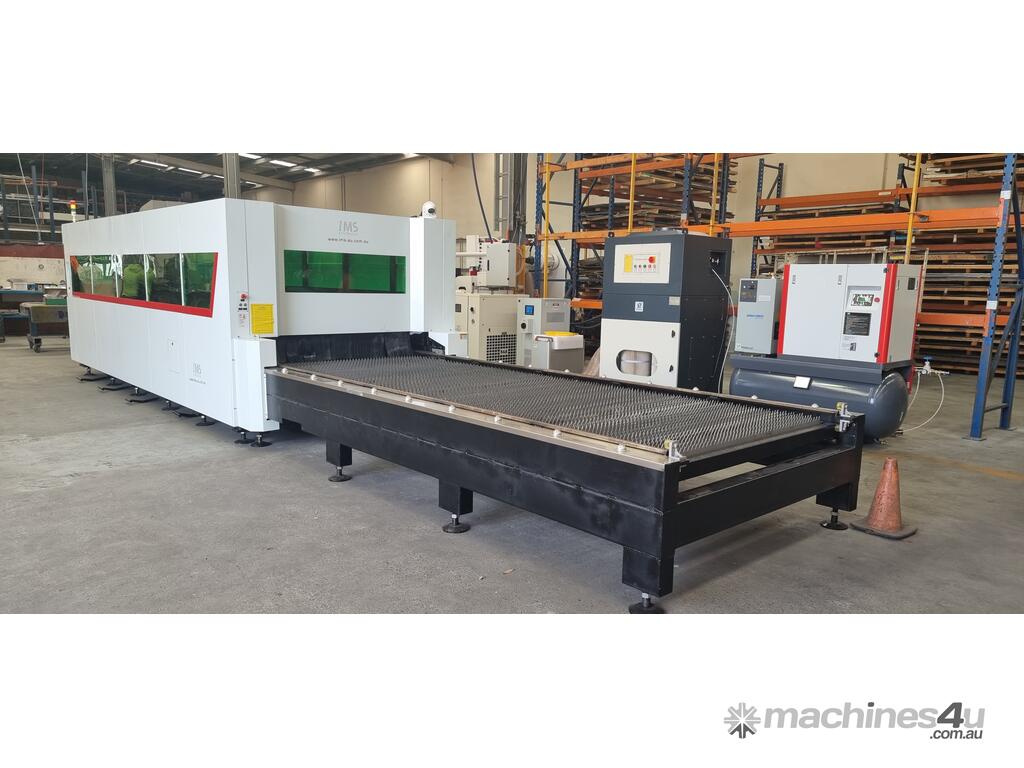

The machine is equipped with an automatic exchange table, enabling continuous production and increased productivity.

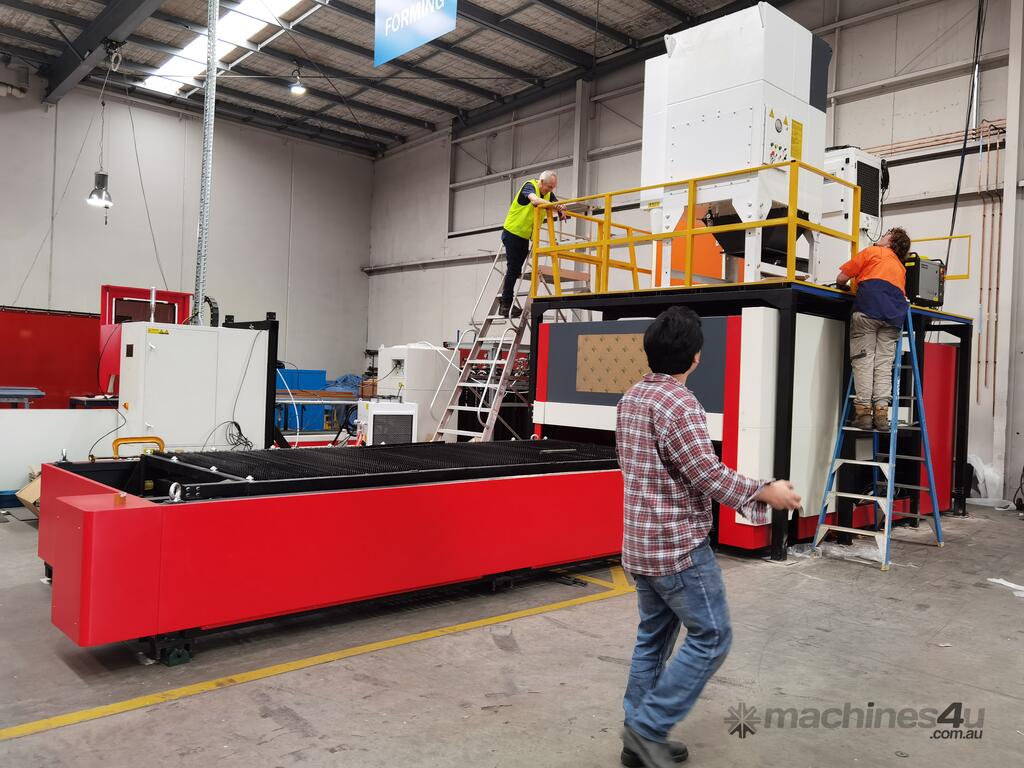

Delivery and installation can be arranged within major capital cities.

Key Features

• Heavy-duty gantry welded machine structure
• Extruded aviation aluminium crossbeam

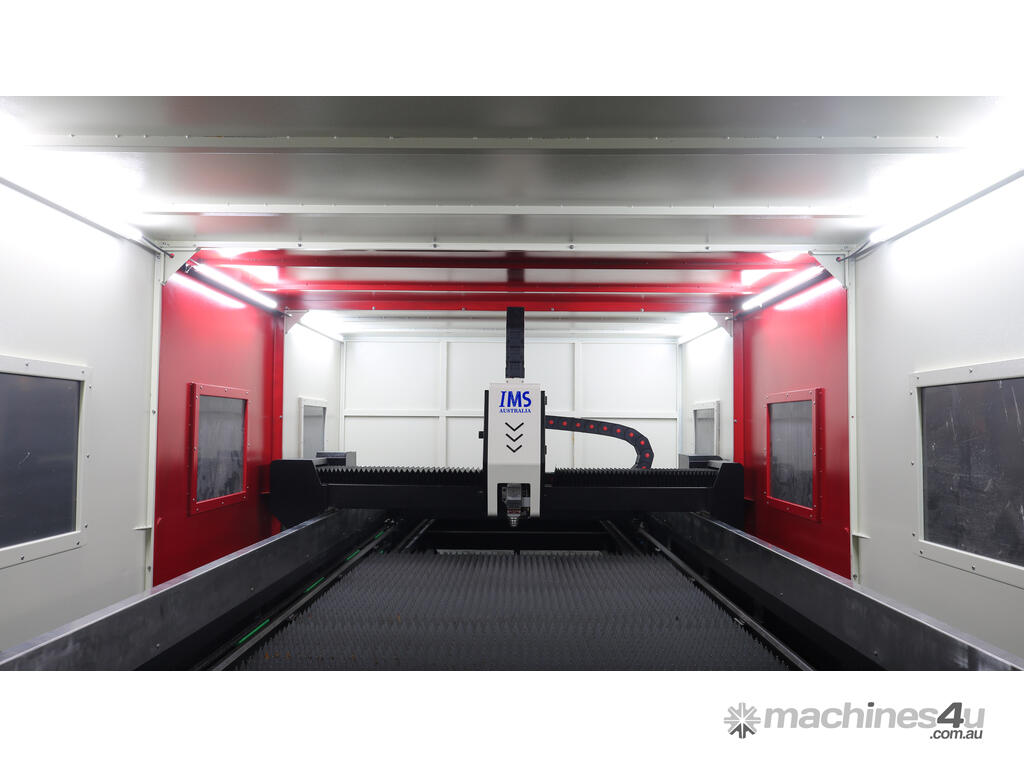

• Fully enclosed working area meeting Australian safety standards

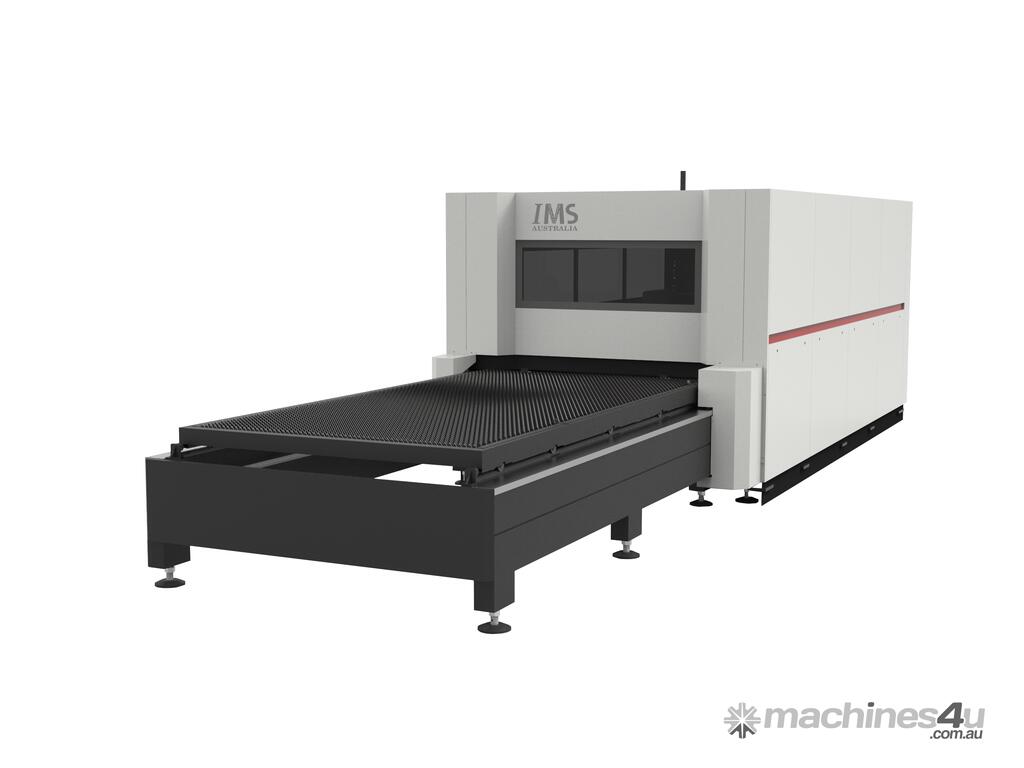

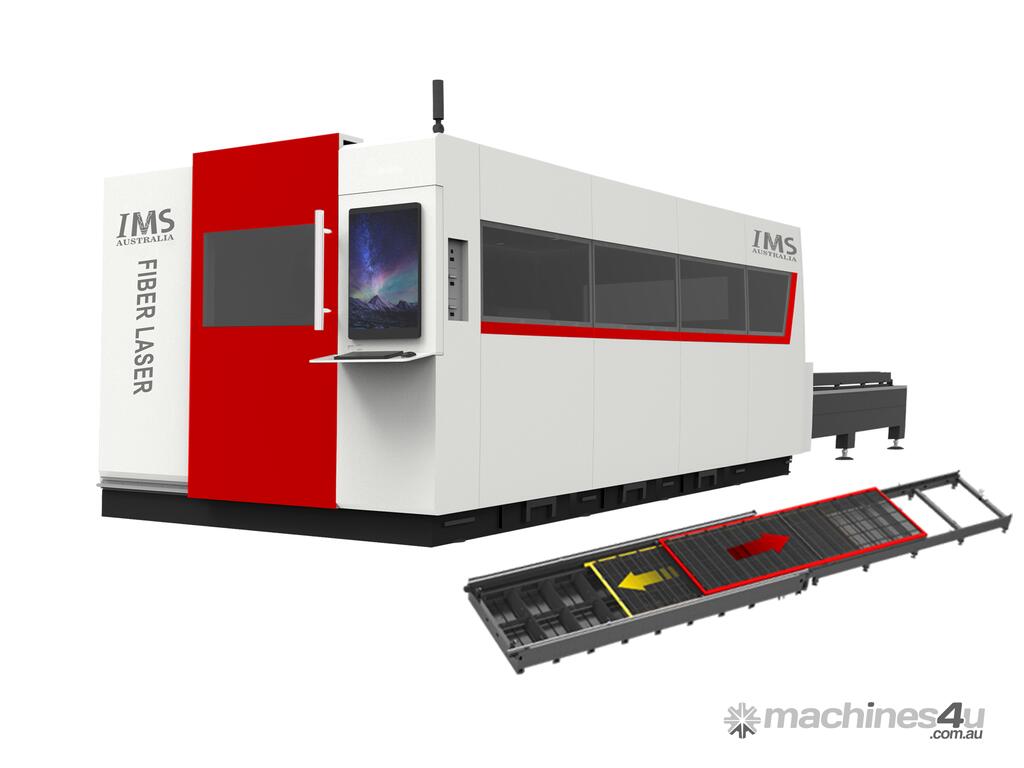

• Automatic exchange table system
• Large monitor screen with safety camera
• Advanced CNC control system with easy operation
• Automatic lubrication system
• High dynamic performance with premium components
• Built-in industrial computer with rotating screen
• Wireless handheld controller
• Free software updates
• Remote support via phone and video
• Training and maintenance programs available

Laser System Components

• Laser Source: MAX 3kW Fibre Laser

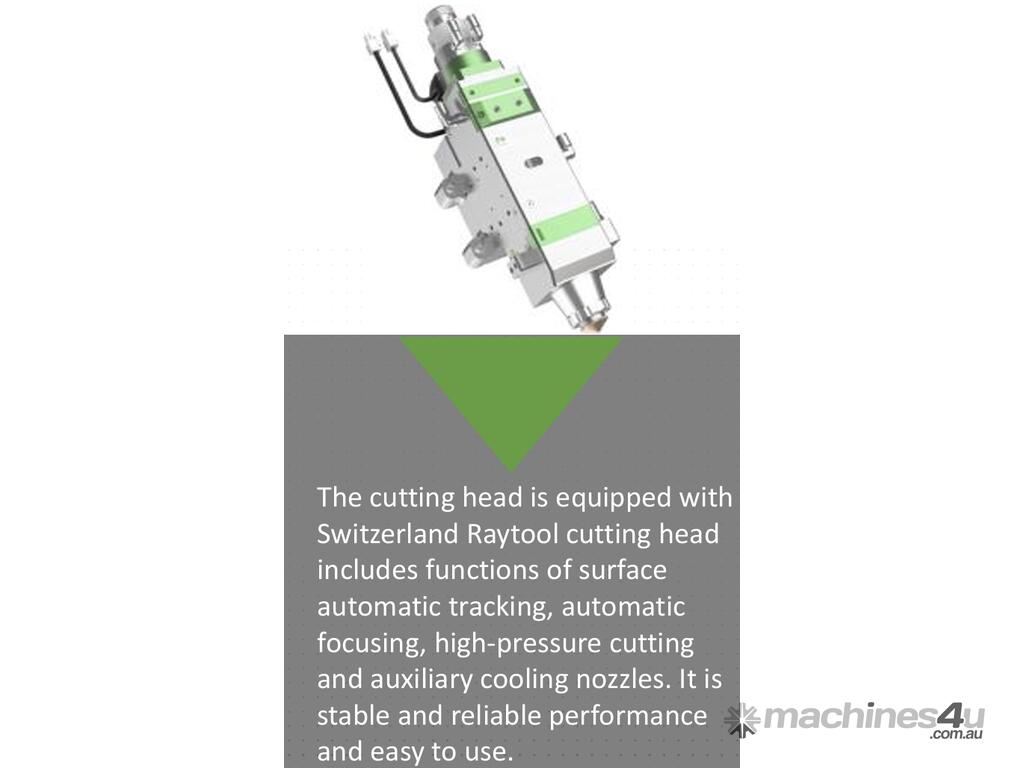

• Laser Cutting Head: Raytools (Switzerland)
• Chiller: Teyu or Tongfei
• Rack & Pinion: YTC (Taiwan)
• Reducer / Decelerator: ROUST (Germany)
• Linear Guide Rails: ROUST (Germany)
• Pneumatic System: SMC (Japan)
• Electrical Components: Schneider (France)

Machine Specifications

Working Area: 1530 mm × 3050 mm

• X-axis running area: 1510 mm
• Y-axis running area: 3050 mm
• Z-axis running area: 320 mm

Maximum Running Speed: 140 m/min
Acceleration: 1.5G

Position Accuracy: ±0.03 mm
Repeat Position Accuracy: ±0.02 mm

Power Supply: 3 Phase 380V ±5% / 50Hz

Machine Size: 11000 × 2315 × 2000 mm

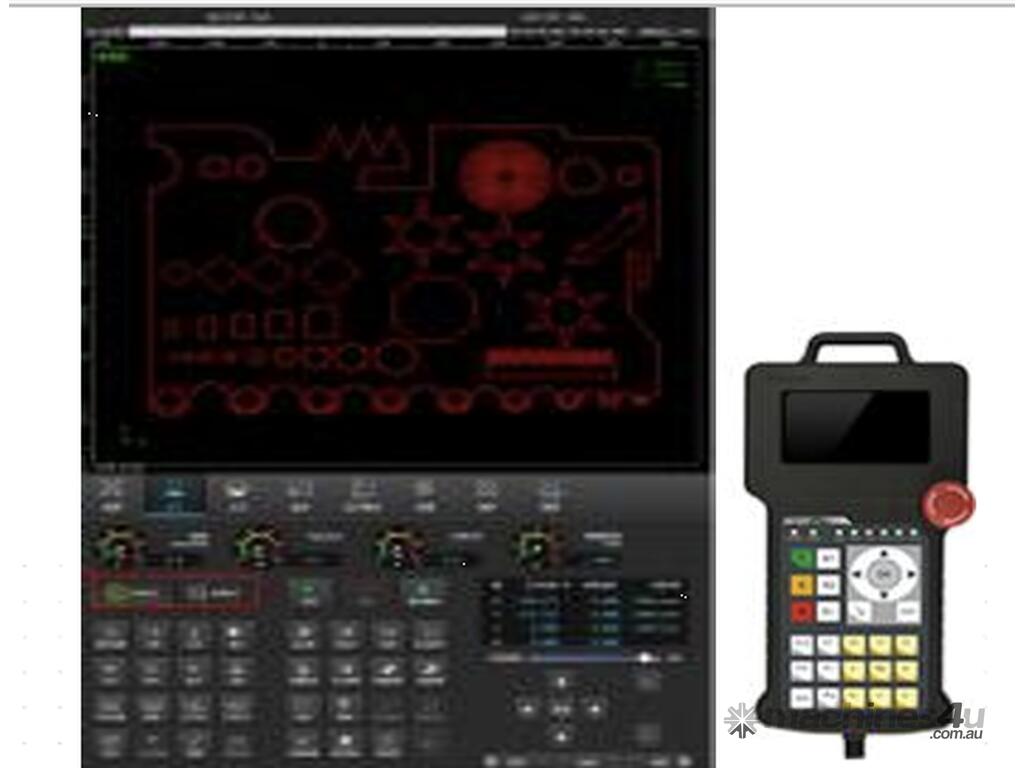

Laser Cutting Software

The machine includes advanced laser cutting software powered by a high-performance industrial PC, allowing operators to easily design or process graphics and text.

This system optimises cutting paths and improves overall production efficiency.

A hand-held controller is included for manual test cuts, severance cuts and servicing operations.

Typical Cutting Capacity (3kW)

• Carbon Steel: up to 20 mm
• Stainless Steel: up to 10 mm
• Aluminium: up to 8 mm
• Brass: up to 6 mm

Optional Equipment

Optional equipment available at additional cost:

• Voltage stabiliser power supply
• Fume extraction system
• Compressed air system
• Material lifting system (500 kg)

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine pricing and availability
• Delivery and installation
• Additional fibre laser sizes (3kW, 6kW, 12kW, 20kW)
• Training and technical support
