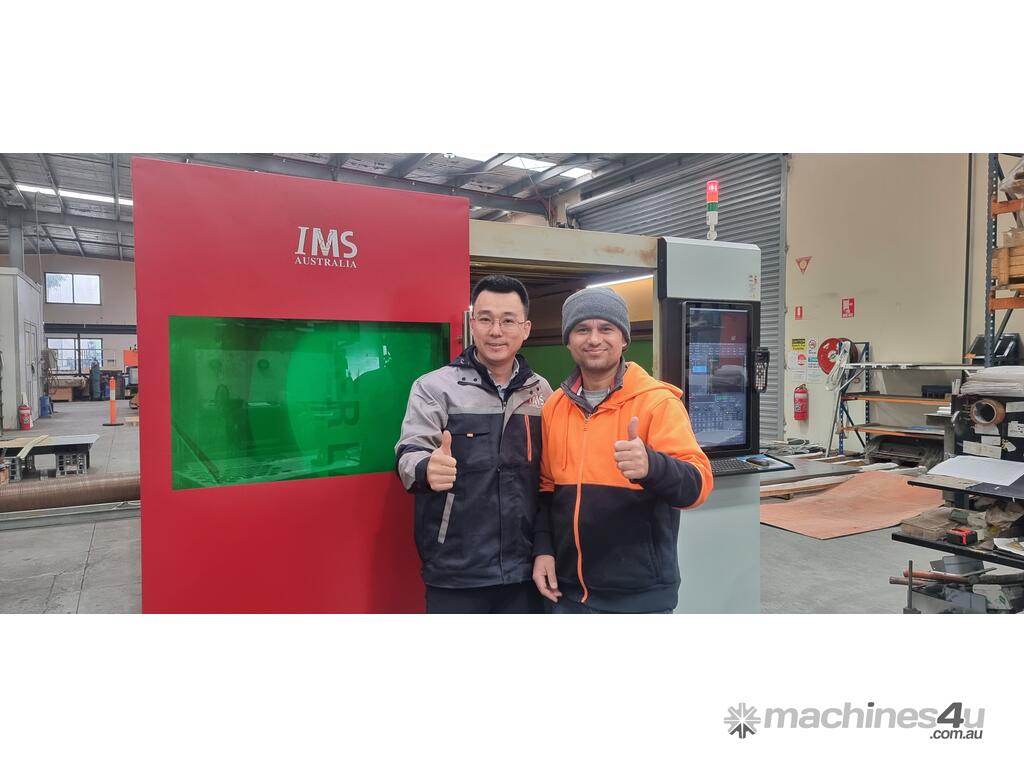

IMS-6kW Fiber Laser Cutting Machine – CNC Laser with Exchange Table

High-Performance CNC Fiber Laser for Sheet Metal Fabrication

The IMS 6kW Fiber Laser Cutting Machine is designed for high-speed and high-precision cutting of sheet metal in modern fabrication environments.

Supplied by A&S Machinery Sales Pty Ltd, this advanced fibre laser system features a heavy-duty machine structure, high-quality international components and a fully enclosed cutting area that meets Australian safety standards.

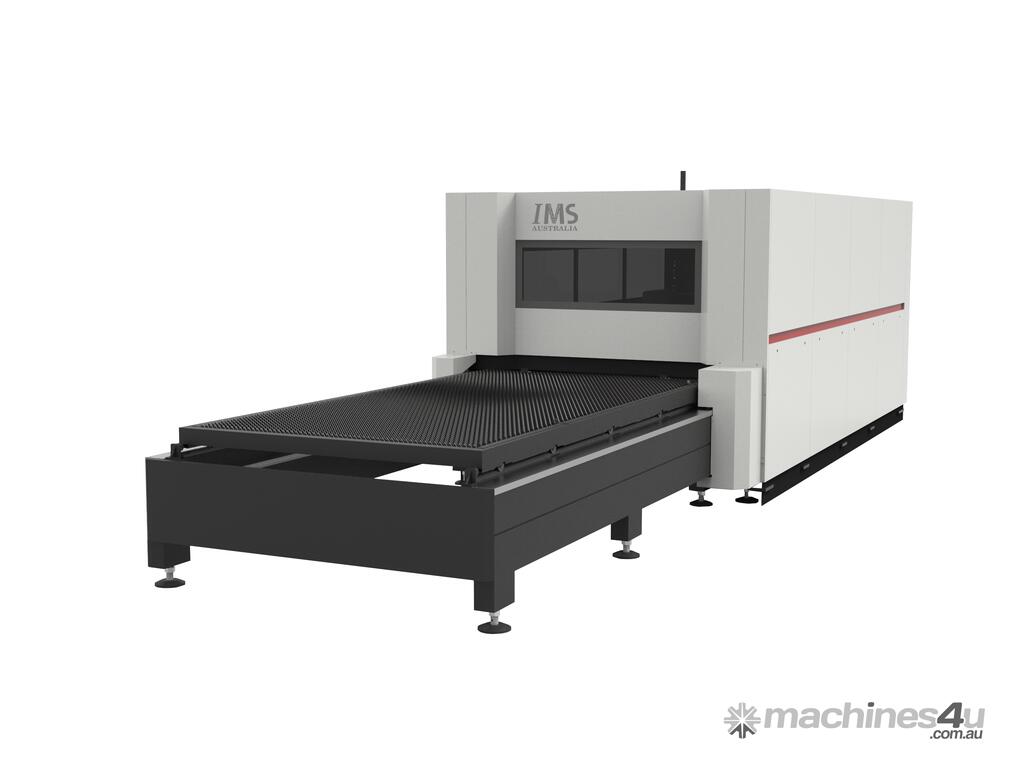

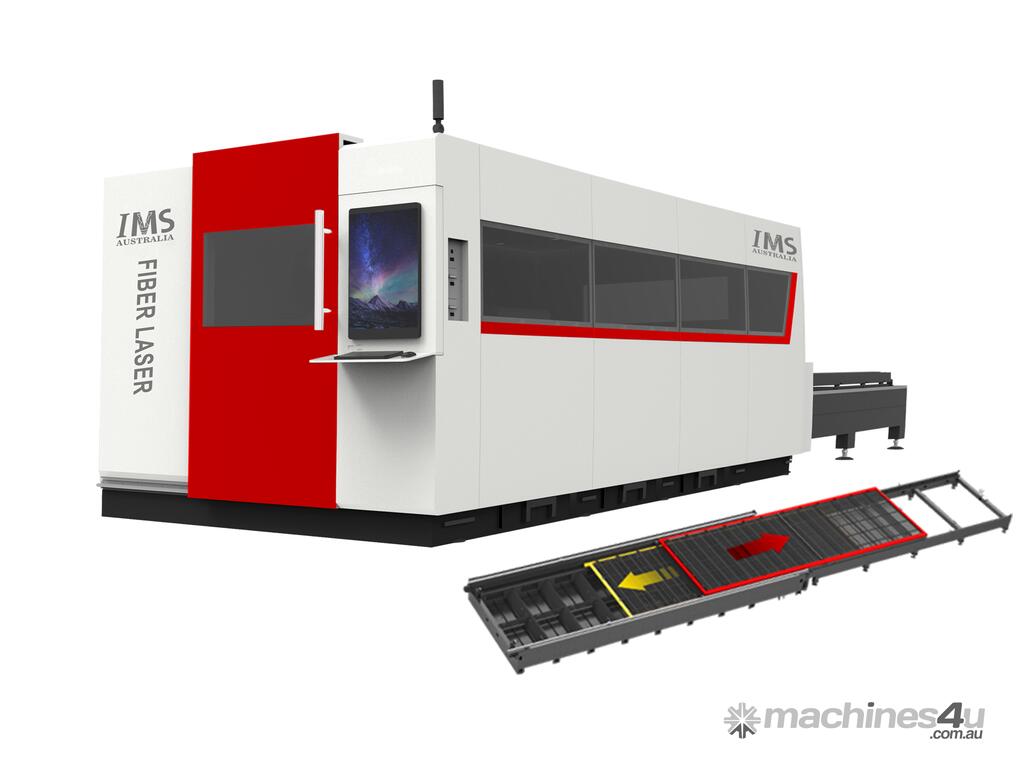

The machine is equipped with an automatic exchange table to improve productivity and minimise downtime between cutting cycles.

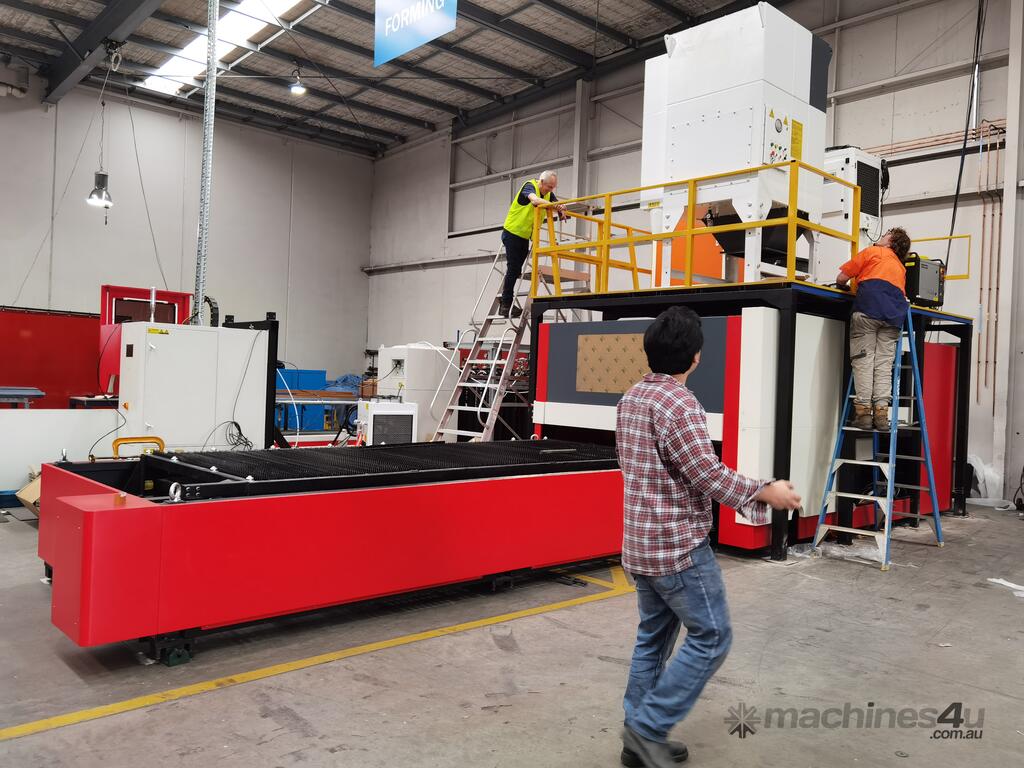

Delivery and installation can be arranged within major capital cities.

Key Features

• Heavy-duty gantry welded machine structure
• Automatic exchange table system
• Extruded aviation aluminium crossbeam

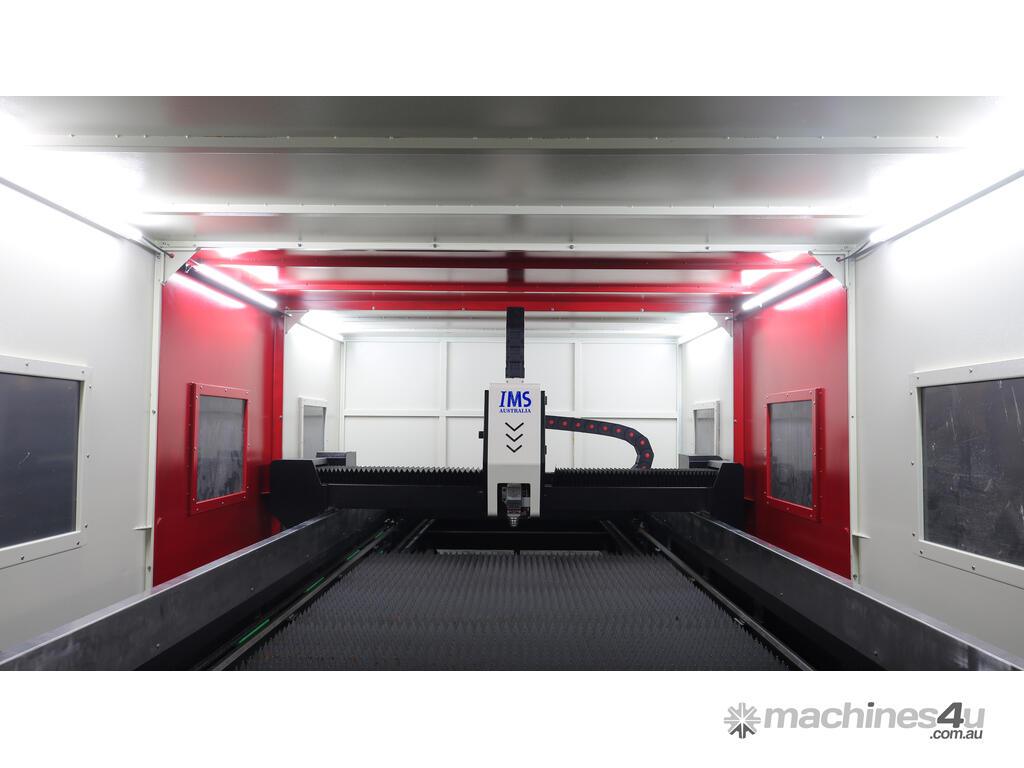

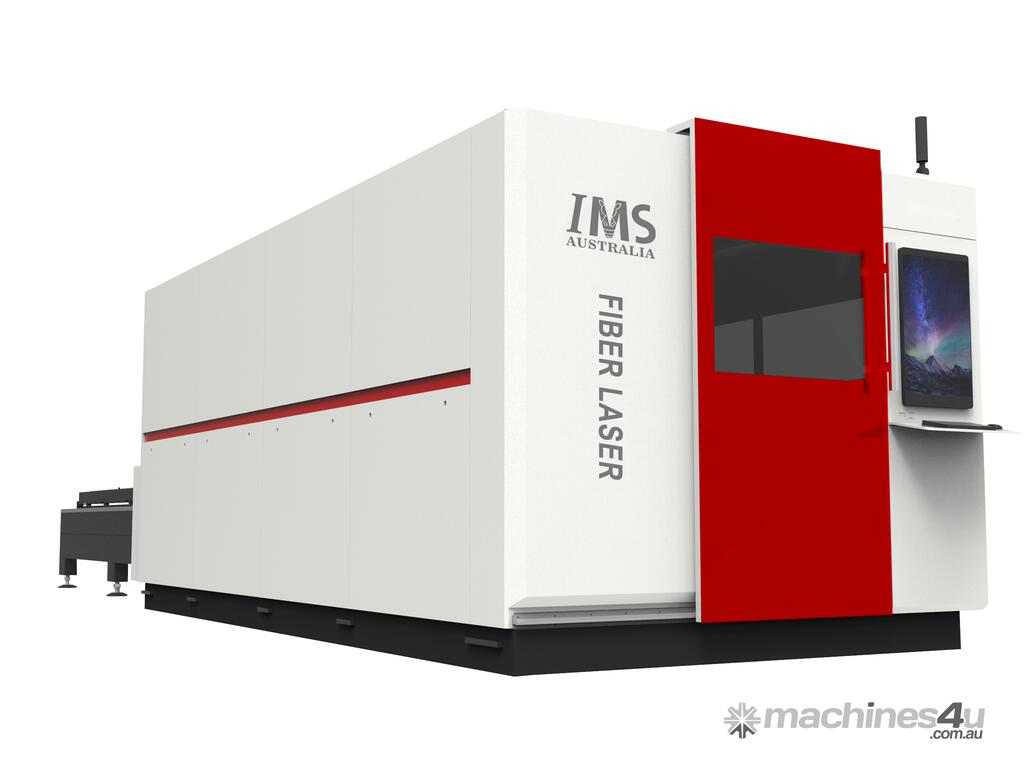

• Fully enclosed cutting area meeting Australian safety standards
• Large monitor screen with safety camera
• Advanced CNC control system with easy operation
• Automatic lubrication system
• High dynamic performance with premium components
• Built-in industrial PC with rotating screen
• Wireless handheld controller for manual operations
• Free software updates
• Remote support via phone and video
• Ongoing training and maintenance programs available

Laser System Components

• Laser Source: RAYCUS 6kW Fiber Laser

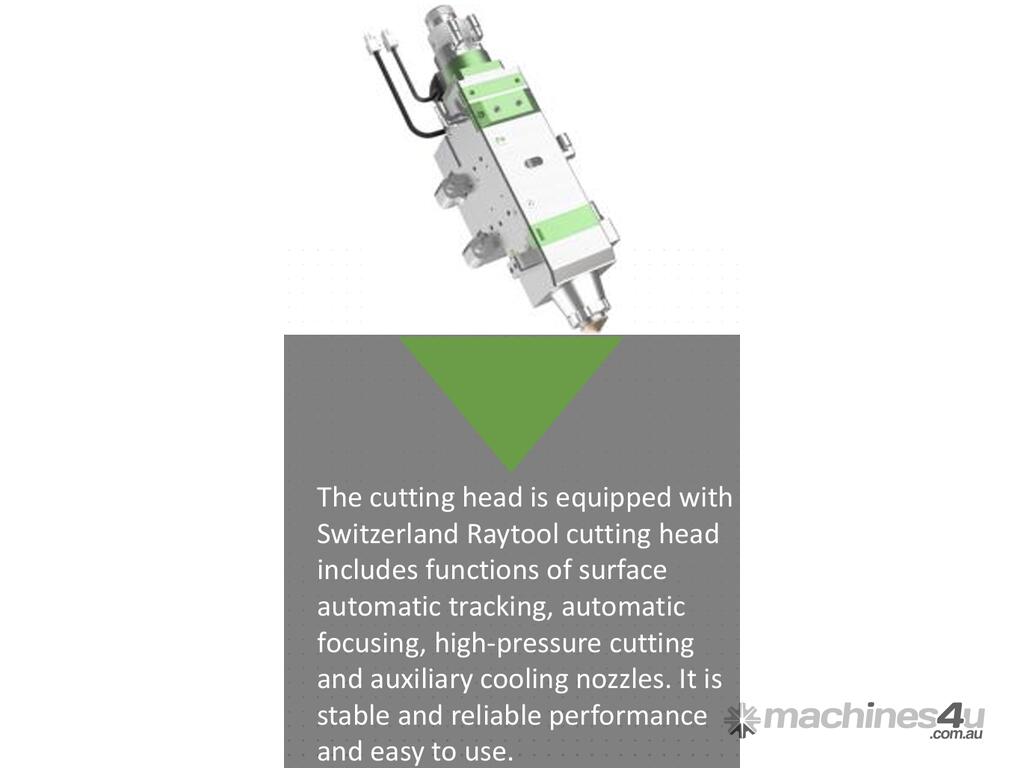

• Laser Cutting Head: Raytools (Switzerland)
• Chiller: Teyu or Tongfei
• Rack & Pinion: YTC (Taiwan)
• Reducer / Decelerator: ROUST (Germany)
• Linear Guide Rails: ROUST (Germany)
• Pneumatic System: SMC (Japan)
• Electrical Components: Schneider (France)

Machine Specifications

Working Area: 1530 mm × 3050 mm

• X-axis running area: 1510 mm
• Y-axis running area: 3050 mm
• Z-axis running area: 320 mm

Maximum Running Speed: 140 m/min
Acceleration: 1.5G

Position Accuracy: ±0.03 mm
Repeat Position Accuracy: ±0.02 mm

Power Supply: 3 Phase 380V ±5% / 50Hz

Machine Size: 11000 × 2315 × 2000 mm

Laser Cutting Software

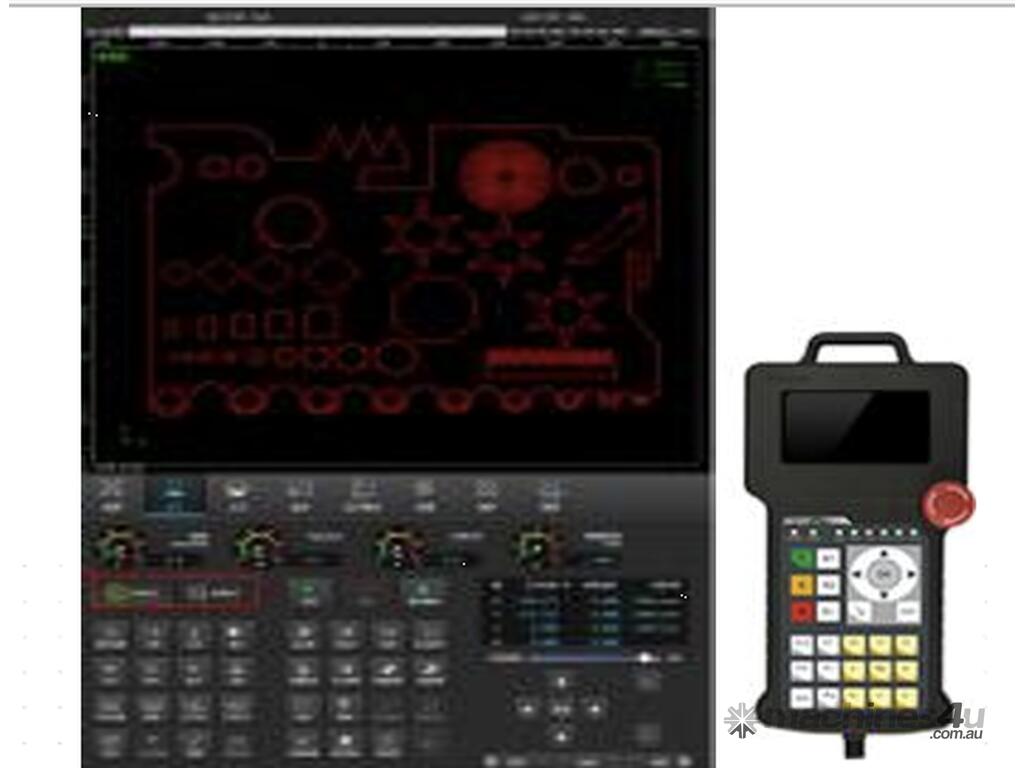

The machine includes advanced laser cutting software powered by a high-performance industrial PC, allowing operators to easily design or process graphics and text.

The system optimises cutting paths and improves overall production efficiency.

A hand-held controller is also included for manual test cuts, severance cuts and servicing tasks.

Optional Equipment

Optional equipment available at additional cost:

• Voltage stabiliser power supply
• Fume extraction unit
• Compressed air system
• Material lifting system (500 kg)

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Machine pricing and availability
• Delivery and installation
• Additional laser sizes and power options
• Operator training and technical support
