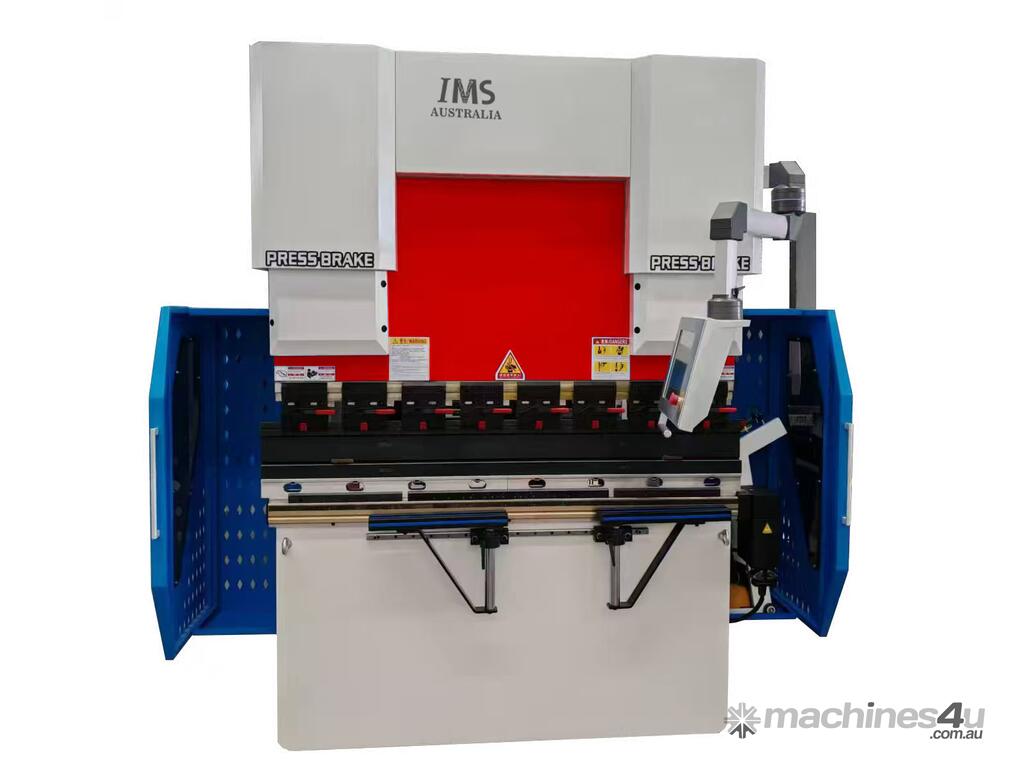

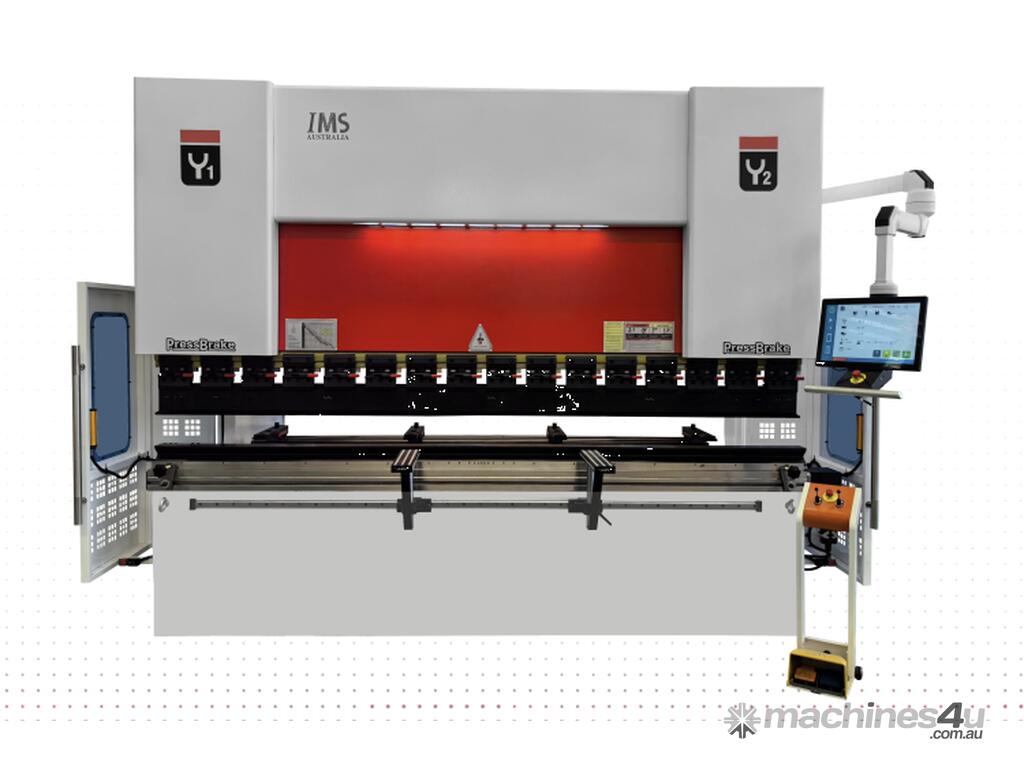

IMS CNC Servo Press Brake – 1600 mm x 40T | 4+2 Axis CNC Press Brake

Compact CNC Press Brake for Precision Sheet Metal Fabrication

The IMS CNC Servo-Hydraulic Press Brake is designed for workshops requiring a compact, high-precision CNC bending machine for light to medium sheet metal fabrication.

Supplied by A&S Machinery Sales Pty Ltd, this machine combines advanced servo-hydraulic technology with a powerful CNC control system to deliver reliable and repeatable bending accuracy.

With a 1600 mm bending length and 40-ton capacity, the IMS press brake is ideal for fabrication shops producing smaller components while maintaining high levels of precision and efficiency.

Machine Specifications

Model: IMS-CNC
Bending Length: 1600 mm
Press Force: 40 Ton
Axis Configuration: 4 + 2 Axis

• 4 Axis: Y1, Y2, X, R
• 2 Electric Axes: Z1 and Z2 back gauge fingers

Key Features

• Servo electro-hydraulic drive system
• IMS-DE18 CNC control system
• Full safety system for operator protection
• High precision bending performance
• Automatic side frame deflection compensation
• Dynamic pressure regulation
• Heavy-duty CNC back gauge system
• Electrically driven Z1 and Z2 fingers

Premium Components

The IMS press brake is equipped with high-quality components from leading international manufacturers:

• Electrical components: Schneider (France)
• Hydraulic system: BOSCH-Rexroth (Germany)
• Grating rulers: GV (Italy)
• Hydraulic pump: SYUNY (USA)
• Seal components: NOK / SKF / Parker
• Ball screws and linear guides: HiWIN

These premium components ensure stable machine performance and long service life.

Tooling and Back Gauge

• Fast tooling clamp with tooling load protection
• Table height: 900 mm
• Multi single-V die or double-V die options
• Heavy-duty CNC back gauge with X and R axes
• Electrically driven Z1 and Z2 back gauge fingers

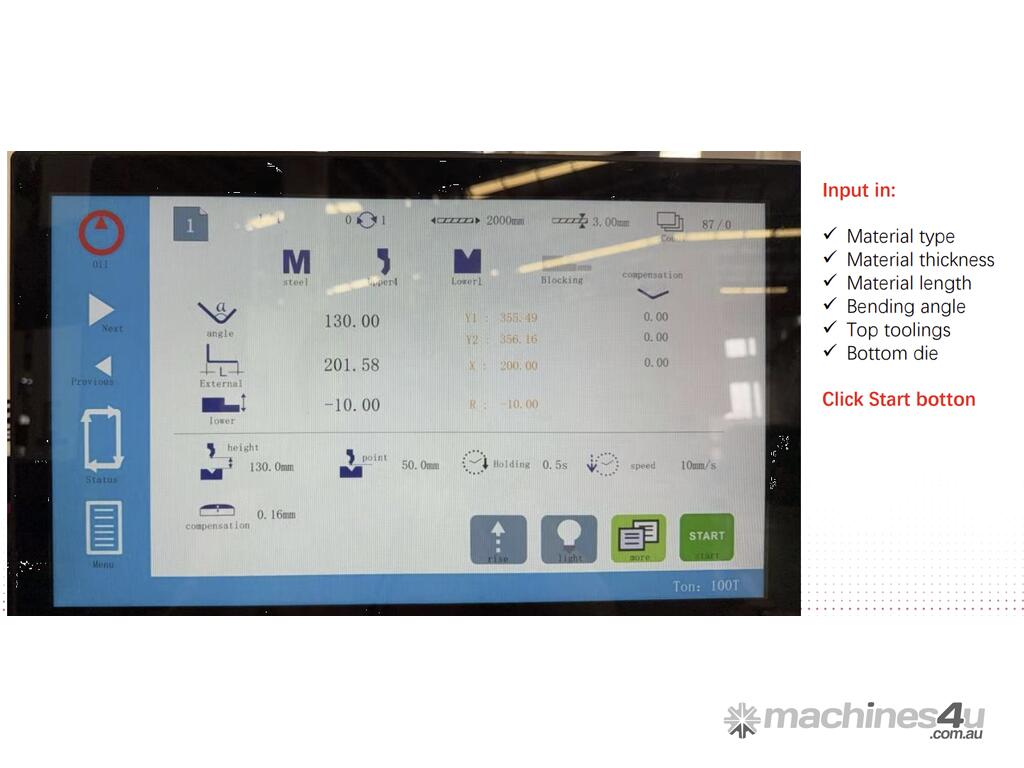

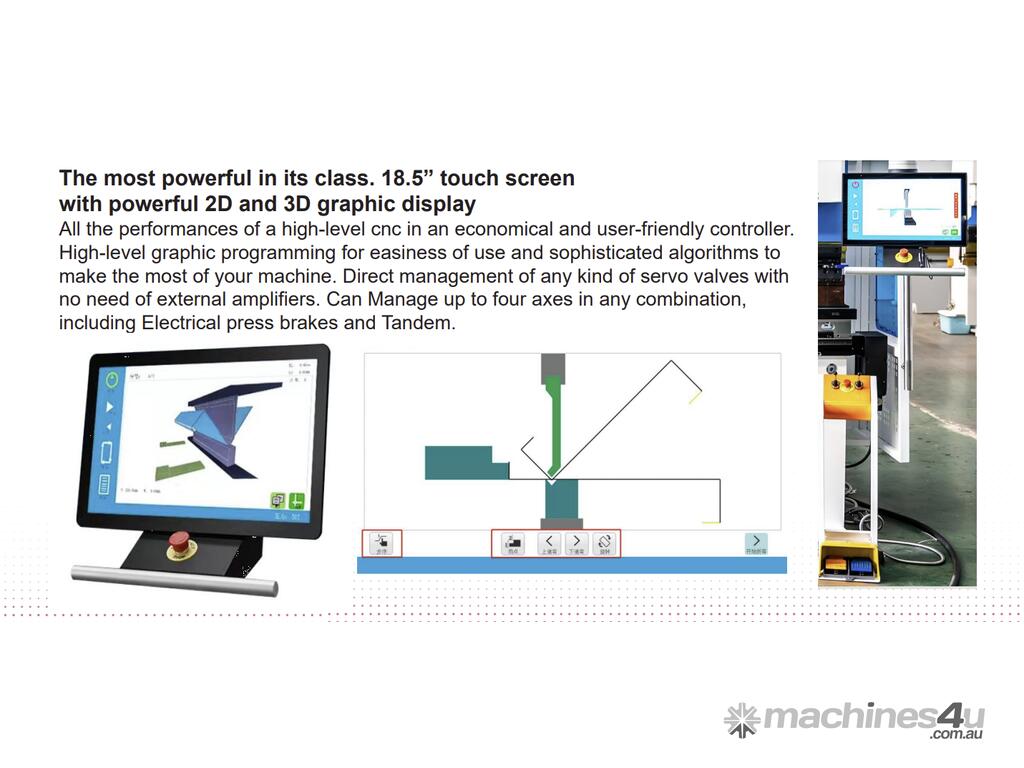

Advanced CNC Control

The IMS-DE18 CNC control system, customised by IMS Australia, allows operators to easily program bending sequences and maintain high accuracy during production.

Enquire Now

Contact A&S Machinery Sales Pty Ltd to discuss:

• Pricing and availability
• Other press brake sizes available
• Delivery throughout Australia and New Zealand
• Installation and operator training
